MID-785 - Graphic tablet Laser - Free user manual and instructions

Brand	Laser
Model	MID-785
Product Type	Graphic Tablet
Active Area	10 x 6.25 inches (254 x 159 mm)
Dimensions	14.2 x 9.4 x 0.4 inches (360 x 240 x 10 mm)
Weight	1.1 lbs (500 g)
Power Source	USB bus-powered
Connectivity	USB 2.0 (Type-A to Micro-B)
Pressure Levels	8192
Resolution	5080 LPI
Report Rate	266 RPS
Pen Buttons	2 side buttons
Tablet Shortcuts	6 express keys
Compatible Systems	Windows 7/8/10/11, macOS 10.12+, Android (with OTG)
Functions	Drawing, sketching, photo editing, 3D modeling, note-taking
Included Accessories	Battery-free pen, USB cable, pen stand, replacement nibs (8), driver CD, user manual
Maintenance	Clean with soft, dry cloth; avoid solvents; store in dry place
Safety	Do not expose to moisture, extreme temperatures, or direct sunlight
Spare Parts	Pen (model LP-181), USB cable, nibs available from manufacturer
Repairability	Designed for easy pen nib replacement; other repairs by service center
General Information	Battery-free electromagnetic resonance technology; plug-and-play on supported systems; customizable shortcut keys

Frequently Asked Questions - MID-785 Laser

How do I set up the Laser MID-785 graphic tablet?

Connect the tablet to your computer via USB. Install the driver from the included CD or download the latest driver from the Laser support website. The tablet is plug-and-play for basic functions on Windows/macOS.

Is the Laser MID-785 compatible with Android devices?

Yes, it supports Android devices with USB OTG support. Use a compatible OTG cable or adapter. Some drawing apps may require enabling input in app settings.

How do I replace the pen nib?

Use the nib removal tool (usually included in the pen stand) to grip and pull out the old nib. Insert a new nib by pushing it straight into the pen until it clicks.

Why is my tablet not recognized by the computer?

Ensure the USB cable is securely connected. Try a different USB port. If using Windows, check Device Manager for driver issues. Reinstall the latest driver from the manufacturer's website.

Can I use the tablet without installing the driver?

Basic mouse-like functions work without drivers, but for full pressure sensitivity, shortcut keys, and proper calibration, install the official driver.

How many pressure levels does the MID-785 support?

The tablet supports 8192 levels of pressure sensitivity, providing fine control for drawing and shading.

What should I do if the pen stops working?

First, check if the pen is being detected by the tablet (cursor moves when pen is near). If not, restart the computer and reconnect the tablet. Replace the nib if worn. If still issues, contact support for a replacement pen.

How do I clean the tablet surface?

Use a soft, lint-free cloth slightly dampened with water or a mild cleaning solution. Avoid abrasive cleaners or excessive moisture. Gently wipe the surface and dry immediately.

Can I customize the express keys?

Yes, after installing the driver, open the tablet settings panel. You can assign shortcuts like Undo, Zoom, Brush size to each of the 6 express keys.

Where can I find spare parts like a replacement pen?

Contact Laser customer support or visit the official Laser parts store online. The pen model is LP-181. Additional nibs are also available.

USER MANUAL MID-785 Laser

10:00 FRI, OCT 10

MID-785 / MID-1085

CPU CPU CPU CPU QUAD CORE 16GB STORAGE TOUCH SCREEN CAMERA BLUETOOTH WI-FI

CONTENTS

Important Safety Instructions and Precautions ____ 1

MID-785 Appearance and Buttons 2

MID-1085 Appearance and Buttons 3

Accessories 3

Turning On and Off 4

Battery Charging 4

Run Time 4

5 Point Touch Screen 4

Sleep Mode 4

Lock/Unlock 5

Home Screen Icons 5

View All Apps 6

Apps Icons 6

Notification Menu Bar 7

Shortcut Menu Bar 7

Settings - Wi-Fi 8

Connecting to PC/ Mac via USB 8

Why Create a Google™ Account 9

Google Play Store 9

Specifications 9

FAQ 10

Warranty Against Defects 11

IMPORTANT SAFETY INSTRUCTIONS AND PRECAUTIONS

• Read all instructions carefully before use.
• Retain this manual for future reference.
  • Use this product only in the manner described.
• Only use a water-dampened soft-cloth to clean the surface of this product.
• The following will damage this product: water or moisture ingress, exposure to prolonged extreme heat or cold; excessive humidity, dust or sandy.
• It is recommended to thoroughly charge the device for the first time. Subsequent charges can be as needed. During charging, or extended use, the product may become warm.
  • There are no user serviceable parts in this product.
• Un-authorized attempts to dismantle or repair this product will void product warranty and may result in dangerous electric shock.
• Remove data cable by pulling it from the plug, not from the cord.

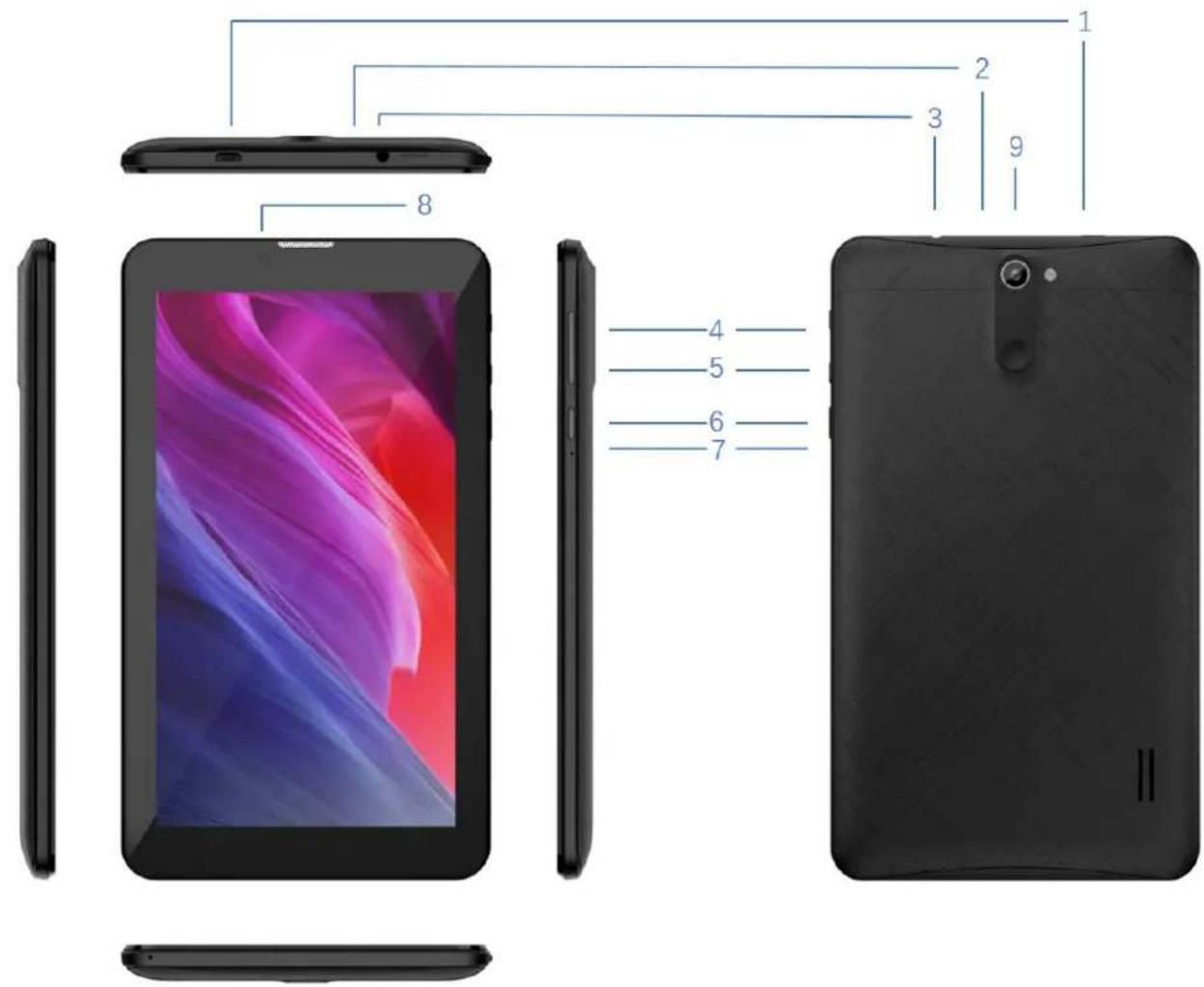

MID-785: APPEARANCE AND BUTTONS

Diagram of a smartphone showing front, back, and internal components with numbered labels

Number	Description
1 Micro USB interface (Data Transfer, Charging, USB Storage flash drive).
2	(Internal) Micro SD Card slot (Supports cards up to 64GB)
3	Stereo Earphone Socket (3.5mm Jack)
4	Volume Up
5	Volume Down
6	On / OFF button (*Press and hold to turn ON and OFF)
7	Reset button
8	Front mount camera
9	Rear camera

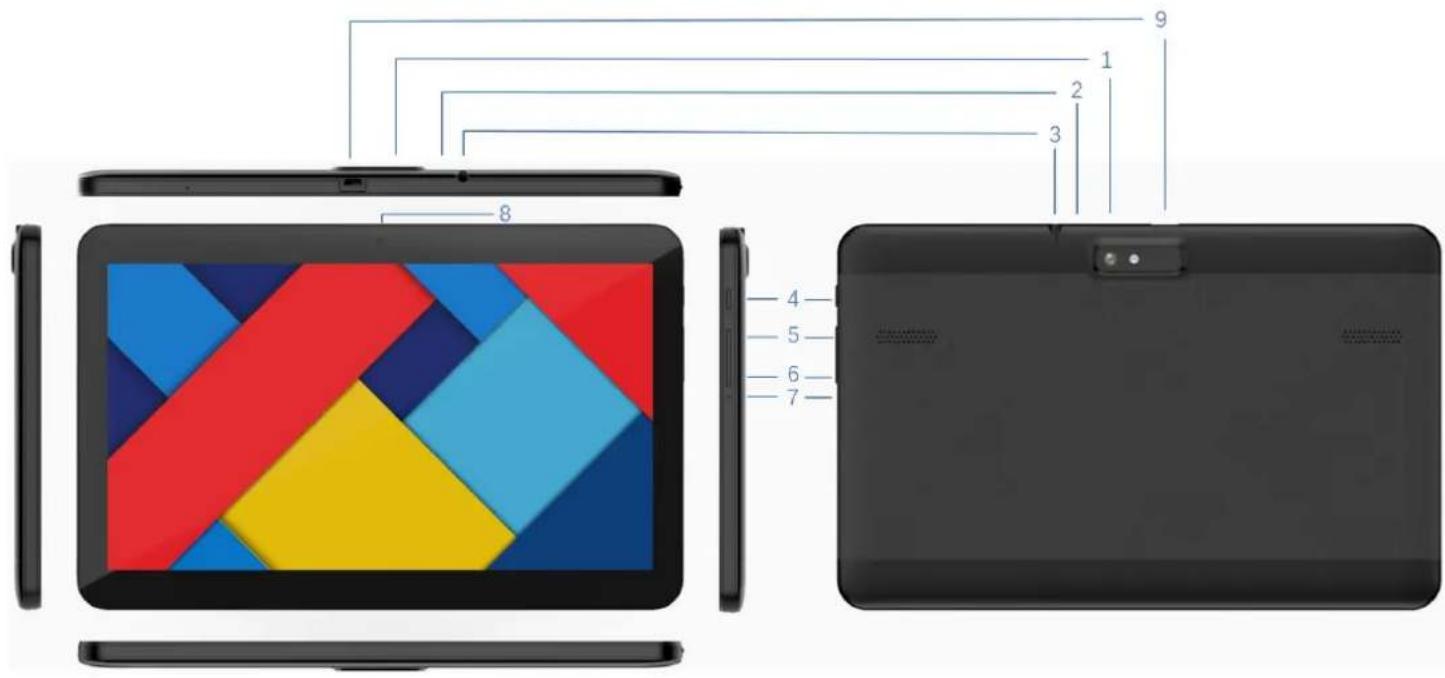

MID-1085: APPEARANCE AND BUTTONS

Diagram of a tablet device with labeled parts from 1 to 9, showing front, back, and internal color scheme.

Number	Description
1	Rear camera
2	(Internal) Micro SD Card slot (Supports cards up to 64GB)
3	Stereo Earphone Socket (3.5mm Jack)
4	On / OFF button (*Press and hold to turn ON and OFF)
5	Volume Up
6	Volume Down
7	Reset button
8	Front mount camera
9	Micro USB interface (Data Transfer, Charging, USB Storage flash drive).

ACCESSORIES

1 x MID Tablet, 1 x Micro USB/DATA cable, 1 x User Guide

TURNING ON AND OFF

To turn ON, PRESS and HOLD the POWER button until the screen turns ON.

To turn OFF, PRESS and HOLD the POWER button until the power screen appears. Then select Power Off.

Note: At any time you can press the POWER BUTTON to enter Snooze mode or to wake from Snooze mode.

BATTERY CHARGING

Connect your tablet to any USB charging socket (Wall adapter or PC), using the supplied USB/DATA cable.

OR

You will be alerted when the battery charge falls below 15%. If the battery is completely depleted your tablet will automatically turn off.

Note: If the battery has been completely exhausted, it may take a few minutes to switch on once charging has begun. Your tablet can be used during charging however this may increase the time needed to fully charge the battery.

RUN TIME

Run time of portable devices including your tablet can be extended by reducing the screen brightness, turning off Bluetooth function, turning off the Location function, turning off WiFi when not in use, turning off Apps that are not required and manually turning the screen off using the power button when not in use.

5 POINT TOUCH-SCREEN

Your tablet has 5 different touch screen behaviours.

1- TAP Tap once to select or start a function, option or application
2- TAP and HOLD Tap and hold to select or start a function
3- DRAG and DROP Tap then drag an item and drop it to a location
4- DOUBLE TAP Double Tap an item twice to select or start a function
5- SLIDE/SWIPE Tap then slide an item up, down, left or right

SLEEP MODE

During prolonged inactive use where no buttons have been pressed, the screen will turn off automatically to conserve power. Press the POWER button to wake your tablet.

Note: This can be adjusted in Display option under Settings.

LOCK / UNLOCK

When your tablet is in sleep mode, press the POWER button to show the unlock screen. Swipe up to unlock

Note: Some of the following images may be different from the actual product supplied.

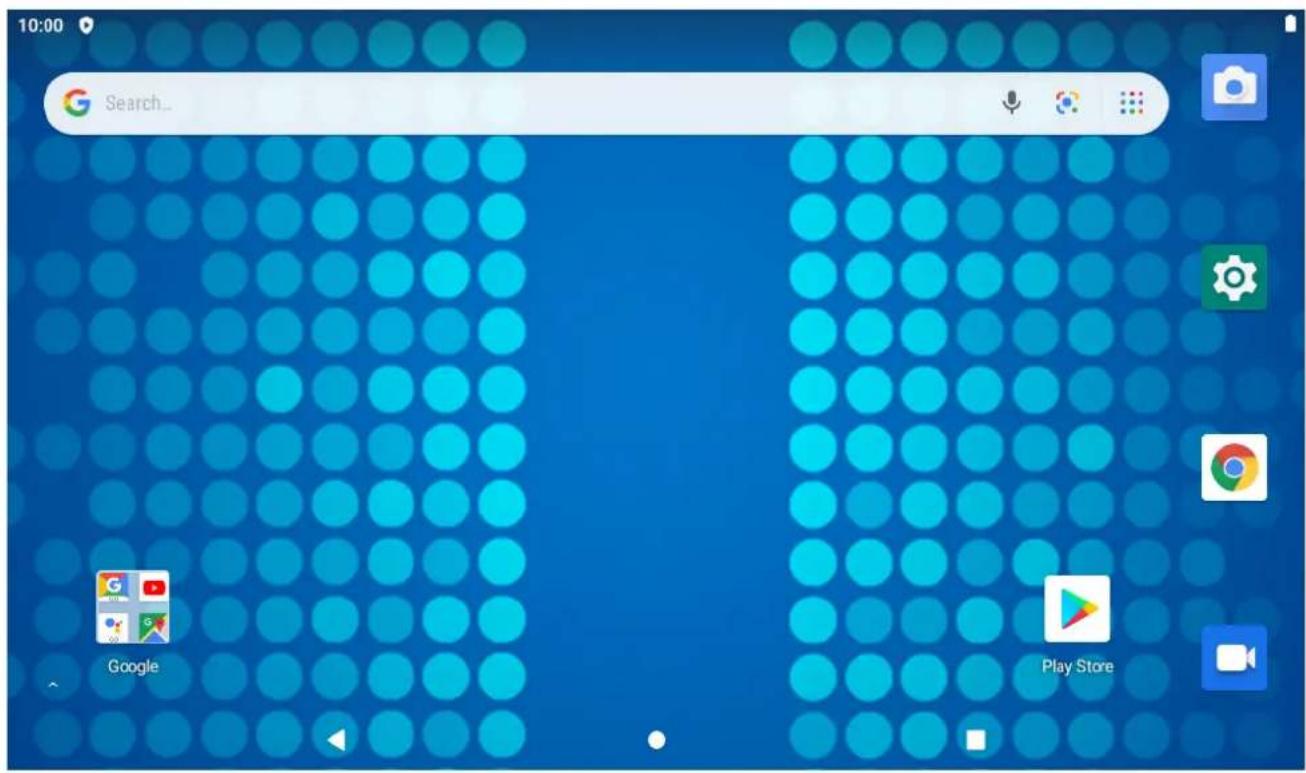

HOME SCREEN ICONS

10:00 Search... Google Play Store

Icon	Function
^	View all apps
◀	Back
●	Home
■	Open a list of recently used applications

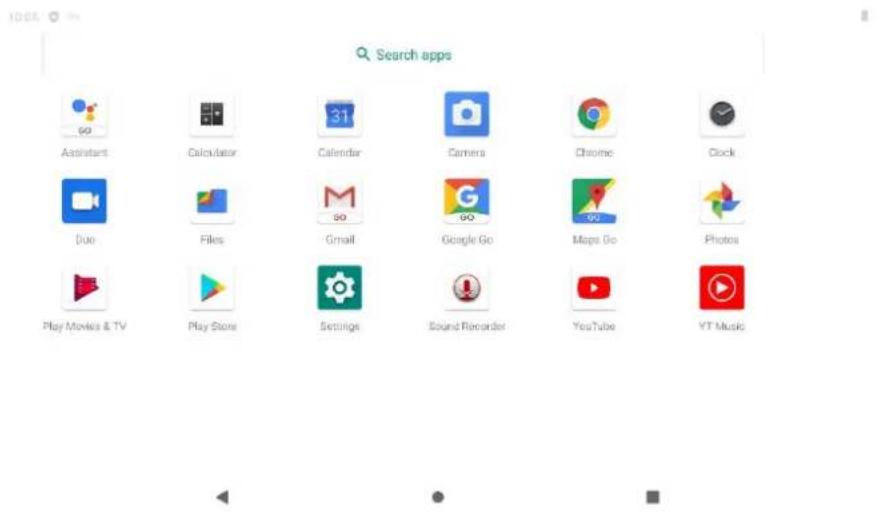

VIEW ALL APPS

On the Home page, swipe up to view all the installed apps on your tablet

Search apps Assistant Calculator Calendar Camera Chrome Clock Due Files Gmail Google Go Maps Go Photos Play Movies & TV Play Store Settings Sound Recorder YouTube VT Music

APPS ICONS

Note: Some of the following images may be different from the actual product supplied.

	Google Assistant		Photos, a smart, light and fast photo and video gallery built by Google
	Calculator provides simple and advanced mathematical functions		Gmail^TM is an easy-to-use email app
	Google Calendar, to save time and make the most of every day.		Google Go is a lighter, faster way to search, with search results optimised
	Camera, to take fantastic pictures and videos		Google Maps Go is the lightweight Progressive Web App
	Google Chrome^TM is a fast, easy to use, and secure web browser		Google Play Movies & TV allows you to watch movies and TV shows purchased or rented on Google Play
	Clock combines all of the functionality you need into one simple, beautiful package.		Play Store, It serves as the official app store for the Android operating system
	Google Duo is the highest quality video calling app		Settings makes a quick access to all your device settings
	Files by Google is a file management app		Sound Recorder is the best recorder for sound recording with high quality
	YT Music is a new music app		YouTube^TM , to see what the world is watching

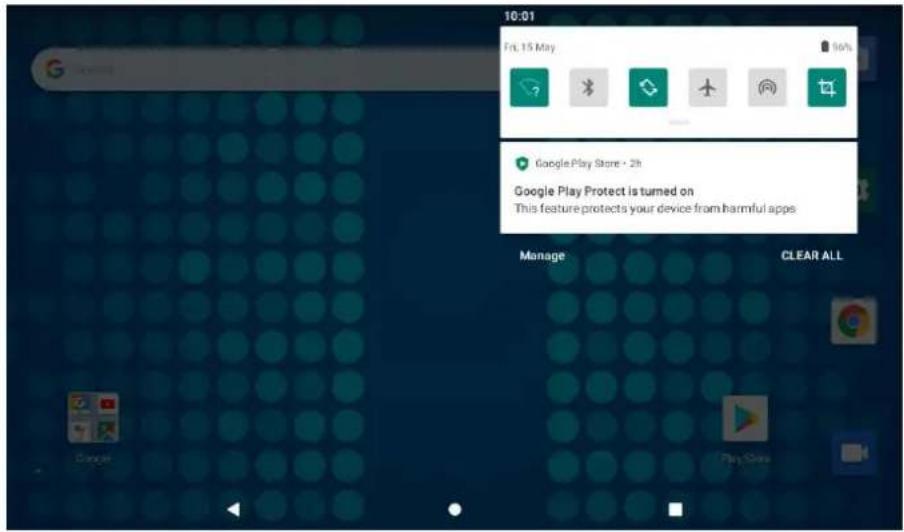

NOTIFICATION MENU BAR

Swipe down over the Notification Menu Bar (top of the screen) to bring up any notifications you may have.

10:01 Fri, 15 May Google Play Store • 2h Google Play Protect is turned on This feature protects your device from harmful apps Manage CLEAR ALL

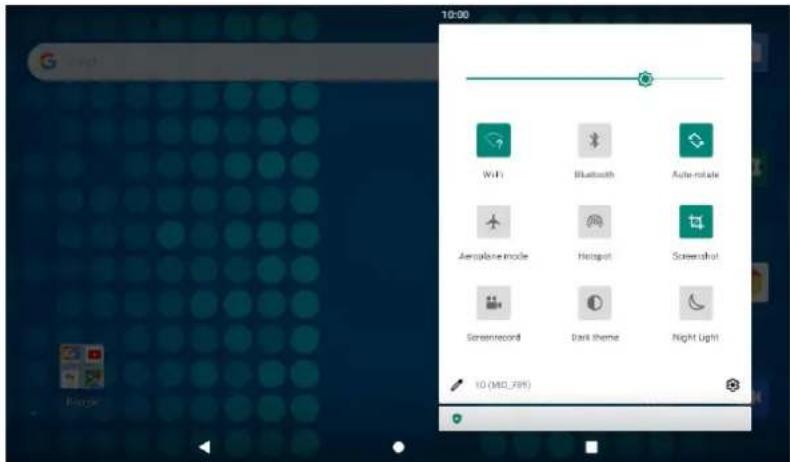

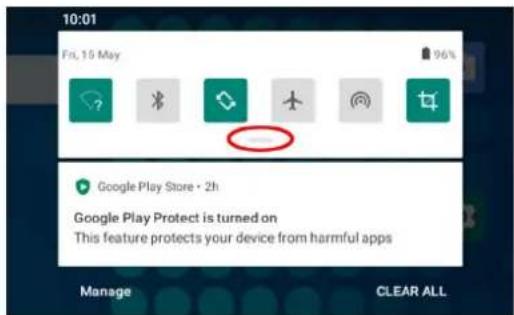

SHORTCUT MENU BAR

Press the drop down bar (in red circle) in the NOTIFICATIONS MENU bar to display your shortcuts menu such as: Battery Saver, Wi-Fi, Location, Bluetooth, Screenshot, Aeroplane mode, etc.

10:01 Fri, 15 May 96% Google Play Store • 2h Google Play Protect is turned on This feature protects your device from harmful apps Manage CLEAR ALL

10:00 WiFi Bluetooth Auto-rotale Aerospace mode Hotspot Screencloud Dark theme Night Light 10 (MID_795)

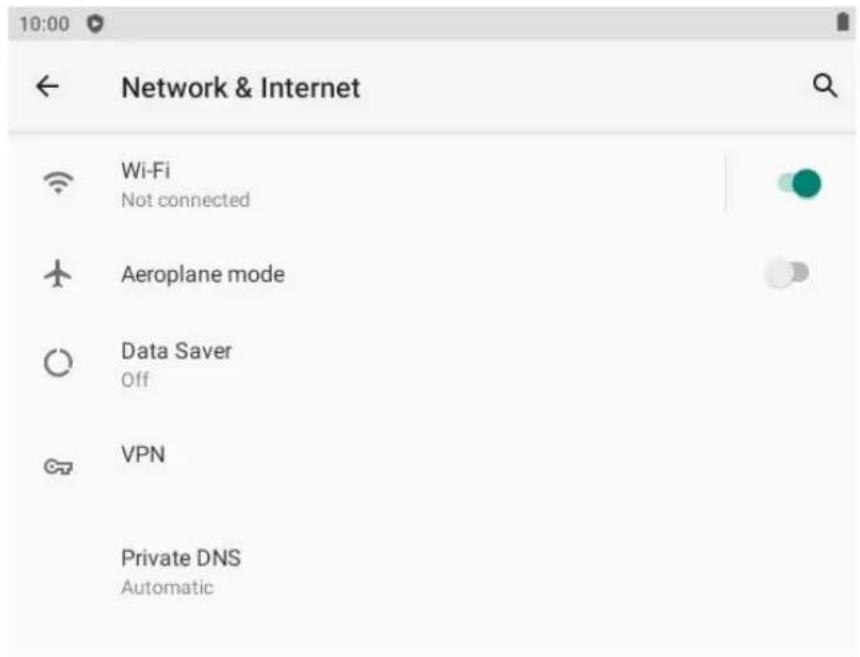

SETTINGS

Wi-Fi

Note: a WiFi connection is required if connecting to the internet (for email, Play Store App or web browsing)

Follow the steps below to connect to Wi-Fi:

Settings > Network & Internet > Wi-Fi

10:00 ← Network & Internet Wi-Fi Not connected Aeroplane mode Data Saver Off VPN Private DNS Automatic

Tap the desired NETWORK name. If this NETWORK connects successfully, "Connected" will appear. If the NETWORK is encrypted, enter the password then tap "Connect".

Your Tablet will indicate when the NETWORK connection is ready for use when the WiFi icon appears on the top right notification bar.

10:00

CONNECTING TO A PC / MAC VIA USB

Connect the USB cable to your Tablet and PC/MAC, making sure you are using the correct MICRO USB cable supplied.

WHY CREATE A GOOGLE ACCOUNT

Creating a Google account allows you to talk, chat, share, schedule, store, organize, collaborate, discover, and create online. A Google account also provides user level access to Gmail and YouTube which are all backed up online and accessible online via the cloud.

Google Play Store

Open the PLAY STORE APP and set up your account. If you have an existing account select EXISTING, otherwise choose NEW to create a new account and follow the set-up steps.

SPECIFICATIONS

Operation System:	Android^TM 10.0 (Go edition)
Size	MID-785: 189.6 x 110 x 12.2mm
	MID-1085: 251 x 160 x 11.3mm
CPU processor type:	Quad Core
Memory:	16GB
RAM:	DDR3 1GB
TF card:	128M-64G
Display screen:	MID-785: 7.0" Capacitive multi-touch TN TFT
	MID-1085: 10.1" Capacitive multi-touch TN TFT
Resolution:	MID-785: 1024 x 600
	MID-1085: 1024 x 600
Battery and capacity:	MID-785: Rechargeable Li-ion Poly 2000MAh
	MID-1085: Rechargeable Li-ion Poly 5000MAh
Camera Resolution: 0.3MP (Front mount), 2.0MP (Rear Mount)
Screen auto orientation: G-sensor 3D
Voice Recording Built-in microphone
Supported file types: Video format: avi, mov, mp4, 3gp, flvAudio format: mp3, flac, aac, wav, m4a(To play other formats, you will need to download the App that supports the format you intend to play)

Google, Android, Google Play, YouTube and other marks are trademarks of Google LLC.

The Android robot is reproduced or modified from work created and shared by Google and used according to terms described in the Creative Commons 3.0 Attribution License.

FAQ

I can't turn my tablet ON?	1.Ensure your tablet is charged2. Connect the power adaptor, and then check again after sufficient charge time3. Reset the device using the reset button
I can't hear anything through my headset, or the sound quality is very bad	1. Ensure speakers are not obstructed eg. Laying flat on a table1.Please ensure volume is turned up2. Check the music file on another device to make sure it is not damaged.3. Try using another pair of headphones
I can't copy files or play music	1.Please check the connection to you computer2.Ensure there is enough spare memory3.Check the USB cable is not damaged using another device4.Check the USB connection is inserted correctly
My tablet displays a network or service error message	1. Check the strength of the WiFi signal2. Check that the WiFi service is available and operating correctly3. When using apps like Face Book and Play Store App (with a lot of content) for the first time, a few extra minutes will be required to load all the content.
My touch screen is slow and not working correctly	1. Make sure the protective film has been removed from the screen2. Ensure that your fingers are dry and clean.3. Restart your tablet4. Ensure the touch screen is not scratched or damaged
My tablet is frozen or a severe error has occurred	1. Try closing Apps or resetting2. Restore or reset the tablet to factory default settings via the settings menu.3. Reset the device using the reset button
My tablet becomes hot when is use or while charging	1. Some applications can consume more power than others causing the tablet to become warm while in use or if used for extended amounts of time. This is normal and won't affect the life or performance of your tablet.
An error occurs when I open my music files	1. Remove some files to make more storage space2. Make sure the music files aren't protected by digital rights management (DRM). If the files have DRM protection, make sure that you have the license or key.3. Make sure that file type is compatible.
The available memory on my tablet is less than 16GB. Why is that so?	Some of this space is required to pre-load Apps and other Software. Space is required for the OS (Operating System).
My MID tablets internal memory is almost full; can I install or move the Apps to external SD card?	Latest Android OS will only allow apps to be installed on internal memory. To free up the internal space: 1) Uninstall some un-used apps. 2) Move photos, music or video files to SD card.
My tablet screen has cracked; will it be covered by warranty?	No, physical damage is not covered by warranty.
I can't find the Micro SD card socket	Please remove the top housing section by accessing the SD Card Release Panel Access Point. Please refer to the Appearance and buttons section of this manual.

For further product information and instructions please visit our product web page at www.laserco.com.au

Please note: As continuous improvements are made to this product, slight operational differences may occur. For the most up-to-date user manual, please visit our web site.

Warranty Against Defects

Laser Corporation Pty Ltd ("Laser") warrants your new product to be free from defects in materials and workmanship for 12 months, from the date of purchase, provided that the product is used in accordance with accompanying recommendations or instructions where provided. The benefit of this warranty is in addition to your rights under the Australian Consumer Law and to other rights and remedies of the consumer under a law in relation to the goods or services to which the warranty relates.

Through a network of retailers and resellers, Laser will provide you with your choice of a repair, exchange (where possible) or refund (within Dead on Arrival period) for this product if it becomes defective within the warranty period.

This warranty will no longer apply where the defect is a result of alteration, accident, misuse, abuse, normal wear and tear, neglect or improper storage.

Please retain your receipt as proof of purchase.

How to make a product warranty claim:

Step 1: Find your receipt which proves the date of purchase. Where the date of purchase cannot be verified, your place of purchase or Laser will make an assessment based on the date of manufacture, the condition of the Laser product and the type of defect.

Step 2a): Contact your place of purchase. They will assess the nature of the fault and repair, replace or refund the product as per their store refund or warranty policy.

Step 2b): If your place of purchase cannot be contacted, then you can contact Laser Customer Service with details of your defective Laser Product Phone [phone]; or Email: [e-mail] or online www.laserco.com.au/warranty (click on “Consumers (End Users)”). Our business address is: Unit 1/6-8 Byfield Street, North Ryde, NSW 2113

Step 3: Laser will issue you with a Return Authorisation (RA) number within 48 hours. When requested, send us the defective product and a copy of your receipt. Laser will cover the cost of the return delivery.

Step 4: Wait for us to contact you. Once we have received your defective Laser product for inspection, we will inform you of our assessment of your claim within 7 days. When we contact you, we will firstly let you know whether you have a valid claim under this Warranty, and if so, we will inform you whether your defective Laser product will be replaced or repaired, together with the number of days you can expect to wait to receive your replaced or repaired Laser product.

Step 5: For further details on warranty cover and returns, please check Terms and Conditions for Warranty Returns section at www.laserco.com.au/warranty (Consumers Section).

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
