USER MANUAL MID-787 Laser

9:00 MON, JAN 1 Google Play Store LASER

Android robot holding a slice of jam or sour, next to a pie chart (no text or symbols visible)

CPU CPU CPU CPU QUAD CORE 8GB STORAGE TOUCH SCREEN CAMERA BLUETOOTH WI-FI

TABLE OF CONTENTS

MID-787: APPEARANCE AND BUTTONS 4

MID-1087: APPEARANCE AND BUTTONS 5

ACCESSORIES 6

TURNING ON AND OFF 6

BATTERY CHARGING 6

RUN TIME 6

5 POINT TOUCH-SCREEN 6

SLEEP MODE 6

LOCK / UNLOCK 7

HOME SCREEN ICONS 7

VIEW ALL APPS 8

APP ICONS 8

WIDGETS 9

NOTIFICATION MENU BAR 9

SHORTCUT MENU BAR 9

SETTINGS - WI-FI 10

CONNECTING TO A PC / MAC VIA USB 10

WHY CREATE A GOOGLE™ ACCOUNT 11

PLAY STORE APP 11

SPECIFICATIONS 11

FAQ 12

IMPORTANT SAFETY INSTRUCTIONS AND PRECAUTIONS

• Read all instructions carefully before use.
• Retain this manual for future reference.
  • Use this product only in the manner described.
• Only use a water-dampened soft-cloth to clean the surface of this product.
• The following will damage this product: water or moisture ingress, exposure to prolonged extreme heat or cold; excessive humidity, dust or sandy.
• It is recommended to thoroughly charge the device for the first time. Subsequent charges can be as needed. During charging, or extended use, the product may become warm.
  • There are no user serviceable parts in this product.
• Un-authorized attempts to dismantle or repair this product will void product warranty and may result in dangerous electric shock.
• Remove data cable by pulling it from the plug, not from the cord.

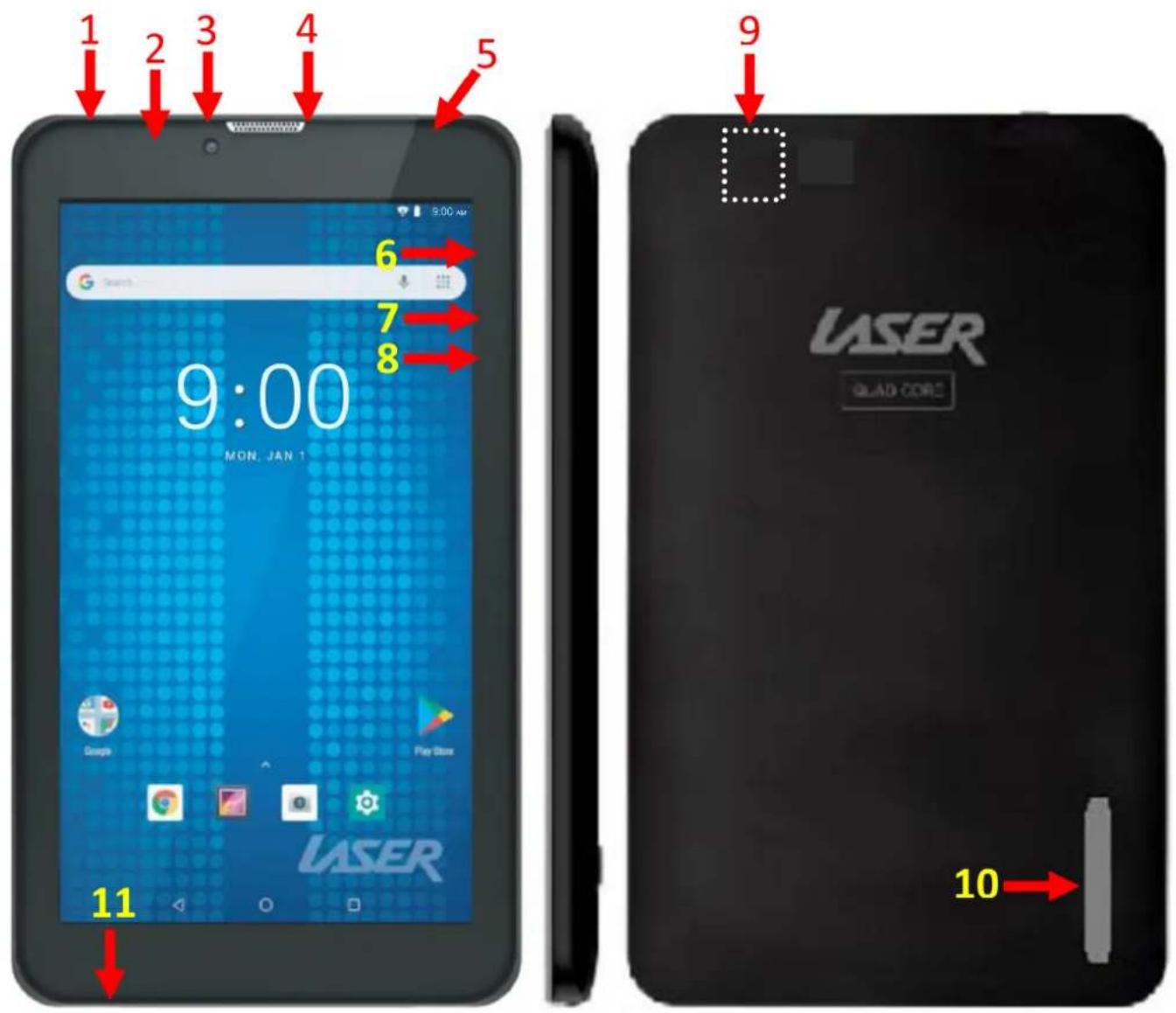

MID-787: APPEARANCE AND BUTTONS

1 2 3 4 5 6 7 8 9 10 11 9:00 MON. JAN 1 Laser GLAD CORE

Number	Description
1	Micro USB interface (Data Transfer, Charging, USB Storage flash drive).
2	Front mount camera
3	Internal speakers
4	Stereo Earphone Socket (3.5mm Jack)
5	SD Card Release Panel Access Point
6	Volume Up / Volume Down
7	On / OFF button (*Press and hold to turn ON and OFF)
8	Reset button
9	(Internal) Micro SD Card slot (Supports cards up to 32GB)
10	Internal speakers
11	Microphone

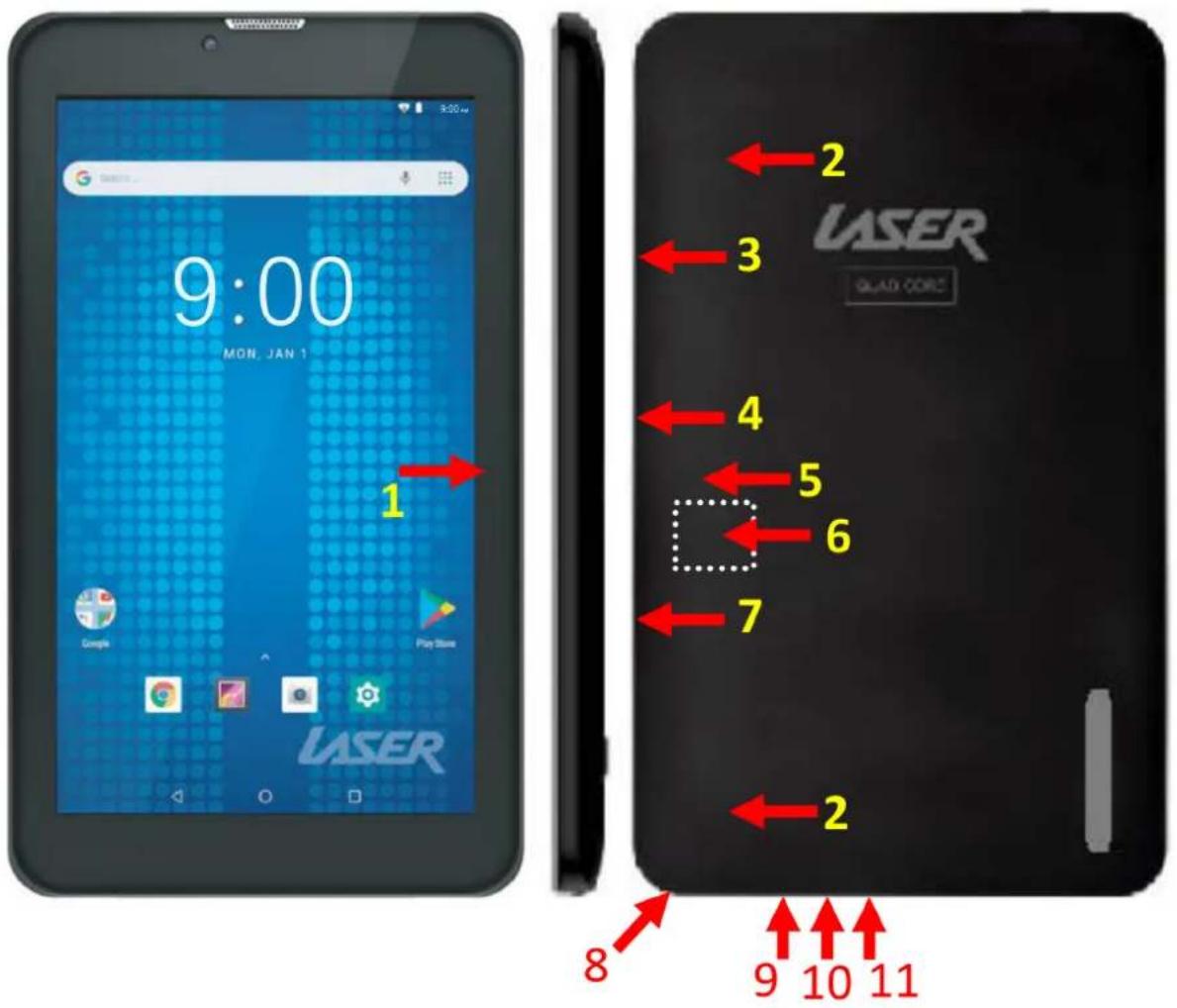

MID-1087: APPEARANCE AND BUTTONS

9:00 MON, JAN 1 1 Google Play Store LASER 2 3 LASER GLAD CORE 4 5 6 7 8 9 10 11

Number	Description
1	Front mount camera
2	Internal speakers
3	Reset button
4	Micro USB interface (Data Transfer, Charging, USB Storage flash drive).
5	Rear mounted camera
6	Internal Micro SD card slot. (Supports cards up to 32GB)
7	Stereo Earphone Socket (3.5mm Jack)
8	SD Card Release Panel Access Point
9	On / OFF button (*Press and hold to turn ON and OFF)
10	Volume Up / Volume Down
11	Microphone

ACCESSORIES

1 x MID Tablet, 1 x Micro USB/DATA cable, 1 x User Guide

TURNING ON AND OFF

To turn ON, PRESS and HOLD the POWER button until the screen turns ON.

To turn OFF, PRESS and HOLD the POWER button until the power screen appears. Then select Power Off.

Note: At any time you can press the POWER BUTTON to enter Snooze mode or to wake from Snooze mode.

BATTERY CHARGING

Connect your tablet to any USB charging socket (Wall adapter or PC), using the supplied USB/DATA cable.

OR

You will be alerted when the battery charge falls below 15%. If the battery is completely depleted your tablet will automatically turn off.

Note: If the battery has been completely exhausted, it may take a few minutes to switch on once charging has begun. Your tablet can be used during charging however this may increase the time needed to fully charge the battery.

RUN TIME

Run time of portable devices including your tablet can be extended by reducing the screen brightness, turning off Bluetooth function, turning off the Location function, turning off WiFi when not in use, turning off Apps that are not required and manually turning the screen off using the power button when not in use.

5 POINT TOUCH-SCREEN

Your tablet has 5 different touch screen behaviours.

1-TAP Tap once to select or start a function, option or application

2- TAP and HOLD Tap and hold to select or start a function

3-DRAG and DROP Tap then drag an item and drop it to a location

4-DOUBLE TAP Double Tap an item twice to select or start a function

5-SLIDE/SWIPE Tap then slide an item up, down, left or right

SLEEP MODE

During prolonged inactive use where no buttons have been pressed, the screen will turn off automatically to conserve power. Press the POWER button to wake your tablet.

Note: This can be adjusted in Display option under Settings.

LOCK / UNLOCK

When your tablet is in sleep mode, press the POWER button to show the unlock screen. TAP and HOLD the LOCKED padlock icon, drag it to the UN-LOCKED padlock icon, then release.

Note: Some of the following images may be different from the actual product supplied.

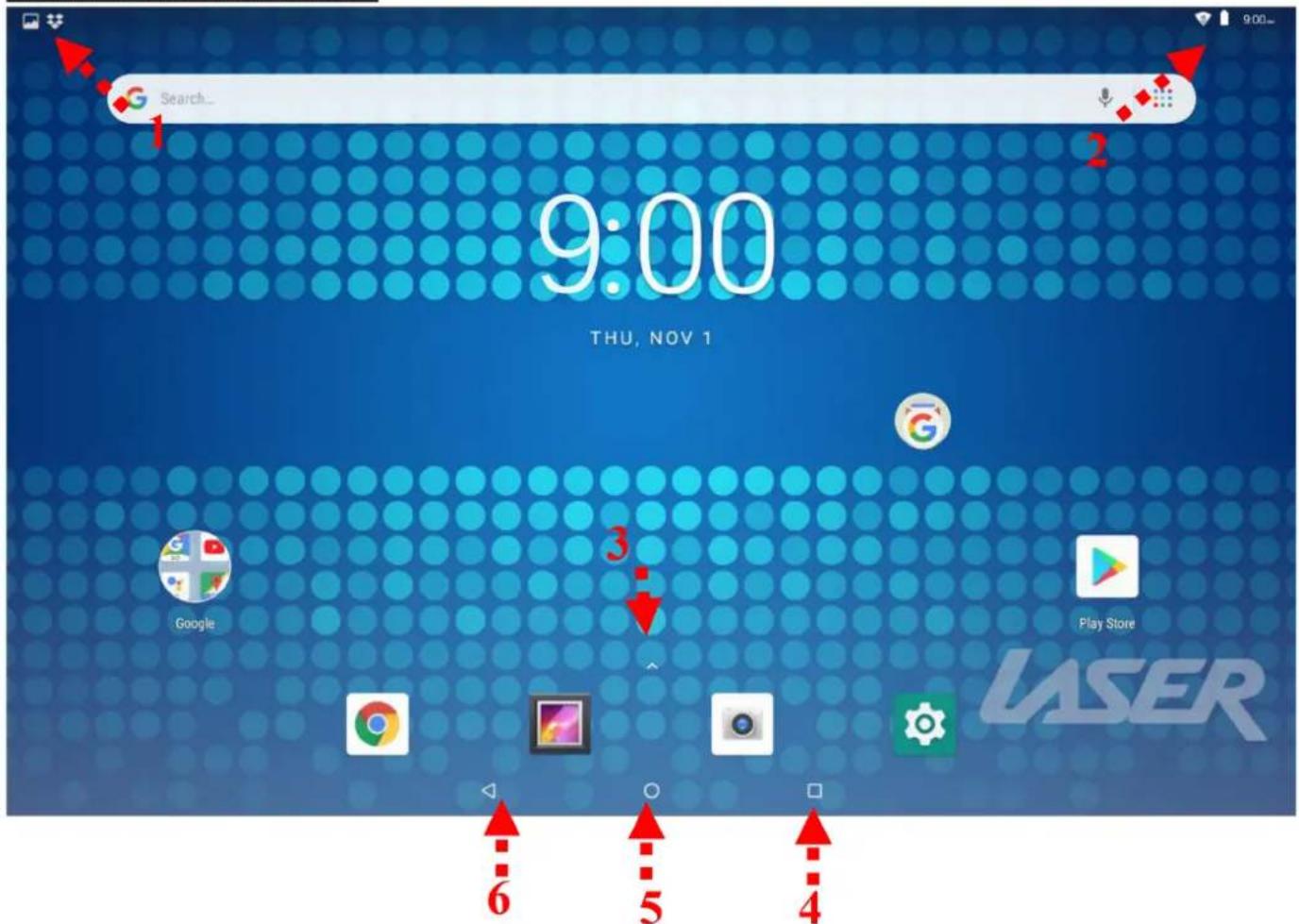

HOME SCREEN ICONS

Search... 9:00 THU, NOV 1 Google Play Store LASER

Number	Icon	Function
1		“Swipe Down” Notification Menu Bar
2		“Swipe Down” Shortcut Menu Bar
3		View all apps
4		Open a list of recently used applications
5		Home screen
6		Back button

VIEW ALL APPS

Press to view all the installed apps on your tablet

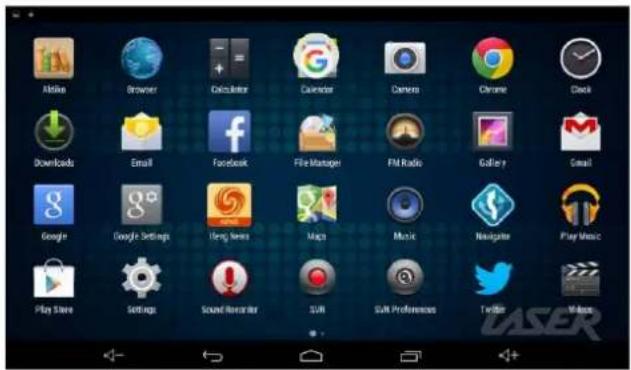

APPS ICONS

Note: Some of the following images may be different from the actual product supplied.

Alike Browser Calculator Calculator Camera Chrome Clock Downloads Email Facebook File Manager FM Radio Gallery Gmail Google Google Settings Heng News Maps Music Navigator Play Music Play Store Settings Sound Monitor SUI SUI Preferences Twitter Windows

Icon	Function
	Browser: Internet browser
	Calendar: Create and manage daily, weekly and monthly events, set alarm clocks. Note: A GoogleTM account is required
	Camera: Take and view pictures and video
	Clock: Access alarm clock settings and time display
	Downloads: Manage downloaded content
	E-mail: e-mail access
	File Manager: Access all pictures, video, music, sound clips and other files saved on the device and SD card
	Music: Music player
	Web Browser: Open Chrome web browser
	Settings: View settings menu
	Sound Recorder: Record sound using the microphone
	Videos / UHD Player: Video player

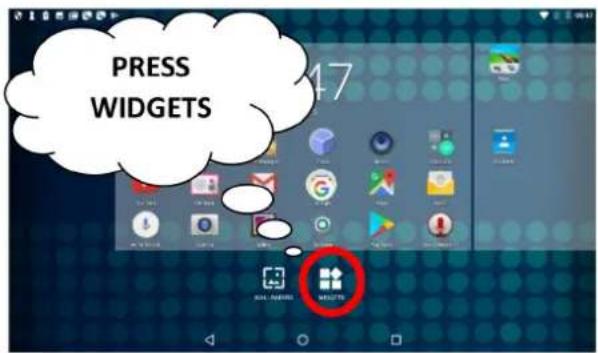

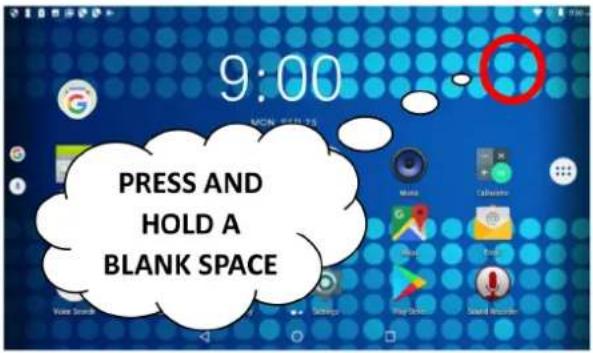

WIDGETS

9:00 PRESS AND HOLD A BLANK SPACE

PRESS WIDGETS 17

Users can add or remove Widget program icons (shortcuts) from the desktop as well as move them to different desktop screens.

To add a Widget, press and hold the desired widget, drag and drop it to the desired position on the desktop.

To delete an icon, press and hold the icon until the "X" icon appears at the top LEFT of the screen. Drag the icon to the "X" and then release to delete.

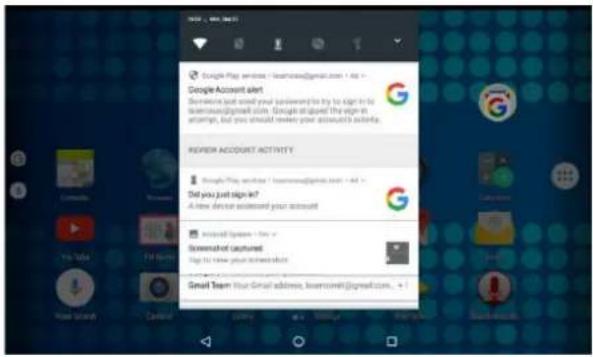

NOTIFICATION MENU BAR

Swipe down over the Notification Menu Bar (top RIGHT of the screen) to bring up any notifications you may have.

Google Play services / [e-mail] - Add > Google Account alert Beefecers just used your password to try to sign it to [e-mail] (Google is placed the edge in at any, but you should never your account's activity. REVIEW ACCOUNT ACTIVITY Google Play services / [e-mail] - Add > Did you just sign it! A new device accessed your account I am not yet done - for Synchronized captured Up to have your downloadback Gmail Team Your Email address, [e-mail]. +1

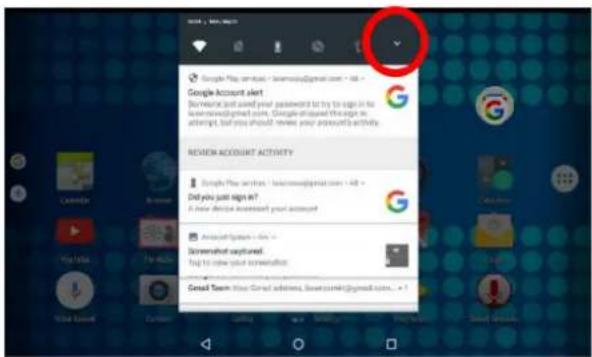

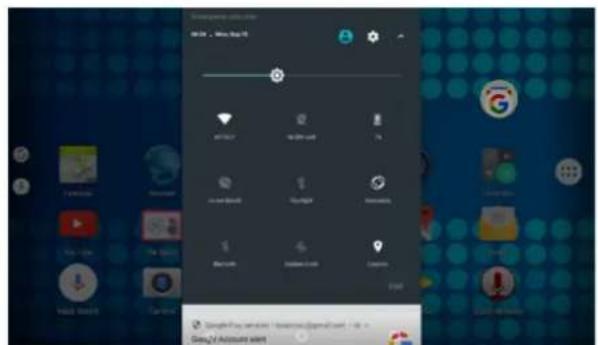

SHORTCUT MENU BAR

Press the drop down arrow from the NOTIFICATIONS MENU bar to display your shortcuts menu such as: Battery charge, Settings, WiFi, Location, Audio Profiles, screen rotation.

Google Play services - [e-mail] - fall - Google Account alert Because just asked your password to try to sign in the [e-mail]. Google will request the sign in attempt, but you should review your accounts' activity. REDEON ACCOUNT ACTIVITY Google Play services - [e-mail] - fall - Did you just sign it? A new device answered your account! About@sgm - fall - Screwnet highlighted. Step to write your screenwise: Good You're Your Email addressed, [e-mail]. +?

Microsoft Teams 06.02 - Web Bug 15 MINTU 40000000 8% Home/Book Google Microsoft Baidu Caspool.com Google SagiaPlay software - Microsoft Gmail.com / 8x Day24 Account visit

SETTINGS

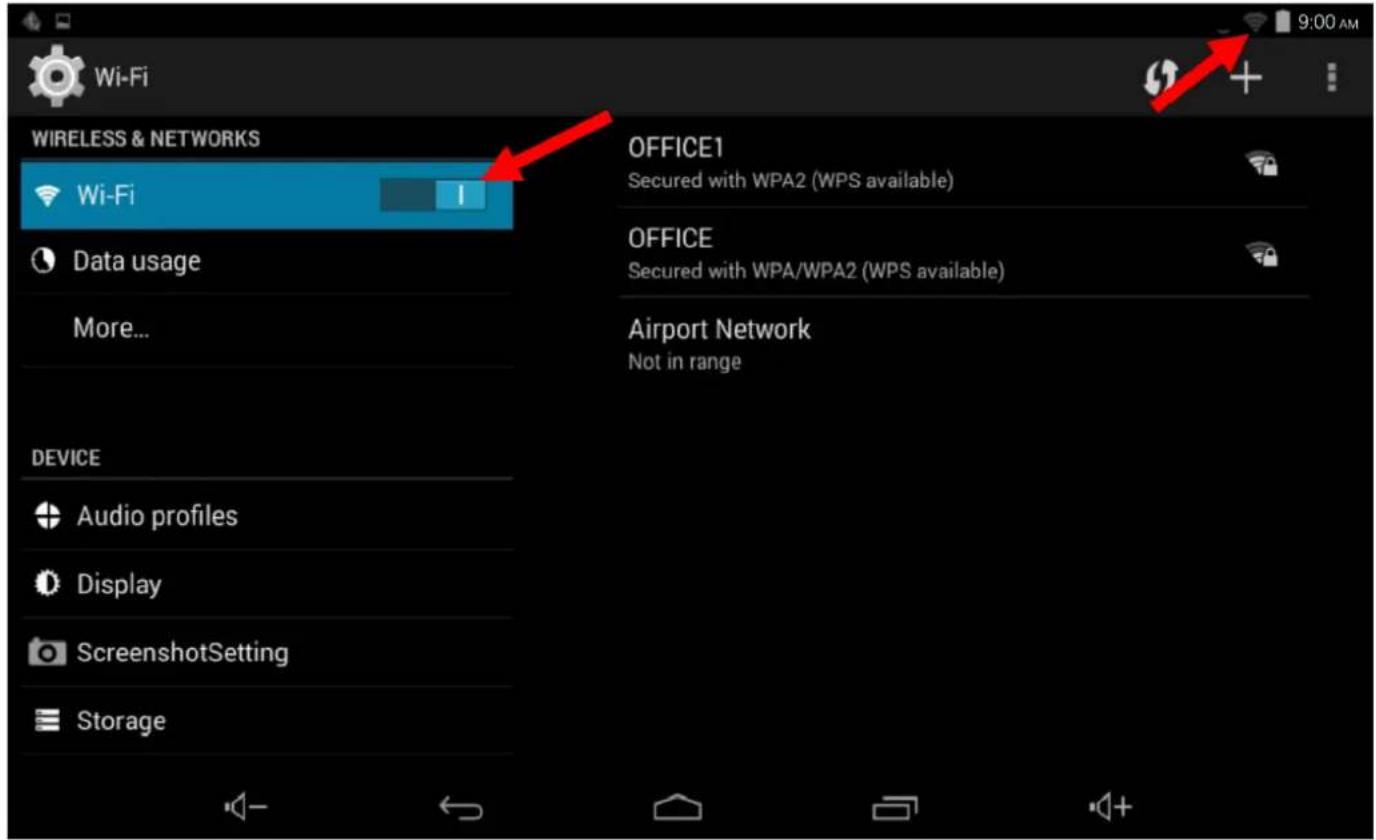

Wi-Fi

Note: a WiFi connection is required if connecting to the internet (for email, Play Store App or web browsing)

When WiFi is turned on it will automatically scan for all available WiFi networks

Wi-Fi WIRELESS & NETWORKS Wi-Fi Data usage More... DEVICE Audio profiles Display ScreenshotSetting Storage OFFICE1 Secured with WPA2 (WPS available) OFFICE Secured with WPA/WPA2 (WPS available) Airport Network Not in range

Tap the desired NETWORK name. If this NETWORK connects successfully, "Connected" will appear. If the NETWORK is encrypted, enter the password then tap "Connect".

Your Tablet will indicate when the NETWORK connection is ready for use when the WiFi icon appears on the top right notification bar.

CONNECTING TO A PC / MAC VIA USB

Connect the USB cable to your Tablet and PC/MAC, making sure you are using the correct MICRO USB cable supplied.

WHY CREATE A GOOGLE ACCOUNT

Creating a Google account allows you to talk, chat, share, schedule, store, organize, collaborate, discover, and create online. A Google account also provides user level access to Gmail and YouTube which are all backed up online and accessible online via the cloud.

Google Play Store

Open the PLAY STORE APP and set up your account. If you have an existing account select EXISTING, otherwise choose NEW to create a new account and follow the set-up steps.

SPECIFICATIONS

Operation System:	MID-787 Android9.0 (Go edition), MID-1087 Android 9.0
Size	MID-787: 188 x 108 x 11mm
	MID-1087: 250 x 158 x 12mm
CPU processor type:	Quad Core
Memory:	8GB
RAM:	DDR3 1GB
TF card:	128M-32G
Display screen:	MID-787: 7.0" Capacitive multi-touch TFT
	MID-1087: 10.1" Capacitive multi-touch TFT
Resolution:	1024 x 600
Battery and capacity:	MID-787: Rechargeable Li-ion Poly 2000Mah
	MID-1087: Rechargeable Li-ion Poly 5000Mah
Camera Resolution:	0.3MP (Front mount), 2.0MP (Rear Mount *MID-1087 only)
Screen auto orientation:	G-sensor 3D
Voice Recording	Built-in microphone
Supported file types:	Video format: avi, mov, mp4, 3gp, flvAudio format: mp3, flac, aac, wav, m4a(To play other formats, you will need to download the App that supports the format you intend to play)

FAQ

The HDMI output to my TV doesn't work	Please make sure the HDMI output has been turned on under the Settings Menu (Settings > Display > HDMI > ON)
I can't turn my tablet ON?	1.Ensure your tablet is charged2. Connect the power adaptor, and then check again after sufficient charge time3. Reset the device using the reset button
I can't hear anything through my headset, or the sound quality is very bad	1. Ensure speakers are not obstructed eg. Laying flat on a table1.Please ensure volume is turned up2. Check the music file on another device to make sure it is not damaged.3. Try using another pair of headphones
I can't copy files or play music	1.Please check the connection to you computer2.Ensure there is enough spare memory3.Check the USB cable is not damaged using another device4.Check the USB connection is inserted correctly
My tablet displays a network or service error message	1. Check the strength of the WiFi signal2. Check that the WiFi service is available and operating correctly3. When using apps like Face Book and Play Store App (with a lot of content) for the first time, a few extra minutes will be required to load all the content.
My touch screen is slow and not working correctly	1. Make sure the protective film has been removed from the screen2. Ensure that your fingers are dry and clean.3. Restart your tablet4. Ensure the touch screen is not scratched or damaged
My tablet is frozen or a severe error has occurred	1. Try closing Apps or resetting2. Restore or reset the tablet to factory default settings via the settings menu.3. Reset the device using the reset button
My tablet becomes hot when is use or while charging	1. Some applications can consume more power than others causing the tablet to become warm while in use or if used for extended amounts of time. This is normal and won't affect the life or performance of your tablet.
An error occurs when I open my music files	1. Remove some files to make more storage space2. Make sure the music files aren't protected by digital rights management (DRM). If the files have DRM protection, make sure that you have the license or key.3. Make sure that file type is compatible.
The available memory on my tablet is less than 8GB. Why is that so?	Some of this space is required to pre-load Apps and other Software. Space is required for the OS (Operating System).
My MID tablets internal memory is almost full; can I install or move the Apps to external SD card?	Latest Android OS will only allow apps to be installed on internal memory. To free up the internal space: 1) Uninstall some un-used apps. 2) Move photos, music or video files to SD card.
My tablet screen has cracked; will it be covered by warranty?	No, physical damage is not covered by warranty.
I can't find the Micro SD card socket	Please remove the top housing section by accessing the SD Card Release Panel Access Point. Please refer to the Appearance and buttons section of this manual.

For further product information and instructions please visit our product web page at www.laserco.com.au or email https://www.laserco.com.au/product-enquiry-and-accessory-request.

Please note: As continuous improvements are made to this product, slight operational differences may occur. For the most up-to-date user manual, please visit our web site.

Google, Android, Google Play, YouTube and other marks are trademarks of Google LLC.

Warranty Against Defects

Laser Corporation Pty Ltd ("Laser") warrants your new product to be free from defects in materials and workmanship for 12 months, from the date of purchase, provided that the product is used in accordance with accompanying recommendations or instructions where provided. The benefit of this warranty is in addition to your rights under the Australian Consumer Law and to other rights and remedies of the consumer under a law in relation to the goods or services to which the warranty relates.

Through a network of retailers and resellers, Laser will provide you with your choice of a repair, exchange (where possible) or refund (within Dead on Arrival period) for this product if it becomes defective within the warranty period.

This warranty will no longer apply where the defect is a result of alteration, accident, misuse, abuse, normal wear and tear, neglect or improper storage.

Please retain your receipt as proof of purchase.

How to make a product warranty claim:

Step 1: Find your receipt which proves the date of purchase. Where the date of purchase cannot be verified, your place of purchase or Laser will make an assessment based on the date of manufacture, the condition of the Laser product and the type of defect.

Step 2a): Contact your place of purchase. They will assess the nature of the fault and repair, replace or refund the product as per their store refund or warranty policy.

Step 2b): If your place of purchase cannot be contacted, then you can contact Laser Customer Service with details of your defective Laser Product Phone [phone]; or Email: [e-mail] or online www.laserco.com.au/warranty (click on “Consumers (End Users)”). Our business address is: Unit 1/6-8 Byfield Street, North Ryde, NSW 2113

Step 3: Laser will issue you with a Return Authorisation (RA) number within 48 hours. When requested, send us the defective product and a copy of your receipt. Laser will cover the cost of the return delivery.

Step 4: Wait for us to contact you. Once we have received your defective Laser product for inspection, we will inform you of our assessment of your claim within 7 days. When we contact you, we will firstly let you know whether you have a valid claim under this Warranty, and if so, we will inform you whether your defective Laser product will be replaced or repaired, together with the number of days you can expect to wait to receive your replaced or repaired Laser product.

Step 5: For further details on warranty cover and returns, please check Terms and Conditions for Warranty Returns section at www.laserco.com.au/warranty (Consumers Section).

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
