USER MANUAL SPK-WFQ10 Laser

WIRELESS WI-FI SPEAKER

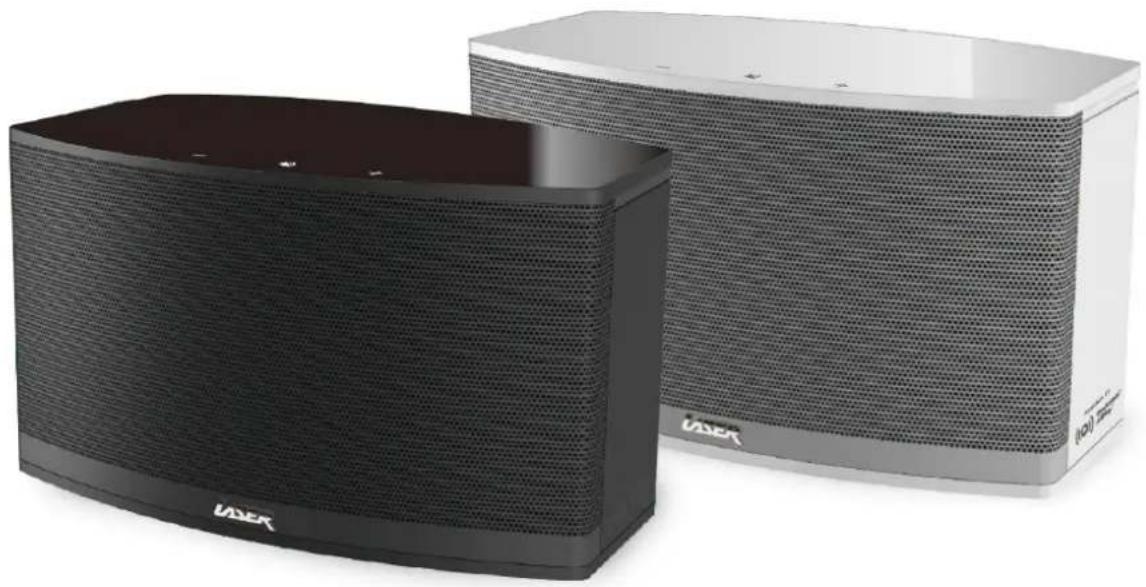

Exterior view of two black and white audio/video speakers (no signage or text visible)

POWERED BY

Blue play button icon with circular waveforms, no text or symbols present

Qualcomm® AllPlay™

Qualcomm® AllPlay™ Radio

powered by

tunein

Spotify

napster.

doubleTwist™

Rhapsody

soma fm DAR.fm AUPEO!

INDEX

Import Safety Instructions and Precautions 1

Button Description 2

Connecting to power 2

Standby Mode 2

LED Display 2

Setup – Download the App 3

Setup – Android Users 3

Setup – Apple Users 6

Music playback 8

Grouping Speakers 9

Featured Apps 10

Restoring Factory Settings 11

FAQ 12

Specifications 12

IMPORTANT SAFETY INSTRUCTIONS AND PRECAUTIONS

• Read all instructions carefully before use.
• Retain manuals for future reference.
• Use this product only in the manner described.
• Only use a water-dampened soft-cloth to clean the surface of this product.
• The following will damage this product: any liquid such as water or moisture, extreme heat; cold; humidity, dusty or sandy environments.
• Only place this device on stable surfaces and ensure that any attached cables are secure and will not cause the device to fall.
• If charging is required, it is recommended to thoroughly charge electronic devices for the first time overnight. Subsequent charges can be as needed. During charging, or extended use, the product may become warm.
• There are no user serviceable parts in this product.
• Un-authorized attempts to dismantle or repair this product will void product warranty
• Using this device near other electronic devices may cause interference.

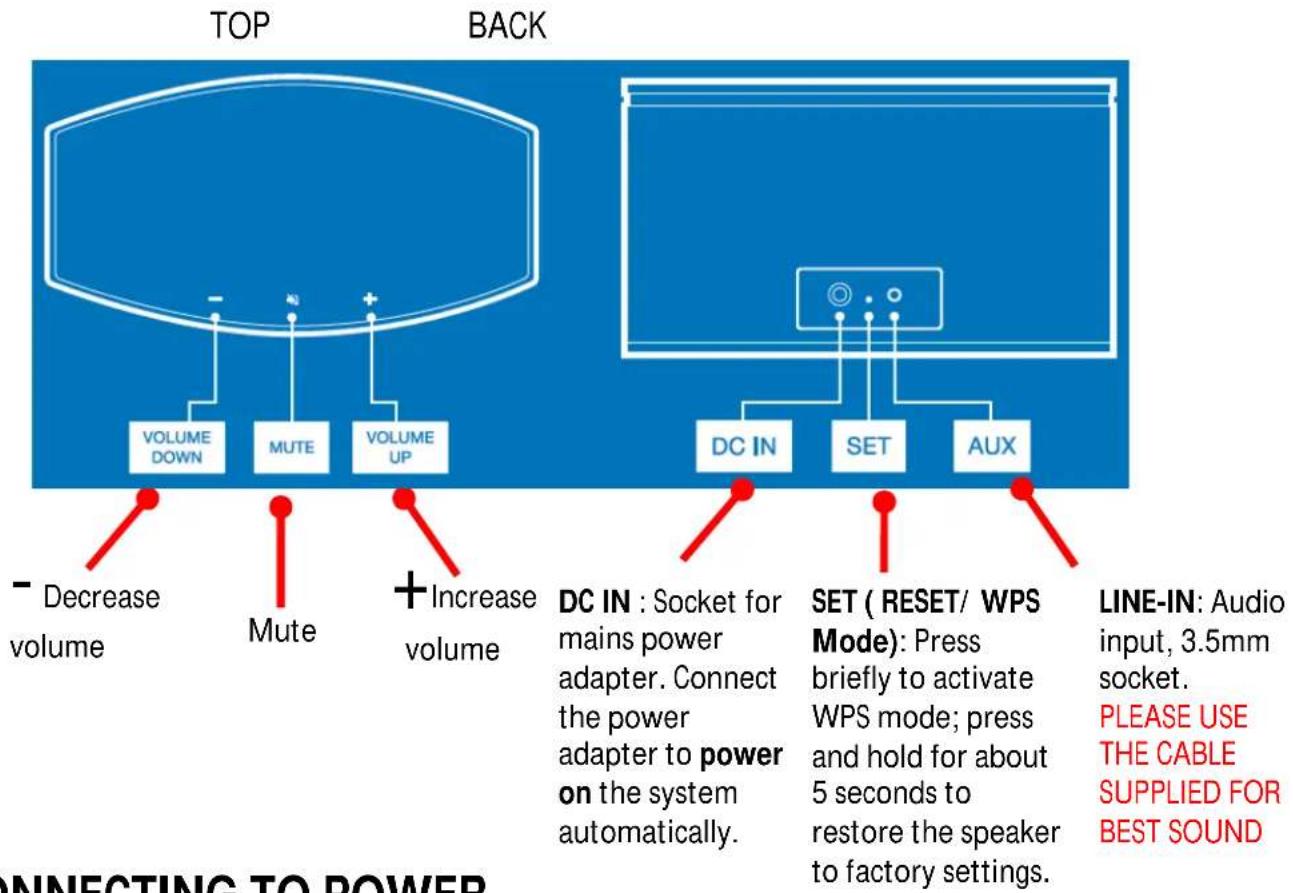

BUTTON DESCRIPTION

TOP BACK VOLUME DOWN MUTE VOLUME UP - Decrease volume Mute + Increase volume DC IN : Socket for mains power adapter. Connect the power adapter to power on the system automatically. SET ( RESET/ WPS Mode ): Press briefly to activate WPS mode; press and hold for about 5 seconds to restore the speaker to factory settings. LINE-IN: Audio input, 3.5mm socket. PLEASE USE THE CABLE SUPPLIED FOR BEST SOUND CONNECTING TO POWER

CONNECTING TO POWER

Connect your Wi-Fi speaker to a mains power outlet using the supplied external power supply. This speaker has no ON OFF switch so it will turn on automatically. Note: Disconnect the power, to turn the speaker OFF.

STANDBY MODE

The system will enter Standby mode after 15 minutes without any audio signal input.

To exit out of Standby mode, begin playing music from your Phone App or, press the volume UP or DOWN buttons.

LED DISPLAY

Status Display Status
STANDBY	Fade in and Out RED	Standby mode after 15 minutes without any audio signal inputs.
VOL- / + Flashes Volume increase/ decrease
LINE-IN	Lights up Orange	Connected via LINE IN (Auxiliary input)
WI-FI	Flashes White	Booting process / Establishing Wi-Fi connection (via WPS mode)
	Lights up White	System ready for Wi-Fi connection (AP Mode)
SET	Flashes Green	Reset to Factory default / Firmware updated
MUTE	Flashes Slowly	Mute audio

SETUP

Download the App

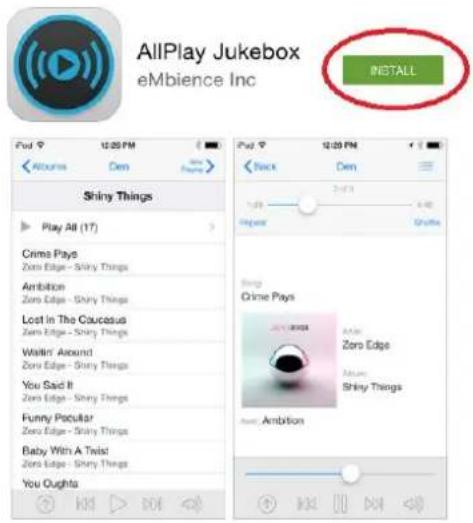

Visit the Play Store and download and install the QUALCOMM® ALLPLAY™ JUKEBOX APP and follow the prompts to connect your speaker.

AllPlay Jukebox eMbience Inc INSTALL Fud 9 12:29 PM Albums Dem Shiny Things Play All (17) Crime Pays Zero Edge - Shiny Things Ambition Zero Edge - Shiny Things Lost in The Caucasus Zero Edge - Shiny Things Walkin' Around Zero Edge - Shiny Things You Said It Zero Edge - Shiny Things Funny Pocular Zero Edge - Shiny Things Baby With A Twist! Zero Edge - Shiny Things You Oughts Back 12:29 PM Stock Dem 1st 3rd 4th Recover Quelle Crime Pays Zoro Edge Shiny Things Am Ambition

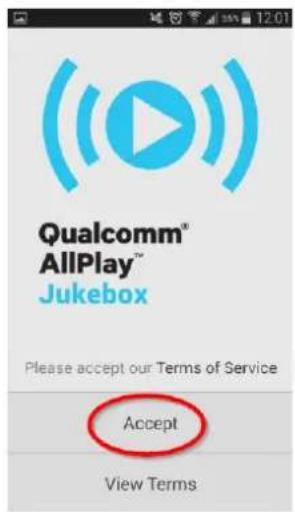

Qualcomm® AllPlay™ Jukebox Please accept our Terms of Service Accept View Terms

Android Users

1) Connecting your Device to the Speaker

Turn on the speaker and make sure it is in pairing mode. Using your mobile phone or tablet turn on your Wi-Fi and view the available Wi-Fi networks. You will then see the speaker (LASER_WFQ10) in the list. Please select it and press CONNECT. Please note: You will need to wait about 1 minute before the Wi-Fi speaker appears. The speaker will have 6 characters after the model number. This is the speakers' unique MAC (hardware) address

Please note: If you are unsure you are in pairing mode, press and hold the SET button on the back of the speaker for 5 seconds. This will reset the unit back to factory settings.

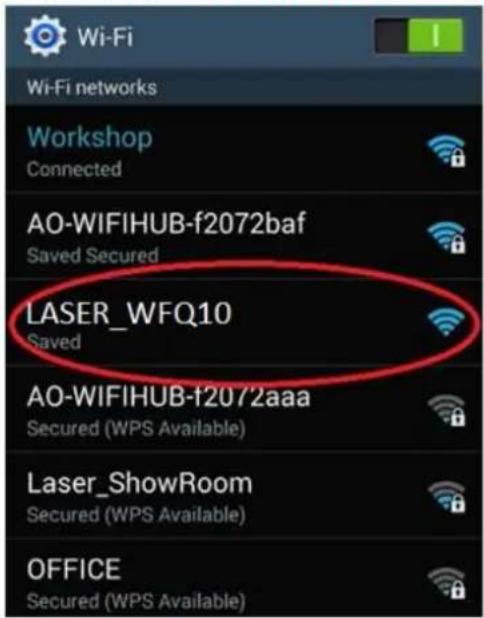

Wi-Fi Wi-Fi networks Workshop Connected AO-WIFIHUB-f2072baf Saved Secured LASER_WFQ10 Saved AO-WIFIHUB-f2072aaa Secured (WPS Available) Laser_ShowRoom Secured (WPS Available) OFFICE Secured (WPS Available)

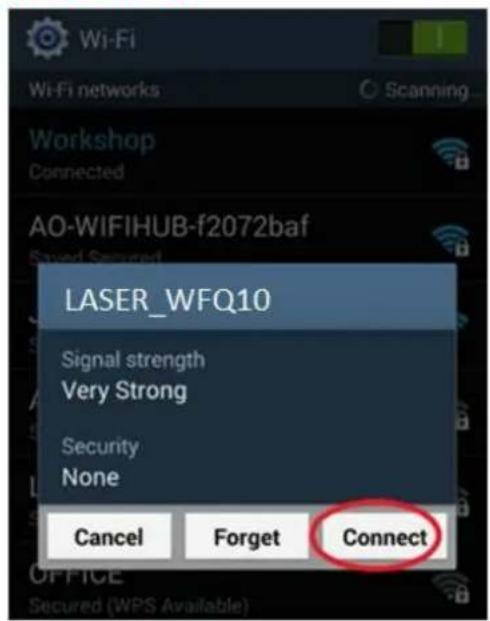

Wi-Fi Wi-Fi networks Scanning Workshop Connected AO-WIFIHUB-f2072baf Saved Saturated LASER_WFQ10 Signal strength Very Strong Security None Cancel Forget Connect Connect Secured (WPS Available)

2) Connecting your speaker to a Wi-Fi network

There are two ways to do this. Either use the SET/WPS Button (Wi-Fi Protected Setup) at the back of the speaker and your Wi-Fi Router (only suits Routers with this button), or, manually make the connection using a web browser.

a) WPS Button Method

Place the speaker next to or close by your router and Press the SET (WPS) button on the back of the speaker and on your Wi-Fi Router. Connection should be automatic but you can refer to the LED indication chart above is you are unsure, for further setup indicators.

b) Web Browser Method

First, you will then need to manually log onto your speaker. Open a web browser on your device and in the

search bar, enter the following (IP Address) number then press enter:

172.19.42.1

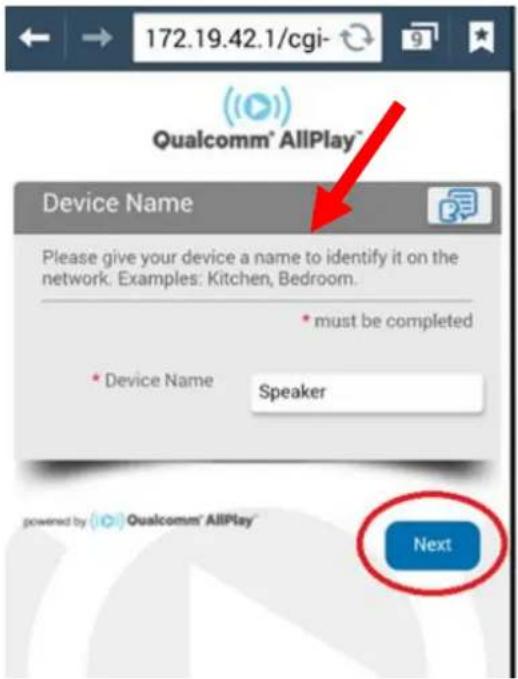

You will then be prompted to give your speaker a nick-name Eg Kitchen or Bedroom. When done, press next.

172.19.42.1/cgi- Qualcomm® AllPlay™ Device Name Please give your device a name to identify it on the network. Examples: Kitchen, Bedroom. • must be completed • Device Name Speaker Powered by Qualcomm® AllPlay™ Next

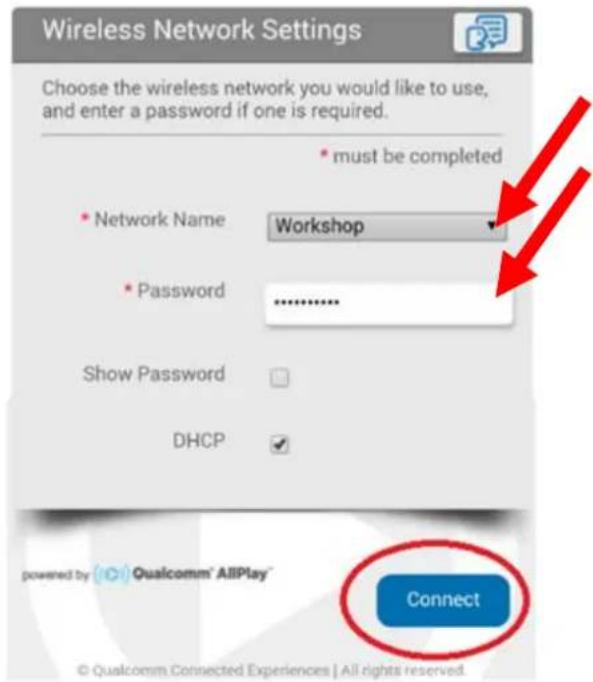

Now select your network via the network name list and enter your password. Select connect when finished.

Wireless Network Settings Choose the wireless network you would like to use, and enter a password if one is required. • must be completed • Network Name Workshop • Password ****** Show Password DHCP powered by Qualcomm® ABPlay™ Connect © Qualcomm Connected Experiences | All rights reserved.

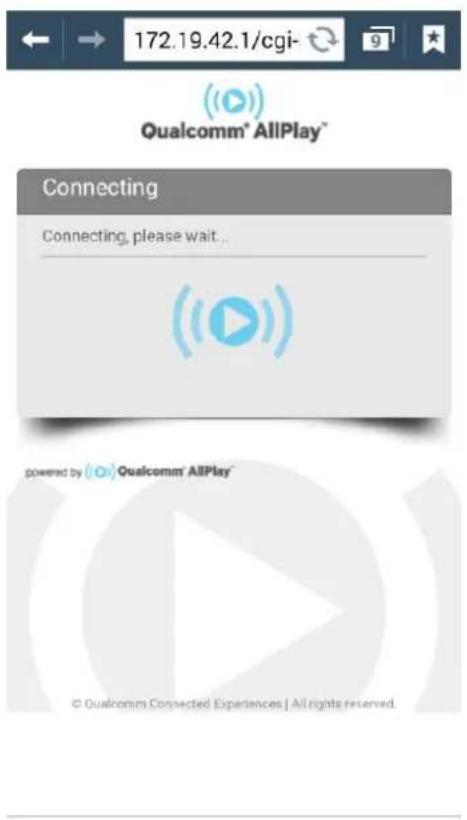

The speaker is now connected to your network. The device will automatically disconnect you from the speaker and reconnect you with your previous network connection (if you were connected).

172.19.42.1/cgi- Qualcomm® AllPlay™ Connecting Connecting, please wait... powered by (O) Qualcomm® AllPlay™ © Qualcomm Connected Experiences | All rights reserved.

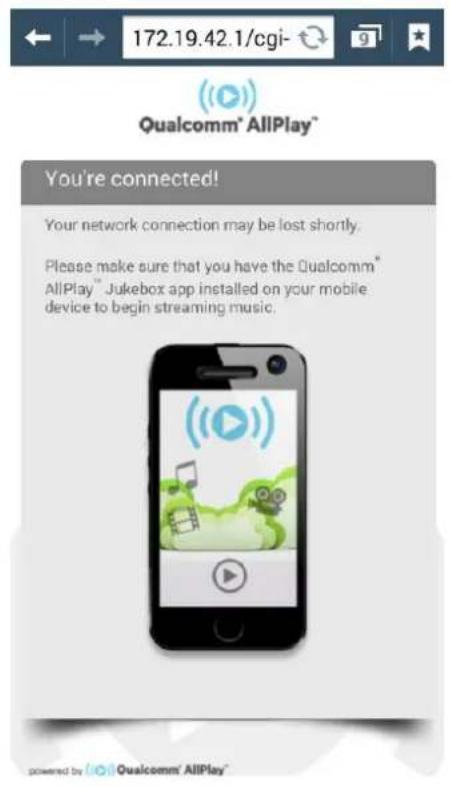

172.19.42.1/cgi- Qualcomm® AllPlay® You're connected! Your network connection may be lost shortly. Please make sure that you have the Qualcomm® AllPlay™ Jukebox app installed on your mobile device to begin streaming music.

Please Note: If your network router does not assign an IP address automatically, switch the DHCP function to OFF and then enter the IP address manually. Then enter the network key again if required, and click "CONNECT".

Please Note: The speaker saves the connection, so you do not need to setup the connection next time it is switched on. It will connect automatically.

Apple Users

1) Connecting your Device to the Speaker

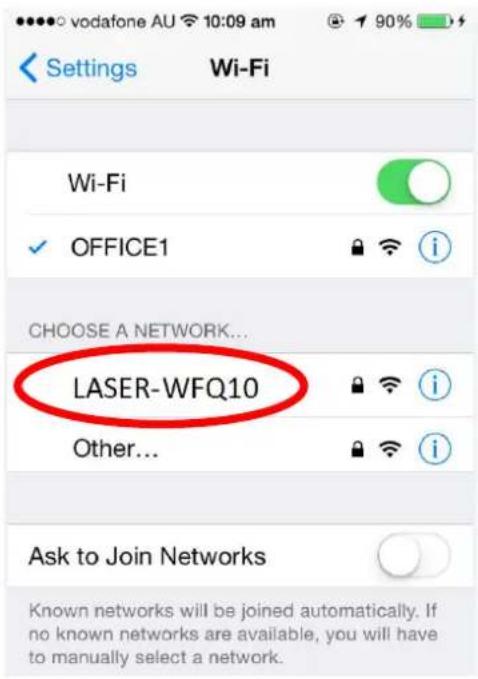

Turn on the speaker and make sure it is in pairing mode. Using your mobile phone or tablet turn on your Wi-Fi and view the available Wi-Fi networks. You will then see the speaker (LASER-WFQ10) in the list. Please select it and press CONNECT.

Please note: You will need to wait about 1 minute before the Wi-Fi speaker appears. The speaker will have 6 characters after the model number. This is the speakers' unique MAC (hardware) address

Please note: If you are unsure you are in pairing mode, press and hold the SET button on the back of the speaker for 5 seconds. This will reset the unit back to factory settings.

Settings Wi-Fi Wi-Fi OFFICE1 CHOOSE A NETWORK... LASER-WFQ10 Other... Ask to Join Networks Known networks will be joined automatically. If no known networks are available, you will have to manually select a network.

2) Connecting your speaker to a Wi-Fi network

After pressing connect in the previous screen you will then be automatically redirected to the following log in page where you will be prompted to give your speaker a nick name. You will also need to select your Wi-Fi network name from the drop down list and to enter your Wi-Fi password.

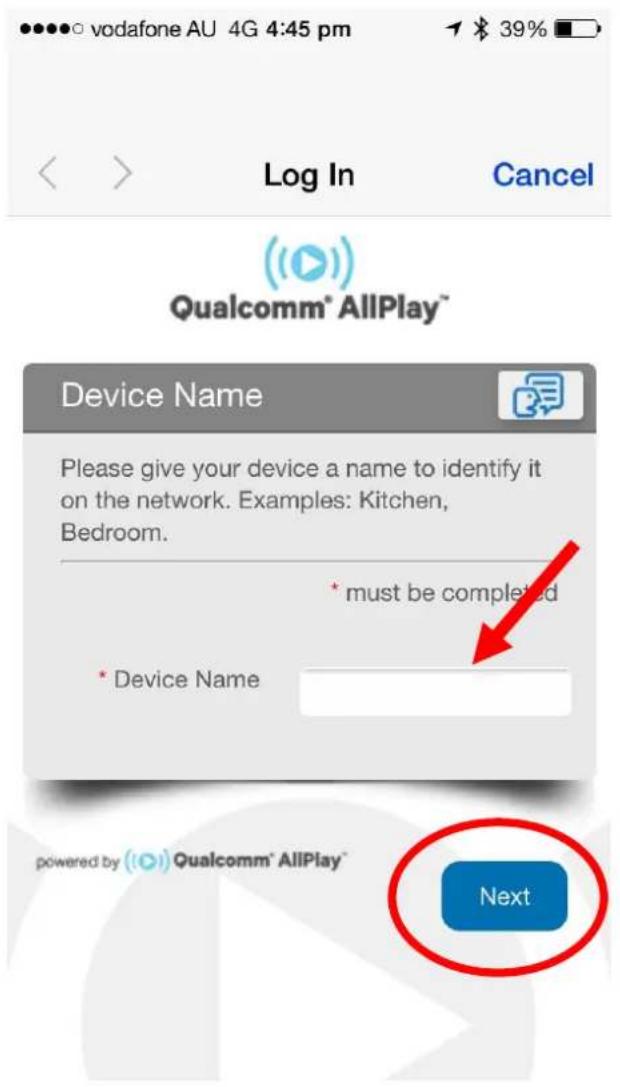

vodafone AU 4G 4:45 pm 39% Log In Cancel Qualcomm® AllPlay™ Device Name Please give your device a name to identify it on the network. Examples: Kitchen, Bedroom. * must be completed • Device Name powered by ( ) Qualcomm® AllPlay™ Next

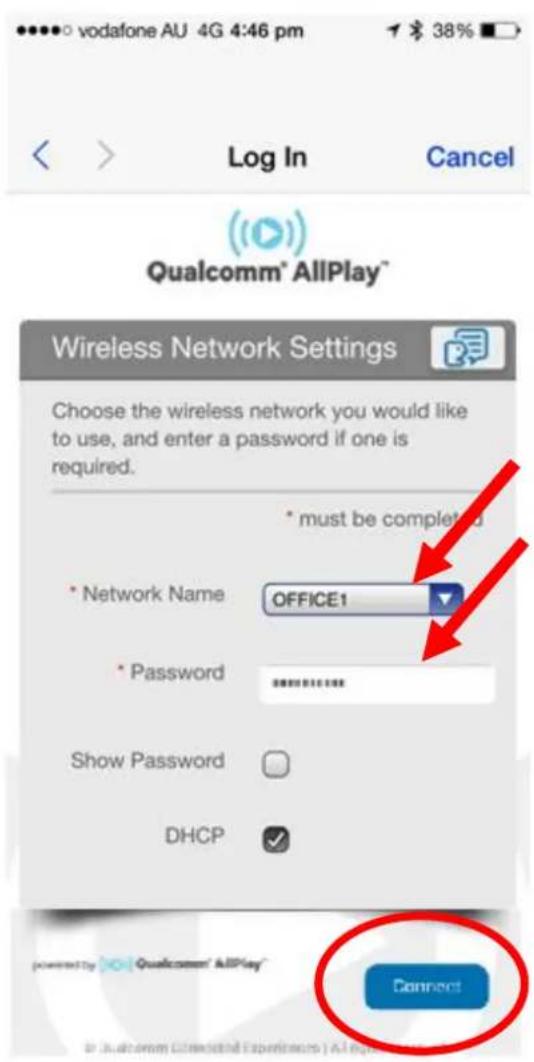

vodafone AU 4G 4:46 pm 38% Log In Cancel Qualcomm® AllPlay™ Wireless Network Settings Choose the wireless network you would like to use, and enter a password if one is required. * must be completed Network Name OFFICE1 * Password Show Password DHCP Connect

The speaker is now connected to your network. The device will automatically disconnect you from the speaker and reconnect you with your previous network connection (if you were connected).

Please Note: If your network router does not assign an IP address automatically, switch the DHCP function to OFF and then enter the IP address manually. Then enter the network key again if required, and click "CONNECT".

Please Note: The speaker saves the connection, so you do not need to setup the connection next time it is switched on. It will connect automatically.

MUSIC PLAYBACK

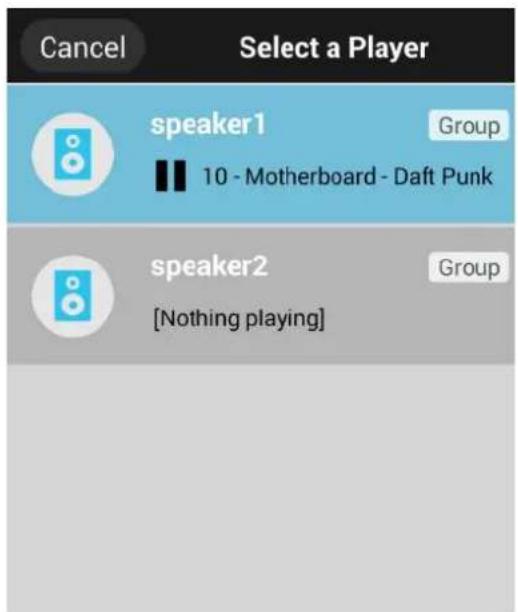

Select the Speaker or Speaker Group you wish to use for playback

Cancel Select a Player speaker1 Group 10 - Motherboard - Daft Punk speaker2 Group [Nothing playing]

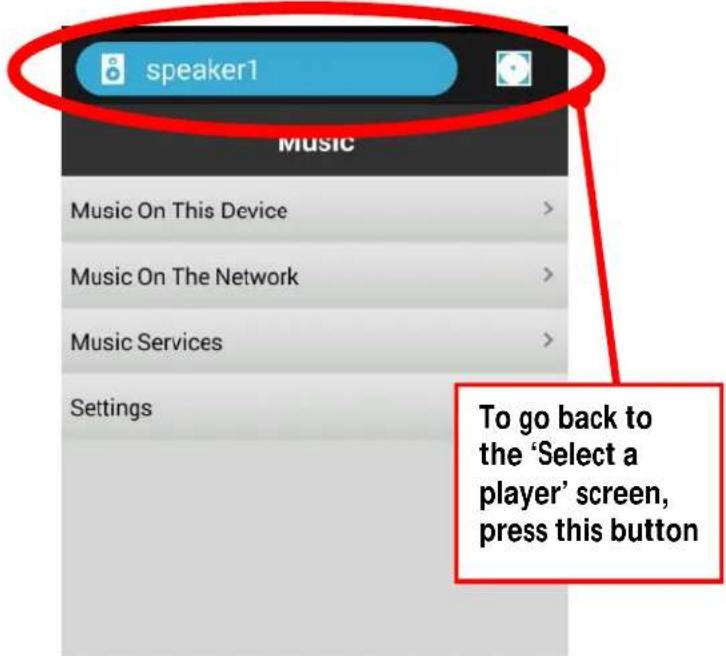

Select the Music you wish to use for playback

speaker1 Music Music On This Device > Music On The Network > Music Services > Settings To go back to the 'Select a player' screen, press this button

Please note: If you are not getting any audio, once the speaker/s are connected to the network, please allow one 1 minute or so before playback begins.

Music On This Device

Play music that is loaded on your device.

Music On The Network

With your speaker and smart phone (or Wi-Fi enabled playback device) connected to the same network, select a media server (DLNA server) from which you want to play music and then select the speaker as the medium (DLNA player) on which the music is to be played.

Note: You can select more than one speaker for the playback. Please refer to the app for details.

Music Services

Play Music via an alternative app. Some apps allow for streaming services for music or radio. See Featured apps for more information

MULTI CONNECT (via network)

You can connect multiple smart devices (such as smart phones) to the network. By doing this, you can use and control the playback and volume on any connected device. Each device can choose which music to play or which music to add on the playlist.

Please note: Each device will need to download the AllPlay Jukebox app and be connected to the network.

DIRECT MODE

Power on the speaker and the speaker will enter Searching Mode.

Or Press the SET (RESET/ WPS MODE) button for 5 seconds in order to switch the speaker to Searching mode.

Wait about 1-2 minutes and then connect the smart device (phone or tablet) directly to the speaker by going to available Wi-Fi connection and connecting to "LASER_WFQ10".

Note: When using direct mode, please remember to switch off the 'Auto-Login' and 'Auto-Join' function on smartphone, to avoid smartphone trying to connect with a valid network.

AUXILIARY INPUT

Connect an audio device via the AUX port (Auxiliary) on the back of the speaker using a 3.5mm jack cable. The LED indicator will change to orange.

Note: For best sound reproduction use the audio cable supplied.

Note: The speaker will revert back to the previous Wi-Fi mode when there has been no audio signal after 1 second.

GROUPING SPEAKERS

If you wish to connect speakers together to play the same audio, you can group speakers together.

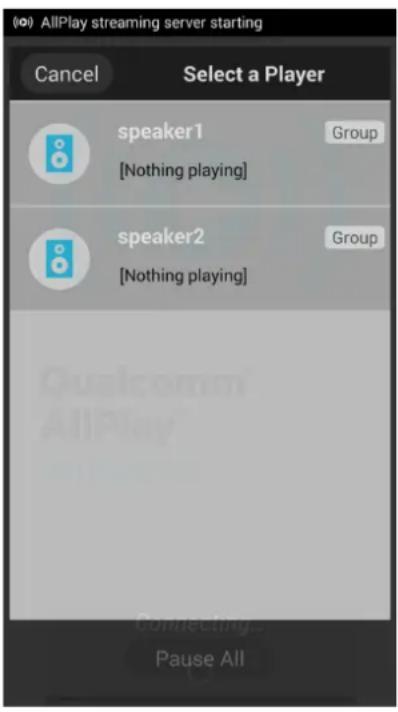

1 Press the Group button

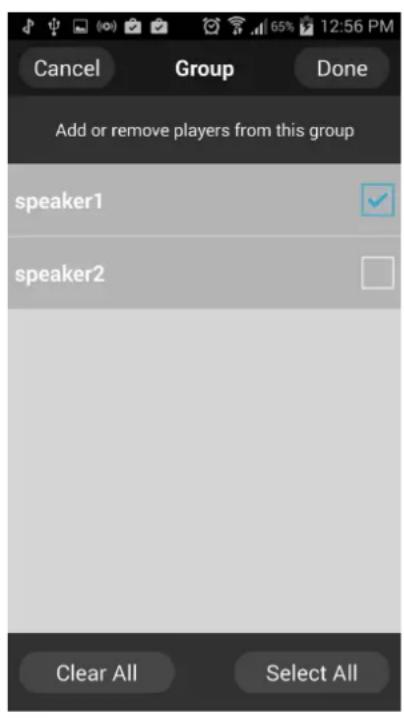

2 Select the speaker you wish to Group together.
3 Select done when finished.

(o) AllPlay streaming server starting Cancel Select a Player speaker1 Group [Nothing playing] speaker2 Group [Nothing playing] Pause All

Cancel Group Done Add or remove players from this group speaker1 speaker2 Clear All Select All

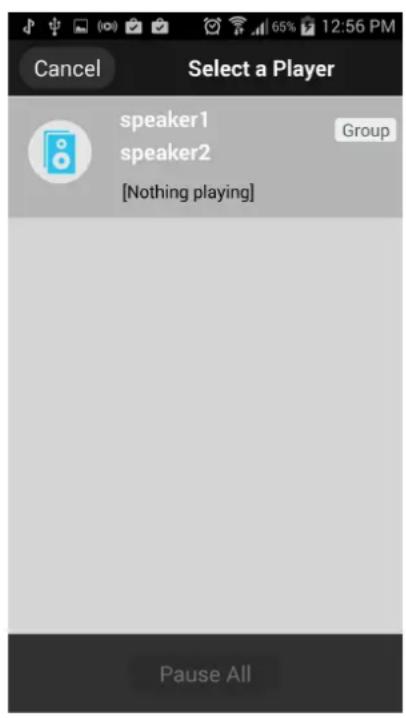

Cancel Select a Player speaker1 speaker2 [Nothing playing] Group Pause All

FEATURED APPS

Spotify

Spotify is the best way to listen to music on mobile or tablet. (premium version required for use with Wi-Fi speaker)

Qualcomm® AllPlay™ Radio

AllPlay Radio

Over 100,000 real radio stations and more than four million podcasts from all over the world

Spotify (Premium accounts only)

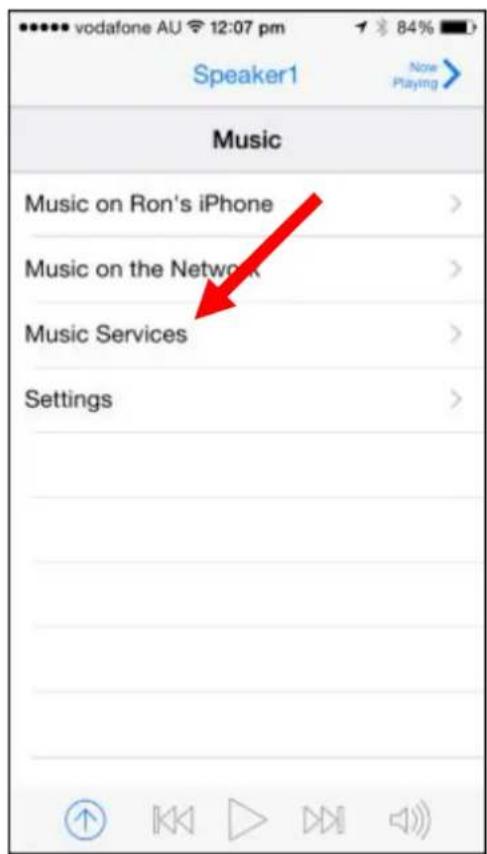

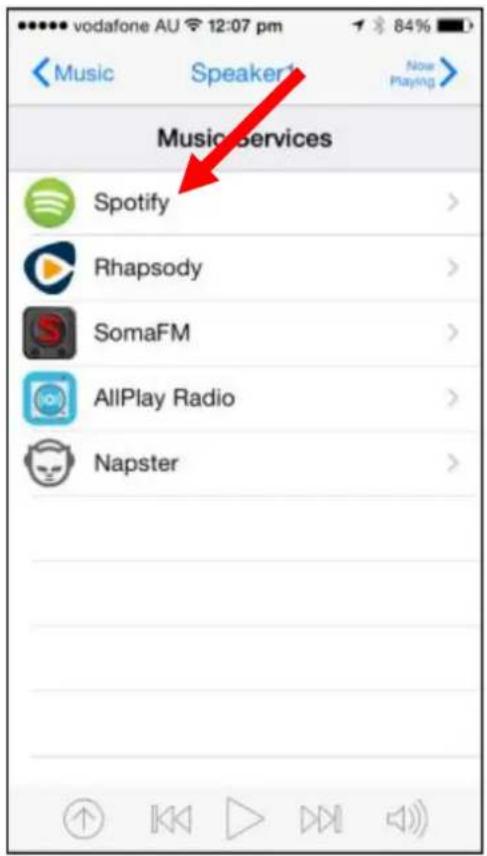

From the All Play Jukebox App select Music Services followed by Spotify.

Note: You will need to install the Spotify App to access this feature.

vodafone AU 12:07 pm 84% Speaker1 Now Playing Music Music on Ron's iPhone > Music on the Network > Music Services > Settings >

vodafone AU 12:07 pm Music Speaker Now Playing Music Services Spotify > Rhapsody > SomaFM > AllPlay Radio > Napster >

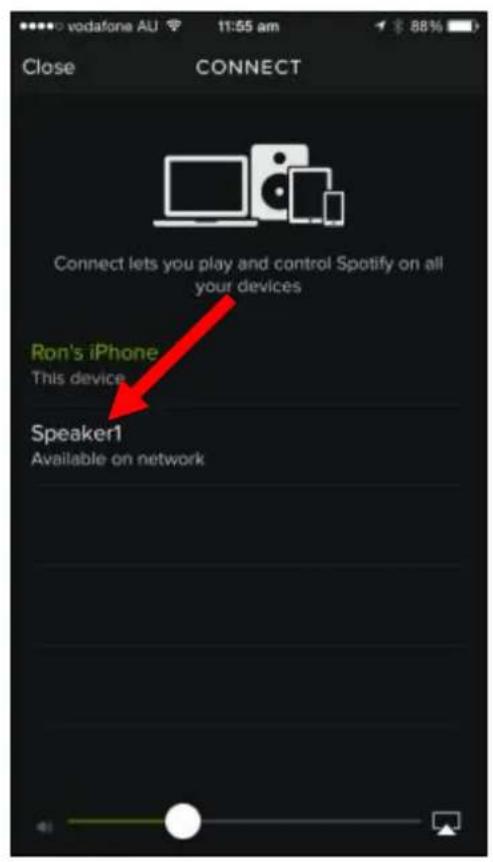

The Spotify App will then open to the CONNECT screen. Then select your Wi-Fi Speaker for music playback.

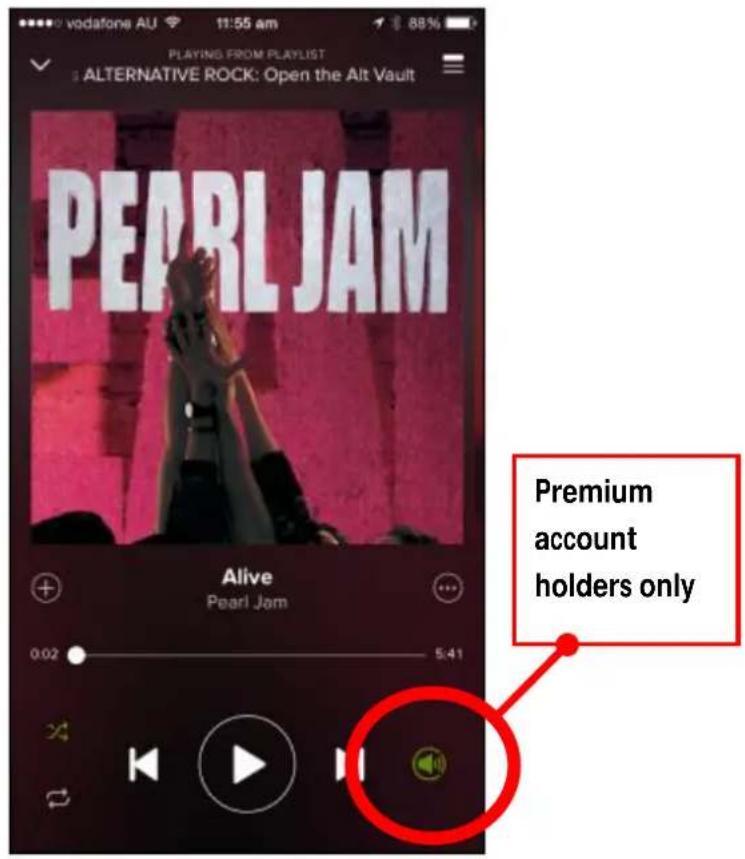

The Spotify music playback screen will then open where you can playback your music.

Connect lets you play and control Spotify on all your devices Ron's iPhone This device Speaker1 Available on network

PEARL JAM Alive Pearl Jam 0:02 5:41 Premium account holders only

Please note: The speaker icon at the bottom right of the screen will be coloured GREEN (premium accounts only) to indicate your speaker is connected to the Spotify App for Wi-Fi music playback.

Please note: To reconnect and disconnect playback from the Wi-Fi speaker, simply press this speaker icon.

RESTORING FACTORY SETTINGS

To reset the device back to default factory settings, press and hold the SET button for 5 seconds. The LED indicator will then change to GREEN, then to solid WHITE to indicate that the speaker is now ready to connect to a network.

Note: This process may take up to 1-2 minutes to fully reset.

FAQ

I'm not getting any audio. How do I fix this?	Please reset the speaker/s by: press and hold the SET button on the back on the speaker for 5 seconds.
I can't see the speaker under my Wi-Fi. Why?	Please make sure the speaker is in “Searching” mode. It may take 1 to 2 minutes before you can see the speaker in the Wi-Fi list.
Using Auxiliary, I don't get any audio.	Please reset the speaker first by: press and hold the SET button on the back on the speaker for 5 seconds.
My speaker has a flashing red light. What is this?	The speaker is the “Standby” mode. Press the volume + or – to “wake up” the speaker.
Do you have any further product videos on this product to help me better understand some of the features?	Yes. Search for Laser Product Support on YouTube or click the link below:www.youtube.com/channel/UCB -v8XFr Pre 3HJLgj_lw

SPECIFICATIONS

Dimensions 250 x 140 x 130 mm
Channels 2.0
Power Rating 20 Watts
Speakers 2 x Full Range Drivers
Multi Speaker (Capability) Up to ten speakers
Wi-Fi Frequency 5Ghz / 2.4Ghz
Hub/Bridge	Not Required
Weight	1.55kg
App Support	iOS / Android
Wi-Fi Connect via App	WPS / Webpage
