Thank you for purchasing this product.

Please read these instructions carefully before using this product, and save this manual for future use.

For the United Kingdom and Ireland customers

Sales and Support Information

Customer Communications Centre

For customers within the UK: 0333 222 8777
For customers within Ireland: 01 447 5229
- Monday-Friday 9:00 am - 5:00 pm, (Excluding public holidays).
For further support on your product, please visit our website: www.technics.com/uk/

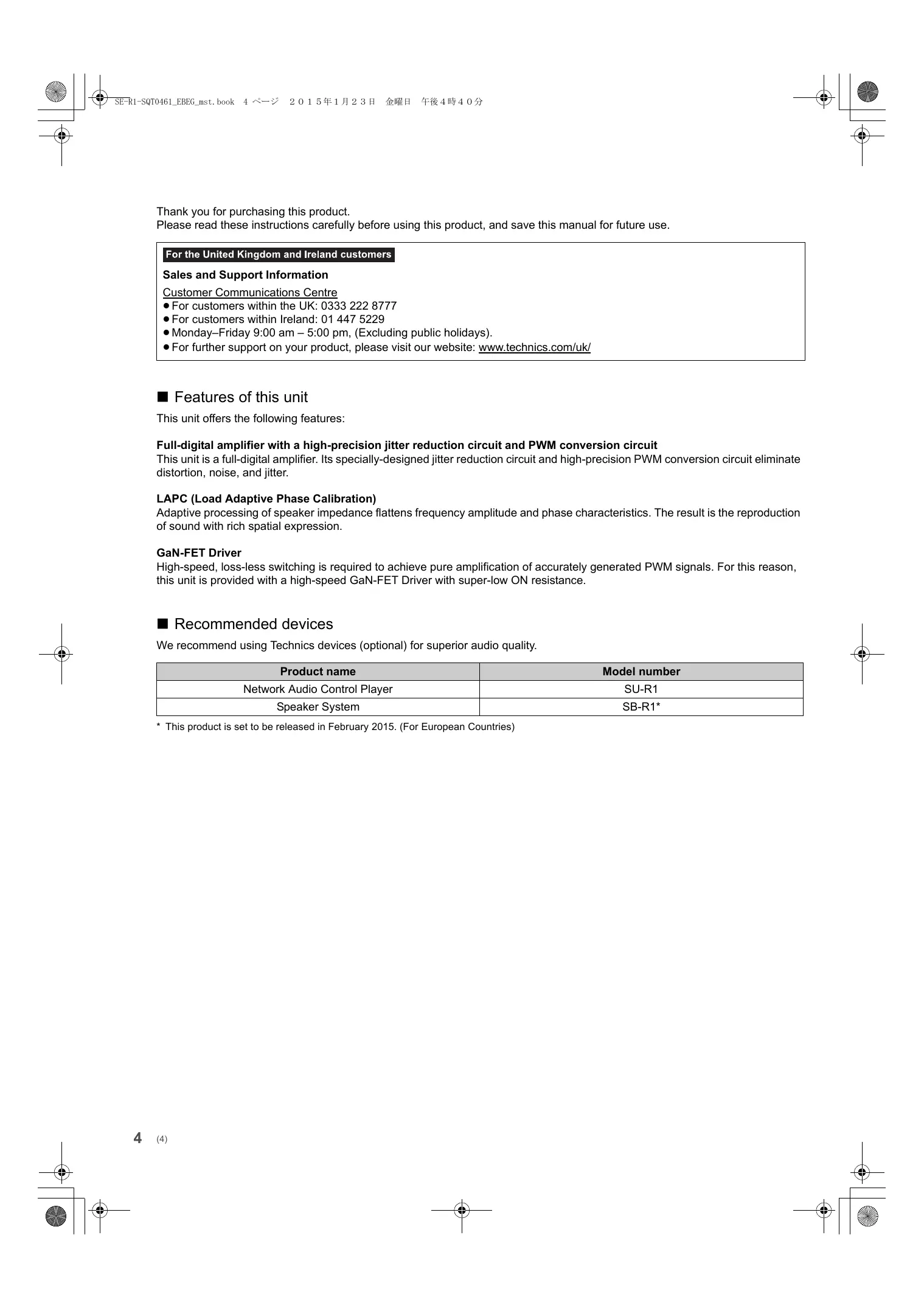

Features of this unit

This unit offers the following features:

Full-digital amplifier with a high-precision jitter reduction circuit and PWM conversion circuit

This unit is a full-digital amplifier. Its specially-designed jitter reduction circuit and high-precision PWM conversion circuit eliminate distortion, noise, and jitter.

LAPC (Load Adaptive Phase Calibration)

Adaptive processing of speaker impedance flattens frequency amplitude and phase characteristics. The result is the reproduction of sound with rich spatial expression.

GaN-FET Driver

High-speed, loss-less switching is required to achieve pure amplification of accurately generated PWM signals. For this reason, this unit is provided with a high-speed GaN-FET Driver with super-low ON resistance.

Recommended devices

We recommend using Technics devices (optional) for superior audio quality.

Product name	Model number
Network Audio Control Player	SU-R1
Speaker System	SB-R1*

• This product is set to be released in February 2015. (For European Countries)

Safety precautions

WARNING

Unit

• To reduce the risk of fire, electric shock or product damage.

• Do not expose this unit to rain, moisture, dripping or splashing.

• Do not place objects filled with liquids, such as vases, on this unit.
• Use only the recommended accessories.
• Do not remove covers.
• Do not repair this unit by yourself. Refer servicing to qualified service personnel.

• Do not let metal objects fall inside this unit.

• Do not place heavy items on this unit.

AC mains lead

• To reduce the risk of fire, electric shock or product damage,

• Ensure that the power supply voltage corresponds to the voltage printed on this unit.

• Insert the mains plug fully into the socket outlet.
• Do not pull, bend, or place heavy items on the lead.
• Do not handle the plug with wet hands.
• Hold onto the mains plug body when disconnecting the plug.

• Do not use a damaged mains plug or socket outlet.

• The mains plug is the disconnecting device.

Install this unit so that the mains plug can be unplugged from the socket outlet immediately.

CAUTION

Unit

• Do not place sources of naked flames, such as lighted candles, on this unit.
• This unit may receive radio interference caused by mobile telephones
  during use. If such interference occurs, please increase separation between this unit and the mobile telephone.
• This unit is intended for use in tropical climates.
• Do not put any objects on this unit. This unit becomes hot while it is on.

Placement

• Place this unit on an even surface.
• To reduce the risk of fire, electric shock or

product damage,

• Do not install or place this unit in a bookcase, built-in cabinet or in another confined space. Ensure this unit is well ventilated.
• Do not obstruct this unit's ventilation openings with newspapers, tablecloths, curtains, and similar items.
• Do not expose this unit to direct sunlight, high temperatures, high humidity, and excessive vibration.

More than one person is required to move or carry the unit.
- Ensure that the placement location is sturdy enough to accommodate the weight of this unit ( 15 ).
- Do not lift or carry this unit by holding any of its knobs. Doing so may cause this unit to fall, resulting in personal injury or malfunction of this unit.

Safety information for customers in Norway

NORSK

ADVARSEL

Produkt

For a redusere faren for brann, elektrisk stot uller skade pa apparatet:
- Utsett ikkeprodukter for regn, fukt, drypping eller sprut.
- Ikke plasser objekter som er fylt med væske, som vaser, på apparatet.
- Bruk kun anbefalt tilbehør.
- Fjern jegke deksler.
- Reparer/DDne enheten selv, overlat service til kvalifisert servicepersonell.

Vekselstrømnett

• Nettstopselet er trukket ut fra deutsche enheten.

Caution for AC Mains Lead

(For the AC mains plug of three pins)

For your safety, please read the following text carefully.

This appliance is supplied with a moulded three pin mains plug for your safety and convenience.

A 10-ampere fuse is fitted in this plug.
Should the fuse need to be replaced please ensure that the replacement fuse has a rating of 10-ampere and that it is approved by ASTA or BSI to BS1362. Check for the ASTA mark 念 or the BSI mark on the body of the fuse.

If the plug contains a removable fuse cover you must ensure that it is refitted when the fuse is replaced.
If you lose the fuse cover the plug must not be used until a replacement cover is obtained.
A replacement fuse cover can be purchased from your local dealer.

Before use

Remove the connector cover.

How to replace the fuse

The location of the fuse differ according to the type of AC mains plug (figures A and B). Confirm the AC mains plug fitted and follow the instructions below.

Illustrations may differ from actual AC mains plug.

1. Open the fuse cover with a screwdriver.

Figure B

1. Replace the fuse and close or attach the fuse cover.

Figure B

Disposal of Old Equipment

Only for European Union and countries with recycling systems

This symbol on the products, packaging, and/or accompanying documents means that used electrical and electronic products must not be mixed with general household waste.

For proper treatment, recovery and recycling of old products, please take them to applicable collection points in accordance with your national legislation.

By disposing of them correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment.

For more information about collection and recycling, please contact your local municipality.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

Table of contents

Safety precautions. 5

Accessories 6

Unit care 6

Control reference guide 7

Getting started. 8

Operations 13

Troubleshooting 14

Specifications. 15

About descriptions in these operating instructions

Pages to be referred to are indicated as OO
- The illustrations shown may differ from your unit.

Accessories

For the United Kingdom and Ireland

For the Middle East

1 AC mains lead (K2CT2YY00109)

For Continental Europe

1 AC mains lead Except for Switzerland (K2CQ2YY00132)

For Continental Europe

1 AC mains lead For Switzerland (K2CS2YY00001)

• Product numbers provided in these operating instructions are correct as of November 2014. These may be subject to change.
• Do not use AC mains lead with other equipment.
• In Saudi Arabia, please use the moulded three pin mains plug.

Unit care

Pull out the AC mains lead from the outlet before maintenance. Clean this unit with a soft cloth.

• When dirt is heavy, wring a wet cloth tightly to wipe the dirt, and then wipe it with a soft cloth.
• Do not use solvents including benzine, thinner, alcohol, kitchen detergent, a chemical wiper, etc. This might cause the exterior case to be deformed or the coating to come off.

Control reference guide

This unit

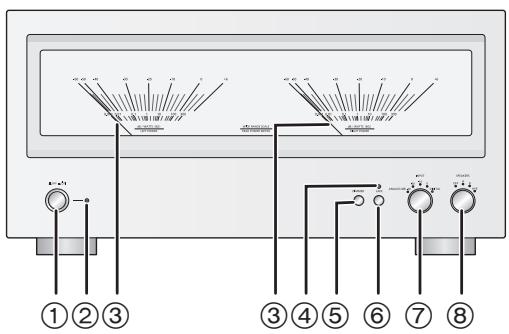

■Front

① Unit on/off button [OFF |I]

Use this button to turn the unit on and off.
[OFF] (off): The unit is off.
[O/I] (on): The unit is on.
- The unit is still using a small amount of power in off mode. Off mode uses less power. ( 15)

(2) Power indicator

The colour of the indicator changes according to the status of this unit.

Blue	The unit is on.
Red	The unit is in standby mode. • To turn on this unit from standby mode, press the unit on/off button on this unit to the [■OFF] position, and press it again to the [■O/I] position.

③ Peak power meter

Display the output level.

④ LAPC indicator (⇒ 13)
(5) [DIMMER]

Adjust the brightness of the light and the indicators.

Each press of this button switches the brightness.

⑥ [LAPC] (⇒ 13)

Measure the characteristics of the amplifier and correct its output.

• The function does not work when the speaker selector knob is set to [OFF].

⑦ Input selector knob (⇒ 13)

Select the input source or gain value.

(8) Speaker selector knob (⇒ 13)

Select the output speakers.

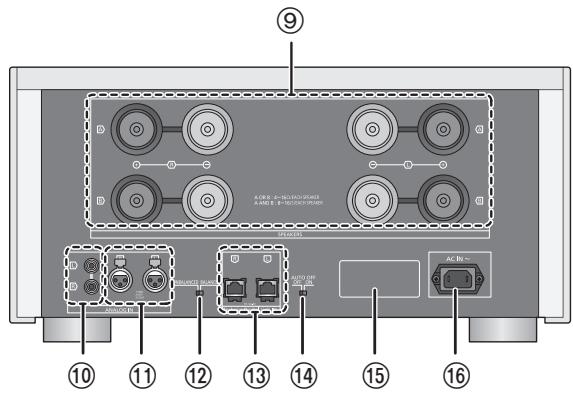

Rear

⑨ Speaker terminals [SPEAKERS] (⇒ 8)
Analogue audio input terminal [UNBALANCED] ( 11)
① Analogue audio input terminal [BALANCED] ( 11)
② Analogue audio input selector switch ( 11)

Switch the analogue audio input.

• This switch does not work when the input selector knob is set to [DIGITAL].

③ System terminal [Technics Digital Link IN] ( 10)
14 Auto off switch [AUTO OFF]

Turn on/off auto off function.

• Auto off function:

This unit is designed to conserve its power consumption and save energy. The unit will turn to standby mode automatically if there is no sound and it is not being used for approximately 20 minutes.

• To cancel this function, set to [OFF].

Product identification marking
The model number is indicated.
16 AC IN terminal [AC IN ] (⇒ 12)

Getting started

• Turn off all equipment before connection and read the appropriate operating instructions.
• Do not connect the AC mains lead until all other connections are complete.
• Insert the plugs of the cables to be connected all the way in.
• Do not bend cables at sharp angles.

Speaker connection

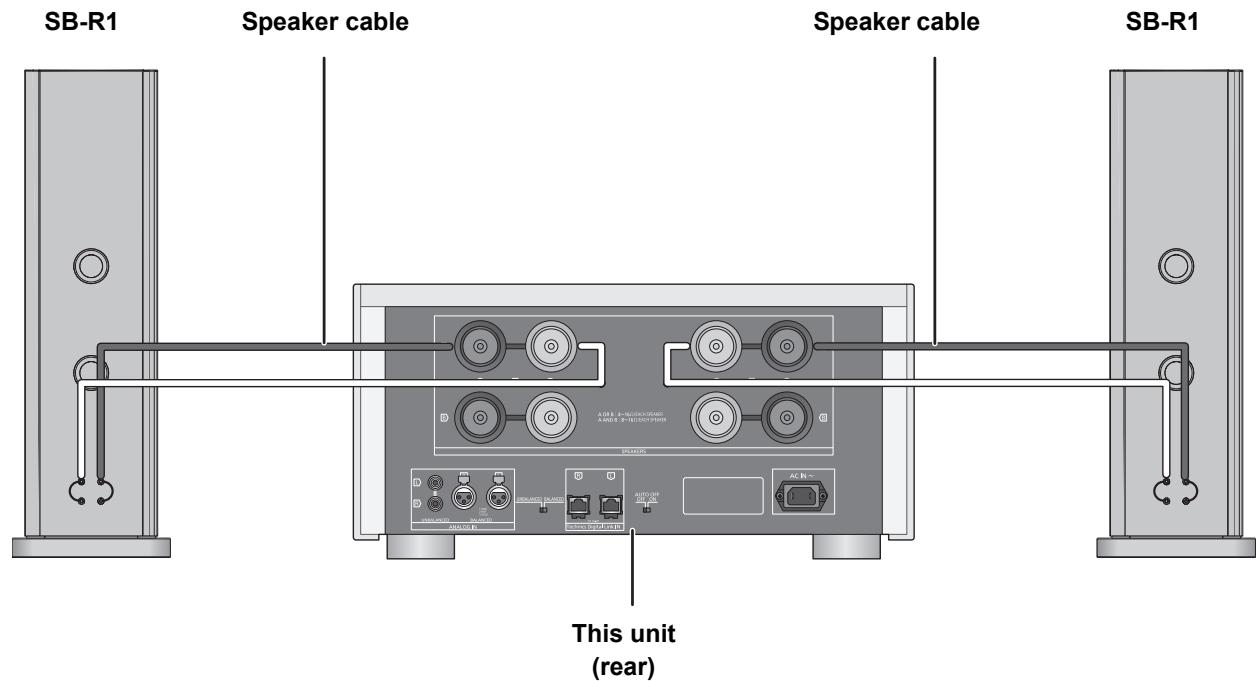

Single wiring connection

e.g.,

• When using single wiring connection, set the speaker selector knob to [A] or [B]. (⇒ 13)

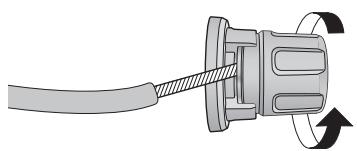

1 Turn the knobs to loosen them, and insert the core wires.

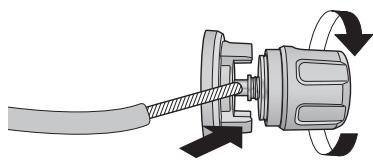

2 Tighten the knobs.

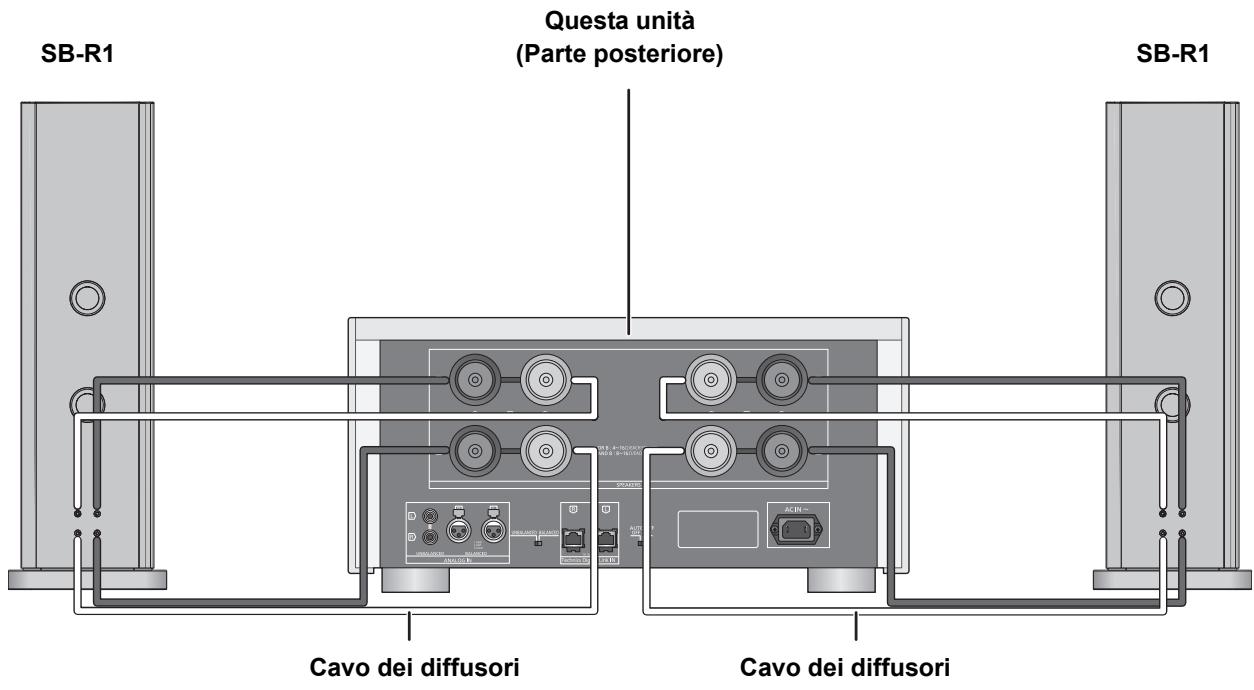

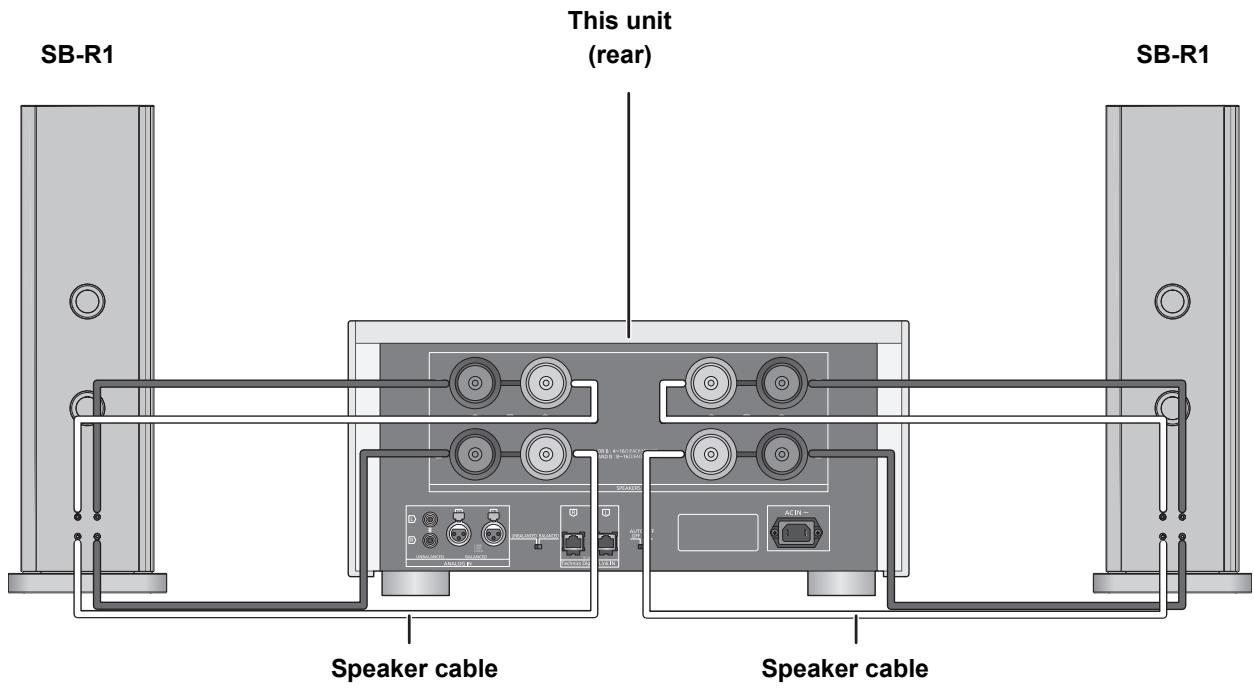

Bi-wiring connection

e.g.,

• When making bi-wiring connections, set the speaker selector knob to [A + B] . (⇒ 13)

• When the connections are completed, pull the speaker cables lightly to check that they are connected firmly.
• Be careful not to cross (short-circuit) or reverse the polarity of the speaker wires as doing so may damage the amplifier.
• Wire the polarity (+/-) of the terminals correctly. Not doing so may adversely affect stereo effects or cause malfunction.
• For details, refer to the operating instructions of the speakers.

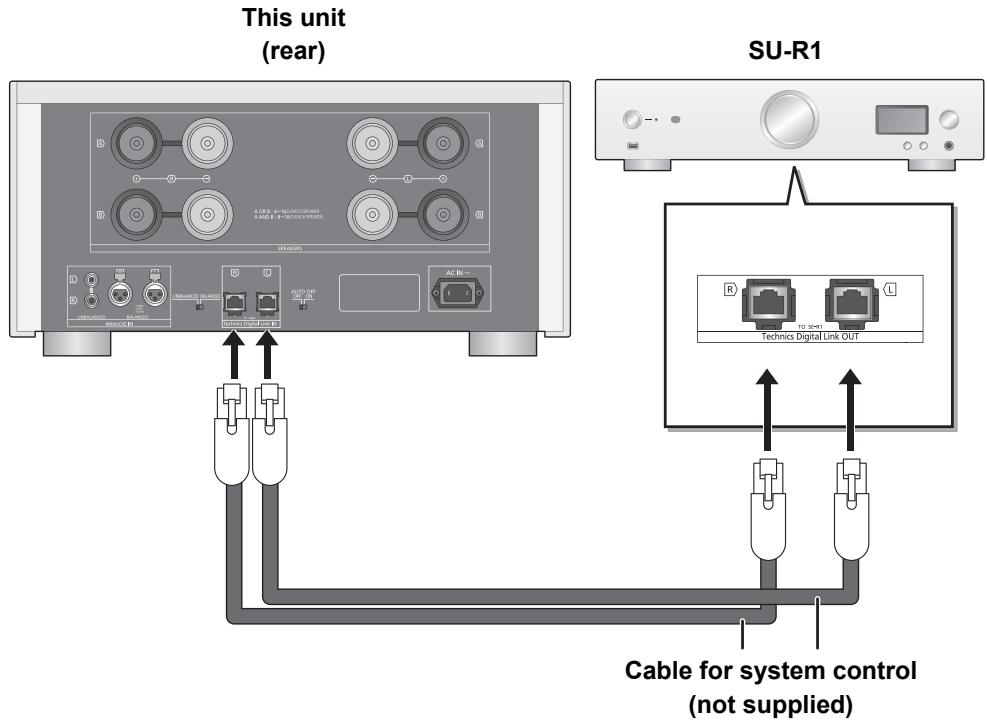

System control connection to an SU-R1

• You can input digital audio signals to this unit and play back music.
• You can operate this unit and the SU-R1 simultaneously with ease on the remote control of the SU-R1. (⇒ 14)

• When using the system control function, set the input selector knob to [DIGITAL]. ( 13)
• Use category 7 or above straight LAN cables (STP) when connecting to peripheral devices.
• We recommend using cables with a length of 3m or less.
• Do not connect an SU-R1 in any other way than described above.

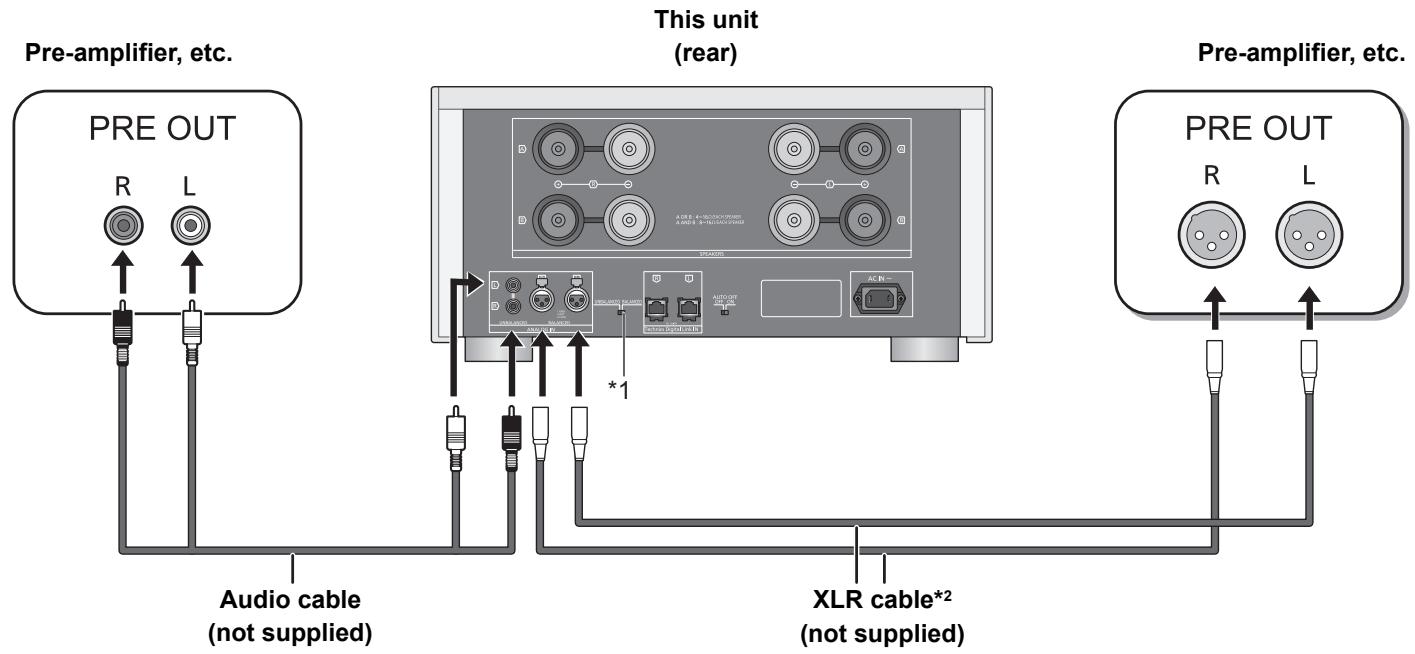

Connecting to analogue audio output devices

You can input analogue audio signals to this unit and play back music.

e.g.,

1 Select [BALANCED] or [UNBALANCED]. Set the analogue audio input selector switch to a position that corresponds to the device you want to play.
2 We recommend using cables with a length of 3 m or less.
- When connecting to an analogue audio output device, set the input selector knob to [ANALOG]. ( 13)

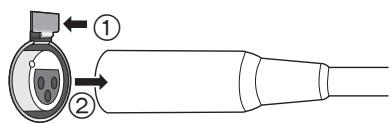

To disconnect the XLR cables

Pull out the XLR cables while pressing [PUSH] at the top of the terminals.

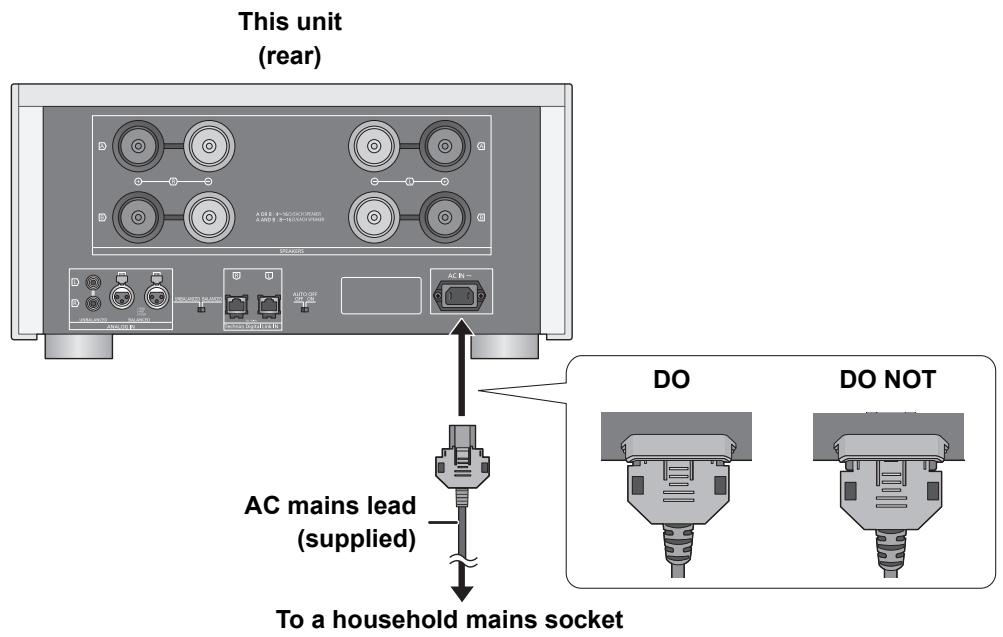

AC mains lead connection

Connect only after all other connections are completed.

■ To disconnect the AC mains lead from this unit

Pull out the AC mains lead while pressing the top and bottom sides of the connector.

• Although the AC power switch is in the [■OFF] position, the unit is not completely disconnected from the mains. Remove the plug from the main electrical outlet if you will not be using the unit for an extended period of time. Place the unit so the plug can be easily removed.

NORSK

Measuring the characteristics of the amplifier and correcting its output

To optimise the audio output, you can measure the amplifier characteristics and correct its output when it is connected to the speakers.
- Set the speaker selector knob to a position that corresponds to the connected speakers. (⇒ right)

Test tone emitted during measurement

To ensure the measurement accuracy, the speakers output a test tone at regular intervals. (For approximately 4 minutes)

It is not possible to change the volume of the audio being output while the measurement is in progress.

1 Press the unit on/off button to the [ 一 / ] position.

• The power indicator lights up in blue.

2 Press and hold [LAPC] until the LAPC indicator on this unit starts to blink.

• This unit will start measuring the characteristics of the amplifier. Check that a test tone is output from both the left and right speakers.
• If you press [LAPC], turn the speaker selector knob or operate other controls while the measurement is in progress, it will be cancelled. The LAPC indicator on this unit will go off.
• When the measurement is complete, amplifier output correction will be automatically turned on. The LAPC indicator on this unit will light up.

Turning on/off the output correction function

Press [LAPC].

Each time you press the button:

LAPC indicator lights up	On
LAPC indicator goes off	Off

• When the SU-R1 is connected via the system control function, you can operate using the SU-R1's remote control.
• The output correction setting is applied separately to each speaker terminal option (A/B/A+B).
• Depending on the type of the connected speakers, the effect of the output correction function may be minimal.
• The corrected output remains in effect until you measure the characteristics again. When you use other speakers, redo the measurement.

Operations

1 Press the unit on/off button to the [=山/] position.

• The power indicator lights up in blue.

2 Turn the input selector knob.

Select a playback device and gain value.

ANALOG (dB) (-30/−20/−10/0)	Select an optimal setting for the connected device. (⇒ below)
DIGITAL	Select this setting when using the system control function.

3 Turn the speaker selector knob.

Select the speaker terminals from which audio will be output.

OFF	Does not output audio.
A	Outputs audio from the speakers connected to the A terminals.
B	Outputs audio from the speakers connected to the B terminals.
A+B	Outputs audio from the speakers connected to the A and B terminals.

4 Operatethe device to be used for playback.

Input selector knob setting during analogue input

• For normal operation, set the value to [0].
• For playback at low volume levels, lower the gain value of this unit by setting the input selector knob to [-30], [-20] or [-10] of [ANALOG (dB)]. This will minimise analogue/digital conversion errors that occur on this unit.

Using the system control function

You can operate this unit and the SU-R1 simultaneously with ease on the remote control of the SU-R1.

Preparation

① Connect this unit and the SU-R1 with cables for system control. ( 10)
② Set the input selector knob to [DIGITAL]. (⇒ 13)
③ Press the unit on/off button on this unit and the SU-R1 to the [ 一 / I ] position.
④ If "Digital Link" is set to "Off" on the SU-R1, change the setting to "On".

Switching this unit and the SU-R1 to on/standby simultaneously

• If you point the SU-R1's remote control at the SU-R1 and press [O] when this unit and the SU-R1 are in standby mode, this unit and the SU-R1 will be turned on simultaneously.
• If you point the SU-R1's remote control at the SU-R1 and press [O] when this unit and the SU-R1 are turned on, this unit and the SU-R1 will simultaneously enter standby mode.

- Measuring the characteristics of the amplifier and correcting its output

You can operate using the SU-R1's remote control. ( 13)

• For information on the operations of the SU-R1, please also refer to its operating instructions.

Troubleshooting

Before requesting service, make the following checks. If you are uncertain about some of the check points, or if the solutions indicated in the following guide does not resolve the issue, then consult your dealer for instructions.

To return all settings to the factory defaults

When the following situations occur, reset the memory:

• There is no response when buttons are pressed.
• You want to clear and reset the memory contents.

When the unit is off:

① Press and hold [DIMMER].
(2) While continuing to hold [DIMMER], press the unit on/off button.

• Keep holding [DIMMER] until the power indicator and the LAPC indicator blink twice.

Heat buildup of this unit.

• This unit becomes warm when the volume is high. This is not a malfunction.

A "humming" sound can be heard during playback.

• An AC mains lead or fluorescent light is near the cables. Keep other appliances and cords away from the cables of this unit.
• A strong magnetic field near a TV or other device may adversely affect the audio quality. Keep this unit away from such devices.
• The speakers may output noise when a device nearby is emitting powerful radio waves, such as when a mobile phone is on a call.

No sound.

• Check connections to speakers and other equipment. After checking the connections, measure the characteristics of the amplifier. ( 13)
• Check to see if the correct input source is selected.
• Insert the plugs of the cables to be connected all the way in.
• Set the speaker selector knob to other than [OFF]. ( 13)

The peak power meter does not operate.

• In the following cases, this meter does not operate:

• When the peak power meter light is turned off by pressing [DIMMER].

• When this unit is muted by pressing [MUTE] on the SU-R1's remote control. (Only when the input selector knob is set to [DIGITAL].)
• When the speaker selector knob is set to [OFF].

The system control function is not working.

• Connect the cables to the matching LR terminals on this unit and the SU-R1.

The unit turns off automatically.

Is the auto off function turned on? ( 7)
- If the SU-R1 is connected to this unit via the system control function, this unit may automatically enter standby mode when the SU-R1 enters standby mode. ( 10, 14)
- This unit incorporates a protection circuit to prevent damage caused by heat buildup. When you use this unit at a high volume level for a long period of time, it may turn off automatically. Wait for this unit to cool down before turning on this unit again. (For approximately 3 minutes)

Specifications

GENERAL

Power supply	AC 220 V to 240 V, 50/60 Hz
Power consumption	210 W
Power consumption in standby mode	Approx. 0.7 W
Power consumption in off mode	Approx. 0.3 W
Dimensions (W×H×D)	480 mm×241 mm×567 mm
Mass	Approx. 54 kg
Operating temperature range	0 °C to +40 °C
Operating humidity range	35 % to 80 % RH (no condensation)

AMPLIFIER SECTION

Output power	150 W + 150 W (1 kHz, T.H.D. 0.5 %, 8 Ω, 20 kHz LPF)
	300 W + 300 W (1 kHz, T.H.D. 0.5 %, 4 Ω, 20 kHz LPF)
Frequency response	1 Hz to 90 kHz (-3 dB, 8 Ω)
THD+N	0.05 % (1 kHz, 75 W, 8 Ω, 20 kHz LPF)
Input sensitivity/Input impedance
UNBALANCED	1.2 Vrms / 47 kΩ (ANALOG 0 dB)
BALANCED	1.2 Vrms / 47 kΩ (ANALOG 0 dB)
GAIN	29 dB (ANALOG 0 dB)
Load impedance
A or B, Bi-Wire	4 Ω to 16 Ω
A+B	8 Ω to 16 Ω

TERMINALS SECTION

Analog input
UNBALANCED	Pin jack
BALANCED	3 Pin XLR
Digital input	Technics Digital Link

• Specifications are subject to change without notice.
• Mass and dimensions are approximate.

LAPC (Load Adaptive Phase Calibration)

LAPC (Load Adaptive Phase Calibration)

LAPC (Load Adaptive Phase Calibration)

- Connessione mono-wiring

es.

Connessione bi-wiring

es.

LAPC (Load Adaptive Phase Calibration)

LAPC (Load Adaptive Phase Calibration)

LAPC (Load Adaptive Phase Calibration)

① On/Off-knop toestel [OFF O/I]

LAPC (Load Adaptive Phase Calibration)

• Plasser旅游度假区，Sloping Lake, Sloping Lake, Sloping Lake, Sloping Lake, Sloping Lake, Sloping Lake, Sloping Lake, Sloping Lake, Sloping Lake, Sloping Lake, Sloping Lake, SLOPING Lake
• Denne encheten er beregnet for bruk i tropiske klimaer.

Plassering

LAPC (Load Adaptive Phase Calibration)

[1/1] (paall): Laite on paall.

Delivering the Ultimate Emotive Musical Experience to All

At Technics we understand that the listening experience is not purely about technology but the magical and emotional relationship between people and music.

We want people to experience music as it was originally intended and enable them to feel the emotional impact that enthuses and delights them.

Through delivering this experience we want to support the development and enjoyment of the world's many musical cultures. This is our philosophy.

With a combination of our love of music and the vast high-end audio experience of the Technics team, we stand committed to building a brand that provides the ultimate emotive musical experience by music lovers, for music lovers.

Director

Michiko Ogawa

Headquarter Address:

Panasonic Corporation

Kadoma, Osaka, Japan

Importer for Europe:

Panasonic Marketing Europe GmbH

Panasonic Testing Centre

Winsbergring 15, 22525 Hamburg, Germany

Panasonic Corporation

Web Site: http://panasonic.net

EnGeFrIt SpDaDu SwFi
