Product Type	Sound Masking Generator/Amplifier
Brand	Atlas Sound (AtlasIED)
Model	TSD-GPN1200
Dimensions (H x W x D)	1.5" x 4" x 2.75" (39 x 101 x 70 mm)
Weight	6 oz (0.165 kg)
Power Supply	24 VDC, 100 mA (2.4 W average consumption)
Noise Generator	Internal, selectable pink or white noise
Outputs	1 balanced line out (300 Ω balanced), 1 speaker out (4W, 70.7V masking system)
Line Output Level	Maximum 500 mV
Speaker Output Power	4W, supports up to 6 speakers at 0.5W each
EQ Control	Variable high-cut filter, 1 kHz to 8 kHz, 6 dB/octave slope
Controls	Level control (removable knob with security cover), noise selector, pre/post selector, EQ adjust
Indicators	Blue power LED
Topology	Analog, random
Frequency Response	20 Hz - 20 kHz (line out, pre EQ only)
Mounting Options	Velcro, multi-mount plate, optional rack mount kits (19" or half-width), rear rack kit
Connectors	Removable Phoenix-style (3.5 mm pitch), separate ground terminals
Included Accessories	Velcro strips, multi-mount plate, cable retainers, level knob, security cover
Optional Accessories	24VDC power supply, TSD-RMK (19" rack), TSD-RMKHR (half rack), TSD-RRMK (rear rack)
Warranty	3 years for AtlasIED products, 1 year for electronics/control systems
Service Contact	Warranty: 1-877-689-8055 ext. 277; Tech Support: 1-800-876-3333 or support.atlasied.com
Application	Sound masking in call centers, pharmacies, government buildings, medical facilities, open offices, schools, industrial facilities
Safety Features	Removable level control with tamper-proof security cover, low voltage operation
Repairability	Removable connectors for easy wiring, service through AtlasIED

Frequently Asked Questions - TSD-GPN1200 Atlas Sound

What power supply does the TSD-GPN1200 require?

The unit requires a 24 VDC power supply with at least 100 mA output. A single power supply can power multiple TSD units if the total current does not exceed the supply's rating. The power supply is sold separately.

How many masking speakers can I connect to the TSD-GPN1200?

You can connect up to six 70.7V masking speakers tapped at 0.5W each, for a total load not exceeding 4W. Use the High Level Output terminal.

What is the difference between pink noise and white noise?

Pink noise has equal energy per octave and is commonly used for sound masking in ceilings with lay-in tiles. White noise has equal energy per frequency and is recommended for masking under raised floors or gypsum ceilings. Select via the rear panel switch.

How do I adjust the EQ on the TSD-GPN1200?

Use a screwdriver to adjust the recessed EQ Adjust control on the rear panel. It varies a high-cut filter from 1 kHz to 8 kHz at 6 dB per octave. Turn fully clockwise for no effect; counter-clockwise to lower the cutoff frequency. Use with a 1/3 octave RTA for final tuning.

What does the Pre/Post switch do?

The Pre/Post switch determines whether the line level output includes the EQ and gain control. In Pre mode, the line out is unaffected by EQ and gain; in Post mode, both EQ and gain affect the line output.

How do I mount the TSD-GPN1200?

The unit can be mounted using included industrial-grade Velcro, the multi-mount plate (screws included), or optional rack mount kits (TSD-RMK, TSD-RMKHR, TSD-RRMK). Follow the mounting instructions to avoid damage.

Can I use the line output and speaker output simultaneously?

Yes, both outputs can be used at the same time. This allows large zones to be addressed with external equalization and amplification while a smaller zone is powered by the internal amplifier.

What is the purpose of the security cover?

The security cover replaces the level control knob to prevent unauthorized adjustment. Remove the knob, then push the cover into the hole until it snaps into place. Small pliers may be needed to remove the knob.

How do I connect an unbalanced line input?

For unbalanced inputs, tie (short) the G (ground) and − (negative) terminals together on the line output connector. This ensures proper signal transmission.

Where can I get technical support or service for the TSD-GPN1200?

For warranty service, call 1-877-689-8055 ext. 277 to obtain an RA number. For tech support, call 1-800-876-3333 or visit support.atlasied.com. Visit www.AtlasIED.com for more information.

USER MANUAL TSD-GPN1200 Atlas Sound

The AtlasIED TSD-GPN1200 sound masking generator is perfectly suited for basic sound masking systems. The analog topology design eliminates repeating cycles commonly found in other manufacture's low cost digital designs.

The TSD-GPN1200 includes a selectable pink or white noise generator and incorporates a variable balanced output to match input requirements of AtlasIED equalizers and amplifiers.

In addition to the line level output, a 4W (70V Masking System) output is provided to power up to six masking loudspeakers tapped at .5W each. A variable hi-cut filter with operating range between 1kHz and 8kHz at a slope of 6dB per octave supports equalization requirements for most basic 4W amplifier Sound Masking systems. Both outputs may be used simultaneously allowing large zones to be addressed with external equalization and amplification while a smaller zone is powered by the internal amplifier with spectrum control from the internal high cut filter.

The TSD-GPN1200 is part of a full line of AtlasIED Time Saving Devices. These compact (1.5" x 4" x 2.75") units are designed to solve some of the common audio system problems in the easiest and in the most efficient and cost-effective way. All models are made from high quality components and include removable individual I/O connectors for quick and precise wiring, separate ground terminals for all I/Os assuring secured connections, and removable level controls that can be replaced with tamper-proof security covers. The TSDs are highly efficient and meet most energy standards as one 24V DC power supply (available separately) can power multiple Atlas Time Saving Devices.

Features

• Analog Topology
• Selectable Pink or White Noise Generator
• Variable Level Control
• Variable Low Pass EQ
  • Balanced Line Output
  • 4W Speaker Output
• Multiple Mounting Configurations
  • Cable Management System
• Separate Ground Connections
• Removable Phoenix Style I/O Connectors
  • Meets Most Energy Standards
• Compact Chassis Design

Audio Applications

• Sound Masking
• Security Masking
• Pink Noise Generator
• White Noise Generator

Installation

• Call Centers
• Pharmacies
  • Government Buildings
  • Medical Facilities
• Open Office Environments
• Schools
• Industrial Facilities

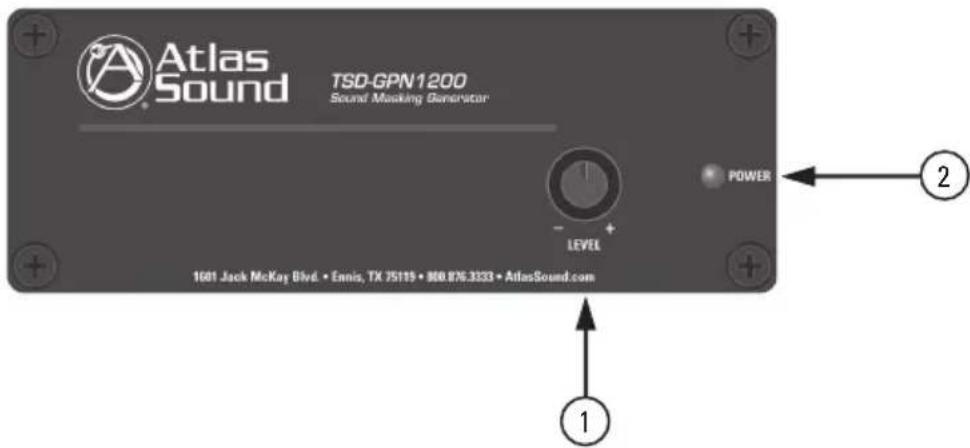

Front Panel Description

1. Level Control - Adjust the level of the masking signal at the High Level speaker output and at the Line Out if the Pre/Post switch is in the "Post" position. Turn clockwise to increase the signal level and counter-clockwise to decrease it. Note: The Level Control knob can be removed and replaced with a supplied security cover to prevent unauthorized adjustment.
2. Power LED - Illuminates Blue when 24VDC is present.

Atlas

1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A. Telephone: [phone] • Fax: [phone]

AtlasIED.com - 3 -

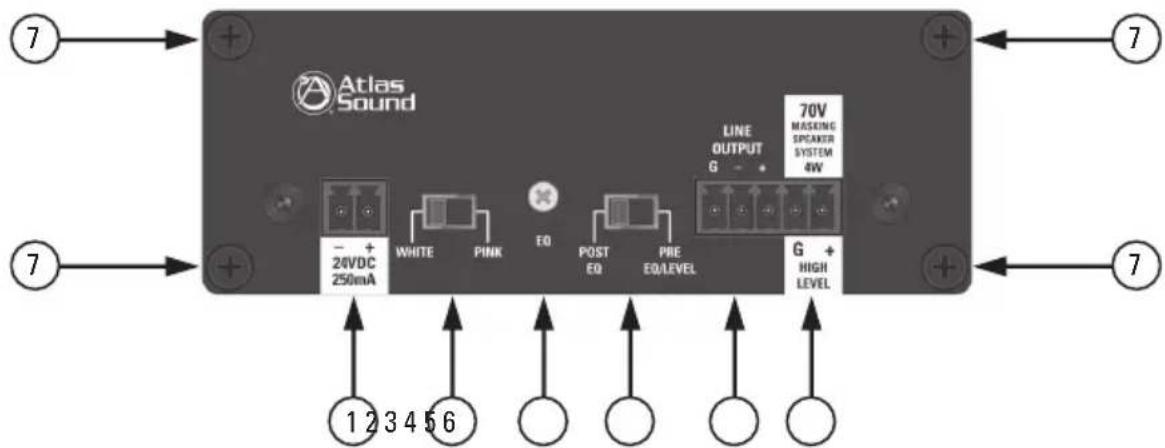

Rear Panel Description

TSD Input/Output connections are removable for easy system wiring. The connector has a 3.5mm pitch between pins.

1. DC Power Input - Each TSD that requires DC power comes with a 2 position connector for an external 24VDC power supply (sold separately). Because of the low power consumption, a single external power supply may power more than one TSD. Refer to the current requirements in milliamps to match with the appropriate power supply. Note: It is acceptable to exceed the current of the TSDs but NOT safe to use a power supply that is below the current requirement of the device.
2. Noise Generator Selector - Select the type of noise signal needed for your application. Most plenum masking uses pink noise when the ceiling has lay-in tiles. If you are masking under a raised floor or the ceiling is made from gypsum, it is recommended to use "white" noise.
3. EQ Adjust - Varies a low cut filter with a range of 1kHz to 8kHz at 6dB per octave. With this control turned fully clockwise, the filter will have no effect on the output signal. Rotate the control counter-clockwise to adjust the filter to your preferred masking spectra. This filter is used with a 1/3rd octave RTA (Real Time Analyzer) for final tuning of your sound masking system.
4. Pre/Post Selector - Determines whether the Line Level Output has the EQ and Gain Control in or out of the circuit. In "Pre" mode, the Gain Control and the EQ Control will have no effect on the Line Out, while in "Post" mode, both the EQ and Gain will effect the Line Output.
5. Line Output - A Balanced Line Level Output of the generator is present here. The connections between devices must be mated properly to the Output connector or signal loss and/or noise may be introduced. Note: Unbalanced line level inputs can be inserted by using the following wire configuration, tie (short) the (G) and (−) terminals together.

6. High Level Output - Connect up to six (6) 70.7V masking speakers when tapped at 0.5W each for a load no greater than 4W.

7. Cable Management Retainer Points - Each TSD includes two cable retainer straps for securing the included cable management retainers. Remove one of the rear panel screws, align the panel hole with a retainer and firmly tighten the screws.

Cable Management

Technical line drawing of an electronic device showing internal components and cable termination (no text or symbols)

Knob and Security Cover

All front panel level controls feature a removable knob that can be replaced with an included security cover. Follow these steps to prevent potentiometer damage or unwanted changes.

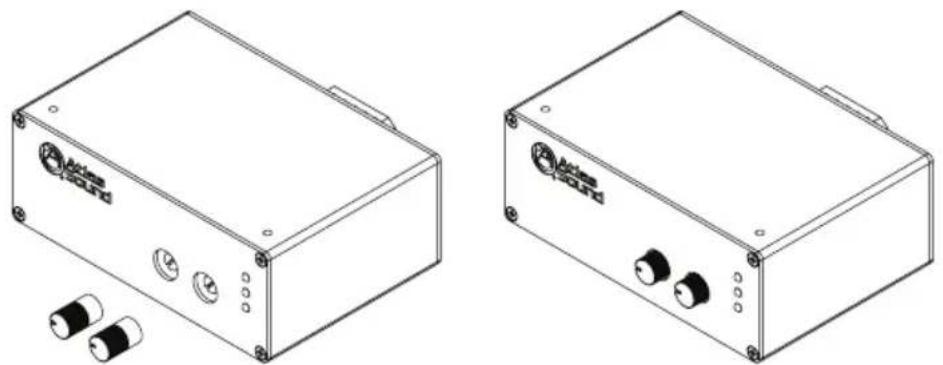

1. Knob Installation - Turn the potentiometer shaft fully counter-clockwise. Align the knob indicator to the lowest setting on the panel and the potentiometer shaft slot. Carefully press the knob onto the potentiometer shaft. Do not force or damage may occur to the potentiometer.

Technical line drawings of two electronic device modules with buttons and connectors (no text or symbols)

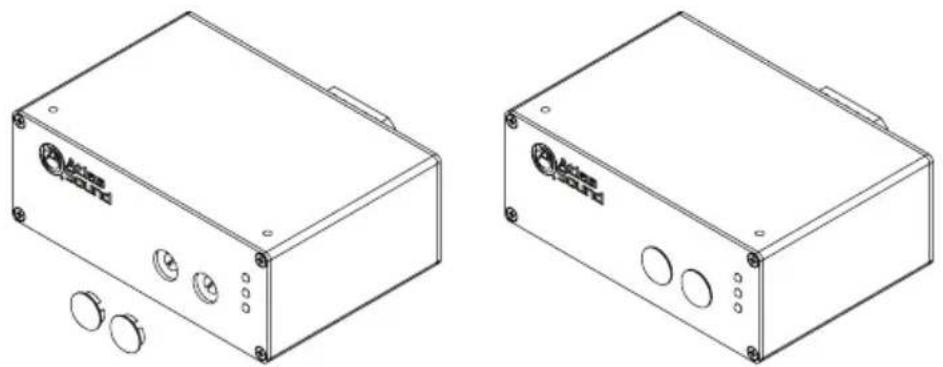

1. Security Cover Installation - Remove the knob from the panel and insert the cover. Small pliers may be required to remove the knobs. Align the security cover to the level control panel hole. Push the cover into the hole until it snaps into place. Do not force or damage may occur to the potentiometer.

Two technical line drawings of an electronic device casing with buttons and mounting holes (no text or symbols)

1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A. Telephone: [phone] • Fax: [phone]

Mounting

Listed below are the ways to mount the TSD and the optional accessories that can be purchased.

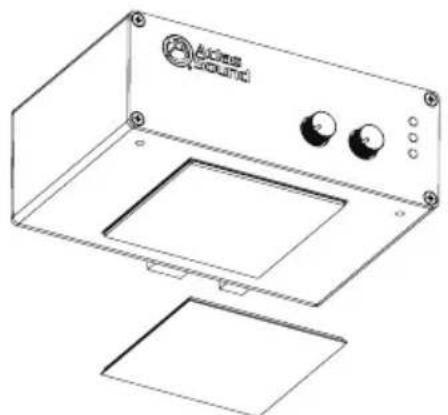

1. Velcro™ - Each unit includes two 2" x 2" pieces of industrial-grade Velcro™ with adhesive backing to adhere to any flat surface. Clean all surfaces before applying the adhesive side of the Velcro™.

Line drawing of a device casing with labeled buttons and mounting base (no text or symbols beyond branding)

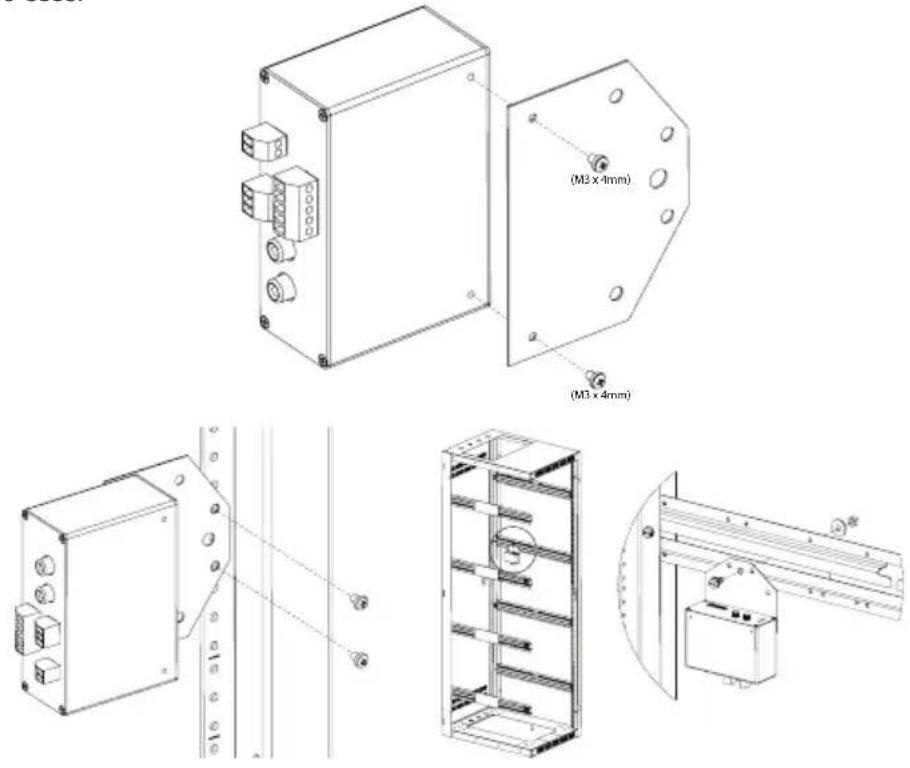

1. Multi Mount Plate - Each TSD includes a versatile multi-position mounting plate. This plate allows the TSD to be mounted to any surface; but is ideal for use with rear rack rails or side rack hat channels. Use the included M3 x 4mm screws to install the plate on the TSD. Note: Only use the included M3 x 4mm screws as other screws may be too long and will cause internal damage to the TSD. The multi-position mounting plate is a new addition being included with TSDs. If the TSD being used did not include the mounting plate, contact AtlasIED customer service at 1-800-876-3333.

1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A. Telephone: [phone] • Fax: [phone]

AtlasIED.com - 7 -

Optional Mounting Accessories

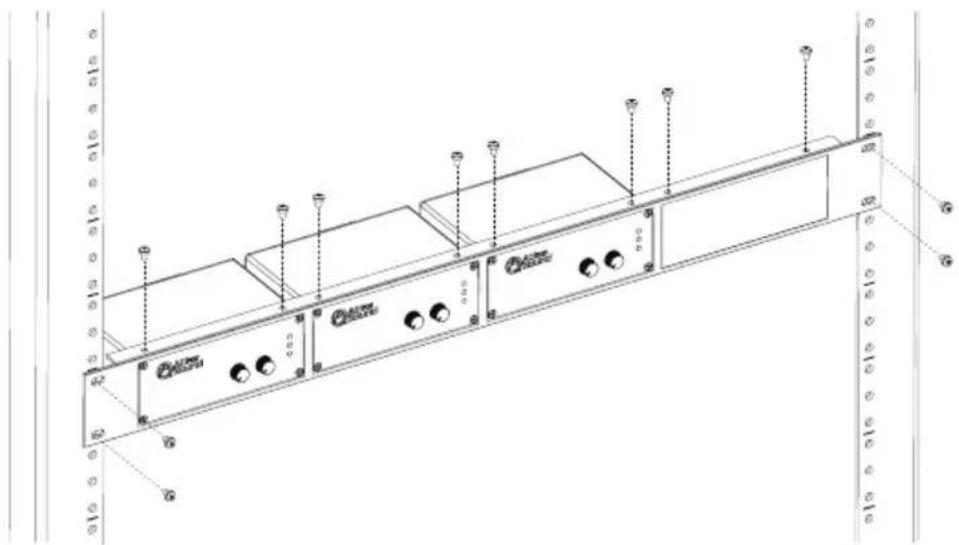

1. TSD-RMK 19" Width Rack Mount Kit - For 19" rack mounting, AtlasIED offers an optional rack mount kit, the TSD-RMK. This rack mount kit can support up to four TSD units. The kit includes three blank panels designed to fill any unused slots. Use the included hardware to mount the TSD into the rack mount kit using the top mount screw holes on the TSD.

Technical line drawing of a server rack with indicator lights and ports (no text or symbols)

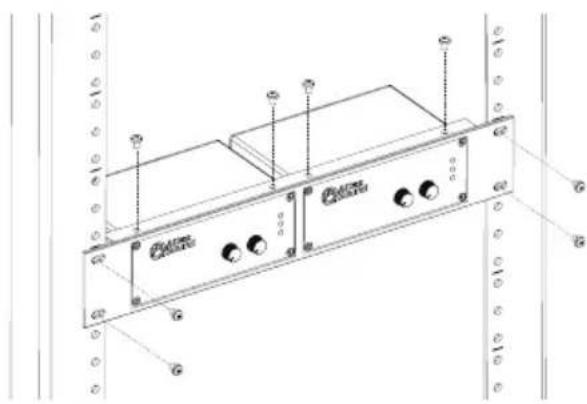

1. TSD-RMKHR Half Width Rack Mount Kit - AtlasIED offers an optional rack mount kit that can be used in half width rack applications including the AtlasIED WMA-HR and AWR-HR models. The TSD-RMKHR can support up to two TSDs. Included is an extra blank panel to fill one of the spaces if only one TSD is being used.

Technical line drawing of a server rack with labeled ports and connectors (no text or symbols)

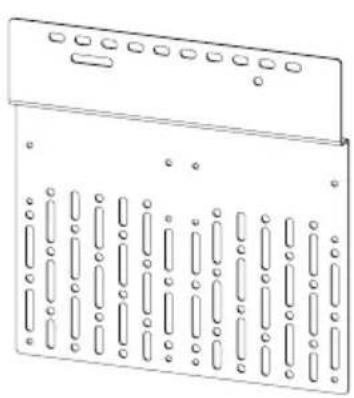

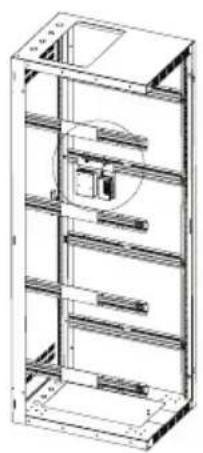

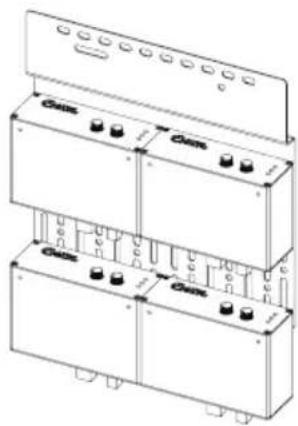

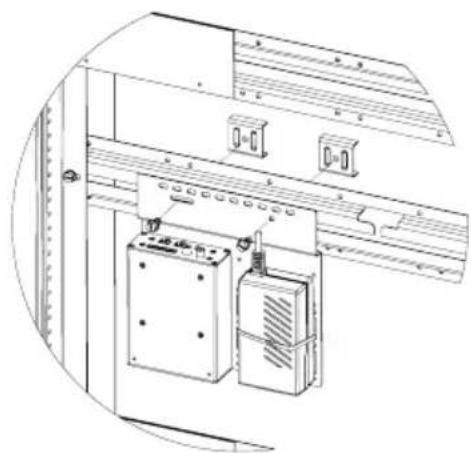

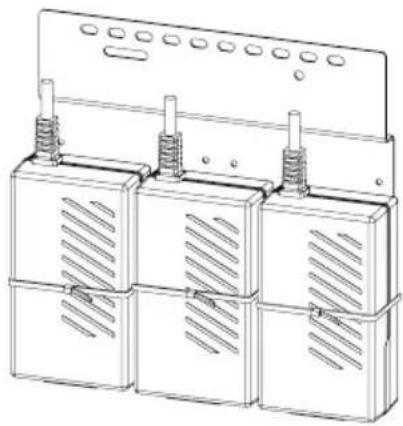

1. TSD-RRMK Rear Rack Mounting Kit - For complete flexibility in mounting a TSD or TSD external power supplies the optional TSD-RRMK is available. The TSD-RRMK can support mounting of either two larger TSDs with external power supplies or up to 4 TSD models. Note: Only use the included M3 x 4mm screws as other screws may be too long and will cause internal damage to the TSD.

Technical line drawing of a mechanical component with multiple slots and mounting holes (no text or symbols)

Technical line drawing of a multi-level industrial shelving unit (no text or symbols)

Technical line drawing of an electrical cabinet with control panel and door holders (no text or symbols)

Technical line drawing of three identical electrical enclosure units with heat sinks and ventilation grilles (no text or symbols)

Atlas

IED.川

1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.

Telephone: [phone] • Fax: [phone]

AtlasIED.com - 9 -

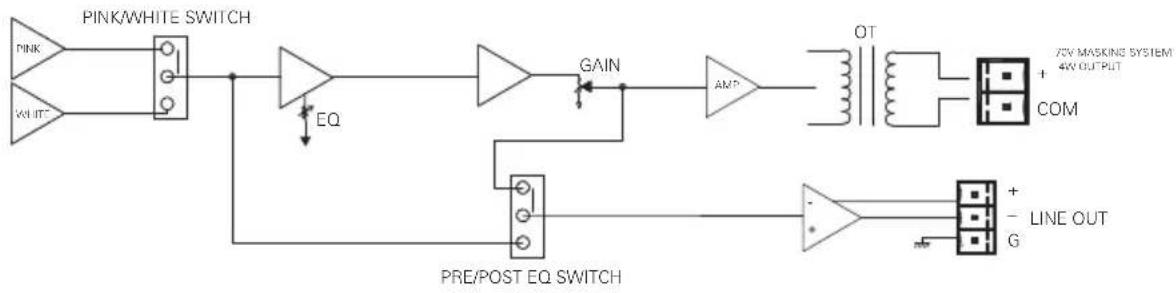

Block Diagram

Specifications

Description Sound Masking Generator/Amplifier

Chassis Color Black

Chassis Material Aluminum

Inputs

Noise Generator Internal Pink or White Selectable

Outputs

Type Qty 1, Balanced Line

Connection Removable 3 Position Captive Screw 3.5mm Spacing

Impedance 300Ω Balanced, 150Ω Unbalanced

Line Output Level Maximum Output 500mV

Type Qty 1, Speaker Out 4W & 70.7V Masking System Speakers

Connection Removable 3 Position Captive Screw 3.5mm Spacing

Line Output Level Maximum Output 4W

Controls

Level Control Qty 1, Removable Knob with Security Cover

Noise Generator Select Pink or White

Line Out Select Pre or Post EQ

EQ Adjust Recessed Screw Driver

Indicators

Power Blue

1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A. Telephone: [phone] • Fax: [phone]

AtlasIED.com - 10 -

Electrical

Topology Random Analog

Frequency Response 20Hz - 20kHz Line Out Pre EQ Only

EQ Filter High Cut, Variable, 1kHz - 8kHz/6dB

Power Requirements

Voltage 24VDC

Average Power Consumption 100mA

Average Power Consumption 2.4W

Dimensions H 1.5" (39mm) x W 4" (101mm) x D 2.75" (70mm)

Weight 6oz, .165kg

Included Accessories

Velcro™ Industrial-Grade

Multi-Mount Plate Qty 1, Includes Two (2) M3 x 4mm Screws

Cable Retainers Qty 2

Level Control Knob Qty 1

Level Control Security Cover Qty 1

Optional Accessories

TSD 24VDC Power Supply

TSD-RMK 1 RU 19" Width Rack Mount Panel (Supports 4 TSD Units)

TSD-RMKHR 1 RU Half Rack Width Panel (Supports 2 TSD Units)

TSD-RRMK Rear Rack Mounting Kit

Limited Warranty

All products manufactured by AtlasIED are warranted to the original dealer/installer, industrial or commercial purchaser to be free from defects in material and workmanship and to be in compliance with our published specifications, if any. This warranty shall extend from the date of purchase for a period of three years on all AtlasIED products, including SOUNDOLIER brand, and ATLAS SOUND brand products except as follows: one year on electronics and control systems; one year on replacement parts; and one year on Musician Series stands and related accessories. Additionally, fuses and lamps carry no warranty. AtlasIED will solely at its discretion, replace at no charge or repair free of charge defective parts or products when the product has been applied and used in accordance with our published operation and installation instructions. We will not be responsible for defects caused by improper storage, misuse (including failure to provide reasonable and necessary maintenance), accident, abnormal atmospheres, water immersion, lightning discharge, or malfunctions when products have been modified or operated in excess of rated power, altered, serviced or installed in other than a workman like manner. The original sales invoice should be retained as evidence of purchase under the terms of this warranty. All warranty returns must comply with our returns policy set forth below. When products returned to AtlasIED do not qualify for repair or replacement under our warranty, repairs may be performed at prevailing costs for material and labor unless there is included with the returned product(s) a written request for an estimate of repair costs before any nonwarranty work is performed. In the event of replacement or upon completion of repairs, return shipment will be made with the transportation charges collect.

EXCEPT TO THE EXTENT THAT APPLICABLE LAW PREVENTS THE LIMITATION OF CONSEQUENTIAL DAMAGES FOR PERSONAL INJURY, ATLASIED SHALL NOT BE LIABLE IN TORT OR CONTRACT FOR ANY DIRECT, CONSEQUENTIAL OR INCIDENTAL LOSS OR DAMAGE ARISING OUT OF THE INSTALLATION, USE OR INABILITY TO USE THE PRODUCTS. THE ABOVE WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES INCLUDING BUT NOT LIMITED TO WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

AtlasIED does not assume, or does it authorize any other person to assume or extend on its behalf, any other warranty, obligation, or liability. This warranty gives you specific legal rights and you may have other rights which vary from state to state.

Service

Should your Atlas TSD require service, please contact the AtlasIED warranty department at 1-877-689-8055, ext. 277 to obtain an RA number.

AtlasIED Tech Support can be reached at 1-800-876-3333 or support.atlasied.com.

Visit our website at www.AtlasIED.com to see other Atlas products.

©2017 Atlas Sound L.P. The Atlas "Circle A", Soundolier, and Atlas Sound are trademarks of Atlas Sound L.P.

IED is a registered trademark of Innovative Electronic Designs LLC. All Rights Reserved.

All other trademarks are the property of their respective owners. All specs are subject to change without notice. ATS003940 RevC 4/17
