USER MANUAL T.B.Silence UCTB12N ENERMAX
■ Installation:
- PC power off at all times during installation

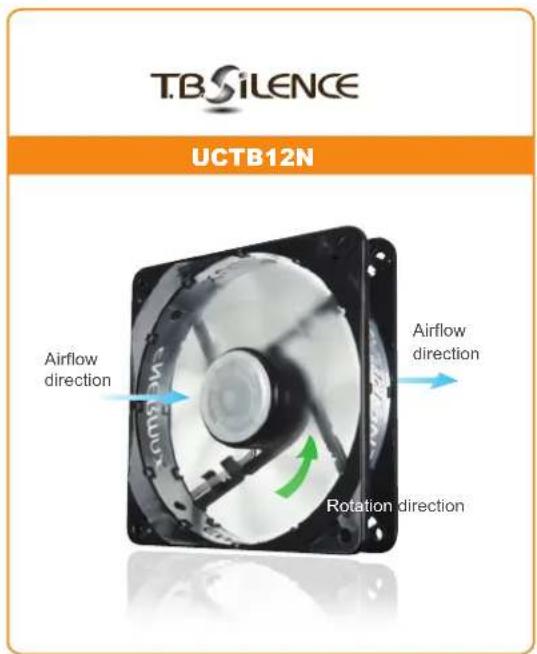

- Please see the right figure for the airflow directions

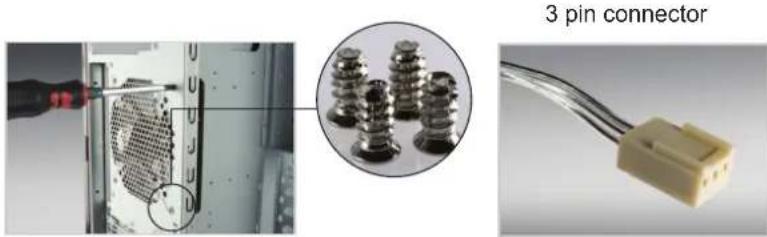

- Install the fan on the case with the 4 screws
- Connect the 3 pin connector to a specific 3 pin 12V header on the motherboard. Or attach the enclosed 3 pin to 4 pin adaptor to your power supply
back view
Press the center of the blades towards the frame until it clicks
