Product Type	Wet & Dry Electric Shaver
Brand	Philips
Model	AquaTouch AT926
Dimensions (Approx.)	6.3 x 2.8 x 8.7 inches
Weight (Approx.)	0.55 lbs
Power Source	Rechargeable battery (Li-ion)
Charging Time	1 hour
Shaving Time	45 minutes
Fast Charge	Yes (5 min for one shave)
Wet & Dry Use	Yes (waterproof, use with foam/gel)
Pop-up Trimmer	Yes (for mustache/beard trimming)
Shaving Heads	2D contouring, 2 floating heads
Replacement Heads	SH30 models (every 12 months recommended)
Display	LED battery indicator
Travel Lock	Yes (press and hold on/off for 3 seconds)
Cleaning	Rinse under tap (waterproof body)
Safety	Automatic voltage (100-240V), cordless
Accessories Included	Protection cap, charging stand, brush

Frequently Asked Questions - AquaTouch AT926 PHILIPS

Can I use the Philips AquaTouch AT926 in the shower?

Yes, the shaver is fully waterproof and can be used in the shower with foam or gel. Rinse it under the tap for easy cleaning.

How long does the battery last?

The shaver provides up to 45 minutes of cordless shaving after a full 1-hour charge. A 5-minute fast charge is enough for one shave.

How do I replace the shaving heads?

Pull off the old heads and snap on the new SH30 models. Replace every 12 months for optimal performance.

Can I shave dry with this shaver?

Yes, the AquaTouch AT926 is designed for both wet and dry use. You can shave dry for a quick shave or wet for a more comfortable experience.

How do I clean the shaver?

Rinse the shaver head under warm water after each use. Use the brush to remove hair from the trimmer. Do not use abrasive cleaners.

Does it have a travel lock?

Yes, press and hold the on/off button for 3 seconds to activate the travel lock. The LED indicator will blink to confirm.

What is the warranty period?

The shaver comes with a 2-year limited warranty. See the user manual for terms and conditions.

Can I use the shaver while charging?

No, the shaver must be unplugged during use for safety and performance reasons.

How do I know when to replace the shaving heads?

Replace the heads every 12 months or when you notice a decrease in shaving performance, such as pulling or irritation.

Is the shaver suitable for sensitive skin?

Yes, the floating heads follow the contours of your face, and wet shaving with a gel can reduce irritation for sensitive skin.

USER MANUAL AquaTouch AT926 PHILIPS

Close-up of a Philips electric shaver with three circular blades (no text or symbols visible)

フィリップス電動シェーバー

品番

AT926

取 扱 說 明 書

保証書付

Line drawing of a pair of electric shaver with three leads and a power button (no text or symbols)

本体

Line drawing of a stylized object resembling a device or container (no text or symbols)

保護キャップ

クリーニングブラシ

Line drawing of a connected electrical plug and cable (no text or symbols)

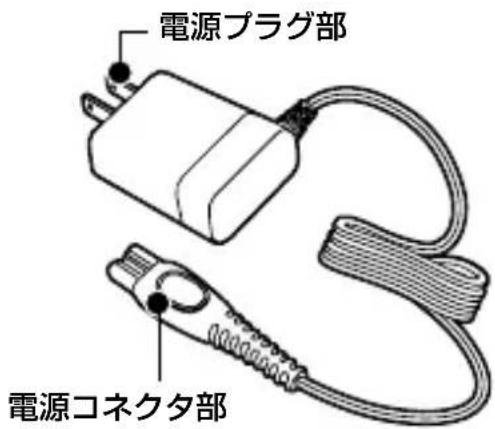

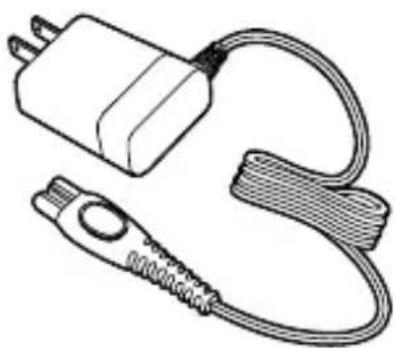

充電アダプタ HQ8505)

Line drawing of a three-ring mechanical component with no text or symbols

ユニットフレーム

内刃

Three identical mechanical components with radial blades and central hub (no text or symbols)

外刃

Symmetrical mechanical component diagram with four circular ports and a central triangular hub (no text or symbols)

保持板

Line drawing of a mechanical component or housing (no text or symbols)

Line drawing of a three-pin electric shaver with a black arrow pointing to the side (no text or symbols)

Diagram showing a medical device with a catheter inserted into a car body, with an arrow indicating direction (no text or symbols present)

Diagram of a mechanical or electrical component with concentric curved lines and radial arrows, no text or symbols present.

充電中

充電表示ランプが 緑色に点滅

充電完了

充電表示ランプが 緑色に点灯

Line drawing of a three-pin electric shaver with a black arrow pointing to the side (no text or symbols)

ON

Illustration of two male characters using flashlights, no text or symbols present

Line drawing of a person applying eye examination to their ear (no text or symbols present)

ほお

Illustration of a hand holding a cylindrical object with an arrow indicating motion (no text or symbols)

あごの裏側

Illustration of a person performing a neck massage or acupressure technique (no text or symbols present)

ほおの奥から首筋

Line drawing of a person receiving a finger massage or pressure technique, with no text or symbols present.

鼻の下

Illustration showing a person applying oral care to another person's ear, with a close-up of the ear being lifted by a pipette (no text or symbols present)

Diagram of a hairbrush working on a device, showing mechanical components and directional arrows (no text or symbols)

Line drawing of a person holding a small object near their mouth (no text or symbols)

Illustration of a hand holding a connector with arrows indicating process (no text or symbols)

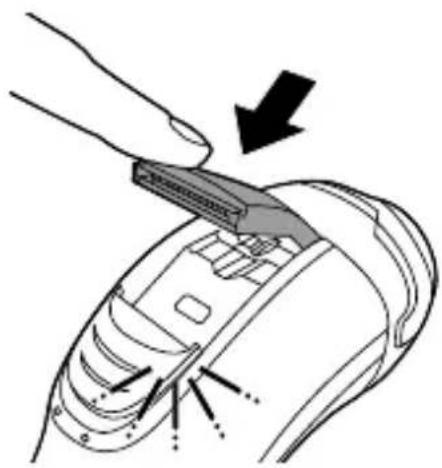

4 トリマーを元の位置に戻します。

Diagram of a hand using a tool to adjust or install electronic components, with no visible text or symbols.

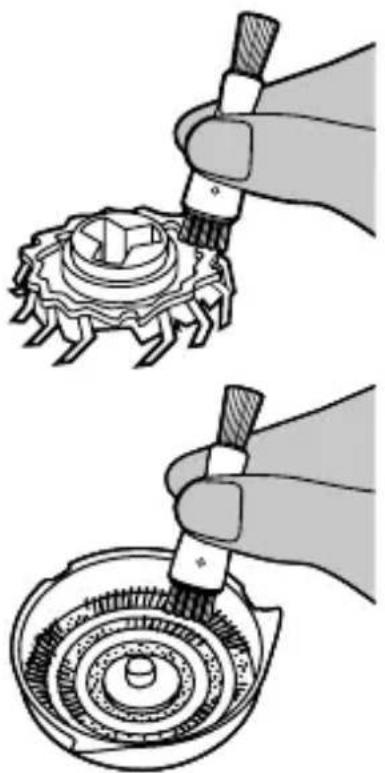

お手入れ方法

Diagram of a mechanical assembly with arrows indicating direction (no text or symbols)

Two diagrams showing a medical procedure with tubing and tubing, no text or symbols present

Illustration of a hand holding a cylindrical object with concentric rings (no text or symbols)

Diagram of a mechanical device with internal components and an arrow indicating rotation (no text or symbols)

Medical illustration showing two steps of a surgical procedure on a patient's head, labeled with arrows and numbered annotations.

Technical line drawing of a mechanical gear assembly (top) and its internal spiral component (bottom), no text or symbols present.

Diagram illustrating mechanical assembly steps with numbered annotations and directional arrows

Illustration of two hands using a tool to adjust a mechanical gear component (no text or symbols present)

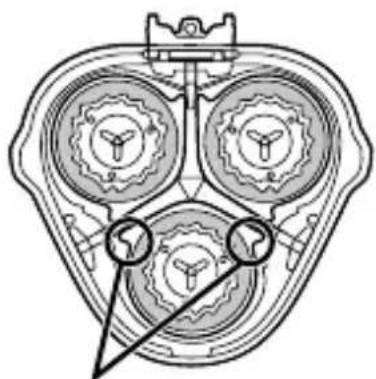

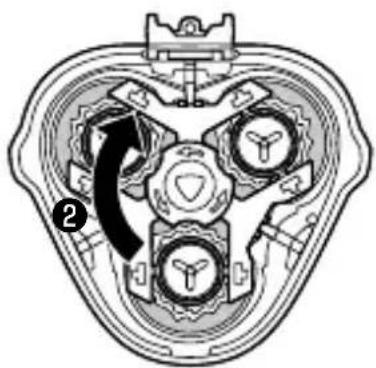

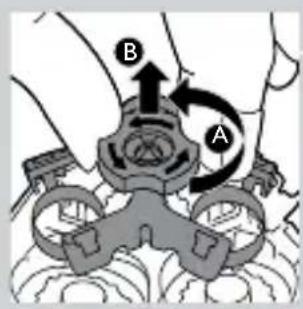

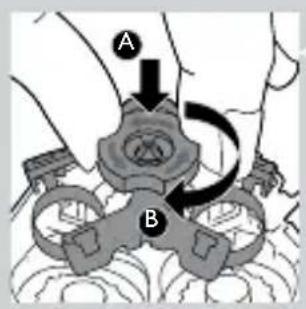

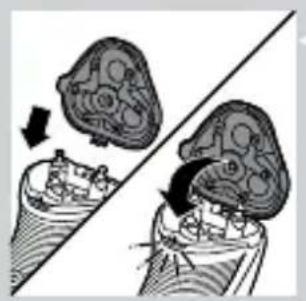

刃の取り付け方

Technical illustration of mechanical gear assembly showing top and side views (no text or symbols)

Mechanical gear assembly diagram showing three interconnected gears with no text or symbols

Cross-sectional diagram of a mechanical component with an arrow indicating direction (no text or symbols present)

Cross-sectional diagram of a mechanical component with internal gears and a central hub (no text or labels)

Diagram illustrating two steps of a mechanical or electrical component disassembly, labeled ① and ②.

Illustration of a hand holding a mechanical component with arrows indicating direction (no text or symbols)

Medical illustration showing a hand holding a circular anatomical structure with an arrow pointing to it, and a separate view of a device (no text or symbols present)

Anatomical diagram of a brain with numbered labels and directional arrows indicating movement or function.

Simple line drawing of a tray with two circular objects and an arrow pointing upward (no text or symbols)

Illustration of a mechanical component with internal components and a magnified view (no text or symbols)

Anatomical diagram of a spinal column with numbered labels indicating different regions or structures.

Diagram illustrating two steps of hair follicle growth, labeled ① and ②, showing hair follicle development.

Technical diagram of a mechanical component with two views: top shows internal gear-like structure, bottom shows cylindrical features (no text or symbols)

Technical line drawing of a mechanical assembly with scissors and parts (no text or symbols)

Technical diagram of a mechanical component with directional arrows indicating force or movement (no text or symbols present)

Technical diagram of a hand-operated electric shaver with labeled parts including power, socket, and plug

Introduction

Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

Please read this user manual, as it contains information about the wonderful features of this shaver as well as some tips to make shaving easier and more enjoyable.

General description (Fig. 1)

1 Protection cap
2 Shaving unit
3 Shaving unit release button
4 Shaver on/off button
5 Shaving head symbol
6 Charging light
7 Adapter
8 Cleaning brush
9 Trimmer release slide
10 Trimmer

Important

Read this user manual carefully before you use the appliance and save it for future reference.

Danger

Keep the adapter dry. -

- This symbol means: Forbidden to clean under a running tap.

Warning

The adapter contains a transformer. Do not cut - off the adapter to replace it with another plug, as this causes a hazardous situation.

No sign depicting a faucet with a showerhead, enclosed in a circle (no text or symbols)

This appliance is not intended for use by persons - (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

Always unplug the shaver before you clean it - under the tap.

Caution

Never use water hotter than 80^ C to rinse the - shaver.

Be careful with hot water. Always check if the -water is not too hot, to prevent your hands from getting burnt.

The shaver and the other accessories are not -dishwasher-proof.

Warning: Remove the detachable cord from the - handheld part before cleaning this part in water.

Water may leak from the socket at the bottom - of the shaver when you rinse it. This is normal and not dangerous because all electronics are enclosed in a sealed power unit inside the shaver.

Do not use the shaver, adapter or any other part - if it is damaged, as this may cause injury. Always replace a damaged adapter or part with one of the original type.

-Use, charge and store the appliance at a temperature between 10^ C and 35^ C.
-Always place and use the shaver on a surface that is fluid-resistant.
-Only use the adapter and accessories supplied.

Always put the protection cap on the shaver - to protect the shaving heads when you are travelling.

If the shaver is subjected to a major change - in temperature, pressure or humidity, let it acclimatise for 30 minutes before you use it.

Electromagnetic fields (EMF)

This Philips appliance complies with all applicable - standards and regulations regarding exposure to electromagnetic fields (EMF).

General

• This symbol means: Suitable to be used in the shower.
  It is allowed to use this appliance close to a - bathtub, shower or other containers filled with water.
  The adapter is equipped with an automatic - voltage selector and is suitable for mains voltages ranging from 100 to 240 volts.
  The adapter transforms 100-240 volts to a safe - low voltage of less than 24 volts.

Charging

Note: The shaver cannot be used directly from the mains.

It takes approx. 1 hour to fully charge the shaver.

When you charge the shaver for the first time or after a long period of disuse, let it charge until the charging light lights up continuously.

A fully charged shaver provides up to 50 minutes of shaving time.

The shaving time may be less than 50 minutes as a result of your shaving behaviour, your cleaning habits or your beard type.

Charge indications

Diagram of a stylized human face with a power button and star-shaped graphic element (no text or symbols)

Battery low

- When the battery is almost empty (when there are only 5 or fewer shaving minutes left), the charging light starts to flash orange.

When you switch off the shaver, the charging light - continues to flash orange for a few seconds.

Diagram of a stylized human face with a power button and decorative star-like pattern (no text or symbols)

Quick charging

When you start charging the empty battery, the - charging light alternately flashes orange and green. After approx. 3 minutes the charging light starts flashing green only. The shaver now contains enough energy for a 5-minute shave.

Charging

- When the shaver is charging, the charging light flashes green.

Close-up of a remote control device with a power button and a smiley face (no text or symbols visible)

Battery fully charged

- When the battery is fully charged, the charging light lights up green continuously.

Note: After approx. 30 minutes, the charging light goes out to save energy.

Charging

1 Put the small plug in the shaver.
2 Put the adapter in the wall socket.
The charging light shows the charging status of the shaver (see section ‘Charge indications’ in this chapter).

Using the shaver

Note: This shaver can be used in the bath or shower. For safety reasons, It can therefore not be used directly from the mains.

Shaving tips and tricks

This shaver is suitable for both wet and dry use. - Use the shaver with shaving gel or foam for extra skin comfort, or use the shaver dry for extra convenience.

Note: We advise you to use the shaver with shaving gel or foam when you use it for a wet shave. Do not use thick shaving cream or shaving oil with this shaver.

For optimal shaving results, make circular - movements during use.

The shaver is waterproof and can be used in the - bath or shower.

Your skin may need 2 or 3 weeks to get - accustomed to the Philips shaving system.

Wet shaving

Line drawing of a person's face with a finger pointing to the cheek area (no text or symbols)

1 Apply some water to your skin.

Line drawing of a person applying a sponge to their cheek (no text or symbols)

2 Apply shaving foam or shaving gel to your skin.

3 Rinse the shaving unit under the tap to ensure that the shaving unit glides smoothly over your skin.

4 Press the on/off button once to switch on the shaver.

Illustration of a person using a handheld device to interact with a device, showing liquid flow (no text or symbols)

5 Move the shaving heads in circular movements over your skin.

Note: Rinse the shaver under the tap regularly to ensure that it continues to glide smoothly over your skin.

6 After shaving, press the on/off button once to switch off the shaver and dry your face.
7 Clean the shaver (see chapter ‘Cleaning and maintenance’).

Note: Make sure you rinse all foam or shaving gel off the shaver.

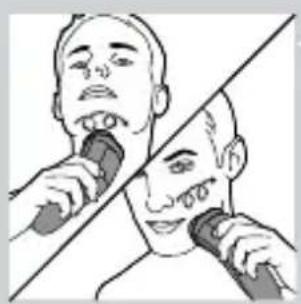

Dry shaving

Illustration of a person using a handheld device to address teeth, separated by a diagonal line (no text or symbols)

1 Press the on/off button once to switch on the shaver.
2 Move the shaving heads in circular movements over your skin.
3 After shaving, press the on/off button once to switch off the shaver.
4 Clean the shaver (see chapter ‘Cleaning and maintenance’).

Trimming

You can use the trimmer to groom your sideburns and moustache.

Diagram of a device with a black arrow indicating direction, no text or symbols present

1 Push the trimmer slide downwards to open the trimmer.
2 Press the on/off button once to switch on the shaver.

You can now start trimming.

Illustration of a hand using a tool to adjust or install a device component (no text or symbols visible)

3 After trimming, press the on/off button once to switch off the shaver.
4 Clean the trimmer (see chapter ‘Cleaning and maintenance’).
5 Close the trimmer ('click').

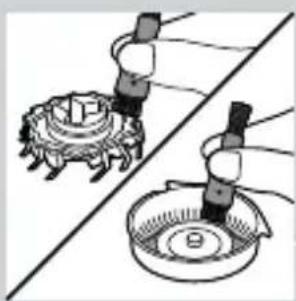

Cleaning and maintenance

Remove the detachable cord from the handheld part before cleaning this part in water.

Never use compressed air, scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the appliance.

Clean the shaver after every shave for optimal - shaving performance.

Regular cleaning guarantees better shaving - performance.

Be careful with hot water. Always check if the -water is not too hot, to prevent your hands from getting burnt.

Note: Water may leak from the socket at the bottom of the shaver when you rinse it. This is normal and not dangerous because all electronics are enclosed in a sealed power unit inside the shaver.

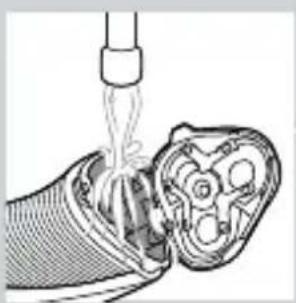

Cleaning the shaving unit under the tap

1 Switch off the shaver and disconnect it from the mains.

Illustration of a person inserting a device into a device (no text or symbols visible)

Cross-sectional illustration of a cable being inserted into a socket (no text or symbols visible)

Illustration of a medical procedure showing fluid injection into a patient's chest (no text or symbols)

2 Press the release button to open the shaving unit.
3 Rinse the shaving unit and hair chamber under a hot tap for 30 seconds.

Be careful with hot water. Always check if the water is not too hot, to prevent your hands from getting burnt.

- Rinse the hair chamber and the inside of the shaving unit.

- Rinse the outside of the shaving unit.

4 Close the shaving unit and shake off excess water.

Be careful not to hit the shaving unit against anything while shaking off excess water.

Never dry the shaving unit and the hair chamber with a towel or tissue, as this may damage the shaving unit.

5 Open the shaving unit again and leave it open to let the shaver dry completely.

Cleaning the shaving unit with the cleaning brush

1 Switch off the shaver and disconnect it from the mains.

ENGLISH

Illustration of a person holding a medical device with internal components (no text or symbols visible)

2 Press the release button to open the shaving unit.

Diagram of a mechanical component with an arrow indicating direction, no visible text or symbols

3 Pull the shaving unit off the shaver.

Diagram showing mechanical assembly with labeled parts A and B, likely illustrating a gear or valve mechanism.

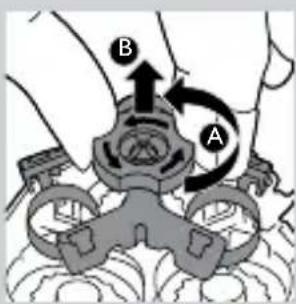

4 Turn the lock anticlockwise (A) and remove the retaining frame (B).

Illustration of a hand holding a tray with three circular objects and upward arrows indicating motion (no text or symbols)

5 Remove and clean one shaving head at a time. Each shaving head consists of a cutter and a guard.

Illustration of two hands operating a mechanical device with a circular base and a plate, no text or symbols present.

Note: Do not clean more than one cutter and guard at a time, since they are all matching sets. If you accidentally mix up the cutters and guards, it may take several weeks before optimal shaving performance is restored.

Remove the cutter from the shaving guard and - clean it with the brush.

- Clean the inside and outside of the shaving guard with the brush.

Illustration of a hand holding a bowl with food items, separated by a diagonal line (no text or symbols)

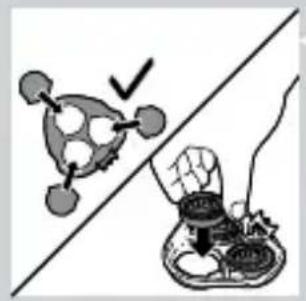

6 Put the shaving heads back into the shaving unit.

Note: Make sure that the projections of the shaving heads fit exactly into the recesses.

A B

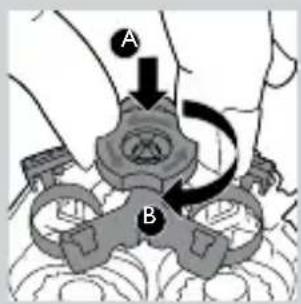

7 Put the retaining frame back into the shaving unit (A) and turn the lock clockwise (B).

Diagram showing two stages of a biological or mechanical process, with arrows indicating direction (no text or symbols present)

8 Insert the lug of the shaving unit into the slot in the top of the shaver. Then close the shaving unit.

Note: If the shaving unit does not close smoothly, check if you have inserted the shaving heads properly and if the retaining frame is locked.

Cleaning the trimmer with the cleaning brush

Diagram of a device with an arrow indicating direction, no text or symbols present

Clean the trimmer every time you have used it.

1 Switch off the shaver and disconnect it from the mains.
2 Push the trimmer slide downwards to open the trimmer.
3 Clean the trimmer with the short-bristled side of the cleaning brush. Brush up and down along the trimmer teeth.
4 Close the trimmer ('click').

Illustration of a hand holding a plug with arrows indicating direction (no text or symbols)

ENGLISH

OIL

Tip: For optimal trimming performance, lubricate the trimmer teeth with a drop of sewing machine oil every six months.

Storage

Diagram of a mechanical device with three circular components and a top component (no text or symbols)

- Put the protection cap on the shaver to prevent damage.

Replacement

For maximum shaving performance, we advise you to replace the shaving heads every two years.

Replacement reminder

The shaving head symbol will light up to indicate that the shaving heads need to be replaced. Replace damaged shaving heads right away.

Only replace the shaving heads with original HQ9 Philips Shaving Heads.

Diagram of a device with a magnified circular detail showing a symbol (no text or labels present)

1 The shaving head symbol lights up orange continuously.

2 Switch off the shaver. Disconnect the shaver from the mains, remove it from the Jet Clean System or remove it from the charging stand.

Illustration of a person wearing a medical device with internal components (no text or symbols visible)

3 Press the release button to open the shaving unit.

4 Pull the shaving unit off the shaver.

5 Turn the lock anticlockwise (A) and remove the retaining frame (B).

Diagram showing mechanical assembly with labeled parts A and B, likely illustrating a gear or valve mechanism.

6 Remove the shaving heads and place new ones in the shaving unit.

Illustration of a chemical reaction showing a molecular structure being reduced by a hand using a container (no text or symbols present)

Note: Make sure that the projections of the shaving heads fit exactly into the recesses.

A B

7 Put the retaining frame back into the shaving unit (A) and turn the lock clockwise (B).

Diagram showing two mechanical components with arrows indicating motion, no text or symbols present

8 Insert the lug of the new shaving unit into the slot in the top of the shaver. Then close the shaving unit.

Note: If the shaving unit does not close smoothly, check if you have inserted the shaving heads properly and if the retaining frame is locked.

ENGLISH

5 sec. PHILIPS PHILIPS

9 Press and hold the on/off button for 5 seconds to reset the replacement reminder on the shaver. The orange light goes out.

Ordering accessories

2yrs

To buy accessories or spare parts, visit www.

shop.philips.com/service or go to your Philips dealer. You can also contact the Philips Consumer Care Centre in your country (see the worldwide guarantee leaflet for contact details).

To retain the top performance of your shaver, make sure you clean it regularly and replace its shaving heads at the recommended time.

Shaving heads

- We advise you to replace your shaving heads every two years. Always replace them with HQ9 Philips Shaving Heads.

Environment

Symbol of a trash bin with crossed lines indicating no waste, accompanied by a blank rectangular area below.

- Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment.

- The built-in rechargeable shaver battery contains substances that may pollute the environment. Always remove the battery before you discard or hand in the shaver at an official collection point. Dispose of the battery at an official collection

point for batteries. If you have trouble removing the battery, you can also take the appliance to a Philips service centre. The staff of this centre will remove the battery for you and will dispose of it in an environmentally safe way.

Removing the rechargeable shaver battery

Only remove the rechargeable battery when you discard the shaver. Make sure the rechargeable battery is completely empty when you remove it.

1 Disconnect the shaver from the mains.
2 Let the shaver operate until it stops.
3 Undo the screws in the back of the shaver and in the hair chamber.
4 Remove the front panel and the back panel.
5 Bend the 6 hooks aside and take out the power unit.
Be careful, the hooks are sharp.
6 Remove the rechargeable battery.
Be careful, the battery strips are sharp.
Do not connect the shaver to the mains again after you have removed the rechargeable battery.

Guarantee and support

If you need information or support, please visit www.philips.com/support or read the separate worldwide guarantee leaflet.

Guarantee restrictions

The shaving heads (cutters and guards) are not covered by the terms of the international guarantee because they are subject to wear.

Troubleshooting

This chapter summarises the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, visit www.philips.com/support for a list of frequently asked questions or contact the Consumer Care Centre in your country.

Problem Possible cause Solution

The shaver does not shave as well as it used to.	The shaving heads are damaged or worn.	Replace the shaving heads (see chapter ‘Replacement’).
	Foam or gel residues clog up the shaving heads.	Rinse the shaving unit under a hot tap (see chapter ‘Cleaning and maintenance’).
	Long hairs obstruct the shaving heads.	Clean the shaving heads one by one (see chapter ‘Cleaning and maintenance’).
	You have not inserted the shaving heads properly.	Make sure that the projections of the shaving heads fit exactly into the recesses (see chapter ‘Cleaning and maintenance’).

Problem Possible cause Solution

The shaver does not work when I press the on/off button.

The rechargeable battery is empty.

Recharge the battery (see chapter 'Charging').

The temperature of the shaver is too high. In this case, the shaver does not work.

As soon as the temperature of the shaver has dropped sufficiently, you can switch on the shaver again.

The shaver does not work, although it is connected to the mains.

If the shaver does not work when you press the on/off button, the battery is empty.

This shaver is not designed to be used directly from the mains, so you should recharge the battery (see chapter 'Charging').

故障かな？ と思ったら

故障かな？と思ったら、お調べください。

だんだん切れ味が悪くなった
