Product Type	Car CD Receiver with Bluetooth
Brand	Sony
Model	MEX-BT2750
Dimensions	178 x 50 x 162 mm (standard DIN)
Weight	1.5 kg
Power Supply	12V DC (car battery)
Maximum Power Output	50 W x 4 (max)
RMS Power Output	22 W x 4 (RMS)
Bluetooth Version	Bluetooth 2.1 + EDR
Bluetooth Profiles	A2DP, AVRCP, HFP, HSP
CD Playback	CD, CD-R, CD-RW
Radio Tuner	FM/AM with RDS
Audio Features	EQ7 preset equalizer, Mega Bass
Inputs	AUX front input
Display	LCD with white illumination
Remote Control	Yes (included)
Maintenance	Clean with dry cloth; avoid liquids
Safety	Disconnect battery before installation
Spare Parts	Contact Sony service center
Repairability	Professional service recommended

Frequently Asked Questions - MEX-BT2750 SONY

How do I pair my phone via Bluetooth?

Press the BT button to enter Bluetooth mode. On your phone, search for devices and select 'MEX-BT2750'. Confirm pairing code '0000' if prompted.

Can I play MP3 CDs?

Yes, the unit supports playback of MP3 and WMA files on CD-R/RW discs.

What is the maximum USB drive capacity?

The USB port supports drives up to 32 GB formatted in FAT16/32.

How do I reset the unit?

Press the Reset button on the front panel with a pointed object (e.g., a pen tip).

Does it have a front AUX input?

Yes, there is a 3.5mm AUX input on the front panel for connecting external audio devices.

How can I adjust the sound settings?

Press the Sound button to cycle through EQ, Bass, Treble, Balance, Fader, and Loudness settings.

Why doesn't my Bluetooth connect automatically?

Ensure Auto Pair is enabled in the Bluetooth settings. If not, manually pair again and select the unit as the preferred device.

How do I set the clock?

Press and hold the Menu button, then rotate the volume knob to select 'Clock Set'. Adjust with the knob and press to confirm.

Can I control the unit with steering wheel controls?

Yes, if your vehicle supports it, you can connect an optional steering wheel control adapter (sold separately).

What should I do if the CD doesn't eject?

Press and hold the Eject button for 5 seconds. If unsuccessful, disconnect the battery for 10 seconds and try again.

USER MANUAL MEX-BT2750 SONY

Bluetooth® Audio System

Operating Instructions

GB

To cancel the demonstration (DEMO) display, see page 7.

MEX-BT2750

Bluetooth®

Be sure to install this unit in the dashboard of the car for safety. For installation and connections, see the supplied installation/connections manual.

CLASS 1 LASER PRODUCT

This label is located on the bottom of the chassis.

Note on the lithium battery

Do not expose the battery to excessive heat such as direct sunlight, fire or the like.

The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Sony Corporation is under license. Other trademarks and trade names are those of their respective owners.

Windows Media, and the Windows logo are trademarks or registered trademarks of Microsoft Corporation in the

United States and/or other countries.

MPEG Layer-3 audio coding technology and patents licensed from Fraunhofer IIS and Thomson.

This product is protected by certain intellectual property rights of Microsoft Corporation. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft or an authorized Microsoft subsidiary.

Warning if your car's ignition has no ACC position

Be sure to set the Auto Off function (page 18). The unit will shut off completely and automatically in the set time after the unit is turned off, which prevents battery drain. If you do not set the Auto Off function, press and hold OFF until the display disappears each time you turn the ignition off.

Getting Started

Playable discs on this unit 6
Notes on Bluetooth 6
Resetting the unit. 7
Canceling the DEMO mode ..... 7
Preparing the card remote commander ..... 8
Setting the clock 8
Detaching the front panel 8
Attaching the front panel 9

Location of controls and basic operations

Main unit. 10
Card remote commander RM-X304 ..... 12

Radio

Storing and receiving stations ..... 13
Storing automatically — BTM ..... 13
Storing manually....13
Receiving the stored stations ..... 13
Tuning automatically 13

CD

Display items 13
Repeat and shuffle play....13

Bluetooth (Handsfree calling and Music streaming)

Bluetooth operations 14
Pairing.... 14
About Bluetooth icons 15
Connection 15
To switch the Bluetooth signal output of this unit to on 15
Connecting a cellular phone.... 15
Connecting an audio device ..... 15
Handsfree calling 15
Receiving calls 15
Making calls 16
Call transfer.... 16
Voice Dial Activation 16
Music streaming 16
Listening to music from an audio device 16
Operating an audio device with this unit 17
Deleting registration of all paired devices ... 17

Other functions

Changing the sound settings ..... 17
Adjusting the sound characteristics ..... 17
Customizing the equalizer curve — EQ3 .... 18
Adjusting setup items — SET 18
Using optional equipment.... 19
Auxiliary audio equipment. 19
CD changer.... 19

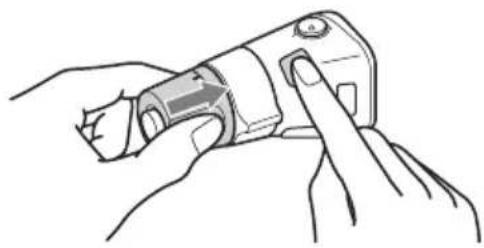

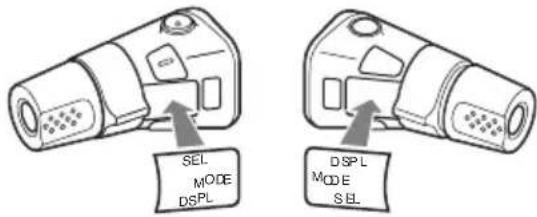

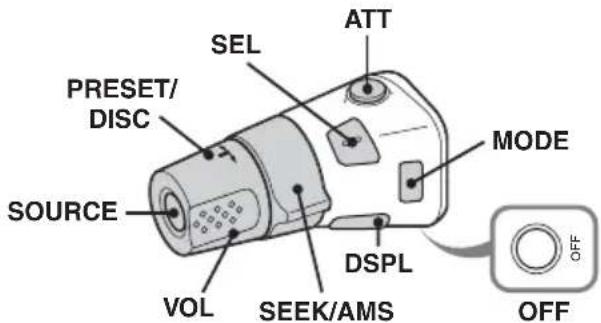

Rotary commander RM-X4S ..... 20

Additional Information

Precautions 21
Notes on discs 21

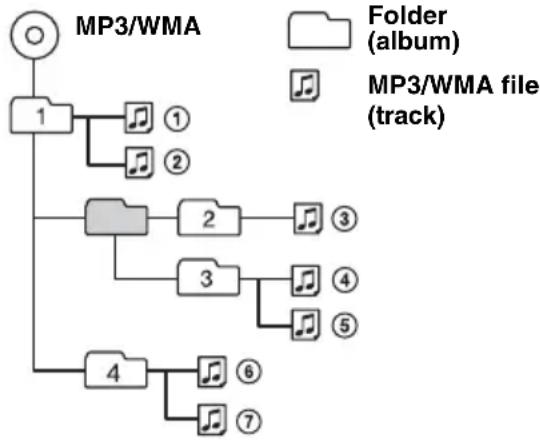

Playback order of MP3/WMA files ..... 21
About MP3 files 21
About WMA files.... 21
About Bluetooth function.... 22
Maintenance 23

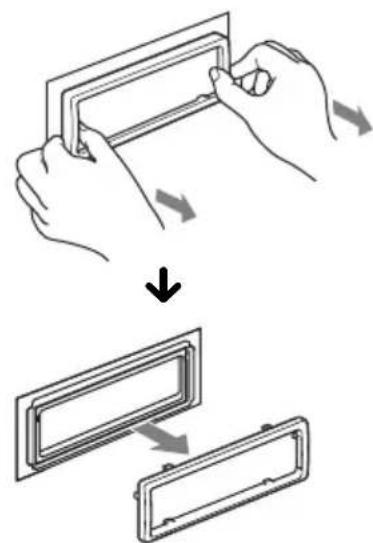

Removing the unit. 24
Specifications 24
Troubleshooting 25
Error displays/Messages.... 27

Support site

If you have any questions or for the latest support information on this product, please visit the web site below:

Customers in Latin America:

Customers in Pan Asia:

http://www.sony-asia.com/section/support http://www.sony-asia.com/caraudio/

Provides information on:

- Models and manufacturers of compatible cellular phones and the FAQ about Bluetooth function

Getting Started

playable discs on this unit

This unit can play CD-DA (also containing CD TEXT) and CD-R/CD-RW (MP3/WMA files (page 21)).

Type of discs Label on the disc
CD-DA
MP3WMA

Notes on Bluetooth

Caution

IN NO EVENT SHALL SONY BE LIABLE FOR ANY INCIDENTAL, INDIRECT OR CONSEQUENTIAL DAMAGES OR OTHER DAMAGES INCLUDING, WITHOUT LIMITATION, LOSS OF PROFITS, LOSS OF REVENUE, LOSS OF DATA, LOSS OF USE OF THE PRODUCT OR ANY ASSOCIATED EQUIPMENT, DOWNTIME, AND PURCHASER'S TIME RELATED TO OR ARISING OUT OF THE USE OF THIS PRODUCT, ITS HARDWARE AND/OR ITS SOFTWARE.

IMPORTANT NOTICE!

Safe and efficient use

Changes or modifications to this unit not expressly approved by Sony may void the user's authority to operate the equipment.

Please check for exceptions, due to national requirement or limitations, in usage of Bluetooth equipment before using this product.

Driving

Check the laws and regulations on the use of cellular phones and handsfree equipment in the areas where you drive.

Always give full attention to driving and pull off the road and park before making or answering a call if driving conditions so require.

Connecting to other devices

When connecting to any other device, please read its user guide for detailed safety instructions.

Radio frequency exposure

RF signals may affect improperly installed or inadequately shielded electronic systems in cars, such as electronic fuel injection systems, electronic antiskid (antilock) braking systems, electronic speed control systems or air bag systems. For installation or service of this device, please consult with the manufacturer or its representative of your car. Faulty installation or service may be dangerous and may invalidate any warranty that may apply to this device.

Consult with the manufacturer of your car to ensure that the use of your cellular phone in the car will not affect its electronic system.

Check regularly that all wireless device equipment in your car is mounted and operating properly.

Emergency calls

This Bluetooth car handsfree and the electronic device connected to the handsfree operate using radio signals, cellular, and landline networks as well as user-programmed function, which cannot guarantee connection under all conditions.

Therefore do not rely solely upon any electronic device for essential communications (such as medical emergencies).

Remember, in order to make or receive calls, the handsfree and the electronic device connected to the handsfree must be switched on in a service area with adequate cellular signal strength.

Emergency calls may not be possible on all cellular phone networks or when certain network services and/or phone features are in use.

Check with your local service provider.

Resetting the unit

Before operating the unit for the first time, or after replacing the car battery or changing the connections, you must reset the unit.

Detach the front panel (page 8) and press the RESET button (page 10) with a pointed object, such as a ball-point pen.

Note

Pressing the RESET button will erase the clock setting and some stored contents.

Canceling the DEMO mode

You can cancel the demonstration display which appears during turning off.

1 Press and hold the select button. The setup display appears.

2 Press the select button repeatedly until "DEMO" appears.

3 Rotate the control dial to select "DEMO-OFF."

4 Press and hold the select button. The setup is complete and the display returns to normal play/reception mode.

Preparing the card remote commander

Remove the insulation film.

Line drawing of a device with a paper clip and two circular ports (no text or symbols)

Tip

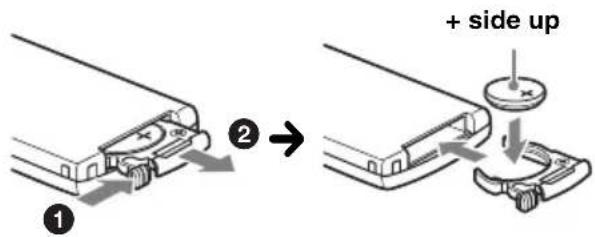

For how to replace the battery, page 23.

Setting the clock

The clock uses a 12-hour digital indication.

1 Press and hold the select button.

The setup display appears.

2 Press the select button repeatedly until "CLOCK-ADJ" appears.

3 Press SEEK +.

The hour indication flashes.

4 Rotate the control dial to set the hour and minute.

To move the digital indication, press SEEK +/-.

5 After setting the minute, press the select button.

The setup is complete and the clock starts.

To display the clock, press DSPL. Press DSPL again to return to the previous display.

Detaching the front panel

You can detach the front panel of this unit to prevent theft.

Caution alarm

If you turn the ignition switch to the OFF position without detaching the front panel, the caution alarm will sound for a few seconds. The alarm will only sound if the built-in amplifier is used.

1 Press OFF.

The unit is turned off.

2 Press ,then pull it off towards you.

Notes

- Do not drop or put excessive pressure on the front panel and display window.

- Do not subject the front panel to heat/high temperature or moisture. Avoid leaving it in a parked car or on a dashboard/rear tray.

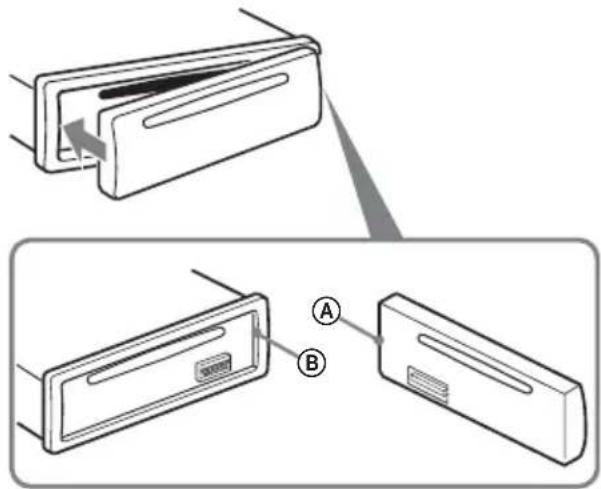

Attaching the front panel

Engage part Ⓐ of the front panel with part Ⓑ of the unit, as illustrated, and push the left side into position until it clicks.

Note

Do not put anything on the inner surface of the front panel.

Location of controls and basic operations

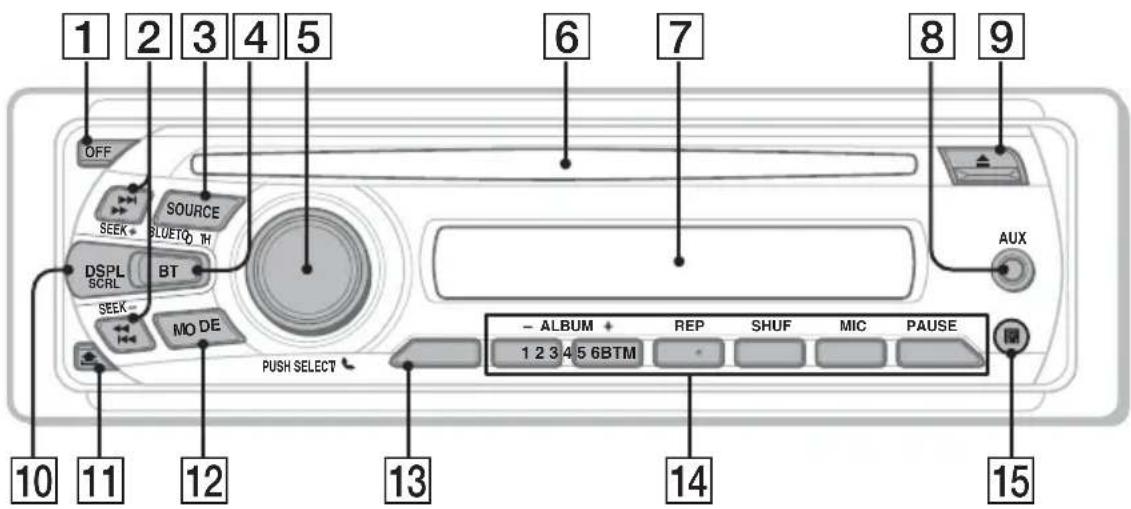

Main unit

Front panel removed This section contains instructions on the location

of controls and basic operations. For details, see the respective pages.

The corresponding buttons on the card remote commander control the same functions as those on the unit.

1 OFF button

To power off; stop the source.

②SEEK +/- buttons

CD:

To skip tracks (press); skip tracks continuously (press, then press again within about 1 second and hold); reverse/fast-forward a track (press and hold).

Radio:

To tune in stations automatically (press); find a station manually (press and hold).

Bluetooth audio device*1:

To skip tracks (press).

3 SOURCE button

To power on; change the source (Radio/CD/AUX/Bluetooth audio/Bluetooth phone)*2.

4 BT (BLUETOOTH) button page 14

For Bluetooth signal on/off, pairing.

5 Control dial/select/ (bandsfree) button

To adjust volume (rotate); select setup items (press and rotate); receive/end a call (press).

6 Disc slot

Insert the disc (label side up), playback starts.

7 Display window

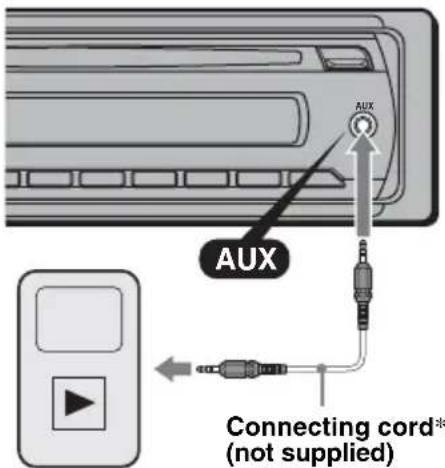

8 AUX input jack page 19

To connect a portable audio device.

9▲ (eject) button

To eject the disc.

10 DSPL (display)/SCRL (scroll) button

page 13

To change display items (press); scroll the display item (press and hold).

11 (front panel release) button page 8

12MODE button page 13

To select the radio band (FM/MW/SW) ^*2 .

13BTM button page 13

To start the BTM function (press and hold).

14 Number buttons

CD:

①/②: ALBUM -/+ (during MP3/WMA playback)

To skip albums (press); skip albums continuously (press and hold).

③: REP page 13

④: SHUF page 13

⑥: PAUSE

To pause playback. To cancel, press again.

Radio:

To receive stored stations (press); store stations (press and hold).

Bluetooth audio device*1:

⑥: PAUSE

To pause playback. To cancel, press again.

Bluetooth phone:

⑤: MIC page 16

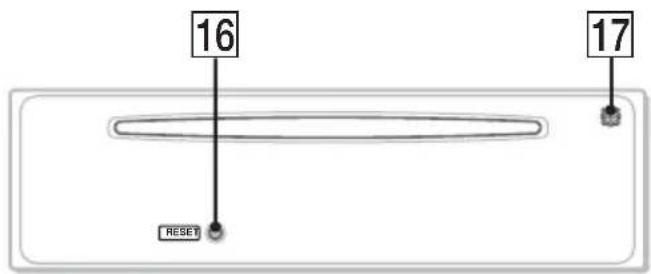

15 Receptor for the card remote commander

16 RESET button page 7

17 Microphone page 16

Note

Do not cover the microphone, the handsfree function may not work properly.

*1 When a Bluetooth audio device (supports AVRCP of Bluetooth technology) is connected. Depending on the device, certain operations may not be available.

*2 In the case of a CD changer being connected; when SOURCE is pressed, "CD" and the unit number will appear in the display. Furthermore, if MODE is pressed, you can switch the changer.

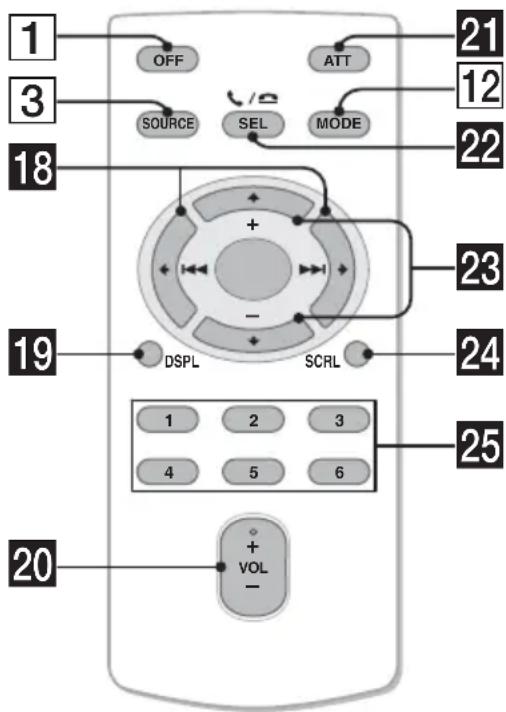

Card remote commander RM-X304

The following buttons on the card remote commander have also different buttons/functions from the unit. Remove the insulation film before use (page 8).

18 ← (I◄◄)/→ (►►I) buttons

To control radio/CD/Bluetooth audio, the same as SEEK -/+ on the unit.

Setup, sound setting, etc., can be operated by

19 DSPL (display) button page 13

To change display items.

20VOL (volume) +/- button

To adjust volume.

21 ATT (attenuate) button

To attenuate the sound. To cancel, press again.

22SEL (select)/ (handsfree) button

The same as the select button on the unit.

23 ↑ (+)/↓ (-) buttons

To control CD, the same as ①/②

(ALBUM -/+) on the unit.

Setup, sound setting, etc., can be operated by

24 SCRL (scroll) button

To scroll the display item.

25 Number buttons

To receive stored stations (press); store stations (press and hold).

Note

If the unit is turned off and the display disappears, it cannot be operated with the card remote commander unless SOURCE on the unit is pressed, or a disc is inserted to activate the unit first.

Radio

Storing and receiving stations

Caution

When tuning in stations while driving, use Best Tuning Memory (BTM) to prevent an accident.

Storing automatically — BTM

1 Press SOURCE repeatedly until "TUNER" appears.

To change the band, press MODE repeatedly. You can select from FM1, FM2, FM3, MW, SW1 or SW2.

2 Press and hold BTM until "BTM" flashes.

The unit stores stations in order of frequency on the number buttons.

A beep sounds when the setting is stored.

Storing manually

1 While receiving the station that you want to store, press and hold a number button (① to ⑥) until "MEM" appears.

Note

If you try to store another station on the same number button, the previously stored station will be replaced.

Receiving the stored stations

1 Select the band, then press a number button (① to ⑥).

Tuning automatically

1 Select the band, then press SEEK +/- to search for the station.

Scanning stops when the unit receives a station. Repeat this procedure until the desired station is received.

Tip

If you know the frequency of the station you want to listen to, press and hold (SEEK) +/- to locate the approximate frequency, then press (SEEK) +/- repeatedly to fine adjust to the desired frequency (manual tuning).

CD

Display items

A Source
BTrack name* ^1 , Disc/artist name* ^1 , Artist name* ^1 , Album number* ^2 , Album name* ^1 , Track number/Elapsed playing time, Clock

*1 The information of a CD TEXT, MP3/WMA is displayed.
*2 Album number is displayed only when the album is changed.

To change display items B, press DSPL.

Tip

Displayed items will differ depending on the disc type, recording format and settings. For details on MP3/WMA, see page 21.

Repeat and shuffle play

1 During playback, press ③ (REP) or ④ (SHUF) repeatedly until the desired setting appears.

Select To play

TRACK track repeatedly.

ALBUM* album repeatedly.

SHUF ALBUM* album in random order.

SHUF DISC disc in random order.

* When an MP3/WMA is played.

To return to normal play mode, select “OFF” or “SHUF OFF.”

Bluetooth (Handsfree calling and Music streaming)

Bluetooth operations

To use the Bluetooth function, the following procedure is necessary.

① Pairing

When connecting Bluetooth devices for the first time, mutual registration is required. This is called “pairing.” This registration (pairing) is required only for the first time, as this unit and the other devices will recognize each other automatically from the next time. You can pair up to 8 devices. (Depending on the device, you may need to input a passcode for each connection.)

②Connection

To use the device after pairing is made, start the connection. Sometimes pairing allows to connect automatically.

③Handsfree calling/Music streaming

You can talk handsfree and listen to music when the connection is made.

Support site

Customers in Latin America:

Customers in Pan Asia:

http://www.sony-asia.com/section/support http://www.sony-asia.com/caraudio/

Pairing

First, register (“pair”) a Bluetooth device (cellular phone, etc.) and this unit with each other. You can pair up to 8 devices. Once pairing is established, there is no need for pairing again.

1 Place the Bluetooth device within 1 m (3 ft) of this unit.

2 Press and hold BT until “” flashes (about 5 seconds).

The unit enters pairing standby mode.

3 Set the Bluetooth device to search for this unit.

A list of detected devices appears in the display of the device to be connected. This unit is displayed as “XPLOD” on the device to be connected.

4 If Passcode* input is required on the display of the device to be connected, input "0000."

This unit and the Bluetooth device memorize each other's information, and when pairing is made, the unit is ready for connection to the device.

“☒ flashes and then stays lit after pairing is complete.

5 Set the Bluetooth device to connect to this unit.

“”or “” appears when the connection is made.

* Passcode may be called "passkey," "PIN code," "PIN number" or "Password," etc., depending on the device.

Note

Pairing standby mode is not released until the connection is made.

About Bluetooth icons

The following icons are used by this unit.

[283Z]	lit:	Bluetooth signal on
	flashing:	Pairing standby mode
	off:	Bluetooth signal off
	lit:	Connection successful
	flashing:	Connecting
	off:	No connection
	lit:	Connection successful
	flashing:	Connecting
	off:	No connection

Connection

If pairing has already been achieved, start operation from here.

To switch the Bluetooth signal output of this unit to on

To use the Bluetooth function, switch the Bluetooth signal output of this unit to on.

1 Press and hold BT until "☒" lights (about 3 seconds).

Bluetooth signal is switched to on.

Connecting a cellular phone

1 Be sure that both this unit and the cellular phone are switched to Bluetooth signal on.

2 Connect to this unit using the cellular phone.

“”appears when the connection is made.

Connecting the last-connected cellular phone from this unit

1 Be sure that both this unit and the cellular phone are switched to Bluetooth signal on.

2 Press SOURCE repeatedly until "BT PHONE" appears.

3 Press 📊 (handsfree). “flashes while the connection is being made. And then “stays lit when the connection is made.

Note

While streaming Bluetooth audio, you cannot connect from this unit to the cellular phone. Connect from the cellular phone to this unit instead. A connecting noise may be heard over playback sound.

Tip

With Bluetooth signal on: when the ignition is switched to on, this unit reconnects automatically to the last-connected cellular phone. But automatic connection also depends on the cellular phone's specification. If this unit does not reconnect automatically, connect manually.

Connecting an audio device

1 Be sure that both this unit and the audio device are switched to Bluetooth signal on.

2 Connect to this unit using the audio device.

“” appears when the connection is made.

Connecting the last-connected audio device from this unit

1 Be sure that both this unit and the audio device are switched to Bluetooth signal on.

2 Press SOURCE repeatedly until "BT AUDIO" appears.

3 Press ⑥.

“flashes while the connection is being made. And then “stays lit when the connection is made.

Handsfree calling

Check that the unit and cellular phone are connected beforehand.

Receiving calls

When receiving a call, a ring tone is output from your car speakers.

1 Press (handsfree) when a call is received with a ring tone.

The phone call starts.

To end a call

Press 📊(handsfree) again, or ⏚OFF.

To reject an incoming call, press and hold (handsfree) for 2 seconds.

Mic Gain adjustment

You can switch between two volume levels (“LOW” or “HI”) to set a suitable level for the other party during a call.

1 Press ⑤ during a call. The item changes as follows:

$$ \mathrm{MIC-LOW} \leftrightarrow \mathrm{MIC-HI} $$

Note

The microphone of this unit is located on the rear of the front panel (page 11). Do not cover the microphone with tape, etc.

Making calls

In the case of making calls from this unit, redial is used.

1 Press SOURCE repeatedly until "BT PHONE" appears.

2 Press and hold (handsfree) for 3 seconds or more.

The phone call starts.

To end a call

Press 📊(handsfree) again, or ⒽOFF.

To call another phone, use your cellular phone, and then transfer the call.

For call transfer details, check the following.

Call transfer

In order to activate/deactivate the appropriate device (this unit/cellular phone), check the following.

1 Press and hold (handsfree) or use your cellular phone.

For details on cellular phone operation, refer to your cellular phone manual.

Note

Depending on the cellular phone, handsfree connection may be cut off when call transfer is attempted.

Voice Dial Activation

You can activate voice dialing with a cellular phone connected to this unit by saying the voice tag stored on the cellular phone, then make a call.

1 Press SOURCE repeatedly until "BT PHONE" appears.

2 Press 📁 (handsfree).

The cellular phone enters voice dialing mode.

3 Say the voice tag stored on the cellular phone.

Your voice is recognized, and the call is made.

Notes

• Check that unit and cellular phone are connected beforehand.
• Store a voice tag on your cellular phone beforehand.
• If you activate voice dialing with a cellular phone connected to this unit, this function may not always work in some cases.
• Noises such as the engine running may interfere with sound recognition. In order to improve recognition, operate under conditions where noise is minimized.
• Voice dialing may not work in some situations, depending on the effectiveness of the cellular phone's recognition function. For details, see the support site (page 25).

Tips

• Speak in the same way as you did when you stored the voice tag.
• Store a voice tag while seated in the car, via this unit with "BT PHONE" source selected.

Music streaming

Listening to music from an audio device

You can listen to music of an audio device on this unit if the audio device supports A2DP (Advanced Audio Distribution Profile) of Bluetooth technology.

1 Turn down the volume on this unit.
2 Press SOURCE repeatedly until "BT AUDIO" appears.
3 Operate the audio device to start playback.
4 Adjust the volume on this unit.

Adjusting the volume level

The volume level is adjustable for any difference between the unit and the Bluetooth audio device.

1 Start playback of the Bluetooth audio device at a moderate volume.
2 Set your usual listening volume on the unit.
3 Press the select button repeatedly until "BTA" appears, and rotate the volume control dial to adjust the input level (-8 dB to +18 dB).

Operating an audio device with this unit

You can perform the following operations on this unit if the audio device supports AVRCP (Audio Video Remote Control Profile) of Bluetooth technology. (The operation differs depending on the audio device.)

To Press

Play ⑥ (PAUSE)* on this unit.

Pause ⑥ (PAUSE)* on this unit.

Skip tracks SEEK -/+ ( ▶◀◀/▶▶▶) [once for each track]

* Depending on the device, it may be necessary to press twice.

Operations other than the above should be performed on the audio device.

Notes

• During audio device playback, information such as track number/time, playback status, etc., of a connected audio device is not displayed on this unit.
• Even if the source is changed on this unit, playback of the audio device does not stop.

Tip

You can connect a cellular phone that supports A2DP (Advanced Audio Distribution Profile) as an audio device and listen to music.

Deleting registration of all paired devices

1 Press OFF.

This unit is turned off.

2 If “lights, press and hold BT until “turns off.

3 Press and hold the select button.

4 Press the select button repeatedly until "BT INIT" appears.

5 Press SEEK +. Initializing starts.

It takes 3 seconds to cancel all registration. Do not turn off the power while “INITIAL” is flashing.

Other functions

Changing the sound settings

Adjusting the sound characteristics

1 Press the select button repeatedly until the desired item appears.
2 Rotate the control dial to adjust the selected item.

After 5 seconds, the setting is complete and the display returns to normal play/reception mode.

The following items can be set (follow the page reference for details):

EQ3

Selects an equalizer curve from 7 music types.

LOW ^1 , MID ^1 , HI ^*1 (page 18)

BAL (Balance)

Adjusts the sound balance between the left and right speakers.

FAD (Fader)

Adjusts the relative level between the front and rear speakers.

SUB ^*2 (Subwoofer volume)

Adjusts the subwoofer volume.

("ATT" is the lowest setting.)

AUX*3 (AUX level)

Adjusts the volume level for each connected auxiliary equipment: “+18 dB” – “0 dB” – “-8 dB.”

This setting negates the need to adjust the volume level between sources.

BTA ^*4 (BT-Audio level)

Adjusts the volume level for each connected Bluetooth audio device. This setting negates the need to adjust the volume level between sources (page 16).

Adjustable level: “+18 dB” – “0 dB” – “-8 dB.”

*1 When EQ3 is activated.
*2 When the audio output is set to "SUB-OUT" (page 18).
*3 When AUX source is activated.
*4 When Bluetooth audio source is activated (page 16).

Customizing the equalizer curve — EQ3

“CUSTOM” of EQ3 allows you to make your own equalizer settings.

1 Select a source, then press the select button repeatedly to select "EQ3."
2 Rotate the control dial to select "CUSTOM."
3 Press the select button repeatedly until "LOW," "MID" or "HI" appears.
4 Rotate the control dial to adjust the selected item.

The volume level is adjustable in 1 dB steps, from -10 dB to +10 dB.

Repeat steps 3 and 4 to adjust the equalizer curve.

To restore the factory-set equalizer curve, press and hold the select button before the setting is complete.

After 5 seconds, the setting is complete and the display returns to normal play/reception mode.

Tip

Other equalizer types are also adjustable.

Adjusting setup items — SET

1 Press and hold the select button.
The setup display appears.
2 Press the select button repeatedly until the desired item appears.
3 Rotate the control dial to select the setting (example "ON" or "OFF").
4 Press and hold the select button.

The setup is complete and the display returns to normal play/reception mode.

Note

Displayed items will differ, depending on the source and setting.

The following items can be set (follow the page reference for details):

CLOCK-ADJ (Clock Adjust) (page 8)

BEEP

Activates the beep sound: "ON," "OFF."

AUX-A* 1 (AUX Audio)

Activates the AUX source display: "ON," "OFF" (page 19).

A.OFF

Shuts off automatically after a desired time when the unit is turned off: “NO,” “30S (seconds),” “30M (minutes),” “60M (minutes).”

SUB/REAR\*1

Switches the audio output: "SUB-OUT" (subwoofer), "REAR-OUT" (power amplifier).

B.OUT (Black Out)

Turns off the illumination automatically for any source (e.g., during CD playback/radio reception, etc.) if no operation is performed for 5 seconds: “ON,” “OFF.”

To bring the light back on, press any button on the unit. (When activated, remote operation is unavailable.)

DEMO (Demonstration)

Activates the demonstration: "ON," "OFF."

DIM (Dimmer)

Changes the display brightness: "ON," "OFF."

A.SCRL (Auto Scroll)

Scrolls long items automatically: "ON," "OFF."

• “ON”: to only tune into stations with stronger signals.
• “OFF”: to tune normal reception.

MONO\*2 (Monaural Mode)

Selects monaural reception mode to improve poor FM reception: "ON," "OFF."

LPF\*3 (Low Pass Filter)

Selects the subwoofer cut-off frequency: "OFF," "80Hz," "100Hz," "120Hz," "140Hz," "160Hz."

LPF NORM/REV\*3 (Low Pass Filter Normal/Reverse)

Selects the phase when the LPF is on: “NORM,” “REV.”

HPF (High Pass Filter)

Selects the front/rear speaker cut-off frequency: "OFF," "80Hz," "100Hz," "120Hz," "140Hz," "160Hz."

LOUD (Loudness)

Reinforces bass and treble for clear sound at low volume levels: "ON," "OFF."

BTM (page 13)

BT INIT\*1 (page 17)

*1 When the unit is turned off.
*2 When FM is received.
*3 When the audio output is set to "SUB-OUT."

Using optional equipment

Auxiliary audio equipment

By connecting an optional portable audio device to the AUX input jack (stereo mini jack) on the unit and then simply selecting the source, you can listen on your car speakers. The volume level is adjustable for any difference between the unit and the portable audio device. Follow the procedure below:

Connecting the portable audio device

1 Turn off the portable audio device.
2 Turn down the volume on the unit.
3 Connect to the unit.

* Be sure to use a straight type plug.

Adjust the volume level

Be sure to adjust the volume for each connected audio device before playback.

1 Turn down the volume on the unit.
2 Press SOURCE repeatedly until "AUX" appears. "AUX FRONT IN" appears.
3 Start playback of the portable audio device at a moderate volume.
4 Set your usual listening volume on the unit.
5 Adjust the input level (page 17).

CD changer

Selecting the changer

1 Press SOURCE repeatedly until "CD" appears.
2 Press MODE repeatedly until the desired changer appears.

Unit number Disc number

Playback starts.

Skipping albums and discs

1 During playback, press ①/② (ALBUM -/+).

To skip	Press 1/2 (ALBUM -/+)
album and release (hold for a moment).
album continuously	within 2 seconds of first releasing.
discs repeatedly.
discs continuously	then, press again within 2 seconds and hold.

Repeat and shuffle play

1 During playback, press ③ (REP) or ④ (SHUF) repeatedly until the desired setting appears.

Select To play

DISC disc repeatedly.
SHUF	tracks in the changer in random order.
CHANGER
SHUF ALL tracks in all units in random order.

To return to normal play mode, select "OFF" or "SHUF OFF."

Rotary commander RM-X4S

Attaching the label

Attach the indication label depending on how you mount the rotary commander.

Location of controls

The corresponding buttons on the rotary commander control the same functions as those on this unit.

The following controls on the rotary commander require a different operation from the unit.

• ATT (attenuate) button
  To attenuate the sound. To cancel, press again.
• SEL (select) button
  The same as the select button on the unit.
• PRESET/DISC control

CD: The same as ①/② (ALBUM -/+ ) on the unit (push in and rotate).

Radio: To receive stored stations (push in and rotate).

• VOL (volume) control

The same as the control dial on the unit (rotate).

- SEEK/AMS control

The same as SEEK +/- on the unit (rotate, or rotate and hold).

• DSPL (display) button

To change display items.

Changing the operative direction

The operative direction of the controls is factory-set as shown below.

If you need to mount the rotary commander on the right hand side of the steering column, you can reverse the operative direction.

1 While pushing the VOL control, press and hold SEL.

Line drawing of hands using a handheld tool to interact with a device (no text or symbols visible)

Additional Information

Precautions

• Cool off the unit beforehand if your car has been parked in direct sunlight.
  • Power antenna (aerial) extends automatically.

Moisture condensation

Should moisture condensation occur inside the unit, remove the disc and wait for about an hour for it to dry out; otherwise the unit will not operate properly.

To maintain high sound quality

Do not splash liquid onto the unit or discs.

Notes on discs

• Do not expose discs to direct sunlight or heat sources such as hot air ducts, nor leave it in a car parked in direct sunlight.
• Before playing, wipe the discs with a cleaning cloth from the center out. Do not use solvents such as benzine, thinner, commercially available cleaners.
• This unit is designed to playback discs that conform to the Compact Disc (CD)

standard. DualDiscs and some of the music discs encoded with copyright protection technologies do not conform to the Compact Disc (CD) standard, therefore, these discs may not be playable by this unit.

• Discs that this unit CANNOT play

– Discs with labels, stickers, or sticky tape or paper attached. Doing so may cause a malfunction, or may ruin the disc.
– Discs with non-standard shapes (e.g., heart, square, star). Attempting to do so may damage the unit.
-8 cm (3/4 in) discs.

Notes on CD-R/CD-RW discs

• The maximum number of: (CD-R/CD-RW only)
– folders (albums): 150 (including root folder)
– files (tracks) and folders: 300 (may less than 300 if folder/file names contain many characters)
– displayable characters for a folder/file name: 32 (Joliet)/64 (Romeo)

• If the multi-session disc begins with a CD-DA session, it is recognized as a CD-DA disc, and other sessions are not played back.
  • Discs that this unit CANNOT play

- CD-R/CD-RW of poor recording quality.

• CD-R/CD-RW recorded with an incompatible recording device.
• CD-R/CD-RW which is finalized incorrectly.

Illustration of hands holding a CD or DVD disc with arrows indicating rotation (no text or symbols)

- CD-R/CD-RW other than those recorded in music CD format or MP3 format conforming to ISO9660 Level 1/Level 2, Joliet/Romeo or multi-session.

Playback order of MP3/WMA files

About MP3 files

• MP3, which stands for MPEG-1 Audio Layer-3, is a music file compression format standard. It compresses audio CD data to approximately 1/10 of its original size.
• ID3 tag versions 1.0, 1.1, 2.2, 2.3 and 2.4 apply to MP3 only. ID3 tag is 15/30 characters (1.0 and 1.1), or 63/126 characters (2.2, 2.3 and 2.4).
• When naming an MP3 file, be sure to add the file extension “.mp3” to the file name.
• During playback or fast-forward/reverse of a VBR (Variable Bit Rate) MP3 file, elapsed playing time may not display accurately.

Note

If you play a high-bit-rate MP3, such as 320 kbps, sound may be intermittent.

About WMA files

• WMA, which stands for Windows Media Audio, is a music file compression format standard. It compresses audio CD data to approximately 1/22* of its original size.
  • WMA tag is 63 characters.
• When naming a WMA file, be sure to add the file extension “.wma” to the file name.
• During playback or fast-forward/reverse of a VBR (Variable Bit Rate) WMA file, elapsed playing time may not display accurately.

* only for 64 kbps

Note

Playback of the following WMA files is not supported.

– lossless compression
– copyright-protected

About Bluetooth function

What is Bluetooth technology?

• Bluetooth wireless technology is a short-range wireless technology that enables wireless data communication between digital devices, such as a cellular phone and a headset. Bluetooth wireless technology operates within a range of about 10 m (about 33 feet). Connecting two devices is common, but some devices can be connected to multiple devices at the same time.
• You do not need to use a cable for connection since Bluetooth technology is a wireless technology, neither is it necessary for the devices to face one another, such is the case with infrared technology. For example, you can use such a device in a bag or pocket.
• Bluetooth technology is an international standard supported by millions of companies all over the world, and employed by various companies worldwide.

On Bluetooth communication

- Bluetooth wireless technology operates within a range of about 10 m. Maximum communication range may vary depending on obstacles (person, metal, wall, etc.) or electromagnetic environment.

• The following conditions may affect the sensitivity of Bluetooth communication.

- There is an obstacle such as a person, metal, or wall between this unit and Bluetooth device. - A device using 2.4 GHz frequency, such as a wireless LAN device, cordless telephone, or microwave oven, is in use near this unit.

- Because Bluetooth devices and wireless LAN (IEEE802.11b/g) use the same frequency, microwave interference may occur and result in communication speed deterioration, noise, or invalid connection if this unit is used near a wireless LAN device. In such as case, perform the following.

• Use this unit at least 10 m away from the wireless LAN device.
• If this unit is used within 10 m of a wireless LAN device, turn off the wireless LAN device.
• Install this unit and Bluetooth device as near to each other as possible.

- Microwaves emitting from a Bluetooth device may affect the operation of electronic medical devices. Turn off this unit and other Bluetooth devices in the following locations, as it may cause an accident.

- where inflammable gas is present, in a hospital, train, airplane, or petrol station - near automatic doors or a fire alarm

- This unit supports security capabilities that comply with the Bluetooth standard to provide a secure connection when the Bluetooth wireless technology is used, but security may not be enough depending on the setting. Be careful when communicating using Bluetooth wireless technology.

• We do not take any responsibility for the leakage of information during Bluetooth communication.
- Connection with all Bluetooth devices cannot be guaranteed.
- A device featuring Bluetooth function is required to conform to the Bluetooth standard specified by Bluetooth SIG, and be authenticated.
- Even if the connected device conforms to the above mentioned Bluetooth standard, some devices may not be connected or work correctly, depending on the features or specifications of the device.
- While talking on the phone hands free, noise may occur, depending on the device or communication environment.
- Depending on the device to be connected, it may require some time to start communication.

Others

• Using the Bluetooth device may not function on cellular phones, depending on radio wave conditions and location where the equipment is being used.
• If you experience discomfort after using the Bluetooth device, stop using the Bluetooth device immediately. Should any problem persist, consult your nearest Sony dealer.

If you have any questions or problems concerning your unit that are not covered in this manual, consult your nearest Sony dealer.

Maintenance

Replacing the lithium battery of the card remote commander

Under normal conditions, the battery will last approximately 1 year. (The service life may be shorter, depending on the conditions of use.) When the battery becomes weak, the range of the card remote commander becomes shorter. Replace the battery with a new CR2025 lithium battery. Use of any other battery may present a risk of fire or explosion.

Notes on the lithium battery

• Keep the lithium battery out of the reach of children. Should the battery be swallowed, immediately consult a doctor.
• Wipe the battery with a dry cloth to assure a good contact.
• Be sure to observe the correct polarity when installing the battery.
• Do not hold the battery with metallic tweezers, otherwise a short-circuit may occur.

WARNING

Battery may explode if mistreated. Do not recharge, disassemble, or dispose of in fire.

Fuse replacement

When replacing the fuse, be sure to use one matching the amperage rating stated on the original fuse. If the fuse blows, check the power connection and replace the fuse. If the fuse blows again after replacement, there may be an internal malfunction. In such a case, consult your nearest Sony dealer.

Diagram of a cable connector with an arrow indicating direction (no text or symbols)

Fuse (10 A)

Cleaning the connectors

The unit may not function properly if the connectors between the unit and the front panel are not clean. In order to prevent this, detach the front panel (page 8) and clean the connectors with a cotton swab. Do not apply too much force. Otherwise, the connectors may be damaged.

Line drawing of a hand inserting a small object into a device (no text or symbols)

Main unit

Line drawing of a hand holding a pen or stylus over a rectangular object (no text or symbols)

Back of the front panel

Notes

• For safety, turn off the ignition before cleaning the connectors, and remove the key from the ignition switch.
• Never touch the connectors directly with your fingers or with any metal device.

Removing the unit

1 Remove the protection collar.

① Detach the front panel (page 8).
②Pinch both edges of the protection collar, then pull it out.

Illustration showing a hand holding a rectangular object with arrows indicating rotation, before and after assembly (no text or symbols)

2 Remove the unit.

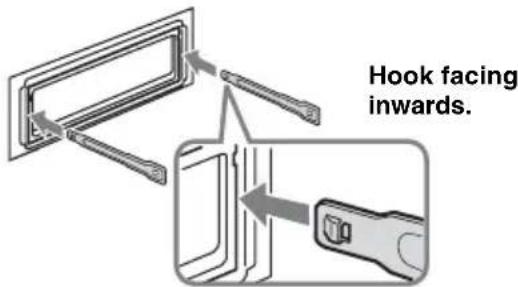

① Insert both release keys simultaneously until they click.

②Pull the release keys to unseat the unit.

Technical line drawing of a mechanical bracket with directional arrows indicating motion (no text or symbols)

③Slide the unit out of the mounting.

Isometric line drawing of a rectangular mechanical component with a downward arrow indicating force or motion (no text or symbols)

Specifications

CD Player section

Signal-to-noise ratio: 120 dB

Frequency response: 10 - 20,000 Hz

Wow and flutter: Below measurable limit

Tuner section

FM

Tuning range: 87.5 - 108.0 MHz

Antenna (aerial) terminal:

External antenna (aerial) connector

Intermediate frequency: 150 kHz

Usable sensitivity: 10 dBf

Selectivity: 75 dB at 400 kHz

Signal-to-noise ratio: 70 dB (mono)

Separation: 40 dB at 1 kHz

Frequency response: 20 - 15,000 Hz

MW

Tuning range: 531 - 1,602 kHz

Antenna (aerial) terminal:

External antenna (aerial) connector

Intermediate frequency: 25 kHz

Sensitivity: 26 μV

SW

Tuning range:

SW1: 2,940 - 7,735 kHz

SW2: 9,500 - 18,135 kHz

(except for 10,140 - 11,575 kHz)

Antenna (aerial) terminal:

External antenna (aerial) connector

Intermediate frequency: 25 kHz

Sensitivity: 30 μV

Wireless Communication

Communication System:

Bluetooth Standard version 2.0

Output:

Bluetooth Standard Power Class 2 (Max. +4 dBm)

Maximum communication range:

Line of sight approx. 10 m (33 ft)*1

Frequency band:

2.4 GHz band (2.4000 - 2.4835 GHz)

Modulation method: FHSS

Compatible Bluetooth Profiles*2:

A2DP (Advanced Audio Distribution Profile)

AVRCP (Audio Video Remote Control Profile)

HFP (Handsfree Profile) 1.5

HSP (Headset Profile)

*1 The actual range will vary depending on factors such as obstacles between devices, magnetic fields around a microwave oven, static electricity, reception sensitivity, antenna's performance, operating system, software application, etc.

*2 Bluetooth standard profiles indicate the purpose of Bluetooth communication between devices.

Power amplifier section

Output: Speaker outputs (sure seal connectors)

Speaker impedance: 4 – 8 ohms

Maximum power output: 52 W × 4 (at 4 ohms)

General

Outputs:

Audio outputs terminal (front, sub/rear switchable)

Power antenna (aerial) relay control terminal

Power amplifier control terminal

Inputs:

Remote controller input terminal

Antenna (aerial) input terminal

Telephone ATT control terminal

BUS control input terminal

BUS audio input terminal

Low: ±10 dB at 60 Hz (XPLOD)

Mid: ±10 dB at 1 kHz (XPLOD)

High: ±10 dB at 10 kHz (XPLOD)

Power requirements: 12 V DC car battery

(negative ground (earth))

Dimensions: Approx. 178 × 50 × 179 mm

(7^1 / 8× 2× 7^1 / 8 in) (w/h/d)

Mounting dimensions: Approx. 182 × 53 × 162 mm

(7 1/4 × 2 1/8 × 6 1/2 in) (w/h/d)

Mass: Approx. 1.2 kg (2 lb 11 oz)

Supplied accessories:

Card remote commander: RM-X304

Parts for installation and connections (1 set)

Optional accessories/equipment:

Rotary commander: RM-X4S

BUS cable (supplied with an RCA pin cord):

CD changer (10 discs): CDX-757MX, CDX-656X

AUX-IN selector: XA-300

Interface adaptor for iPod: XA-120IP

Your dealer may not handle some of the above listed accessories. Please ask the dealer for detailed information.

Design and specifications are subject to change without notice.

• Halogenated flame retardants are not used in the certain printed wiring boards.
• Halogenated flame retardants are not used in cabinets.
• Packaging cushions are made from paper.

Troubleshooting

The following checklist will help you remedy problems you may encounter with your unit. Before going through the checklist below, check the connection and operating procedures.

If the problem is not solved, visit the following support site.

Support site

Customers in Latin America:

Customers in Pan Asia:

http://www.sony-asia.com/section/support

http://www.sony-asia.com/caraudio/

General

No power is being supplied to the unit.

• Check the connection or fuse.
• If the unit is turned off and the display disappears, it cannot be operated with the remote commander.
  →Turn on the unit.

The power antenna (aerial) does not extend.

The power antenna (aerial) does not have a relay box.

No sound.

• The ATT function is activated, or the Telephone ATT function (when the interface cable of a car telephone is connected to the ATT lead) is activated.
• The position of the fader control “FAD” is not set for a 2-speaker system.
• The Bluetooth audio device is in pause.
  →Cancel pause.

No beep sound.

• The beep sound is canceled (page 18).
- An optional power amplifier is connected and you are not using the built-in amplifier.

The contents of the memory have been erased.

- The RESET button has been pressed.

→Store again into the memory.

- The power supply lead or battery has been disconnected or it is not connected properly.

Stored stations and correct time are erased. The fuse has blown.

Makes noise when the position of the ignition is switched.

The leads are not matched correctly with the car's accessory power connector.

During playback or reception, demonstration mode starts.

If no operation is performed for 5 minutes with "DEMO-ON" set, demonstration mode starts.

→Set “DEMO-OFF” (page 18).

continue to next page →

The display disappears from/does not appear in the display window.

• The dimmer is set "DIM-ON" (page 18).
• The display disappears if you press and hold OFF . Press and hold OFF on the unit until the display appears.
  • The connectors are dirty (page 23).

The Auto Off function does not operate.

The unit is turned on. The Auto Off function activates after turning off the unit.

→Turn off the unit.

The display disappears while the unit is operating.

The Black Out function is set to on (page 18).

Card remote commander operation is not possible.

If the Black Out function is activated (no lighting), card remote commander operation is not possible (page 18).

CD playback

The disc cannot be loaded.

• Another disc is already loaded.
• The disc has been forcibly inserted upside down or in the wrong way.

The disc does not playback.

• Defective or dirty disc.
• The CD-Rs/CD-RWs are not for audio use (page 21).

MP3/WMA files cannot be played back.

The disc is incompatible with the MP3/WMA format and version (page 21).

MP3/WMA files take longer to play back than others.

The following discs take a longer time to start playback.

• a disc recorded with a complicated tree structure.
• a disc recorded in Multi Session.
• a disc to which data can be added.

The display items do not scroll.

- For discs with very many characters, those may not scroll.

• “A.SCRL” is set to “OFF.”
  →Set “A.SCRL-ON” (page 18).
  →Press and hold DSPL (SCRL).

The sound skips.

• Installation is not correct.
→Install the unit at an angle of less than 45^ in a sturdy part of the car.
- Defective or dirty disc.

The operation buttons do not function.

The disc will not eject.

Press the RESET button (page 7).

Radio reception

The stations cannot be received. The sound is hampered by noises.

The connection is not correct.

Connect a power antenna (aerial) control lead (blue) or accessory power supply lead (red) to the power supply lead of a car's antenna (aerial) booster (only when your car has built-in FM/MW/SW antenna (aerial) in the rear/side glass).
→Check the connection of the car antenna (aerial).
→If the auto antenna (aerial) will not go up, check the connection of the power antenna (aerial) control lead.

Preset tuning is not possible.

• Store the correct frequency in the memory.
  • The broadcast signal is too weak.

Automatic tuning is not possible.

- Setting of the local seek mode is not correct.

→Tuning stops too frequently: Set “LOCAL-ON” (page 18).
→Tuning does not stop at a station: Set “LOCAL-OFF” (page 18).

• The broadcast signal is too weak.

→Perform manual tuning.

During FM reception, the "ST" indication flashes.

• Tune in the frequency accurately.
• The broadcast signal is too weak. →Set “MONO-ON” (page 18).

An FM program broadcast in stereo is heard in monaural.

The unit is in monaural reception mode.

→Set "MONO-OFF" (page 18).

Bluetooth function

The connecting device cannot detect this unit.

• Before the pairing is made, set this unit to pairing standby mode.
• While connected to a Bluetooth device, this unit cannot be detected from another device. Disconnect the current connection and search for this unit from another device.
• When the device pairing is made, set the Bluetooth signal output to on (page 15).

Connection is not possible.

• Connect to this unit from a Bluetooth device or vice versa. The connection is controlled from one side (this unit or Bluetooth device), but not both.
• Check the pairing and connection procedures in the manual of the other device, etc., and perform the operation again.

The talker's voice volume is low.

Adjust the volume level.

A call partner says that the volume is too low or high.

Adjust the volume accordingly using Mic Gain adjustment (page 16).

Echo or noise occurs in phone call conversations.

• Lower the volume.
• If the ambient noise other than the phone call sound is loud, try reducing this noise.
  E.g.: If a window is open and road noise, etc., is loud, shut the window. If the air conditioner is loud, lower the air conditioner.

The phone is not connected.

When the Bluetooth audio is played back, the phone is not connected even if you press (handsfree).

→Connect from the phone.

The phone sound quality is poor.

Phone sound quality depends on reception conditions of cellular phone.

→Move your car to a place where you can enhance the cellular phone's signal if the reception is poor.

The volume of the connected audio device is low (high).

Volume level will differ depending on the audio device.

→Adjust the volume of the connected audio device or this unit.

The sound skips during playback of a Bluetooth audio device.

• Reduce the distance between the unit and the Bluetooth audio device.
• If the Bluetooth audio device is stored in a case which interrupts the signal, remove the audio device from the case while using.
• Several Bluetooth devices or other devices which emit radio waves are used nearby.
  →Turn off the other devices.
  →Reduce the distance from the other devices.
• The playback sound stops momentarily when the connection between this unit and the cellular phone is being made. This is not a malfunction.

The connected Bluetooth audio device cannot be controlled.

Check that the connected Bluetooth audio device supports AVRCP.

Some functions do not work.

Check if the connecting device supports the functions in question.

A call is answered unintentionally.

The connecting phone is set to answer a call automatically.

No sound is output from the car speakers during handsfree call.

If the sound is output from the cellular phone, set the cellular phone to output the sound from the car speakers.

"OFF BT" appears when initializing.

Press and hold BT until “×turns off. Then initialize again (page 17).

Error displays/Messages

ERROR\*1

• The disc is dirty or inserted upside down. ^2 Clean or insert the disc correctly.
• A blank disc has been inserted.
• The disc cannot play due to a problem. →Insert another disc.
• Press to remove the disc.

FAILURE

The connection of speakers/amplifiers is incorrect.

→See the installation guide manual of this model to check the connection.

LOAD

The CD changer is loading the disc.

→Wait until loading is complete.

L. SEEK +/-

The local seek mode is on during automatic tuning.

NO DISC

The disc is not inserted in the CD changer.

→Insert discs in the CD changer.

NO MAG

The disc magazine is not inserted in the CD changer.

→Insert the disc magazine in the CD changer.

NO MUSIC

The disc does not contain a music file.

→Insert a music CD in this unit or an MP3 playable CD changer.

NO NAME

A disc/album/artist/track name is not written in the track.

OFFSET

There may be an internal malfunction.

→Check the connection. If the error indication remains on in the display, consult your nearest Sony dealer.

READ

The unit is reading all track and album information on the disc.

→Wait until reading is complete and playback starts automatically. Depending on the disc structure, it may take more than a minute.

RESET

The CD unit or CD changer cannot be operated due to a problem.

→Press the RESET button (page 7).

“LLLL”

77707

r

During reverse or fast-forward, you have reached the beginning or the end of the disc and you cannot go any further.

“—”

The character cannot be displayed with the unit.

*1 If an error occurs during playback of a CD, the disc number of the CD does not appear in the display.

*2 The disc number of the disc causing the error appears in the display.

If these solutions do not help improve the situation, consult your nearest Sony dealer.

If you take the unit to be repaired because of CD playback trouble, bring the disc that was used at the time the problem began.

http://www.sony-asia.com/section/support

http://www.sony-asia.com/caraudio/

عام

Illustration of hands holding a rectangular object with directional arrows indicating movement (no text or symbols)

↓

Diagram showing two rectangular panels with a directional arrow between them, no text or symbols present.

قم يアプリج الجهاز.

2

Technical line drawing of a mechanical bracket with mounting holes and directional arrows indicating motion (no text or symbols)

Isometric line drawing of a rectangular block with a downward arrow indicating compression or force (no text or symbols)

تنظيف أطراف التوصيل

Line drawing showing two hands inserting a card into a device (no text or symbols present)

الصيانة

Diagram of a cable connector with a cable inserted into a socket (no text or symbols)

فيوز (10 أمبر)

استبdeal الفيوز

Illustration of hands holding a CD or DVD disc with arrows indicating rotation (no text or symbols)

Line drawing of hands using a handheld tool to interact with a mechanical component (no text or symbols)

(AUX(OUIX(3)*AUX(الوضع) " +18 dB": "0 dB" - "8 dB" - "0 dB" -

BluetoothPreference Mode of the Psychology. These theoretical details in the Psychology between the source (16).

الم证据 (ص) : "-8 dB" - "0 dB" - "+18 dB".

2 SOURCE ATTFT "AUDIO

.⑥ اضغط 3

http://www.sony-asia.com/section/support http://www.sony-asia.com/caraudio/

التوافق

ملاحظة

Line drawing of a device with a paper clip and three circular components (no text or symbols)

توجيه

http://www.sony-asia.com/section/support

http://www.sony-asia.com/caraudio/

يقدم معلومات عن:
