USER MANUAL XAGD50/9040 Cocraft

ADJUSTABLE IMPACT DEPTH

SPIKPISTOL KOMBI KOMBI SPIKERPISTOL YHDISTELMÄNAULAIN DRUCKLUFTNAGLER

Important!

Read the entire instruction manual carefully and make sure that you fully understand it before you use the equipment. Keep the manual for future reference.

Viktig information:

Please read the entire instruction manual before using the product and save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. If you have any questions regarding technical problems please contact Customer Services.

Safety

Warning!

• Never hold your hand or any other part of the body within the pointing area when the gun is connected to the compressed air hose.
• Never aim the tool at any other person.
• Do not play with the tool.
• Never depress the trigger if the safety lock is not pointing at the workpiece.
  • Always handle the tool with care.
• Never depress the trigger or release the safety catch while you are loading the tool.
• Use the tool solely for the purpose for which it is intended.
• Use only nails or staples with the correct dimensions; see Specifications.
• Never use the tool in such a way that it is pointing at oneself or someone else in the work area.
• Do not use the tool as a hammer.
• Carry the tool by the handle, not by the air hose.
• Never carry the tool with the trigger depressed.
• Never modify the tool in departure from the original design.
• Always keep in mind that misuse or faulty handling of this tool could injure yourself and others.
• Never leave a tool unattended when it is connected to the air line.
• Do not use this tool if it does not bear a legible warning decal.
• Do not continue using a tool that is leaking air or is not working properly. Contact our Customer Service for servicing.
• When using the tool, hold it in such a way that no injury to the head or body could result should a fall in pressure or hard spots on the workpiece cause the recoil force to increase.

• Do not nail too close to the edge of a workpiece. The nail could pass through the workpiece and cause damage.

• Disconnect the gun from the compressed air for transporting.

• Check frequently that both the trigger and the safety catch are working properly.
• Do not take apart any part of the tool.
• Make no provisional repairs.
• Always have authorized personnel do servicing and repairs, and only with original replacement parts.
• Avoid weakening the housing by engraving, scribing or scratching it, etc.
• Always make a note of where electric cables enter walls, floors and ceilings before you begin to use the nail gun.
• The compressed air fitting for the nail gun must be of the quick-coupling type. The connecting bit on the tool may not have a rear valve so that some air remains under pressure when the nail gun has been disconnected.

Compressed air feed and connections

Warning! To prevent accidents due to unintended firing, the operator should always disconnect the compressed air:

• Before adjusting.
• When cleaning the nail gun.
• When removing a jammed nail.
• When the tool is not being used.
• When moving the tool to another work area.

Warning!

• Use only compressed air in pneumatically driven tools. Never use acid or flammable gases to drive the tool since they carry the risk of explosion.
• The compressor capacity must be sufficient to ensure an adequate air pressure and flow for the intended use. A fall in pressure in the system can reduce the tool's thrust. See Specifications for setting the right pressure for the tool.
• The compressed air lines should be mounted on an incline, with the highest point closest to the compressor. An easily accessed water separator should be installed at the lowest points. The water separator should be emptied at least once a day or more often if needed. Dirt and water in the compressed air lines are the many causes of wear in pneumatically actuated tools.

• The nail gun's connection fittings should be equipped with a reducing valve with water separator directly at the connection site. A filter helps to achieve maximum effect at minimum wear. The filter must have sufficient flow capacity for the intended mounting site or connecting point. The filter must be kept clean if it is to be able to deliver clean compressed air to the tool. See the manufacturer's instructions for proper filter care. A dirty or clogged filter will cause a fall in pressure, which reduces the nail gun's effectiveness.

• The pressure regulator must be adjustable from 0 to 7 bar.

• The air hoses must tolerate at least 10.5 bar working pressure or 150% of the maximum air pressure the system can create. The meter line should have a quick coupling for quick detachment from the nail gun's nipple.
• Make sure that the compressed air fed to the nail gun does not exceed the maximal permissible working pressure (7 bar). Initially set the meter pressure at the lowest recommended working pressure; See Specifications.
• Check that the nail gun is working properly by running function and safety checks for every job.

Warning!

• To prevent serious eye injury from flying nails and/or slivers the operator and others in the working area must wear eye protection that covers both the front the sides of the face when loading, using or servicing the tool.
• Glasses without eye protection on the side and facemasks do not give adequate protection!

Warning symbols on tool

Read the instructions for use.

The user and other persons in the work area must use protective glasses and hearing protection.

The tool should not be used on scaffolding or ladders. Do not use the nail gun if the fastening unit could shoot through something and hit someone on the other side.

The gun is equipped with a safety trigger.

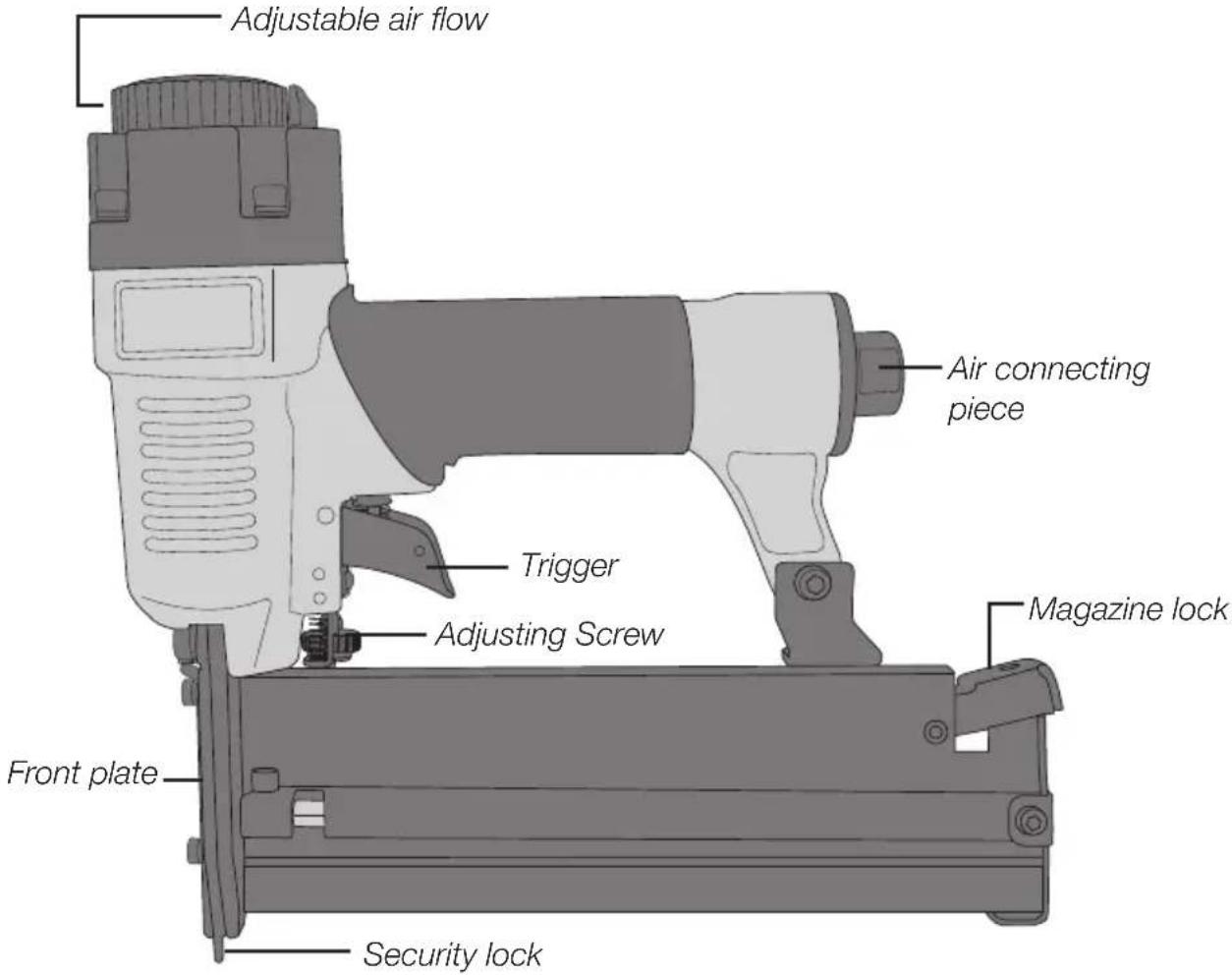

Description of product

Installation

Suggestion for installation

• The compressor used to drive the tool must be able to maintain a working pressure of at least 4 bar for the tool to work properly.
• Use quick-couplings to easily disconnect the tool and hose from the compressor.
• Make sure that the connected tool and hoses do not have a lower capacity than the compressor and that they are properly fitted.
• If a pressure regulator is used it must be able to be set for a working pressure of 4–7 bar.

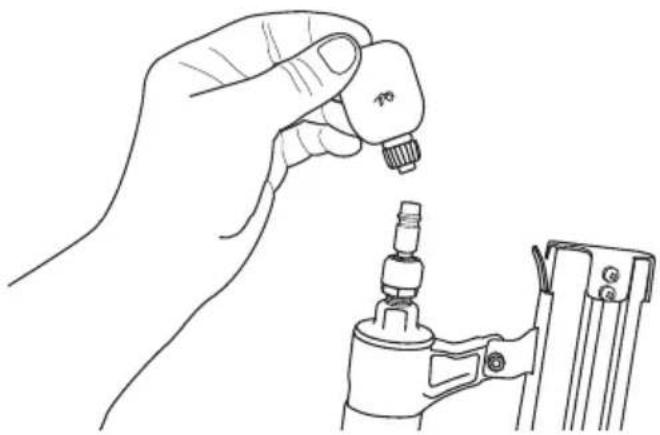

Using the tool Lubrication

Note: Lubricate the tool with a few drops of oil in the air-line connection before using the tool for the first time.

1. Disconnect the compressed air from the nail gun.

2. Put 4–5 drops of oil in the air inlet.

Note: Do not use ordinary motor oil as it contains additives that will damage the tool. Oil for lubricating a pneumatic tool is available commercially.

Line drawing of a hand holding a small mechanical component, with no visible text or symbols

1. Wipe away any oil that may come out of the air outlet when beginning to use the tool.

Function and safety checks

1. Disconnect the compressed air from the nail gun.
2. Remove any nails from the magazine.
3. Make sure that the safety lock moves freely up and down by pressing the tool against a work surface.
4. Connect to the compressed air.
5. Press the tool against the work surface. The tool must not fire!
6. Take the tool away from the work surface, and make sure the safety lock returns to its position. Press the trigger in. The tool must not fire!
7. Press the tool against the work surface, press the trigger. The tool must fire!

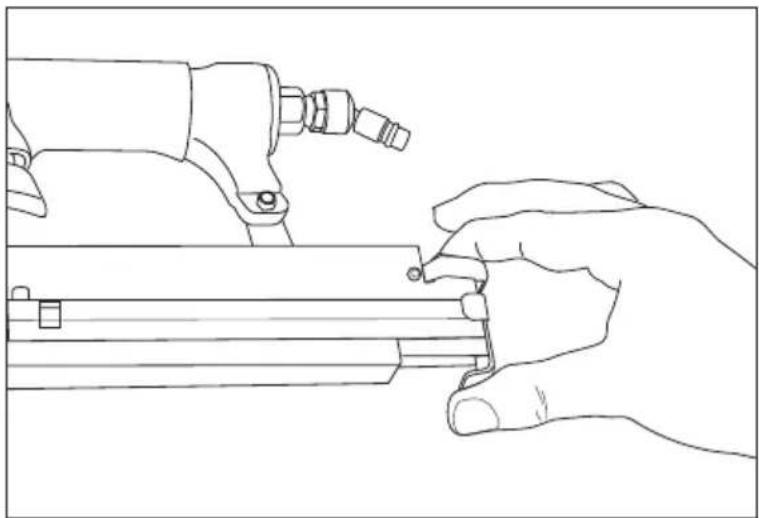

Loading

1. Open the magazine by pressing the lock down and pulling it straight out.

Line drawing of a hand operating a mechanical tool with a spring (no text or symbols)

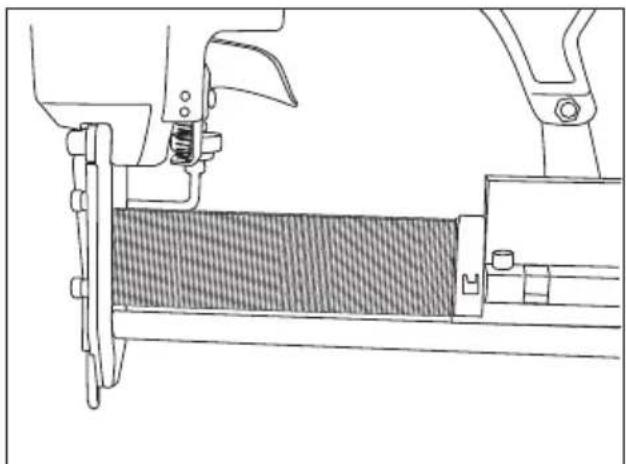

1. Place nails in the magazine; ensure that the tips point downward and lie up against the bottom of the magazine.

2. Shove the magazine back until the magazine lock clicks firmly in place.

Technical line drawing of a mechanical assembly with no visible text or symbols

Using the tool

1. Hold the tool firmly.
2. Press the tool against the work surface.
3. Press the trigger in and release it after firing.
4. Move the tool to the next spot and repeat.

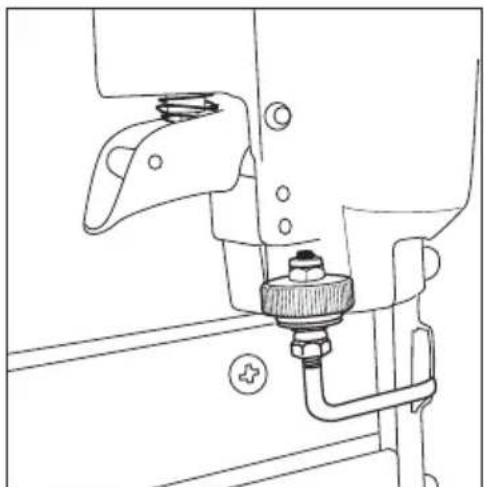

Adjusting the driving depth

1. Make sure that the working pressure is between 4 and 7 bar.
2. To drive the nail in less deeply, turn the adjusting screw anti-clockwise.
3. To drive the nail in more deeply, turn the adjusting screw clockwise.

Technical line drawing of a mechanical assembly with no visible text or symbols

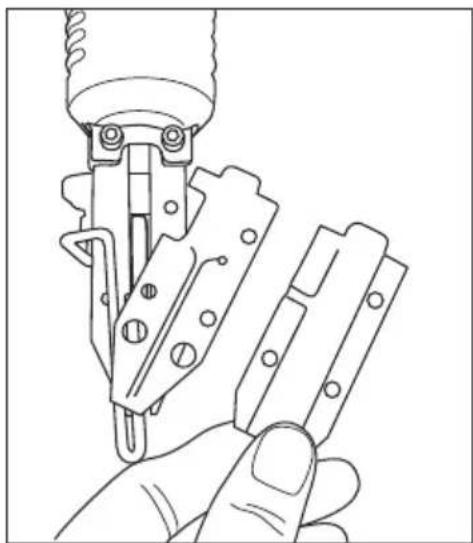

Removing a nail that has become jammed in the tool

1. Disconnect the compressed air from the air gun.

2. Open the magazine and remove the jammed nail, and/or remove the three screws that hold the front plate with the provided Allen key.

3. Remove the outer and inner front plate.

4. Remove the jammed nail and replace the front plate.

Line drawing of a hand holding a pair of metal clamps (no text or symbols)

Care and maintenance

With the Alan keys provided, regularly check that all screws are properly tightened.

Trouble-shooting

Warning!

Always disconnect the compressed air before doing any work with the nail gun.

Air leaks from the gun. •	Check all screws and tighten with Allen keys.
The nail gun does not nail or is sluggish.	• Check all screws and tighten with Allen keys.• Make sure that the nail gun receives the right working pressure from the compressor (4–7 bar).• Make sure there are no air leaks between the compressor and the nail gun.
Nail jams in tool. • Make	sure the nails are the right size.• Check that the nails are not damaged.• Clean the magazine.• Remove the front plate and clean it and check that there is no damage.

Responsible disposal

This symbol indicates that this product should not be disposed of with general household waste. This applies throughout the entire EU. In order to prevent any harm to the environment or health hazards caused by incorrect waste disposal, the product must be handed in for recycling so that the material can be disposed of in a responsible manner. When recycling your product, take it to your local collection facility or contact the place of purchase. They will ensure that the product is disposed of in an environmentally sound manner.

Symbol of a trash bin crossed with no visible text or labels

Specifications

Length 230 mm

Height 240 mm

Width 56 mm

Weight (without nails) 1.3 kg

Magazine capacity 100 units

Recommended air pressure 4-7 bar

Nail size 10–50 mm

Staple size 13–40 mm

Spikpistol Kombi

Art.nr 40-7981 Modell XAGD50/9040

Line drawing of a hand holding a small mechanical component, with no visible text or symbols

Line drawing of a hand operating a mechanical tool with a spring (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Användning

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a hand holding a tool with a bracket, no text or symbols present

Symbol of a trash bin crossed with no text or labels, accompanied by a solid black rectangle below (no text or symbols present)

Specifikationer

Längd 230 mm

Höjd 240 mm

Bredd 56 mm

Vikt 1,3 kg

Magasinkapacitet 100 st

Tryckområde 4–7 bar

Spikstorlek 10–50 mm

Klammerstorlek 13–40 mm

Spikerpistol Kombi

Art.nr. 40-7981 Modell XAGD50/9040

Line drawing of a hand holding a small mechanical component, with a close-up view of its base (no text or symbols)

Line drawing of hands operating a mechanical device (no text or symbols present)

Technical line drawing of a mechanical assembly with no visible text or symbols

Bruk

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a hand holding a tool with a bracket, showing mechanical components and fasteners (no text or symbols)

Symbol of a trash bin crossed with no text or labels, accompanied by a blank rectangular block below (no text or symbols present)

Spesifikasjoner

Lengde 230 mm

Høyde 240 mm

Bredde 56 mm

Vekt 1,3 kg

Magasinkapasitet 100 stk.

Trykkområde 4–7 bar

Line drawing of a hand holding a small mechanical component, with no visible text or symbols

Line drawing of two hands operating a mechanical device (no text or symbols present)

Technical line drawing of a mechanical assembly with no visible text or symbols

Käyttö

Technical line drawing of a mechanical assembly with no visible text or symbols

©

Kierrättäminen

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no text or symbols present)

Tekniset tiedot

Pituus 230 mm

Korkeus 240 mm

Leveys 56 mm

Paino 1,3 kg

Line drawing of a hand holding a small mechanical component, with no visible text or symbols

Line drawing of a hand operating a mechanical device with a tool (no text or symbols)

Technical line drawing of a sewing machine tool with clamping mechanism (no text or symbols)

Bedienung

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a hand holding a pair of scissors (no text or symbols present)

Pflege und Wartung

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Technische Daten

Länge 230 mm

Höhe 240 mm

Breite 56 mm

Gewicht 1,3 kg

Declaration of Conformity

Declares that this product complies with the requirements of the following directives and standards

EMC Directive Low Voltage Directive

EN 792-13:2000+1

AFPS GS 2014:01

2006/42/EC ANNEX 1

Henrik Alfredsson

Manager Technique & Quality

Insjön, Sweden, 2016-12-05
