USER MANUAL FY500ZDY2 PANASONIC

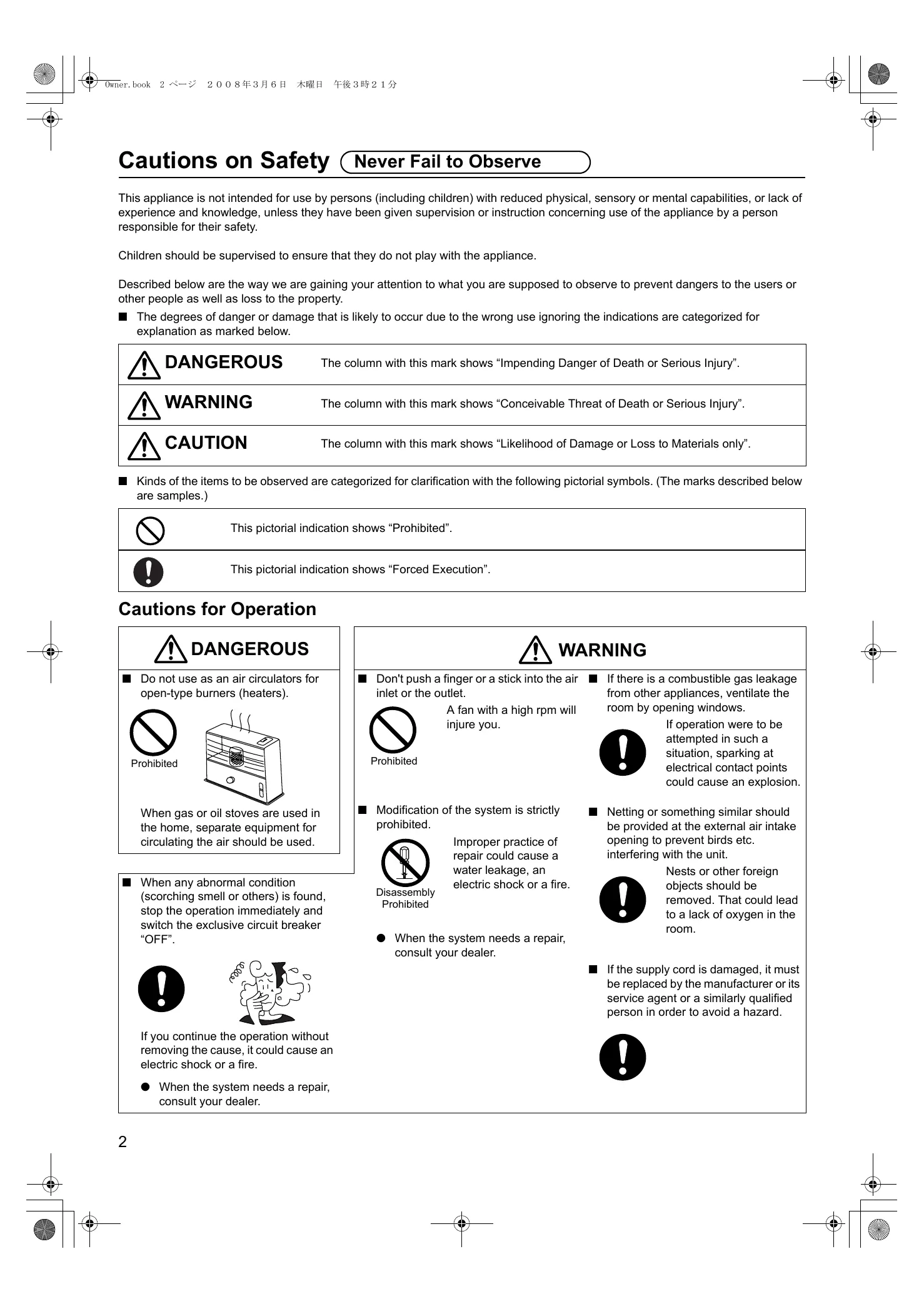

Thank you very much for having purchased our “Energy Recovery Ventilator”. We hope you read through this owner’s manual with care so that you can use the unit correctly. After reading it, please keep it so you can read it whenever necessary. CONTENTS DEUTSCH Cautions on Safety Never Fail to Observe This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. Described below are the way we are gaining your attention to what you are supposed to observe to prevent dangers to the users or other people as well as loss to the property. ■ The degrees of danger or damage that is likely to occur due to the wrong use ignoring the indications are categorized for explanation as marked below. DANGEROUS The column with this mark shows “Impending Danger of Death or Serious Injury”. WARNING The column with this mark shows “Conceivable Threat of Death or Serious Injury”. CAUTION The column with this mark shows “Likelihood of Damage or Loss to Materials only”. ■ Kinds of the items to be observed are categorized for clarification with the following pictorial symbols. (The marks described below are samples.) This pictorial indication shows “Prohibited”. This pictorial indication shows “Forced Execution”. Cautions for Operation DANGEROUS ■ Do not use as an air circulators for open-type burners (heaters). Prohibited When gas or oil stoves are used in the home, separate equipment for circulating the air should be used. ■ When any abnormal condition (scorching smell or others) is found, stop the operation immediately and switch the exclusive circuit breaker “OFF”. WARNING ■ Don't push a finger or a stick into the air ■ If there is a combustible gas leakage from other appliances, ventilate the inlet or the outlet. room by opening windows. A fan with a high rpm will If operation were to be injure you. attempted in such a situation, sparking at Prohibited electrical contact points could cause an explosion. ■ Modification of the system is strictly prohibited. Improper practice of repair could cause a water leakage, an electric shock or a fire. Disassembly Prohibited ● When the system needs a repair, consult your dealer. ■ Netting or something similar should be provided at the external air intake opening to prevent birds etc. interfering with the unit. Nests or other foreign objects should be removed. That could lead to a lack of oxygen in the room. ■ If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard. If you continue the operation without removing the cause, it could cause an electric shock or a fire. ● When the system needs a repair, consult your dealer.

Cautions on Safety Never Fail to Observe ENGLISH Owner.book Cautions for Operation CAUTION Prohibited Prohibited FRANÇAIS ■ Do not handle switches with a wet hand. It could cause an electric shock. Don’t touch with wet hands Prohibited Likely to cause bad effect on animals and plants. ■ Don't put a container of water on Energy Recovery Ventilators. When water spills, it is likely to enter inside the unit and degrade electric insulation, possibly Prohibited resulting in an electric shock. ■ If Energy Recovery Ventilators are not used for a long period of time, switch the exclusive circuit breaker "OFF" for safety reasons. If the power is left on, any build-up of dust could cause a heat generation or a fire. ESPAÑOL ■ Do not use outside the rated voltage. It could cause a fire or an electric shock. ■ Don't blow directly towards animals or plants. Keep from water DEUTSCH Prohibited ■ Do not wash Energy Recovery Ventilators with water. It could cause an electric shock. ITALIANO ■ It is strictly prohibited to place a ■ Combustion apparatus should not be container of combustible gas or liquid placed allowing a direct exposure to near Energy Recovery Ventilators or to wind of Energy Recovery Ventilators. spray it directly with the gas or liquid. Incomplete combustion could occur on the It could cause a fire. apparatus. Cautions for Installation ■ Don't incline Energy Recovery Ventilators when removing the unit. Otherwise, water remaining inside is likely to drop and wet the furniture or other property. Prohibited ● Ask the sales office or the engineering shop to perform the work. PORTUGUÊS ● It could cause deterioration of foods or other problems.

■ The system should never be used for any other purposes than intended such as for preservation of foods, flora and fauna, precision devices or work of art. NEDERLANDS CAUTION Owner.book 4 ページ

Features Main Features

Energy saving ventilation Thanks to efficient recovery of thermal energy lost during Ventilation (load incurred by outside air), you can save an airconditioning fee.

Facility saving Thanks to a drastic reduction of load incurred by outside air, you can make air-conditioners more compact in parallel with the recovery of thermal energy.

Humidity adjusting effect In a cooling mode, a highly humid open-air is brought near to a dehumidified room atmosphere and then supplied. In a heating mode, a room humidity is transferred to the dry outside air and then supplied.

Comfortable and consistent ventilation Ventilation is available with least possible fluctuation of a room temperature. Since exhaust and air intake are performed simultaneously, a stable ventilation is possible even in a highly airtight room.

Sound shield effect The ducts of the unit and the heat exchange element are characteristic of sound shield effect. Thus, it prevents an outside noise from coming in the unit and also sound inside the unit from going out, so that the office and store environment can be preserved.

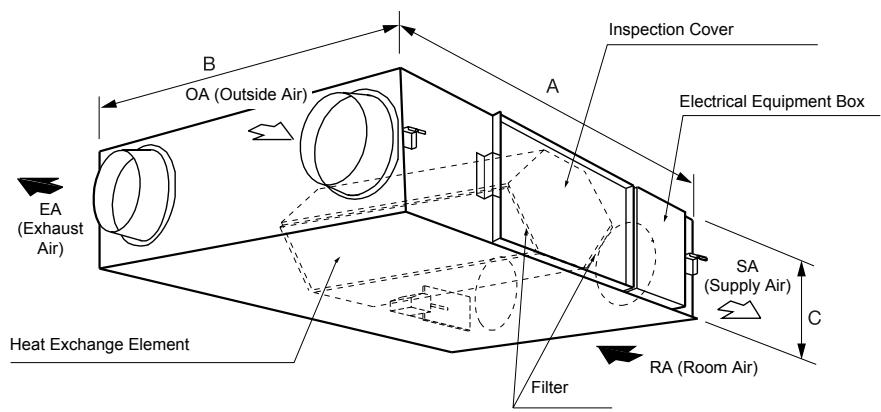

[Model No.] ENGLISH Electrical Equipment Box

(Exhaust Air) Model No.

FY-01KZDY2A/B

FRANÇAIS Unit: mm Inspection Cover Note: Dimensions of Ceiling Suspension Fixtures are not included.

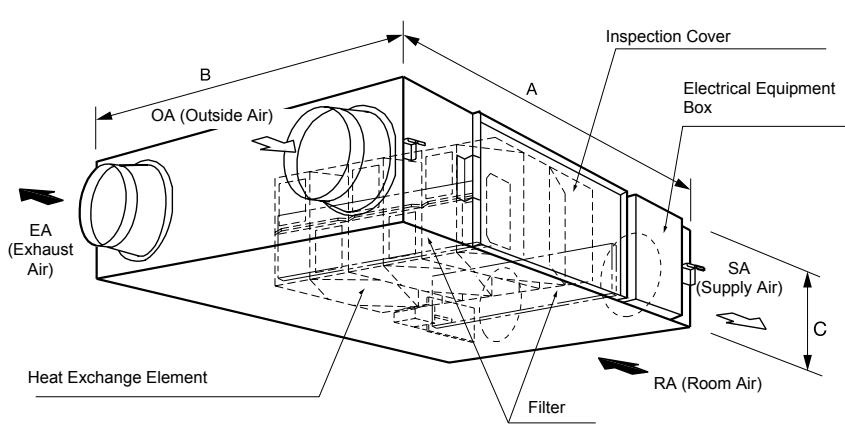

(Supply Air) Heat Exchange Element RA (Room Air) DEUTSCH Filter [Model No.] FY-800ZDY2

FY-01KZDY2A/B

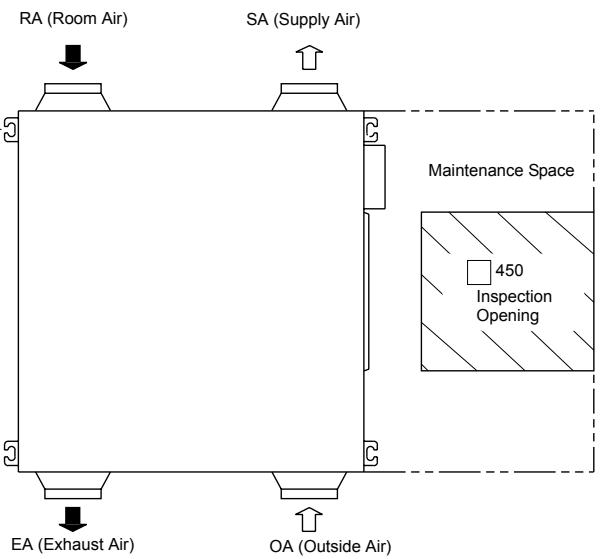

RA (Room Air) SA (Supply Air) ITALIANO Inspection Cover Electrical Equipment Box Maintenance Space

(Supply Air) ESPAÑOL Heat Exchange Element Inspection Opening RA (Room Air) Filter NEDERLANDS EA (Exhaust Air)

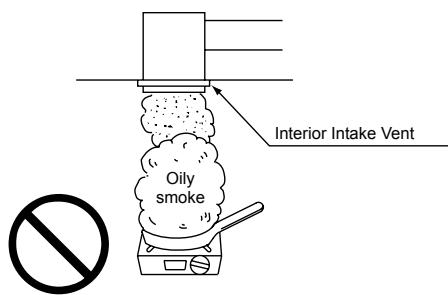

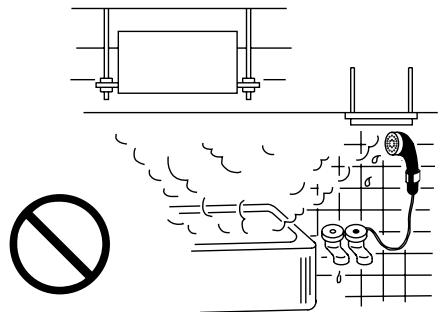

Specific Caution Items Checking Location of Installation This Energy Recovery Ventilators have been designed especially for use in offices, conference rooms, etc. Please check to ensure that neither the main unit nor the inlet-outlet grill are installed in any of the following locations. Locations exposed to high temperatures or Locations with high humidity. Locations with large amounts of oily Do not install in high humidity locations such as smoke, such as food preparation areas. direct flame. Avoid installing the Energy Recovery Ventilators bathrooms. Doing so may cause a breakdown of the unit or or the inlet-outlet grill in locations which reach an electric shock. temperatures of 40°C or above. Usage under high temperature conditions may cause distortion of the filter or Heat Exchange Element or motor burn-out. The unit will become inoperable if the filter or Heat Exchange Element become clogged with oil. 40°C Interior Intake Vent Oily smoke Make sure that Inspection Opening is provided so that filter and Heat Exchange Element maintenance and periodic spot checks of the unit can be easily carried out. (Refer to the Model Installation for its space) Do not install the unit in locations such as machinery or chemical plants where it will be exposed to noxious gases containing acids, alkali, organic solvents, paint fumes, etc., to gases containing corrosive ingredients, or where dust or oil mist will be produced. If there are any problems concerning the location or installation of the unit, please consult either store from which it was purchased or the agent who installed it. When Using Always be sure to use a filter. Failure to do so may cause dust and dirt to build up on the heat exchange element, lowering its efficiency and rendering it inoperable.

Operate the switch with certainty. In particular, suddenly turning the switch on and off will not only cause improper operation of the unit, but will also affect the relay inside the switch, and may damage it. Owner.book 7 ページ

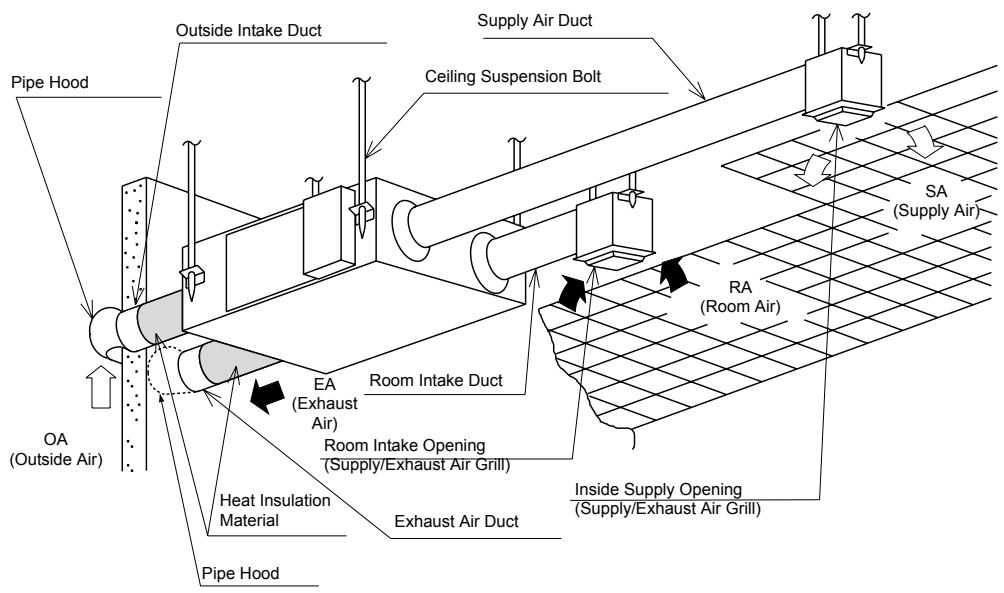

Outside Intake Duct ENGLISH Model Installation Supply Air Duct Ceiling Suspension Bolt Pipe Hood FRANÇAIS

(Room Air) Heat Insulation Material Exhaust Air Duct Inside Supply Opening (Supply/Exhaust Air Grill) DEUTSCH Note that when installing a unit body upside down, its printed indication is in a reversed position. Room Intake Duct (Exhaust Air) Room Intake Opening (Supply/Exhaust Air Grill) Pipe Hood Method of Use ● Use the operation switch to operate the unit. 0 (OFF)............... the unit stops. 1 (ON) ................ the unit operates. ITALIANO ● Use the Air Flow switch to set to the desired air flow. High.................... Turns to high air volume. Low..................... Turns to low air volume.

PORTUGUÊS NEDERLANDS ESPAÑOL ● Use the Function Select switch to set the ventilation mode. Energy Recovery Ventilation Mode ...... Open air is thermal-exchange with room air to bring it closer to a room temperature and humidity, before taking it in the room. Normal Ventilation Mode ...................... To intake open air as it is. Owner.book 8 ページ

After-sales Service ■ Request for Spot Checks To ensure safe, correct usage, we suggest that you consider a maintenance contract. For details, inquire at the store where you bought your unit, or at the agent which installed it. ■ If You Think It’s Broken Examine the unit as shown in the table below, and if you find any irregularities, shut it off immediately and contact the store where you bought your unit or the agent who installed it to request servicing (or consultation). Symptom ● No activity, even when the switch is on. ● No air comes out.

Where to look ● Is the fuse blown or the breaker tripped? ● Is the power out? ● Check whether or not there is dust on the filters and the Heat Exchange Element. (Clean it according to the Maintenance Manual.) Owner.book 9 ページ

Model No. FY-250ZDY2 Item 220–240V~50Hz/220V~60Hz Ventilation Mode Energy Recovery Ventilation External Static Pressure (Pa) Noise (dB) Temperature Exchange Efficiency (%) Normal Ventilation (Extra high) High Low (Extra high) High Low 104-119/128 99-114/118 79-90/78 103-119/128 98-114/118 79-90/77 250/250 250/250 170/135 250/250 250/250 170/135 90/125 80/100 37/30 90/125 80/100 37/30 27-28/28 26-27/26 21-22/21 27-28/28 26.5-27.5/26.5 21.5-22.5/21.5 75/75 75/75 77/78

Dimensions (mm) Width 882 x Depth 599 x Height 270 Model No. DEUTSCH Weight (kg) FY-350ZDY2 Item 220–240V~50Hz/220V~60Hz Ventilation Mode Energy Recovery Ventilation Normal Ventilation Notch (Extra high) High Low (Extra high) High Low Input (W) 137-154/178 124-137/149 117-128/132 133-151/176 119-132/145 113-125/131 External Static Pressure (Pa) 95/155 65/90 42/43 95/155 65/90 42/43 31-32/33 29-30/30 25-26/22 31-32/33 30-31/30 26-27/23 75/75 75/75 77/79

Noise (dB) Temperature Exchange Efficiency (%) Dimensions (mm) Width 882 x Depth 804 x Height 270 Weight (kg)

Model No. FY-500ZDY2 Normal Ventilation Notch (Extra high) High Low (Extra high) High Low Input (W) 188-214/244 169-188/202 151-166/162 184-210/243 161-182/196 145-164/161 External Static Pressure (Pa) 105/165 70/85 38/33 105/165 70/85 38/33 Noise (dB) 33-34/35 31-32/31 25-26/23 34-35/36 32-33/33 26.5-27.5/24 75/75 75/75 77/79

Temperature Exchange Efficiency (%) NEDERLANDS Energy Recovery Ventilation ESPAÑOL 220–240V~50Hz/220V~60Hz Ventilation Mode Width 962 x Depth 904 x Height 270

PORTUGUÊS Power Source

Item Weight (kg) ITALIANO Power Source Dimensions (mm) FRANÇAIS Power Source Air Volume ENGLISH Specifications Owner.book 10 ページ

Model No. FY-800ZDY2 Item Power Source 220–240V~50Hz/220V~60Hz Ventilation Mode Energy Recovery Ventilation External Static Pressure (Pa) 140/190 110/100 70/50 140/190 110/100 70/50 Noise (dB) 38-39/39 36.5-37.5/36 32-34/31 38.5-39.5/39.5 37-38/37 33-35/31 75/75 75/75 76/77

Temperature Exchange Efficiency (%) Dimensions (mm) Width 1322 x Depth 884 x Height 388 Weight (kg)

FY-01KZDY2A

Item Power Source 220–240V~50Hz Ventilation Mode Energy Recovery Ventilation Notch Input (W) Air Volume (m3/h) External Static Pressure (Pa) Noise (dB) Temperature Exchange Efficiency (%) Normal Ventilation (Extra high) High Low (Extra high) High Low 399-445 360-399 332-367 392-438 358-392 329-362

37.5-38.5 36-37 31-33 38-39 36.5-37.5 31.5-33.5

Dimensions (mm) Width 1322 x Depth 1134 x Height 388 Weight (kg)

FY-01KZDY2B

Item Power Source 220–240V~60Hz Energy Recovery Ventilation Normal Ventilation (Extra high) High Low (Extra high) High

External Static Pressure (Pa)

Temperature Exchange Efficiency (%)

Dimensions (mm) Weight (kg) Width 1322 x Depth 1134 x Height 388

(Note) The ratings mentioned above shows the values under the external static pressure. (Only the noise level shows the value under the external static pressure: 0Pa) Noise Level shall be measured 1.5 m below the center of the unit. (It shall be measured at the acoustic room.)

ENGLISH 1 ページ FRANÇAIS

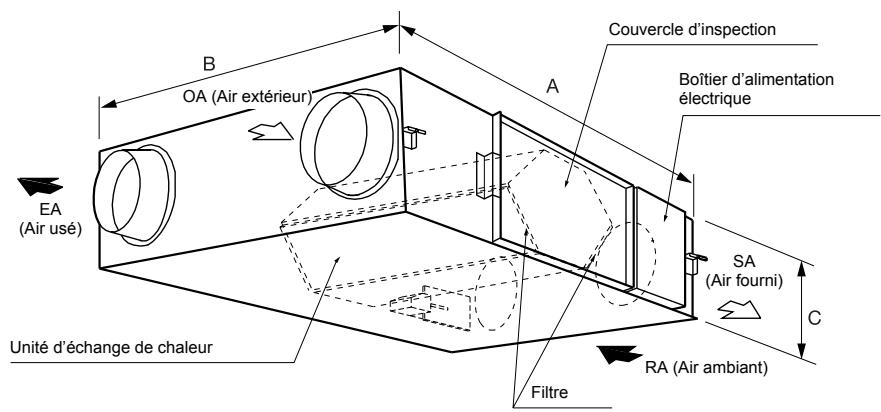

(Air fourni) RA (Air ambiant) SA (Air fourni) ITALIANO

(Air fourni) ESPAÑOL

(Air ambiant) Dimensions (mm) Poids (kg) RA (Abluft) Filter NEDERLANDS OA (Außenluft) PORTUGUÊS EA (Fortluft)

OA (Außenluft) Owner.book 6 ページ

Item Power Source 220–240V~50Hz Ventilation Mode Energiegewinnungs-Ventilator Notch Input (W) Air Volume (m3/h) External Static Pressure (Pa) Noise (dB) Temperature Exchange Efficiency (%) Normallüftung (Extra Hoch) Hoch Niedrig (Extra Hoch) Hoch Niedrig 399-445 360-399 332-367 392-438 358-392 329-362

37,5-38,5 36-37 31-33 38-39 36,5-37,5 31,5-33,5

Dimensions (mm) Width 1322 x Depth 1134 x Height 388 Weight (kg)

FY-01KZDY2B

Detail Spannungsquelle 220–240V~60Hz Betriebsart Energiegewinnungs-Ventilator OA (Aire exterior) OA (Aire exterior) PORTUGUÊS OA (Aire exterior) Owner.book 6 ページ

(Aire exterior) DEUTSCH OA (Ar exterior) OA (Ar exterior) OA (Ar exterior) PORTUGUÊS

(Ar exterior) DEUTSCH
