MC400 - Multicooker Khind - Free user manual and instructions

Product Type	Multicooker
Model	MC400
Brand	Khind
Capacity	5 L
Power	900 W
Voltage	220-240 V ~ 50/60 Hz
Dimensions (W x D x H)	30 x 28 x 28 cm (approx.)
Weight	4.5 kg (approx.)
Inner Pot Material	Stainless steel with non-stick coating
Main Functions	Pressure cooking, slow cooking, rice cooking, steaming, sautéing, warming
Control Type	Digital touch panel with LED display
Timer	Up to 24 hours delay start
Keep Warm	Automatic keep warm up to 12 hours
Safety Features	Lid lock, pressure release valve, overheat protection, auto shut-off
Cleaning & Maintenance	Wash inner pot with soft sponge; wipe exterior with damp cloth; do not immerse base in water
Spare Parts Available	Inner pot, sealing ring, steam valve, condensation collector
Accessories Included	Rice measuring cup, serving spatula, soup ladle, steam rack, user manual
Warranty	1 year limited warranty

Frequently Asked Questions - MC400 Khind

How do I use the pressure cooking function?

Can I use the slow cooker function without the lid locked?

How do I clean the inner pot?

What should I do if the pressure release valve is not working?

Can I cook frozen meat in the multicooker?

How do I reset the machine to factory settings?

Is the inner pot dishwasher safe?

What is the maximum cooking time for slow cooking?

Can I cook rice and grains in this multicooker?

Where can I purchase spare parts like the sealing ring?

USER MANUAL MC400 Khind

This manual is also available online.www.khind.com.my

P/N:40 51267 00

Safety Precaution Information

Safety and Warning Information

DANGER

1. Do not immerse the appliance in water, nor rinse it under the tap.

WARNING

1. Check if the voltage indicated on the appliance corresponds to the local power voltage before you connect it.
2. Only connect the appliance to a grounded power outlet. Always make sure that the plug is inserted firmly into the power outlet.
3. Do not use the appliance if the plug, power cord, deep plate, grill plate, couple plate, steam tray or main body is damaged.
4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

5. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision of instruction, concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

6. Keep the appliance and its cord out of reach of children.

7. Do not let the power cord hang over the edge of the table or worktop on which the appliance stands.

8. Make sure the heating plate and the outside of the deep plate/grill pan/couple plate/steam tray are clean and dry before inserting the plug in the power outlet. Impurities and external objects may cause malfunction to product.

9. The heating plate's surface is subject to residual heat after use. Do not touch the surface and any hot parts of the appliance during use or immediately after use. It will be very hot!

10. Do not plug in the appliance with wet hands.

11. The appliance is not intended to be operated by means of an external timer or a separate remote control system.

12. Do not place the deep plate/grill pan/couple plate/steam tray directly over an open fire to cook food.

Safety Precaution Information

1. Do not use the deep plate/grill pan/couple plate/steam tray if it is deformed.
2. The accessible surfaces (its body, cover, pans and cooking plates) may become hot when the appliance is operating. Take extra caution when touching the surfaces.
3. Always wear protective, insulated gloves when inserting or removing any items from the hot plate.
4. Beware of hot steam coming out of the appliance during operation when you open the lid. Keep hands and face away from the appliance to avoid the steam.
5. Do not lift and move the appliance while it is operating.
6. This appliance is intended for household use only. Do not use this appliance other than its intended use.

WARNING: Avoid spillage on the power connector. WARNING: Misuse of this appliance may cause injury.

Cleaning & Maintenance

1. Always switch off the appliance, unplug from the mains and let the appliance cools down when the appliance is not in use or before cleaning or before putting on or taking off accessories.
2. Do not immerse the appliance into water or other liquids.

After Using

1. After using this product, it is necessary to avoid leaving any residual food material on the pans.
2. It is a must to completely move the outlet of power line away from the body of this product and the socket.
3. Please clean this product with neutral kitchen cleaning liquid.
4. Please do not use any corrosive detergent, scrubbing detergent or gasoline diluent.
5. Please do not use hard objects such as metal turner and knife to rub the surfaces of pans and plates.
6. Please do not place in a dishwasher or drying machine.

Safety Precaution Information

Product Care

1. Please use a piece of slightly wet rag to wipe the smudges away.
2. Please use soft cloth dipped in neutral detergent to wipe the greasy dirt away.
3. Finally, please use clean and soft towel to wipe moisture away.
4. Please use a brush to remove any food material in the gaps of this product.

Be sure not to directly clean the body of this product with water to avoid electric shock or any fault.

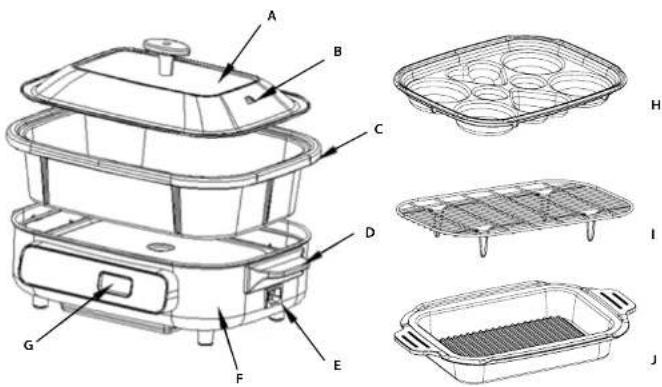

Parts Identification

A. Cover E. Power Outlet I. Steam Tray
B. Steam Hole F. Body of Product J. Grill Plate
C. Deep Plate G. Display Control
D. Anti-Scald Handle H. Couple Plate

'Pictures are for illustration purpose only.

Specifications

Model	MC400
Voltage	220-240V-50/60Hz
Power	1200-1400W
Deep Pan Capacity	4 Litres
Accessories	4L Deep Plate, Couple Plate, Steam Tray, Grill Plate
Net Weight	5.48kg
Product Dimension (LxWxH)	380 x 255 x 165mm

*Specifications are subject to change without prior notice.

Installation Instruction

Preparation Before Operation

1. When using this product for the first time, please thoroughly clean the pans and plate cover by using a piece of soft cleaning sponge and neutral cleaning solution. Let dry completely before using.
2. Place the cooker on flat and stable surface, ensure a minimum of 10cm free space around the cooker.

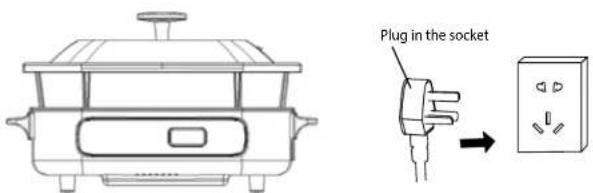

3. Connect the cooker and plug the power cord to socket.
4. When cooker is connected to power, a 'beep' sound will be prompted. Press ⏻ to power on and lights will be up followed by a flashing '----' on the digital screen.
5. Select by pressing on a specific function, cooker will start operating in 5 seconds.
6. To exit current cooking mode, press ☑key again.

Operating Instruction

The multicooker comes with 6 pre-set functions, each function is set by its default power and time, where you can adjust the time and power to your preference.

Pre-set Function	Time Power
	Default	Adjustable Range	Default	Adjustable Range
Hot Pot	2H (120min)	1H-3H	P5	P1-P5
Steam	25 mins	10-40 mins	P5	P1-P5
Grill	15 mins	3-30 mins	P5	P1-P5
Pizza	8 mins	3-15 mins	P5	P1-P5
Cake	6 mins	2-10 mins	P5	P1-P5
Okonomiyaki	6 mins	2-10 mins	P5	P1-P5

How To Use

1. At standby mode, select a function by pressing on the icon on digital panel. The selected function flashes, follow by default Time and Power.
2. Cooker operates in 5 seconds. User may adjust the Power or Time during the cooking process. Power and time range for each function is as shown in table above.
3. To skip the 5 seconds buffer time to cooking, user may press ⏻ button to start cooking immediately once a function is selected.
4. To adjust Power/ Time, user may press the Power/ Time button and adjust by using the '+' and '-' button.
5. To stop cooking, press ☐ to exit cooking mode and return to standby mode.
6. You can assemble the following appropriate pans and cooking plates as per your own preferences and different cooking purposes. Please do not overlay or use the pans and plates simultaneously.

How To Use

Line drawing of a rectangular plastic container with rounded edges and a flat top (no text or symbols)

Deep Plate: Stir Fry/ Roast/ Slow Cook/ Steaming/ Hot Pot

1. Place Deep Plate on cooker base and preheat 4-5 minutes.
2. Ensure the water is boiling when adding food to the water.
3. Deep plate is also acting as a base to steam rack for steaming food.
4. Once cooking has completed, press ⏻ to switch off and let cool completely before cleaning the pan.

Line drawing of a rectangular metal frame with grid pattern and two side supports (no text or symbols)

Steam Tray: Steaming Dim Sum, Pau, Poultry and Seafood

1. Place Deep Plate on cooker base, and Steam Tray onto Deep Plate.
2. Add and boil water before steaming food.
3. Place food onto tray and steam when water is boiled. Cover cooker to ensure even steaming.
4. Once cooking has completed, press 📍 to switch off and let cool completely before cleaning the pan.

How To Use How To Use

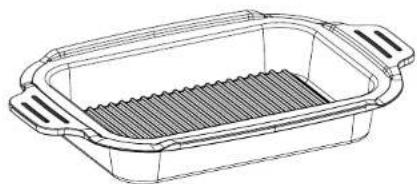

Line drawing of a rectangular plastic container with side handles and a textured interior (no text or symbols)

Grill Pan: Steam-grilling makes the healthier grills

1. Place Grill Pan on cooker base and preheat 4-5 minutes.
2. Lay food over the pan and grill until it is cooked. Time can be adjusted according to each food.
3. Add some water over the corner of pan and cover the lid to fasten the cooking process.
4. Once cooking has completed, press 📍 to switch off and let cool completely before cleaning the pan.

Line drawing of a rectangular basket filled with circular indentations (no text or symbols)

Couple Pan

1. Place Couple Pan on cooker base and preheat 4-5 minutes.
2. Add suitable amount of cooking oil/ butter and place food into plate.
3. Turn switch to 'High' and flip food to cook evenly.
4. Once cooking has completed, press 📍 to switch off and let cool completely before cleaning the pan.

TROUBLESHOOTING

PROBLEM/ PHENOMENON POSSIBLE CAUSE SOLUTION
The pans/ plates cannot be heated	Product plug and power plug connected incorrectly.	Please insert the product plug into the product outlet and securely insert the power plug into the power socket.
	Multi outlet dragging socket is used.	Please separately use a power socket of 15A or more.
	The pan or plate slants. Please ensure the plate or pan is assembled correctly to the heating plate.
	Heating plate is damaged. Please look for professional engineer to repair it.
It is difficult to cook food thoroughly	Product is not preheated before use.	Please cook only after fully preheating the product.
	Surface of pan or plate is not being cared properly.	ALL plates and pans should be taken care properly.
Product smokes/ sends forth abnormal smell	Food residue sticks on heating plate.	Please eliminate any food/ liquid on heating plate. Please proceed when plate is let cool completely.
	It happens during the first use, rest assured it is normal.	It will disappear as this product is used.
Product creaks when being used	This is caused by the expansion of heating plate however not a fault. You can continue using this product.
Others Coating on surface of pans and plates peel off.		It is caused by charring, but the coating peeling off from its surface is harmless to human.

A. Penutap E. Soket Kuasa I. Rak Stim
B. Lubang Wap F. Badan Produk J. Plat Memanggang
C. Plat Dalam G. Paparan Kawalan
D. Pemegang Anti-Melecur H. Plat Pasangan

*Gambor-gombur azolak hertujawan ilustasi sabuja

11 BM

Model	MC400
Voltan	220-240V~ 50/60Hz
Kuasa	1200-1400W
Kapasiti Dulang Dalum	4 Liter
Aksesorii	4L Plat Dalam, Plat Pasangon, Dalam Stim, Plat Memanggang
Berat Bersih	5.48kg
Dimensi Produk (LxWxII)	380 x 255 x 165mm

BM

Line drawing of a rectangular plastic container with rounded edges and a flat top (no text or symbols)

Plat Dolam: Goreng, Panggang/Masakkan Perlahan/Stim/Masakkan Panas

Line drawing of a rectangular metal tray with grid pattern and two side supports (no text or symbols)

Dulang Stim: Kukus Dim Sun, Pau, Ayam/Itik dan Mahanon Land

Line drawing of a rectangular plastic container with side handles and a textured interior (no text or symbols)

Line drawing of a rectangular basket filled with multiple circular cavities (no text or symbols)

Dulang Pasangan
