USER MANUAL KURV Artsound
Dear customer, thank you and congratulations on the purchase of your speakers(s). If you read the following instructions and keep them, you will be able to enjoy them for a long time!
SAFETY MEASURES
- Do not disassemble or modify the speaker.
- Do not place the speaker in a spot where it is continuously exposed to sunlight or near an open fire like a wood-burning stove, burning candles, etc.
-
Never expose the speaker to high temperatures, dusty environments or strong vibrations or influences.
-
Protect your ears. Listening to a high volume for longer periods may lead to permanent hearing loss.
- The speaker may only be repaired by qualified service technicians.
- The speaker is splashproof. Do not plunge the speaker in water as this leads to permanen damage.
- Do not expose the speaker to water while charging.
TECHNICAL SPECIFICATIONS
- < 50 m^2 range
- 2-way system
- 5,25" polypropylene woofer
- 0,75" silk dome tweeter
- amp power RMS : klasse D, 20 W
- amp power max.: klasse D, 10 W - 100 W
· 85 dB - 6 impedance
- 60 Hz - 20 kHz frequency range
- 308 x 391 x 212mm (h x w x d)
- 4,9kg / piece
- composition : LLDPE plastic / aluminium grill
- waterproof (IP66)

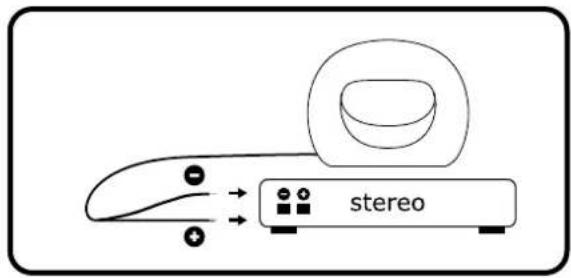

CONNECTING STEREO


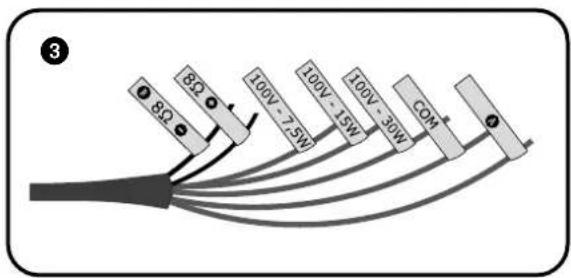

stereoCONNECTING 100V


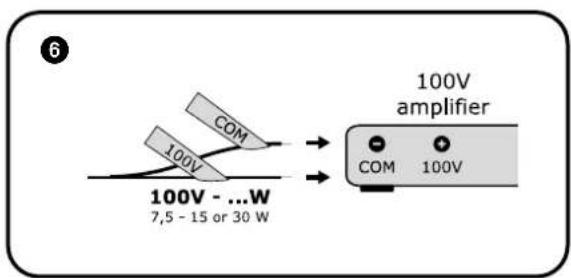

6 100V - ...W 7,5 - 15 or 30 W COM 100V 100V amplifier COM 100VOPTIONAL
SUPPORT KURV
123
2 years of warranty from the manufacturing date. The warranty is limited to repair or exchange of the defective material insofar this is a consequence of normal use and the device has not been damaged. ArtSound is not responsible for any other costs deriving from the defect (e.g. transport). For any details, we refer to the general conditions of sale.
