Product Type	Movable Partition Wall
Model	Operable Wall 1070207-1
Brand	Versare
Panel Material	Aluminum frame with fabric or laminate surface
Panel Height	Up to 10 ft (customizable)
Panel Width	24 to 48 inches per panel
Panel Thickness	2.5 to 4 inches
Weight per Panel	Approximately 50-70 lbs
Acoustic Rating (STC)	Up to 50 STC (depending on configuration)
Operation	Manual sliding or folding (track-mounted)
Mounting	Ceiling track system
Fire Rating	Class A (per ASTM E84)
Sound Insulation	Acoustic seals and gaskets included
Finish Options	Fabric, vinyl, or magnetic whiteboard surface
Hardware Included	Track, trolleys, seals, and handle
Maintenance	Wipe with mild soap and water; inspect seals annually
Cleaning Instructions	Use non-abrasive cleaners; avoid harsh chemicals
Safety Features	Crush-proof edges and positive latching mechanism
Spare Parts Availability	Contact Versare for replacement seals, trolleys, and panels
Repairability	Modular design allows individual panel replacement
Warranty	Limited lifetime warranty on frame

Frequently Asked Questions - Operable Wall 1070207-1 Versare

How do I install the Versare Operable Wall 1070207-1?

Installation requires a ceiling track system. Ensure the ceiling structure can support the weight. Follow the included manual for step-by-step mounting of the track, attaching panels, and adjusting seals.

Can I cut the panels to fit my space?

It is not recommended to cut the panels as they are pre-finished. Custom sizes should be ordered from Versare. The panels are designed to be adjustable through the telescoping track system.

How do I clean the partition wall?

Wipe the surface with a soft cloth and mild soap solution. For fabric panels, vacuum gently. Avoid abrasive cleaners or solvents that may damage the finish.

What is the acoustic performance of this wall?

The Sound Transmission Class (STC) rating can reach up to 50 depending on the configuration and seal installation. Properly adjusted perimeter seals are critical for maximum sound isolation.

Can I move the wall myself?

Yes, the operable wall is designed for manual operation by one or two people. Each panel slides easily on the ceiling track. Always engage the locking mechanism when the wall is in position.

What maintenance is required?

Inspect seals and track annually for wear. Lubricate trolleys with a dry lubricant if needed. Replace damaged seals promptly to maintain acoustic and fire performance.

Is the wall fire-rated?

Yes, the materials meet Class A fire rating per ASTM E84. However, the overall fire rating depends on the complete installation including perimeter seals.

Where can I get replacement parts?

Contact Versare customer service or visit their website to order replacement seals, trolleys, handles, or panels. Provide your model number 1070207-1.

Can I write on the wall surface?

If you have the magnetic whiteboard finish option, you can use dry-erase markers. For fabric or vinyl finishes, do not write directly on them.

Does the wall require a bottom guide?

A bottom guide channel is recommended for stability and to prevent panels from swinging. It is typically installed flush with the floor.

USER MANUAL Operable Wall 1070207-1 Versare

Operable Wall Folding

Assembly Instructions

Pure geometric panel structure with no text, numbers, or symbols

Hardware included:

Wall Mount Bracket

End Panel Bracket

Long Bolts

Short Bolts

1.

Technical line drawing of a structural panel assembly with an inset showing a pin insertion (no text or symbols present)

Remove the long bolt from the side of each of the top panels.* Slide an end cap joint fl at side up, extrusion facing down into each top panel. Align holes and insert two long bolts per panel.

1.

Technical line drawing of a rectangular metal frame with a magnified inset showing a tool interacting with the top panel (no text or symbols present)

Remove a long bolt from each bottom panel. Slide top and bottom together with end cap joint, align holes and insert two long bolts per end cap joint on top panel.

Helpful Tip: *Keep shipping wrap on for easier assembly.

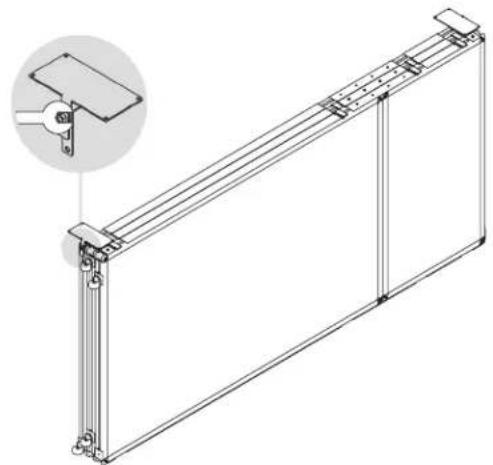

1.

Technical line drawing of a rectangular frame with vertical supports and a small inset showing a bracket detail (no text or symbols)

Attach wall mount hinges using bolts attached to wall mount bracket.

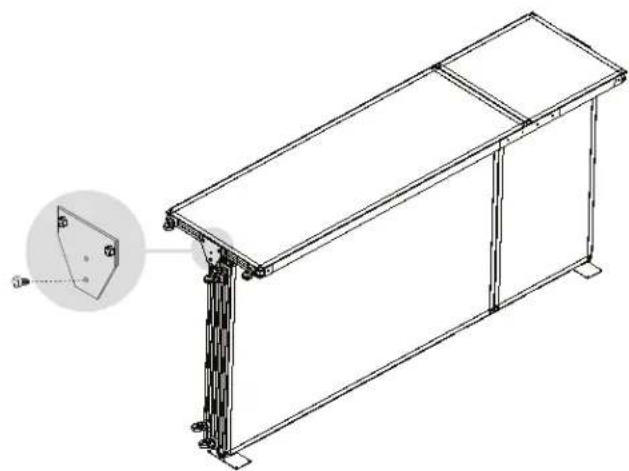

1.

Technical line drawing of two modular metal frame structures with mounting brackets and support beams (no text or symbols)

Gently place end panel fl at on the ground and attach an end panel plate loosely to the top and bottom using two short bolts per plate.

1.

Technical line drawing of a rectangular frame with vertical supports and a small inset showing a 3D geometric shape (no text or symbols)

Attach end panel and plates to the main panels using one more short bolt for each plate.

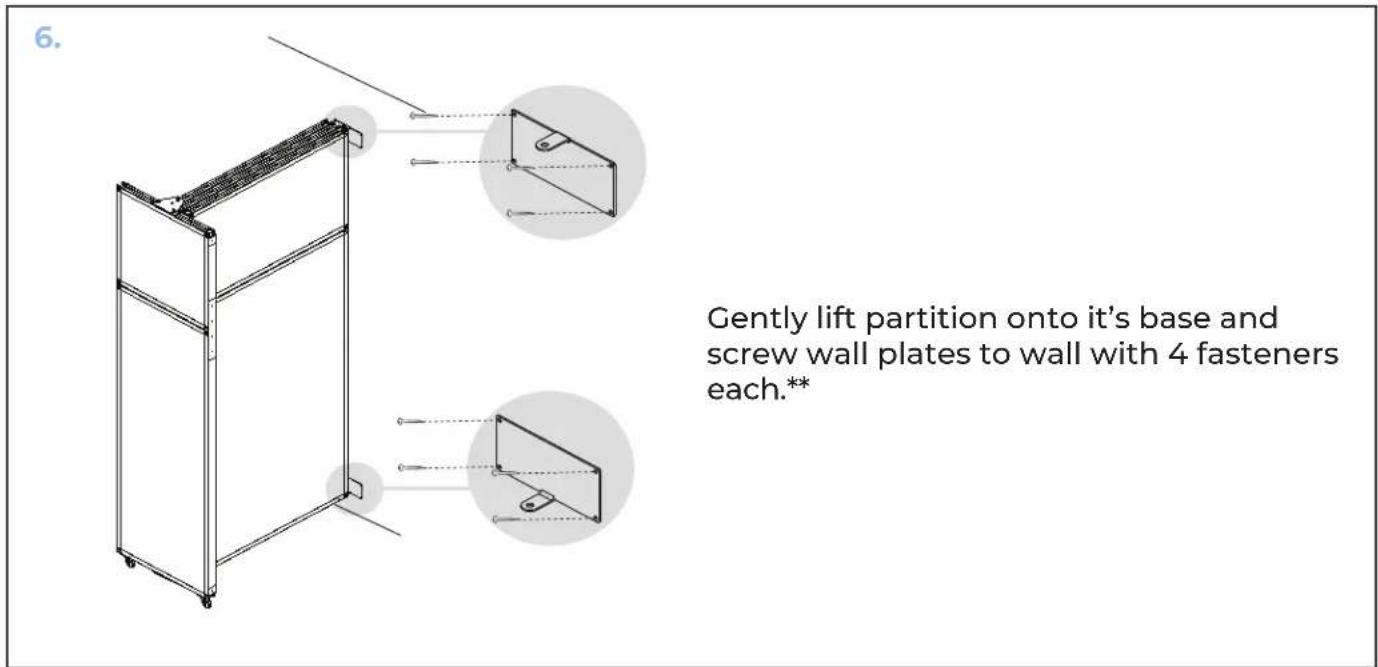

Gently lift partition onto it's base and screw wall plates to wall with 4 fasteners each.**

**Due to differing wall types fasteners are not included with wall plates. Please evaluate wall material and consult local hardware professional before installing wall plates to wall for a secure installation.

Assembly complete!

We hope you enjoy your new Operable Wall Folding!

For questions regarding your Operable Wall Folding please contact us at 1-855-457-1473 or
