USER MANUAL Operable Wall 1070307-1 Versare
Operable Wall Folding
Assembly Instructions
Wall Mount Bracket
End Panel Bracket
Long Bolts
Short Bolts


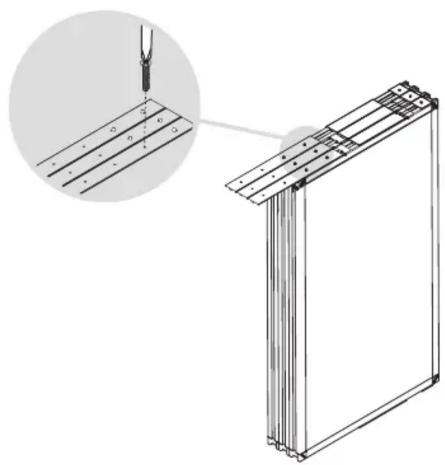

Technical line drawing of a structural panel assembly with an inset showing a pin insertion (no text or symbols present)Remove the long bolt from the side of each of the top panels.* Slide an end cap joint fl at side up, extrusion facing down into each top panel. Align holes and insert two long bolts per panel.
Helpful Tip: *Keep shipping wrap on for easier assembly.


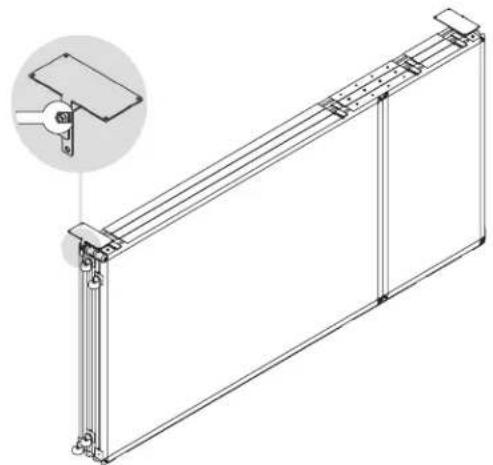

Technical line drawing of a rectangular frame with vertical supports and a small inset showing a bracket detail (no text or symbols)Attach wall mount hinges using bolts attached to wall mount bracket.
4


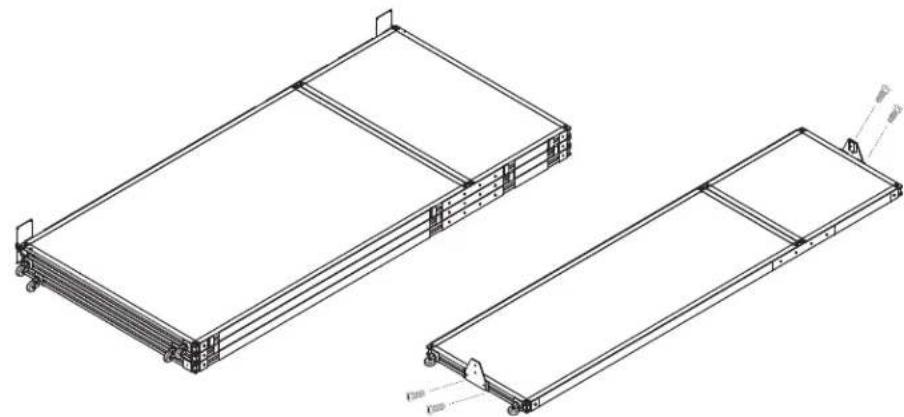

Technical line drawing of two modular metal frame structures with mounting brackets and support beams (no text or symbols)Gently place end panel fl at on the ground and attach an end panel plate loosely to the top and bottom using two short bolts per plate.


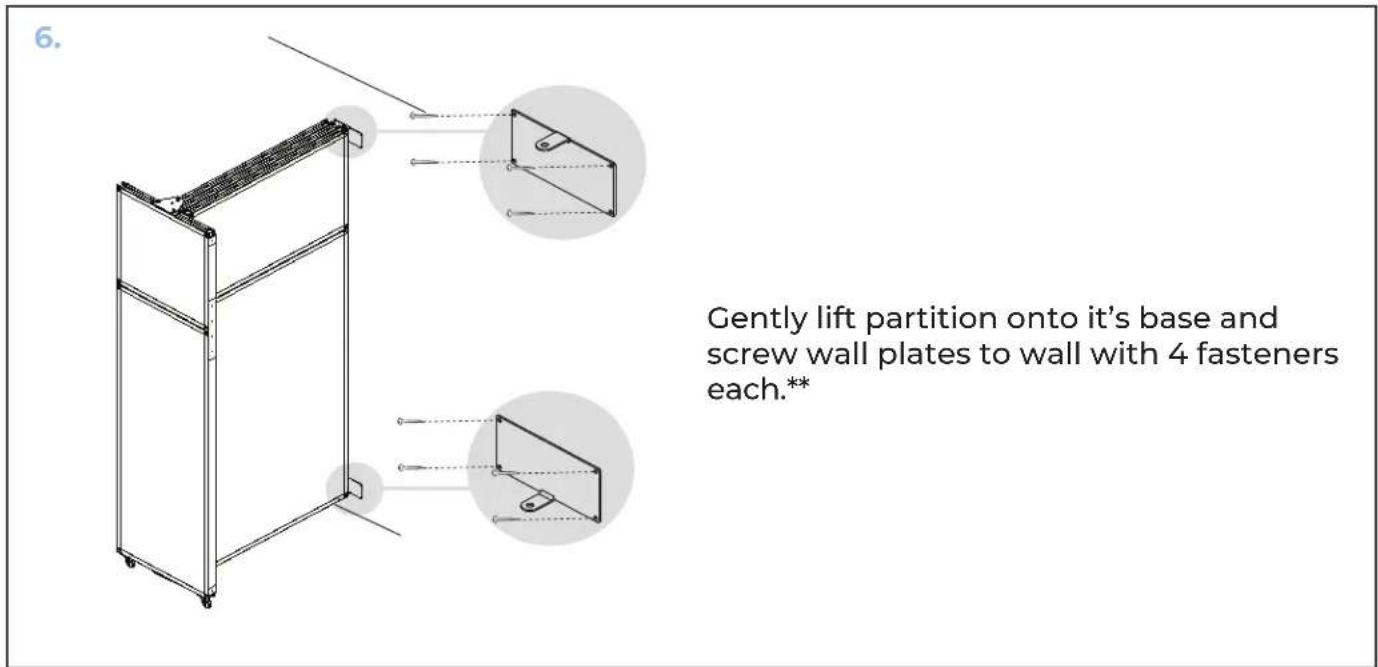

Gently lift partition onto it's base and screw wall plates to wall with 4 fasteners each.****Due to differing wall types fasteners are not included with wall plates. Please evaluate wall material and consult local hardware professional before installing wall plates to wall for a secure installation.
Assembly complete!
We hope you enjoy your new Operable Wall Folding!
For questions regarding your Operable Wall Folding please contact us at 1-855-457-1473 or
