Product Type	Operable Wall (Movable Partition)
Brand	Versare
Model	Operable Wall 1070208-2
Panel Material	Aluminum frame with composite panels
Panel Height	96 inches (244 cm)
Panel Width	48 inches (122 cm)
Panel Thickness	2 inches (5 cm)
Weight per Panel	Approximately 60 lbs (27 kg)
Operation	Manual sliding with overhead track system
Acoustic Rating (STC)	STC 40-50 (depending on configuration)
Fire Rating	Class A (per ASTM E84)
Track System	Ceiling-mounted extruded aluminum track
Seal Type	Perimeter brush seals for acoustic and light control
Color Options	White, black, silver (custom colors available)
Installation	Requires professional installation; includes mounting hardware
Cleaning Instructions	Wipe with damp cloth and mild detergent; avoid abrasive cleaners
Safety Features	Anti-derailment stops, cushioned end panels, pinch-resistant handles
Spare Parts Available	Replacement panels, seals, rollers, handles, track sections
Repair Information	Contact manufacturer or authorized dealer for service
Warranty	1-year limited warranty on parts and workmanship

Frequently Asked Questions - Operable Wall 1070208-2 Versare

What are the dimensions of the Versare Operable Wall 1070208-2?

Each panel is typically 96 inches tall, 48 inches wide, and 2 inches thick. However, custom sizes may be available. Refer to the product manual for exact specifications.

Can the operable wall be installed on any ceiling type?

The wall requires a sturdy ceiling structure capable of supporting the weight. A ceiling-mounted track is included. For suspended ceilings, additional bracing may be needed. Consult a professional installer.

How do I clean the partition panels?

Use a soft cloth dampened with water and mild soap. Avoid harsh chemicals or abrasive sponges to prevent scratching the finish. Wipe dry with a clean cloth.

What is the acoustic performance of this partition?

The sound transmission class (STC) rating is typically between 40 and 50, depending on the seal configuration and installation. It effectively reduces noise between divided spaces.

Is the wall fire-rated?

Yes, the panels meet Class A fire rating per ASTM E84 standards. This ensures compliance with most building codes for interior partitions.

How do I operate the operable wall?

The wall is manually operated. Simply grasp the handle and slide the panels along the overhead track. Ensure the panels are fully aligned before locking them into place.

Can I paint or customize the panels?

The panels come in standard colors (white, black, silver). Custom colors may be available upon request. Painting is not recommended as it may affect the surface and warranty.

What maintenance is required?

Periodically check the track and rollers for debris or wear. Lubricate the rollers as recommended in the manual. Inspect seals annually to ensure proper acoustic performance.

Where can I find replacement parts?

Replacement parts are available through Versare or authorized dealers. Common parts include rollers, handles, seals, and panel sections. Contact customer support for ordering.

What does the warranty cover?

The product comes with a 1-year limited warranty covering defects in materials and workmanship. Damage from improper installation, misuse, or normal wear is not covered.

USER MANUAL Operable Wall 1070208-2 Versare

Operable Wall Folding

Assembly Instructions

Pure geometric panel structure with no text, numbers, or symbols

Hardware included:

Wall Mount Bracket

End Panel Bracket

Long Bolts

Short Bolts

1.

Technical line drawing of a structural panel assembly with an inset showing a pin insertion (no text or symbols present)

Remove the long bolt from the side of each of the top panels.* Slide an end cap joint fl at side up, extrusion facing down into each top panel. Align holes and insert two long bolts per panel.

1.

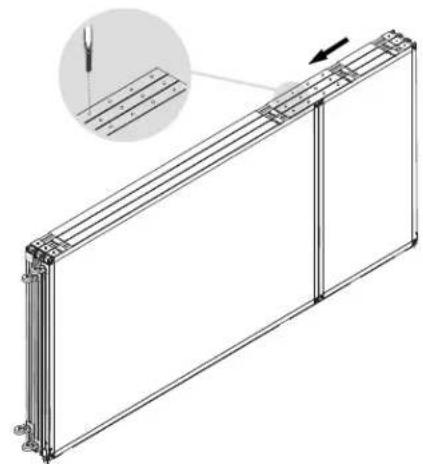

Technical line drawing of a rectangular metal frame with a magnified inset showing a tool interacting with the top panel (no text or symbols present)

Remove a long bolt from each bottom panel. Slide top and bottom together with end cap joint, align holes and insert two long bolts per end cap joint on top panel.

Helpful Tip: *Keep shipping wrap on for easier assembly.

1.

Technical line drawing of a rectangular frame with vertical supports and a small inset showing a bracket detail (no text or symbols)

Attach wall mount hinges using bolts attached to wall mount bracket.

4

Technical line drawing of two modular metal frame structures with mounting brackets and support beams (no text or symbols)

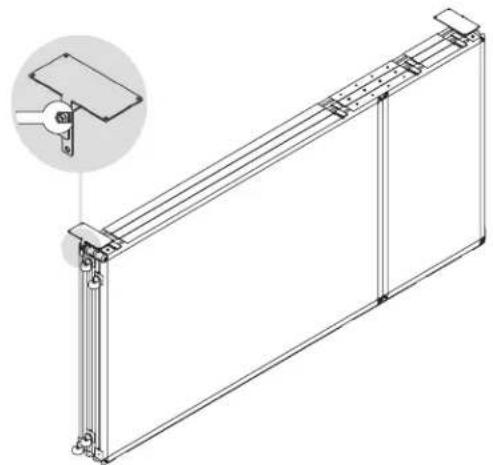

Gently place end panel fl at on the ground and attach an end panel plate loosely to the top and bottom using two short bolts per plate.

1.

Technical line drawing of a rectangular frame with vertical supports and a small inset showing a 3D geometric shape (no text or symbols)

Attach end panel and plates to the main panels using one more short bolt for each plate.

**Due to differing wall types fasteners are not included with wall plates. Please evaluate wall material and consult local hardware professional before installing wall plates to wall for a secure installation.

Assembly complete!

We hope you enjoy your new Operable Wall Folding!

For questions regarding your Operable Wall Folding please contact us at 1-855-457-1473 or
