Product Type	Operable Wall / Movable Partition
Model Number	1070208
Brand	Versare
Panel Height	96 inches (8 ft / 244 cm)
Panel Width	48 inches (4 ft / 122 cm) per panel
Panel Thickness	2 inches (5 cm)
Weight per Panel	Approximately 75 lbs (34 kg)
Configuration	Multi-panel, folding/hinged system
Operation	Manual glide with top track and floor guides
Primary Function	Room dividers, space separation, acoustic privacy
Material	Aluminum frame with fabric or laminate finish
Acoustic Rating	STC 25-30 (approximate)
Mounting Type	Ceiling-mounted track; no floor track required
Locking Mechanism	Cam lock or push-button latch at top and bottom
Stacking	Panels stack neatly at one end when not in use
Cleaning Instructions	Wipe with mild soap and water; avoid abrasive cleaners
Maintenance	Lubricate track and hinges annually with silicone spray
Safety Features	Anti-tip brackets; pinch guards between panels
Spare Parts Available	Replacement panels, hinges, glides, and track sections
Repairability	Modular design allows easy replacement of individual components
Warranty	Limited 1-year warranty on parts and workmanship

Frequently Asked Questions - Operable Wall 1070208 Versare

How do I install the Versare Operable Wall 1070208?

Install the ceiling track first, ensuring it is level and securely anchored. Then attach the floor guides (if any) and hang the panels by inserting the top pins into the track. Finally, adjust the leveling feet and lock the panels in place. Detailed instructions are provided in the manual.

Can this wall be used as a sound barrier?

Yes, the wall provides some acoustic separation with an approximate STC rating of 25-30, which is suitable for speech privacy in office or classroom settings.

What tools are required for assembly?

You will need a drill, level, tape measure, screwdriver, and possibly a stud finder for the ceiling track. All necessary hardware is included.

Is the wall permanently installed or can it be moved?

It is semi-permanent; the track stays in place, but the panels can be easily removed and repositioned along the track or stored away.

What is the maximum number of panels that can be connected?

Depending on track length and weight, up to 10 panels are typically recommended for smooth operation.

How do I clean and maintain the wall?

Clean the fabric or laminate surface with a soft cloth and mild detergent. Lubricate the track and hinges annually with a silicone-based lubricant to ensure smooth operation.

Are replacement parts available for this model?

Yes, Versare offers replacement panels, hinges, glides, and track sections. Contact customer support or visit the website for ordering.

Does the wall require floor mounting?

No floor track is required. The system uses ceiling-mounted tracks and optional floor guides to keep panels steady, minimizing damage to flooring.

What is the weight capacity of the track?

Each track section is designed to support the weight of the panels without sagging. For typical panels weighing ~75 lbs each, the track can handle up to 10 panels.

Can I paint or customize the wall panels?

The panels come with a factory finish (fabric or laminate) that can be painted with compatible paints if desired, but we recommend consulting the manual first to avoid voiding warranty.

USER MANUAL Operable Wall 1070208 Versare

Operable Wall Folding

Assembly Instructions

Pure electrical circuit lines without any symbols

Hardware included:

Wall Mount Bracket

End Panel Bracket

Long Bolts

Short Bolts

1.

Technical line drawing of a structural panel assembly with an inset showing a metal bracket detail (no text or symbols)

Remove the long bolt from the side of each of the top panels.* Slide an end cap joint fl at side up, extrusion facing down into each top panel. Align holes and insert two long bolts per panel.

1.

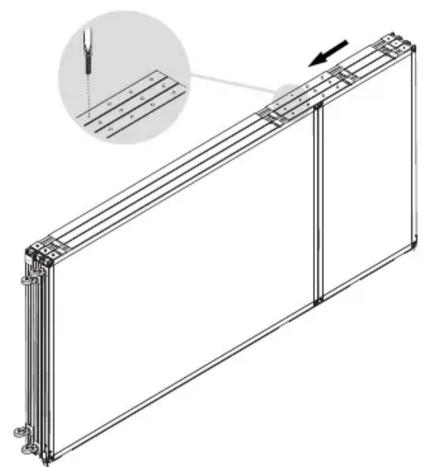

Technical line drawing of a rectangular metal frame with internal ribs and mounting feet, showing a close-up inset of a screwdriver inserted into the top panel (no text or symbols present)

Remove a long bolt from each bottom panel. Slide top and bottom together with end cap joint, align holes and insert two long bolts per end cap joint on top panel.

Helpful Tip: *Keep shipping wrap on for easier assembly.

1.

Technical line drawing of a rectangular frame with vertical supports and a small inset showing a bracket detail (no text or symbols)

Attach wall mount hinges using bolts attached to wall mount bracket.

1.

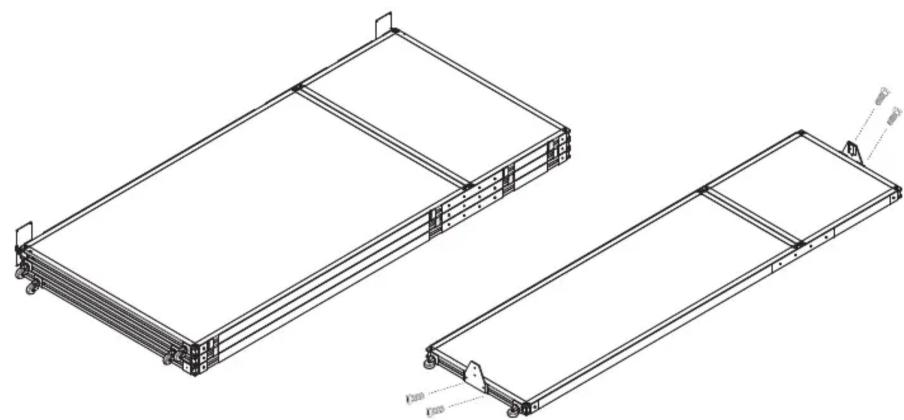

Technical line drawing of two modular metal frame structures with mounting brackets and structural supports (no text or symbols)

Gently place end panel fl at on the ground and attach an end panel plate loosely to the top and bottom using two short bolts per plate.

1.

Technical line drawing of a rectangular frame structure with vertical supports and a small inset showing a separate view of a hexagonal component (no text or symbols present)

Attach end panel and plates to the main panels using one more short bolt for each plate.

1.

Technical line drawing of a modular metal frame structure with two orthographic views (no text or symbols)

Gently lift partition onto it's base and screw wall plates to wall with 4 fasteners each.**

**Due to differing wall types fasteners are not included with wall plates. Please evaluate wall material and consult local hardware professional before installing wall plates to wall for a secure installation.

Assembly complete!

We hope you enjoy your new Operable Wall Folding!

For questions regarding your Operable Wall Folding please contact us at 1-855-457-1473 or
