USER MANUAL WM700M Eikon

Wireless Microphone System

USER'S MANUAL

Exterior view of a black EIKON audio recording device with external earphones and wireless antennas (no text or symbols visible)

ITALIANO

ENGLISH

DISPOSAL OF OLD ELECTRICAL & ELECTRONIC EQUIPMENT....3

SAFETY INSTRUCTIONS....3

IN CASE OF FAULT....4

PACKAGING, SHIPPING AND COMPLAINT ....4

WARRANTY AND PRODUCTS RETURN 4

MAINTENANCE AND DISCLAIMER....4

POWER SUPPLY....4

USER'S WARNINGS AND CE CONFORMITY....5

INTRODUCTION 6

DESCRIPTION 6

WM700D RECEIVER....6

WM7M HANDHELD TRANSMITTER....7

WM7H BODYPACK TRANSMITTER....7

TECHNICAL SPECIFICATIONS....8

DISPOSAL OF OLD ELECTRICAL & ELECTRONIC EQUIPMENT

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their

local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

SAFETY INSTRUCTIONS

• CAUTION - Before using this product read carefully the following safety instructions. Take a look of this manual entirely and preserve it for future reference. When using any electric product, basic precautions should always be taken, including the following:
• To reduce the risk, close supervision is necessary when the product is used near children.
• Protect the apparatus from atmospheric agents and keep it away from water, rain and high humidity places.
• This product should be site away from heat sources such as radiators, lamps and any other device that generate heat.
• Care should be taken so that objects and liquids do not go inside the product.
• The product should be connected to a power supply only of the type described on the operating instructions or as marked on the product.

IN CASE OF FAULT

- In case of fault or maintenance this product should be inspected only by qualified service personnel when:

■ Liquids have spilled inside the product.

■ The product has fallen and been damaged.
The product does not appear to operate normally or exhibits a marked change in performance.

• Do not operate on the product, it has no user-serviceable parts inside.
  • Refer servicing to an authorized maintenance centre.

PACKAGING, SHIPPING AND COMPLAINT

• This unit package has been submitted to ISTA 1A integrity tests. We suggest you control the unit conditions immediately after unpacking it.
• If any damage is found, immediately advise the dealer. Keep all unit packaging parts to allow inspection.
  • Proel is not responsible for any damage that occurs during shipment.
• Products are sold "delivered ex warehouse" and shipment is at charge and risk of the buyer.
• Possible damages to unit should be immediately notified to forwarder. Each complaint for manumitted package should be done within eight days from product receipt.

WARRANTY AND PRODUCTS RETURN

• Proel products have operating warranty and comply their specifications, as stated by manufacturer.
- Proel warrants all materials, workmanship and proper operation of this product for a period of two years from the original date of purchase. If any defects are found in the materials or workmanship or if the product fails to function properly during the applicable warranty period, the owner should inform about these defects the dealer or the distributor, providing receipt or invoice of date of purchase and defect detailed description. This warranty does not extend to damage resulting from improper installation, misuse, neglect or abuse. Proel S.p.A. will verify damage on returned units, and when the unit has been properly used and warranty is still valid, then the unit will be replaced or repaired. Proel S.p.A. is not responsible for any "direct damage" or "indirect damage" caused by product defectiveness.

MAINTENANCE AND DISCLAIMER

• Clean only with dry cloth.
• Proel products have been expressly designed for audio application, with signals in audio range (20Hz to 20kHz). Proel has no liability for damages caused in case of lack of maintenance, modifications, improper use or improper installation non-applying safety instructions.
  • Proel S.p.A. reserves the right to change these specifications at any time without notice.
• Proel S.p.A. declines any liability for damages to objects or persons caused by lacks of maintenance, improper use, installation not performed with safety precautions and at the state of the art.

POWER SUPPLY

• This apparatus should only be connected to power source type specified in this owner's manual or on the unit.
• If the supplied AC power cable plug is different from the wall socket, please contact an electrician to change the AC power plug.
• Hold the plug and the wall outlet while disconnecting the unit from AC power.
• If the unit will not be used for a long period of time, please unplug the power cord from AC power outlet.
• To avoid unit power cord damage, please do not strain the AC power cable and do not bundle it.
• In order to avoid unit power cord damage, please ensure that the power cord is not stepped on or pinched by heavy objects.

USER'S WARNINGS AND CE CONFORMITY

• This equipment may be capable of operating on some frequencies not authorized in your country. Please contact your national authority to obtain information on authorized frequencies for wireless microphone products in your region.
• The product is in compliance with 2014 / 30/ EU EMC Directive & 2014 /35 / EU LVD Directive.
• PROEL S.p.A hereby, declares that this wireless microphone system complies with the essential requirements of Radio Equipment Directive (RED 2014 / 53 / EU.
• The full and detailed declaration of conformity can be downloaded from the web site:
  www.eikon-audio.com

TABLE OF THE AUTHORIZED FREQUENCIES FOR THE WM700D WIRELESS MICROPHONE SYSTEM IN EUROPE
COUNTRY CODE	WM7H / WM7M TRANSMITTING FREQUENCIES823 ~ 832 Mhz
CZ DK EE DE HU PL FI SE IS FR BE NL CH	Duplex Gap License free
HR AT GB ES PT IT SK LT EL CY NO BG RO SIMT UA	Individual license required *
RU TR LV IE LU BY	NOT IMPLEMENTED *
IN ALL COUNTRIES THE USE OF WIRELESS MICROPHONES SYSTEMS IS SUBJECT TO ANY TELEVISION AND BROADCAST TRANSMISSION
* CONSULT LOCAL OR NATIONAL RADIO SPECTRUM AUTHORITIES FOR INFORMATION ON POSSIBLE RESTRICTIONS OR NECESSARY AUTHORIZATIONS BEFORE USING THIS WIRELESS DEVICE.

INTRODUCTION

Thank you for choosing this EIKON product and for your trust in our brand, synonymous of professionalism, accuracy, high quality and reliability. All our products are CE approved and designed for continuous use in professional systems.

DESCRIPTION

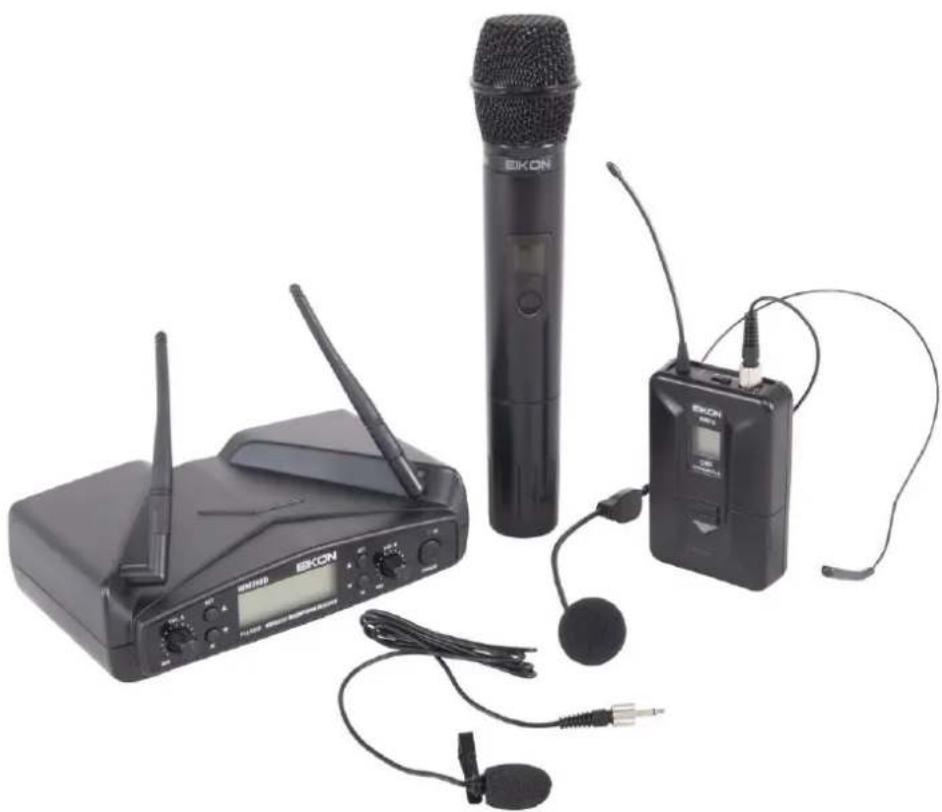

The WM700 Wireless Microphone System is a UHF PLL controlled frequency device, which provides a reliable, high quality signal transmission.

WM700 Wireless Microphone System features 4 units: WM700 single channel receiver, WM700D dual channel receiver, WM7M handheld transmitter and WM7H body pack transmitter. The system is available in different configurations, each of them including an ABS carrying case:

WM700M: WM700D + WM7M

WM700H: WM700D + WM7H + lavalier + headset

WM700DM: WM700D + 2 x WM7M

WM700DH: WM700D + 2 x WM7H + 2 x lavalier + 2 x headset

1	825.000	2	825.700	3	827.300	4	831.200
5	824.500	6	826.100	7	826.600	8	827.700
9	828.300	10	828.700	11	829.200	12	829.600
13	830.000	14	830.400	15	830.800	16	831.700

Sixteen frequencies are available which have been accurately selected to allow the simultaneous use of 4 frequency without interference between them:

WM700 / WM700D RECEIVER

See FIG. 1 at page 15:

1. DC IN

Socket for the AC/DC adaptor connection, use only the adaptor supplied with the system.

1. OUTPUT (UNBALANCED)

Unbalanced output with line level: connect it through a mono 6.3mm jack cable to a mixer input.

1. OUTPUT (BALANCED)

Balanced output with mic level: connect it through a XLR cable to a mixer input.

1. POWER

On/off switch.

1. VOLUME (channel A or B)

Volume potentiometer: set this control to a proper level that doesn't saturate the mixer input channel.

1. IR

Keep this button pressed until the IR))) symbol lighted states, in this moment you can synchronize the frequency between the transmitter and the receiver.

1. IR port

2. SET (channel A or B)

Keep this button pressed until the number flashes and then push it again to set the frequency (1-8) CH A; (9-16) CH B.

1. Display (channel A or B)

The display shows the frequency number (1 - 8) (9 - 16) , that must correspond to the frequency set on the transmitter. In this label, together with the general data of the receiver, you can find the receiving

radio frequency band.

10. ANTENNA

These are the receiving antennas. Raise them up during the use and, to obtain a better reception, place the receiver away from other metal objects and no more distant than 30m from the transmitter.

WM7M HANDHELD TRANSMITTER

See FIG. 2 at page 16:

1. MICROPHONE GRID

The grid protects the microphone capsule and include a pop filter. Type of microphone capsule is dynamic with a cardioid unidirectional figure.

2. IR Sync

Infrared port to synchronize the frequency between receiver and transmitter

3. Power switch

holding down the button for one second the screen lights up and the microphone enters transmission mode. Pressing the button for one second the word OFF appears on the screen and the transmitter turns off.

4. FREQUENCY NUMBER

The display shows the frequency and channel number, that must correspond to the frequency set on the receiver. Note: when a flashing [LO] text appears, the batteries are near to be exhaust, to indicate that they must be replaced as soon as possible.

5. BATTERIES COVER

Sliding down the lower part of the microphone body you can access to the battery inlet.

6. BATTERIES INLET

To operate the microphone needs 2 type AA alkaline batteries.

Note: the microphone is able to operate also with 2 Ni-MH rechargeable batteries, but in this case the operating time is less.

7. FREQUENCY

On the back side of the batteries inlet an adhesive shows the frequency band of the transmitter.

WM7H BODYPACK TRANSMITTER

See FIG. 3 at page 16:

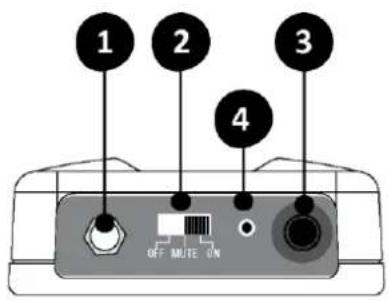

1. AUDIO INPUT

3,5mm mini jack input socket to connect the supplied microphones.

2. OFF MUTE ON

On/off switch, downward the microphone is off, upward the microphone is on. There is a middle position where the microphone is turned on but it is muted, useful in case you don't want to hear the typical switching on/off click.

3. ANTENNA

This is the transmitting integral antenna: do not force, try to disconnect, or replace with other one.

4. IR

Infrared port to synchronize the frequency between receiver and bodypack transmitter

5. FREQUENCY NUMBER

The display shows the frequency number, that must correspond to the frequency set on the receiver. Note: when a flashing [LO] text appears, the batteries are near to be exhaust, to indicate that they must be replaced as soon as possible.

6. BATTERIES COVER

Sliding down the lower part of the bodypack you can access to the battery inlet.

7. SET BUTTONS

Up and down buttons to manually set the transmitting frequency. IMPORTANT: be sure to not select the same frequency on the two transmitters belonging to the same system because this will cause interferences and malfunctioning. To set the distance of at least 500 kHz between two transmitters

8. GAIN

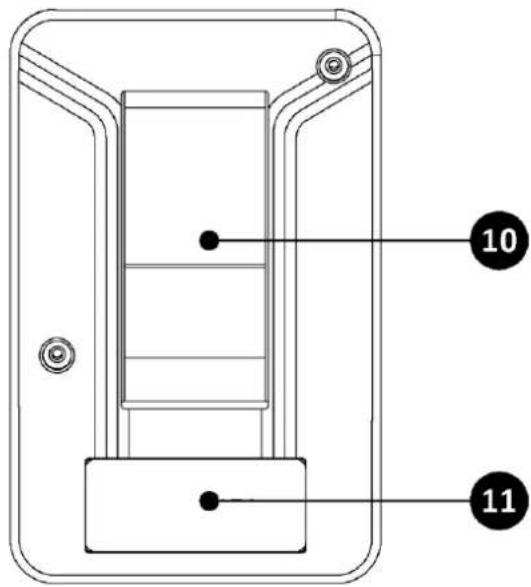

Using a PH1 Phillips screwdriver and rotating this trimmer is possible to optimize the gain of the microphone before its signal is transmitted. Rotate it clockwise if you want a higher gain (speaking) or rotate it counter-clockwise if you want a lower gain (singing).

9. SENSITIVITY

Select between the two inputs sensitivity:

• L position = LOW usually used with instruments.
- H position = HIGH usually used for the Headset and Lavalier microphones like those supplied.

10. BATTERIES INLET

To operate the microphone needs 2 type AA alkaline batteries.

Note: the microphone is able to operate also with 2 Ni-MH rechargeable batteries, but in this case the operating time is less.

11. CLIP

Clip to hook the Bodypack to the belt.

12. FREQUENCY

On the back side of bodypack an adhesive shows the frequency band of the transmitter.

TECHNICAL SPECIFICATION

WM700-WM700D – UHF PLL Receiver			Spurious Emission	under limits EN 300422
RF Frequency Band	UHF: 823-832 MHz		Frequency Response	50 Hz – 15 KHz (±3 dB)
RF Sensibility	-105 dBm		Power Supply	2x1.5V AA alkaline bat
RF Image/Spurious Rej.	>70 dB		Dimensions	23.5 x 5 x 5 cm
RF Interference Reject.	>70 dB
RF Frequency Stability	±0.002%		WM7H – Bodypack UHF PLL Transmitter
THD Distortion	<1%		RF Frequency Band	UHF: 823-832 MHz
S/N Ratio	>105 dB		RF Power	<10 dBm
Frequency Response	50 Hz – 15 KHz (±3 dB)		Modulation method	FM (F3E)
Power Supply	5 V DC 500 mA		RF Max deviation	±40 KHz
Dimensions	17.5 x 13.5 x 4.5 cm		RF Frequency Stability	±0.002%
			Spurious Emission	under limits EN 300422
WM7M – Handheld UHF PLL Transmitter			Frequency Response	50 Hz – 15 KHz (±3 dB)
RF Frequency Band	UHF: 823-832 MHz		Included Microphones:	2
RF Power	<10 dBm		HCM25 Headset Mic.	Cond. Cardiod
Modulation method	FM (F3E)		LCH100 Lavalier Mic.	Cond. Cardiod
RF Max deviation	±40 KHz		Power Supply	2x1.5V AA alkaline bat
RF Frequency Stability	±0.002%		Dimensions	10 x 6.5 x 3 cm

TRATTAMENTO DEL DISPOSITIVO ELETTRICO OD ELETTRONICO A FINE VITA....9

AVVERTENZE PER LA SICUREZZA....9

IN CASO DI GUASTO....10

IMBALLAGGIO, TRASPORTO E RECLAMI.... 10

GARANZIE E RESI.... 10

RICEVITORE WM700....12

TRASMETTITORE A MANO WM7M....13

TRASMETTITORE BODYPACK WM7H....13

CARATTERISTICHE TECNICHE....14

TRATTAMENTO DEL DISPOSITIVO ELETTRICO OD ELETTRONICO A FINE VITA

WM700DM: WM700D + 2 x WM7M

WM700DH: WM700D + 2 x WM7H + 2 x lavalier + 2 x headset

MICROPHONES

(supplied with bodypack)

MICROFONI

Technical line drawing of a container with internal compartments and a labeled point (5), no text or symbols present.

Black handheld headset with earbuds and antenna (no text or symbols visible)

LCH 100

Lavalier

Black microphone with a clasp, isolated on white background (no text or symbols)

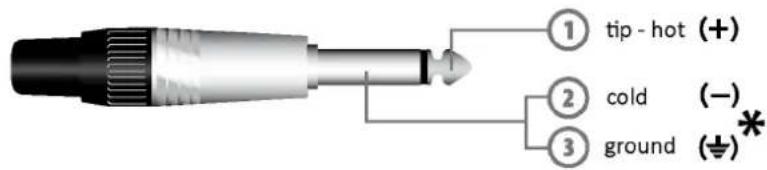

Connections and cables

Jack (unbalanced)

*note: connect both cold and ground to make cable from balanced to unbalanced

Jack (sbilanciato)

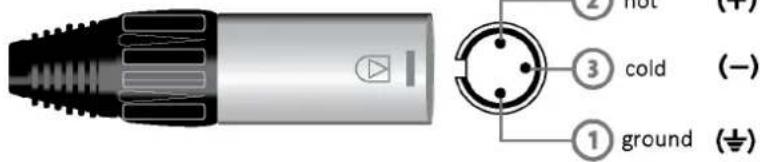

Balanced female XLR
XLR bilanciato femmina

(World Headquarters - Factory)
