Product Type	Electric Oven
Brand	Innoliving
Model	INN-791
Overall Dimensions (W x D x H)	50 x 40 x 35 cm
Weight	12 kg
Power Supply	230 V ~ 50 Hz
Power Consumption	1500 W
Temperature Range	50°C to 230°C
Oven Capacity	35 liters
Functions	Convection, Grill, Bake, Broil
Heating Elements	Top and Bottom
Interior Light	Yes
Timer	Up to 120 minutes
Cleaning	Removable crumb tray, wipe interior with damp cloth
Safety Features	Automatic shut-off, overheat protection, cool-touch handle
Accessories Included	Baking tray, wire rack
Repairability Index	6.5 / 10
Spare Parts Availability	Heating element, thermostat, door hinge
Energy Efficiency Class	A

Frequently Asked Questions - INN-791 Innoliving

How do I preheat the oven properly?

Turn the function knob to the desired mode (e.g., convection) and set the temperature. Wait until the indicator light turns off, which signals the oven has reached the set temperature.

What should I do if the oven does not turn on?

Check that the power cord is plugged in and the circuit breaker is not tripped. Ensure the timer is set to a time greater than zero. If the problem persists, contact support.

How can I clean the oven interior?

After the oven has cooled, remove the crumb tray and wash it with warm soapy water. Wipe the interior with a damp cloth and mild detergent. Avoid abrasive cleaners.

Why is my food not cooking evenly?

Ensure you are not overloading the oven and that the fan (if convection mode) is working. Try rotating the tray halfway through cooking. Also verify the temperature setting is correct.

Can I use aluminum foil in the oven?

Yes, but do not cover the heating elements or the bottom of the oven, as this can cause overheating. Use foil only on the baking tray.

How do I set the timer?

Turn the timer knob clockwise to the desired time (up to 120 minutes). The oven will operate until the timer reaches zero and then automatically shut off.

What does the convection function do?

The convection function uses a fan to circulate hot air, ensuring even heat distribution and faster cooking. It is ideal for baking pastries and roasting meats.

Is the oven self-cleaning?

No, this model does not have a self-cleaning feature. Manual cleaning is required. A removable crumb tray simplifies the process.

Can I bake two trays at once?

It is not recommended for best results, as airflow may be restricted. If necessary, use the convection mode and rotate trays halfway through.

What spare parts are available for this model?

Common spare parts include the heating element, thermostat, door hinge, and glass panel. Contact Innoliving support or authorized dealers for orders.

USER MANUAL INN-791 Innoliving

Black innoliving microwave oven with control knobs and a blank display (no visible text or symbols on main body)

INN-791

MANUALE D'USO

USER MANUAL

Thank you for purchasing INNOLIVING electric oven INN-791.

Ready carefully use instructions and keep this manual for future references.

IMPORTANT SAFETY INSTRUCTION

When using electrical appliances, basic precautions should always be followed, which include the followings:

1. Please read this instruction manual carefully. Use the product only for the intended purpose. Make sure that the appliance is connected to a power outlet with an adequate power and the voltage of local electric circuit corresponds to the one shown in the rating label. Do not use the appliance by connecting it to a multiple socket outlet. This can cause a short circuit.
2. Do not touch hot surfaces. Do not move the oven when used.
3. Careful supervision is necessary if the appliance is used near children. Keep the product and its power cord out of the reach of children under 8 years old. Keep the product out of reach of animals during use. This product can be used by children older than 8 and persons with reduced physical, mental or sensory capabilities, or lack of experience and knowledge if under supervision or if they received instructions for safe use of the appliance and they understood the related dangers. Make sure children do not play with the appliance. Cleaning and

maintenance operations should not be carried out by children unless they are at least 8 years old and under supervision.

1. To protect yourself from the risk of electric shock, avoid contact with water or other liquids. Do not place the product where it may fall in water or other liquid. Never immerse the wire, plug, or lid with panel controls in water or other liquid.

2. Avoid the cable hanging from the table or the worktop, or come into contact with hot surfaces. If it happens, disconnect the plug and verify the integrity of the cable. Use it on a safe and stable work surface, and do not place it near the edge of the worktop. Always make sure that both the oven and loose cables are out of the reach of children.

3. Do not use the appliance if the cable or plug are damaged. Regularly check the good condition of the cord and plug. If the power cord is damaged, it must be replaced by the manufacturer or its after sales service or, in any case, by a qualified person in order to prevent any risk.

4. Do not place appliance on or near a hot gas or electric burner, or in a heated oven or in a microwave oven.

5. When operating the oven keep at least four inches of space on all sides of the oven to allow for adequate air circulation.

6. Unplug from outlet when not in use and before cleaning.

Allow to cool before putting on or taking off parts, and before cleaning.

1. To disconnect, turn the control to OFF, before removing the plug. Always hold the plug, but never pull the cord.

2. Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.

3. Do not cover any part of the oven with metal foil. This may cause overheating of the oven.

4. Use extreme caution when removing tray or disposing of hot grease or other hot liquids.

5. Do not clean the appliance with metal scouring pads. For cleaning operations follow the instruction on the paragraph CLEANING AND MAINTENANCE OPERATIONS. Let the oven cool before inserting or disinserting parts of the device and before cleaning operations.

6. Never leave the appliance unattended during use.

7. Oversized foods or metal utensils must not be inserted into the appliance as they may create a fire or risk of electric shock.

8. Do not place any item on the oven or cover the oven with flammable material during operation as it may cause fire. Do not any different accessory from the recommended by manufacturer, unsuitable tools or accessories could cause fire, short circuit or damages to people.

9. Extreme caution should be exercised when using

containers constructed of anything other than metal or glass.

1. Do not place any of the following materials in the oven: cardboard, plastic, paper, or anything similar.
2. When the product is not in use do not store anything, except for accessories as supplied/suggested by manufacturer.
3. Always wear protective, insulated oven gloves when inserting or removing items from the hot oven.
4. Do not use appliance for other than its intended use. Any other use has to be considered improper and dangerous.
5. This appliance has been conceived for household use only, but it can be used in cookery areas reserved for staff, shops, offices and other places of work, farms, hotels, motels bed and breakfast and other professional premises and similar places.
6. Do not dismantle the product, try to repair or change the power plug in any way. Always address to an authorized customer care center to receive technical assistance.
7. This appliance must not be used with an external timer or separate remote control.
8. The temperature of accessible surfaces can be high during use.

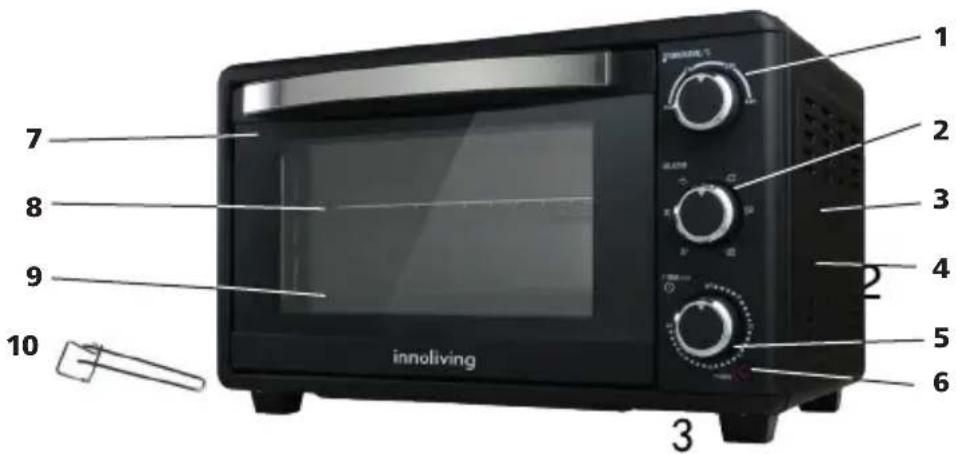

PRODUCT DESCRIPTION

1. Temperature setting
2. Cooking setting
3. Power light (interior)
4. Ventilation (interior)
5. Timer setting and interior power ligth
6. Led power ON
7. Glass door
8. Grid
9. Bake pan
10. Removable handle for bake pan/grid

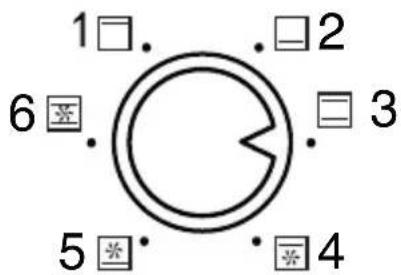

COOKING SETTING:

1. Upper part cooking
2. Lower part cooking
3. Upper and lower part cooking
4. Upper part cooking and ventilation
5. Lower part cooking and ventilation
6. Upper part cooking/lower and ventilation

TIMER AND POWER LIGHT SETTING

When the timer is on, the intern light is ON When the timer is off, the intern light is OFF

TIMER/min

BEFORE USE

- Ensure that there is enough ventilation around the oven.

- Ensure that the oven is completely dry before use.

- The oven should not be placed on untreated wooden surface. Place the oven on a heat resistant surface.

- The feet of the oven can leave some marks on the table, if this happens, remove the marks with a damp cloth.

OVEN USE

- Turn the thermostat dial clockwise to the desired temperature.

- Turn the timer dial clockwise to the desired cooking time.

- The inside lamp and the power light will light up when the timer is turned on, and will go out when the timer is turned to OFF.

- When the cooking time is over, the timer will auto shut off and the bell will ring.

- If the cooking is finished earlier than the set cooking time, please turn back the timer to OFF to turn off the oven.

- In the first use of this oven, there might be some light smoke coming out from the oven. After 5-10 minutes the smoke will disappear.

- In order to get better cooking performance, it is recommended to pre-heat the oven about 10-15 minutes.

GRILL COOKING

- Leave the door at the open point.

- Turn the selector to GRILL setting (top heating).

- Turn the temperature dial to 230.

- Turn the timer to the desired grill time.

- When the grill cooking is done, turn back the timer to OFF to turn off the oven.

AFTER USE

- Turn back the timer to 0

- Turn the selector to 0

- Unplug the appliance from the outlet.

- Wait until the oven is completely cool before any cleaning or maintenance operation.

MAINTENANCE AND CLEANING

- Unplug the appliance and allow it to cool before cleaning.

- Do not immerse the appliance in water. All surfaces can be cleaned with a clean damp cloth.

- If stains still appear, it is recommended to use soap.

- Do not use abrasive cleaners or sharp utensils to clean the appliance.

RATING LABEL

Innoliving Spa

Via Merloni 9 60131 Ancona - Italy

INN-791 FORNO ELETTRICO - ELECTRIC OVEN 220-240V\~50/60Hz 1500W

LOT n.

MADE IN CHINA

This product complies with all applicable European directives.

Read carefully the instruction manual

Food Contact

INFORMATION TO USERS according to Legislative Decree No. 49 of March 14, 2014 "2012/19/UE Implementation of the Directive on Waste Electrical and Electronic Equipment (WEEE)"

The crossed-out dustbin symbol indicates that the product at the end of its life must be collected separately from other waste.

The user should, therefore, take the equipment with the essential components at the end of its useful life to the separate collection center of electronic and electrical waste, or return it to the retailer when purchasing new equipment of equivalent type, in ratio of one to one, or one to zero for devices with larger side less than 25 cm. The separate collection for the decommissioned equipment for recycling, treatment and environmentally compatible disposal contributes to avoid possible negative effects on the environment and human health and promotes recycling of the materials. Improper disposal of the product by the user entails the application of administrative sanctions according to Legislative Decree No. 49 of 14 March 2014.

innoliving

Innoliving Spa

Via Merloni, 9

60131 Ancona Italy

Tel [phone]

www.innoliving.it

MADE IN CHINA

CE
