Product Type	Electric Oven with Convection and Rotisserie
Model	INN-738
Brand	Innoliving
Capacity	30 Liters
Power Supply	220-240V~50/60Hz
Power Consumption	1600W
Heating Elements	Top and Bottom
Convection Fan	Yes
Rotisserie Function	Yes
Timer	60-minute mechanical timer with bell
Temperature Range	Up to 250°C
Interior Light	Yes (activates with timer)
Accessories Included	Drip pan, rack, rotisserie spit, pan/rack handle
Material	Stainless steel exterior
Control Type	Rotary knobs
Safety Features	Automatic shut-off, cool-touch handle
Cleaning	Interior with damp cloth, exterior with soft dry cloth; do not immerse
Weight	Approx. 9.5 kg
Dimensions (WxDxH)	Approx. 50 x 40 x 35 cm
Country of Origin	China
Manufacturer	Innoliving Spa, Italy

Frequently Asked Questions - INN-738 Innoliving

How do I preheat the Innoliving INN-738 oven?

Turn the thermostat to the desired temperature and the timer to about 10-15 minutes. The oven will heat up. Once the timer rings, it is preheated.

Can I use metal utensils inside the oven?

No, bulky food or metal utensils should not be placed in the appliance as it could create a fire or risk of electric shock. Use only oven-safe glass or ceramic dishes.

How do I use the rotisserie function?

Insert the spit through the food, secure with skewers and thumbscrews. Place the pointed end into the drive socket and the square end on the support. Set thermostat to 250°C, timer to desired time, and selector to Rotisserie or Full Function. The rotisserie will rotate automatically.

What should I do if the oven smokes during first use?

Light smoke during the first use is normal and will disappear in 5-10 minutes. This is due to the heating element burning off manufacturing residues.

How do I clean the oven interior?

Allow the oven to cool completely. Use a damp cloth to wipe the interior. Do not use abrasive cleaners or metal sponges. The exterior can be cleaned with a soft dry cloth.

Can I use aluminum foil inside the oven?

No, do not cover the inside parts of the oven with aluminum foil. This may cause overheating and fire risk.

What is the maximum cooking time I can set?

The timer can be set up to 60 minutes. Once the time expires, the oven will automatically shut off with a bell.

How much space should I leave around the oven?

Keep at least 10 centimeters of space on all sides of the oven to allow for proper air circulation during operation.

Is the oven suitable for commercial use?

This appliance is designed for household use, but can be used in staff kitchens, offices, farms, hotels, and similar professional environments.

What should I do if the power cord is damaged?

Do not use the appliance. The power cord must be replaced by the manufacturer, its after-sales service, or a qualified person to prevent any risk.

USER MANUAL INN-738 Innoliving

innoliving easy tech, easy life

FORNO ELETTRICO CON VENTILAZIONE & GIRARROSTO 30L

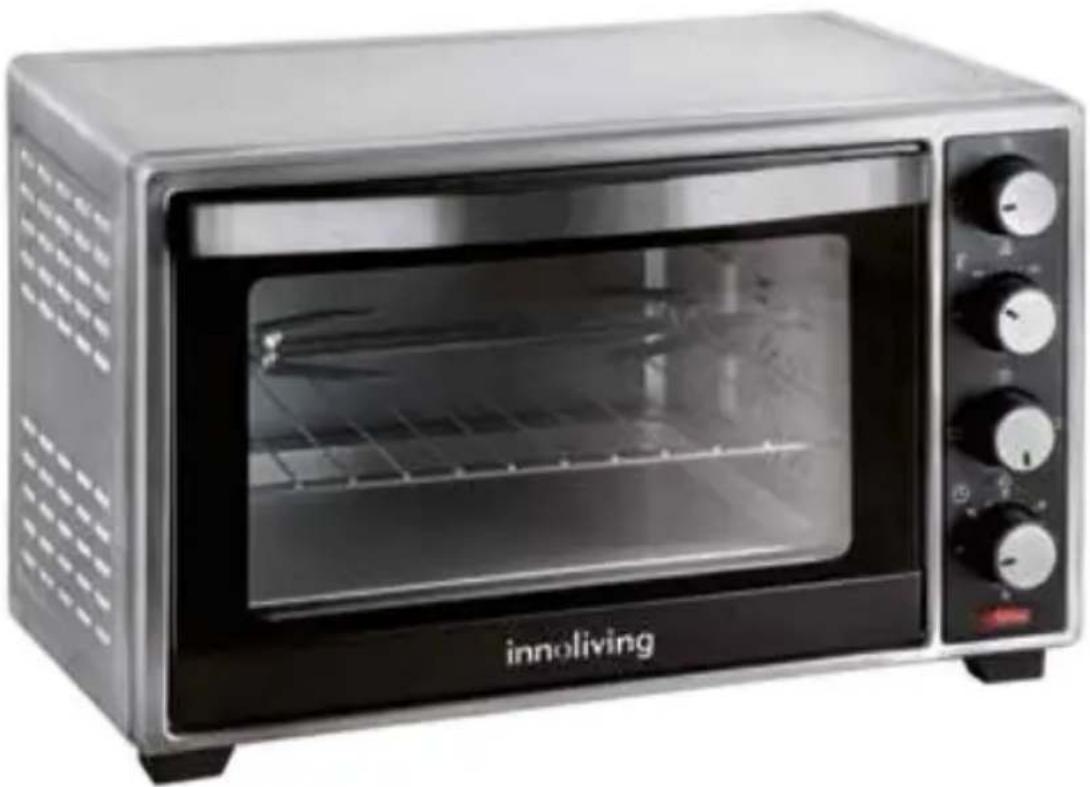

Exterior view of a modern stainless steel oven with control knobs and a visible dish inside (no text or symbols on the main body)

MANOPOLA ELEMENTI RISCALDANTI

Simple circular diagram with four corner icons (no text or symbols)

PRIMA DELL'USO

Thank you for purchasing the INNOLIVING electric oven INN-738.

Read carefully the instructions manual and keep this manual safe for future references.

IMPORTANT SAFETY INSTRUCTION

When using electrical appliances, basic precautions should always be followed, which include the followings:

1. Please read this instruction manual carefully. Use the product only for the intended purpose. Make sure that the appliance is connected to a power outlet with an adequate power. Do not use the appliance by connecting it to a multiple socket outlet. This can cause a short circuit.
2. Do not touch the hot surfaces of the appliance. Do not move the oven when in use.
3. Careful supervision is necessary if the appliance is used near children.

Keep the product and its power cord out of the reach of children under 8 years old. Keep the product out of reach of animals during use. Never leave the product unattended during use. This product can be used by children older than 8 and persons with reduced physical, mental or sensory capabilities, or lack of experience and knowledge if under supervision or if they received instructions for safe use of the appliance and they understood the related dangers. Make sure children do not play with the appliance. Cleaning and maintenance operations should not be carried out by children unless they are at least 8 years old and under supervision.

1. To protect yourself from the risk of electric shock, avoid contact with water or other liquids. Do not place the product where it may fall in water or other liquid. Never immerse the wire, plug, or lid with panel controls in water or other liquid.
2. Avoid the cable hanging from the table or the worktop, or come into contact with hot surfaces. Use it on a safe and stable work surface, and do not place it near the edge of the worktop. Always make sure that both the oven and loose cables are out of the reach of children.
3. Do not use the appliance if the cable or plug are damaged. Regularly check the good condition of the cord and plug. If the power cord is damaged, it must be replaced by the manufacturer or its after sales service or, in any case, by a qualified person in order to prevent any risk.
4. During the oven operation, keep at least 10 centimeters of space on all sides of the oven to allow for proper circulation of air.
5. Disconnect the cable from the mains when the oven is not in use and before proceeding with any cleaning operation.
6. To disconnect the power cord, pull it out by plug.
7. Particular attention should be paid when moving a tool containing hot oil or other hot liquids inside it.
8. Do not cover the inside parts of the oven with aluminium paper. This may cause the oven to overheat.
9. Use extreme caution when removing the tray inside the oven.
10. Do not clean the appliance with metal sponges.
11. Never leave the appliance unattended during use.
12. Bulky food or metal utensils should not be placed in the appliance as it could create a fire or risk of electric shock.
13. Do not place any element over the oven or cover the oven with flammable material

during operation as it may cause fire. Do not use accessories different than those recommended by the manufacturer. They may ignite, cause short circuits, or cause personal injury.

1. Extreme caution should be exercised when using containers whose composition is different from metal or glass.
2. Do not place any of the following materials in the oven: cardboard, plastic, paper.
3. When the product is not in use, do not store anything other than the accessories recommended by the manufacturer in the oven.
4. Always wear protective and insulating gloves when inserting or removing objects from the hot oven.
5. Do not use the appliance for purposes other than those that were intended in this instruction manual.
6. This appliance has been conceived for household use only, but it can be used in cookery areas reserved for staff, shops, offices and other places of work, farms, hotels, motels, bed and breakfast and other professional premises and similar places.
7. Do not dismantle the product, try to repair or change the power plug in any way.
8. This appliance must not be used with an external timer or separate remote control.
9. The temperature of accessible surfaces can be high during use.

ACCESSORIES:

• Drip-pan with alluminium coating*
• Rack
• Rotisserie
• Drip-pan and rack handle

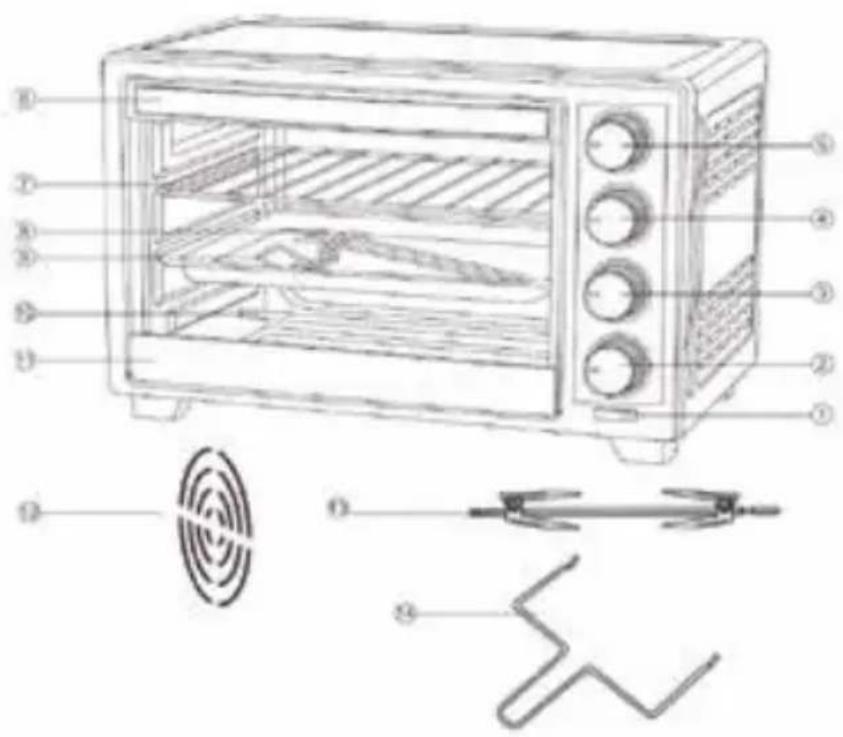

PRODUCT DESCRIPTION

1. Power Light
2. Timer
3. Selector Dial
4. Thermostat Dial
5. Function Knob
6. Glass Door Handle
7. Bake Pan
8. Bake Rack
9. Pan Handle
10. Heating element
11. Glass door clips
12. Convection
13. Rotisserie
14. Rotisserie support

HEATING ELEMENT SELECTOR

1. OFF
2. Top cooking
3. Bottom Cooking
4. Top and Bottom cooking

SELECTOR DIAL

1. OFF
2. Top Heating
3. Bottom Heating
4. Top and Bottom Heating

TIMER EAND INTERIOR LIGHT

When the timer is set, both the LED indicator and the internal light are lit.

Simple circular diagram with four directional arrows pointing inward (no text or symbols)

BEFORE USE

• Make sure there is enough ventilation around the oven.
- Make sure the oven is completely dry before use.
- The oven must not be placed on untreated wooden surface when in use. Place the product on a heat resistant surface.
- The feet of the pven can leave some marks on the surface, remove them by using a soft damp cloth

HOW TO USE

• Turn the temperature selector to the desired position.
• Turn the Selector dial to the desired position.
• Turn the Timer clock-wise to set the desired cooking time.
• The power light will light up after timer is turned on and turn off when the timer is OFF.
• When the cooking time is over, the oven will automatically shut off and the bell will ring.
• If the cooking is finished earlier than the set cooking time, please turn back the timer to "0" to turn off the oven.
• During the first use of this oven, there might be some light smoke coming out from the oven and it will disappear in 5-10 minutes. This is normal.
• In order to get better cooking performance, it is recommended to pre-heat the oven for about 10-15 minutes.

HOW TO USE ROTISSERIE

1. Put one skewer through the pointed end of the spit, making sure the points of skewer face towards the spit's pointed end. Slide the skewer towards the square end of the spit.
2. Insert the spit directly through the center of the food which you want to roast.
3. Put the other skewer through the pointed end of the spit, making sure the points of skewer face the spit's square end.
4. Put the two skewers into the food, then secure both skewers with the thumbscrews.
5. Make sure the food is centered on the spit.
6. Insert the pointed end of the spit into the drive socket, make sure the square end of the spit rests on the spit support.
7. Plug the oven.
8. Set the thermostat to 250°.
9. Turn the timer to the time which you require, the power indicator will light up. Normally it takes 30 minutes to roast a 2.5Kg(5.5Pd) weight chicken.
10. Set the selector to ROTISSERIE or Full Function setting, the rotisserie starts rotating.
11. When roasting is completed, turn back the timer to OFF.
12. After the oven is cooled, place the hooks of the rotisserie handle under the grooves on both sides of the spit. Lift the right side of the spit first, move towards right side a little bit, so that the left side of the spit goes out of the drive socket. Then carefully move out the roasted food from the oven.
13. Take the food off the spit

GRILLING

• Turn the cooking knob to position 2 (Top Cooking).
• Set the thermostat to 250^
• Turn the timer clockwise until the desired cooking time.

AFTER USE

• Set Timer to OFF position
• Set the temperature to the OFF position.
• Disconnect the plug from the power supply.
• Allow the oven to completely cool down before proceed with any cleaning or maintenance operation.

CLEANING AND MAINTENANCE

• Disconnect the plug from the power supply and allow the oven to completely cool down.
• Do not immerse the product in water or other liquids. The surfaces can be cleaned using a soft, dry cloth.
• Do not use abrasive cleaners or sharp tools to clean the appliance.
• Clean the inside of the oven with a damp cloth.

The temperature of accessible surfaces may be high during the use.

RATING LABEL

Innoliving Spa

Via Merloni 9 - 60131 Ancona - Italy

INN-738 FORNO ELETTRICO

ELECTRIC OVEN

220-240V\~50/60Hz 1600W

This product complies with all applicable European directives.

Read carefully the instruction manual

Food Contact

INFORMATION TO USERS according to Legislative Decree No. 49 of March 14, 2014 "2012/19/UE Implementation of the Directive on Waste Electrical and Electronic Equipment (WEEE)"

The crossed-out dustbin symbol indicates that the product at the end of its life must be collected separately from other waste.

The user should, therefore, take the equipment with the essential components at the end of its useful life to the separate collection center of electronic and electrical waste, or return it to the retailer when purchasing new equipment of equivalent type, in ratio of one to one, or one to zero for devices with larger side less than 25 CM. The separate collection for the decommissioned equipment for recycling, treatment and environmentally compatible disposal contributes to avoid possible negative effects on the environment and human health and promotes recycling of the materials. Improper disposal of the product by the user entails the application of administrative sanctions according to Legislative Decree No. 49 of 14 March 2014.
