Product Type	Countertop Oven
Brand	Innoliving
Model	INN-737
Dimensions (W x D x H)	50 x 40 x 30 cm
Weight	8 kg
Power Supply	220-240 V, 50/60 Hz
Power Consumption	1500 W
Functions	Bake, Grill, Convection
Temperature Range	100 - 250 °C
Timer	60 minutes with auto shut-off
Interior Capacity	30 liters
Door Type	Drop-down with cool-touch handle
Control Type	Mechanical knobs
Interior Light	Yes
Accessories Included	Baking tray, wire rack, crumb tray
Safety Features	Overheat protection, auto shut-off
Cleaning	Wipe interior and exterior with damp cloth
Warranty	2 years
Spare Parts Availability	Contact manufacturer or authorized dealer
Repair Rating	Moderate; user replaceable heating elements

Frequently Asked Questions - INN-737 Innoliving

How do I set the timer on the Innoliving INN-737 oven?

Turn the timer knob clockwise to the desired time up to 60 minutes. The oven will automatically shut off when the timer reaches zero. A bell will sound.

Can I use metal utensils inside the oven?

Avoid using metal utensils that may scratch the interior. Use heat-resistant silicone or wooden tools. Metal pans are acceptable.

What is the maximum temperature setting?

The maximum temperature is 250°C, suitable for baking and grilling. Always preheat the oven before use.

How do I clean the oven interior?

Unplug the oven and let it cool. Wipe the interior with a damp cloth and mild detergent. Avoid abrasive cleaners. Remove and wash the crumb tray regularly.

Why does the oven turn off during cooking?

The oven may shut off if the timer ends or if it overheats. Check the timer setting and ensure proper ventilation. If overheating persists, contact support.

Can I bake a pizza in this oven?

Yes, you can bake a 12-inch pizza on the wire rack or baking tray. Preheat to 220°C and bake for 12-15 minutes.

Is the oven door safe to touch during use?

The door handle remains cool to the touch, but the door glass and exterior can get hot. Use the handle and keep children away.

How do I replace the interior light bulb?

Unplug the oven, remove the bulb cover (usually a screw), and replace with a compatible 25W E14 bulb. Reattach the cover.

What should I do if the oven does not heat up?

Check the power cord and outlet. Ensure the timer is set and temperature knob is rotated. If still no heat, the heating element may be faulty; contact service.

Can I use aluminum foil in the oven?

Yes, you can use aluminum foil to cover food, but avoid covering the heating elements or blocking air circulation. Do not place foil directly on the bottom.

USER MANUAL INN-737 Innoliving

innoliving easy tech, easy life

Exterior view of a modern stainless steel oven with control knobs and a visible inner glass door (no text or symbols on the main body)

Thank you for purchasing the INNOLIVING electric oven INN-737.

Read carefully the instructions manual and keep this manual safe for future references.

IMPORTANT SAFETY INSTRUCTION

When using electrical appliances, basic precautions should always be followed, which include the followings:

1. Please read this instruction manual carefully. Use the product only for the intended purpose. Make sure that the appliance is connected to a power outlet with an adequate power. Do not use the appliance by connecting it to a multiple socket outlet. This can cause a short circuit.
2. Do not touch the hot surfaces of the appliance. Do not move the oven when in use.
3. Careful supervision is necessary if the appliance is used near children.

Keep the product and its power cord out of the reach of children under 8 years old. Keep the product out of reach of animals during use. Never leave the product unattended during use. This product can be used by children older than 8 and persons with reduced physical, mental or sensory capabilities, or lack of experience and knowledge if under supervision or if they received instructions for safe use of the appliance and they understood the related dangers. Make sure children do not play with the appliance. Cleaning and maintenance operations should not be carried out by children unless they are at least 8 years old and under supervision.

1. To protect yourself from the risk of electric shock, avoid contact with water or other liquids. Do not place the product where it may fall in water or other liquid. Never immerse the wire, plug, or lid with panel controls in water or other liquid.
2. Avoid the cable hanging from the table or the worktop, or come into contact with hot surfaces. Use it on a safe and stable work surface, and do not place it near the edge of the worktop. Always make sure that both the oven and loose cables are out of the reach of children.
3. Do not use the appliance if the cable or plug are damaged. Regularly check the good condition of the cord and plug. If the power cord is damaged, it must be replaced by the manufacturer or its after sales service or, in any case, by a qualified person in order to prevent any risk.
4. During the oven operation, keep at least 10 centimeters of space on all sides of the oven to allow for proper circulation of air.
5. Disconnect the cable from the mains when the oven is not in use and before proceeding with any cleaning operation.
6. To disconnect the power cord, pull it out by plug.
7. Particular attention should be paid when moving a tool containing hot oil or other hot liquids inside it.
8. Do not cover the inside parts of the oven with aluminium paper. This may cause the oven to overheat.
9. Use extreme caution when removing the tray inside the oven.
10. Do not clean the appliance with metal sponges.
11. Never leave the appliance unattended during use.
12. Bulky food or metal utensils should not be placed in the appliance as it could create a fire or risk of electric shock.
13. Do not place any element over the oven or cover the oven with flammable material

during operation as it may cause fire. Do not use accessories different than those recommended by the manufacturer. They may ignite, cause short circuits, or cause personal injury.

1. Extreme caution should be exercised when using containers whose composition is different from metal or glass.
2. Do not place any of the following materials in the oven: cardboard, plastic, paper.
3. When the product is not in use, do not store anything other than the accessories recommended by the manufacturer in the oven.
4. Always wear protective and insulating gloves when inserting or removing objects from the hot oven.
5. Do not use the appliance for purposes other than those that were intended in this instruction manual.
6. This appliance has been conceived for household use only, but it can be used in cookery areas reserved for staff, shops, offices and other places of work, farms, hotels, motels, bed and breakfast and other professional premises and similar places.
7. Do not dismantle the product, try to repair or change the power plug in any way.
8. This appliance must not be used with an external timer or separate remote control.
9. The temperature of accessible surfaces can be high during use.

ACCESSORIES:

• Drip-pan with alluminium coating*
• Rack
• Pan and rack handle

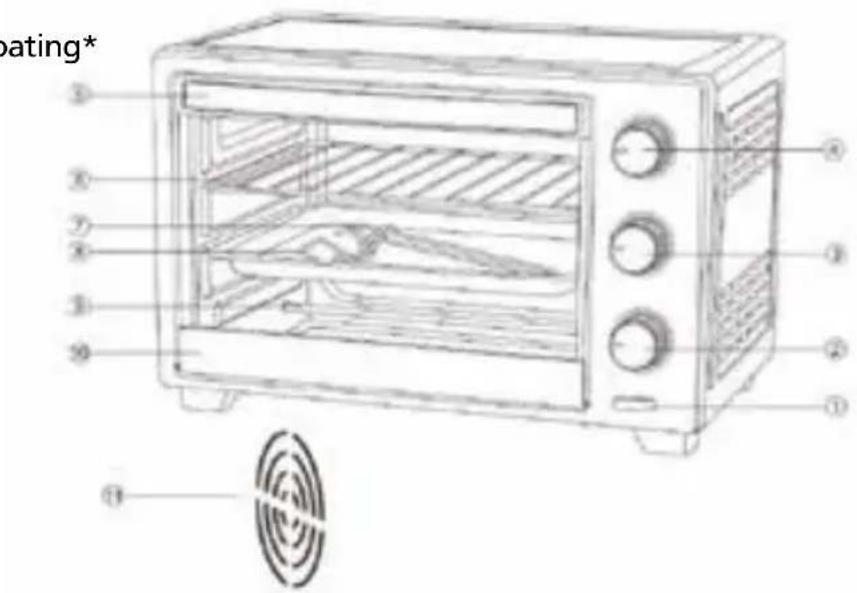

PRODUCT DESCRIPTION

1. Power Light
2. Timer
3. Selector Dial
4. Thermostat Dial
5. Glass Door Handle
6. Bake Pan
7. Bake Rack
8. Pan Handle
9. Heating element
10. Glass door clips
11. Convection

SELECTOR DIAL

1. OFF
2. Top Heating
3. Bottom Heating
4. Top and Bottom Heating

TIMER EAND INTERIOR LIGHT

When the timer is set, both the LED indicator and the internal light are lit.

BEFORE USE

• Make sure there is enough ventilation around the oven.
• Make sure the oven is completely dry before use.
• The oven must not be placed on untreated wooden surface when in use. Place the product on a heat resistant surface.
• The feet of the pven can leave some marks on the surface, remove them by using a soft damp cloth

HOW TO USE

• Turn the temperature selector to the desired position.
• Turn the Selector dial to the desired position.
• Turn the Timer clock-wise to set the desired cooking time.
• The power light will light up after timer is turned on and turn off when the timer is OFF.
• When the cooking time is over, the oven will automatically shut off and the bell will ring.
• If the cooking is finished earlier than the set cooking time, please turn back the timer to "0" to turn off the oven.
• During the first use of this oven, there might be some light smoke coming out from the oven and it will disappear in 5-10 minutes. This is normal.
• In order to get better cooking performance, it is recommended to pre-heat the oven for about 10-15 minutes.

GRILLING

• Turn the cooking knob to position 2 (Top Cooking).
• Set the thermostat to 250^
• Turn the timer clockwise until the desired cooking time.

AFTER USE

• Set Timer to OFF position
• Set the temperature to the OFF position.
• Disconnect the plug from the power supply.
• Allow the oven to completely cool down before proceed with any cleaning or maintenance operation.

CLEANING AND MAINTENANCE

• Disconnect the plug from the power supply and allow the oven to completely cool down.
• Do not immerse the product in water or other liquids. The surfaces can be cleaned using a soft, dry cloth.
• Do not use abrasive cleaners or sharp tools to clean the appliance.
• Clean the inside of the oven with a damp cloth.

The temperature of accessible surfaces may be high during the use.

RATING LABEL

Innoliving Spa

Via Merloni 9 - 60131 Ancona - Italy

INN-737 FORNO ELETTRICO

ELECTRIC OVEN

220-240V\~50/60Hz 1600W

This product complies with all applicable European directives.

Read carefully the instruction manual

Food Contact

INFORMATION TO USERS according to Legislative Decree No. 49 of March 14, 2014 "2012/19/UE Implementation of the Directive on Waste Electrical and Electronic Equipment (WEEE)"

The crossed-out dustbin symbol indicates that the product at the end of its life must be collected separately from other waste.

The user should, therefore, take the equipment with the essential components at the end of its useful life to the separate collection center of electronic and electrical waste, or return it to the retailer when purchasing new equipment of equivalent type, in ratio of one to one, or one to zero for devices with larger side less than 25 CM. The separate collection for the decommissioned equipment for recycling, treatment and environmentally compatible disposal contributes to avoid possible negative effects on the environment and human health and promotes recycling of the materials. Improper disposal of the product by the user entails the application of administrative sanctions according to Legislative Decree No. 49 of 14 March 2014.

innoliving - easy tech, easy life

Innoliving Spa

Via Merloni, 9

60131 Ancona Italy

Tel 199.188.335

www.innoliving.it

MADE IN CHINA

CE
