Type of product	Electric oven
Model	INN-794
Brand	Innoliving
Dimensions (approx.)	55 x 40 x 35 cm
Weight (approx.)	12 kg
Power supply	220-240 V ~ 50/60 Hz
Power consumption	1500 W
Capacity	35 liters
Temperature range	50 °C to 250 °C
Functions	Bake, grill, convection, rotisserie
Timer	120 minutes with auto shut-off
Interior light	Yes
Door type	Drop-down with cool-touch handle
Cleaning	Removable crumb tray, non-stick interior
Safety features	Overheat protection, auto shut-off
Accessories included	Baking pan, wire rack, rotisserie spit
Spare parts availability	Contact Innoliving customer service
Repairability index	7/10
Manual languages	English, Italian, and others on request
Warranty	2 years

Frequently Asked Questions - INN-794 Innoliving

How do I set the timer on my Innoliving INN-794 oven?

Turn the timer knob clockwise to the desired cooking time, up to 120 minutes. The oven will automatically shut off when the timer reaches zero.

What is the maximum temperature of the INN-794 oven?

The maximum temperature is 250 °C. Use the temperature dial to select the desired heat.

Can I use aluminum foil in the oven?

Yes, but avoid covering the entire rack or blocking airflow. Do not let foil touch the heating elements.

How do I clean the oven interior?

Wipe the interior with a damp cloth and mild detergent. The crumb tray is removable for easy cleaning. Avoid abrasive cleaners.

The oven doesn't heat up. What should I check?

Ensure the oven is plugged in and the timer is set. Check that the temperature dial is not at 0. If still not heating, contact Innoliving support.

Can I use the oven without the rotisserie function?

Yes, the rotisserie is an optional feature. You can use the oven for baking and grilling without it.

Is the oven door cool to the touch?

The front handle is designed to stay cool, but the glass door may become hot during operation. Keep children away.

What do the different function symbols mean?

Common symbols include: top and bottom heating (bake), grill (wavy line), fan (convection), and rotisserie (spit). Refer to the manual for exact icons.

How do I replace the interior light?

The interior light bulb is replaceable. Unscrew the bulb cover, replace with a new oven bulb of the same type (usually 25W/300°C). Always unplug first.

Where can I find spare parts for my INN-794?

Spare parts can be ordered through Innoliving's customer service or authorized dealers. Have your model number ready.

USER MANUAL INN-794 Innoliving

innoliving easy tech, easy life

FORNO ELETTRICO 32 LITRI

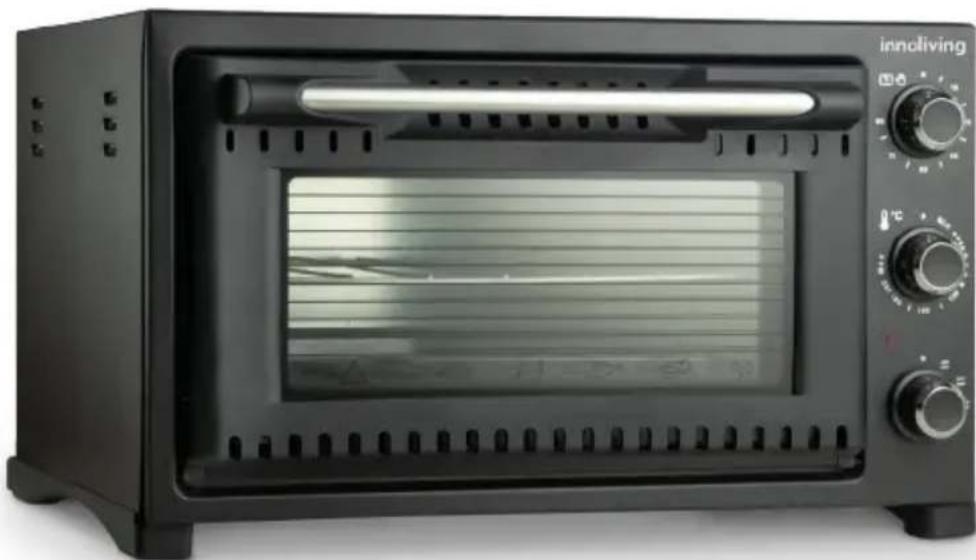

Black countertop oven with open lid and control knobs (no visible text or symbols)

INN-794

MANUALE D'USO

USER MANUAL

Thank you for purchasing INNOLIVING electric oven INN-794

Ready carefully use instructions and keep this manual for future references.

IMPORTANT SAFETY INSTRUCTION

When using electrical appliances, basic precautions should always be followed, which include the followings:

1. Please read this instruction manual carefully. Use the product only for the intended purpose, as described in this user manual. Make sure that the appliance is connected to a power outlet with an adequate power. Do not use the appliance by connecting it to a multiple socket outlet. This can cause a short circuit.

2. Do not touch the hot surfaces of the appliance. Do not move the oven when in use.

3. Careful supervision is necessary if the appliance is used near children. Keep the product and its power cord out of the reach of children under 8 years old. Keep the product out of reach of animals during use. This product can be used by children older than 8 and persons with reduced physical, mental or sensory capabilities, or lack of experience and knowledge if under supervision or if they received instructions for safe use of the appliance and they understood the related dangers.

Make sure children do not play with the appliance.

Cleaning and maintenance operations should not be

carried out by children unless they are at least 8 years old and under supervision.

1. To protect yourself from the risk of electric shock, avoid contact with water or other liquids. Do not place the product where it may fall in water or other liquid. Never immerse the wire, plug, or lid with panel controls in water or other liquid.
2. Avoid the cable hanging from the table or the worktop, or come into contact with hot surfaces. If it happens, disconnect the plug and verify the integrity of the cable. Use it on a safe and stable work surface, and do not place it near the edge of the worktop. Always make sure that both the oven and loose cables are out of the reach of children.
3. Do not use the appliance if the cable or plug are damaged. Regularly check the good condition of the cord and plug. If the power cord is damaged, it must be replaced by the manufacturer or its after sales service or, in any case, by a qualified person in order to prevent any risk.
4. When the oven is in use keep at least 10 cm of space for each side of the oven to allow a correct air circulation.
5. Disconnect the cable from the mains when the oven is not in use and before proceeding with any cleaning operation.
6. To disconnect the power cord, pull it out by plug.
7. Particular attention should be paid when moving a tool

containing hot oil or other hot liquids inside it.

11.Do not cover the inside parts of the oven with aluminium paper. This may cause the oven to overheat.

1. Use extreme caution when removing the tray inside the oven.

2. Do not clean the appliance with metal sponges. Follow this manual instructions indicated on CLEANING AND MAINTENANCE paragraph.

Let cool before inserting or disconnecting part of the device before cleaning operations.

1. Never leave the appliance unattended during use.

2. Bulky food or metal utensils should not be placed in the appliance as it could create a fire or risk of electric shock.

3. Do not place any element over the oven or cover the oven with flammable material during operation as it may cause fire. Do not use accessories different than those recommended by the manufacturer. They may ignite, cause short circuits, or cause personal injury.

4. Extreme caution should be exercised when using containers whose composition is different from metal or glass.

5. Do not place any of the following materials in the oven: cardboard, plastic, paper.

6. When the product is not in use, do not store anything other than the accessories recommended by the

manufacturer in the oven.

1. Always wear protective and insulating gloves when inserting or removing objects from the hot oven.
2. Do not use the appliance for purposes other than those that were intended in this instruction manual. Any other use is to be considered improper and dangerous.
3. This appliance has been conceived for household use only, but it can be used in cookery areas reserved for staff, shops, offices and other places of work, farms, hotels, motels, bed and breakfast and other professional premises and similar places.
4. Do not dismantle the product, try to repair or change the power plug in any way. Address to a customer assistance centre in order to receive technical assistance.
5. This appliance must not be used with an external timer or separate remote control.
6. The temperature of accessible surfaces can be high during use.
7. Do not place appliance on or near a hot gas or electric burner, or in a heated oven or in a microwave oven.

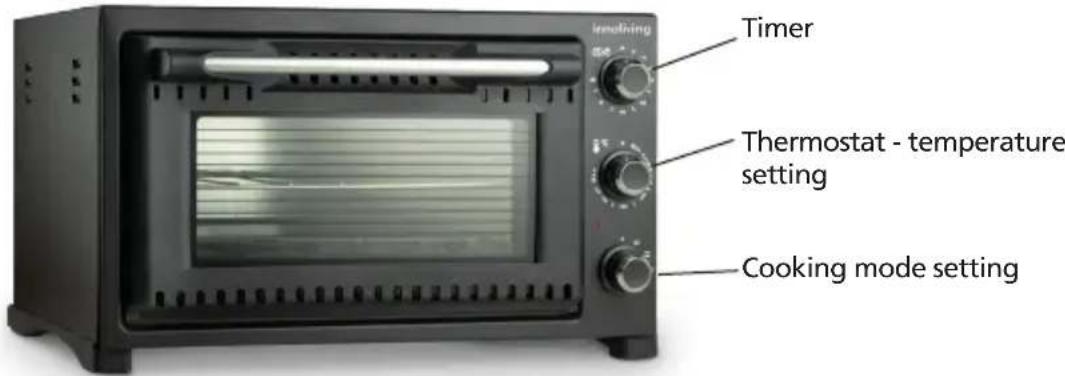

PRODUCT DESCRIPTION

BEFORE USING

• Make sure there is sufficient ventilation around the oven.
• Make sure that the oven is completely dry before use.
• The oven must not be placed on untreated wood surfaces. Place the oven on a heat resistant surface.
• The oven feet may leave small marks on the support surface: the marks can be removed using a soft cloth.

TIMER

With this knob you can turn on the oven and adjust the cooking time. Turn the knob clockwise to set the desired cooking time (maximum 90 minutes). When the set time ends, an acoustic signal will sound and the oven will automatically switch off. If the cooking time is longer than 90 minutes or if you need to set the time manually, turn the knob towards the symbol 🖱️. To switch off the oven, reset the timer or set the function knob to the symbol ●.

THERMOSTAT

This knob allows you to select the desired temperature.

COOKING MODE SETTING

This knob allows you to select the type of cooking.

Cooking– Upper level Cooking – Lower level

Cooking – Upper and Lower level ☐ To turn the oven off, set the knob on the symbol ●.

NOTE: the oven does not activate if both knobs are not set (timer + functions)

TURBO VENTILATION

Setting the function knob to ☑ the "turbo ventilation" function will be turned on.

", And both the upper and lower floors will be activated.

The advantages of cooking with this type of ventilation are:

1. Pastry products such as cakes and focaccia are cooked in a tasty and uniform way.

2. You can defrost food using this function (together with the timer).

When the lamp is on, it indicates that the oven is in operation (the timer, the thermostat and the function settings are active). When a temperature is set, the lamp stays on until the temperature is reached; at this point the lamp turns off automatically.

AFTER USE

- Set the Timer knob on ●.

- Set the thermostat knob on 0.

- Unplug from electric power.

- Let the oven have completely cooled down before proceeding with any cleaning and maintenance operations.

CLEANING AND MAINTENANCE

- Disconnect the plug from the mains and let the oven cool down completely.

- Do not immerse the product in water or other liquids. Surfaces can be cleaned using a soft, dry cloth.

- Do not use abrasive sponges or sharp tools to clean the appliance.

- Clean the inside of the oven with a damp cloth.

REPLACE THE LAMP

If the lamps stop working properly, replace them as follows:

1. Disconnect the plug from the mains.

2. Remove the protective glass by turning it anticlockwise;

3. Remove the blown bulb by turning it counterclockwise;

4. Insert the new bulb by turning it clockwise;

5. Insert the protective glass by turning clockwise;

NOTE: The bulb to be replaced must be max 15 W, 220-240 V, 300°C.

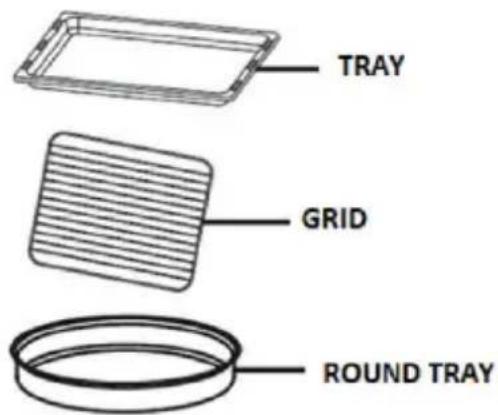

ACCESSORIES

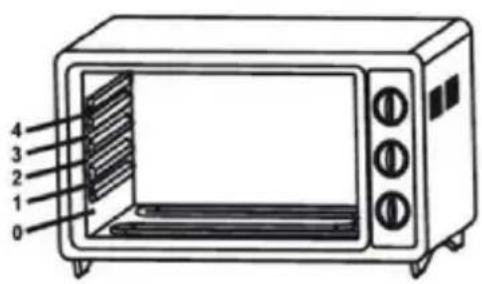

COOKING GUIDE LINE (TABLE)

FOODS	DEGREE(°C)	COOKING TIME	SWITCH PHASE	Position Of Round Tray	Position Of Flat Tray
PIES	175 - 200	20 - 25		1	2
CAKES	175 - 200	20 - 25		1	2
CHICKEN	240	30 - 45		1	3
COOKIES	180	20 - 30		1	2
LAMB	225 - 240	45 - 50		1	2
VEAL	max.	50 - 60		1	2
PASTRIES	200 - 220	30 - 40		1	2

NOTE: cooking times follow a time of pre heating of 10 minutes.

RATING LABEL

Innoliving Spa

Via Merloni 2/B 60131 Ancona - Italy

INN-794 FORNO ELETTRICO - ELECTRIC OVEN

220-240V\~50/60Hz 1420W

LOT n.

MADE IN TURKEY

This product complies with all applicable European directives.

Read carefully the instruction manual

Food Contact

INFORMATION TO USERS according to Legislative Decree No. 49 of March 14, 2014 "2012/19/UE Implementation of the Directive on Waste Electrical and Electronic Equipment (WEEE)"

The crossed-out dustbin symbol indicates that the product at the end of its life must be collected separately from other waste.

The user should, therefore, take the equipment with the essential components at the end of its useful life to the separate collection center of electronic and electrical waste, or return it to the retailer when purchasing new equipment of equivalent type, in ratio of one to one, or one to zero for devices with larger side less than 25 cm. The separate collection for the decommissioned equipment for recycling, treatment and environmentally compatible disposal contributes to avoid possible negative effects on the environment and human health and promotes recycling of the materials. Improper disposal of the product by the user entails the application of administrative sanctions according to Legislative Decree No. 49 of 14 March 2014.

innoliving easy tech, easy life

Innoliving Spa Via Merloni, 2/B 60131 Ancona Italy Tel [phone] www.innoliving.it

MADE IN TURKEY

CE

Rev.01_03.2022
