USER MANUAL RS 80 SENNHEISER
Instruction manual 7
Notice d'emploi 11
This device has been type-approved to EN 300 220-1 Nov.97 and is in compliance with the applicable CE standards and regulations.
Certification
Product Designation:
T30-4; T40-4; T60-4; T80-4
Product Description:
Wireless Headphone Transmitter
Product Manufacturer:
Sennheier electronic GmbH & Co. KG
Am Labcr 1
30980 Wedemark
Specifications and test reports:
| Specification | Text report no. & date | Name of test laboratory | Notes |
| 1,2304-09/17,08,1999 | by CTECOM ECIT | LCDM | uniform |
Statement
This equipment fulfils the requirements or parts thereof in the above mentionend specifications.
By Devis VG 28,20800 issued in The Journal of 62000 of the Regulapandichoke for Telecommunication and Information Technology. The authors is authorised to act as a Natified Body in accordance with the RATTE Directive 1998/EC of 04 March 1999.
Saarbricken, 24.07.00 Place, Date of issue
Product Designation:
Product Description:
Wireless Headphone Transmitter
Sengehiser electronic GmbH & Co.KG
Am Labet 1
30906 Wedemark
Saccifications and test reports:
| Specification | Test report no. & Date | Name of test laboratory | Notes |
| EN 498-226 (L1.1.2.1) | 2_3534-499(1787.09.1999) | by CECONIC ICD | uniform |
Statement
This equipment fulfils the requirements or parts thereof in the above mentioned specifications.
By debrg Vg 20208, issued in the Official Jnrol 6/2020 of the Regierungscheilde fR Toxikommunication and Post, CETECOM ICT Services is authorised as it acts as a Notified Body in accordance with the RATTE颁布的规则。
Saarbricken, 24.07.07
Place, Date of Issue
CETECOM KIT Services GmbH, Unterthürheimer Straße 6-10, D-6617 Saarbrücken, Germany
R&TTE-Anforderungen
When using this product within the European Union, but outside the country of purchase, you must inform yourself about the type approval regulations in the country of use. You must also check whether or not the product needs to be licensed by the national approval authorities. Radio regulations vary from country to country and what is legal in the country of purchase is not necessarily legal in another EU country.
Exigences R&TTE
Instruction manual 7
Notice d'emploi 11

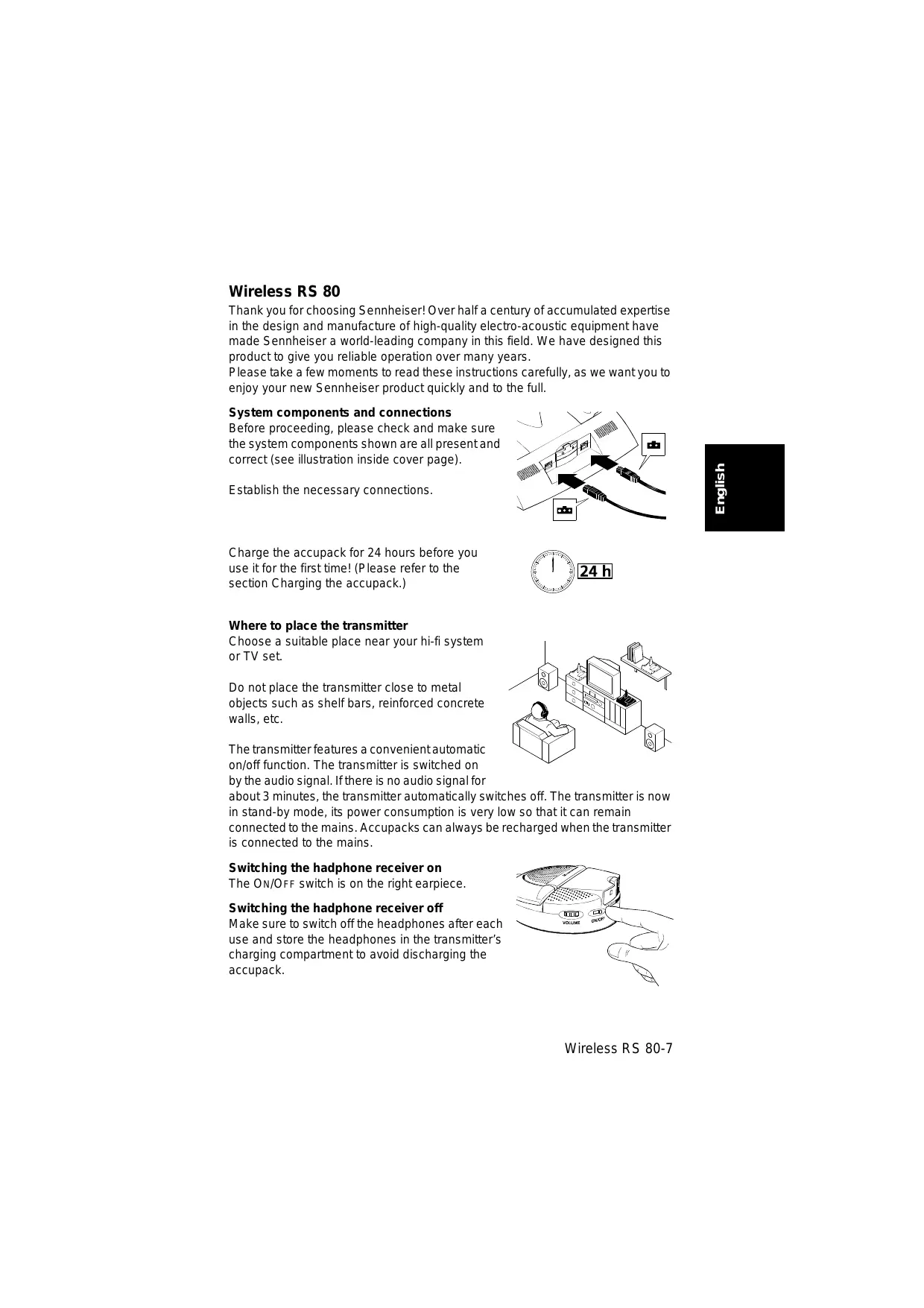

Thank you for choosing Sennheiser! Over half a century of accumulated expertise in the design and manufacture of high-quality electro-acoustic equipment have made Sennheiser a world-leading company in this field. We have designed this product to give you reliable operation over many years.
Please take a few moments to read these instructions carefully, as we want you to enjoy your new Sennheiser product quickly and to the full.
System components and connections
Before proceeding, please check and make sure the system components shown are all present and correct (see illustration inside cover page).
Establish the necessary connections.
Charge the accupack for 24 hours before you use it for the first time! (Please refer to the section Charging the accupack.)
Where to place the transmitter
Choose a suitable place near your hi-fi system or TV set.
Do not place the transmitter close to metal objects such as shelf bars, reinforced concrete walls, etc.
The transmitter features a convenient automatic on/off function. The transmitter is switched on by the audio signal. If there is no audio signal for
about 3 minutes, the transmitter automatically switches off. The transmitter is now in stand-by mode, its power consumption is very low so that it can remain connected to the mains. Accupacks can always be recharged when the transmitter is connected to the mains.
Switching the hadphone receiver on
The ON/OFF switch is on the right earpiece.
Switching the hadphone receiver off
Make sure to switch off the headphones after each use and store the headphones in the transmitter's charging compartment to avoid discharging the accupack.

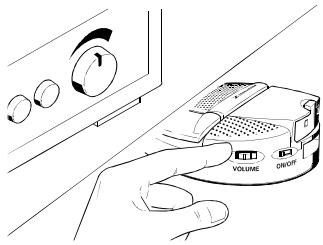

Adjusting the volume
Set the volume of your sound source to a medium value. With some devices, the volume for the headphone output can be regulated separately.
Use the VOLUME control on the right earpiece to adjust the headphones' volume.

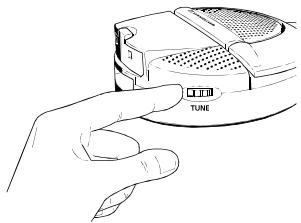

Adjusting the receiver channel
Turn the TUNE control on the earpiece until you can hear the audio signal loud and clear.
Changing the transmission channel
To avoid interference caused by the simultaneous operation of several transmitters, select a different channel on each transmitter. Depending on the system variant, two or three switchable transmission channels are available. To select a channel, press the CHANNEL button until the desired LED or LED combination lights up:
LED1
channel 1 active
LED2
channel 2 active
LED 1 and 2
channel 3 active (except 863 MHz version).

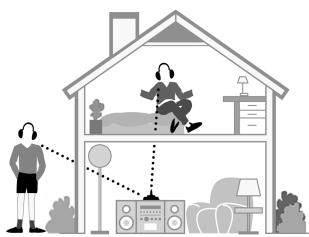

Complete freedom of movement
It is not necessary that transmitter and.
headphone receiver are in a direct line of sight, so you can move around freely in the home or outside in the garden. One transmitter can be used to transmit to several receivers on the same frequency.
Additional headphones with the designation HDR 80 are available from your specialist dealer. Please make sure to choose
headphones with the same frequency range as the transmitter you are using (see type plate on the bottom of the transmitter).

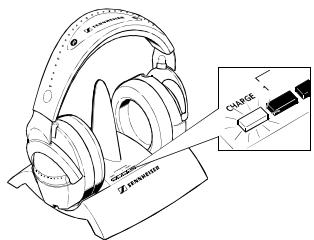

Charging the accupack
For charging the accupack, place the headphones into the transmitter's charging compartment (nb: make sure the headphones are inserted the correct way round. The Sennheiser logo on the headband must be readable looking from the front - see diagram. The charging contacts are on the RH earpiece of the headphones - these are placed on the corresponding contacts in the LH indentation of
the transmitter, the one next to the "charge" light). The red LED on the transmitter must light up to show charging is taking place.
Always store the headphones on the transmitter to ensure that they are fully charged when they are needed. The headphones are automatically switched off by the charging process.
BA 151 spare accupack
When the headphones' unpack is going flat (noise, interference and distortion are sure signs of a flat unpack), recharge the unpack. After an initial charging of 24 hours, the normal charging time is 14 hours. A fully charged unpack has an operating time of approx. four hours. Place the discharged unpack in the charging compartment at the back of the transmitter and use the spare unpack in the meantime.
Additional BA 151 spare accompanies can be charged via the L 151-2 charger (available from your specialist dealer).
Before disposing of an old and exhausted accumulator, make sure that it is totally discharged by using it until the device switches off. To protect the environment, only dispose of totally exhausted accumups.
HiDyn plusTM
This device is equipped with HiDyn plus™, Sennheiser's noise reduction system that reduces noise and interference in wireless transmission systems.
Additional information
The audio transmission technology used with this device is basically that of a radio. According to today's scientific knowledge, the radio waves emitted by this device are not harmful to humans or animals.
ATTENTION: LISTENING AT HIGH VOLUME LEVELS FOR LONG PERIODS CAN PERMANENTLY DAMAGE YOUR HEARING.
This device has been designed for use with stereo devices. For connection to mono devices, please use a stereo to mono jack plug available from most audio accessory shops.
Use a soft cloth or, if necessary, a damp wash-leather for cleaning the devices. Do not use aggressive cleansing agents.
Varnish or furniture polish may attack the rubber feet of the transmitter's charging unit. As these could stain your furniture, place the transmitter on a non-slip pad.
If problems occur...
Are all connections properly made?
Are the headphones and sound source switched on and is the volume correctly adjusted?
Have you charged the accupack for at least 20 minutes?
Are you too far from the transmitter? (if so, move closer)
Choose a different channel.
Adjust the setting with the TUNE control.
If the problem persists, please contact your specialist dealer for assistance.
Never open the device!
Only use original Sennheiser spare parts and accessories. Components from other manufacturers (e.g. for mains unit or accumulator) may cause damage to the device and will invalidate the guarantee.
Accessories
The following accessories are available from your specialist dealer:
Spare accupack BA 151
Charger L 151-2
Additional headphones HDR 80
Technical data
Modulation FM, stereo
Transmitter
Power supply 12 V DC via plug-in mains unit
Power consumption approx. 1 VA
RF output power typ.up to 10mW (0.75 mW with 925 MHz version)
Signal-to-noise ratio typ. >85 dB A
Frequency range see type plate located on the bottom of transmitter
Channels 3 (2 with 863 MHz version)
Audio connector 3.5 mm 1/4 " (6.3 mm) stereo jack plug, (925 MHz version supplied with jack to 2 x phono plug)
Charging compartments 1, for BA 151 accapack
Weight approx. 186 g incl. accupack
Dimensions approx. 155× 153× 105mm
Receiver
Max. sound pressure level 101 dB
THD < 0.5% (at 1 kHz and nom. deviation)
Power supply 2.4 V via BA 151 accupack
Current consumption approx. 22mA
Operating time more than 4 hrs per accuack
Weight approx. 160 g incl. accupack
Dimensions approx. 150 × 80 × 200 ~mm
