USER MANUAL Disco Set IV 151.730 BeamZ

Bubble Machine, LED Strobe and Mirror Ball with Motor

Ref: 151.730

Three electronic devices: a box, a reflective sphere with mechanical components, and a blue handbag with internal components (no text or symbols visible)

INSTRUCTION MANUAL GEBRUIKSAANWIJZING BEDIENUNGSANLEITUNG

BUBBLE MACHINE

SAFETY INSTRUCTIONS

1. When using electrical appliances, basic safety precautions should always be followed.
2. Do not immerse the appliance in water or any other liquids (apart from the bubble making liquid that should only be put in the front compartment).
3. Close supervision is required when using this appliance near children.
4. Never leave the appliance within reach of children.
5. Repairs to electrical appliances should only be performed by a qualified electrician. Improper repairs may place the user at serious risk.
6. This appliance is intended for household use only and should not be used for industrial purposes.
7. Do not use this appliance for anything other than its intended use.

BATTERY SAFETY

Always:

• Ensure the battery compartments are secure.
• Only use the batteries recommended.
• Ensure correct fit of batteries, observing the plus and minus marks on both the battery and the compartment.
• Replace a full set of batteries in their packaging and keep away from metal objects that may cause a short circuit.
• Remove dead batteries from equipment.
• Remove batteries from appliances that will not be used again for a long time.
• Supervise children with batteries at all times.
• Remember to keep small batteries away from small children as they can be easily swallowed.
• Seek immediate medical attention if batteries are swallowed.

Never:

• Mix old and new batteries.
• Mix different types of batteries.
• Dispose of batteries in a fire.
• Attempt to recharge ordinary batteries.

INSTRUCTIONS FOR USE

1. This is an electrical appliance, not a toy. Keep out of reach of children and pets.
2. Place the machine on a solid, flat, stable surface.
3. Avoid direct sunshine and sources of heat.
4. Be aware that when the bubbles break, it will form a wet slippery surface. Please take care and wipe clean with a dampened cloth.
5. Pour approximately 100ml of the bubble liquid into the front compartment of the machine where the wheel spins round.
6. Always unplug the adaptor if being used before filling.
7. It is advisable not to run this unit for more than one hour at a time to prolong the lifetime of the motor.

CLEANING & MAINTENANCE

- Clean the appliance with a soft, damp, lint free cloth.

REPLACING THE BATTERIES

• If your machine stops working after a while, the batteries may require replacing.
• Switch Off the On/Off switch and remove the only screw from the top of the product.
• Remove the cover and remove the old batteries and replace with a new 1.5V LR6 'AA' type battery. Replace the top cover.

SPECIFICATIONS:

Input power:

4pcs size LR6 "AA" 1.5V battery or input 220\~230V\~50/60Hz - Output: 6V dc 400mA

Tank capacity: Approximately 100ml.

SOUND RESPONSIVE LED MOTOR FOR MIRROR BALL

GENERAL SAFETY RECOMMENDATIONS:

• Read the manual prior to using the unit.
• Keep the manual for further reference.
• Keep the packaging so that you can transport the unit in its original packaging in order to avoid damage.
• For indoor use only. Do not use the unit in a humid environment.
• Do not use the unit close to heat sources or under direct sun light.
• Make sure that no liquids or small components can enter the housing.
• Use a damp, dust-free cloth to clean the unit. Do not use cleaners or solvents!
• The unit doesn't contain user serviceable parts.
• Keep out of the reach of children.
• The unit should only be repaired by an qualified electronic repair shop.
• FIRE HAZARD: install the mirror ball with motor at a distance of at least 2 ft from flammable materials (decoration material and others).
• DANGER: Before the first use of an mirror ball and a motor, the installation needs to be checked by an adult.

INSTALLATION:

NOTE: Follow the instructions diagram carefully when mounting the motor and mirror ball.

A falling mirror ball can cause serious injuries!

• The installation must be done in such a way that it can support 10 times the weight of the mirror ball (approx 20 lbs).
• Motor and mirror ball must be installed out of the reach of children and pets.
• Use only the supplied chain with this product.

The supplied chains are made to the load of the motor.

- Hang motor from a hook in your ceiling. Make sure the hook can support the products' weight.

OPERATION:

• Open battery compartment and install batteries.
• Use switch on side to turn motor on.
• Use only the supplied chain with this product.
• Hang motor from a hook in your ceiling. Make sure the hook can support the products' weight.
• You are now ready to party!

NOTE: The on switch has two positions. One is steady on operation (LED lights continuously turned on), and the other is a sound responsive operation, in which the motor's LED's will flash to the beat of any ambient sounds.

Do not attempt to make any repairs yourself. Do not make any changes to the unit.

Technical specifications:

Max Load: 2 kgs

Max. Dia. Of mirror ball: 30cm

Rotation speed: 6 rpm

Power: 3pcs 1.5V LR6 / AA

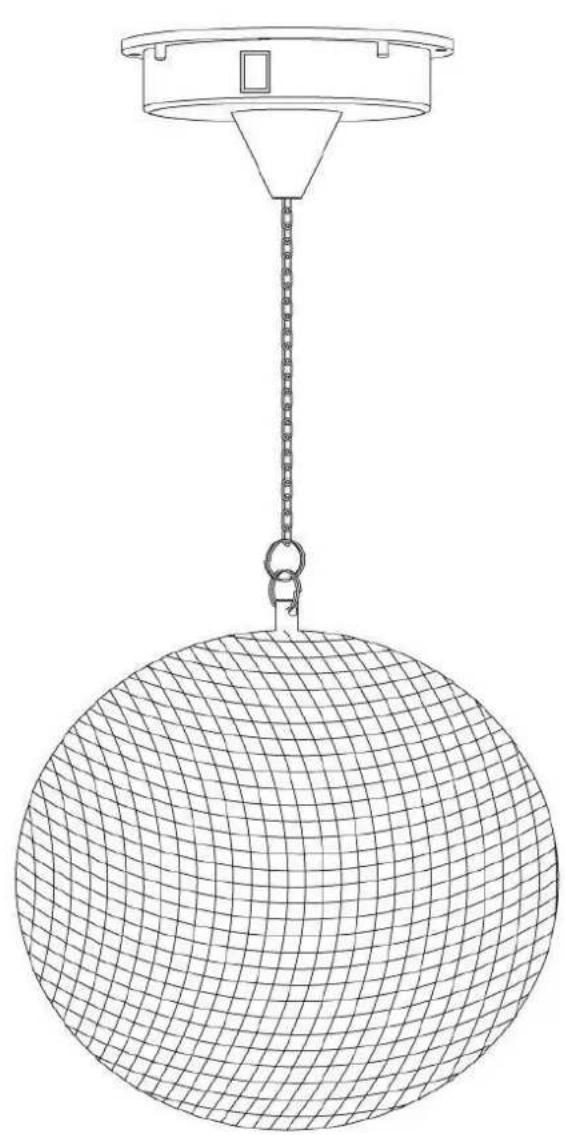

Line drawing of a suspended object with a grid pattern and chain link (no text or symbols)

Simple line drawing of two hanging circular objects with a handle, no text or symbols present

(1)

Simple line drawing of a rope knot tied to a vertical support (no text or symbols)

(2)

Simple line drawing of a rope knot with a loop and chain (no text or symbols)

(3)

MINI LED STROBE LIGHT

Warnings

AVOID DIRECT EYE EXPOSURE

Do not expose to rain or moisture! For indoor use only!

Never block the air opening of the strobe.

The capacitors inside the unit might be charged even if the unit is unplugged.

If the unit has not been used for a longer period of time, condensation can occur inside the housing. Please let the unit reach room temperature prior to use.

Keep out of the reach of children.

Operation

The Mini LED Strobe Light is switched on by the on/off switch at the rear. You can set the flash speed via the speed control knob on the back of the unit.

SAFETY RECOMMENDATIONS

Do not look directly into the light. The short, strong flashes might cause health problems to persons with photo sensitive disorders. Keep the Mini Strobe away from humidity and dust. - Do not switch the unit on if the case is damaged. Do not make any repairs yourself.

Specifications

Power supply:....6Vdc

Flash speed:....adjustable up to 10 flashes per second

Battery: 4pcs 1.5V LR6 / AA Batteries

NL

BELLENBLAAS MACHINE

VEILIGHEID

Volume reservoir: +/- 100ml.

Line drawing of a suspended spherical object with a chain and hook, no text or symbols present

Simple line drawing of two hanging rings with a handle, no text or symbols present

(1)

Simple line drawing of a mechanical lifting or clamping device with no text or symbols

(2)

Line drawing of a mechanical clamp or hook assembly (no text or symbols)

(3)

BEDIENING:

SEIFENBLASEN MASCHINE

SICHERHEITSHINWEISE

Technical diagram showing a spherical object with mesh grid and three labeled mechanical components (1, 2, 3) for lifting or mounting.

BEDIENUNG:

Blue glossy circular icon with a stylized white 'b' or letter 't' in the center (no text or symbols beyond the graphic)

tronios

Sound & Light

CE – Declaration of Conformity

Importer: TRONIOS BV

Product Description:

Disco Set IV: Bubble Machine, LED Strobe and Mirror Ball with Motor

Regulatory Requirement: EN 60598-1/-2

EN 60335-1

EN 55014-1/-2

EN 61000-3

The product meets the requirements stated in Directives 2006/95 and 2004/108/EC and conforms to the above mentioned Declarations.

ALMELO,

06-02-2013

Signed: P. Feldman

Handwritten signature or scribble on white background, possibly a signature or artistic mark

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.

Copyright © 2013 by TRONIOS the Netherlands
