Type de produit	Moving head light effect
Marque	BeamZ
Modèle	MHL832 150.517
Source lumineuse	8x 3W RGBW LEDs
Mouvement panoramique	540°
Mouvement d'inclinaison	270°
Contrôle DMX	Yes, 14 or 20 channels
Mode autonome	Yes, built-in programs
Alimentation	AC 100-240V, 50/60Hz
Consommation	30W
Dimensions	250 x 150 x 300 mm
Poids	2.5 kg
Indice de protection	IP20
Fonctions principales	RGBW color mixing, strobe, dimmer, sound-activated
Entretien	Clean lenses with soft cloth, avoid moisture
Sécurité	Use safety cable, do not stare at beam
Pièces détachées	LED modules, power supply, main board available

Frequently Asked Questions - MHL832 150.517 BeamZ

How do I set up the MHL832 for the first time?

Mount the fixture securely using the included bracket and safety cable. Connect power and DMX cable if using. Set DMX address via the control panel.

What are the DMX channel modes?

The MHL832 offers two modes: 14 channels for basic control or 20 channels for advanced control of individual LEDs.

Can I use the MHL832 without a DMX controller?

Yes, it has built-in automatic programs and sound activation modes for standalone use.

How do I clean the fixture?

Disconnect power and use a soft, dry cloth to clean the lenses and housing. Avoid using solvents or water.

What is the maximum ambient temperature for operation?

The fixture is rated for ambient temperatures up to 40°C (104°F). Ensure adequate ventilation.

How often should I replace the LEDs?

LEDs are rated for approximately 50,000 hours of operation. Replacement should be done by a qualified technician.

Can I mount the MHL832 vertically?

Yes, it can be mounted in any orientation, but ensure the base is securely attached to a truss or stand.

What should I do if the fixture stops responding?

Check power and DMX connections. Reset by power cycling. If problem persists, consult the manual.

Is the MHL832 compatible with third-party DMX controllers?

Yes, it uses standard DMX512 protocol and works with most commercial controllers.

How do I update the firmware?

Firmware updates are not user-serviceable. Contact BeamZ support for latest version and instructions.

USER MANUAL MHL832 150.517 BeamZ

Line drawing of a mechanical optical instrument with multiple lenses and a display unit (no text or symbols)

INSTRUCTION MANUAL

GEBRUIKSAANWIJZING

GEBRAUCHSANLEITUNG

Congratulations to the purchase of this Beamz light effect. Please read this manual thoroughly prior to using the unit in order to benefit fully from all features.

Read the manual prior to using the unit. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference.

• Prior to using the unit, please ask advice from a specialist. When the unit is switched on for the first time, some smell may occur. This is normal and will disappear after a while.
• The unit contains voltage carrying parts. Therefore do NOT open the housing.
• Do not place metal objects or pour liquids into the unit This may cause electrical shock and malfunction.
• Do not place the unit near heat sources such as radiators, etc. Do not place the unit on a vibrating surface. Do not cover the ventilation holes.
• The unit is not suitable for continuous use.
• Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction.
• When unplugging the unit from a mains outlet, always pull the plug, never the lead.
• Do not plug or unplug the unit with wet hands.
• If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician.
• If the unit is damaged to such an extent that internal parts are visible, do NOT plug the unit into a mains outlet and DO NOT switch the unit on. Contact your dealer. Do NOT connect the unit to a rheostat or dimmer.
• To avoid fire and shock hazard, do not expose the unit to rain and moisture.
• All repairs should be carried out by a qualified technician only.
• Connect the unit to an earthed mains outlet (220-240Vac/50Hz) protected by a 10-16A fuse.
• During a thunderstorm or if the unit will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use.
• If the unit has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on. Never use the unit in humid rooms or outdoors.

• During operation, the housing becomes very hot. Do not touch it during operation and immediately after.

• To prevent accidents in companies, you must follow the applicable guide lines and follow the instructions.

• Secure the unit with an extra safety chain if the unit is ceiling mount. Use a truss system with clamps. Make sure nobody stands in the mounting area. Mount the effect at least 50cm away from inflammable material and leave at least 1 meter space on every side to ensure sufficient cooling.
• This unit contains high intensity LEDs. Do not look into the LED light to prevent damage to your eyes.
• Do not repeatedly switch the fixture on and off. This shortens the life time.
• Keep the unit out of the reach of children. Do not leave the unit unattended.
• Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist.
• Only operate the unit with clean hands.
• Do not force the controls.
• If the unit has fallen, always have it checked by a qualified technician before you switch the unit on again.
• Do not use chemicals to clean the unit. They damage the varnish. Only clean the unit with a dry cloth.
• Keep away from electronic equipment that may cause interference.
• Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur.
• Switch the unit off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the unit.
• Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults!
• The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this unit.
• Keep the original packing material so that you can transport the unit in safe conditions

This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard.

This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to.

DO NOT LOOK DIRECTLY INTO THE LENS. This can damage your eyes. Persons who are subject to epileptic attacks should be aware of the effects that this light effect may have on them.

The unit has been certified CE. It is prohibited to make any changes to the unit. They would invalidate the CE certificate and their guarantee!

NOTE: To make sure that the unit will function normally, it must be used in rooms with a temperature between 5^ C/41°F and 35^ C/95°F.

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

NEDERLANDS

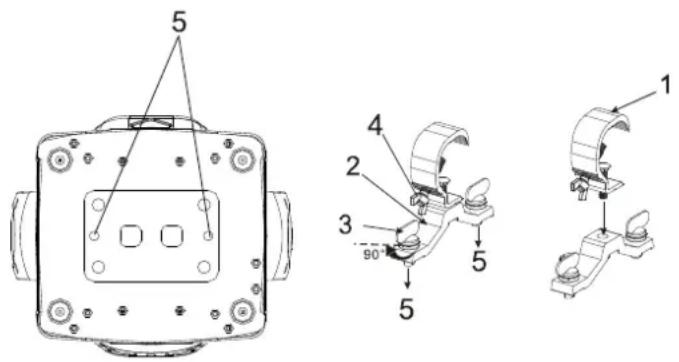

CAUTION: Please consider the respective national norms during the installation! The installation must only be carried out by an authorized employee or dealers!

Attention:

• The installation of the fixture has to be built and constructed in a way that it can hold 10 times the weight for 1 hour without any harming deformation.
• The installation must always be secured with a secondary safety attachment, e.g. an appropriate catch net. This secondary safety attachment must be constructed in a way that no part of the installation can fall down if the main attachment fails.
• Make sure the area below the installation place is free from unwanted persons during rigging, de-rigging and servicing.
• The operator has to make sure that safety-relating and machine-technical installations are approved by an expert before taking into operation for the first time and after changes before taking into operation another time.
• The operator has to make sure that safety-relating and machine-technical installations are approved by a skilled person once a year.
• The fixture should be installed in the position where persons cannot reach and where persons may walk by or be seated.

CAUTION: When installing the device, make sure there is no highly in inflammable material (decoration articles, etc.) in between a distance of min 0.5 meter.

Technical diagram of a mechanical assembly with numbered components and angular measurement annotation

POWERSUPPLY

On the label on the backside of the light effect is indicated on this type of power supply must be connected. Check that the mains voltage corresponds to this, all other voltages than specified, the light effect can be irreparably damaged. The light effect must also be directly connected to the mains and may be used. No dimmer or adjustable power supply.

Maximum 20 PCS fixtures connected by Daisy chain connection.

FIXTURE CLEANING

The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp, smoky or particularly dirty surrounding can cause greater accumulation of dirt on the unit's optics.

• Make sure the area below the installation place is free from unwanted persons during servicing
- Housings, fixations and installations spots( ceiling, truss, suspensions) should be totally free from any deformation
- The mains cables must be in impeccable condition and should be replaced immediately when even a small problem is detected
- In order to protect the fixture from overheat the cooling fans (if any) and ventilation openings should be cleaned monthly.
- The interior of the fixture should be cleaned annually using a vacuum cleaner or air-jet.
- Clean with soft cloth using normal glass cleaning fluid.
• Always dry the parts carefully.
- Clean the external optics at least every 20 days. Clean the internal optics at least every 30/60 days.

ATTENTION: We strongly recommend internal cleaning to be carried out by qualified worker!

DISPLAY AND PANEL

Buttons:

MENU	Switch menu function
UP	Page upUpper page
DOWN	Page down
ENTER	Enter in to selected function

1 2 3

4 5 6 7 8 9

1. LCD display panel
2. Buttons (see above)
3. Air outlet
4. Power input
5. Power output
6. Power switch
7. DMX signal input
8. DMX signal output
9. GND Earth (earthing to avoid electric shock)

MENUUP/ DOWN	MENU DMX512	ENTERUP/DOWN	DMX20CH	Enter→UP/ DOWN to set up address value→ENTER
			DMX14CH	Enter→UP/ DOWN to set up address value→ENTER.
	MENU Manual	ENTER→UP/DOWN to select CH1 or CH20→ENTER
	MENU LED- FUNC	ENTERUP/DOWN	LED-FUNCGradual	ENTER→run stand-alone
			LED-FUNCJump	ENTER→run stand-alone
			LED-FUNCFlash	ENTER→run stand-alone
			LED-FUNCLED-Auto	ENTER→run stand-alone(Gradual-Jump-Flash-Built in macro)
			LED-FUNCSound	ENTER→Sound active
			LED-FUNCLED-SP	ENTER→UP/DOWN to speed adjust(0-255 from t fast to slow →ENTER
			LED-FUNCFUN-Off	ENTER→LED Function Off
	MENU M-Test	ENTERUP/DOWN	M-TestAUTO-1	ENTER→Auto-1
			M-TestAUTO-2	ENTER→Auto-2
			M-TestAUTO-3	ENTER→Auto-3
			M-TestAUTO-4	ENTER→Auto-4
		M-Test AUTO-5	ENTER→Auto-5
		M-Test AUTO-6	ENTER→Auto-6
		M-Test AUTO-7	ENTER→Auto-7
		M-Test AUTO-8	ENTER→Auto-8
		M-Test ALL E	ENTER→Auto-1 to Auto-8
		M-Test MOT-Off	ENTER→Auto Off
MENUSYS- SET	ENTER↓UP/DOWN	SYS-SETDMX-OUT	ENTER→UP/DOWN to select YES/NO→ENTER.In Master-Slave model, YES stands for Master fixture turns ON signal output; NO stands for Master fixture turns OFF signal output.
		SYS-SETPAN-R	ENTER→UP/DOWN to select YES/NO→ENTER. YES stands for X axle rotates counter-clock-wise, NO stands for X axle rotates clock- wise.
MENUSYS- SET	Press ENTER↓UP/DOWN	SYS-SETTilt-R	ENTER→UP/DOWN to select YES/NO→ENTER. YES stands for Y axle rotates counter-clock-wise, NO stands for Y axle rotates clock- wise.
		SYS-SETRST-SYS	ENTER→UP/DOWN to select YES/NO→ENTER. YES stands for RESET. NO stands for current status.
		SYS-SETPassword	Press ENTER↓UP/DOWN	YES to set up three-digit-number password.ENTER→UP/DOWN to choose digit(0-9)→ENTER.Defult password is 680. Power off fixture to active password lock function.
				NO to unlock password.ENTER→, UP/DOWN to key in password→ENTER. Default password is 680.

Comment: Press MENU to back to the last option. Press ENTER to save.

How to erase password: Please press MENU→UP/ DOWN→MENU SYS-SET→ENTER→UP/ DOWN→SYS-SET Password→ENTER→UP/ DOWN→NO→ENTER→password(default 680)→ENTER.

14 Channels

Channel Function		Value Description
1	X	001-127	0-360
		128-191	Free rotates clockwise from slow to fast
		192-255	Free rotates counter-clock-wise from slow to fast
2	Y	001-127	0-360
		128-191	Free rotates clockwise from slow to fast
		192-255	Free rotates counter-clock-wise from slow to fast
3	X 16Bit	000-255
4	Y 16Bit	000-255
5	Dimming	000-255	From dark to bright
6	RED	000-255	From dark to bright
7	Green	000-255	From dark to bright
8	Blue	000-255	From dark to bright
9	A/B Switch	000-084	OFF
		085-169	B Turns on
		170-255	A Turns on
10	Flash	000-255	From slow to fast
11	Stand-alone/ sound-active	002-060	gradually
		061-120	Jump
		121-180	Gradually+Jump
		181-240	Sound-active / flash
		241-255	Sound-active/ Jump
12	Stand-alone speed/sound-active volume	000-255	From fast to slow
13	X-Y Speed	000-255	From fast to slow
14	Reset	000-254	Not applicable
		255	Reset after 2 second intervals

20 Channels

Channel Function		Value Descri pton
1	X	001-127	0-360
		128-191	Free rotates clockwise from slow to fast
		192-255	Free rotates counter-clock-wise from slow to fast
2	Y	001-127	0-360
		128-191	Free rotates clockwise from slow to fast
		192-255	Free rotates counter-clock-wise from slow to fast
3	X 16Bit	000-255
4	Y 16Bit	000-255
5	Dimming	000-255	From dark to bright
6	RED	000-255	From dark to bright
7	Green	000-255	From dark to bright
8	Blue	000-255	From dark to bright
9	A/Red	000-255	From dark to bright
10	A/Green	000-255	From dark to bright
11	A/Blue	000-255	From dark to bright
12	B/Red	000-255	From dark to bright
13	B/Green	000-255	From dark to bright
14	B/Blue	000-255	From dark to bright
15	A/B Switch	000-084	OFF
		085-169	B Turns on
		170-255	A Turns on
16	Flash	000-255	From slow to fast
17	Stand-alone/ sound-active	002-060	Gradually
		061-120	Jump
		121-180	Gradually+Jump
		181-240	Sound-active / flash
		241-255	Sound-active/ Jump
18	Stand-alone speed/ sound-active volume	000-255	From fast to slow
19	X-Y Speed	000-255	From fast to slow
20	Reset	000-254	Not applicable
		255	Reset after 2 second intervals

DMX-512 CONNECTION

If you are using a standard DMX controller, you can connect the DMX output of the controller directly to the DMX input of the first unit in a DMX chain. If you wish to connect a DMX controller with other XLR outputs you will need to use adapter cables.

Connect the DMX output of the first unit in a DMX chain with the DMX input of the next unit in the chain. Always connect the output of one unit with the input of the next unit until all units are connected. If you use a controller with 5 pin DMX connection you will need to use a 5 pin to 3 pin adapter.

DMX Input 3-Pin XLR Socket

DMX Output 3-Pin XLR Socket

1: Ground
2: Signal (-)
3: Signal (+)

Caution at the unit, the DMX cable has to be terminated with a terminator. Solder a 120 Ohm resistor between signal (-) and signal (+) into a 3-pin XLR connector and plug this into the DMX output of the last unit in the chain.

DMX MODE

This mode allows you to use universal DMX-512 console to operate.

1. Install the units in a suitable position.
2. Use standard XLR cable to connect your units together via the XLR connector on the rear of the units. For longer cable we suggest a terminator at the last fixture.
3. Assign a DMX address to each the unit using the display or dipswitches.
4. Turn on all units. Use DMX console to control your units.

Unit.1 Unit.2 Unit.N DMX-in Power-in DMX-out Power-out

TROUBLE SHOOTING

Trouble Probable cause(s) Remedy
No response from fixture when power is applies	No power to fixture Check power cables
	Primary fuse blown Replace fuse
	Secondary fuse blown Replace fuse
Fixture resets but does not respond correctly to controller(DMX mode operation)	Controller not connected	Connect controller
	Incorrect addressing of the fixtures	Check address setting on fixture and controller
	Bad data link connection	Inspect cables and correct poor connections and/or broken cables.
	Conflict between tracking and vector control	Eliminate scene cross-fade on controller
	Data link not terminated	Insert termination plug in output of last fixture
	Defective fixture or 2 devices transmitting on link	Bypass fixtures one at a time until normal operation is regained:unplug both connectors and connect them directly together
Colors cannot be mixed	Random color mixing is on	Turn off random color mixing
Fixture does not reset correctly	Electronic or mechanical failure	Contact service technician
No light, lamp cuts out intermittently,or burns out too quickly	Lamp missing or blown	Disconnect fixture and replace lamp
	Fixture or lamp is too hot	Allow fixture to cool. If problem persists,contact service technician

TECHNICAL SPECIFICATION

Rated voltage : AC110\~240V 50/60Hz

Rated power : 120W

LED : 3x8Watt x2 RGB

Channel : 14/20 Channels

Pan/Tilt movement : Free rotation

Function : DMX, Auto, Sound active and Master-Slave.

Dimensions per unit : 235 x 270 x 425mm

Weight (per unit) : 6.8Kg

The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

Blue glossy circular icon with a stylized white 't' or 'G' symbol (no text or numbers)

tronios

Sound & Light

CE Declaration of Conformity

Importer:

TRONIOS

BV

Product Description:

MHL832 Double Beam Moving Head RGB

Regulatory Requirement: EN 60598-1/-2-17:2009

EN 55015:2007

EN 61547:2009

EN 61000-3-2/-3-3

The product meets the requirements stated in Directives 2006/95 and 2004/108/EC and conforms to the above mentioned Declarations.

Almelo,

21-09-2014

Signature :

Handwritten signature or scribble on white background, possibly a signature or artistic mark

Specifications and design are subject to change without prior notice..

www.tronios.com

Copyright © 2014 by TRONIOS the Netherlands
