KOM0479 - Keyboard Quer - Free user manual and instructions

Product Type	Wired Keyboard
Brand	Quer
Model	KOM0479
Dimensions (L x W x H)	440 x 140 x 30 mm
Weight	Approx. 600 g
Power Supply	USB bus-powered
Connectivity	USB 2.0 Type-A
Cable Length	1.8 m
Key Layout	104 keys (US standard)
Special Keys	Multimedia keys, volume control
Compatible Systems	Windows, macOS, Linux
Keystroke Life	Up to 10 million keystrokes
Spill Resistance	Yes, drainage holes
Noise Level	Silent membrane keys
Cleaning	Wipe with a soft, damp cloth
Safety	Avoid liquid ingress; unplug when cleaning
Spare Parts Availability	Not available separately; replace entire unit
Documentation	User manual (34 pages) available for download

Frequently Asked Questions - KOM0479 Quer

How do I clean my Quer KOM0479 keyboard?

Unplug the keyboard and wipe the surface with a soft, slightly damp cloth. Avoid using harsh chemicals or submerging the keyboard in water. Let it dry completely before reconnecting.

The keyboard is not recognized by my computer. What should I do?

Try connecting the keyboard to a different USB port. If that doesn't work, restart your computer. Check that the USB port is functioning using another device. If the issue persists, the keyboard may be defective.

Is the Quer KOM0479 keyboard compatible with a Mac?

Yes, it works with macOS. Plug and play; no additional drivers required. Some multimedia keys may have different functions on macOS.

Can I replace individual keys?

The keys are not designed to be user-replaceable. If a key fails, the entire keyboard may need to be replaced. Contact Quer support for assistance.

How do I adjust the volume using the multimedia keys?

Use the dedicated volume up/down keys often located on the top row. They work directly in most operating systems. If not, check your system's audio settings.

Does the keyboard have a warranty?

Yes, Quer offers a standard 1-year warranty against manufacturing defects. Keep your proof of purchase. For claims, contact Quer customer service.

Why are some keys not responding?

First, check for physical obstructions or debris under the keys. Clean gently. If problem persists, try the keyboard on another computer to isolate the issue. If still faulty, it may require replacement.

Can I use the keyboard while charging another device?

The keyboard itself does not require charging (wired). It does not provide power to other devices. It will function normally while other USB devices are connected to different ports.

How long is the cable?

The USB cable is approximately 1.8 meters (6 feet) long, which allows comfortable placement on a desk.

Where can I download the user manual?

You can download the manual in PDF format from the official Quer website or from support pages like notice-facile.com. The manual contains 34 pages of detailed instructions.

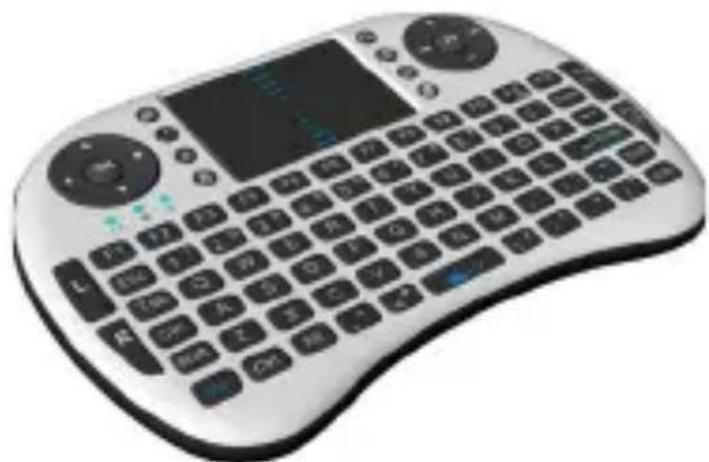

USER MANUAL KOM0479 Quer

Wireless Keyboard Bluetooth 3.0 dedicated to Android Smart TV dongle

KOM0479

White and black digital keyboard with control buttons and a display screen (no visible text or symbols)

Bedienungsanleitung

Owner's manual

Instrukcja obsługi

Manual de utilizare

DE

EN

PL

RO

DE

Touchpad

To avoid injury, death of personnel or damage to the equipment the operator must refer to the explanations in this User's Manual.

Battery: There is a lithium-ion rechargeable battery in this device. Don't water this device, or put it in a humid environment for a long time or the device will be damaged.

Attention to traffic safety

(CAR PC): Do not use the device while driving. When you want to use it, please park your car.

Turn off this device on planes

This Electronic wireless product can disturb the communications systems of planes. Please turn if off before boarding.

In vicinity of dangerous goods to be shut down

In gas station and close to fuel and chemical agents and other hazardous materials are as,please turn the device off.

Turn off this device in hospital

Please turn the device off in areas with “no wireless device” indication. Wireless devices may interfere with implanted cardiac pacemakers, hearing aids and other. Medical implant devices.

Interference

All wireless devices may be subject to interference, thus affecting the performance of this product.

Accissories

Only use factory specified parts.Please use the supplied travel charging cable.the use of other charging devices may be dangerous.

Overview

This is a wonderful combo, Bluetooth Mini Wireless QWERTY keyboard , TouchPad combo, with USB interface Adapter

For the lectuer, sales manager, presenter, from within a 30' radius make a presentation and operate PC wirelessly. Change slides and screen options, write on the screen, emphasize words and objects just by using this wireless Mini Keyboard and Mouse with Touch Pad.

For people who want to watch internet TV play on their standard TV, via broadband and a PC, like NBC, ABC, FOX and IPTV, Android TV Box, if use this wireless mini combo, who can sit in comfortable chair and select viewing pleasures without walking to computer to change channels or scroll through options.

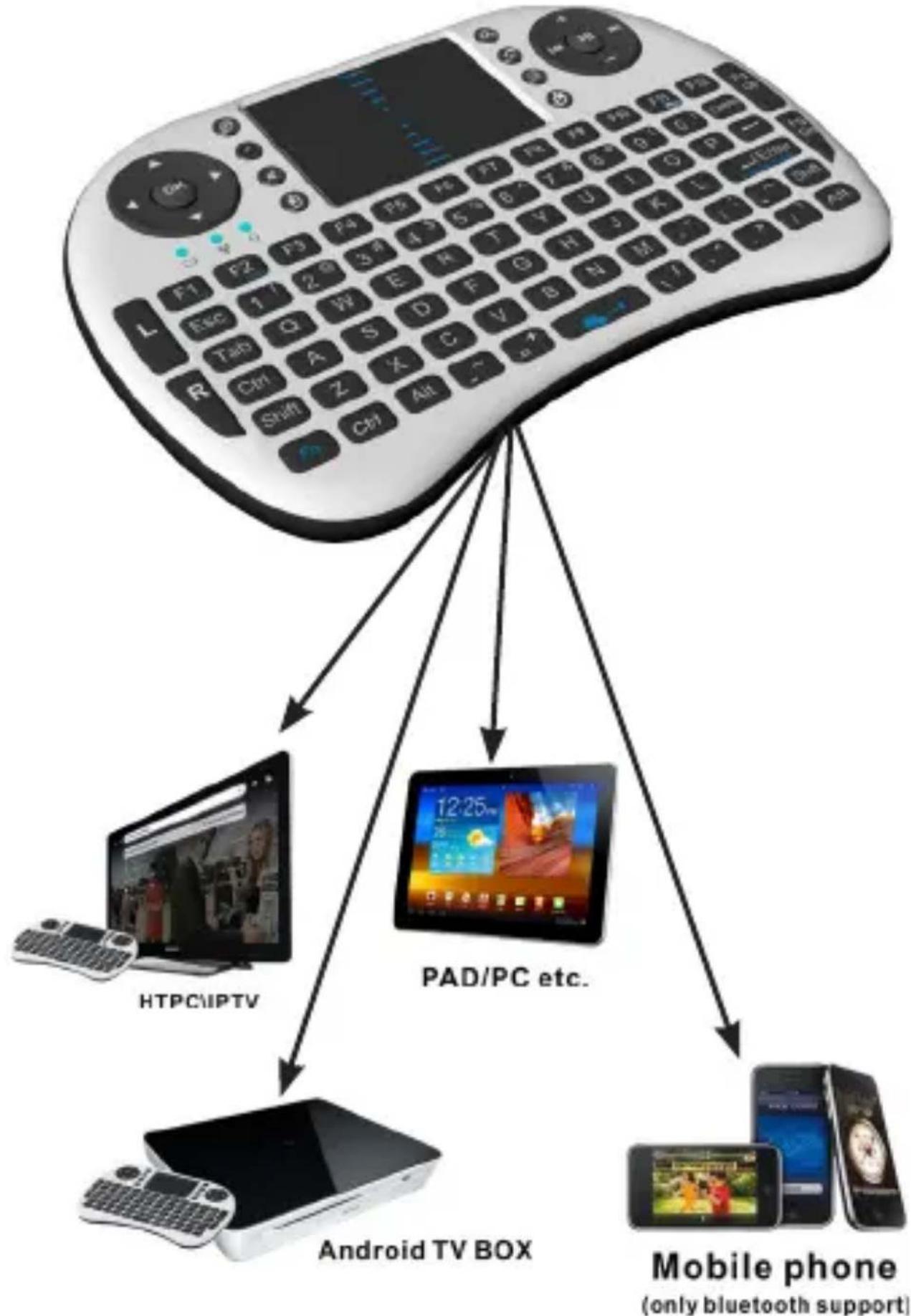

Introduction Product overview

EN

Touchpad

This product was added to the innovative function Of the mouse wheel,when you press the Fn button With your fingers Touch anywhere in the sliding regionk,can facilitate the realization of the mouse wheel functions.This human design,it can be easier for to browse the web better,edit documents.

Connecting the receiver

Press the Bluetooth button on the keyboard, after a while, the range LED will flash. The device is ready for pairing. With other devices with Bluetooth 3.0 select from the list of available devices „BT Touchpad_keyboard”. Then enter the displayed password on the device URZ0479 and press „Enter”.

Auto sleep and wake feature

The keyboard also features an auto sleep and auto wake mode. If there is a long period of inactivity, the keyboard will automatically go into a sleep mode.

During the sleep mode, the user can wake the unit up by pressing any key. The 2.4 GHz receiver and keyboard's RF indicator will continue to flash and will not power down.

Switching off the keyboard after use

After finishing using the keyboard, push the switch to the off position. This turns off the power, of the keyboard. The USB receiver should be plugged out from the PC and then inserted back in the keyboard so it is being kept safely.

Charging the battery(Only for Configure A)

The device with built-in lithium-ion battery, please use only approved data lines and chargers.

Fully charge the unit before operating for the first time. This device can be used when charging, but will extend the charging time;

When the battery is low, the low-voltage light will flash to warn the user. The unit will automatically turn off if the battery has been depleted.

Notes: This product has the configuration of A and B configuration can choose

Configure A: lithium battery version, this version built in rechargeable lithium battery, additional charge USB line.

Configure B: install AAA * 2 battery, this version does not support the charging function.

Appendix

Technical parameters, specification

Measurements (L x W x H): 146.8 x 97.5 x 19mm

Weight (grams): 110g

Operational Range: up to 10 meters

Transmit power : +5db Max.

Operation voltage: 3.3V

Operation current: < 50mA

Charging current: < 300mA

Sleep current: < 1mA

Computer system requirements

Windows 2000

Windows XP

Windows Vista ,Windows CE, Windows 7

Linux(Debian-3.1, Redhat-9.0 Ubuntu-8.10 Fedora-7.0 tested)

Maintenance

• Do not attempt to disassemble the device or replace rechargeable battery. Doing so will void the warranty.
• The battery will discharge if stored for a long period of time without usage.
• Use the specified charger. Disconnect the device after the battery has been fully charged. Overcharging the battery will shorten the life span of the battery.
• Do not expose the device in extreme heat or cold.
  Extreme temperatures will cause the life span of the battery to shorten.
• Use only a damp cloth with mild soap to clean the device. Solvents and other cleaning agents may cause damage to the device.

EN

Troubleshooting

Below are some basic troubleshooting scenarios for the device. Please contact support from the place of purchase if you are unable to resolve any issues with the device.

Problem Possible issue Solution
Unit does not respond.	1. Low battery power.2. Unit is not turned on.	1. ConfigureA: Charge the device for at least 15 minutes.Configure B: Replacement of the AAA * 2 battery2. Check if the switch selected to the “ON” position.
Keyboard cannot establish a connection to the receiver.	1. The receiver may not be inserted correctly.	1. Disconnect and reconnect the receiver to the USB port.
The mouse pointer moves erratically and/or unresponsive.	1. Device may not be within optimal range of the receiver2. Low voltage3. Dust or oil on the touchpad.	1. Bring the unit closer to the receiver.2. Please recharge(for Configure A) or replace the battery(for Configure B)3. Clean the touchpad with a damp cloth.

EN

The unit does not charge (only for Configure A.)

1. Defective battery.2. Check connections

1. Contact your local dealer for replacements.2. Verify if the device is securely connected to the charger.

Notes:

In line with the policy of continued development The manufacturer reserves the right to amend the specifications without prior notification, The pictures and date in the stylebook are consult only, If there is fluctuation, According to the real object please.

Since devices using 2.4G technology communicate using radio waves, your device and the other devices do not need to be in direct line-of-sight. The connection can be subject to interference from obstructions, such as walls, or other electronic devices

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or Its literature, indicates that It should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract This product should not be mixed with other commercial wastes for disposal

Made in China for LECHPOL Zbigniew Leszek, Miętne, 1 Garwolińska Street 08-400 Garwolin.

Środki ostrożności

Touchpad
