IDA 95172 - Motion detector Wentronic - Free user manual and instructions

Product Type	Motion Detector
Brand	Wentronic
Model	IDA 95172
Detection Range	Up to 12 meters
Detection Angle	120 degrees
Power Supply	2x AA batteries (not included)
Dimensions (HxWxD)	120 x 80 x 40 mm
Weight	150 g
Material	Plastic
Color	White
IP Rating	IP44 (splash-proof)
Operating Temperature	-10°C to +40°C
Mounting Type	Wall-mounted
Adjustable Timer	Yes (10 sec to 5 min)
Adjustable Sensitivity	Yes
Light Sensing	Yes (dusk/dawn)
Functions	Motion detection, automatic light control
Maintenance	Clean with a dry cloth
Safety	Low voltage operation
Spare Parts	Not available separately
General Information	For indoor and outdoor use

Frequently Asked Questions - IDA 95172 Wentronic

What should I do if the motion detector triggers false alarms?

Check that the detector is not facing moving objects like trees or animals. Reduce the sensitivity setting or reposition the sensor.

Why does the detector not detect movement?

Ensure batteries are fresh and installed correctly. Verify the detection range and angle, and clean the lens with a soft dry cloth.

What is the maximum coverage area?

The detector covers up to 12 meters with a 120-degree angle. For best results, mount at a height of 1.8-2.5 meters.

How do I install the motion detector?

Mount the base on a wall using screws (included). Insert 2x AA batteries, then adjust the sensor head to the desired angle. Refer to the installation diagram in the manual.

Can I use rechargeable batteries?

Yes, 1.2V NiMH rechargeable AA batteries are suitable, but the detection performance may vary slightly. Standard alkaline batteries are recommended.

How do I adjust the timer setting?

Turn the TIME dial on the bottom of the detector. Rotate clockwise to increase the delay (up to 5 minutes) and counterclockwise to decrease (minimum 10 seconds).

Can I connect the detector to a light fixture?

This model runs on batteries and is designed for standalone use. For wired connection, consider a different model.

What should I do if the detector stops working?

Replace the batteries with new ones. If the issue persists, check for physical damage or moisture ingress. The device is IP44 rated, but not fully waterproof.

How do I clean and maintain the motion detector?

Wipe the exterior with a soft, dry cloth. Do not use water or cleaning agents. Ensure the lens is free from dust and cobwebs for optimal detection.

Is there a warranty for this product?

Wentronic offers a 2-year warranty against manufacturing defects. Keep your purchase receipt and contact customer support for claims.

USER MANUAL IDA 95172 Wentronic

White wall-mounted electrical outlet with a control panel and indicator lights (no visible text or symbols)

Close-up of a white spherical object with a central hole and a small dot, resembling a smart speaker or sensor device (no text or symbols visible)

Close-up of an electrical socket with multiple buttons and wires (no visible text or symbols)

3D mechanical component diagram showing internal structure with labeled parts (no text or symbols)

Abdeckkappe

Two metallic screw components: a spiral screw and a straight screw, both labeled with '2x 2x' below (no additional text or symbols)

Diagram of a circular device with internal components and directional arrows, no text or symbols present

Anschluss

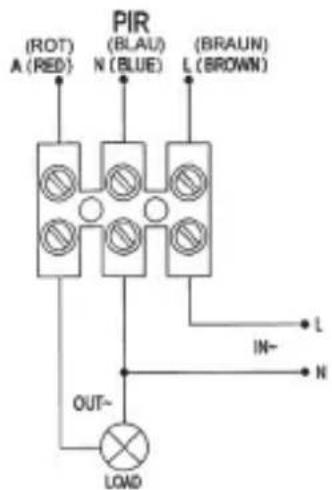

(ROT) A (RED) PIR (BLAU) N (BLUE) (BRAUN) L (BROWN) OUT~ LOAD IN- L N

Technical line drawing of a mechanical component with two vertical posts and a central base, no text or symbols present.

Anschluss

N L ORIER A1 N L1

Close-up of a wall-mounted electrical socket with multiple buttons and mounting holes (no visible text or symbols)

ATTENTION! Read the user's manual completely and carefully. It is part of the product and includes important information for proper installation and use. Keep this user's manual for clarification and only pass it on together with the product.

Table of Content:

Page:

1 Safety Instructions 14
2 Description and Function 16
3 Intended Use 17
4 Scope of Delivery 17
5 Installing and Operating 18
6 Maintenance, Care, Storage and Transport 20
7 Troubleshooting 21
8 Specifications 22
9 Warranty and Liability 23
10 Disposal Instructions 23
11 CE Declaration 24

1 Safety Instructions:

ATTENTION! Only skilled electricians may assemble and disassemble the housing of the product.

DANGER! Risk of life by electric shock!

Avoid contacting mains voltages!

Turn off the power of all circuits before working on the product!

ATTENTION! Risk of short-circuit!

Never bridge contacts!

Do not put things into ventilation slots or ports!

ATTENTION! Risk of injury by falling parts or impacts!

Mind respectable connections!

Install the product in a minimum height of 1.8 meters!

• This product is not a toy and is not meant for children, because it contains small parts which can be swallowed and can injure when used inappropriately!
• Do not use any damaged products or parts.
• Remove or store the packing materials well, because children may cut themselves on them while playing. Furthermore, there is a risk of swallowing and inhalating of incidentals and insulating material.
  • Install and store the product and its accessories in a way that does not infringe any person or property damage, eg due to falling or stumbling.
• Avoid extreme influences, e.g. like heat and coldness, humidity and direct sun insulaion, vibrations and mechanical pressure.
• Do not modify or change the product or its accessories! Also mind chapter “warranty and liability”.
• Mind the specifications for transporting and use applicable methods, e.g. by using the original packing.
• If defects, mechanical damages, disturbances or other problems occur, which are not solvable with this manual, take the device out of work immediately and consult your dealer for questions, repairing or change like it is described in chapter “warranty and liability”.
• A defective device may not be put into operation, but must be

protected against further use. Repairing, such as assembling and disassembling the housing is only allowed to skilled professionals. By repairing it yourself you will loose all warranties and there is a risk of electric shock and short circuit.

- Motion sensors are not suitable for use as components of an alarm system. They can trigger false alarms if the installation place has been chosen unfavourably.

2 Description and Function:

This product is an infrared motion sensor for indoors and is specified as installation material. It reacts to heat radiation (infrared radiation) of moving objects that enter the detection area of the sensor, eg. people and animals, etc. The sensor must „see“ the area which is monitored. Thermal radiation propagates in a straight line, but is stopped by glass or other solid objects.

Entering the detection area of the sensor switches the connected electrical consumer on and after a (adjustable) time off again automatically. A built-in photocell prevents working of the motion sensor during sunlight. In addition, the ambient brightness can be adjusted by a regulator.

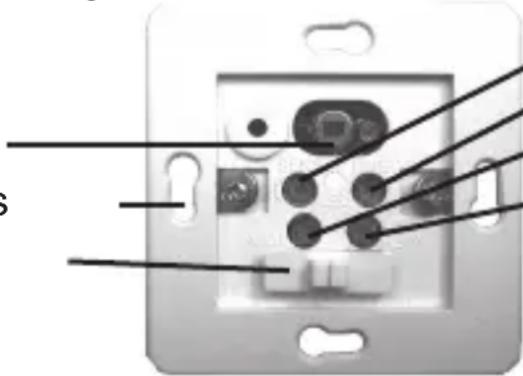

95171:

sensor

mounting holes slide switch

Diagram of an electrical socket with labeled components and arrows indicating connections

sensitivity (SENS) time setting (TIME) microphone (MIC) brightness (LUX)

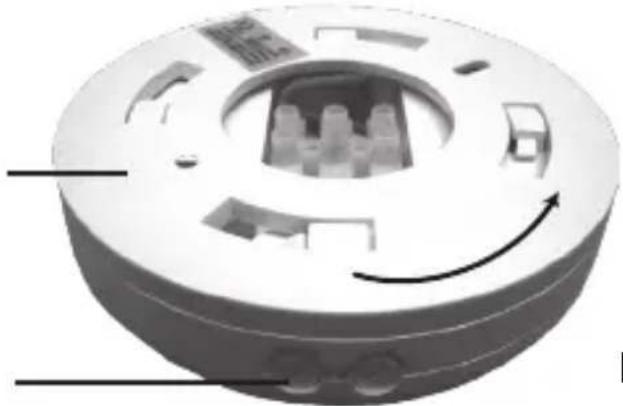

95172:

mounting

clamp

strain relief

for cable

cover cap time setting (TIME) brightness (LUX)

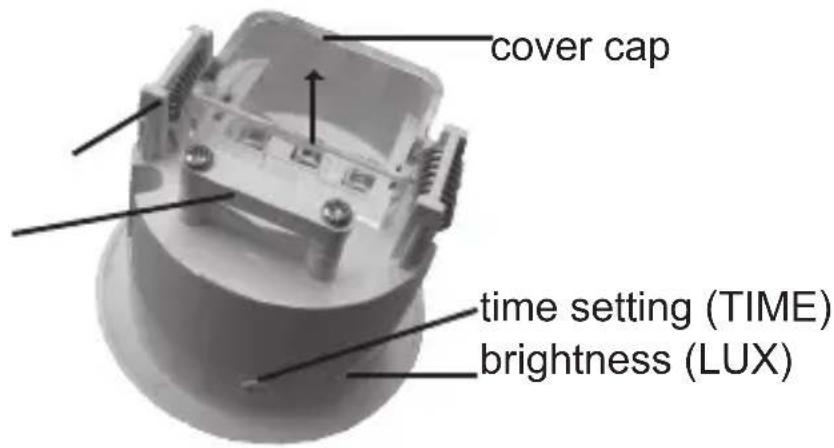

95173:

cover cap

3D mechanical component diagram showing internal slots and a curved arrow indicating motion (no text or symbols)

time setting

brightness (LUX)

3 Intended Use:

This product is made for home use like described in chapter 2. We do not permit using this product in other ways. Use the product only in dry interior rooms. If not attending to these regulations and notes on safety, it might causes fatal accidents, injuries and damages to persons and property.

4 Scope of Delivery:

1 x Infrared motion sensor
1 x user's manual
1 x installation material

Two types of screws: a wire with helical end and a metallic screw (no text or symbols visible)

5 Installing and Operating:

Installation:

DANGER! Risk of life by electric shock!

Avoid contacting mains voltages!

Turn off the power of all circuits before working on the product!

ATTENTION! Risk of short-circuit!

Never bridge contacts!

Do not put things into ventilation slots or ports!

1. Switch off the mains fuse.
2. Check with a voltage tester to be sure, all lines are really stress-free. If in doubt, a electrician must do the installation work.
3. Check the packing content for being complete.
4. Compare all products to be compatible to each other.
5. Remove the cover cap

95171: by using a screwdriver.

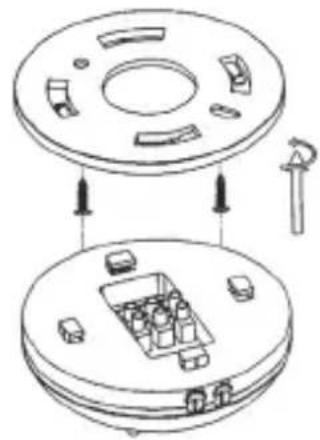

95172: by turning the cover cap anti clockwise.

95173: by pushing upwards.

Choose the installation place away from street lighting, plants or air conditioning vents. Avoid direct sun insulation eg. neer windows.

1. Attach the cover cap to a wall or ceiling in a height of 2.2 to 4.0 m with the installation material. At this, attend to the cable location and its alignment. Also attend to the detection area and max. distance.

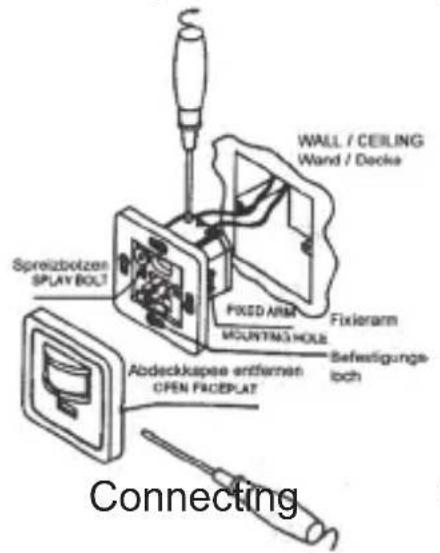

7. Install the motion sensor like shown:

95171: 95172: Installing Installing

Spreizbotzen SPAY BOLT FIXED ARM MOUNTING HOLE WALL / CEILING Wand / Decke Fixierarm Sefestigungs- loch Abdeckkappe entfernen OPEN FACEPLAT Connecting

Connecting

Lampe LOAD Eingang INPUT

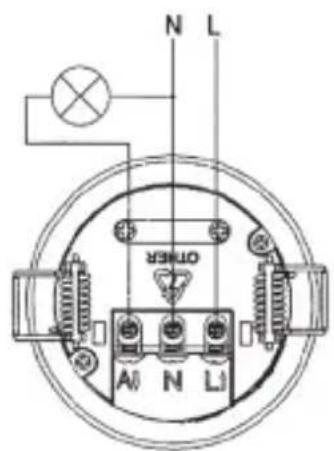

95173:
Installing

Diagram of a circular device with internal components and directional arrows, no text or symbols present

Connecting

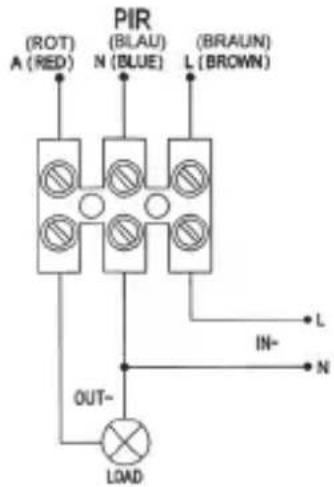

PIR (ROT) A (RED) (BLAU) N (BLUE) (BRAUN) L (BROWN) OUT- LOAD IN- L N

Technical line drawing of a mechanical component with two protruding rods and a central base, no text or symbols present.

N L ONER A1 N Li

The scope of delivery includes installation material for concrete walls or ceilings. Other materials need other installation material.

Note: L phase (hot)

N zero conductor (ground)

A consumer (lamp)

1. Plug the luster terminal onto the provided lugs.
2. Connect motion sensor and cover cap and lock the connection.
3. Switch on the mains fuse.

Operating:

95171:

Close-up of a wall socket with multiple connectors and mounting holes (no visible text or symbols)

(F2.5A / 250 V

Fuse integrated)

SLIDE SWITCH: Select between

ON: The motion sensor works without distance adjustment (PIR).

OFF: All functions are off.

PIR: distance adjustment is activated.

PIR+MIC: Distance adjustment and microphone are activated in addition.

TIME: Adjust the lighting time. (10 s \~ 7 min.)

LUX: Adjust the photosensitivity. (3-2000 Lx)

SENS: Adjust the detection distance. (4-9 m)

MIC: Adjust the sound control sensitivity of the microphone. (30-90 dB)

95172+95173:

TIME: Adjust the lighting time. (10 s \~ 7 min.)

LUX: Adjust the photosensitivity. (3-2000 Lx)

Motion sensors work by day and night. For daylight use, set LUX to maximum (SUN) for correct work.

6 Maintenance, Care, Storage and Transport:

DANGER! Risk of life by electric shock!

Avoid contacting mains voltages!

Turn off the power of all circuits before working on the product!

ATTENTION! Risk of short-circuit!

Never bridge contacts!

Do not put things into ventilation slots or ports!

• The device is maintenance-free.
- Switch off the mains fuse and disconnect the product from mains!
- Use a dry and soft cloth to clean your product. Be careful to avoid scratches. Use a slightly moist cloth for heavy stains. Look out for live cables! Do not use any cleaning supplies. This can cause burns to the materials. Avoid liquid entry to the device.
- Avoid places with high temperatures, humidity, or places which can become wet, also during maintenance, care, storage, and transport.
- Keep the product away from children and store it at dry and dust-proof places!
- Keep the original packing for transport and to avoid damages.

7 Troubleshooting:

Problem Help
The product does not work.	·Check all cables for being connected the right way.·Check the function of the lamp and switch on the mains fuse after complete installation.·Check the settings.

Sensitivity is not satisfying.	Remove objects out of the detection area.Temperatures >40°C can cause switching errors.Attend to right installation height.Adjust the sensitivity (LUX).
Lighting time is not satisfying.	Adjust the lighting time (TIME).
other questions • Consult your dealer.

8 Specifications:

Model 95171 95172 95173
Input voltage 220-240 V AC / 50 Hz
Ambient light 3-2000 Lux
Lighting time	min. 10+/-3 smax. 7+/-2 min.
Protection category IP20
Max. load 500 W		1200 W (Glühlampe)300 W (Energiespar-lampe)
Minimum load 40 W 1 W
Distance detection 4-9 m	max. 6 m (<24°C)
Detection angle	160°	360°
Working temperature	-20 ~ +40°C
Working humidity	<93% RH
Energy consumption	0.45 W (arbeitend)0.1 W (stand-by)

Detection speed 0.6~1.5 m/s
Dimensions	85 x 85 x 60 mm	125 x 125 x 65 mm	100 x 85 x 80 mm
Weight	142 g	212 g	146 g
Fuse	F2.5A/250 V	-	-

9 Warranty and Liability:

• The producer grants a 2 years warranty to a new device.
- As the manufacturer has no influence on installation, warranty only applies to the product itself.
- If any fault or damage is detected on your device, please contact your dealer and provide your sales slip or invoice as evidence of the purchase, if necessary. Your dealer will repair the fault either on site, or send the device to the manufacturer. You make the work of our technicians considerably easier, describing possible faults in detail – only then you can be assured that faults, occurring only rarely, will be found and repaired with certainty!
- The manufacturer is not liable for damages to persons or property caused by improper installation, operation or maintenance, not described in this manual.
• Do not alter or modify the product or its accessories.
- Any use other than described in this user's manual is not permitted and causes loss of warranty, loss of guarantee, and non-liability.
• We reserve our right for misprints and changes of the device, packing, or user's manual.

10 Disposal Notes:

According to the European WEEE directive, electrical and electronic equipment must not be

disposed with consumers waste. Its components must be recycled or disposed apart from each other. Otherwise contaminative and hazardous substances can pollute our environment.

You as a consumer are committed by law to dispose electrical and electronic devices to the producer, the dealer, or public collecting points at the end of the devices lifetime for free. Particulars are regulated in national right. The symbol on the product, in the user's manual, or at the packaging alludes to these terms. With this kind of waste separation, application, and waste disposal of used devices you achieve an important share to environmental protection.

WEEE Directive: 2002/96/EC

WEEE No: 82898622

11 CE Declaration:

This device corresponds to EU directive 2004/108/EC and 2006/95/EC: With the CE sign Goobay ^® , a registered trademark of the Wentronic GmbH ensures, that the product is

conformed to the basic standards and directives. These standards can be requested online on www.goobay.de. The mentioned directives replace all former national permissions in the European Union. All trademarks and registered brands are the property of their respective owners.

CE

Revision Date 2012-06-08

Version 1

Goobay®

Pillmannstraße 12

38112 Braunschweig

Germany

Made in China.

Hotline: [phone]
