USER MANUAL LED Set flex 150 RGB 5m WP Wentronic

Product display of film strips and a smart LED strip with control panel (no text or symbols visible)

LED LEISTE SET FLEX 150 RGB 5M WP

Art.-Nr.: 30560

LED STRIP SET FLEX 150 RGB 5M WP

Art.No.: 30560

LED LEISTE SET FLEX 150 RGB 5M WP

Close-up of a film reel with a coiled cable, no visible text or symbols

Electronic components including a film reel, cable, and charging plug (no visible text or symbols)

LED STRIP SET FLEX 150 RGB 5M WP

Read the user's manual completely and carefully. It is part of the product and includes important information for proper installation and use. Keep this user's manual for tion and only pass it on together with the product.

Information:

DANGER

DANGER/WARNING indicate a hazardous

situation which, if not avoided, will result in WARNING death or serious injury.

WARNING

CAUTION

CAUTION indicates a hazardous situation

which, if not avoided, could result in minor or moderate injury.

NOTICE

NOTICE is used to address practices not re-

lated to personal injury.

Table of Content:

Page:

1 Safety Instructions 15
2 Description and Function 16
3 Intended Use 17
4 Scope of Delivery 17
5 Implementing, Connecting and Operating 17
5.1 Implementing 17
5.2 Connecting 18
5.3 Operating 18
5.4 Changing the Battery 19
6 Maintenance, Care, Storage and Transport 20
7 Troubleshooting 20
8 Specifications 21
9 Warranty and Liability 21
10 Disposal Instructions 22
11 CE Declaration 23

1 Safety Instructions:

DANGER Risk of life by electric shock!
	· Avoid contacting mains voltages! · Only use the product in dry interior rooms!

WARNING Risk of short-circuit!
	·Never bridge contacts!·Do not put things into ventilation slots or ports!

• Only skilled electricians may assemble and disassemble the housing of the product.
• This product is not a toy and is not meant for children, because it contains small parts which can be swallowed and can injure when used inappropriately!
• Do not use any damaged products or parts.
• Remove or store the packing materials well, because children may cut themselves on them while playing. Furthermore, there is a risk of swallowing and inhalating of incidentals.
• Avoid extreme influences, e.g. like heat and coldness, humidity and direct sun insultaion, vibrations and mechanical pressure.
• Do not modify or change the product or its accessories! Also mind chapter "warranty and liability".
• Mind the specifications for transporting and use applicable methods, e.g. by using the original packing.
• If defects, mechanical damages, disturbances or other problems occur, which are not solvable with this manual, take the device out of work immediately and consult your dealer for questions, repairing or change like it is described in chapter “warranty and liability”.
• A defective device may not be put into operation, but must be protected against further use. Repairing, such as assembling and disassembling the housing is only allowed

to skilled professionals. By repairing it yourself you will loose all warranties and there is a risk of electric shock and short circuit.

• Do not point the product on living things.
• Do not use the product or its accessories in road traffic. There is a risk of irritation and blinding!
• In rare cases, light impulses can cause epileptic phenomena. If dizziness, muscle twitching and/or loss of perception happen, consult a doctor.

2 Description and Function:

This product is a flexible LED strip for decoration applications within the living area. It is powered by the delivered power supply and is stepless adjustable in color by the included RGB controller.

LED strip:

DC connection

Close-up of a film reel with a coiled cable, no visible text or symbols

Power supply:

control box

IR receiver

power supply unit

mains connection

RGB controller:

Light adjusting unit

3 Intended Use:

We do not permit using the device in other ways like described in chapter Description and Function. Use the product only in dry interior rooms. Not attending to these regulations and safety instructions might cause fatal accidents, injuries, and damages to persons and property.

4 Scope of Delivery:

1 1 x LED strip

2 1 x Power supply with control box

3 1 x RGB controller

4 1 x User's manual

5 Implementing, Connecting and Operating:

DANGER Risk of life by electric shock!
	· Avoid contacting mains voltages! · Only use the product in dry interior rooms!

WARNING Risk of short-circuit!
	·Never bridge contacts! ·Do not put things into ventilation slots or ports!

5.1 Implementing:

1. Check the packing content for being complete and unbroken.
2. Compare the specifications of all used devices and check

them for being compatible to each other.

1. Only use the product within dry interior rooms.

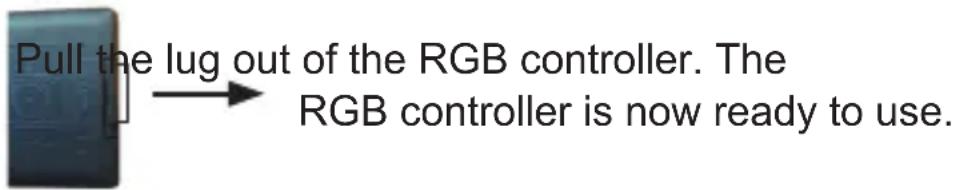

2. The battery is already placed inside the RGB controller (3). Activate it by pulling out the lug.

Pull the lug out of the RGB controller. The RGB controller is now ready to use.

5.2 Connecting:

1. Place the LED strip (1) to the preferred place in a way, nobody can injure himself eg. by stumbling.
2. Connect the DC connection of LED strip (1) to power supply with control box (2).

Illustration of a film reel with attached cable, connector, and power cord (no text or symbols)

1. Place the open cable end of the control box (2) in a way, that it is visible from operation place. It is the IR (Infra-red) receiver for the RGB controller (3).
2. Plug the mains plug of the power supply (2) into a 100-240 V\~AC mains socket.

5.3 Operating:

1. Do not look into the LEDs directly. These can increase to big brightness and influence perceptual ability for short time.
2. Never let the product unattended during operation.
3. Adjust the LED strip to your preferences by using the RGB controller.

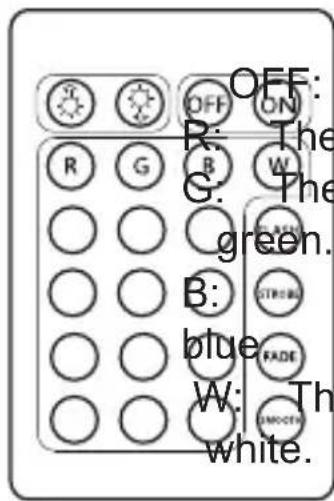

OFF: R: The G. The green. B: blue W: Th white.

ON: Switch on the LED strip.

Switch off the LED strip.

LED strip shines constantly red.

LED strip shines constantly

The LED strip shines constantly

The LED strip shines constantly

The buttons R, G and B allow to use mixed colors.

FLASH: Red changes with blue and green.

STROBE: All 4 primary colors shine at the same time, in which light intensity increases and decreases.

FADE: All available colors change with each other.

SMOOTH: Red, green and blue change with each other.

Increase the brightness of the LED strip.

Decrease brightness of the LED strip.

5.4 Replacing the battery:


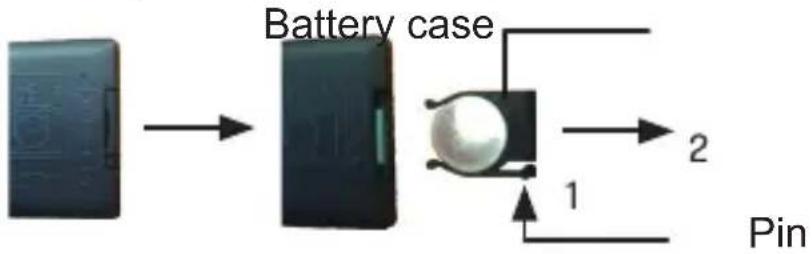

1. Push the pin towards the battery case.
2. Open the battery case by holding the pin and slide it out of

the RGB controller.

1. Change the battery to a new CR2025. Attend to right position/polarity of the battery.
2. Dispose the empty battery like described in chapter "Disposal Instructions".

6 Maintenance, Care, Storage and Transport:

• The device is maintenance-free.
• Always disconnect the mains plug from mains when not in use!
- Use a dry and soft cloth to clean your product. Be careful to avoid scratches. Use a slightly moist cloth for heavy stains. Look out for live cables! Do not use any cleaning supplies. This can cause burns to the materials. Avoid liquid entry to the device.
- Avoid places with high temperatures, humidity, or places which can become wet, also during maintenance, care, storage, and transport.
- Keep the product away from children and store it at dry and dust-proof places!
- Keep the original packing for transport and to avoid damages.

7 Troubleshooting:

Problem Help
The product doesn’t work. • Check the mains connection.• Attend to right polarity of the connectors.
The LED strip does not react to commands.	• There must be intervisibility between IR receiver and RGB controller.• Change the battery.
other questions • Ask your dealer.

8 Specifications:

Power supply
Input voltage 100-240 V~ AC
Output voltage 12 V DC
Control box
Input voltage 12 V DC
Output voltage 12 V DC
Output current 3 x 2 A (R/G/B)
LED strip
Luminous flux 250 lm
Dimensions 5.000 x 10 x 2.8 mm
IP class IP44
Number of LED 150 LEDs
LED Type RGB 5050
Luminance intensity R/G/B 300/200/600 mcd

9 Warranty and Liability:

• The producer grants a 2 years warranty to a new device.
- As the manufacturer has no influence on installation, warranty only applies to the product itself.
- If any fault or damage is detected on your device, please contact your dealer and provide your sales slip or invoice as evidence of the purchase, if necessary. Your dealer will repair the fault either on site, or send the device to the manufacturer. You make the work of our technicians considerably easier, describing possible faults in detail – only then you can be

assured that faults, occurring only rarely, will be found and repaired with certainty!

• The manufacturer is not liable for damages to persons or property caused by improper installation, operation or maintenance, not described in this manual.
• Do not alter or modify the product or its accessories.
• Any use other than described in this user's manual is not permitted and causes loss of warranty, loss of guarantee, and non-liability.
• We reserve our right for misprints and changes of the device, packing, or user's manual.

10 Disposal Instructions:

Disposal of the device:

In according to the European WEEE directive, electrical and electronic equipment must not be disposed with consumers waste. You as consumer are committed by law to - deposit electrical and electronic devices to public collecting points or to the dealer at the end of the devices lifetime for free. Particulars are regulated in national right. The symbol on the product, in the manual or at the packaging alludes to these terms. With this kind of application of used devices you achieve an important share to environmental protection.

WEEE Directive: 2002/96/EC

WEEE No: 82898622

Disposal of batteries:

There is an obligation to return rechargeable and non-rechargeable batteries by law; do not dispose them with consumer waste. Dispose them according to licensing orders. Lead them to recycling. These batteries must be recycled. The signs below the trash can indicate the batteries substances lead (Pb), cadmium (Cd), or mercury (Hg).

Battery Directive: 2006/66/EC

11 CE Declaration:

EC Goobay

This device corresponds to EU directive 2004/108/ and 2006/95/EC: With the CE sign the

^® , a registered trademark of the Wentronic GmbH ensures, that the product is conformed

to the basic standards and directives. These standards can be requested online on www.goobay.de. The mentioned directives replace all former national permissions in the European Union. All trademarks and registered brands are the property of their respective owners.

Revision Date 2012-04-26

Version 1

Goobay®

Pillmannstraße 12

38112 Braunschweig

Germany

Made in China.

Hotline: [phone]
