Product Type	Canister Vacuum Cleaner
Model	VT-1885 B
Brand	Vitek
Power Supply	220-240 V ~ 50/60 Hz
Power Consumption	1200 W
Dust Capacity	2.5 L (bagless)
Filtration System	HEPA filter
Cord Length	5 m
Operating Radius	8 m
Weight	4.5 kg
Dimensions (L x W x H)	40 x 25 x 30 cm
Noise Level	78 dB
Suction Control	Electronic (variable)
Attachments Included	Crevice tool, brush, upholstery tool
Dust Bag Indicator	Yes
Overheat Protection	Yes
Filter Cleaning	Washable HEPA
Handle Type	Ergonomic with cord hook
Manufacturer Warranty	2 years

Frequently Asked Questions - VT-1885 B Vitek

How do I empty the dust container?

Press the release button on the dust container and pull it out. Hold it over a trash bin and press the bottom release to empty. Rinse with water if needed and let dry before reinserting.

How often should I clean the HEPA filter?

Clean the HEPA filter every 3-4 months or when the filter indicator shows. Tap gently to remove dust or rinse under running water. Allow 24 hours to dry completely before reinstalling.

What should I do if the vacuum loses suction?

Check if the dust container is full or the filter is clogged. Also inspect the hose and attachments for blockages. Empty the container and clean/replace the filter.

Can I use the vacuum for wet surfaces?

No, this vacuum is designed for dry surfaces only. Using it on wet surfaces can damage the motor and void the warranty.

How do I store the vacuum cleaner?

Wind the power cord around the cord hooks on the back of the unit. Store the vacuum in a dry place, vertically or horizontally, with the attachments clipped to the holder.

The vacuum suddenly stopped working. What could be wrong?

Check if the appliance has overheated. If so, turn off and unplug for 30 minutes to cool down. Also check the fuse or circuit breaker. If the problem persists, contact Vitek support.

How do I replace the dust bag?

This model is bagless. Instead, empty the dust container as described. Ensure the container is securely locked back into place.

Are replacement filters available?

Yes, you can purchase genuine Vitek HEPA filters for VT-1885 B from authorized dealers or online stores. Use only recommended filters to maintain performance.

What is the best way to use the crevice tool?

Attach the crevice tool to the hose or wand. It is ideal for cleaning tight spaces like corners, baseboards, and between furniture cushions.

How can I obtain the user manual in another language?

On the manual download page, select your desired language and provide your email. You will receive a translated version via email.

USER MANUAL VT-1885 B Vitek

Technical line drawing of a mechanical device with a power outlet and cable (no text or symbols)

Line drawing of a hand using a mechanical tool to adjust or install a cylindrical component (no text or symbols present)

Line drawing of a mechanical device with a shaft and lever, showing motion arrows (no text or symbols)

Line drawing of a hand using a power tool to clean or install a mechanical component (no text or symbols visible)

Diagram of a piston-cylinder engine showing internal components and piston motion (no text or symbols)

Line drawing of a hand using a small device to clean or adjust a surface (no text or symbols)

Line drawing of a mechanical device with hands operating it, showing internal components and a directional arrow (no text or symbols)

Line drawing of a hand operating a mechanical device with a right-hand arrow indicating motion (no text or symbols)

Line drawing of a mechanical device with a hand operating it, showing no text or symbols

Illustration of hands using a tool to adjust or install a mechanical component, with no visible text or symbols.

Illustration of hands using a tool to adjust or install a mechanical component, no text or symbols present

ENGLISH

HANDHELD RECHARGEABLE VACUUM CLEANER VT-1885 B

The rechargeable vacuum cleaner is intended for cleaning rooms or car interior.

DESCRIPTION

1. Air inlet

2. Extension pipe/attachment lock

3. Operation indicator

4. Outlet filter

5. Outlet filter holding lid

6. Outlet filter lid clamps

7. ON button

8. Handle

9. Dust bin lock

10. Rechargeable battery

11. Rechargeable battery lock

12. AC/DC adapter connection socket

13. Mesh filter

14. Separator

15. Dust bin lid

16. Dust bin lid clamp

17. Dust bin

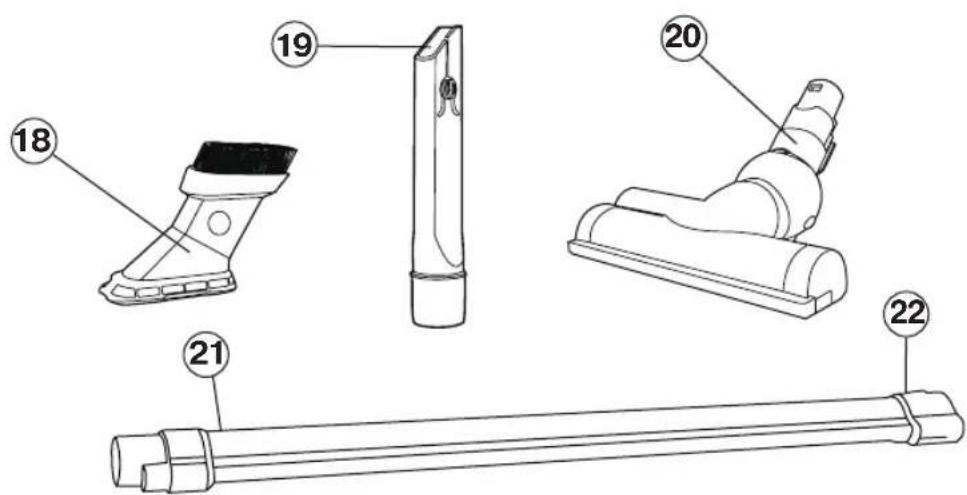

18. Universal attachment

19. Crevice nozzle

20. Electric brush

21. Extension pipe

22. Attachment lock

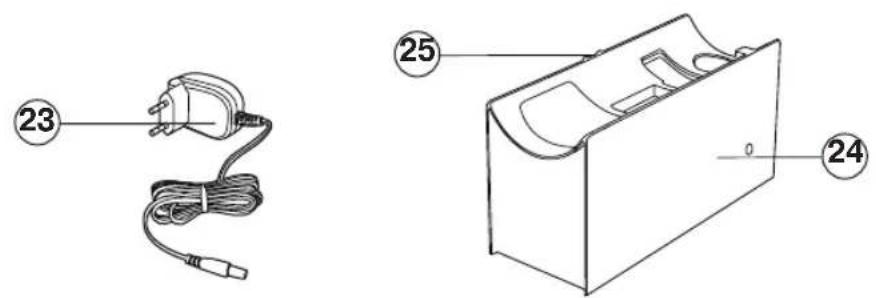

23. Power adapter

24. Base for attachment/rechargeable battery storage

25. Electric brush storage

SAFETY MEASURES

Read this instruction manual carefully before using the unit and keep it for the whole operation period. Mishandling the unit can lead to its breakage and cause harm to the user or damage to his/her property.

To avoid the risk of fire, electric shock and to prevent injury, observe the following safety measures.

- Use the device in strict accordance with the instruction manual.

- Use only the attachments supplied.

- Before charging the rechargeable battery for the first time, make sure that voltage of the mains corresponds to the operating voltage of the power adapter.

- Do not charge the battery in places with high moisture and high temperature. Charge the battery at the temperature from +5°C to +35°C and relative humidity no more than 80%.

- Do not leave the plugged in power adapter unattended.

- Do not touch the power adapter body with wet hands.

- Do not cover the inlets and outlets of the vacuum cleaner with any foreign objects.

- Do not switch the unit on if the air inlet is blocked by a foreign object.

- Keep hair, free hanging clothes, fingers and other parts of your body away from the vacuum cleaner suction openings.

- Be especially cautious while cleaning the stair landings.

- Do not use the vacuum cleaner for collecting such highly inflammable liquids as gasoline and solvents. Do not use the unit in places where such liquids are stored.

- Do not use the vacuum cleaner for collecting burning or smoking cigarettes, matches, cinders as well as fine dust, for example, of plaster, concrete, flour or ashes.

- Do not use the vacuum cleaner if:

- the dust bin is not installed; - the outlet filter is not installed.

- Do not immerse the vacuum cleaner, the power adapter and the battery into water or any other liquids.

- Close supervision is necessary when children under 8 years of age or disabled persons are near the operating unit.

- This unit is not intended for usage by children under 8 years of age.

- This unit is not intended for usage by people (including children over 8) with physical, neural and mental disorders or with insufficient experience or knowledge. Such persons may use this unit only if they are under supervision of a person who is responsible for their safety and if they are given all the necessary and understandable instructions concerning the safe usage of the unit and information about danger that can be caused by its improper usage.

- Do not leave children unattended to prevent using the unit as a toy.

- For children safety reasons, do not leave polyethylene bags used as packaging unattended.

Attention! Do not allow children to play with polyethylene bags or packaging film. Danger of suffocation!

- To avoid damages, transport the unit in original package only.

- Watch the rechargeable battery condition. Remove the rechargeable battery from the vacuum cleaner if you are not going to use the unit for a long time.

- Keep the unit in a dry cool place out of reach of children and disabled persons.

- If the suction power of the vacuum cleaner decreases rapidly while cleaning, switch it off

ENGLISH

immediately and check the extension pipe (21) for obstruction. Remove the obstruction and only then continue cleaning.

- Do not use the vacuum cleaner near very hot surfaces, ashtrays or in places where inflammable liquids are stored.

ASSEMBLING THE VACUUM CLEANER

After unit transportation or storage under cold (winter) conditions, it is necessary to keep it for at least two hours at room temperature before switching on.

Battery charging

Before using the unit for the first time or after a long period of inactivity, the battery (10) needs to be charged for at least 6 hours; for optimal performance, recharge it for at least 6 hours after the first discharge. A fully charged battery (10) provides approximately 15 minutes of continuous vacuum cleaner operation.

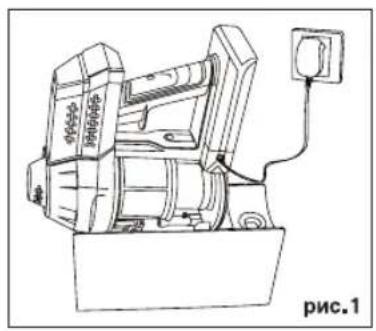

• Insert the plug of the power adapter (23) into the connection socket (12), insert the power adapter into the mains socket, the indicator (3) will be flashing red (pic. 1).
• When the battery charging cycle is finished, the indicator (3) color will change to green.
• Continuous battery (10) recharging cycles should not exceed three hours.
• It is not recommended to start charging the battery immediately after its full discharge. Let it cool down to normal temperature for a few minutes.
• If you are not going to use the vacuum cleaner for a long time, do not leave the battery fully discharged – partial charging is enough to maintain its proper operation.

Safety measures when handling the battery:

For optimal battery performance and to prevent its damage, smoking and burning, observe the following rules:

• Charge the battery (10) at the temperature from +10^ to +40^ . It is recommended to use the vacuum cleaner within temperature range of from -10^ to +45^ . Failure to keep within the temperature limits can negatively affect battery performance.
• To charge the battery, use only the original power adapter (23).
• Do not expose the battery to high temperatures (above 80^ ) and direct sunlight and do not throw it into fire.
• Do not disassemble the battery or try to repair it by yourself.
• Do not short-circuit the battery.

• Do not expose the battery to water or immerse it into water.

• Do not compress or deform the battery.

• Do not use the battery if it is damaged, is leaking, has an abnormal color or odor.
• Do not use the battery for other purposes and units, except for the original unit.
• Do not allow children to play with the battery.

Attaching the extension pipe

and attachments

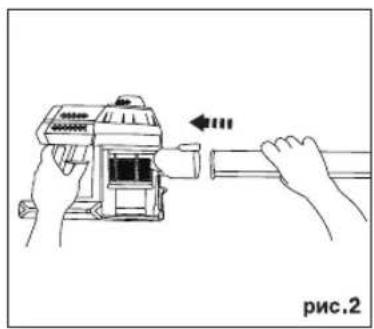

• Insert the extension pipe (21) into the air inlet (1) body until the lock (2) clicks (pic. 2).
• Choose the necessary attachment – electric brush (20), combined brush (18) or crevice nozzle (19) – and attach it to the extension pipe (21) (pic. 3).

Note:

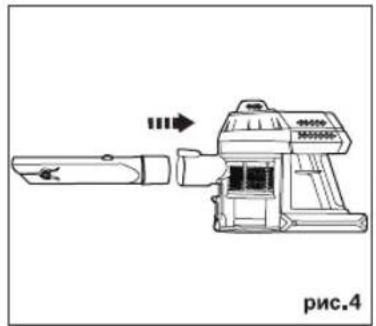

- If necessary, you can attach the electric brush (20) or the crevice nozzle (19) straight to the air inlet (1), without using the extension pipe (21) (pic. 4).

Combined attachment (18)

The attachment (18) is intended for collecting dust from furniture surface, the pile prevents damage of polished furniture surface; attach the required side of the combined attachment (18) on the crevice nozzle (19) until the lock in the upper part of the attachment (19) clicks.

Crevice nozzle (19)

The nozzle (19) is intended for cleaning radiators, chinks, corners and spaces between cushions.

Electric brush (20)

You can use the electric brush (20) for cleaning floors and carpets with medium and low pile, the brush (20) is perfect for removing pet hair from carpets. The cylindrical hard-bristled brush is driven by a small motor built in the brush; its bristles thoroughly comb out pet hair and sweep dust particles out of the carpet pile.

Notes: Do not use the brush (20) to clean carpets if the pile length exceeds 15 mm.

• Do not run the brush (20) over electric wires.
• Switch the vacuum cleaner off right after cleaning with the brush (20).

OPERATION

Attention! Switch the vacuum cleaner on only with the dust bin (17) and the outlet filter (4) installed. Always check whether the dust bin (17) and the outlet filter (4) are installed properly.

- Press and hold down the button (7) to switch the vacuum cleaner on; the indicator (3) will light up green.

Note:

If the battery (10) is low, the indicator (3) will be flashing red.

- Use the handle (8) for carrying the vacuum cleaner.

ENGLISH

CLEANING AND CARE

Remove garbage and dust from the dust bin (17) after each usage of the vacuum cleaner and clean the filters (4, 13) and the dust bin (17) regularly.

• After using the unit with installed extension pipe (21), remove the pipe (21) before removing the dust bin (17) (pic. 6).

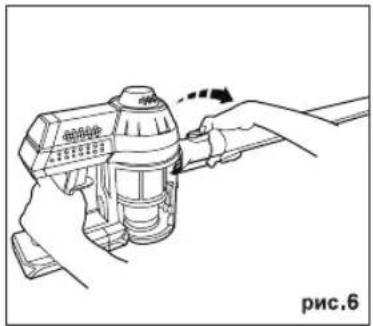

• Remove the extension pipe (21), pressing the button (2) and pulling the pipe.
• Holding the dust bin (17), press the button (9) and carefully take the bin off.

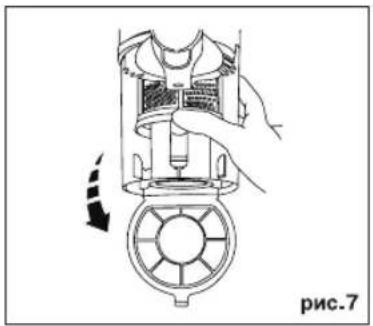

• Open the lower lid (15) of the dust bin (17) by pressing the clamp (16) downwards (pic. 7).
• Remove accumulated dust and garbage from the dust bin (17).
• Wash the dust bin (17) under warm running water. Do not wash the dust bin (17) in a dishwashing machine.

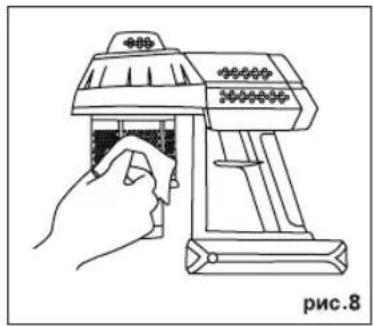

• Clean the mesh filter (13) and separator (14) with a slightly damp soft cloth, and then wipe dry (pic. 7). You can use a vacuum cleaner with a corresponding attachment to clean the filter (13) and separator (14). Do not wash the filter (13) and the separator (14) with water, it can cause damage.

Note: Dry the dust bin (17) thoroughly before installing it back to its place.

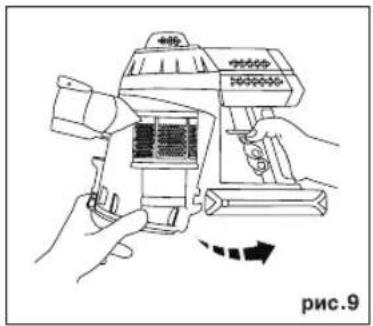

• Install the dust bin (17) back to its place (pic. 9).

Removing and cleaning the outlet filter (4)

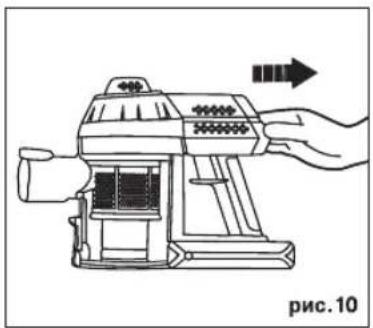

• Press the clamps (6) and remove the outlet filter holding lid (5) (pic. 10).
• Remove the outlet filter (4) from the holder, wash the filter (4) under slightly warm water jet. Dry the filter thoroughly before installing it back to its place. Do not wash the outlet filter (4) in a dish-washing machine.

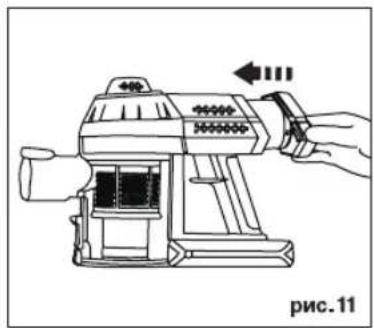

  • Install the outlet filter (4) on the holder and set the outlet filter holding lid (5) back to its place (pic. 11).

Attention! Keep the filters (4, 13) clean because the performance of the vacuum cleaner depends on it; clean the filters (4, 13) regularly.

Cleaning the vacuum cleaner body

• Clean the vacuum cleaner body with a soft, slightly damp cloth and then wipe it dry.
• Never immerse the vacuum cleaner body and the power adapter into water or other liquids. Provide that no water gets inside the vacuum cleaner body.
• Never use solvents or abrasives to clean the surface of the vacuum cleaner.

Cleaning the electric brush

Switch the vacuum cleaner off and remove the electric brush (20), remove threads and hairs wound up around the cylindrical brush.

If the cylindrical brush does not rotate during operation:

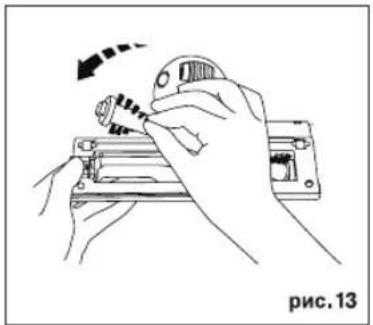

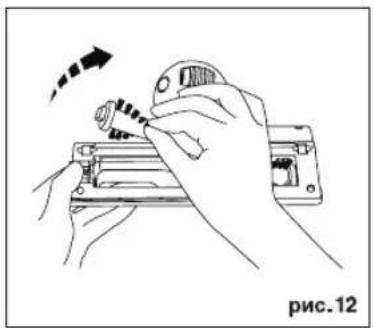

• switch the vacuum cleaner off, remove the brush (20), press the cylindrical brush clamp in the direction of the arrow and remove the cylindrical brush (pic. 12);
• clean the cylindrical brush off threads and hairs;
• press the clamp and install the cylindrical brush back to its place (pic. 13).

STORAGE

• Before taking the vacuum cleaner away for storage, clean the unit body and the dust bin.
• Keep the vacuum cleaner away from children in a dry cool place.

Delivery set

1. Vacuum cleaner (with the filters and the dust bin installed) - 1 pc.
2. Rechargeable battery - 1 pc.
3. Extension pipe - 1 pc.
4. Electric brush - 1 pc.
5. Crevice nozzle - 1 pc.
6. Combined attachment - 1 pc.
7. Instruction manual - 1 pc.

Technical specifications

Power supply: 220-240 V \~ 50 Hz

Maximal power: 200 W

Suction power: 60 W

Dust bin capacity: 0.35 L

Rechargeable battery: 22.2 V, Li-Ion 1500 mA/h

The manufacturer preserves the right to change design and specifications of the unit without a preliminary notification.

Unit operating life is 5 years

Guarantee

Details regarding guarantee conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

This product conforms to the EMC-Requirements as laid down by the Council Directive 2004/108/EC and to the Low Voltage Regulation (2006/95/EC)

DEUTSCH

AKKU-HANDSTAUBSAUGER VT-1885 B

A production date of the item is indicated in the serial number on the technical data plate. A serial number is an eleven-unit number, with the first four figures indicating the production date. For example, serial number 0606xxxxxx means that the item was manufactured in June (the sixth month) 2006.
