EWA7000 - Kettle AEG - Free user manual and instructions

Product Type	Electric Kettle
Brand	AEG
Model	EWA7000
Capacity	1.7 L
Power	2200 W
Voltage	220-240 V, 50/60 Hz
Housing Material	Stainless Steel
Lid Operation	One-touch opening
Base Type	360° swivel base with cordless operation
Water Level Indicator	Yes, transparent window with scale
Filter	Removable, washable lime filter
Safety Features	Boil-dry protection, automatic shut-off
Heating Element	Concealed, stainless steel
Dimensions (W x D x H)	Approx. 22 x 15 x 25 cm
Weight	Approx. 1.2 kg
Cord Length	Approx. 0.75 m
Cleaning	Wipe with damp cloth; descale regularly
Spare Parts Availability	Dedicated spare parts line and service
Repairability	Designed for repair; service centers available
Warranty	2 years
Manual Languages	EN, DE, EL and others via translation request

Frequently Asked Questions - EWA7000 AEG

What is the capacity of the AEG EWA7000 kettle?

The AEG EWA7000 kettle has a capacity of 1.7 liters.

How do I descale the AEG EWA7000 kettle?

Use a descaling solution or a mixture of vinegar and water. Fill the kettle, bring to a boil, let it sit, then rinse thoroughly.

Is the kettle cordless?

Yes, it operates cordlessly on a 360° swivel base.

Does it have an automatic shut-off?

Yes, the kettle features automatic shut-off and boil-dry protection for safety.

What material is the kettle made of?

The housing is stainless steel with a concealed heating element.

How do I clean the lime filter?

The filter is removable and can be cleaned under running water or with a soft brush.

What is the power rating?

The power rating is 2200 W at 220-240 V, 50/60 Hz.

Can I open the lid with one hand?

Yes, it has a one-touch lid opening for easy filling.

Where can I get spare parts?

Spare parts are available through AEG service centers and authorized dealers.

What is the warranty period?

The AEG EWA7000 comes with a 2-year warranty.

USER MANUAL EWA7000 AEG

GB Operating instructions

GR O δη ἔς χρήσεως

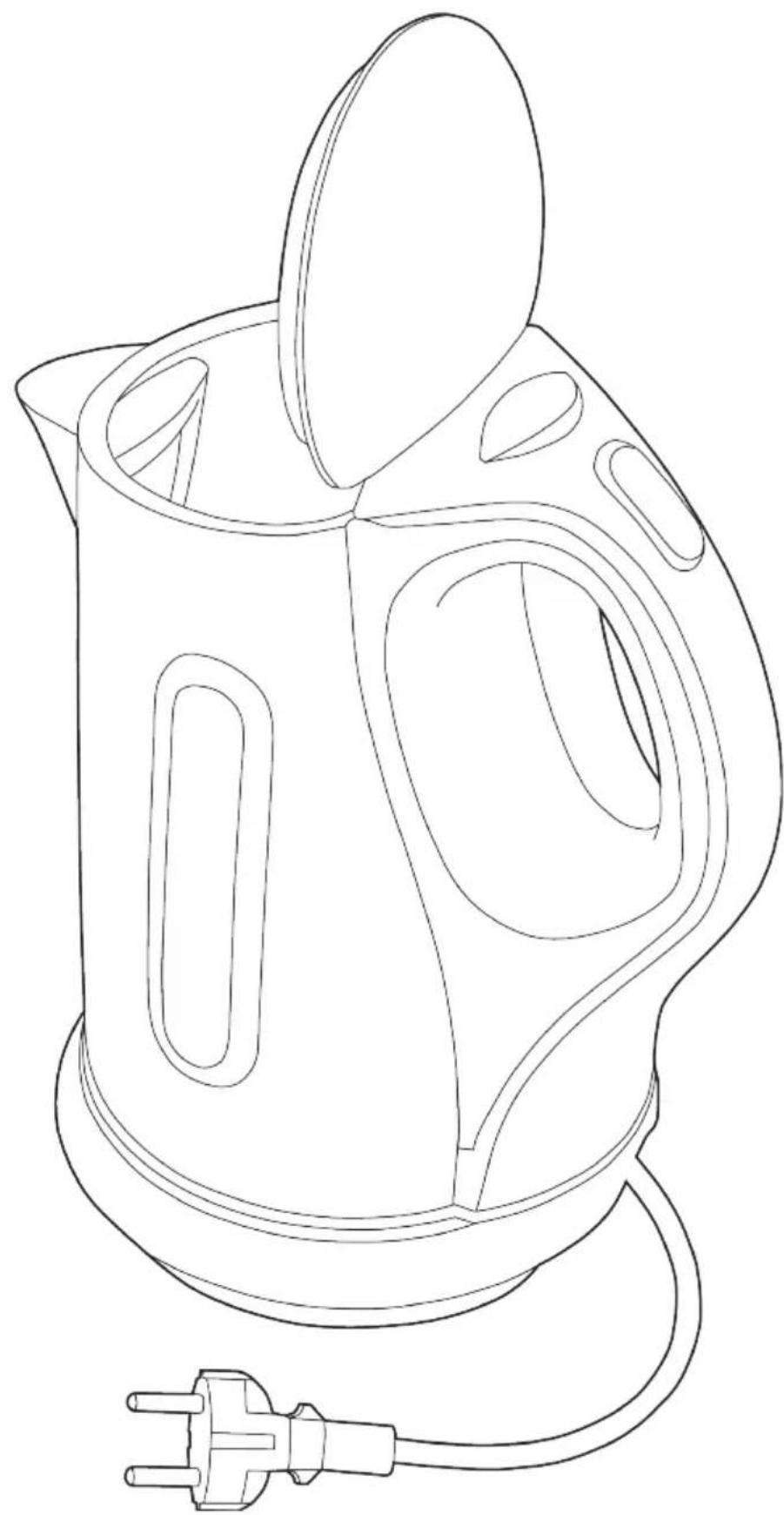

Line drawing of a kettle with attached plug (no text or symbols)

Seh r geeh rte Kundin, seh r geeh rter Kunde,

PI ease read these operating instructions through careful ly. PI ease make sure you read the safety instructions on the first pages of these operating instructions! Keep the operating instructions for future reference. Pass them on to any future owners.

!

With the warning triangle and/or by means of keywords (Danger!, Caution!, Im portant!), information is emphasized which is important for your safety or the correct functioning of the appliance. It is essential that this information is observed.

I

This symbol guides you step by step when operating the appliance.

i

Next to this symbol you receive additional information and practical tips on using the appliance.

[NO TEXT]

Tips and information about the economical and environmental ly friendly ly use of the appl iance are marked with the cl over.

Description of the appliance

A Case

B Rem ov abl e m es h fil ter

C Spout

D Lid

E Opening lid button

F Handle

G Water level indicator

H ON/OFF switch with pilot light

J Separate base and mains cable

K Rating plate

!

Safety instructions

This appliance corresponds to accepted technological standards with regards to safety. Nevertheless, as a manufacturer we consider it our obligation to make you aware of the following safety information.

General safety

- The appliance may only be connected to a power supply with the same voltage as that specified on the rating plate (K)!

- Never use the flex to pull the plug out of the socket but pull the actual plug.

- If the mains cord of the appliance is damaged, it has to be replaced by the manufacturer or its custom or service or a trained electrician to avoid risks.

- Never use the kettle if it has been dropped or h as evident I y been damaged.

- Repairs to this appliance may only be carried out by qualified service engineers. Considerable danger may result from proper repairs. If repairs become necessary, please contact the Customer Care Department or your authorised dealer.

- Always pull out the plug, - before cleaning and attending to the kettle, - and after each time it is used, - and for faults during operation.

- Th is appl iance is not intended for use by persons (including ch ildren) with reduced ph ysical, sensory or mental capabilities, or lack of experience and know ledge, unless they have been given superv ision or instruction concerning use of the appliance by a person responsible for their safety.

Safety of children

• Only use the express kettle when supervised.

• Supervise children particularly carefully!

- Packaging material, e.g. plastic bags, should not be accessible to children.

- Children should be supervised to ensure that they do not play with the appliance.

Points to rem ember when operating the express kettle

• Before starting the appliance ensure that the mains cord and plug are dry.
  • Never use the kettle with wet hands.
  • Never use the appliance outdoors.
• Whilst using the express kettle, high temperatures are reached which can cause scal ding if the kettle is not handled careful. Therefore only hold the appliance by the handle (F) provided.

- Do not use the kettle unsupervised. Do not place or use the kettle on hot surfaces or near naked flames.

- Attention: If the kettle is overfilled there is a risk that the boiling water may spray out. Therefore never fill the kettle above the maximum marking.

- Only use your kettle for heating water! Never put foodstuffs or foodstuff additives into the kettle. Never heat milk or stock on the kettle. Do not place any objects in the kettle!

- Never use the appliance with the lid (D) open as otherwise the automatic switch off cannot work.

• Do not move the appliance whilst it is on.

• Never immerse the appliance in liquid!

- Protect the appliance and cord from heat and wetness.

- If the appliance is used for any other purpose or is incorrectly used, the manufacturer adopts no liability for any damages which may result.

- Always empty the kettle completely. Do not leave residual water in the appliance for a long period.

• Do not switch on the appliance with out water.

• Only use the kettle with the associated base.

Using your kettle

Before using your new kettle you should wipe it inside and outside with a dam cloth due to hygienic reasons.

Initial use

Place the base unit (J) on a firm surface.

Plug themains plug into a wall socket.

If the mains cord is longer than necessary it can be wound up at the bottom of the base unit (J).

Press button (E) down to open the lid (D).

Fill I with at least sufficient water to make it visible on the water level indicator (G), but not higher than the Max. mark.

Close the Id (D) until it engages. The automatic switch off can only function reliable if this is done.

Place the kettle onto the base (J) in any position you wish.

Press the ON/OFF switch (H) down, the pilot light light up and the kettle starts to heat up.

The ON/OFF switch (H) only catches when the kettle is on the base unit (J).

Do not use the water from the first boiling cycl e to prepare food.

The automatic switch off

i The kettle will switch off automatically and the pilot light will go out when the water has boiled or the kettle is removed from the base.

If you want to stop the heating process before the kettle automaticly switches off, simply press the ON/OFF switch (H) up or lift up the jug from the base.

If you want to reheat water which has already been heated, press the ON/OFF switch (H) down again. When the water has boiled the kettle will switch off automatically. If the kettle is only filled with a little water, it takes longer to switch off.

Safety system

This appliance is equipped with a boil dry safety cut-out. This feature protects the appliance from overh eating when started without water or from boiling until it is empty if used with the lid open. If the appliance is accidentally switched on with out water, it is automaticly protected against overh eating. The heating process is automaticly interrupted. Before using the kettle again let it cool down for 5-10 minutes.

CI eaning and care

Al ways disconnect the kettl e from themains supply before cleaning.

! Never clean the kettle and base unit under running water or immerse it in washing-up water.

Occasional 1 y rinse out the kettl ewith clean water.

CI ean the outside of the appliance only using a dam p el oth. Do not use any caustic or abrasive cleansing agents.

Hold the mesh filter (B) at grip (1) and lift What to do if ... insert out for cleaning.

Wash it in warm soapy water and dry thoroughly before replacing in the kettle.

The heating base is made of stainless steel. If, how ever, spots of rust appear, these are only deposits adhering to the surface. They can be removed with a stainless steel cleaning agent.

Descal ing

i Lim e scal e deposits on the bottom of the k ettl e resul t in l oss of energy and can affect the service life of the appliance. The appliance switches off before boiling if the layer of scale is too thick. It is then very difficult to remove. The appliance should be descal ed regularly depending on the level of the water hardness. Use a standard descal er fol low ing the directions; preferably choose an environmental ly friendl y, descal ing agent suitable for stainl ess steel according to the instructions from them manufacturer.

First fill in water, then a standard descal ing preparation which is not too strong.

Alternatively: fil I the kettl ewith 3 cups of white vinegar and the remainder with water and allow to stand overnight. DO NOT BOIL.

Do not boil the solution as it could foam over.

After descal ing, rinse the kettle out through ly with clean water. Never pour descal ing agents into an enamel sink and do not reuse them.

• the appliance switch es off before boiling?
- The base of the kettle is too thickly scaled. Treat with standard commercial descaling agent suitable for stainless steel. Note the directions for use from the manufacturer.
• the appliance does not switch off?
- Close | id until it | ocks. - Insert the strainer correctly.
• the kettl e pours badly?
- Descal e the strainer insert.
• the appliance cannot be switched on?
- after operating with very little or no water, the appliance has not yet cooled sufficiently. Wait a short time before trying again.

Technical data

Mains voltage: 230 - 240 V / 50 Hz

Power drain: 2200 - 2400 W

CE This appliance conforms with the following EC Directives:

• Low Voltage Directive 2006/9 5/EC

• EMC Directive 89/336/EEC with amendments 92/31/EEC and 93/68/EEC

Disposal

Packaging material

The packaging materials are environmentally friendly and can be recycled. The plastic components are identified by markings, e.g. >PE<, >PS<, etc. Please dispose of the packaging materials in the appropriate container at the community waste disposal facilities.

Old appliance

The symbol on the product or on its packaging indicates that at this is product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchase the product.

GR

© Copyright by El ectrol ux

9 22 9 49 415 - 01 - 0408
