Product Type	Car Stereo Receiver
Model	KD-R807EE
Brand	JVC
Dimensions (W x H x D)	182 mm x 53 mm x 160 mm (1 DIN)
Weight	Approx. 1.5 kg
Power Supply	12V DC (negative ground)
Maximum Output Power	50 W x 4 channels
RMS Power Output	22 W x 4 channels (4 Ω, 20 Hz – 20 kHz, 1% THD)
Playback Formats	CD, CD-R/RW, MP3, WMA
Tuner Bands	FM, AM
FM Frequency Range	87.5 – 108.0 MHz
AM Frequency Range	531 – 1611 kHz
Audio Inputs	Front AUX (3.5 mm), Rear Line-In (RCA)
Audio Outputs	Front/Rear Pre-Out (2V RMS), Subwoofer Pre-Out
USB Port	Front USB (1.5A charging)

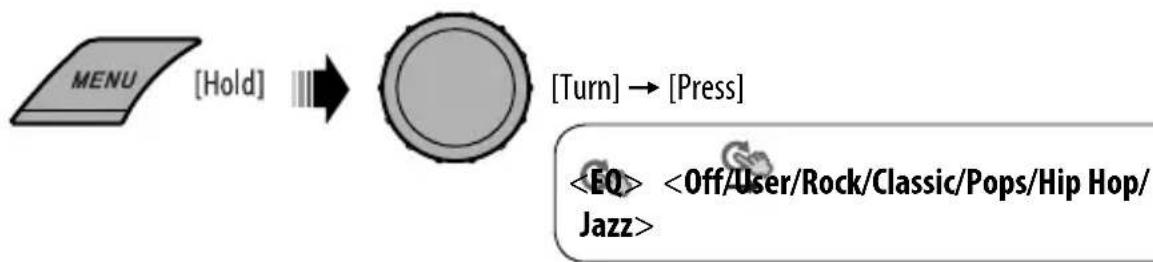

Equalizer	3-Band Equalizer (Bass, Treble, Mid) with 7 Presets
Display	Multi-color LCD with White/Amber keys
Remote Control	Included (wired or wireless, check manual)
Bluetooth	Not available on this model
Steering Wheel Control Input	Compatible with optional adapter (not included)
Fuse Rating	10A (blade type)
Maintenance	Clean front panel with soft dry cloth; avoid solvents
Safety	Disconnect battery negative terminal before installation
Reparability	Standard DIN size; service by qualified technician
Additional Features	Clock display, CD Text, Random/Repeat playback

Frequently Asked Questions - KD-R807EE JVC

How do I set the clock on the JVC KD-R807EE?

Press and hold the Menu button until the clock display blinks. Use the Volume knob to adjust hours and minutes, then press Menu again to confirm.

Can I connect my smartphone via USB?

Yes, the front USB port supports playback of MP3/WMA files and charging for most smartphones (up to 1.5A). However, direct music streaming via USB is not supported; use AUX instead.

Why is there no sound from the speakers?

Check that the unit is properly grounded, the fuse is intact, and the volume is not at 0. Also ensure the speaker wires are not shorted or disconnected.

How do I reset the unit?

Press the Reset button with a pointed object (e.g., a pen tip) located on the front panel. This restores factory settings and clears errors.

Does the KD-R807EE have Bluetooth?

No, this model does not include Bluetooth functionality. Use the AUX input for external audio sources.

What is the maximum USB drive capacity?

The unit supports USB drives up to 32 GB formatted in FAT32. Larger drives may not be recognized.

How do I adjust the equalizer settings?

Press the Sound button repeatedly to cycle through Bass, Treble, and Mid. Rotate the Volume knob to adjust each band. Preset EQ modes are also available via the Menu.

Can I use a steering wheel remote control adapter?

Yes, the KD-R807EE is compatible with aftermarket steering wheel control adapters. Consult your adapter's manual for wiring instructions.

The display shows 'Error 3'. What does it mean?

Error 3 indicates a disc loading or reading issue. Try ejecting and reinserting the disc. If it persists, clean the disc or use a known good CD.

What are the dimensions for installation?

The unit is a standard 1 DIN size: width 182 mm, height 53 mm, depth 160 mm. A mounting sleeve and trim ring are included.

USER MANUAL KD-R807EE JVC

Having trouble with operation?

Please reset your unit.

Refer to the page on how to reset your unit.

© 2009 Victor Company of Japan, Limited

0209DTSMDTJEIN

Instructions

JVC

CD

CD Receiver

To cancel the display demonstration, see page 4.

For installation and connections, refer to the separate manual.

Instructions

Thank you for purchasing a JVC product.

Please read all instructions carefully before operation to ensure complete understanding and to obtain the best possible performance from the unit.

Important for Laser Products

1. CLASS 1 LASER PRODUCT
2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to qualified service personnel.
3. CAUTION: Visible and/or invisible class 1M laser radiation when open. Do not view directly with optical instruments.
4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.

CAUTIONVISIBLE AND/OR INVISIBLE CLASS 1M LASER RADIATION WHEN OPEN. DO NOT VIEW DIRECTLY WITH OPTICAL INSTRUMENTS, EC60825-1:2001(ENG)

ATTENTIONRAYONNEMENT LASER VISIBLE GT/OU INVISIBLE DE CLASSE 1M UNE POIS OUVERT. NE PAS REGARDER DIRECTMENT AVEC DES INSTRUMENTS OPTIQUES. (FRA)

AVISO RADIACIÓN LASER DE CLASSE 1M VISIBLE Y/O INVISIBLE CUANDO ESTA ABIERTO. NO MIRAR DIRECTAMENTE CON INSTRUMENTAL ÓPTICO. (ESPI)

VARNINGSYNJG OCH/ELLER OSYNUG LASERSTRÁLNING. KLASS 1M, NÁR DENNA DEL ÁR ÓPPNAD. BETRAKTA EJ STRÁLEN MED OPTSKA INSTRUMENT. ISWE

注意ここを開くと可視及びまたは不可視のクラス1M レーザー放射が出ます。光学装置で直接見ないでください。(JPN)

CAUTIONVISIBLE AND/OR INVISIBLE CLASS ELASER RADIATION WHEN OPEN. DO NOT STARE INTO BEAM FDA 21 CFR(ENG)

[European Union only]

Temperature inside the car...

If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.

Warning:

If you need to operate the unit while driving, be sure to look around carefully or you may be involved in a traffic accident.

For safety...

• Do not raise the volume level too much, as this will block outside sounds, making driving dangerous.
• Stop the car before performing any complicated operations.

Caution:

If the temperature inside the car is below 0°C, the movement of animation and text scroll will be halted on the display to prevent the display from being blurred. Appears on the display.

When the temperature increases, and the operating temperature is resumed, these functions will start working again.

Caution on volume setting:

Digital devices (CD/USB) produce very little noise compared with other sources. Lower the volume before playing these digital sources to avoid damaging the speakers by sudden increase of the output level.

Detaching the control panel

Attaching the control panel

How to reset your unit

- Your preset adjustments will also be erased (except the registered Bluetooth device, see pages 15 and 16).

How to forcibly eject a disc

• You can forcibly eject the loaded disc even if the disc is locked. To lock/unlock the disc, see page 12.
• Be careful not to drop the disc when it ejects.
• If this does not work, reset your unit.

How to read this manual:

• is used to indicate turn the control dial to make a selection, then press to confirm the selection.
• <> is used to indicate the available items/settings/operations in the menu.

Available characters on the display

This unit can display Roman alphabets (A - Z, a - z), Cyrillic alphabets, numbers, and symbols (see below).

These characters are also used to show the various information on the display.

Upper case (Cyrillic alphabets)

Lower case (Cyrillic alphabets)

Canceling the display demonstration and setting the clock

• See also page 24.

1	[IMAGE]		Turn on the power.
2		Hold]Press and hold until the main menu is called up.	Cancel the display demonstrationsSelect, then.
		[Turn] → [Press]Repeat this procedure.	Set the clockSelect, then.Adjust the hour, then press control dial once to proceed to adjust the minute.Select <24H/12H> (hour), then <24Hours> or <12Hours>.To return to the previous menu, press BACK.To exit from the menu, press DISP or MENU.

Changing the display information and pattern

When the power is turned off: Check the current clock time

Ex.: When tuner is selected as the source

Source operation display

Audio level meter display (see on page 26)

CONTENTS

Detaching the control panel.... 3

Attaching the control panel 3

How to reset your unit 3

How to forcibly eject a disc.... 3

INTRODUCTION

Preparation.... 4

OPERATIONS

Basic operations.... 6

• Using the control panel.... 6 • Using the remote controller (RM-RK50).... 7

Listening to the radio....9

Disc operations....12

USB operations ....13

Using the Bluetooth® devices .....14

• Connecting a Bluetooth device for the first time.... 15 • Using the Bluetooth cellular phone .... 17 • Using the Bluetooth audio player 19

EXTERNAL DEVICES

Listening to the iPod/iPhone 20

Listening to the other external components 22

SETTINGS

Selecting a preset sound mode 23

Menu operations....24

• Creating your own color—User Color 28
• Setting the time for dimmer 29
• Changing the Bluetooth setting.... 30

REFERENCES

More about this unit ....32

Troubleshooting....37

Maintenance....41

Specifications....42

Basic operations

Using the control panel

1 • FM/AM/FM-LOW: Select preset station. • CD/USB FRONT/USB REAR: Select folder. - BT FRONT/BT REAR (Phone): Adjust the microphone volume (during a phone call conversation). - BT FRONT/BT REAR (Audio) *2: Select group/folder.

2 • Turn on the power.

- Attenuate the sound (if the power is on).

- Turn off the power [Hold].

- BT FRONT/BT REAR (Phone): Switch the conversation media during a phone call.

3 Select the source.

FM → CD *3 → USB FRONT *3/ iPod FRONT *3 /BT FRONT *3,*4 → USB REAR *3/iPod REAR *3/BT REAR *3,*4 → AUX IN *4 → AM *4 → FM-LOW → (back to the beginning)

4 • Enter list operations.

- Enter Menu setting [Hold]. - iPod FRONT/iPod REAR: Enter the main menu.

5 • Enter "Call Menu" screen. - Enter preset method [Hold]. (See page 30.) • BT FRONT/BT REAR (Phone):

- Answer incoming call.

- End a call [Hold].

6 Loading slot

7 Display window

8 Eject disc.

9 • Activate/deactivate TA Standby Reception.

- Enter PTY Searching mode [Hold].

10 USB (Universal Serial Bus) input terminal

11 Detach the panel.

12 • FM/AM/FM-LOW: Search for station.

- CD/USB FRONT/USB REAR/iPod FRONT/iPod REAR: Select track.

- BT FRONT/BT REAR (Audio): Reverse skip/forward skip.

13 Change the display information.

*1 - *4 : See page 7.

14 • Return to the previous menu.

- iPod FRONT/iPod REAR: Switch the setting between and *5 [Hold].

- BT FRONT/BT REAR (Audio): Pause playback [Press].

15 • Control the volume * 6 or select items [Turn].

- Confirm the selection [Press].

• FM/FM-LOW: Enter SSM preset mode [Hold].

- CD/USB FRONT/USB REAR/iPod FRONT/iPod REAR: Pause/resume playback *6 [Press].

- BT FRONT/BT REAR (Audio): Resume playback *6 [Press].

- CD/USB FRONT/USB REAR/iPod FRONT/iPod REAR/BT FRONT (Audio) *2/ BT REAR (Audio) *2: Enter playback mode [Hold].

16 Remote sensor

17 AUX (auxiliary) input jack

*1 Also known as "Control dial" in this manual.

*2 For Bluetooth devices that support AVRCP 1.3.

*3 You cannot select these sources if they are not ready or not connected.

*4 You cannot select these sources if they were disabled in the menu (see in "Menu operations" on page 28).

*5 You can use this function only when is available for the connected iPod (see pages 20 and 35).

*6 You can still adjust the volume during pause when the selected source is CD/USB FRONT/USB REAR/iPod FRONT/iPod REAR/BT FRONT/BT REAR.

Before resume playback, check to be sure that you have not raise the volume level too much.

Using the remote controller (RM-RK50)

Installing the lithium coin battery (CR2025)

Caution:

• Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
• Battery shall not be exposed to excessive heat such as sunshine, fire, or the like.

If the effectiveness of the remote controller decreases, replace the battery.

Before using the remote controller:

• Aim the remote controller directly at the remote sensor on the unit.
• DO NOT expose the remote sensor to bright light (direct sunlight or artificial lighting).

Remote sensor

1 • Turns the power on if pressed briefly or attenuates the sound when the power is on. - Turns the power off if pressed and held. - Switches the conversation media during a phone call conversation if pressed briefly. 2 • Changes the preset stations. • Changes the folder of the MP3/WMA (and WAV for USB operations). 3 Adjusts the volume level. 4 Selects the sound mode. 5 Selects the source. 6 For Bluetooth cellular phone:

- Answers calls if pressed briefly.

– Rejects calls if pressed and held.

7 • Searches for stations if pressed briefly.

• Fast-forwards or reverses the track if pressed and held. • Changes the tracks if pressed briefly.
• Reverse skip/forward skip for Bluetooth audio player.

Warning (to prevent accidents and damage):

• Do not install any battery other than CR2025 or its equivalent.
• Do not leave the remote controller in a place (such as dashboards) exposed to direct sunlight for a long time.
• Store the battery in a place where children cannot reach.
• Do not recharge, short, disassemble, heat the battery, or dispose of it in a fire.
• Do not leave the battery with other metallic materials.
• Do not poke the battery with tweezers or similar tools.
• Wrap the battery with tape and insulate when throwing away or saving it.

Listening to the radio

1		Select “FM,” “AM” or “FM-LOW.”
2		Search for a station to listen—Auto Search.When a station is tuned in, searching stops. To stop searching, press the same button again.You can also search for a station manually—Manual Search. Hold either one of the buttons until “M” appears on the display, then press it repeatedly.When receiving an FM stereo broadcast with sufficient signal strength, theSTindicator lights up on the display.Note:FM: 87.5 MHz – 108.0 MHzFM-LOW: 65.00 MHz – 74.00 MHz

Improving the FM reception

When an FM stereo broadcast is hard to receive, activate monaural mode for better reception.

• Not applicable when the source is "FM-LOW." • See also page 27.

[Hold]

[Turn] → [Press]

Stereo/Mono>

Reception improves, but stereo effect will be lost. The MO lights up on the display.

To restore the stereo effect, repeat the same procedure to select .

Storing stations in memory

Automatic presetting (FM/FM-LOW)—SSM (Strong-station Sequential Memory)

You can preset up to 12 stations for FM, and 6 stations for FM-LOW.

1 While listening to a station, enter "SSM" screen.

[Hold]

2 Select the preset number range you want to store.

[Turn]

FM:

SSM 01-06, SSM 07-12

FM-LOW:

SSM 01-06

3

[Press]

Local FM stations with the strongest signals are searched and stored automatically.

• To stop searching, press ◀◀◀ ▼/▶▶▶ | ∧.

To preset other 6 stations, repeat from step 1 again.

Continued on the next page

Manual presetting (FM/AM/FM-LOW)

You can preset up to 12 stations for FM, 6 stations for FM-LOW, and 6 stations for AM.

Ex.: Storing FM station of 92.5 MHz into preset number "4."

1

2 Select preset number "4."

3

or

[Turn] → [Press]

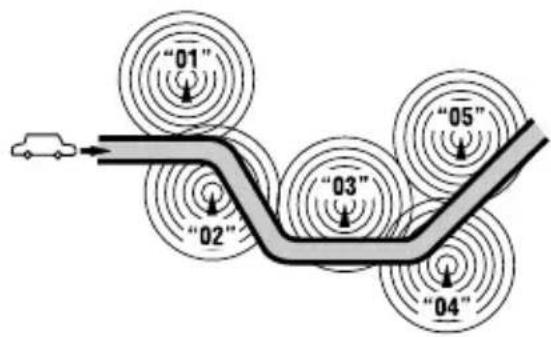

The following features are available only for FM Radio Data System stations.

Searching for FM Radio Data System programme—PTY Search

You can tune in to a station broadcasting your favorite programme by searching for a PTY code.

1 The last selected PTY code [Hold] appears.

2 Select one of your favorite programme types or a PTY code.

3 Start searching for your favorite programme.

If a station is broadcasting a programme of the same PTY code as you have selected, that station is tuned in.

PTY codes

News, Affairs, Info, Sport, Educate, Drama, Culture, Science, Varied, Pop M (music), Rock M (music), Easy M (music), Light M (music), Classics, Other M (music), Weather, Finance, Children, Social, Religion, Phone In, Travel, Leisure, Jazz, Country, Nation M (music), Oldies, Folk M (music), Document

Using the standby receptions

TA Standby Reception

TA Standby Reception allows the unit to switch temporarily to Traffic Announcement (TA) from any source other than AM and FM-LOW.

The volume changes to the preset TA volume level if the current level is lower than the preset level (see page 27).

To activate TA Standby Reception

The TP (Traffic Programme)

indicator either lights up or flashes.

• If the TP indicator lights up, TA Standby Reception is activated.
• If the TP indicator flashes, TA Standby Reception is not yet activated. (This occurs when you are listening to an FM station without the Radio Data System signals required for TA Standby Reception.) To activate the reception, tune in to another station providing these signals. The TP indicator will stop flashing and remain lit.

To deactivate the TA Standby Reception

The TP indicator goes off.

PTY Standby Reception

PTY Standby Reception allows the unit to switch temporarily to your favorite PTY programme from any source other than AM and FM-LOW.

To activate and select your favorite PTY code for PTY Standby Reception, see page 27.

The PTY indicator either lights up or flashes.

• If the PTY indicator lights up, PTY Standby Reception is activated.
• If the PTY indicator flashes, PTY Standby Reception is not yet activated. To activate the reception, tune in to another station providing these signals. The PTY indicator will stop flashing and remain lit.

To deactivate the PTY Standby Reception, select <0ff> for the PTY code (see page 27). The PTY indicator goes off.

- The unit will not switch to Traffic Announcement or PTY programme when a call connection is established through "BT FRONT/BT REAR."

Tracing the same programme—Network-Tracking Reception

When driving in an area where FM reception is not sufficient enough, this unit automatically tunes in to another FM Radio Data System station of the same network, possibly broadcasting the same programme with stronger signals (see the illustration below).

When shipped from the factory, Network-Tracking Reception is activated.

To change the Network-Tracking Reception setting, see on page 27.

Programme A broadcasting on different frequency areas (01 – 05)

Automatic station selection—Programme Search

Usually when you select a preset number, the station preset in that number is tuned in.

If the signals from the FM Radio Data System preset station are not sufficient for good reception, this unit, using the AF data, tunes in to another frequency possibly broadcasting the same programme as the original preset station is broadcasting.

• The unit takes some time to tune in to another station using programme search. • See also page 27.

Disc operations

1		Turn on the power.
2		Insert a disc.All tracks will be played repeatedly until you change the source or eject the disc.

Stop playing and ejecting the disc

- "No Disc" appears. Press SRC to listen to another playback source.

Prohibiting disc ejection

To cancel the prohibition, repeat the same procedure.

Pressing (or holding) the following buttons allows you to...

Selecting a track/folder

• For MP3/WMA discs, select the desired folder, then the desired track by repeating the control dial procedures. • To return to the previous menu, press BACK.

Selecting the playback modes

You can use only one of the following playback modes at a time.

1 Enter "PLAYBACK MENU" screen.

2

[Turn]→[Press]

Repeat Random

3

[Turn] → [Press]

Repeat	Track: Repeats current track
	Folder: MP3/WMA: Repeats current folder
Random	Folder: MP3/WMA: Randomly plays all tracks of current folder, then tracks of next folders
	All: Randomly plays all tracks

• To cancel repeat play or random play, select "Off". • To return to the previous menu, press BACK.

USB operations

This unit is equipped with two USB input terminals (on the control panel and USB cable from the rear of the unit). You can use these two terminals at the same time.

- You can also connect a USB Bluetooth Adapter (KS-UBT1) and/or an Apple iPod/iPhone to the USB input terminal(s). For details of the operations, see pages 14 – 21.

This unit can play MP3/WMA/WAV tracks stored in a USB mass storage class device (such as a USB memory, Digital Audio Player, portable HDD, etc.).

1		Turn on the power.
2	____ and/or ____ USB cable from the rear of the unit	Connect a USB device.All tracks will be played repeatedly until you change the source or disconnect a device.

If a USB device has been attached...

SRC

Playback starts from where it has been stopped previously.

- If a different USB device is currently attached, playback starts from the beginning.

Stop playing and detaching the USB device

Straightly pull it out from the USB input terminal.

- "No USB" appears. Press SRC to listen to another playback source.

You can operate the USB device in the same way you operate the files on a disc. (See pages 12 and 13.)

- You can listen to WAV files by following the MP3/WMA file operations listed on pages 12 and 13.

Cautions:

• Avoid using the USB device if it might hinder your safety while driving.
• While "Reading" is shown on the display:

- Do not repeatedly pull out and attach the USB device.

- Do not pull out or attach another USB device.

• Do not start the car engine if a USB device is connected.
• This unit may not be able to play the files depending on the type of USB device. Operation and power supply may not work as intended for some USB devices.
• You cannot connect a computer to the USB input terminal of the unit.
• Make sure all important data has been backed up to avoid losing the data.
• Electrostatic shock when connecting a USB device may cause abnormal playback of the device. In this case, disconnect the USB device, then reset this unit and the USB device.
• Do not leave a USB device in the car, expose it to direct sunlight, or high temperature to avoid deformation or damage to the device.
• Some USB devices may not work immediately after you turn on the power.
• The detection time and response time may be very long for some USB devices (such as Digital Audio Player, HDD, etc.).
• For more details about USB operations, see pages 33 and 34.

Using the Bluetooth® devices

Bluetooth is a short-range wireless radio communication technology for mobile devices such as mobile phones, portable PCs, and other devices. Bluetooth devices can be connected without cables and communicate with each other.

- Refer to the list (included in the box) to see the countries where you may use the Bluetooth® function.

Bluetooth profile

This unit supports the following Bluetooth profiles; HFP (Hands-Free Profile) 1.5

OPP (Object Push Profile) 1.1

A2DP (Advanced Audio Distribution Profile) 1.2

AVRCP (Audio/Video Remote Control Profile) 1.3

Refer also to the instructions supplied with the Bluetooth device.

Features

You can operate Bluetooth devices through the unit as follows:

• Receiving a call
• Making a call—from phone book, from call history (dialed number/received call), by dialing number, by voice command • Informing you of the arrival of a SMS (Short Message Service)
• Play back a Bluetooth audio player

Connecting a Bluetooth device for the first time

Preparation:

• Connect the supplied USB Bluetooth Adapter (KS-UBT1) to one of the USB input terminals of the unit.
• Operate the device to turn on its Bluetooth function.

1		Turn on the power.
2		Connect the USB Bluetooth Adapter, KS-UBT1.Only one USB Bluetooth Adapter can be detected at a time.
	B cable from the rear of :unit

You can perform the following operations from the menu.

• Pairing and delete pairing
• Connect and disconnect a registered Bluetooth device (Phone/Audio)

[Turn] → [Press]

→ Perform the following operations.

Continued on the next page

Pairing and PIN code

When you connect a Bluetooth device to the unit for the first time, make pairing between the unit and the device. Pairing allows Bluetooth devices to communicate with each other.

To make pairing, you may need to enter the PIN (Personal Identification Number) code of your Bluetooth device you want to connect.

• Once the connection is established, it is registered in the unit even if you reset the unit. Up to five devices can be registered in total.
• Only one device for Bluetooth phone and one for Bluetooth audio can be connected at a time.

1 Select .

[Turn] → [Press]

2 Enter a PIN (Personal Identification Number) code to the unit.

- You can enter any number you like (1-digit to 16-digit number). [Initial: 0000]

- Some devices have their own PIN code. Enter the specified PIN code to the unit.

1 Move to the next (or previous) number position.

2 Select a number.

3 Repeat steps 1 and 2 until you finish entering a PIN code.

4 Confirm the entry.

"Wait Pair" appears on the display.

3 Use the Bluetooth device to search and connect.

On the device to be connected, enter the same PIN code you have just entered for this unit.

"Wait Pair" appears, then "Pairing OK" or "Connected [Device Name]" appears on the display when the connection is established. Now you can use the device through the unit.

appears when Bluetooth connection is established.

The device remains registered even after you disconnect the device. Use or (or activate ) to connect the same device from next time on. (See page 30.)

Deleting a registered device

1 Select .

[Turn] → [Press]

2 Select a device you want to delete.

[Turn] → [Press]

"Delete OK?" appears on the display.

3 Delete the selection.

[Press]

"OK" appears on the display when the device is deleted.

• To return to the previous menu, press BACK.

Connecting a registered device

1 Select or .

[Turn] → [Press]

2 Select a device you want to connect.

[Turn] → [Press]

"Connecting..." appears, then "Connected [Device Name]" appears on the display when the device is connected.

Disconnecting a registered device

Select or .

[Turn] -> [Press]

"Disconnecting" appears, then "Disconnected [Device Name]" appears on the display when the device is disconnected.

Using the Bluetooth cellular phone

Making a call

1 Enter "Call Menu" screen.

2 Select the method to make a call.

[Turn] -> [Press]

• "Dialed Calls"*: Shows the list of the phone numbers you have dialed. Go to the following step.
• "Received Calls"*: Shows the list of the received calls. Go to the following step.
• "Missed Calls"*: Shows the list of the missed calls. Go to the following step.

- "Phonebook": Shows the name/phone number of the phone book of the unit. Go to the following step. To copy the phone book memory, see pages 30 and 31.

- "Dial Number": Shows the "Dial Number" screen. See "How to enter phone number" on the following.

- "Voice Dial" (Only accessible when the connected cellular phone has the voice recognition system): Speak the name (registered words) you want to call.

* Displays only when the dialed or received number is made through the unit. See also page 31 for "Phonebook Select" settings.

3 Select the name/phone number you want to call.

[Turn] → [Press]

- If the sound is stopped or interrupted while using a Bluetooth device, turn the unit off and then on again.

- If the sound is still not restored, reconnect the device. (See "Connecting a registered device" in the left column.)

How to enter a phone number

1 Select a number.

[Turn]

Continued on the next page

2 Move the entry position.

3 Repeat steps 1 and 2 until you have finished entering the phone number.

4 Confirm the entry.

How to delete a phone number

- Only when is selected in the Bluetooth setting menu (see page 31).

1 Enter the "Call Menu" screen.

2 Display the list of phone numbers using one of the calling methods (see step 2 of "Making a call" on page 17).

3 Select the name/phone number you want to delete.

4 Enter the "Delete Entries" screen.

5 • Select "Delete" to delete the selected item.

- Select "Delete All" to delete all the listed numbers in step 2.

Receiving/ending a phone call

When a call comes in....

The source is automatically changed to "BT FRONT/BT REAR."

- The display will flash in blue (see on page 25 for setting).

Name (or phone number, if acquired)

When is activated....

The unit answers the incoming calls automatically, see page 30.

- To answer the incoming call when is deactivated:

or [Press]

• To adjust the microphone volume during a phone call conversation:

VOL 30 MIC 01

The adjustment will not affect the main volume. You can preset the microphone volume (see pages 30 and 31).

To end the call or reject an incoming call

[Hold]

or [Hold]

- When is set to , the unit rejects any incoming calls.

Switching conversation media (the unit/cellular phone)

During a phone call conversation....

Then, continue your conversation using the other media.

• Operations may be different according to the connected Bluetooth device.

Arriving of a SMS

When a SMS comes in....

If the cellular phone is compatible with SMS and

is set to (see page 30), the unit rings to inform you of the message arrival.

• "Received Message" appears on the display and the display illuminate in blue (see on page 25 for setting).
• You cannot read, edit, or send a message through the unit.

Using the Bluetooth audio player

- Operations and display indications differ depending on their availability on the connected audio player.

SRC	Select “BT FRONT” or “BT REAR.”If playback does not start automatically, operate the Bluetooth audio player to start playback.

	[Press] Resume playback *
	[Press] Pause playback *
	Select group/folder *
	[Press] Reverse skip/forward skip [Hold] Reverse search/forward search

* Operation may differ according to the connected device.

Selecting the playback modes

You can use only one of the following playback modes at a time.

- For Bluetooth devices that support AVRCP 1.3.

1 Enter "PLAYBACK MENU" screen.

[Hold]

2

[Turn] → [Press]

Repeat ↔ Random

3

[Turn] → [Press]

Repeat	Track : Repeats current track
	All : Repeats all tracks
	Group : Repeats all tracks of current group
Random	All : Randomly plays all tracks
	Group : Randomly plays all tracks of the current group

• To cancel repeat play or random play, select "Off". • To return to the previous menu, press BACK. • Refer also to pages 16 and 17 for connecting/disconnecting/deleting a registered device.

Bluetooth Information:

If you wish to receive more information about Bluetooth, visit the following JVC web site: http://www.jvc.co.jp/english/car/ (English website only).

Listening to the iPod/iPhone

There are two control terminals in "iPod FRONT/iPod REAR" source.

• : Control by this unit.
• : Control by the connected iPod/iPhone.

Preparation: Select the controlling terminal, or for iPod playback:

• Press and hold BACK button.
• Make the selection from setting, see page 28.

The operations explained below are under .

1		Turn on the power.
2	_cable in the rear ie unit	Connect the iPod/iPhone using the USB 2.0 cable (accessory of the iPod/iPhone).Playback starts automatically.
3		Select a song.

• When iPod/iPhone devices are connected to both front and rear USB input terminals, the unit only detects and charges the first connected device.
• Disconnecting the iPod/iPhone will stop playback. Press SRC to listen to another playback source.
• For details, refer also to the manual supplied with your iPod/iPhone.

Caution:

• Avoid using the iPod/iPhone if it might hinder your safety while driving. • Make sure all important data has been backed up to avoid losing the data.

Pressing (or holding) the following buttons allows you to...

	[Press] Pause/resume playback.
	[Press] Select track [Hold] Reverse/fast-forward track

Selecting a track from the menu

1 Enter the main menu.

2 Select the desired menu.

[Turn]→[Press]

Playlists ↔ Artists ↔ Albums ↔ Songs ↔ Podcasts ↔ Genres ↔ Composers ↔ Audiobooks

3 Select the desired item.

[Turn] → [Press]

• Repeat this procedure until the desired track is selected. • To return to the previous menu, press BACK.

Selecting the playback modes

1 Enter "PLAYBACK MENU" screen.

2

3

Repeat	One: Functions the same as “Repeat One” of the iPod.
	All: Functions the same as “Repeat All” of the iPod.
Random	Song: Functions the same as “Shuffle Songs” of the iPod.
	Album*: Functions the same as “Shuffle Albums” of the iPod.

• To cancel repeat play or random play, select "Off."
• "Random Album" is not available for some iPod.

* Functions only if you select "All" for "Albums" in the main menu. • To return to the previous menu, press BACK.

Listening to the other external components

You can connect an external component to the AUX (auxiliary) input jack on the control panel.

Preparation: Make sure is selected in the → setting, see page 28.

1	SRC	Select “AUX IN.”
2	—	Turn on the connected component and start playing the source.
3	[Turn]	Adjust the volume.
4	—	Adjust the sound as you want (see page 23).

Connecting an external component to the AUX input jack

Selecting a preset sound mode

You can select a preset sound mode suitable to the music genre from the menu.

• See page 36 for the preset value for each sound mode.

• See page 25 for settings.

Storing your own sound mode

You can store your own adjustments in memory.

1 Select .

2 Enter setting mode.

3 Select a frequency range.

4 Adjust the sound elements of the selected frequency range.

1 Press |◀◀ √ / ▶▶| ∧ to adjust the frequency.

2 Press ▲ / ▼ to adjust the level.

3 Turn the control dial to adjust the Q-slope.

Sound elements	Range/ selectable items
	Low Mid	High
Frequency 50 Hz	100 Hz	0.5 kHz	5.0 kHz
		1.0 kHz	10.0 kHz
	200 Hz	2.0 kHz	15.0 kHz
Level -6 to +6	-6 to +6	-6 to +6
Q Q0.7		Q0.7	Q0.7
	Q1.0	Q1.0	Q1.0
	Q1.4	Q1.4	Q1.4
	Q2.0	Q2.0	Q2.0

5 Repeat steps 3 and 4 to adjust other frequency ranges.

6 Store the adjustment made.

Menu operations

1 Call up the <SET UP> menu.

2 Select the desired item. 3 Repeat step 2 if necessary. [Turn] → [Press]

• To confirm the setting, press the control dial.• To return to the previous menu, press BACK.• To exit from the menu, press DISP or MENU.

Initial: Underlined

Category	Menu items Selectable settings, [reference page]
DEMO	DEMODisplaydemonstration	On: Display demonstration will be activated automatically if no operation is done for about 20 seconds, [4].Off: Cancels.
Clock	Clock Display *1	On: Clock time is shown on the display at all times when the power is turned off.Off: Cancels; pressing DISP will show the clock time for about 5 seconds when the power is turned off.
	Set Clock: Adjust the hour, then the minute, [4].(Initial: 0:00AM)
	24H/12H · 12Hours	24Hours: Select the time display mode, [4].
	Clock Adjust *2	Auto: The built-in clock is automatically adjusted using the CT (clock time) data in the Radio Data System signal.Off: Cancels.
EQ	EQEqualizer	: Select a preset sound mode suitable to the music genre, [23].Off, User, Rock, Classic, Pops, Hip Hop, Jazz
Color	Color Select Color 01	—Color 29,User	: Select one of the preset or user color for display and button (except T/P/▲) illumination.(For customized color settings,, see pages 28 and 29.)
	Menu Color · On	—Off	: Changes the display and button (except T/P/ ▼/ATT/▲) illumination during menu, list search and playback mode operations.Cancels.

*1 If the power supply is not interrupted by turning off the ignition key of your car, it is recommended to select <0ff> to save the car's battery. *2 Takes effect only when CT data is received.

Category	Menu items Selectable settings, [reference page]
Color	Ring Color *3	On	When a call comes in, the display will flash in blue.The display will change to the original color when you answer the call or the incoming call stops.When the unit receive a SMS, the display only illuminate in blue.Cancels.
		Off
Audio	Fad/Bal *4, *5Fader/Balance	R6 – F6	Fad:Press ▲ /▼to adjust the front and rear speaker output balance. (Initial:0)
		L6 – R6	Bal:Press |◄◄▼/►►I ∧ to adjust the left and right speaker output balance. (Initial:0)
	LoudLoudness	Loud1/Loud2/Loud3	Boost low and high frequencies to produce a well-balanced sound at a low volume level.Cancels.
	Volume Adjust Level	-5 —Level +5(Initial:Level 0)	Preset the volume adjustment level of each source (except FM), compared to the FM volume level. The volume level will automatically increase or decrease when you change the source.Before making an adjustment, select the source you want to adjust."FIX" appears on the display if "FM/FM-LOW" is selected as the source.
	Subwoofer · LPF/Level : Press		|◄◄▼►►I to select the cutoff frequency to the subwoofer.Off:All signals are sent to the subwoofer.LPF 55Hz/LPF 85Hz/LPF 120Hz:Frequencies higher than 55 Hz/85 Hz/120 Hz are cut off.Turn the control dial to adjust the subwoofer output level.Level 00 to Level 08 (Initial:Level 04)
	HPFHigh pass filter	Select the cutoff frequency to the front/rear speakers. Set this to match the LPF settings.62Hz/95Hz/135HzOff	: Frequencies lower than 62 Hz/95 Hz/135 Hz are cut off.All signals are sent to the front/rear speakers.
	BeepKey touch tone	OnOff	: Activates the key touch tone.Deactivates the key touch tone.

*3 Displayed only when USB Bluetooth Adapter (KS-UBT1) is connected. *4 If you are using a two-speaker system, set the fader level to <0>. *5 This adjustment will not affect the subwoofer output.

Continued on the next page

Category	Menu items Selectable settings, [reference page]
Audio	Amplifier Gain *6	·High Power : Vol 00 – Vol 50·Low Power : Vol 00 – Vol 30 (Select if the maximum power of each speaker is less than 50 W to prevent damaging the speaker.)
Display	Dimmer · On	· Off : Dims the display and button illumination.· Auto : Dims the display when you turn on the headlights. *7· Time Set : Set the timer for dimmer, [29].Any hour – Any hour (Initial: 18–7)
	Level Meter · Meter 1______ : Select the different level meter patterns, [4].· Meter 2 · Press DISP to show the selected level meter.
	Scroll *8	· Once : Scrolls the track information only once.· Auto : Repeats the scroll (in 5-second intervals).· Off : Cancels.Pressing DISP for more than one second can scroll the display regardless of the setting.
	Tag Display · On	— : Shows the Tag information while playing MP3/WMA/WAV tracks.· Off : Cancels.
	LCD Type · Negative _____. Positive Auto : Negative pattern of the display. Positive pattern of the display. Positive pattern will be selected during the day time *9; while negative pattern will be used during the night time *9.
	Contrast Level 01	— Level 08 : Adjust the display contrast to make the display indications clear and legible. (Initial:Level 05)

*6 The volume level automatically changes to "Vol 30" if you change to with the volume level set higher than "Vol 30." *7 The illumination control lead connection is required. (See "Installation/Connection Manual.") *8 Some characters or symbols will not be shown correctly (or will be blanked) on the display. *9 Depends on the setting.

Category	Menu items Selectable settings, [reference page]
Bluetooth	Device (See pages 15 – 17 for settings.)
	Settings (See pages 30 and 31 for settings.)
Tuner	IF BandIntermediate frequency band	Auto : Increases the tuner selectivity to reduce interference noises between adjacent stations. (Stereo effect may be lost.)Wide : Subject to interference noises from adjacent stations, but sound quality will not be degraded and the stereo effect will remain.
	AF Regional *10Alternative frequency/regionalization reception	AF : When the currently received signals become weak, the unit switches to another station (the programme may differ from the one currently received), [11].AF REG : When the currently received signals become weak, the unit switches to another station broadcasting the same programme.The REG indicator lights up.Off : Cancels.
	P-Search *10Programme search	On : Activates Programme Search, [11].Off : Cancels.
	TA Volume *10Traffic announcement volume	Vol 00 – Vol 50 (or Vol 00 – Vol 30)*11: (Initial: Vol 15)
	PTY-Standby *10PTY standby	Off, PTY codes : Activates PTY Standby Reception with one of the PTY codes, [10].
	Stereo/Mono *12	Stereo : Restore the stereo effect.Mono : Activate monaural mode to improve FM reception, but stereo effect will be lost, [9].

*10 Only for FM Radio Data System stations. *11 Depends on the amplifier gain control. *12 Displayed only when the source is "FM."

Category	Menu items Selectable settings, [reference page]
Source Select	AM Source *3	· Show : Enable “AM” in source selection, [6]. · Hide : Disable “AM” in source selection.
	AUX Source *14	· Show : Enable “AUX IN” in source selection, [6]. · Hide : Disable “AUX IN” in source selection.
	Bluetooth Audio *5	· Show : Enable “BT FRONT/BT REAR” in source selection, [6]. · Hide : Disable BT FRONT/BT REAR” in source selection.
USB *6	Drive Change : Select to change the drive when a multiple drives device is connected to the USB input terminal (FRONT/REAR).
iPod *17	iPod Switch iPod/iPhone control	· Headunit Mode : Controls iPod playback through the unit. · iPod Mode : Controls iPod playback through the iPod/iPhone.
	Audiobooks Speed control of “Audiobooks”	· Normal : You can select the playback speed of the “Audiobooks” sound file in your iPod/iPhone. · Faster : Initial selected item depends on your iPod/iPhone setting.

*13 Displayed only when any source other than "AM" is selected. *14 Displayed only when any source other than "AUX IN" is selected. *15 Displayed only when any source other than "BT FRONT/BT REAR" is selected. *16 Displayed only when the source is "USB FRONT/USB REAR" *17 Displayed only when the source is "iPod FRONT/iPod REAR."

Creating your own color—User Color

You can create your own colors— or .

: Color for the display and buttons.

: Color for the display and buttons when the display is dimmed.

To dim the display, see page 26.

1

2 Enter setting mode.

3 Select or .

Ex.: When is selected

4 Select a primary color, then adjust the level.

Repeat this procedure until you have adjusted all three primary colors.

If <00> is selected for all primary colors, nothing appears on the display.

5 Confirm the settings.

6 Exit from the setting.

Select to show your own colors for the buttons and display.

Setting the time for dimmer

You can set the start/end time for dimmer.

1

2 Adjust the dimmer start time.

3 Adjust the dimmer end time.

4 Exit from the setting.

Changing the Bluetooth setting

You can change the settings listed on the following according to your preference.

Preparation:

- Connect the supplied USB Bluetooth Adapter (KS-UBT1) to one of the USB input terminals of the unit.

1

2 Select a setting item.

3 Change the setting accordingly.

[Turn] → [Press]

menu ( _ : Initial)

Quick Call

You can preset the Quick Call method. Hold to enter the selected method.

- Appears only when a Bluetooth phone is connected.

Dialed Calls: Show the list of the numbers you have dialed.

Received Calls: Show the list of the numbers you have received.

Missed Calls: Show the list of the numbers you have missed.

Phonebook: Show the list of the phonebook.

Dial Number: Display the "Dial Number" screen.

Voice Dial: Display the voice dialling screen.

Auto Connect

When the unit is turned on, the connection is established automatically with...

Last: The last connected Bluetooth device.

Off: No Bluetooth device.

Auto Answer

Only for the device being connected for "BT FRONT (Phone)/BT REAR (Phone)."

On: The unit answers the incoming calls automatically.

Off: The unit does not answer the calls automatically. Answer the calls manually.

Reject: The unit rejects all incoming calls.

Message Notice

Only for the device being connected for "BT FRONT/ BT REAR (Phone)."

On: The unit informs you of the arrival of a message by ringing and displaying "Received Message."

- The display illuminates in blue (see on page 25).

Off: The unit does not inform you of the arrival of a message.

MIC Setting

Only for the device being connected for "BT FRONT/BT REAR (Phone)."

Adjust the volume of the microphone connected to the unit.

Level 01/02/03

Ringing Tone

You can preset the ringing source when a call/SMS comes in.

In Unit: Call: Select your preferred ring tone when a call comes in.

- Tone 1/2/3

Message: Select your preferred ring tone when a SMS comes in.

- Tone 1/2/3

Yes, Initialize all the Bluetooth settings.

In Phone: Your phone rings to alert you when a call/SMS comes in.

Phonebook Transfer

You can copy the phone book memory of a cellular phone into the unit.

Enter the PIN code to the unit to transfer the phone book into the unit. You can transfer a maximum of 300 numbers.

Phonebook Select

You can preset the source of the phone book you want to synchronize.

- Selectable only when the connected phone supports Phonebook Auto Synchronize.

AutoAccess Phone: Auto synchronize from the phone memory.

AutoAccess SIM: Auto synchronize from the SIM card.

Manual Trans: Manually select the source to transfer.

Initialize

Initialize all the Bluetooth settings.

No: Cancels

Information

JVC Device Name: Shows the unit name.

JVC Address: Shows address of USB Bluetooth Adapter.

JVC Software Ver.: Shows the software version.

Connected Phone*: Shows connected phone name.

Connected Audio*: Shows connected audio device name.

* Displayed only when a Bluetooth phone/audio player is connected.

More about this unit

Basic operations

Turning on the power

- By pressing SRC on the unit, you can also turn on the power. If the source is ready, playback also starts.

Turning off the power

- If you turn off the power while listening to a track, playback will start from where it had been stopped previously next time you turn on the power.

General

• If you change the source while listening to a disc, playback stops. Next time you select “CD” as the playback source, playback will start from where it had been stopped previously.
• If the ejected disc is not removed within 15 seconds, the disc is automatically inserted again into the loading slot to protect it from dust.
• After ejecting a disc or removing a USB device, "No Disc" or "No USB" appears and you cannot operate some of the buttons. Insert another disc, reattach a USB device, or press SRC to select another playback source.
• If no operation is done for about 30 seconds after pressing the MENU button or control dial, the operation will be canceled.

Tuner operations

Storing stations in memory

• During SSM search... – All previously stored stations are erased and the stations are stored anew.
• When SSM is over, the station stored in the lowest preset number will be automatically tuned in.
• When storing a station manually, the previously preset station is erased when a new station is stored in the same preset number.

FM Radio Data System operations

• Network-Tracking Reception requires two types of Radio Data System signals—PI (Programme Identification) and AF (Alternative Frequency) to work correctly. Without receiving these data correctly, Network-Tracking Reception will not operate correctly.
• If a Traffic Announcement is received by TA Standby Reception, the volume level automatically changes to the preset level (TA Volume) if the current level is lower than the preset level.
• When Alternative Frequency Reception is activated (with AF selected), Network-Tracking Reception is also activated automatically.

Disc/USB operations

Caution for DualDisc playback

- The Non-DVD side of a "DualDisc" does not comply with the "Compact Disc Digital Audio" standard. Therefore, the use of Non-DVD side of a DualDisc on this product may not be recommended.

General

• This unit has been designed to reproduce CDs/CD Texts, and CD-Rs (Recordable)/CD-RWs (Rewritable) in audio CD (CD-DA), MP3 and WMA formats.
• When a disc is inserted upside down, "Please Eject" appears on the display. Press ▲ to eject the disc.
• In this manual, the words "track" and "file" are used interchangeably.
• While fast-forwarding or reversing on an MP3/WMA/WAV file, you can only hear intermittent sound.
• The file/folder list may not appear correctly if too many hierarchies and folders are used.

Playing a CD-R or CD-RW

• Use only "finalized" CD-Rs or CD-RWs.
• This unit can only play back files of the same type as those which are detected first if a disc includes both audio CD (CD-DA) files and MP3/WMA files.
• This unit can play back multi-session discs; however, unclosed sessions will be skipped while playing.
• Some CD-Rs or CD-RWs may not play back on this unit because of their disc characteristics, or for the following reasons:

– Discs are dirty or scratched.

- Moisture condensation has occurred on the lens inside the unit.

— The pickup lens inside the unit is dirty.

- The files on the CD-R/CD-RW are written using the "Packet Write" method.

- There are improper recording conditions (missing data, etc.) or media conditions (stained, scratched, warped, etc.).

- CD-RWs may require a longer readout time since the reflectance of CD-RWs is lower than that of regular CDs.

- Do not use the following CD-Rs or CD-RWs:

– Discs with stickers, labels, or a protective seal stuck to the surface.

– Discs on which labels can be directly printed by an ink jet printer.

Using these discs under high temperature or high humidity may cause malfunctions or damage to the unit.

Playing an MP3/WMA disc

• This unit can play back MP3/WMA files with the extension code .mp3 or .wma (regardless of the letter case—upper/lower).
• This unit can show the names of albums, artists (performer), and Tag (Version 1.0, 1.1, 2.2, 2.3, or 2.4) for MP3 files and show WMA Tag.
• This unit can play back MP3/WMA files meeting the conditions below: Bit rate of MP3/WMA: 5 kbps — 320 kbps Sampling frequency of MP3:

- 48 kHz, 44.1 kHz, 32 kHz (for MPEG-1)

- 24 kHz, 22.05 kHz, 16 kHz (for MPEG-2)

Sampling frequency of WMA: 8 kHz — 48 kHz

• The maximum number of characters for file/folder names is 25 characters (including .mp3, .wma); 128 characters for MP3/WMA Tag.

- This unit can recognize a total of 20,000 files and 2,000 folders (999 files per folder). However, the display can show until 999 folders/files.

- This unit can play back files recorded in VBR (variable bit rate).

Files recorded in VBR have a discrepancy in the elapsed time display, and do not show the actual elapsed time. In particular, this difference becomes noticeable after performing the search function.

- This unit cannot play back the following files: - MP3 files encoded in MP3i and MP3 PRO format.

- MP3 files encoded in an inappropriate format.

- MP3 files encoded with Layer 1/2.

- WMA files encoded in lossless, professional, and voice format.

- WMA files which are not based upon Windows Media® Audio.

- WMA files copy-protected with DRM.

- Files which have data such as AIFF, ATRAC3, etc.

- The search function works but search speed is not constant.

Playing MP3/WMA/WAV tracks from a USB device

• Connecting a USB device automatically changes the source to "USB FRONT/USB REAR"
• While playing from a USB device, the playback order may differ from the one from other players.
• This unit may be unable to play back some USB devices or some files due to their characteristics or recording conditions.

Continued on the next page

- Depending on the shape of the USB devices and connection ports, some USB devices may not be attached properly or the connection might be loose.

- When connecting a USB mass storage class device, refer also to its instructions.

- This unit may not work properly with some USB hub or USB card reader.

- This unit is compatible with USB Full-Speed.

- If the connected USB device does not have the correct files, "No File" appears.

- This unit can display ID3 Tag (Version 1.0, 1.1, 2.2, 2.3, or 2.4) for MP3 and WMA/WAV Tag.

- This unit can play back MP3/WMA/WAV files meeting the conditions below:

MP3:

- Bit rate: 32 kbps — 320 kbps (MPEG-1) 8 kbps — 160 kbps (MPEG-2)

- Sampling frequency: 48 kHz, 44.1 kHz, 32 kHz (for MPEG-1) 24 kHz, 22.05 kHz, 16 kHz (for MPEG-2)

WMA:

- Bit rate: 5 kbps — 320 kbps

- Sampling frequency: 8 kHz — 48 kHz

- Channel: 1 ch/2 ch WAV:

- Bit rate: Linear PCM at 705 kbps and 1,411 kbps

– Sampling frequency: 44.1 kHz

- Channel: 1 ch/2 ch

- This unit can play back MP3 files recorded in VBR (variable bit rate).

- The maximum number of characters for folder and file names is 25 characters (including ".mp3", ".wma", ".wav"); 128 characters for MP3/WMA/WAV Tag.

- This unit can recognize a total of 20,000 files and 2,000 folders (999 files per folder). However, the display can show up to 999 folders/files.

• The unit cannot recognize a USB mass storage class device whose rating is other than 5 V and exceeds 500 mA.
• USB devices equipped with special functions such as data security functions cannot be used with the unit.
• Do not use a USB device with 2 or more partitions.
• When connecting with a USB cable, use the USB 2.0 cable.
• This unit may not recognize some USB devices connected through a USB card reader.
• This unit may not play back files in a USB device properly when using a USB extension cord.
• This unit cannot assure proper functions or supply power to all types of USB devices.

Bluetooth operations

General

• While driving, do not perform complicated operations such as dialing numbers, using the phone book, etc. When you perform these operations, stop your car in a safe place.
• Some Bluetooth devices may not be connected to this unit depending on the Bluetooth version of the device.
• If you connect a different USB Bluetooth Adapter, all the registered devices and information will be cleared.
• This unit may not work for some Bluetooth devices.
• Connecting condition may vary depending on the circumstances around you.
• If you turn off the unit, detach the control panel, or unplug the USB Bluetooth Adapter during a phone call conversation, the Bluetooth connection is disconnected. Continue the conversation using your cellular phone.
• When the unit is turned off, the device is disconnected.

Icons for phone types

These icons indicate the phone type of number entries in the Phonebook	These icons indicate the type of connected phone/ audio devices
: Cellular phone :	Phone only
: Household phone	: Phone/Audio
: Office	: Audio only
: General
: Other than above
: Unknown

Warning messages for Bluetooth operations

- Connection Error

The device is registered but the connection has failed. Use to connect the device again. (See page 17.)

- Error

Try the operation again. If "Error" appears again, check if the device supports the function you have tried.

- Please Wait...

The unit is preparing to use the Bluetooth function. If the message does not disappear, turn off and turn on the unit, then connect the device again (or reset the unit).

- Please Reset...

Reset the unit and try the operation again. If "Please Reset..." appears again, consult your nearest JVC car audio dealers.

iPod/iPhone operations

- You can control the following types of iPods/iPhone:

- iPod with video (5th Generation) * 1

- iPod classic *1,*2

- iPod nano

- iPod nano (2nd Generation)

- iPod nano (3rd Generation) * 1,*2

- iPod nano (4th Generation) * 1,*2

- iPod Touch * 1, *2

• iPod Touch (2nd Generation) * 1, *2
• iPhone/iPhone 3G *1, *2 *1 It is not possible to browse video files on the "Videos" menu. *2 is available (see page 20).
• If the iPod does not play correctly, please update your iPod software to the latest version. For details about updating your iPod, visit http://www.apple.com .
• When you turn on this unit, the iPod is charged through this unit.
• The song order displayed on the selection menu of this unit may differ from that of the iPod.
• The text information may not be displayed correctly:

— Some characters such as accented letters cannot be shown correctly on the display. - Communication between the iPod and the unit is not stable. - If the text information includes more than 16 characters, it scrolls on the display. This unit can display up to 64 characters.

Notice:

When operating an iPod, some operations may not be performed correctly or as intended. In this case, visit the following JVC web site:

http://www.jvc.co.jp/english/car/ (English website only)

Menu operations

• The setting for may not work correctly on some vehicles, particularly on those having a control dial for dimming. In this case, change the setting to any other than .
• If is set to , the display pattern will change to the or pattern depending on the setting.
• If you change the setting from to while the volume level is set higher than "Vol 30", the unit automatically changes the volume level to "Vol 30."

Continued on the next page

Preset value setting for each sound mode

Sound mode	Preset value
	Low Mid High
	Freq. Level Q Freq. Level Q			Freq. Level Q
User	50 Hz	00 Q1.0 1.0	kHz 00 Q1.0	10.0 kHz	00 Q1.0
Rock	100 Hz	+03 Q1.0 1	0 kHz 00 Q1.0	10.0 kHz	+02 Q1.4
Classic	100 Hz	+01 Q1.0 1	0 kHz 00 Q1.0	10.0 kHz	+03 Q1.4
Pops	100 Hz	+02 Q1.0 1	0 kHz +01	Q1.0 10.0 kHz	+02 Q1.4
Hip Hop	50 Hz	+04 Q1.0 1	0 kHz -02	Q1.0 10.0 kHz	+01 Q1.4
Jazz	100 Hz	+03 Q1.0 1	0 kHz 00 Q1.0	10.0 kHz	+03 Q1.4

Freq.: Frequency Q: Q-slope

• Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
• The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Victor Company of Japan, Limited (JVC) is under license. Other trademarks and trade names are those of their respective owners.
• "Made for iPod" means that an electronic accessory has been designed to connect specifically to iPod and has been certified by the developer to meet Apple performance standards.
• "Works with iPhone" means that an electronic accessory has been designed to connect specifically to iPhone and has been certified by the developer to meet Apple performance standards.
• Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.
• iPod is a trademark of Apple Inc., registered in the U.S. and other countries.
• iPhone is a trademark of Apple Inc.

JVC bears no responsibility for any loss of data in an iPod/iPhone and/or USB mass storage class device while using this System.

Troubleshooting

What appears to be trouble is not always serious. Check the following points before calling a service center.

	Symptoms Remedies/Causes
General	Sound cannot be heard from the speakers.Adjust the volume to the optimum level.Check the cords and connections.
	The unit does not work at all. Reset the unit (see page 3).
	“Connect Error” appears on the display. Remove the control panel, wipe the connector, then attach it again (see page 3).
FM/AM	SSM automatic presetting does not work. Store stations manually.
	Static noise while listening to the radio. Connect the aerial firmly.
	“AM” cannot be selected. Check theSelect>→setting(see page 28).
Disc playback	Disc cannot be played back. Insert the disc correctly.
	CD-R/CD-RW cannot be played back.Tracks on the CD-R/CD-RW cannot be skipped.	Insert a finalized CD-R/CD-RW.Finalize the CD-R/CD-RW with the component which you used for recording.
	Disc can neither be played back nor ejected.“No Eject” appears on the display.	Unlock the disc (see page 12).Eject the disc forcibly (see page 3).
	Disc sound is sometimes interrupted. Stop playback while driving on rough roads.Change the disc.Check the cords and connections.
	Disc cannot be recognized (“No Disc,” “CD Loading Error,” or “Eject Error” flashes).	Eject the disc forcibly (see page 3).
	“Please Eject” appears on the display. This occurs sometimes due to over-heating. Eject the disc or change to another playback source.
MP3/WMA playback	Disc cannot be played back. Use a disc with	MP3/WMA tracks recorded in a format compliant with ISO 9660 Level 1, Level 2, Romeo, or Joliet.Add the extension code <.mp3> or <.wma> to the file names.
	Noise is generated. Skip to another track or ch	ange the disc. (Do not add the extension code <.mp3> or <.wma> to non-MP3 or WMA tracks.)
	A longer readout time is required ("Reading" keeps flashing on the display).	Do not use too many hierarchical levels and folders.
	Tracks do not play back in the order you have intended them to play.	The playback order is determined by the file name. Folder with numbers on the initial as their names are sorted in numerical order. However, folder with no numbers on the initial of their names are sorted according to the file system of the CD.
	The elapsed playing time is not correct. This so	sometimes occurs during playback. This is caused by how the tracks are recorded on the disc (eg. variable bit rate).
	"Please Eject" appears on the display. Insert a	disc that contains MP3/WMA tracks.
	"No File" appears on the display.	Selected folder is an empty folder*. Select another folder that contains MP3/WMA tracks.
	"Not Support" appears on the display and track skips.	Skip to the next track encoded in an appropriate format or to the next non-copy-protected WMA track.
	Correct characters are not displayed (e.g. album name).	This unit can display Roman alphabets, Cyrillic alphabets, numbers and symbols (see page 3).
USB device	Noise is generated. The track played back is not an MP3/WMA/WAV track.Skip to another file. (Do not add the extension code <.mp3>, <.wma>, or <.wav> to non-MP3/WMA/WAV tracks.)

* Folder that is physically empty or folder that contains data but does not contain valid MP3/WMA track.

	Symptoms Remedies/Causes
USB device	·“Reading” keeps flashing on the display. ·Readout time varies depending on the USB device.·Do not use too many hierarchy or folders.·Turn off the power then on again.·Do not pull out or connect the USB device repeatedly while “Reading” is displayed on the display.
	·“No File” appears on the display. Check whether the selected folder, the connected USB device, or the iPod/iPhone contains a playable file.
	·“Read Failed” appears on the display. The connected USB device is not working properly. Connect the USB device again.
	·Tracks/folders are not played back in the order you have intended.	The playback order is determined by the file name. Folders with numbers on the initial of their names are sorted in numerical order. However, folders with no numbers on the initial of their names are sorted according to the file system of the USB device.
	·“Cannot Play” appears on the display.·“No USB” appears on the display.·The unit cannot detect the USB device.	·Check whether the connected USB device or the iPod/ iPhone is compatible with this unit.·The USB device is not connected properly. Connect the USB device again.
	·“Not Support” appears on the display and track skips.	Check whether the track is a playable file format.
	·Correct characters are not displayed (e.g. album name).	This unit can display Roman alphabets, Cyrillic alphabets, numbers and symbols (see page 3).
	·While playing a track, sound is sometimes interrupted.	The tracks have not been properly copied into the USB device. Copy tracks again into the USB device, and try again.
Bluetooth	·The unit does not detect the Bluetooth device.	·Search from the Bluetooth device again.·Reset the unit. When “Wait Pair” appears on the display, search from the Bluetooth device again.
	·The unit does not make pairing with the Bluetooth device.	Enter the same PIN code for both the unit and target device.
	·Echo or noise occurs. Adjust the microphone units position.
Bluetooth	Phone sound quality is poor.Reduce the distance between the unit and the Bluetooth cellular phone.Move the car to a place where you can get a better signal reception.
	The sound is interrupted or skipped during playback of a Bluetooth audio player.	Reduce the distance between the unit and the Bluetooth audio player.Disconnect the device connected for Bluetooth Phone.Turn off, then turn on the unit.Connect the player again, when the sound is not yet restored.
	The connected audio player cannot be controlled.	Check whether the connected audio player supports AVRCP (Audio/Video Remote Control Profile).(Operations depend on the connected audio player.)Disconnect and connect the Bluetooth player again.
	The unit does not response when you tried to copy the phonebook to the unit.	You may have tried to copy the same entries (as stored) to the unit. Press DISP or BACK to exit.
iPod/iPhone	The iPod/iPhone does not turn on or does not work.	Check the connecting cable and its connection.Update the firmware version of the iPod/iPhone.Charge the battery of the iPod/iPhone.Reset the iPod/iPhone.Check whethersetting is appropriate (see page 28).
	The sound is distorted. Deactivate the equalizer either on this unit or the iPod.
	Playback stops. The headphones are disconnected during playback. Restart the playback operation.
	“Cannot Play” appears on the display. No tracks are stored. Import tracks to the iPod.
	“Restricted” appears on the display. Check whether the connected iPod/iPhone is compatible with this unit (see page 35).

Maintenance

How to clean the connectors

Frequent detachment will deteriorate the connectors. To minimize this possibility, periodically wipe the connectors with a cotton swab or cloth moistened with alcohol, being careful not to damage the connectors.

Connectors

Moisture condensation

Moisture may condense on the lens inside the unit in the following cases:

• After starting the heater in the car. • If it becomes very humid inside the car. Should this occur, the unit may malfunction. In this case, eject the disc and leave the unit turned on for a few hours until the moisture has evaporated.

How to handle discs

When removing a disc from its case, press down the center holder of the case and lift the disc out, holding it by the edges.

case, press down the center holder of the case and lift the disc out, holding it by the edges.

- Always hold the disc by the edges. Do not touch its recording surface.

- Always hold the disc by the edges. Do not touch its recording surface.

When storing a disc in its case, gently insert the disc around the center holder (with the printed surface facing up).

To keep discs clean

A dirty disc may not play correctly. If a disc does become dirty, wipe it with a soft cloth in a straight line from center to edge.

A dirty disc may not play correctly. If a disc does become dirty, wipe it with a soft cloth in a straight line from center to edge.

- Do not use any solvents (for example, conventional record cleaner, spray, thinner, benzine, etc.) to clean discs.

New discs may have some rough spots around the inner and outer edges. If such a disc is used, this unit may reject the disc.

New discs may have some rough spots around the inner and outer edges. If such a disc is used, this unit may reject the disc.

To remove these rough spots, rub the edges with a pencil or ball-point pen, etc.

Do not use the following discs:

Single CD (8 cm) disc Warped disc

Sticker and sticker residue Stick-on label

Unusual shape

C-thru Disc (semi-transparent disc)

Transparent or semi-transparent parts on its recording area

Specifications

AUDIO AMPLIFIER SECTION	Maximum Power Output: Front/Rear: 50 W per channel
	Continuous Power Output (RMS): Front/Rear:	Front/Rear: 19 W	per channel into 4 Ω, 40 Hz to 20 000 Hz at no more than 0.8% total harmonic distortion.
	Load Impedance: 4 Ω (4 Ω to 8 Ω allowance)
	Tone Control Range: Low: ±12 dB (50 Hz, 100 Hz, 200 Hz)		Q0.7, Q1.0, Q1.4, Q2.0
	Frequency Response: 40 Hz to 20 000 Hz
	Signal-to-Noise Ratio: 70 dB
	Line-Out Level/Impedance: 2.5 V/20 kΩ load (full scale)
	Subwoofer-Out Level/Impedance: 2.5 V/20 kΩ load (full scale)
	Output Impedance: 1 kΩ
	Other Terminal: USB input terminal, USB cable, AUX		(auxiliary) input jack

TUNER SECTION	Frequency Range: FM: $7.5 MHz to 108.0 MHz
			FM-LOW: 65.00 MHz to 74.00 MHZ
			AM: MW: 522 kHz to 1 620 kHz
	FM Tuner:	Usable Sensitivity:	9.3 dBf (0.8 μV/75 Ω)
		50 dB Quieting Sensitivity:	16.3 dBf (1.8 μV/75 Ω)
		Alternate Channel Selectivity (400 kHz):	65 dB
		Frequency Response:	40 Hz to 15 000 Hz
		Stereo Separation:	40 dB
	MW Tuner:	Sensitivity:	20 μV
		Selectivity:	40 dB
	LW Tuner:	Sensitivity:	50 μV
CD PLAYER SECTION	Type: Compact disc player
	Signal Detection System: Non-contact optical pickup	(semiconductor laser)
	Number of Channels: 2 channels (stereo)
	Frequency Response: 5 Hz to 20 000 Hz
	Dynamic Range: 96 dB
	Signal-to-Noise Ratio: 98 dB
	Wow and Flutter: Less than measurable limit
	MP3 Decoding Format: (MPEG1/2 Audio Layer 3) Max. Bit Rate: 320 kbps
	WMA (Windows Media® Audio) Decoding Format: Max. Bit Rate: 320 kbps

USB SECTION	USB Standard: USB 1.1, USB 2.0
	Data Transfer Rate (Full Speed):	Full Speed: Maximum 12 Mbps
		Low Speed: Maximum 1.5 Mbps
	Compatible Device: Mass storage class
	Compatible File System: FAT 32/16/12
	Playable Audio Format: MP3/WMA/WAV
	Max. Current: DC 5 V		---500 mA

BLUETOOTH	Version:	Bluetooth 2.0 Certified
	Power Class:	Class 2 Radio (possible distance 10 m)
	Service Area:	10 m
	Profile:	HFP 1.5, OPP 1.1, A2DP 1.2, AVRCP 1.3

GENERAL	Power Requirement:	Operating Voltage:	DC 14.4 V (11 V to 16 V allowance)
	Grounding System:		Negative ground
	Allowable Operating Temperature:		0°C to +40°C
	Dimensions (W × H × D): (approx.)	Installation Size: 182 mm	×52 mm × 160 mm
		Panel Size:	188 mm × 58 mm × 12 mm
	Mass:		1.4 kg (excluding accessories)

Design and specifications are subject to change without notice.

FM: SSM 01–06, SSM 07–12 FM-LOW: SSM 01–06

3

[Press]

Turn on the power.

Insert the disc.

Ex.: If selected

Connectors

Condensation of moisture

Source screen

Remote sensor

SSM 01-06, SSM 07-12

FM-LOW:

SSM 01-06

3

[Press the button]

3 Select or .

Connectors

Moisture condensation
