USER MANUAL Pro Multi 2 Carrycot Beemoo

Beemoo·PRO MULTI ^2

CARRYCOT

IMPORTANT!VIKTIGT!ADVARSEL!

READ CAREFULLY AND

KEEP FOR FUTURE

REFERENCE.

Model: Beemoo Pro Multi 2 Carrycot

LÄS NOGA OCH

BEHÅLL FÖR FRAMTIDA

REFERENS.

Modell: Beemoo Pro Multi 2 Carrycot

LES N∅YE OG BEHOLD

FOR FREMTIDIG

REFERANSE.

Modell: Beemoo Pro Multi 2 Carrycot

ADVARSEL!TÄRKEÄÄ!

LÆS OMHYGGELIGT

OG GEM TIL

FREMTIDIG

REFERENCE.

Model: Beemoo Pro Multi 2 Carrycot

LUE OHJEET

HUOLELLISESTI JA

SÄILYTÄ NE TULEVAA

TARVETTA VARTEN.

Malli: BBeemoo Pro Multi 2

Carrycot

WICHTIG!

LESEN SIE DIESE HINWEISE

AUFMERKSAM UND

BEWAHREN SIE SIE FÜR

ZUKÜNFTIGE FRAGEN AUF.

Modell: Beemoo Pro Multi 2

Carrycot

WARNING

• WARNING: Only use on a firm, horizontal level, flat and dry surface.
• WARNING: Do not let other children play unattended near the carry cot.
• WARNING: Do not use if any part of the carry cot is broken, torn or missing.
• WARNING: Never use this product on a stand.
• WARNING: This product is suitable only for a child who cannot sit up unaided, roll over and cannot push itself up on its hands and knees.
• WARNING: Never leave the child unattended.
• WARNING: To avoid injury ensure that the child is kept away when unfolding and folding this product.
• WARNING: Do not let the child play with this product.
• WARNING: This product is not suitable for running and skating.

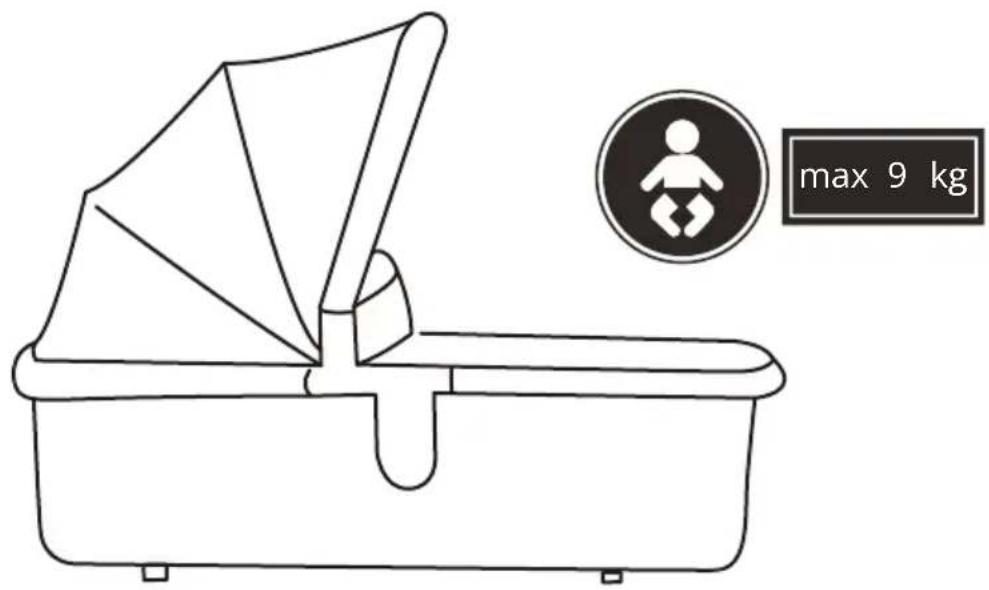

  • Maximum weight of the child: 9 kg.
• Only use replacement parts supplied or approved by the manufacturer.
• Do not place the carrycot near an open fire or other source of strong heat.
• Do not add another mattress on top of the mattress provided with the carrycot.
• Do not use another mattress in the carrycot unless recommended by the manufacturer.
• Inspected the carrycot, the bottom and handle regularly for signs of damage and wear.
• Before carrying or lifting the carrycot, make sure that the handle is in the correct position of use.
• The head of the child in the carrycot should never be lower than the body of the child.
• Be aware of the hazard of hitting the baby e.g., when putting on floor, going through doors.

- Do not to leave anything in the carry cot that could present a danger of suffocation e.g. non-rigid toys, pillows etc.

- Do not to place the carry cot close to another product, which could present a danger of strangulation, e.g. strings, blind/curtain cords etc.

• Overheating can endanger the life of your child! Take into account the ambient temperature and the child's clothing and ensure that the child is not too cold or too warm.

• We recommendation to ask your health professional for advice on safe sleeping.

- Ensure that all the locking devices are engaged before use.

- Check that the pram body or seat unit or car seat attachment devices are correctly engaged before use.

- Adult assembly required.

- The parking device shall be engaged when placing and removing the child from the stroller.

- Do not place items on the top of the hood.

• Always remove the child from the carrycot before installing or removing the carrycot from the stroller chassis.

• The carrycot must always face towards the handle (care taker).

- The carrycot must be removed from the chassis before folding.

• DO NOT lift the stroller by the carrycot.

- It may be dangerous to leave your child unattended. Always keep the child in sight.

- Any load attached to the handle and/or on the back of the back-rest and/or on the sides of the vehicle will affect the stability of the vehicle.

- The vehicle shall be used only for one child in single seat mode, and up to two children when in sibling seats mode for which it has been designed.

- Accessories which are not approved by the manufacturer shall not be used.

ASSEMBLY

All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.

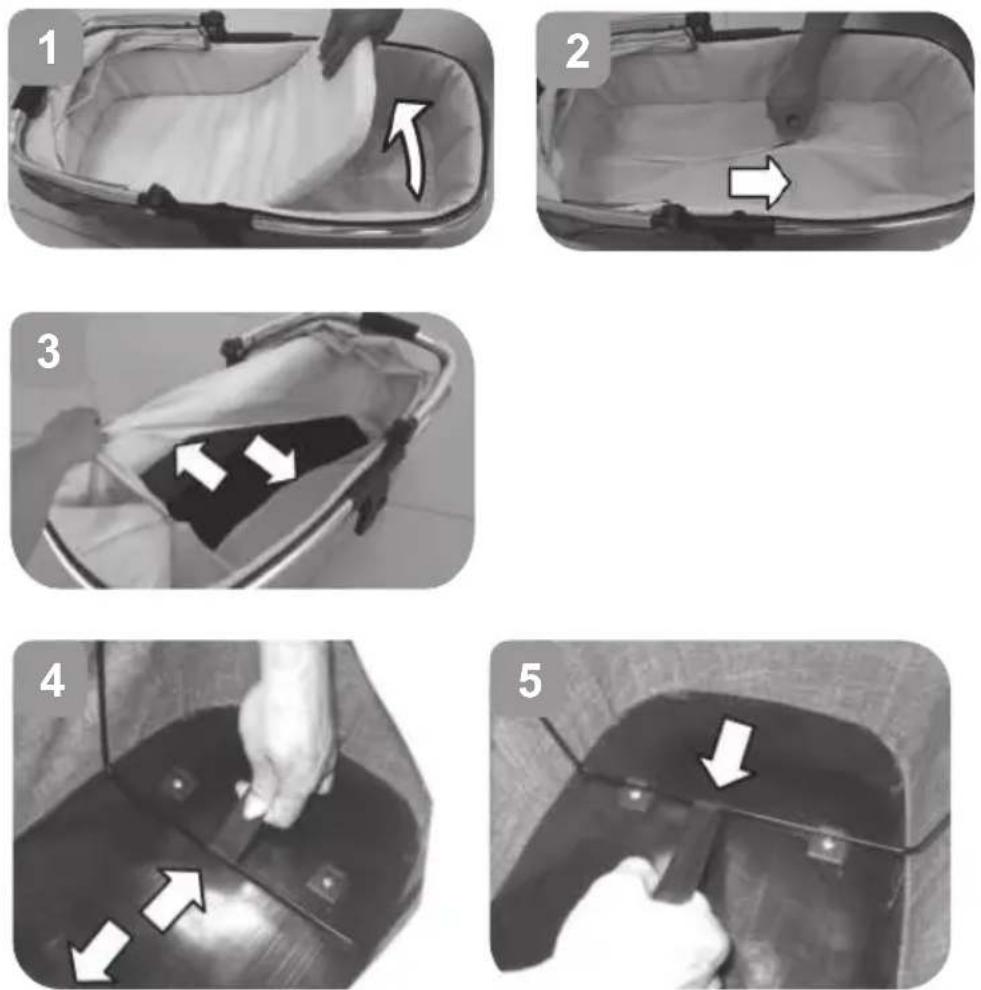

UNFOLD & FOLD THE CARRYCOT

1. Remove the mattress from the cot.
2. Un-zip the lining.

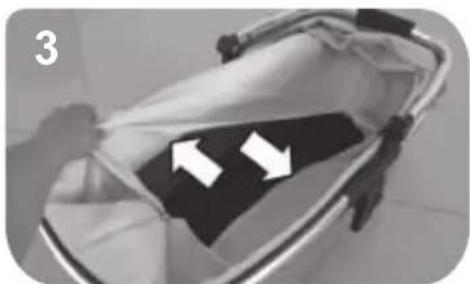

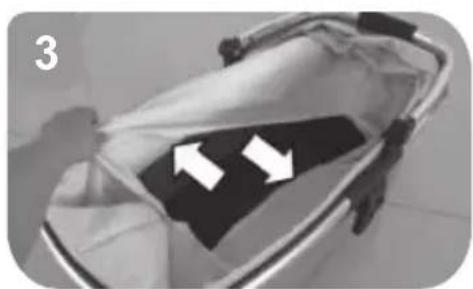

3. Remove the inner lining.

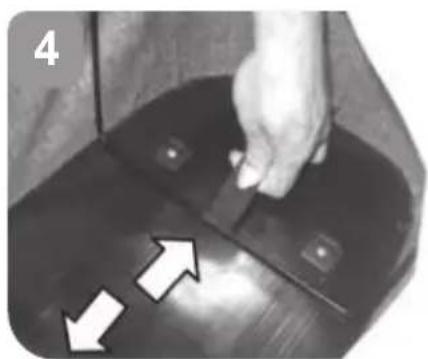

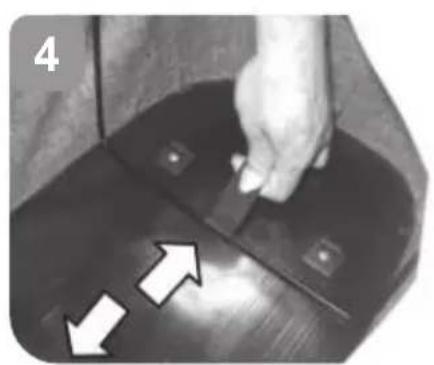

4. Pull the stay bars into the clips on the baseboard until you hear them click into place to unfold the carrycot.

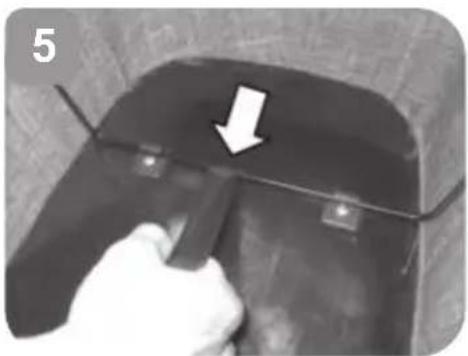

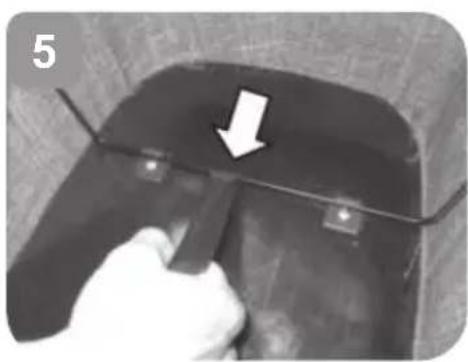

5. Pull the stay bars out of the clips on the baseboard to fold the carrycot.

ATTACH THE CARRYCOT TO THE STROLLER & CARRYCOT ADJUSTMENTS

1. Insert the carrycot legs into the main housings on the chassis and push down firmly until it clicks and locks onto the chassis.
2. Depress the buttons on the side of the carrycot and lift upwards from the chassis.
3. Fasten the zipper of the included carrycot lid to the zipper on the cot and pull all the way around.
4. Secure the buttons on both sides.
5. Pull the canopy upward to open it.
6. Depress the buttons on the sides of the canopy to put it down.

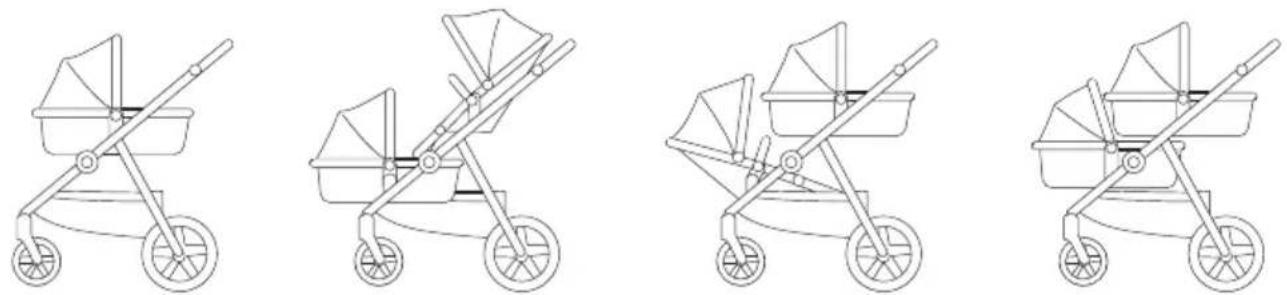

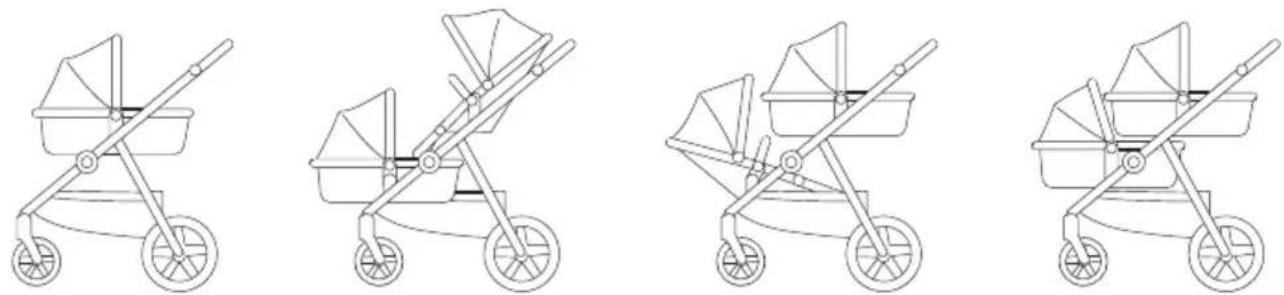

POSSIBLE SEAT POSITIONS USING CARRYCOT/S AND/OR SEAT SECTION

WARNING

FÄLL UPP OCH FÄLL IHOP LIGGDELEN

Close-up of a bag with a white lid and arrow pointing to the side (no text or symbols visible)

Close-up of a hand pressing down on a white surface with an arrow pointing to a small object (no text or symbols visible)

Close-up of a car interior with two white arrows pointing to a black rectangular object (no text or symbols visible)

Close-up of a hand pressing down on a dark, curved surface with two white arrows pointing downward (no text or symbols)

Close-up of a hand holding a tool near a dark metal bracket, with an arrow pointing to a detail (no text or symbols visible)

MONTERA LIGGDELEN PÅ VAGNEN & LIGGDELSJUSTERINGAR

Close-up of a bag with a hand holding a white object, showing a curved arrow pointing to the side (no text or symbols visible)

Close-up of a container with a white lid and a hand holding a small object, no visible text or symbols

Close-up of a car's seat with two white arrows pointing to the seat area (no text or symbols visible)

Close-up of a hand pressing down on a dark, curved surface with two white arrows pointing to the edges (no text or symbols visible)

Close-up of a hand holding a tool near a dark metal component, with an arrow pointing to a feature (no text or symbols visible)

FEST LIGGEDELEN TIL BARNEVOGNEN & JUSTERING AV LIGGEDELEN

Close-up of a hand adjusting a mechanical component with a white arrow pointing downward (no text or symbols visible)

Close-up of a finger pointing at a surface with a white arrow pointing to it (no text or symbols visible)

Close-up of a hand pressing down on a surface with an arrow pointing to it (no text or symbols visible)

Close-up of a hand holding a small object with a white arrow pointing to it, no visible text or symbols

Close-up of hands using a tool to lift a small object on a surface (no visible text or symbols)

Close-up of hands cleaning a car window with a plastic cover (no visible text or symbols)

VAUNUKOPAN MAHDOLLISET ASENNUSTAVAT

WARNUNG

Close-up of a hand adjusting a mechanical component with a downward arrow (no text or symbols visible)

Close-up of mechanical components with a white arrow pointing to a specific part (no visible text or symbols)

Close-up of a hand pressing down on a curved surface with an arrow pointing to it (no text or symbols visible)

Close-up of a hand holding a small object with a white arrow pointing to it, no visible text or symbols

Close-up of a hand holding a metal object over a textured surface, possibly a container or device (no visible text or symbols)

Close-up of hands cleaning a metal surface with a curved tool (no visible text or symbols)

MÖGLICHE SITZPOSITIONEN MIT LIEGEWANNE/N UND/ODER SITZTEIL

Beemoo

Produced by: Jollyroom AB
