Product Type	Heat pump domestic hot water storage tank
Brand	Nibe
Model	BA-ST 9050-1FEDC
Storage Volume	442 L
Max Tank Operating Temperature	85°C
Max Allowable Temporary Tank Temperature	95°C
Max Coil Operating Temperature	110°C
Max Tank Operating Pressure	10 bar
Max Coil Operating Pressure	10 bar
Coil Area	5 m²
Coil Power (70/10/45°C)	82 kW
Coil Capacity (70/10/45°C)	2000 L/h
Coil Power (60/10/50°C)	65 kW
Coil Capacity (60/10/50°C)	1121 L/h
Energy Efficiency Class	C
Standing Loss	98 W
Weight	215 kg
Dimensions (Height × Diameter)	1835 mm × 832 mm
Electric Heating Connection	1 1/2" female
Corrosion Protection	Ceramic enamel + isolated magnesium anode
Magnesium Anode Dimensions	Ø33 × 1100 mm, 1 1/4"
Minimum Clearance for Anode Replacement	1150 mm
Intended Use	Heating, storage, and supply of domestic hot water with one heat source
Maintenance	Check magnesium anode annually; replace every 18 months

Frequently Asked Questions - BA-ST 9050-1FEDC Nibe

How often should the magnesium anode be inspected?

The protective magnesium anode should be inspected annually to ensure optimal corrosion protection. For the isolated anode (BA-ST 9050-1FEDC), wear can be measured without draining the tank by checking the protective direct current.

What is the recommended hot water temperature setting to prevent scalding?

It is recommended to set the water heating temperature to no more than 60°C to reduce the risk of scalding and extend the storage tank's lifespan.

Can the storage tank be operated without water?

No. Never operate the storage tank without water. Activating the heating medium circuit or electric heating unit when the tank is empty can cause damage and safety hazards.

What is the purpose of the safety valve?

The safety valve protects the storage tank against overpressure. It must be installed at the cold water inlet and should never be blocked. A small temporary water discharge during heating is normal.

How do I measure the wear of the isolated magnesium anode?

Disconnect the protective conductor from the tank, connect an electric meter (mA range) between the conductor and the M5 pin. The protective direct current should be at least 0.3 mA. If lower, inspect and replace the anode if corroded beyond 50%.

What is the maximum operating pressure of the tank?

The maximum operating pressure for the storage tank is 10 bar. The coil maximum operating pressure is also 10 bar for this model.

In what kind of room can the storage tank be installed?

The storage tank can be installed in any room protected against temperatures below 0°C, such as a basement or boiler room. The location must allow proper maintenance and access to the anode.

How often should the protective magnesium anode be replaced?

The protective magnesium anode should be replaced every 18 months, regardless of wear measurements, to maintain the warranty and ensure corrosion protection.

What should I do if water leaks from the safety valve?

A small temporary leakage during heating is normal. However, if leakage is continuous or excessive, check the valve function. Never block the valve. If malfunctioning, replace it immediately.

Is it necessary to clean the interior of the storage tank?

Yes, periodic cleaning is recommended. The interval depends on water hardness in your area. Regular maintenance helps prevent sediment buildup and ensures efficient operation.

USER MANUAL BA-ST 9050-1FEDC Nibe

17-07-2024

32128

Table of contents

English

1 Important information 4

Symbols 4

Introduction 4

Intended Use 4

2 Design 5

3 Installation 7

Location of the Storage Tank 7

Housing Disassembly 7

Installation Requirements 8

4 Connection and start-up 9

Connection 9

Start-Up 9

Thermal Insulation of the System 10

Warnings and Practical Recommendations 10

5 Maintenance 11

Inspection of the Protective Magnesium Anode 11

Measurement of the Insulated Protective Magnesium Anode Wear

(BA-ST 9040/9050-1FEDC) 11

Replacement of the Protective Magnesium Anode 12

6 Accessories and spare parts 13

7 Service 13

8 Recycling and disposal 14

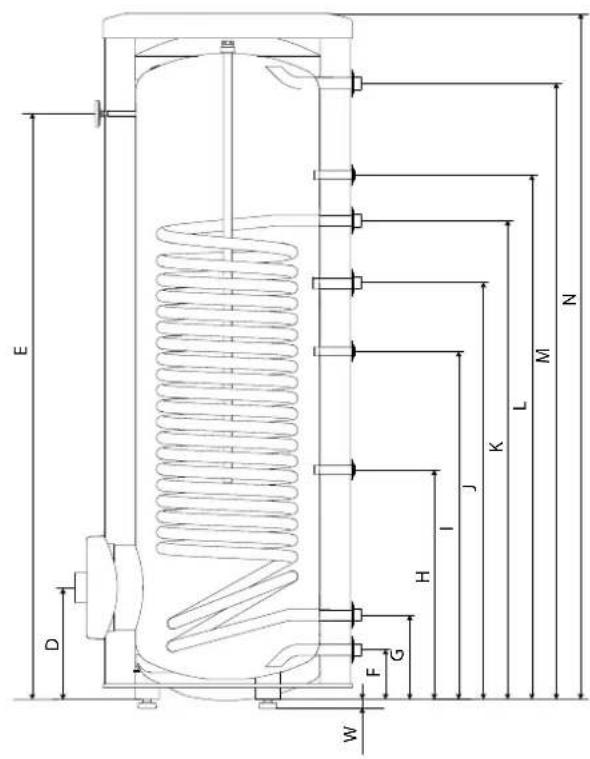

9 Technical data 15

Dimensions 15

Polski

All installation diagrams in this manual do not replace the system design; they can only be used for illustrative purposes. The product is not intended for use by persons with reduced physical fitness/mental efficiency or without sufficient experience and knowledge, if they are not supervised or instructed by a person responsible for their safety. Operation of the product by children is strictly prohibited.

We reserve the right to make the product design changes and changes in the manual.

©NIBE 2024

English

1 Important information

Symbols

CAUTION!

This symbol informs about the risk to the device or a person.

NOTE!

This symbol points to important information to be noted when operating the device easier.

TIP!

This symbol shall mean tips to make product operation easier.

Introduction

Thank you for your confidence and choice of equipment by NIBE. To fully benefit from the advantages of this product, please read this manual before using it, and in particular chapters relating to the application, installation and maintenance, and warranty. Please keep this Manual in a safe place for future reference.

CAUTION!

Sections of the Manual relating to the installation, inspection and maintenance are intended for the qualified installer.

NOTE!

The manufacturer shall not be held liable for any damages caused by failure to comply with the recommendations and observations contained in this Manual.

Intended Use

NIBE hot water storage tanks are only intended for heating up, storage and supply the domestic hot water. Vertical storage tank BA-ST 3015/3022/3030 -1F and BA-ST 9040/9050-1FEDC is designed to heat and store hot water in systems with one heat source, e.g. heat pump, solar heating system, central heating boiler or a fireplace and with a water jacket. The storage tank coil enables trouble-free operation with almost any central heating system with forced circulation. It is easy to install, safe and comfortable to use, if installed and operated in accordance with the advices contained in this Manual. The heated water can be supplied to several intake points at various, mutually distant locations, such as, a bathtub, washbasin, sink, etc.

NOTE!

BA-ST 3015/3022/3030-1F and BA-ST 9040/9050-1FEDC storage tanks with one high capacity coil are designed to heat up and supply water for domestic purposes. Any inappropriate use, not in compliance with its intended use is not permitted. Neither manufacturer nor supplier shall be responsible for damages resulting from this.

Fig. 1 BA-ST 3015 -1F hot water storage tank.

Fig. 2 BA-ST 3022/3030 -1F and BA-ST 9040/9050-1FEDC hot water storage tank.

2 Design

Vertical storage tank BA-ST 3015/3022/3030 -1F and BA-ST 9040/9050-1FEDC is a pressure equipment, i.e. the pressure within the storage tank and coil are equivalent to the pressures in the corresponding systems.

Storage tank is made of high quality steel and is equipped with one helical coil that can simultaneously operate with independent heat source, e.g. heat pump, solar heating system, fireplace with water jacket or central heating boiler. The hot water tank is protected against corrosion by ceramic coating and insulated protective magnesium anode. The coil is not internally protected against corrosion. Thermal insulation of the tank is a specially selected insulation that provides excellent thermal insulation properties of all devices. Storage tanks have aesthetic plastic housing, a temperature indicator, inspection opening and connectors for mounting electric heating unit and connecting the hot water circulation.

TIP!

BA-ST 3015/3022/3030-1F and BA-ST 9040/9050-1FEDC are ready for the installation of a heating unit containing an electric heater with thermostat and thermal switch.

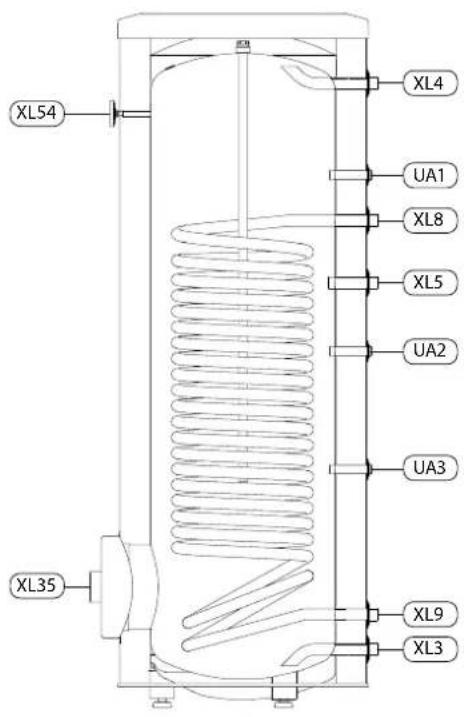

Fig. 3 Section of the BA-ST 3015 - 1F storage tank.

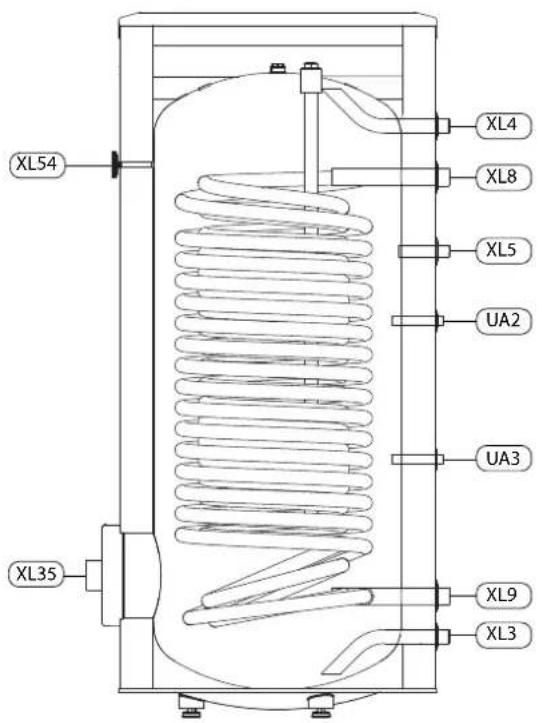

Fig. 4 Section of the BA-ST 3022/3030 -1F storage tank.

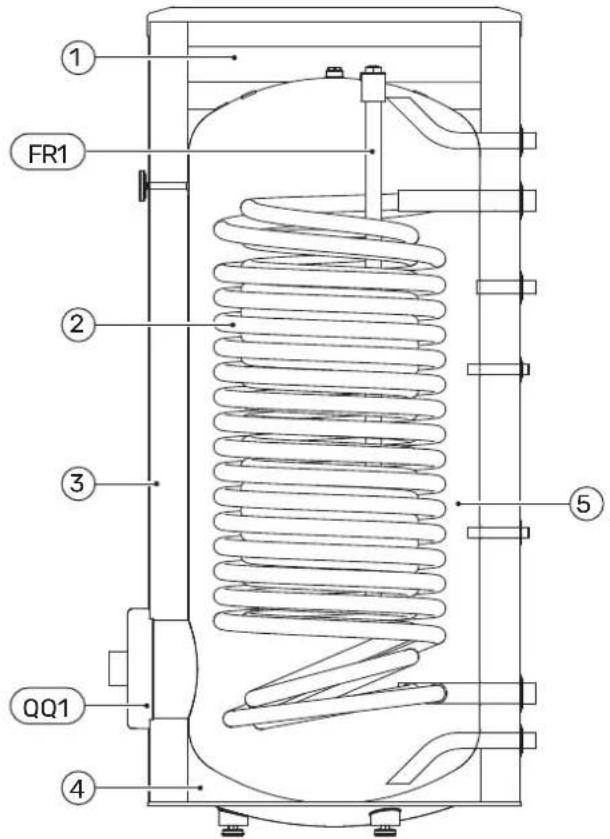

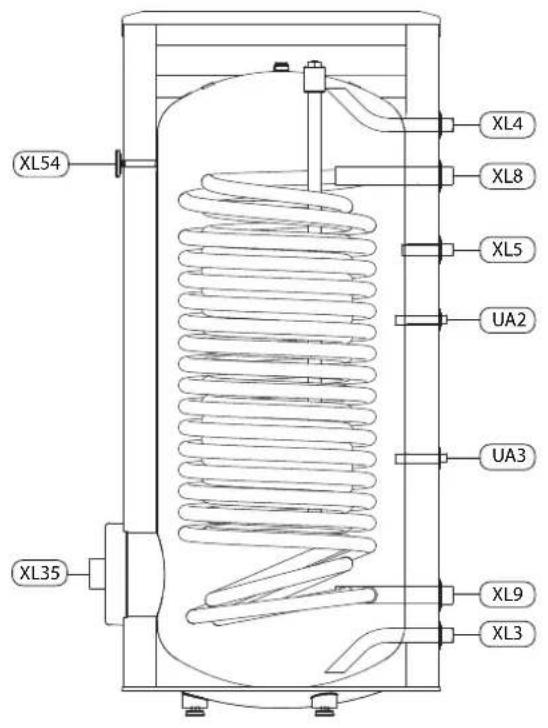

Fig. 5 Section of the BA-ST 9040/9050 - 1FEDC storage tank.

Fig. 6 Side view of the BA-ST 3015 - 1F storage tank.

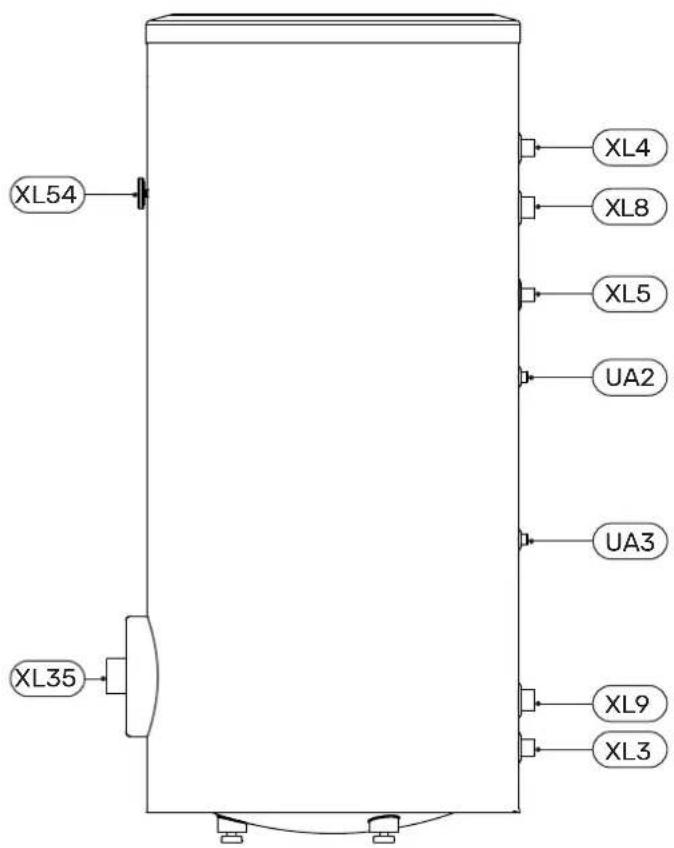

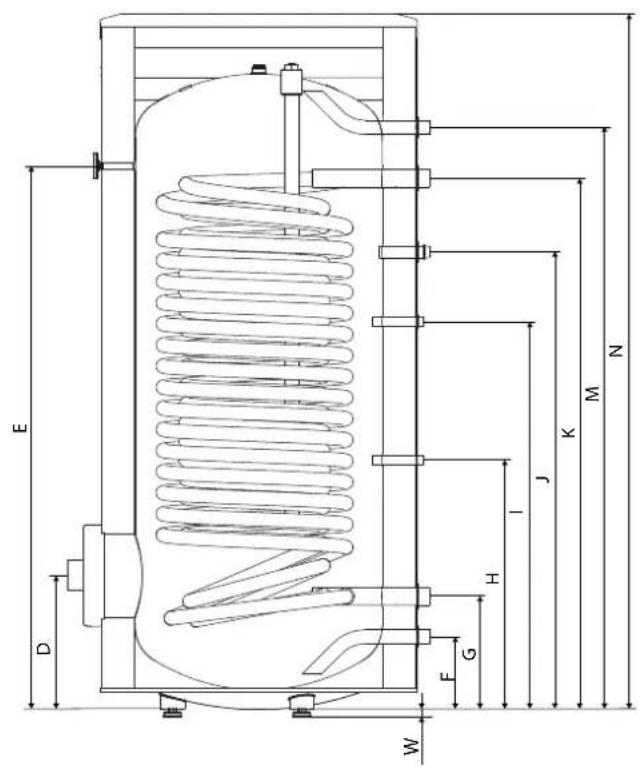

Fig. 8 Side view of the BA-ST 9040/9050 - 1FEDC storage tank.

Fig. 7 Side view of the BA-ST 3022/3030-1F storage tank.

Description:

XL3 Cold water supply connector pipe

XL4 Hot water intake connector pipe

XL5 Hot water circulation connector pipe

XL8 Coil supply connector pipe

XL9 Connection of return line from the coil

XL35 Heating unit connection

XL54 Thermometer

FR1 Protective magnesium anode

QQ1 Inspection opening

UA1-3 Temperature sensor cover

1. Upper insulation of the storage tank

2. Large surface coil

3. Thermal insulation

4. Lower insulation of the storage tank

5. Enamelled tank

3 Installation

Location of the Storage Tank

Storage tank can be installed in any room protected against temperatures below 0\ °C and convenient for the user (e.g. in the basement, boiler room, etc.). Location and manner of installation must ensure trouble-free maintenance and servicing of the unit in the future. However, we recommend installation of the storage tanks in the immediate vicinity of the main heat source in order to avoid unnecessary heat losses. Consider the filled tank weight when selecting its location. As a rule, select the device location in a way allowing the rational routing of both the hot water and the heating lines. Insulate thoroughly all hydraulic lines and the storage tank fittings in order to avoid any energy losses.

When installing the storage tank, consider free space above the unit required to maintain/replace the protective magnesium anode ( A_min ).

If space for the installation of the magnesium bar anode (used as standard) is insufficient, you can use the appropriate titanium anode (that should be installed in accordance with the anode manufacturer's instructions) or the appropriate magnesium chain anode.

For the specification and A_min of the protective anodes available at NIBE, see Section 6 Accessories and Spare Parts.

Fig. 9 Min clearance for the replacement of the protective magnesium anode.

NOTE!

For the minimum clearances to be observed when installing the storage tank, see Table 3.

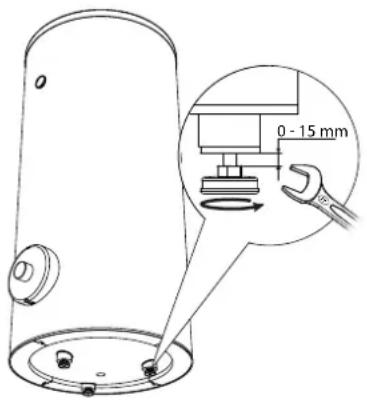

Fig. 10 Levelling the unit.

The storage tank stands on three feet that can be adjusted within the range from 0 to 15 mm to level the tank.

Housing Disassembly

Removable housing with thermal insulation facilitates transport and installation of the storage tank. Disassembly the housing in the following order (see Fig. 11):

1. Remove the Temperature gauge, plug of the heating element connector pipe and blanking plate of the inspection opening (1).
2. Remove the upper cover of the housing together with thermal insulation (2).
3. Remove the plugs from the connector pipes and black bushings (3).
4. Remove the fixing screws and the strip connecting the housing jacket (4).
5. Remove the jacket surrounding the tank (housing jacket, 5).
6. Remove the four-piece thermal insulation (6).

After the installation of the storage tank in its final location, reinstall the removed components in the reverse order.

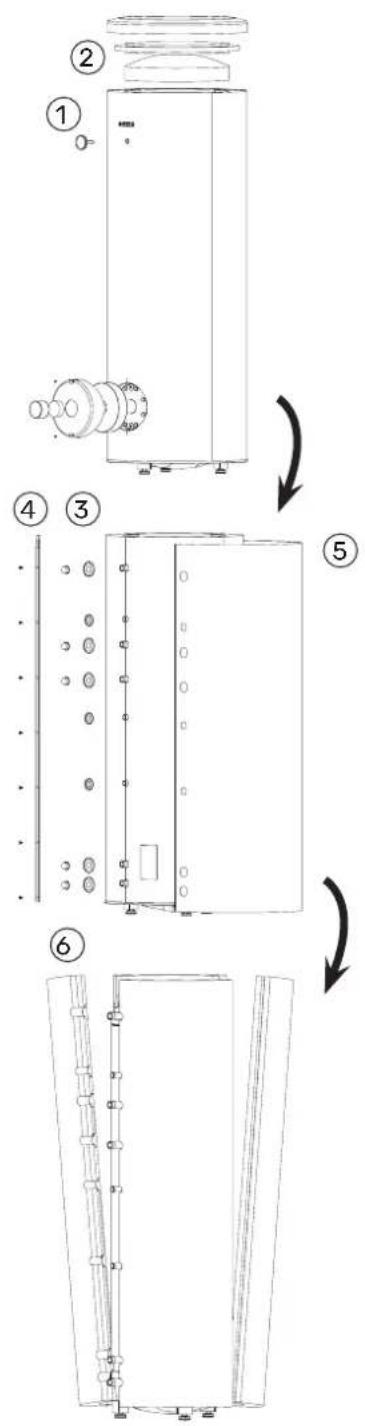

Fig. 11 Housing and thermal insulation disassembly.

Installation Requirements

CAUTION!

The coil in BA-ST 3015/3022/3030 -1F and BA-ST 9040/9050-1FEDC storage tanks is not internally protected against corrosion.

NOTE!

Ensure that incoming water is clean. When using a private well, it may be necessary to supplement with an extra water filter.

CAUTION!

The pipe systems have to be flushed clean before the product is connected, to prevent any contaminants from damaging the components.

CAUTION!

Installation and commissioning of the storage tank shall only be done by appropriately qualified installer. The installer should inform the user of the functions of the product and provide the necessary information on its safe use.

Protection against overpressure shall be made in accordance with the relevant regulations in force.

Connect the storage tank to the water supply system of water pressure at least 1 bar and max 6 bar and to the heating systems where parameters of the heating medium may not exceed the allowable operating conditions of the coil (see Table 4 Technical data). Install a pressure reducer if the pressure at the cold water inlet to the tank is higher than allowed.

Connect the heating and water supply systems in accordance with the installation diagram (see Fig. 12.)

Pressure increases during heating the water in the storage tank. Therefore, the appropriate safety valve must be installed in storage tank, at the cold water inlet that will protect the storage tank against over-pressure. During heating the water, small and temporary water flow from the safety valve can occur, which indicates that the pressure has increased above the rated value, which triggered the valve. This may in no way be prevented. Blocked safety valve can cause equipment failure. Drain the outflow from the safety valve to the sewerage or drain grate. Safety valve drain line should be installed with a decline, in an environment free of freezing and remain open to the atmosphere. The manufacturer is not responsible for flooding the room through the safety valve.

TIP!

In order to minimize the flow of water from the safety valve associated with the thermal expansion of the liquid, it is advisable to install a suitable expansion vessel at the cold water connection (see Fig. 10 item 9.)

TIP!

We recommend installing a strainer in order to protect the pumps, check valve and the components of the heating system.

NOTE!

Installation of the appropriate safety valve in the cold water supply line protecting the unit against overpressure is mandatory!

NOTE!

Installation of necking of any kind (such as reducers, dirt pockets, etc.) and cut-off valves between the storage tank and the safety valve is not allowed. Only a T-pipe with a drain valve and a T-pipe with an expansion vessel may be installed in these line sections.

NOTE!

Never block the safety valve or drain line. This can cause a dangerous overpressure in the storage tank.

NOTE!

When heating water, slight, temporary discharge from the safety valve can occur. This is a correct safety valve function. Any attempt to interfere in its operation can lead to the danger and destruction of the storage tank.

NOTE!

Never use the equipment with clogged safety valves.

Fig. 12 Installation diagram of the BA-ST 3015/3022/3030-1F storage tank with one coil.

1. BA-ST 3015/3022/3030 - 1F or BA-ST 9040/9050-1FEDC storage tank.
2. Cut-off valve.
3. Safety valve.
4. Drain valve.
5. Pressure reducer (option, if the pressure in the system exceeds the allowable value).
6. Particulate filter.
7. C/H circulating pump.
8. Hot water circulating pump.
9. Hot water expansion vessel.
10. Vent valve.

4 Connection and start-up

Connection

NOTE!

The storage tank connections may not be made of materials more precious than carbon steel due to the increased electrochemical corrosion. This applies to connector pipes (fittings) contacting the tank connector pipe thread. Preferably, use galvanized pipe connectors (fittings.)

After the installation and levelling the tank, follow the procedure below (for the connector pipe numbers, refer to Fig. 6, 7 and 8):

1. Remove protecting plugs from the connector pipes.
2. Connect the hot water intake line (XL4).
3. Connect the cold water supply line together with the required safety valves (XL3).
4. If the system has the hot water circulation system, connect it to the connector pipe (XL5). Otherwise, plug the pipe.
5. Connect the supply (XL8) and return (XL9) of the heating medium to the coil.

Start-Up

Fill the storage tank with water and vent it after making correct connections.

NOTE!

If there is an electric heating module installed in the storage tank, fill the tank with water before connecting it to the electrical installation.

Filling and venting the hot water storage tank:

1. Open the cold water cut-off valve at the inlet and the hot water intake point.
2. Fill the storage tank until obtaining uniform water outflow at the hot water intake point. Close the intake points.
3. Fill the coil with the heating medium, and vent it.
4. Check tightness of the entire system.
5. Check the tightness of the heating module connection pipe.

When properly filled and vented, the storage tank is ready to use.

NOTE!

The plug on the connection pipe of the heating module is an exploitation element, therefore it is necessary to check its tightness before using the tank.

TIP!

We recommend connecting the tank connector pipes with the system lines by means of unions to allow disconnection of the tank, if required.

NOTE!

Open the hot water intake valves before heating the system up for the first time or after a longer break in its operation in order to check whether the storage tank is filled with water and the cut-off valve at the cold water inlet is not closed.

Thermal Insulation of the System

In order to minimize thermal energy losses, insulate all connector pipes, pipelines and temperature sensor covers thoroughly after the installation of the unit and performance of the leak proof test. For this purpose, use thermal insulation of correctly selected thickness and thermal insulation parameters.

TIP!

Lack of thermal insulation, its incorrect thickness or insulation made of inadequate materials will cause decrease of thermal insulation properties of the unit and the system.

Warnings and Practical Recommendations

NOTE!

To prevent bacterial growth we recommend to make sure a periodically increase of hot water temperature for a shorter time at regular intervals e.g. every 7th day.

We recommend the following:

• Check the operation of the safety valve as described by the manufacturer of the valve in order to check whether it is not clogged.
• Clean the inside of the storage tank periodically. Cleaning intervals depends on the hardness of the water present in a given area.
• To ensure optimum protection of the storage tank against corrosion, we recommended checking the level of wear of the isolated magnesium anode once a year.
• In the systems with the electric heating unit, ensure that the electrical installation is properly protected by protective circuit.
• In order to eliminate any odour of hydrogen sulphide (caused by bacteria in the oxygen deficient water), we recommend observing the periodic re-

placement of the anode and, in addition periodically increase the hot water temperature in tank to prevent bacterial growth.

• Limit the setpoints of the heating medium temperature controllers in the storage tank supply lines to 80 °C in order to avoid triggering of the thermal cut-off in the electric heating module.
• In order to reduce the possibility of scalding by the water, we recommended to set the water heating temperature in the storage tank (of both the heating unit and the coil) so, that it does not exceed 60 °C. This will also help to extend the life of the storage tank.
• Report any malfunctions in the storage tank operation to the authorized service centres. You can find the complete list of our authorized service centres at our website.

It is forbidden to:

• Activate the heating medium circuit or electric heating unit if the tank is not filled with water.
• Use the storage tank, if you find any malfunction of the safety valve.
• Install any device (such as cut-off and/or check valves, etc.) between the storage tank and the safety valve (except T-pipes).
• Make any unauthorized repairs.
• Stop water leaks from the safety valve.
• When heating with only the electric unit, the coil circuits may not be isolated.

NOTE!

Systematic admission of fresh, untreated water to the heating circuit (coil) increases the risk of corrosion inside the coil.

5 Maintenance

Periodic inspections and maintenance are the conditions of continuous operational readiness, reliability and a long service life of the product.

Maintenance activities include the following:

• Routine inspections and replacement of the protective magnesium anode.
• Cleaning of the storage tank.

NOTE!

Check the safety valve performance as specified by the valve manufacturer periodically (min. every 14 days) or before each start-up of the heater after decommissioning.

Inspection of the Protective Magnesium Anode

Storage tank BA-ST 3015/3022/3030 - 1F and BA-ST 9040/9050 - 1FEDC in order to protect them against corrosion, coated inside with ceramic enamel and in addition, protected with protective magnesium anode. The anode corrodes first under normal operation, thus protecting the storage tank jacket. Therefore, you have to inspect its condition from time to time. Corrosion rate of the protective anode is different and depends upon the quality of water in the area. We recommend checking the protective anode condition once a year in order to ensure optimum corrosion protection.

TIP!

Storage tank BA-ST 9040/9050 - 1FEDC is protected with isolated protective magnesium anode. The use of the isolated anode allows you to monitor the degree of wear of the anode by measuring the intensity of the protecting direct current without having to remove it and empty the tank (interrupting operation of the storage tank). This solution simplifies operation and additionally contributes to the reliability and long lifetime.

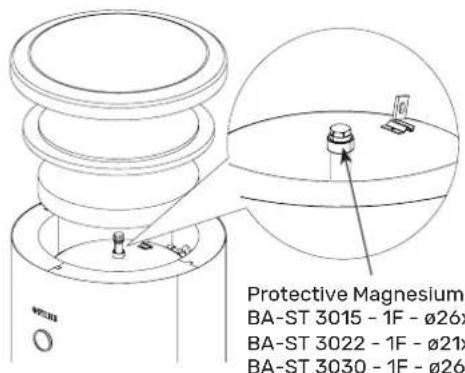

Fig. 13 Protective magnesium anode.

Protective Isolated Magnesium Anode BA-ST 9040 - 1FEDC - ∅33×1100, 1¼" BA-ST 9050 - 1FEDC - ∅33×1100, 1¼"

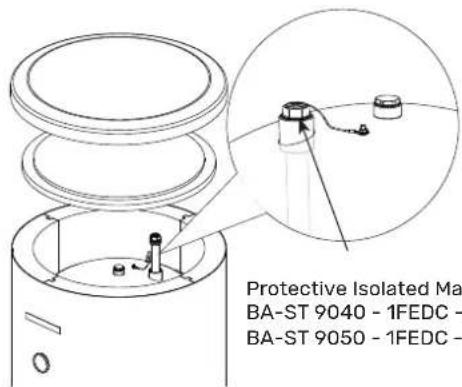

Fig. 14 Insulated protective magnesium anode.

Measurement of the Insulated Protective Magnesium Anode Wear (BA-ST 9040/9050-1FEDC)

In order to check the degree of wear of the anode, do the following (see Fig. 15):

1. Remove the housing cover together with thermal insulation.
2. Disconnect the connecting conductor (protective) from the storage tank top head.
3. Connect an electric meter (range in mA) between the protective conductor and the M5 threaded pin and measure the intensity of the protective direct current.

Fig. 15 Measurement of the insulated protective direct current intensity.

Intensity of the protective direct current should not be lower than 0.3 mA at full storage tank. If it is too low, remove the anode and check its wear visually. If the anode is significantly corroded (above 50 % loss), replace it immediately. Connect the anode protective conductor to the tank after the measurement.

NOTE!

If the current intensity measurements do not indicate any wear of the anode, its max operating time is not longer than 18 months. The anode should be replaced after this time.

Replacement of the Protective Magnesium Anode

Replace the protective magnesium anode every 18 months (regardless the measurement). Instead of the magnesium anode, you can use the titanium anode. Install it in accordance with the anode installation manual.

NOTE!

Replace the protective magnesium anode every 18 months. Its timely exchange and proper installation are the conditions to maintain the warranty on the storage tank.

When replacing the magnesium anode, follow the procedure below (see Fig. 16 and 17):

1. In units with the electric heating unit installed, disconnect power from the unit first.
2. Switch the storage tank coil heaters OFF and wait until the water inside cools down.
3. Cut-off the hot water supply and drain some water from the tank through the drain valve (see Fig. 12 item 4).
4. Remove the housing cover together with thermal insulation (1).
5. Remove the anode protective conductor (2) (BA-ST 9040/9050-1FEDC).
6. Remove the worn magnesium anode (3).
7. Connect the anode protective conductor to the storage tank (BA-ST 9040/9050-1FEDC).
8. Screw the new magnesium anode.
9. Fill the tank with water and vent it as described in par. Start-Up.
10. Check tightness of the installed anode.
11. Reinstall the thermal insulation and the housing cover.

Once making the above steps, the storage tank is ready to use.

Ensure that the anode protective conductor is connected to the M5 pin fixed to the top head of the storage tank after installing the new isolated magnesium anode. Lack of contact between the anode and the tank will interfere operation of the anode and the tank will not be protected against corrosion.

Fig. 16 Replacement of the protective magnesium anode.

Fig. 17 Replacement of the insulated protective magnesium anode.

TIP!

Ensure that the anode protective conductor is connected to the storage tank top head after installing the new isolated magnesium anode. Lack of contact between the anode and the tank will interfere operation of the anode and the tank will not be protected against corrosion.

6 Accessories and spare parts

Accessories and spare parts for BA-ST 3015/3022/3030-1F and BA-ST 9040/9050-1FEDC storage tank can be purchased at our distributors or authorized service centres.

Table 1. Inspection opening gaskets.

Type of gasket	Inspection opening dia.	Storage tank model
Flanged gasketø 150	ø120	BA-ST3022 - 1F3030 - 1F9040 - 1FEDC9050 - 1FEDC

Table 2. Heating units ¹⁾ .

Storage tank model	Type	Heating unit power	Connector pipe dia.
BA-ST3015 - 1F	ME 0015 1,5	kW \ 11/4"
	ME 0020 2,0	kW \ 11/4"
	ME 0030 3,0	kW \ 11/4"
BA-ST3022 - 1F3030 - 1F9040 - 1FEDC9050 - 1FEDC	ME 1030 3,0	kW \ 11/2"
	ME 1045 4,5	kW \ 11/2"
BA-ST9050 - 1FEDC	ME 1060 6,0	kW \ 11/2"

¹⁾ Check which type is available by the local NIBE company.

Table 3. Protective anodes.

Storage tank model	Connector pipe dia.	Type of anode	A*min
BA-ST3015 - 1F	1"	Barø26x700	750 mm
BA-ST3022 - 1F	3/4"	Barø21x1050	1100 mm
BA-ST3030 - 1F	1"	Barø26x900	950 mm
BA-ST9040 - 1FEDC9050 - 1FEDC	11/4"	Barø33x1100	1150 mm
BA-ST3015 - 1F3022 - 1F3030 - 1F	3/4"	Titaniumanode200	220 mm
BA-ST9040 - 1FEDC9050 - 1FEDC	3/4"	Titaniumanode400	420 mm

* - Amin - Minimal clearance for the replacement of the protective magnesium anode.

7 Service

Report any malfunctions in the storage tank operation to the authorized service centres.

NOTE!

The storage tank may only be repaired / serviced by an authorized service since improper repair can cause safety risks, and the loss of product warranty.

8 Recycling and disposal

According to the NIBE rules, the products have been manufactured of high quality materials using the latest technologies and solutions that do not endanger the environment.

When selecting materials, we took into account both the possibility of reuse of materials (recycling) that can be disassembled and separated from materials unsuitable for recycling, as well as risks arising from the processing of materials not intended to reuse.

The purchased device consists in more than 90% of parts that can be recycled and reused, so they are safe for the environment and human health.

NOTE!

In order to prevent damage to piping systems and environmental pollution, the product should only be disassembled and taken out of service by appropriately qualified specialists.

NOTE!

At end-of-life, take care that the product and all the equipment were disposed of in accordance with applicable regulations.

TIP!

The packaging, in which the product is delivered, is made mainly of materials suitable for recycling and utilization. After installation, you should ensure the proper disposal of packaging in accordance with applicable regulations.

9 Technical data

Table 4. Technical data.

Parameter U/m			Storage tank model BA-ST
			3015 - 1F 3022 - 1F 3030 - 1F 9040 - 1FEDC			9050 - 1FEDC
Energy efficiency class* - C
Storage volume (V)*		I	150,8	207	285	344,2	442
Standing loss (S)*		W	73,9	76	96	96,7	98
Coil area		m2	1,63	1,8	2,7	5
Max tank operating temp.		°C	85
Max allowable temporary temp. in the tank		°C	98			95
Max coil operating temp.		°C	110
Max tank operating pressure		bar	10
Max coil operating pressure		bar	16			10
Coil power **	70/10/45 °C	kW	32	37	54	82
Coil capacity**	70/10/45 °C	l/h	775	912	1288	2000
Coil power ***	60/10/50 °C	kW	21	23	35	65
Coil capacity***	60/10/50 °C	l/h	366	404	605	1121
Electric heating module connection		cal	1 1⁄4"	1 1⁄2"
Corrosion protection		ceramic enamel + magnesium anode
Magnesium anode dimensions		mm/cal	ø26x700 / 1"	ø21x1100 / 3⁄4"	ø26x900 / 1"	ø33x1100 / 1 1⁄4"
Weight		kg	96	109	139	198	215

* Acc. to EU regulations No. 812/2013 & 814/2013.
** At the heating medium flow rate equal to 2.5 m3/h and the heating medium temperature 70 °C, supply water temperature 10 °C, and hot water temperature 45 °C.
*** At the heating medium flow rate equal to 2.5 m3/h and the heating medium temperature 60 °C, supply water temperature 10 °C, and hot water temperature 50 °C.

Dimensions

Fig. 18 Connector pipe of the BA-ST 3015 -1F storage tank

BA-ST 3015 - 1F

BA-ST 3022 - 1F

BA-ST 3030 - 1F

BA-ST 9040 - 1FEDC

BA-ST 9050 - 1FEDC

Fig. 19 Dimensions of the BA-ST 3015 - 1F storage tank

Fig. 20 Connector pipe of the BA-ST 3022/3030 - 1F storage tank

Fig. 21 Dimensions of the BA-ST 3022/3030 - 1F storage tank

Fig. 22 Connector pipe of the BA-ST 9040/9050 - 1FEDC storage tank

Fig. 23 Dimensions of the BA-ST 9040/9050 - 1FEDC storage tank

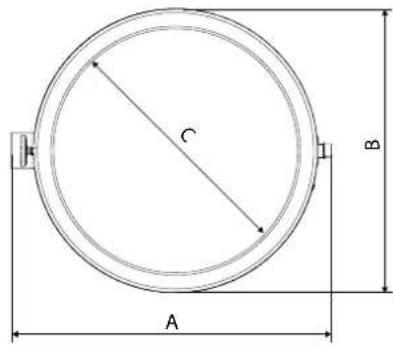

Fig. 24 Dimensions of the BA-ST 3015-1F storage tank Fig. 25 Dimensions of the BA-ST 3022/3030-1F and BA-ST 9040/9050 - 1FEDC storage tank

Table 5. Dimensions of nozzles.

Connection U/m			BA-ST
			3015-1F 3022-1F 3030-1F 9040-1FEDC 9050-1FEDC
XL 54	Thermometer enclosure mmø 10 female
XL35	Heating unit connection	mm	11/4" female	11/2" female
XL4	Hot water outlet mm 3/4" male 1" male
XL8	Coil supply	mm	3/4" male		1" male	11/4" male
XL5	Hot water circulation	mm	3/4" male
UA1	Temp. sensor enclosure	mm	ø 16 female			-
UA2	Temp. sensor enclosure mmø 16 female
UA3	Temp. sensor enclosure mmø 16 female
XL9	Return from coil	mm	3/4" male		1" male	11/4" male
XL3	Cold water input	mm 3/4" male 1" male

Table 6. Dimensions.

Dimensions BA-ST
		3015-1F	3022-1F	3030-1F	9040-1FEDC	9050-1FEDC
A	mm	650	694	778	883	940
B	mm	ø 576	ø 603	ø 675	ø 774	ø 832
C	mm	ø 445	ø 445	ø 530	ø 602	ø 650
D	mm	214	269	316	323	337
E	mm	1033	1411	1396	1323	1477
F	mm	78	119	166	175	189
G	mm	196	203	251	273	287
H	mm	464	553	611	606	620
I	mm	612	838	819	943	957
J	mm	735	1003	1051	1113	1127
K	mm	858	1153	1272	1293	1307
L	mm	958	1263	1356	-
M	mm	1152	1484	1471	1417	1545
N	mm	1265	1652	1705	1694	1835
W	mm	20			21 -0/+15

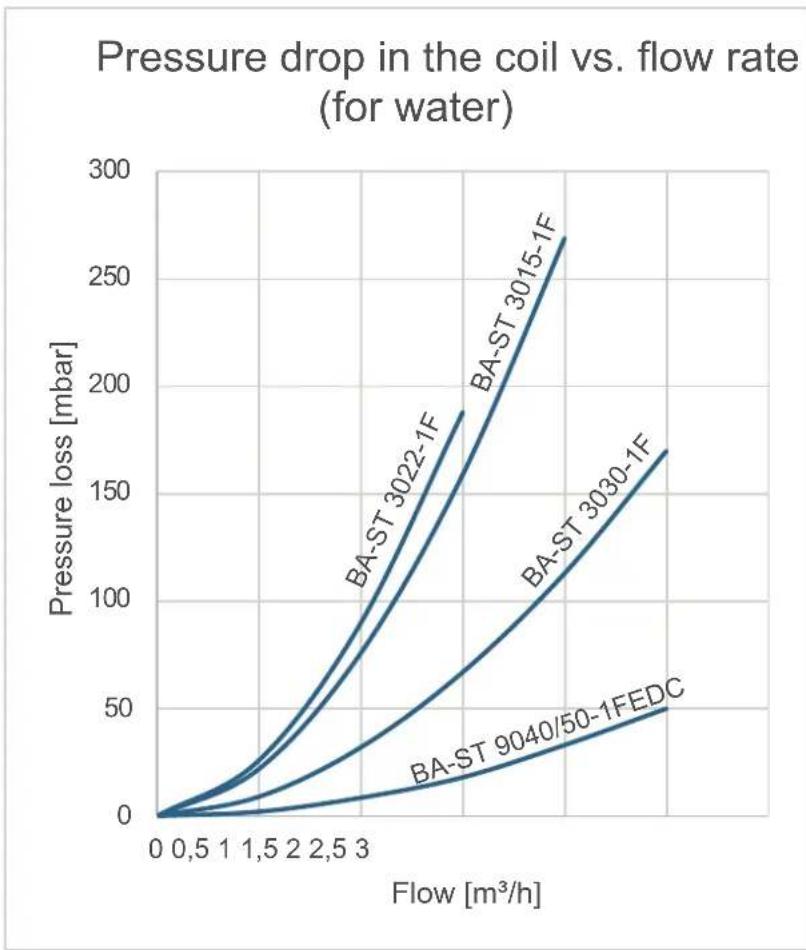

Fig. 26 Pressure loss in the coil.

Polski

1 Ważne informacje

Symbole

WAŻNE!

Rys. 1 Zasobnik BA-ST 3015 -1F.

Rys.2 Zasobniki BA-ST 3022/3030 -1F i BA-ST 9040/9050-1FEDC.

2 Budowa

Fig. 1 Boiler BA-ST 3015 -1F.

Fig.2 BA-ST 3022/3030 -1F en BA-ST 9040/9050-1FEDC boilers.

2 Bouw

Fig. 16 De magnesiumbeschermingsanode vervangen.

Fig. 21 Afmetingen van de boiler BA-ST 3022/3030 - 1F.

Fig. 23 Afmetingen van de boiler BA-ST 9040/9050 - 1FEDC.

Fig. 1 BA-ST 3015 -1F beholder.

Fig. 19 Dimensioner på BA-ST 3015 - 1F varmtvands- beholder

Fig. 20 Dimensioner på BA-ST 3022/3030 -1F tilslutningsstudser

Fig. 21 Dimensioner på BA-ST 3022/3030 - 1F varmt-vandsbeholder

Fig. 22 Dimensioner på BA-ST 9040/9050 -1FEDC tilslutningsstudser

Fig. 23 Dimensioner på BA-ST 9040/9050 - 1FEDC varmtvandsbeholder

Fig. 24 Dimensioner på BA-ST 3015 - 1F varmtvands- beholder Fig. 25 Dimensioner på BA-ST 3022/3030-1F og BA-ST 9040/9050 - 1FEDC varmtvandsbeholder

Tabel 5. Studsdiametre

This is a publication from NIBE Energy Systems. All product illustrations, facts and data are based on the available information at the time of the publication's approval.

NIBE Energy Systems makes reservations for any factual or printing errors in this publication.
