USER MANUAL NARVIK 30 WILFA

White Wilfa air conditioner unit with visible grille and ventilation slots (no text or symbols on body)

NARVIK 30 & 40

HEAT PUMP

EN · Instruction manual

8 IMPORTANT SAFETY INSTRUCTIONS – ATTACHMENT

11 THE REFRIGERANT

16 PRODUCT OVERVIEW

18 HOW TO USE

27 CLEANING AND MAINTENANCE

29 TROUBLESHOOTING

32 GUARANTEE

33 PRODUCT SPECIFICATIONS

33 SUPPORT AND SPARE PARTS

33 RECYCLABILITY

IMPORTANT SAFETY INSTRUCTIONS – OPERATION AND MAINTENANCE

• Read this instruction manual thoroughly before use and save it for future reference. It is also available at our website; wilfa.com.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• Do not connect air conditioner to multi-purpose socket. Otherwise, it may cause fire hazard.
• Do disconnect power supply when cleaning air conditioner. Otherwise, it may cause electric shock.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Do not wash the air conditioner with water to avoid electric shock.

- Do not spray water on indoor unit. It may cause electric shock or malfunction.

- After removing the filter, do not touch fins to avoid injury. Do not use fire or hair dryer to dry the filter to avoid deformation or fire hazard.

- Maintenance must be performed by qualified professionals. Otherwise, it may cause personal injury or damage.

- Do not repair air conditioner by yourself. It may cause electric shock or damage. Please contact dealer when you need to repair air conditioner.

- Do not extend fingers or objects into air inlet or air outlet. It may cause personal injury or damage.

- Do not block air outlet or air inlet. It may cause malfunction.

- Do not spill water on the remote controller, otherwise the remote controller may be broken.

- When below phenomenon occurs, please turn off air conditioner and disconnect power immediately, and then contact the dealer or qualified professionals for service.

– Power cord is overheating or damaged.

– There's abnormal sound during operation.

– Circuit break trips off frequently.

EN

– Air conditioner gives off burning smell.
- Indoor unit is leaking.

• If the air conditioner operates under abnormal conditions, it may cause malfunction, electric shock or fire hazard.
• When turning on or turning off the unit by emergency operation switch, please press this switch with an insulating object other than metal.
• Do not step on top panel of outdoor unit, or put heavy objects. It may cause damage or personal injury.

IMPORTANT SAFETY INSTRUCTIONS – ATTACHMENT

• Installation must be performed by qualified professionals. Otherwise, it may cause personal injury or damage.
• Must follow the electric safety regulations when installing the unit.
• According to the local safety regulations, use qualified power supply circuit and circuit break.

• Do install the circuit break. If not, it may cause malfunction. An all-pole disconnection switch having a contact separation of at least 3mm in all poles should be connected in fixed wiring.

• Including an circuit break with suitable capacity, please note the following table. Air switch should be included magnet buckle and heating buckle function, it can protect the circuit-short and overload.
  • Air Conditioner should be properly grounded. Incorrect grounding may cause electric shock.

• Don't use unqualified power cord.
• Make sure the power supply matches with the requirement of air conditioner. Unstable power supply or incorrect wiring or malfunction.
• Please install proper power supply cables before using the air conditioner.
• Properly connect the live wire, neutral wire and grounding wire of power socket.
• Be sure to cut off the power supply before proceeding any work related to electricity and safety.
• Do not put through the power before finishing installation. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

EN

• The temperature of refrigerant circuit will be high, please keep the interconnection cable away from the copper tube.
• The appliance shall be installed in accordance with national wiring regulations.
• Installation must be performed in accordance with the requirement of NEC and CEC by authorized personnel only.
• The air conditioner is the first class electric appliance. It must be properly grounding with specialized grounding device by a professional. Please make sure it is always grounded effectively, otherwise it may cause electric shock.
• The yellow-green wire in air conditioner is grounding wire, which can't be used for other purposes.
• The grounding resistance should comply with national electric safety regulations.
• The appliance must be positioned so that the plug is accessible.
• All wires of indoor unit and outdoor unit should be connected by a professional.

• If the length of power connection wire is insufficient, please contact the supplier for a new one. Avoid extending the wire by yourself.

• For the air conditioner with plug, the plug should be reachable after finishing installation.

• For the air conditioner without plug, an circuit break must be installed in the line.
• If you need to relocate the air conditioner to another place, only the qualified person can perform the work. Otherwise, it may cause personal injury or damage.
• Select a location which is out of reach for children and far away from animals or plants. If it is unavoidable, please add the fence for safety purpose.
• The indoor unit should be installed close to the wall

NOTE

It is very important for your customer rights, that you follow your cleaning and service advizing thoroughly. If not, you will risk to lose your customer rights.

THE REFRIGERANT

- To realize the function of the air conditioner unit, a special refrigerant circulates in the system. The used refrigerant is the fluoride R32, which is specially cleaned. The refrigerant is flammable and inodorous. Furthermore, it can lead to explosion under certain conditions. But the flammability of

the refrigerant is very low. It can be ignited only by fire.

- Compared to common refrigerants, R32 is a nonpolluting refrigerant with no harm to the ozonosphere. The influence upon the greenhouse effect is also lower. R32 has got very good thermodynamic features which lead to a really high energy efficiency. The units therefore need a less filling.

WARNING

Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacture. Should repair be necessary, contact your nearest authorized Service Centre. Any repairs carried out by unqualified personnel may be dangerous. The appliance shall be stored in a room without continuously operating ignition sources. (for example: open flames, an operating gas appliance or an operating electric heater.) Do not pierce or burn.

Appliance filled with flammable gas R32. For repairs, strictly follow manufacturer's instructions only. Be aware that refrigrants not contain odour. Read specialist's manual.

PRECAUTIONS

• Do not put through the power before finishing installation.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• The temperature of refrigerant circuit will be high, please keep the interconnection cable away from the copper tube.
• The appliance shall be installed in accordance with national wiring regulations.
• Installation must be performed in accordance with the requirement of NEC and CEC by authorized personnel only.
• The air conditioner is the first class electric appliance. It must be properly grounding with specialized grounding device by a professional. Please make sure it is always grounded effectively, otherwise it may cause electric shock.
• The yellow-green wire in air conditioner is grounding wire, which can't be used for other purposes.
• The grounding resistance should comply with national electric safety regulations.

EN

• The appliance must be positioned so that the plug is accessible.
• All wires of indoor unit and outdoor unit should be connected by a professional.
• If the length of power connection wire is insufficient, please contact the supplier for a new one. Avoid extending the wire by yourself.
• For the air conditioner with plug, the plug should be reachable after finishing installation.
• For the air conditioner without plug, an circuit break must be installed in the line.
• If you need to relocate the air conditioner to another place, only the qualified person can perform the work. Otherwise, it may cause personal injury or damage.
• Select a location which is out of reach for children and far away from animals or plants. If it is unavoidable, please add the fence for safety purpose.
• The indoor unit should be installed close to the wall.
• Instructions for installation and use of this product are provided by the manufacturer.

EN

PRODUCT OVERVIEW

INDOOR UNIT

EN

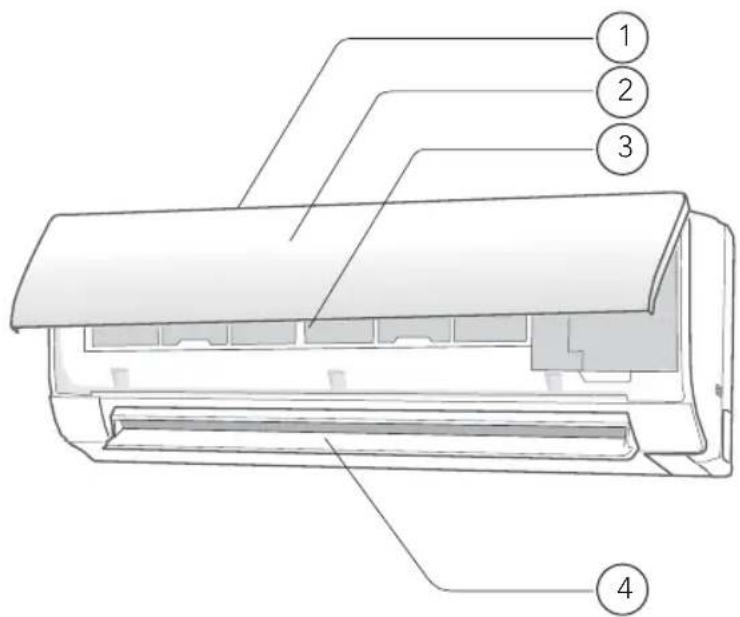

1. Air inlet
2. Panel
3. Filter
4. Air outlet

DISPLAY

Temp. indicator
Power indicator

Note:

• This is the general introduction and the color of indicator is only for reference. Please refer to the actual display.
• Display content may be different from the actual. Please refer to the actual display.

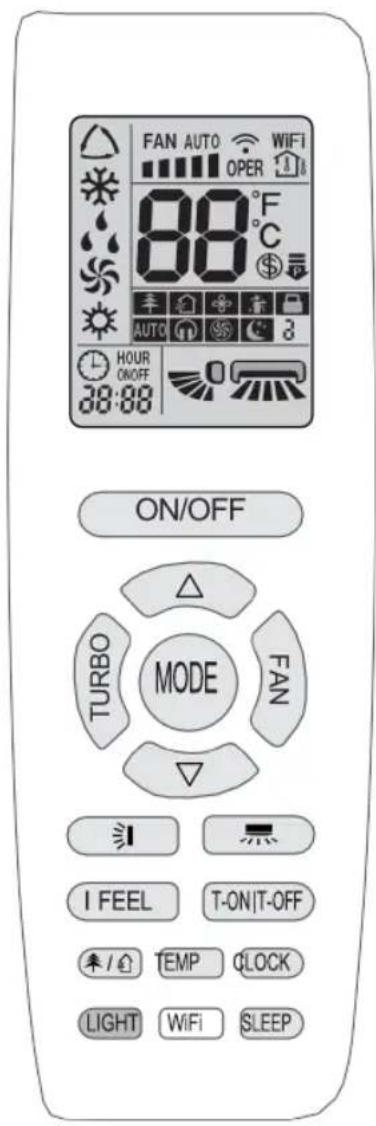

REMOTE CONTROL

		I feel
FAN AUTO		Set fan speed
		Turbo mode (Max 30 min)
		Send signal
Operation mode		Auto mode
		Cool mode
		Dry mode
		Fan mode
		Heat mode
		Sleep mode
		8C heating function
		Power limiting operation
		Health mode
		Scavenging function
		X-FAN function
temp. display type
		Indoor ambient temp.
		Outdoor ambient temp.
		Clock
88		Set temperature
WiFi		WiFi function
28:88		Set time
ONOFF		TIMER ON / TIMER OFF
		Left & right swing
		Up & down swing
		Child lock
		Quiet

HOW TO USE

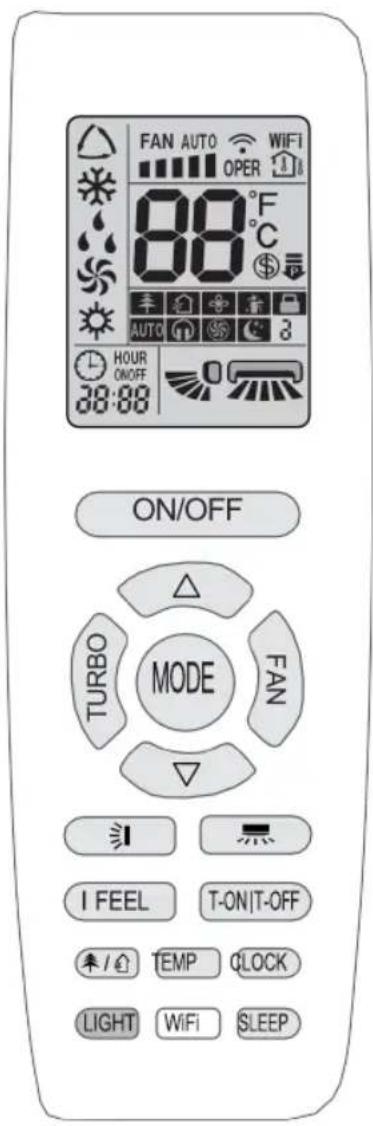

INTRODUCTION FOR BUTTONS ON REMOTE CONTROLLER

Note:

• This is a general use remote controller, it could be used for the air conditioners with multifunction; For some function, which the model don't have, if press the corresponding button on the remote controller that the unit will keep the original running status.
• After putting through the power, the air conditioner will give out a sound. Operation indicator "⏻ is ON. After that, you can operate the air conditioner by using remote controller.
• Under on status, pressing the button on the remote controller, the signal icon "on the display of remote controller will blink once and the air conditioner will give out a "de" sound, which means the signal has been sent to the air conditioner.
• As for the models with functions of WiFi or wired controller, the indoor unit must have been controlled by standard remote controller under auto mode first, and then the function of adjustable temperature under auto mode can be realized by APP or the wired controller.
• This remote controller can adjust the temperature under auto mode. When matching with the unit which is without the function of adjustable temperature under auto mode, the set temperature under auto mode may be invalid, or the displayed set temperature on the unit is not same as that on the remote controller under auto mode.

ON/OFF button

Press this button, the unit will be turned on, press it once more, the unit will be turned off.

MODE button

Press this button to select your required operation mode.

- When selecting auto mode, air conditioner will operate automatically according to ex-factory setting. Press "FAN" button can adjust fan speed. Press "☐" "☐" button can adjust fan blowing angle.

• After selecting cool mode, air conditioner will operate under cool mode. Press "UP" or "DOWN" button to adjust set temperature. Press "FAN" button to adjust fan speed. Press "☐" "☐" button to adjust fan blowing angle.
• When selecting dry mode, the air conditioner operates at low speed under dry mode. Under dry mode, fan speed can't be adjusted. Press "button to adjust fan blowing angle.
• When selecting fan mode, the air conditioner will only blow fan, no cooling and no heating. All indicators are OFF. Press "FAN" button to adjust fan speed. Press "☐" "Button to adjust fan blowing angle.
• When selecting heating mode, the air condition- er operates under heat mode. Press "UP" or "DOWN" button to adjust set temperature. Press "FAN" button to adjust fan speed. Press "☐" "Button to adjust fan blowing angle. (Cooling only unit won't receive heating mode signal. If setting heat mode with remote controller, press ON/OFF button can't start up the unit).

Note:

• For preventing cold air, after starting up heating mode, indoor unit will delay 1\~5 minutes to blow air (actual delay time is depend on indoor ambient temperature).
• Set temperature range from remote controller: 16\~30°C (61-86°F);
• Under auto mode, temperature can be displayed; Under auto mode, set temperature can be adjusted.
• This mode indicator is not available for some models.

FAN button

Press this button, Auto, Quiet, Low, Medium-low, Medium, Medium-high, High speed can be circularly selected. After powered on, Auto fan speed is default.

Note:

• Under AUTO speed, air conditioner will select proper fan speed automatically according to factory default setting.
• It's low fan speed under dry mode.
• X-FAN function: Holding fan speed button for 2s in cool or dry mode, the icon for X-FAN is displayed and the indoor fan will continue operation for a few minutes in order to dry the indoor unit even though you have turned off the unit. After energization, X-FAN OFF is defaulted. X-FAN is not available in auto, fan or heat mode. This function indicates that moisture on evaporator of indoor unit will be blown after the unit is stopped to avoid mould.
• Having set X-FAN function on: After turning off the unit by pressing ON/OFF button, indoor fan will continue running for a few minutes at low speed. In this period, hold fan speed button for 2s to stop indoor fan directly. Having set X-FAN function off: After turning off the unit by pressing ON/OFF button, the complete unit will be off directly.

TURBO button

Under COOL or HEAT mode, press this button to turn to quick COOL or quick HEAT mode. The TURBO icon is displayed on remote controller. Press this button again to exit turbo function and the TURBO icon will disappear. If start this function, the unit will run at super-high fan speed to cool or heat quickly so that the ambient temperature approaches the preset temperature as soon as possible.

UP/DOWN button

• Press UP or DOWN button once increase or decrease set temperature 1 °C (°F). Holding UP or DOWN button, 2s later, set temperature on remote controller will change quickly. On releasing button after setting is finished, temperature indicator on indoor unit will change accordingly.
• When setting T-ON, T-OFF or CLOCK, press UP or DOWN button to adjust time. (Refer to CLOCK, T- ON, T-OFF buttons)

button

Press this button to set left & right swing angle cycling as below:

Note:

• Press this button continuously more than 2s, the main unit will swing back and forth from left to right, and then loosen the button, the unit will stop swinging and present position of guide louver will be kept immediately.
• Under left and right swing mode, when the status is switched from off to ☐, if press this button again 2s later, ☐ status will switch to off status directly; if press this button again within 2s, the change of swing status will also depend on the circulation sequence stated above.
  • The function is only available for some models.

button

Press this button to set swing angle, which circularly changes as below:

• When selecting “air conditioner is blowing fan automatically. Horizontal louver will automatically swing up & down at maximum angle.

• When selecting " air conditioner is blowing fan at fixed position. Horizontal louver will stop at the fixed position.

• When selecting " air conditioner is blowing fan at fixed angle. Horizontal louver will send air at the fixed angle.

• Hold "3" button above 2s to set your required swing angle. When reaching your required angle, release the button.

Note:

• " may not be available. When air conditioner receives this signal, the air conditioner will blow fan automatically.
• Press this button continuously for more than 2s, the main unit will swing back and forth from up to down, and then loosen the button, the unit present position of guide louver will be kept immediately.
• Under up and down swing mode, when the status is switched from off to “if press this button again 2s later,” status will switch to off status directly; if press this button again within 2s, the change of swing status will also depend on the circulation sequence stated above.

TIMER ON button

"T-ON" button can set the time for timer on. After pressing this button, "icon disappears and the word "ON" on remote controller blinks. Press UP or DOWN button to adjust T-ON setting. After each pressing on UP or DOWN button, T-ON setting will increase or decrease 1min. Hold UP or DOWN button, 2s later, the time will change quickly until reaching your required time. Press "T-ON" to confirm it. The word "ON" will stop blinking. "icon resumes displaying."

Cancel T-ON: Under the condition that T-ON is started up, press "T-ON" button to cancel it.

TIMER OFF button

"T-OFF" button can set the time for timer off. After pressing this button, "icon disappears and the word "OFF" on remote controller blinks. Press UP or DOWN button to adjust T-OFF setting. After each pressing on UP or DOWN button, T-OFF setting will increase or decrease 1min. Hold UP or DOWN button, 2s later, the time will change quickly until reaching your required time. Press "T-OFF" word "OFF" will stop blinking. "icon resumes displaying. Cancel T-OFF. Under the condition that T-OFF is started up, press "T-OFF" button to cancel it.

Note:

• Under on and off status, you can set T-OFF or T-ON simultaneously.
• Before setting T-ON or T-OFF, please adjust the clock time.
• After starting up T-ON or T-OFF, set the constant circulating valid.
• After that, air conditioner will be turned on or turned off according to setting time. ON/OFF button has no effect on setting. If you don't need this function, please use remote controller to cancel it.

I FEEL button

• Press this button to start I FEEL function and I FEEL icon will be displayed on the remote controller. After this function is set, the remote controller will send the detected ambient temperature to the controller and the unit will automatically adjust the indoor temperature according to the detected temperature. Press this button again to cancel I FEEL function and icon will disappear.
• Please put the remote controller near user when this function is set. Do not put the remote controller near the object of high temperature or low temperature in order to avoid detecting inaccurate ambient temperature. When I FEEL function is turned on, the remote controller should be put within the area where indoor unit can receive the signal sent by the remote controller.

CLOCK button

Press this button to set clock time. "icon on remote controller will blink. Press UP or DOWN button within 5s to set clock time. Each pressing of UP or DOWN button, clock time will increase or decrease 1 min. If hold UP or DOWN button, 2s later, time will change quickly. Release this button when reaching your required time. Press "CLOCK" button to confirm the time. "icon stops blinking.

Note:

• Clock time adopts 24-hour mode.
• The interval between two operations can 't exceed 5s. Otherwise, remote controller will quit setting status. Operation for TIMER ON/TIMER OFF is the same.

SLEEP button

Press this button, can select Sleep 1 (Sleep 2 (), Sleep 3 () and cancel the Sleep, circulate between these, after electrified, Sleep Cancel is defaulted.

Sleep 1 is Sleep mode 1, in Cool modes; sleep status after run for one hour, the main unit setting temperature will increase 1, two hours, setting temperature increased 2 °C, then the unit will run at this setting temperature; In Heat mode: sleep status after run for one hour, the setting tempera-ture will decrease 1, two hours, setting tempera-ture will decrease 2, then the unit will run at this setting temperature.

Sleep 2 is sleep mode 2, that is air conditioner will run according to the presetting a group of sleep temperature curve.

Sleep 3 - the sleep curve setting under Sleep mode by DIY:

1. Under Sleep 3 mode, press "Turbo" button for a long time, remote controller en-ters into user individuation sleep setting status, at this time, the time of remote controller will display "1hour", the setting temperature "88" will display the corresponding temperature of last setting sleep curve and blink (the first entering will display according to the initial curve setting value of original factory);
2. Adjust "UP" and "DOWN" button, could change the corresponding setting temperature, after adjusted, press "Turbo" button for confirmation;
3. At this time, 1 hour will be automatically increased at the timer position on the remote controller, (that are "2 hours" or "3 hours" or "8 hours"), the place of setting temperature "88" will display the corresponding temperature of last setting sleep curve and blink;
4. Repeat the above step (2)\~(3) operation, until 8 hours temperature setting finished, sleep curve setting finished, at this time, the remote controller will resume the original timer display; temperature display will resume to original setting temperature.

Sleep 3 - the sleep curve setting under Sleep mode by DIY could be inquired:

The user could accord to sleep curve setting method to inquire the presetting sleep curve, enter into user individuation sleep setting status, but do not change the temperature, press "Turbo" button directly for confirmation.

Note: In the above presetting or enquiry procedure, if continuously within 10s, there is no button pressed, the sleep curve setting status will be automatically quit and resume to display the original displaying. In the presetting or enquiry procedure, press "ON/OFF" button, "Mode" button, "Timer" button or "Sleep" button, the sleep curve setting or enquiry status will quit similarly.

WIFI button

Press "Wifi" button to turn on WiFi function, "Wifi" icon will be displayed on the remote controller; Hold "Wifi" button for 5s to turn off WiFi function and "Wifi" icon will disappear. (This function is only available for some models.)

Under off status, press "MODE" and "WiFi" buttons simultaneously for 1s, WiFi module will restore factory settings.

Note:

The function is only available for some models.

HEALTH MODE / SCAVENGING function

Press this button to turn on or turn off the health and scavenging functions in operation status. Press this button for the first time to start scavenging function; LCD displays SCAVENGING icon. Press the button for the second time to start health and scavenging functions; LCD displays SCAVENGING icon and HEALTH icon. Press this button for the third time to quit health and scavenging functions simultaneously. Press the button for the fourth time to start health function; LCD display HEALTH icon. Press this button again to repeat the operation above.

Note:

The function is only available for some models.

LIGHT button

Press this button to turn on or turn off the display light on the indoor unit. The display light is defaulted on after energization.

TEMP button

Press this button, you can see indoor set temperature, indoor ambient temperature on indoor unit's display.

Energy-saving function

Under cooling mode, press "TEMP" and "CLOCK" buttons simultaneously to start up or turn off energy-saving function. When energy-saving function is started up, "SE" will be shown on remote controller, and air conditioner will adjust the set temperature automatically according to ex-factory setting to reach to the best energy-saving effect. Press "TEMP" and "CLOCK" buttons simultaneously again to exit energy-saving function.

Note:

• Under energy-saving function, fan speed is defaulted at auto speed and it can't be adjusted.
• Under energy-saving function, set temperature can 't be adjusted. Press "TURBO" button and the remote controller won't send signal.
• Sleep function and energy-saving function can 't operate at the same time. If energy-saving function has been set under cool mode, press 11SLEEP11 button will cancel energy-saving function. If sleep function has been set under cool mode, start up the energy-saving function will cancel sleep function.

8°C Heating Function

Under heat mode, press "TEMP" and "CLOCK" buttons simultaneously to start up or turn off 8 C heating function. When this function is started up, " and "8C" will be shown on remote controller, and the air conditioner keep the heating status at 8C. Press "TEMP" and "CLOCK" buttons simultaneously again to exit 8C heating function.

Note:

• Under 8C heating function, fan speed is defaulted at auto speed and it can't be adjusted.
• Under 8C heating function, set temperature can 't be adjusted. Press "TURBO" button and the remote controller won't send signal.
• Sleep function and 8C heating function can't operate at the same time. If 8C heating function has been set under heat mode, press "SLEEP" button will cancel 8C heating function. If sleep function has been set under heat mode, start up the 8 C heating function will cancel sleep function.
• Under F temperature display, the remote controller will display 46F heating.

Childlock function

Press UP and DOWN simultaneously to turn on or turn off child lock function. When child lock function is on, "icon is displayed on remote controller. If you operate the remote controller, the "icon will blink three times without sending signal to the unit.

Temperature display switchover function

Under OFF status, press DOWN and "MODE" buttons simultaneously to switch temperature display between °C and °F.

Autoclean function

Under unit off status, hold "MODE" and "FAN" buttons simultaneously for 5s to turn on or turn off the auto clean function. When the auto clean function is turned on, indoor unit displays "CL". During the auto clean process of evaporator, the unit will perform fast cooling or fast heating. There may be some noise, which is the sound of flowing liquid or thermal expansion or cold shrinkage. The air conditioner may blow cool or warm air, which is a normal phenomenon. During cleaning process, please make sure the room is well ventilated to avoid affecting the comfort.

Note:

• The auto clean function can only work under normal ambient temperature. If the room is dusty, clean it once a month; if not, clean it once every three months. After the auto clean function is turned on, you can leave the room. When auto clean is finished, the air conditioner will enter standby status.
• This function is only available for some models.

Night mode

Under cooling or heating mode, when turning on sleep mode and turn to low speed or quiet notch, the outdoor unit would enter into night mode.

Note:

• When you feel that the cooling and heating effect is poor, please press "FAN" button to other fan speed or press "SLEEP" button to exit the night mode.
• The night mode can only work under normal ambient temperature.
• This function is only available for some models.

EN

function

Press "MODE" and "SLEEP" buttons simultaneously to start function. Function is for limiting power of the whole unit. Press this button, the remote controller will circu- larly display as the following:

• Maximum power limited under the mode is lower than that of mode.
• If you want to cancel the power limiting function, press the button fill the icon in remote contro-ller is not displayed.
• When the remote controller is turned off, power limiting function is cancelled. If you want to activate the function, please repress this button.
• If the current power is lower than the maximum power of mode, then the power will not be limited after entering into such mode.
• For the model with one outdoor unit and two indoor units, if any one of indoor units enters into power limiting function, the outdoor unit will enter into the set limiting power mode of indoor unit; when two indoor units enter into power limiting mode, then the power of outdoor unit will be limited according to the lower power of the two indoor units.

Note:

- This function is only available for some models.

REPLACEMENT OF BATTERIES IN REMOTE CONTROLLER

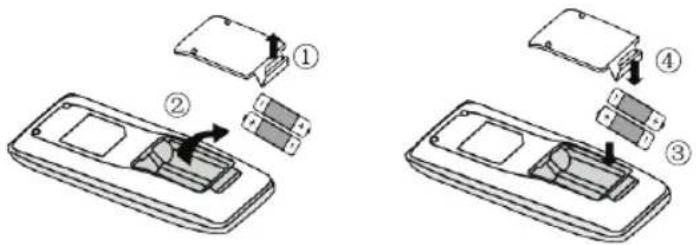

1. Lift the cover along the direction of arrow (as shown in Fig 1 ①).
2. Take out the original batteries (as shown in Fig 1 ②).
3. Place two 7# (AAA 1.5V) dry batteries, and make sure the position of “+” polar and “-” polar is correct (as shown in Fig 2③).
4. Reinstall the cover (as shown in Fig 2 ④).

Note:

• During operation, point the remote control signal sender at the receiving window on indoor unit.
• The distance between signal sender and receiving window should be no more than 8m, and there should be no obstacles between them.
• Signal may be interfered easily in the room where there is fluorescent lamp or wireless telephone; remote controller should be close to indoor unit during operation.
• Replace new batteries of the same model when replacement is required.
• When you don't use remote controller for a long time, please take out the batteries.
• If the display on remote controller is fuzzy or there's no display, please replace batteries.

CLEANING AND MAINTENANCE

Warning:

• Turn off the air conditioner and disconnect the power before cleaning the air conditioner to avoid electric shock.
• Do not wash the air conditioner with water to avoid electric shock.
• Do not use volatile liquid to clean the air conditioner.

CLEAN SURFACE OF INDOOR UNIT

When the surface of indoor unit is dirty, it is recommended to use a soft dry cloth or wet cloth to wipe it.

Note: Do not remove the panel when cleaning it.

CLEAN FILTER

1. Open panel

Pull out the panel to a certain angel as shown in figure.

2. Remove filter

Remove the filter as indicated in the figure.

3. Clean filter

Use dust catcher or water to clean the filter. When the filter is very dirty use water (below 45^ C) to clean it, and then put it in a shady place and cool place to dry.

4. Install filter

Install the filter and then close the panel cover thightly.

Hand holding a fan or object with a grid pattern, pointing downward (no text or symbols visible)

Illustration of hands holding a grid-patterned object with a tool, no text or symbols present

Line drawing of a wall-mounted air conditioner unit with hand operating it (no text or symbols)

Warning:

• The filter should be cleaned every three months. If there is much dust in the operation environment, clean frequency can be increased.
  • After removing the filter, do not touch fins to avoid injury.
• Do not use fire or hair dryer to dry the filter to avoid deformation or fire hazard.

CHECKING BEFORE USE-SEASON

1. Check whether air inlets are blocked.
2. Check whether air switch, plug and socket are in good condition.
3. Check whether filter is clean
4. Check whether drainage pipe is damaged.

CHECKING AFTER USE-SEASON

1. Disconnect power supply.
2. Clean filter and indoor unit's panel

TROUBLESHOOTING

Problem Possible reasons Solutions
Indoor unit can't receive remote controller's signal or remote controller has no action.	Whether it's interfered severely (such as static electricity, stable voltage)?	Pull out the plug. Reinsert the plug after about 3min, and then turn on the unit again.
	Whether remote controller is within the signal receiving range?	Signal receiving range is 8m.
	Whether there are obstacles?	Remove obstacles.
	Whether remote controller is pointing at the receiving window?	Select proper angle and point the remote controller at the receiving window on indoor unit.
	Is sensitivity of remote controller low; fuzzy display and no display?	Check the batteries. If the power of batteries is too low, please replace them.
	No display when operating remote controller?	Check whether remote controller appears to be damaged. If yes, replace it.
	Fluorescent lamp in room?	Take the remote controller close to indoor unit.
		Turn of the fluorescent lamp and then try it again.
No air emitted from indoor unit	Air inlet or air outlet of indoor unit is blocked?	Eliminate obstacles.
	Under heating mode, indoor temperature is reached to set temperature?	After reaching to set temperature, indoor unit will stop blowing out air.
	Heating mode is turned on just now?	In order to prevent blowing out cold air, indoor unit will be started after delaying for several minutes, which is a normal phenomenon.

EN

EN

Air conditioner can't operate	Power failure?	Wait until power recovery.
	Is plug loose?	Reinsert the plug.
	Air switch trips off or fuse is burnt out?	Ask professional to replace air switch or fuse.
	Wiring has malfunction?	Ask professional to replace it.
	Unit has restarted immediately after stopping operation?	Wait for 3 min, and then turn on the unit again.
	Whether the function setting for remote controller is correct?	Reset the function
Mist is emitted from indoor unit's air outlet	Indoor temperature and humidity is high?	Because indoor air is cooled rapidly. After a while, indoor temperature and humidity will be decrease and mist will disappear.
Set temperature can't be adjusted	Unit is operating under auto mode?	Temperature can't be adjusted under auto mode. Please switch the operation mode if you need to adjust temperature.
	Your required temperature exceeds the set temperature range?	Temperature range: 16-30. for Heating mode 8-30.
Cooling (heating) effect is not good.	Voltage is too low?	Wait until the voltage resumes normal.
	Filter is dirty?	Clean the filter.
	Set temperature is in proper range?	Adjust temperature to proper range.
	Door and window are open?	Close door and window.
Odours are emitted	Whether there's odour source, such as furniture and cigarette, etc.	Eliminate the odour source. Clean the filter
Air conditioner operates abnormally	Whether there's interference, such as thunder, wireless devices, etc.	Disconnect power, put back power, and then turn on the unit again.
"Water flowing" noise	Air conditioner is turned on or turned off just now?	The noise is the sound of refrigerant flowing inside the unit, which is a normal phenomenon.
Cracking noise Air conditioner is turned on or turned off just now?		This is the sound of friction caused by expansion and/or contraction of panel or other parts due to the change of temperature.

EN

GUARANTEE

Wilfa issues a 7 year guarantee on this product from the day of purchase is done. The guarantee covers production failure or defects that arise during the guarantee period. Your purchase receipt works as proof towards retailer if claiming your guarantee.

The guarantee is valid only for products that are bought and used in private households. The guarantee is not valid if the product is used commercially. The guarantee is not valid if the product is misused, used by negligence, if not following instructions given by Wilfa, if modified or if unauthorized reparation is done. The guarantee is also not valid for normal wear of the product, misuse, lack of maintenance, use of wrong electrical voltage or:

• Overloading of product
• Parts which are normally worn down
- Parts you can expect being replaced regularly (e.g. filter, battery etc.)

Instructions manual is also available at our website wilfa.com

PRODUCT SPECIFICATIONS

220-240V\~50Hz

SUPPORT AND SPARE PARTS

For support please visit us at wilfa.com, and see our customer service/support page. Here you will find frequently asked questions, spare parts, tips and tricks and all our contact information.

RECYCLABILITY

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmentally safe recycling free of charge.

NO

NO

INNHOLD

36 VIKTIGE SIKKERHETSINSTRUKSJONER – BRUK OG VEDLIKEHOLD

38 VIKTIGE SIKKERHETSINSTRUKSJONER – UTSTYR

42 KJ∅LEMIDDELET

46 PRODUKTOVERSIKT

48 BRUK

57 SKIFTE BATTERIER I FJERNKONTROLLEN

57 RENGJ∅RING OG VEDLIKEHOLD

59 FEILS∅KING

62 GARANTI

63 PRODUKTSPESIFIKASJONER

63 SUPPORT OG RESERVEDELER

63 GJENVINNING

VIKTIGE SIKKERHETSINSTRUKSJONER – BRUK OG VEDLIKEHOLD

1. Luftinntak
2. Panel
3. Filter
4. Luftuttak

DISPLAY

Temperaturindikator
Av/på-bryter

Merk:

• Dette er en generell oversikt, og fargen på indikatorene er kun ment som referanse. Se det aktuelle displayet.
• Innholdet som vises, kan avvike fra det faktiske innholdet. Se det aktuelle displayet.

FJERNKONTROLL

Advarsel:

SE

1. Luftintag
2. Panel
3. Filter
4. Luftutsläpp

DISPLAY

Temp.indikator
Strömindikator

Obs!

Varning:

Advarsel:

Hand holding a fan or object with a grid pattern, pointing downward (no text or symbols visible)

Illustration of hands holding a grid-patterned object with a tool, no text or symbols present

Diagram of a hand pressing down on a wall-mounted air conditioner cover (no text or symbols)

Varoitus:

NARVIK_30_&_40_20_02
