USER MANUAL TMDLST9 TOOLMATE

Important: Please read this user manual before operating the product.

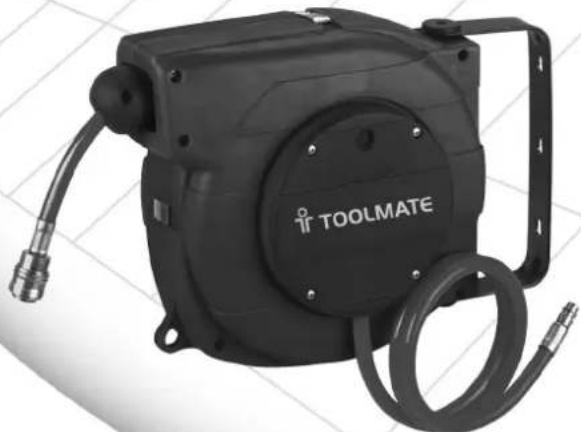

Black TOOLMATE industrial device with coiled tubing and metal fittings (no visible text or symbols)

CE

"Caution - Read the operating instructions to reduce the risk of inquiry"

⚠️ Important!

When using equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating manual with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, give them these operating instructions as well.

We accept no liability for damage or accidents which arise due to non-observance of these instructions and the safety information.

1. Safety regulations

CAUTION!

Read all safety regulations and instructions.

Any errors made in following the safety regulations and instructions may result in an electric shock, fire and/or serious injury.

Keep all safety regulations and instructions in a safe place for future use.

Take suitable precautions to protect yourself and your environment from potential hazards.

●After use, switch off the compressed air and empty the hose, making it easier to roll the hose up.
●The equipment must only be operated in an ambient temperature of +5°C to +40°C. The hose must not be exposed to direct sunlight, as otherwise this can result in damage to the hose.
- Do not expose the equipment to rain. Never use the equipment in damp or wet locations.
●After use, the hose of the hose reel must be disconnected from the compressor.
●Protect the hose from heat, oil and sharp edges.
- If the hose reel is not required, the hose should always be rolled up!

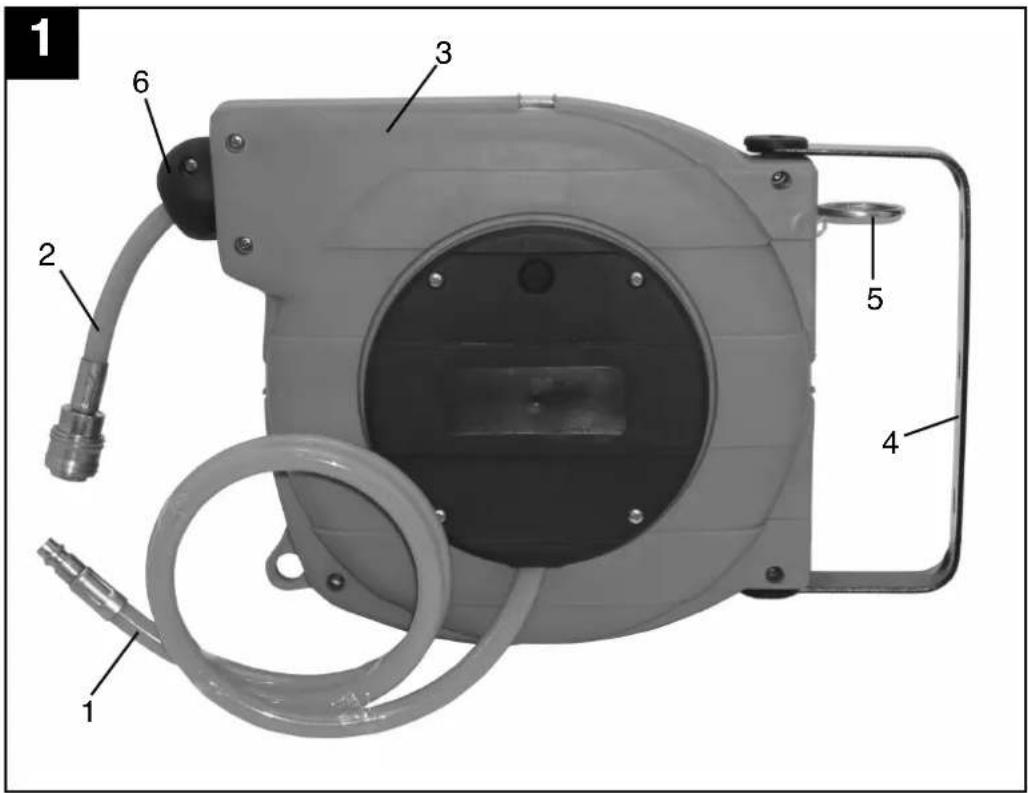

2. Layout (Fig. 1)

1. Connecting hose
2. Hose
3. Hose reel
4. Angle mount
5. Suspension eye
6. Hose stopper

3. Proper use

The hose reel is suitable for use in enlarging the radius within which your compressor can work.

The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.

Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.

4. Technical data

Max. permitted pressure: 12 bar

Hose length: 9 +1m

Weight: 3.0

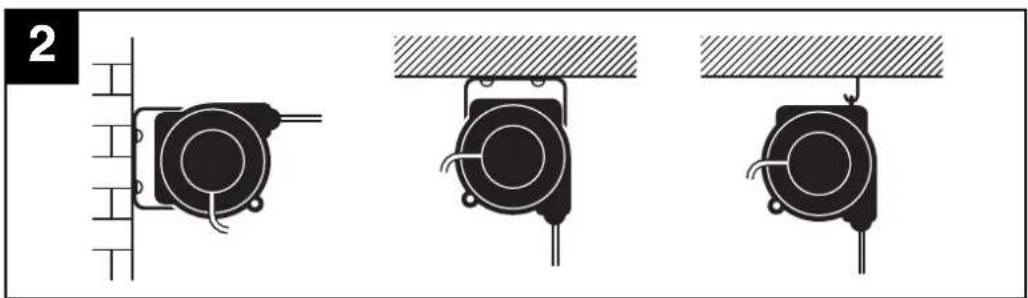

5. Assembly (Fig. 2)

The hose reel can be attached to a wall or ceiling using either the suspension eye (5) or the angle mount (4).

6. Starting up

6.1 Connections

●Hose (1) to the connection on the compressor
●Hose (2) to the connection on the compressed air tool

6.2 Rolling out

Pull out the hose (2) to the desired length from the hose reel (3). The lock on the length of hose is automatically activated if you let go of the hose (2) and a grating sound is heard.

6.3 Rolling up

The lock can be released by a short pull on the hose (2). Then feed the hose (2) evenly back into the hose reel.

Important! The lock produces a grating sound when the hose is being unrolled or rolled up.

UK

7. Cleaning, maintenance and ordering of spare parts

7.1 Cleaning

• Keep the housing and the hose as free of dust and dirt as possible. Wipe the equipment with a clean cloth or blow it with compressed air at low pressure.
  ●We recommend that the hose is cleaned before it is fed back into the hose reel.
  ●Clean the equipment regularly with a moist cloth and some soft soap. Do not use cleaning agents or solvents; these could attack the plastic parts of the equipment. Ensure that no water can seep into the device.

7.2 Maintenance

There are no parts inside the equipment which require additional maintenance.

7.3 Ordering replacement parts:

Please quote the following data when ordering replacement parts:

●Type of machine
●Article number of the machine
●Identification number of the machine
●Replacement part number of the part required
For our latest prices and information please go to www.isc-gmbh.info

8. Disposal and recycling

The unit is supplied in packaging to prevent its being damaged in transit. This packaging is raw material and can therefore be reused or can be returned to the raw material system.

The unit and its accessories are made of various types of material, such as metal and plastic. Defective components must be disposed of as special waste. Ask your dealer or your local council.
