USER MANUAL SKS 332 W Scandomestic

Pure electrical circuit lines without any symbols

Recycling symbol with three arrows forming a triangle (no text or numbers)

Pure electrical circuit lines without any symbols

Warning symbol of a flame inside a triangle (no text or numbers)

Simple line drawing of a knob with bidirectional arrow indicating rotation (no text or symbols)

W H E F D F B C A

Technical line drawing of two door frame structures with door labels and door brackets (no text or symbols)

Technical line drawing of a mechanical assembly with labeled 'unscrew' component (no other text or symbols)

unscrew screw

Screw

Abstract diagram of a document with arrows indicating rotation or movement (no text or symbols)

Fjern de 2 dæksler.

Technical line drawing of a refrigerator interior showing front and side views (no text or symbols)

Simple diagram of a container with two upward arrows indicating flow or movement (no text or symbols)

Line drawing of a hand holding a rectangular object on a shelf (no text or symbols)

Silhouette of a person wearing a headset and using a laptop with a signal icon (no text or symbols)

• Read this user manual before using the product for the first time. It will help you use and maintain it properly and extend its life.
• Save the user manual for later use if this should become necessary and ensure that the instructions are followed if the product changes hands.

This user manual contains safety instructions, operating instructions, installation instructions and troubleshooting tips, etc.

Before calling for service:

- Review the troubleshooting tips section. This will help you solve some of the most common problems yourself. If you cannot solve the problems yourself, call for help from professional technicians.

When you call:

Must you state the full reference of the device (model, type, serial number). This information is on the rating plate attached to the appliance. It can be placed both inside the product and on the back. You must state where and which retailer the product was purchased from, as well as the date of purchase.

Unauthorized calling of technical service:

Before service is called, the possible errors are checked, it is possible to rectify them yourself. If the demand for rectification is unjustified, it is the customer's responsibility to pay the costs associated with calling for service.

Right of complaint for household use:

The complaint deadline covers only brand new products purchased in Denmark. The complaint period is valid according to the legislation from the date of purchase, when a receipt, bill or equivalent is presented, from which the date of purchase appears. The right to complain only covers defects in material or workmanship. Functional failure of the products due to installation conditions is not covered by the right of complaint. The right of complaint does not restrict the buyer's rights according to the legislation.

The right to complain does not include:

• Incorrect operation, abuse, careless treatment, insufficient maintenance, incorrect installation, installation and connection, voltage variations or electrical disturbances or when repairs are carried out by other than Scandomestic A/S authorized technicians.
• Faults or damage resulting from commercial or other use of products intended for private households.
• Compensation for any consequential damage, including damage to other objects, loss of operation, etc., unless otherwise determined by law.

Transport damage:

Transport damage that is detected at the time of the dealer's delivery to the customer is primarily a matter between the customer and the dealer. In cases where the customer himself has been responsible for the transport of the product, the supplier assumes no obligations in connection with any transport damage. Possibly. Transport damage must be reported immediately and no later than 24 hours after the item has been delivered. Otherwise, the customer's claim may be rejected.

Important!

Please be aware that, as a result of constant development and updating of the product, the manufacturer may make changes without prior notice.

This is an original manual

Safety instructions

Your safety and that of others is very important.

Please read this user manual carefully before using the product for your own safety and that of others. To avoid unnecessary mistakes and accidents, it is important to ensure that everyone who uses the product is familiar with its operation and safety features. Keep the user guide and ensure that it remains with the product if it is moved or sold so that all who use the product throughout its life are properly informed about the product's use and safety.

For safety reasons, the safety rules in this user manual must be observed, as the manufacturer is not responsible for damage caused by omission. All safety messages will be followed by a safety word which may be “DANGER”, “WARNING” or “CAUTION.”

These words mean:

DANGER

An imminently dangerous situation. Serious injury or death may result if instructions are not followed immediately.

WARNING

A potentially hazardous situation which, if not avoided, could result in serious injury or death.

CAUTIOUS

A potentially hazardous situation that could result in moderate or minor injuries if the situation is not eliminated.

All safety messages tell what the potential hazard is, how to reduce the risk of injury and what can happen if the instructions are not followed.

Safety of children and vulnerable people

• This product can be used by children aged 8 years and above. Persons with reduced physical, sensory or mental capabilities and lack of experience and knowledge can use the product if they have been given supervision or instruction in using the product in a safe way and understand the potential hazards.
• Children must be supervised to ensure that they do not play with the product.
• Cleaning and maintenance must not be carried out by children under the age of 8 and only under supervision.
• Keep all packaging far away from children. There is a risk of suffocation.
• If you dispose of the product, pull the power plug out of the socket. Cut the connection cable (as close to the product as possible) and remove the door to prevent children from getting electric shocks or being trapped inside.
• If this product is to replace an older product with a spring latch (latch) on the door or lid, be sure to render the spring latch unusable before disposing of the old product. This prevents the product from becoming a potential death trap for a child.

General safety

WARNING! Keep ventilation openings in the product cabinet or in the built-in structure clear of obstructions.

WARNING! Do not use mechanical devices or other means to speed up the defrosting process.

WARNING! Always follow the manufacturer's instructions fo the defrosting process.

WARNING! Do not use pointed or sharp objects to remove frost and ice from the freezer.

WARNING

WARNING! Do not damage the refrigerant circuit.

WARNING! Do not use other electrical appliances (eg ice makers) inside the product unless approved by the manufacturer.

WARNING! Do not touch the bulb if it has been on for a long time, as it may be very hot.

WARNING! When placing the product, ensure that the supply cord is not pinched or damaged.

WARNING! Portable multi-sockets can overheat during use and cause a fire. Therefore, never place portable multi-sockets behind the product.

WARNING! Do not store explosive substances, e.g. Aerosol cans with flammable propellant in this product.

WARNING! The product contains the refrigerant isobutane (R600a). It is a natural gas that neither damages the ozone layer nor increases the greenhouse effect. It is flammable and can ignite if leaked.

• Ensure that none of the components of the refrigerant circuit are damaged during transport and installation of the product.
• Avoid open flames and sources of ignition. Thoroughly ventilate the room where the product is located.
• It is dangerous to modify this product in any way. Any damage to the cord may cause a short circuit, fire and/or electric shock.

• This product is intended to be used in household and similar applications such as:

• staff kitchens in shops, offices and other work environments.

• farms and by customers in hotels, motels and other residential environments.
• bed and breakfast.

• catering.

• All electrical components (plug, power cord, compressor, etc.) must only be replaced by an authorized service agent or qualified service personnel.

• The bulb supplied with products with light is a "special bulb" that can only be used with the supplied product and cannot be used for other household lighting.
• The power cord must not be extended.
• Make sure the power plug is not pinched or damaged on the back of the product. A pinched or damaged plug can overheat and cause a fire.
• Make sure you can get to the product's power plug.
• Do not pull on the power cord.
• If the power plug is loose, do not insert the plug. There is a risk of electric shock or fire.
• You must not operate the produkt in a dark room.
• This product is heavy. Therefore, care must be taken when moving and installing it.
• Do not remove or touch items from the freezer if your hands are damp/wet as this may cause frostbite/freeze damage.
• Avoid exposing the product to direct sunlight.

Daily use

• Do not place hot food or hot objects in the product.
• Do not place food directly against the rear wall.
• Frozen foods must not be refrozen once they have been thawed.
• Store prepackaged frozen food in accordance with the instructions on its packaging.
• The product's storage recommendations must be strictly observed. See relevant instructions on the packaging.
• Do not place carbonated beverages in the freezer, as the carbonation creates pressure on the container, which car cause it to explode and cause damage to the product.
• Popsicles can cause frostbite if eaten directly from the freezer.
• Observe the following instructions to avoid food waste and poor shelf life:
• Opening the door for long periods can cause a significant increase in the temperature in the product's compartment.
• Regularly clean all surfaces that may come into contact with food.
• Clean water tanks (if applicable) if they have not been used for 48 hours. Flush the water system connected to a water supply if no water has been suctioned for 5 days.
• Store raw meat and fish in suitable containers in the refrigerator so that it does not come into contact with or drip onto other foods.
• Two-star freezer compartment (if available in the product) is suitable for storing pre-frozen foods, storing or making ice cream and making ice cubes.
• One-, two- and three-star compartments (if present in the

product) are not suitable for freezing fresh food.

- If the product is left empty for long periods, switch off the product, defrost, clean and leave the door open to prevent bacteria and fungus from developing inside the product.

Care and cleaning

• Before maintenance, the product must be switched off and the power plug removed from the socket.
• Do not clean the product with metal objects.
• Do not use sharp objects to remove frost from the product. Use a plastic scraper.
• Regularly check the drain in the refrigerator for thawed water. If necessary, clean the drain.
• If the drain is blocked, water will accumulate at the bottom of the product, which may run the risk of spilling onto the floor.

Installation

Important! Follow the instructions in the specific electrical connection section carefully.

• Unpack the product and check for damage. Do not connect the product if it is damaged. Immediately report any damage to the place of purchase. In that case, you must keep the packaging.
• It is recommended to wait at least 4 hours before connecting the product so that the oil can flow back into the compressor.
• There should be sufficient air circulation around the product to avoid overheating. To achieve adequate ventilation,

follow the instructions relevant to the installation of the product.

• The product must not be placed close to heat sources such as radiators, stoves or stoves.
• Make sure the power plug is accessible after installing the product.

Service

• All electrical work or service should be carried out by a qualified electrician or competent person.
• This product must be serviced by an authorized service center and only original spare parts must be used.

Energy saving

• Do not place hot food in the product.
• Do not pack food too close to each other as this prevents proper air circulation.
• Ensure that food does not touch the back of the compartment.
• If the power goes out, do not open the door(s).
• Do not open the door(s) too often, as this may lower the temperature inside the product.
• Do not keep the door(s) open for too long;
• Do not set the thermostat to exceed the recommended temperatures.

This manual is machine translated

Correct disposal of this product

Pure electrical circuit lines without any symbols

The symbol on the product or on its packaging indicates that this product must not be treated as household waste. Instead, it must be handed over to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring that this product is disposed of correctly, you are helping to prevent potential negative consequences for the environment and human health. For more detailed information on recycling this product, please contact your local authority, your household waste center or the store where you

purchased the product.

Warnings for disposal

Refrigerant and insulating materials are flammable. When the product is scrapped, it must therefore be kept away from any source of fire. When the refrigerator is to be scrapped, the doors are separated and the gasket of the door and shelves are removed. Place the doors and shelves in a proper place away from the product to prevent a child from being trapped.

Environmental protection

This product does not contain ozone-depleting gases in its refrigerant circuit or insulation materials. The product must not be disposed of together as household waste. The insulating foam contains flammable gases: the product must be disposed of according to the product's regulations. Avoid damaging the cooling unit, especially the heat exchanger.

Packaging materials

Recycling symbol with three arrows forming a triangle (no text or numbers)

Materials with this symbol are made from environmentally friendly materials that can be recycled. By disposing of the packaging correctly in accordance with applicable regulations, you help to protect the environment.

WARNING!

The packaging can be dangerous for children!

Plastic parts are marked with the international standard abbreviations:

PE - polyethylene, e.g. the wrapping film

PS - polystyrene, e.g. the upholstery material

POM - polyoxymethylene, e.g. plastic clip

PP - polypropylene, e.g. the salt funnel

ABS - acrylonitrile-butadiene-styrene, e.g. control panel.

Electrical and electronic equipment (EEE) contains materials, components and substances that can be dangerous and harmful to human health and the environment when waste electrical and electronic equipment (WEEE) is not disposed of properly.

Pure electrical circuit lines without any symbols

Products marked with this symbol are electrical and electronic equipment. The crossed-out dustbin symbolizes that waste from electrical and electronic equipment must not be disposed of together with unsorted household waste but must be collected separately.

To this end, all municipalities have established collection schemes where waste electrical and electronic equipment can be handed in free of charge by citizens at

recycling stations or other collection points or collected directly from households. Further information must be obtained from the municipality's technical administration.

WARNING!

Warning symbol of a flame inside a triangle (no text or numbers)

During use, service and disposal of the product, pay attention to the symbols on the left side, which are usually located on the back of the product (back panel or compressor) and are yellow or orange in color. It is the warning symbol for fire hazard. There are flammable materials in the refrigerant piping and compressor.

Please keep far away from fire sources during use, service and disposal.

Transport instructions

The product may only be transported upright. The delivered packaging must be intact during transport.

If the product has been transported lying down during transport, it must not be operated for the following 4 hours to allow the system to settle after the product has been returned to the correct position.

Failure to follow the above instructions may result in damage to the product. The manufacturer cannot be held responsible if these instructions are ignored. The product must be protected against rain, moisture and other atmospheric influences.

IMPORTANT: Care must be taken when cleaning / lifting the product to avoid touching the capacitor's metal wires at the back of the product as you may injure your fingers and hands or damage you product.

IMPORTANT: This appliance is not intended to be stacked with other appliances. Do not attempt to sit or stand on top of your device as it is not intended for such use. You may be injured or damage the product.

IMPORTANT: Make sure that the power cable is not stuck under the product during and after transporting / moving the product to avoid the power cable being cut, broken or damaged.

When placing your appliance, be careful not to damage your floor, pipes, wall coverings, etc. Do not move the product by pulling the lid or handle. Do not allow children to play with the product or tamper with the settings. Our company declines any responsibility if the instructions are not followed.

Before use

Before using the product, you must do the following:

• Remove all packaging from the product and dispose of it in accordance with applicable regulations.
• If the side walls and doors are covered with protective film, this must also be removed.
• Thoroughly examine the product for any transport damage after unpacking. In the event of complaints, you must contact the retailer where you purchased the product.
• Clean the inside of the product and accompanying accessories (see section on Cleaning).

Location

Setup

The product must be placed in a dry and well-ventilated room, far away from heat sources such as radiators, ovens and direct sunlight. If this is not possible, we recommend that you use an insulation board and keep a minimum distance to the heat source of:

• Stoves and ovens, 3 cm.
• Wood-burning stoves, 30 cm.

The product must stand stable and level. The floor under the product must not be able to give way. If this is the case, the floor must be reinforced.

Ventilation

During operation, the cabinet emits heat to the surroundings. The hot air must be able to circulate, otherwise the compressor will have to work more, which will result in increased power consumption.

You must never cover the ventilation openings.

See under section "Installation" for more information on space requirements for the product.

Room temperature and climate class

The product is intended to stand in a certain climate class. Set it up in a place where the room temperature corresponds to the product's climate class, which is indicated on the type plate:

SN (Extended Temperate):

This refrigerator/freezer is intended for use at an ambient temperature between 10^ C and 32^ C.

N (Tempered):

This refrigerator/freezer is intended for use at an ambient temperature between 16^ C and 32^ C.

ST (Subtropical):

This refrigerator/freezer is intended for use at an ambient temperature between 16^ C and 38^ C.

T (Tropical):

This refrigerator/freezer is intended for use at an ambient temperature between 16°C and 43°C.

Note! The product is fully functional within the temperature range from the stated climate class. During operation in a temperature range other than the specified climate class, the product may not be able to maintain the desired temperatures or be fully functional.

Leveling the product

Simple line drawing of a knob with bidirectional arrows indicating rotation (no text or symbols)

The product must stand stable and level. Leveling is important for the product to close and seal the doors properly. If you experience problems with the product not working properly, it may be because it is simply standing unevenly.

Accurate leveling is ensured by adjusting the leveling feet at the bottom of the product. Something can also advantageously be put in underneath to compensate for unevenness.

Connect the product

After installation, you should wait at least 4 hours before switching on the product and putting it into use. This is because during transport it may happen that some of the oil from the compressor flows into the cooling system.

The product should be thoroughly cleaned inside before it is used for the first time (read more under section on Cleaning).

Before connecting, check that the voltage and frequency indicated on the rating plate correspond to your home power supply. The product must be grounded. The power supply cable is equipped with a plug for this purpose. If the household outlet is not earthed, the product must be connected to separate earth connection in accordance with current regulations and a qualified electrician must be contacted.

The manufacturer disclaims any responsibility if the above safety measures are not observed.

This product complies with the E.E.C. Directives.

Save energy

Here are some good tips on how you can save energy:

• Make sure the food is cold before placing it in the refrigerator or freezer compartment.
• Frozen goods can be advantageously placed in the refrigeration department for thawing. Thereby, the cold from the frozen food is utilized.
• Make sure to place the product in a dry and ventilated room. It must not be left in direct sunlight or near heat sources.
• Frost increases energy consumption and the freezer compartment should therefore be defrosted regularly. A rule of thumb is that when there is 10 mm. frost, the freezer should be defrosted.
• Do not open the door of the freezer or refrigerator compartment more than absolutely necessary.

Changing the lamp

The LED lamp is used by the refrigerator for lighting, which features low energy consumption and long service life. In case of any abnormality, please contact the after-sales personnel for visiting service. The lamps can only be replaced by the manufacturer.

Lighting (LED)
	Lamp type: 1 Horizontal LEDEnergy Efficiency Class (Light): GThe light source in this product can only be replaced by a professional.

Cleaning the product

Below is a general description of how to clean your product.

Before using the product for the first time, the interior and all interior accessories must be thoroughly washed.

For hygienic reasons, the interior of the product, including internal accessories, should be cleaned regularly.

Course of action

• Switch off the product/pull out the power plug.
  • Take all frozen and food items out of the product and put them in a cool place.
• For the freezer compartment, wait until the frost layer has thawed.
• Use a soft cloth and lukewarm water with a little ph-neutral washing-up liquid to clean the product.
  • Dry the product thoroughly.
• All door seals and the like must be washed with clean water and then dried thoroughly.
  • After cleaning: connect the product and switch it on.
• Put frost and food back in place.

Important!

• Do not use abrasive cleaners such as sand, chloride or acidic cleaners and solvents.
• Do not use steel or scouring sponges as this can scratch the surfaces in the cabinet.
• Shelves and drawers must not be washed in the dishwasher as they may be deformed.

Warning! the product must not be connected to the mains during cleaning.

Danger of electric shock! Before cleaning, the product must be switched off or the plug removed from the socket. Never clean the product with a steam cleaner.

Danger of electric shock! Moisture can accumulate in electrical components. Hot vapors can lead to damage to plastic parts. The product must be dry before it is used again.

Drain hole cleaning

To avoid defrosting water overflowing into the product, you must regularly clean the drain hole in the refrigerator. Use a cloth and mild detergent to clean the hole.

Smell

If you experience an unpleasant odor from your product, you can do the following:

• Switch off the product/pull out the power plug.
  • Empty the product of food.
• Wipe all packaging with a cloth.
• Food that has a strong odor is wrapped in airtight packaging to prevent odor development.
• Switch the product back on and place the food back in the cabinet.
• Keep an eye on whether a new smell develops in the cupboard afterwards.

Defrosting of the product

Below is a general description of how to defrost your product.

Refrigerated products

Over time, frost can form on the back wall of the refrigerator. This is completely normal and is formed by the water in the air in the refrigerator.

The refrigerator compartment is designed to automatically defrost. The ice on the back wall will melt and run via the defrost water channels and the drain hole into the evaporation tank, where the heat from the compressor will evaporate the water.

Note! Always make sure to keep the defrost water gutters and drain hole clear to ensure normal passage of the thawed water.

Freozen products

Frost will form in the freezer over time. Unless the freezer section has the NoFrost function, it does not defrost automatically. Rhymes are perfectly normal. It is important that the freezer is defrosted, as energy consumption increases the more frost there is. In addition, frost also has a negative impact on the performance of the freezer.

Beware! Sharp objects and knives must not be used to remove frost or ice. This can damage the inside of the products and refrigerant piping.

Course of action:

• Switch off the product/pull out the power plug.
  • Take the food out and put it in a cool place (possibly in a cool bag with cooling elements).
• Remove the shelves, drawers and similar (does not apply to all models).
• Keep the door or lid open and place a bowl or similar so that it can collect the water that flows out of the product.
• When there is no more ice in the product, defrosting is complete and the inside is thoroughly dried.
• Connect the product and switch on the product.
• Let the product run until it reaches the recommended temperature.
• Put the food back.

In case of prolonged non-use

If the product is not to be used for an extended period of time, you must:

• Switch off the product/pull out the power plug.
  • Take the food out.
• Clean the product (See section on Cleaning).
• Leave the door open to avoid bad odors developing.

Instructions for storage in the refrigerator

The optimum temperature in the refrigeration department is 4^ C. If the temperature in the refrigeration department is too hot, the food runs the risk of spoiling too quickly. If the temperature is too cold, the food risks freezing or drying out. The refrigeration department is intended for short-term storage

Due to air circulation in the refrigeration department, there is a slight difference in temperature for each area of the refrigeration department. Therefore, different types of food should be strategically placed according to best shelf life and to minimize food waste.

We recommend the following:

Door shelves

The refrigerator door is the warmest place. It is therefore best to store food that does not need a lot of cold.

Food such as dressing, ketchup, soda and sauces can be placed here.

Top shelf in the fridge

Beverages and preserves such as jam, sun-dried tomatoes and mustard are placed here.

The top shelf is the warmest shelf. Therefore, it is best to place preserves such as marmalade and other vinegar products such as beetroot, Asian and cucumber.

Middle shelf in the fridge

The middle shelf is ideal for leftovers and cold cuts. In addition, it is also the best place in the fridge to place dairy products such as milk, cheese and butter. Milk must be stored at a maximum of 5^ C. The milk can also be advantageously placed on the bottom shelf.

Bottom shelf in the fridge

The bottom shelf is the coldest place in the refrigerator. It is therefore the best place to put perishable food. Advantageously place meat, fish and poultry, which must be stored at a maximum of 5^ C.

The vegetable drawer

The vegetable drawer is the perfect place to store fruit and vegetables because it is not too cold and the humidity is higher here than in the rest of the fridge.

We recommend keeping fruit and vegetables separate. This is because there are some fruits that contain substances that can promote the ripening process of the surrounding vegetables.

Outside the fridge

There is some food that does not need to be refrigerated at all or that is negatively affected by the cold. These are, for example, tomatoes, avocados, bananas and garlic/onions.

Tips and advice for storing fresh produce in the cold storage

For good food hygiene and best shelf life, it is recommended to follow these tips:

• Do not place hot food or hot liquids in the refrigerator. Allow the food to cool before placing it in the cupboard.
• Food should be packed in storage boxes or covered with plastic film. This is to preserve the aroma, color and freshness of the food.
• Fruit and vegetables must be thoroughly cleaned and placed in the vegetable drawer, where the humidity helps to extend shelf life.
• Avoid food coming into contact with the back wall of the cabinet, as this can affect air circulation and food risks freezing to the back wall.

Functions

The product can be equipped with the following functions. However, there is a difference as to whether it is a refrigerator, freezer or combi cabinet.

Super freeze function

The Superfreeze function is useful if you need to freeze a large amount of food at once or if the product has been switched off for a long time.

The temperature becomes significantly colder and the food is frozen so quickly that vitamins, nutritional values, appearance and taste are preserved.

Note! When superfreeze is activated, the compressor works constantly and the operating noise can therefore be somewhat louder than normal.

Vacation mode feature

If you are going on holiday or do not intend to use the product for a long time, you can set the product to an energy-saving holiday mode.

Important! When holiday mode is switched on, no food may be stored in the refrigerator compartment.

Door alarm

The product is equipped with a door alarm that goes off if the door to the product is left open for a long time.

Resume feature

In the event of a power failure, the product will resume the previously set state before the power failure when the power is restored.

Minus 15°C function

The product is approved for storage in a dry environment with an ambient temperature of -15^ . This is because the product is equipped with a compressor that generates heat and therefore ensures that the oil does not harden/clump at cold temperatures.

Although the product can stand down to -15^ , energy consumption will be different from what is given. When the product is set at a different temperature than that prescribed by the climate class, the energy consumption is no longer in accordance with what is given on the energy label.

The product's climate class has no influence on compressors technically developing heat. It is just one of the product's extra features that it can stand down to an ambient temperature of -15^ .

Furthermore, there is no climate class that covers down to -15^ C.

Normal accessories

The product can be equipped with the following accessories

Bottle shelf

The bottle shelf is intended for horizontal storage of bottles to save space. It is ideal for storing wine bottles, cans and juice.

The shelves in the product can be adjusted in height. Hold one end of the shelf and lift it up as you pull it out.

Shatterproof glass shelves

This product comes with adjustable, shatterproof glass shelves. To adjust, pull out the shelf and then

lift the front part and pull out the shelf.

Vegetable drawer

The vegetable drawer is ideal for storing fruit and vegetables. Pull out the drawer to place fruit and vegetables in the drawer.

Vegetable drawer with humidity regulator

The vegetable drawer is ideal for storing fruit and vegetables. To create the optimal storage climate, the vegetable drawer is equipped with a humidity regulator.

The humidity is adjusted by pushing the regulator either to the right or to the left

• For large quantities of fruit and vegetables, set the humidity to low.
• For small amounts of fruit and vegetables, set the humidity to high.

Ice cube tray

1 Fill the tray with drinking water and place it in the freezer.
2 To loosen the ice cubes, the ice cube tray can be briefly submerged under running water. Alternatively, the tray can also be turned slightly.

Freezer element

The product can be equipped with a freezing element that can be removed and used for cooling in a cooling bag.

In the event of a power failure or fault, the freezing element prevents heating of the frozen goods for a short period.

Installation

Ventilation condition

The position you select for the refrigerator installation should be well-ventilated and has less hot air. Do not locate the refrigerator near a heat source such as cooker, and avoid it from direct sunlight, thus guaranteeing the refrigeration effect while saving energy consumption. Do not locate the refrigerator in the damp place, so as to prevent the refrigerator from rusting and leaking electricity. The result of the total space of the room in which the refrigerator is installed being divided by the refrigerant charge amount of the refrigerator shall not be less than 8 g/ M3.

Note: The amount of refrigerant charged for the refrigerator can be found on the nameplate.

Heat dissipation space

When working, the refrigerator gives off heat to surroundings. Therefore, at least 30mm of free space should be spared at the top side.

Level ground

Place the refrigerator on the solid and flat ground (floor) to keep it stable, or else, it will give rise to vibration and noise. When the refrigerator is placed on such flooring materials as carpet, straw mat, polyvinyl chloride, the solid backing plates should be applied underneath the refrigerator, so as to prevent color change due to heat dissipation.

W H E F D F B C A

Note: the above figure is only to illustrate the space demand of the product.
Other dimension, look at below table.

Dimensions in mm:

W	D	H	A	B	C(°)	E	F
600	587	1725	1024	1200	135	5	50

Description of the product

A B C D E F

A Thermostat and Light

B Glass shelves

C Crisper

D Leveling feet

E Bottom balcony

F Upper balconies

Due to technological innovations, the product descriptions in this manual may not be completely consistent with your product. Detailed information is in accordance with the final product.

Controlpanel functions

Selecting the temperature

Plug on your appliance. The internal temperature is controlled by a thermostat.

There are 6 settings:

1 is warmest

5 is coldest

O is off.

The appliance may not operate at the correct temperature if it is in a particularly hot or if you open the door often.

This refrigerating appliance is not suitable for freezing foodstuffs.

SummerSet on 3~4	NormalSet on 3~4	WinterSet on 2~3

Information above give users recommendation of temperature setting.

Impact on Food Storage

• Under recommended setting, the best storage time of fridge is no more than 3 days.
• The best storage time may reduce under other settings.

Position different food in different compartments according to be below table

Refrigerator compartments	Type of food
Door or balconies of fridge compartment	Foods with natural preservatives, such as jams,juices, drinks, condiments.Do not store perishable foods.
Crisper drawer (salad drawer)	Fruits, herbs and vegetables should be placed separately in the crisper bin.Do not store bananas, onions, potatoes, garlic in
Fridge shelf – middle	Dairy products, eggs
Fridge shelf – top	Foods that do not need cooking, such as ready-to-eat foods, deli meats, leftovers.

Reversing the door swing

Tool required: Philips screwdriver, Flat bladed screwdriver, Hexagonal spanner.

Ensure the unit is unplugged and empty.

To take the door off, it is necessary to tilt the unit backwards. You should rest the unit on something solid so that it will not slip during the door reversing process.

All parts removed must be saved to do the reinstallation of the door. Do not lay the unit flat as this may damage the coolant system.

Technical line drawing of two door frame structures with door brackets and door handles (no text or symbols)

unscrew

unscrew screw

screw

Abstract diagram of a document frame with directional arrows indicating rotation or movement (no text or symbols)

Remove the 2 covers.

Remove the 2 screws, then remove the upper hinge that holds the door in place. Lift the door and place it on a padded surface to prevent it from scratching.

Remove the screws and bottom hinge. Then remove the adjustable feet from both side.

Remove the screws and bottom hinge. Then remove the adjustable feet from both side.

Unscrew and remove the bottom hinge pin, turn the bracket over and replace it.

Refit the bracket fitting the bottom hinge pin. Replace both adjustable feet.

Detach the Fridge and the Freezer door gaskets and then attach them after rotating.

Line drawing of a refrigerator interior showing door, front panel, and side panels (no text or symbols)

Place the door back on. Ensure the door is aligned horizontally and vertically so that the seals are closed on all sides before finally tightening the top hinge.

Line drawing of a cabinet or rack structure with no visible text, numbers, or symbols

Screw the 2 screws on the back.

With the door closed, check that the door is aligned horizontally and vertically and that the seals are closed on all sides before finally tightening the bottom hinge. Re-adjust the levelling feet as needed.

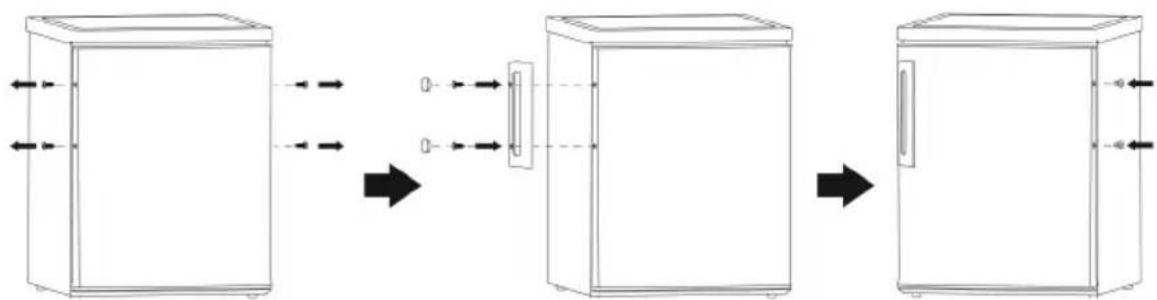

Install the door handle

Positioning the door balconies

Simple line drawing of a container with two upward arrows indicating flow or movement (no text or symbols)

To permit storage of food packages of various sizes, the door balconies can be placed at different heights. To make these adjustments proceed as follows: gradually pull the balcony in the direction of the arrows until it comes from then reposition as required.

Accessories Movable shelves

Hand holding a rectangular object on a shelf, no text or symbols visible

The walls of the refrigerator are equipped with a series of runners so that the shelves can be positioned as desired.

Normal running sounds

All products have different "operating sounds," which can sometimes seem annoying but which are completely normal functional sounds.

These are normal sounds:

Light humming

This sound originates from the engine and can occasionally become louder when the engine has just started.

Gargling/rippling sound or slight hum

Originates from the coolant circulating through the pipes.

Clicks

Small clicks can always be heard when electronic cards start or stop the engine.

Light background noise

If the product has a fan (depending on the model), the air circulating inside the product may create a slight background noise.

Avoid noise

If you find that the sounds are louder than usual, this can be due to several reasons. You can handle most of them yourself without a visit from a service technician.

The product is not stable

If the product is tilted, it can affect the circulation of refrigerant. Adjust on the leveling feet or place something underneath.

The door does not close tightly

If the door of the product does not close tightly, the compressor has to work harder to keep the temperature down. Make sure to close the door properly or get a service technician to replace the sealing strip.

The product is too close to a wall

The compressor emits small vibrations. If the product is too close to the wall, the sound of these will increase. Fix it by moving the product further away from the wall.

Trouble shooting

If you have problems with your product, you may be able to remedy it yourself using the table below.

Warning! Before troubleshooting, disconnect the power supply. Only a qualified service technician may carry out troubleshooting that is not covered in this manual.

The product does not work

The power plug is not plugged in or is loose. The fuse has blown or is defective. The socket is faulty. Unplug and plug it back in.

Check the fuse and replace if necessary. if defective. Mains faults must be rectified by an electrician. Please refer to the section on temperature setting.

Strange smell

Is there rotten food in the cupboard? Do you need to clean the product? Is food with a strong taste stored?.

Throw away rotten food. Clean the product. Wrap food with strong flavor.

The product does not cool enough

Do you place hot food in the product? Do you often open the door? Is the product in direct sunlight or near a heat source? Is there good ventilation?

Is the temperature setting too high? Allow the food to cool before placing it in the product. Checking and closing the door. Place the product away from heat sources.

Ensure good ventilation around the cabinet. Set the temperature according to the ambient temperature.

The door does not close properly

The shelves do not fit properly. Items are in the way/too many items in the product. The product is not leveled. Place the shelves properly. Reposition the items. Adjust on the leveling feet.

Water on the floor

The drain hole is blocked. Clean drain hole.

Small drops of water or frost form on the back wall of the product

This is completely normal, because it is a particularly cold and humid place in the product, when water droplets and frost condense during the product's normal operation.

It is difficult to open the door

It is normal for the door to be a little difficult to open, especially if it has just been closed: a small negative pressure is created to ensure that the door is completely closed. Wait a few minutes before opening it again.

Any repair of the product must be carried out:

Either by your dealer, or by a qualified professional who is recognized for this brand.

Note: If the above descriptions cannot be used for troubleshooting, do not disassemble and repair it yourself. Repairs carried out by inexperienced persons may cause damage or serious malfunctions. Contact the local store where your purchase was made. This product must be serviced by an authorized engineer and only original spare parts should be used.

When the appliance is not in use for long periods, disconnect the power supply, empty all food and clean the appliance and leave the door open to prevent unpleasant smells.

Informations when contacting service

Silhouette of a customer wearing a headset and using a laptop with a signal icon (no text or symbols)

You are welcome to contact our service department if there are any questions about our products that you cannot resolve yourself or if the product needs to be repaired.

Often problems can be remedied by using the section on "Troubleshooting and Solutions." Contact our service department if this is not the case. Here we make sure to find the best solution and try to avoid unnecessary service visits.

Due to safety reasons, only trained specialist personnel may carry out repairs on the product. The right to complain about the product expires if repairs or changes are made by persons to whom we have not given authorization or if non-original spare parts are used.

We offer the purchase of original spare parts in accordance with the relevant regulation on environmentally friendly design. See the appendix for the minimum period during which spare parts are available to repair the product.

Information about the complaint period and conditions can be found on our website, at our service department or your dealer.

Contact information can be found on our website www.Scandomestic.dk or at the back of this manual.

We recommend that you have the product's model number and serial number ready if you contact our service department.

Both parts can be found on the product's type plate, which is found inside the product or on the back of the product. On some products, it may be necessary to remove the vegetable drawer or similar.

Write down the information before contacting service.

Technical data

Keep the energy label together with the user manual and other documents for later use.

Further technical information about climate class, refrigerant and volume can be found on the type plate.

More information about your product can be found at www.scandomestic.dk or by scanning the QR code below. By scanning the QR code with your smartphone, you will get to a link in EPREL - European product register for energy labels. Here you will find more technical data about the product.

EU declaration of conformity

Name and address of the manufacturer or his authorised representative:

Scandomestic A/S

Linåvej 20

8600 Silkeborg

Denmark

This declaration of conformity is issued under the sole responsibility of the manufacturer (or installer):

Scandomestic A/S

Linåvej 20

8600 Silkeborg

Denmark

References to the relevant harmonised standards used or references to the other technical specifications in relation to which conformity is declared:

EN ISO 17050-1: 2004

Additional Information

The appliance is intended exclusively for households and for storing food

Object of the declaration

(identification of product allowing traceability. It may include a colour image of sufficient clarity to enable the identification of the product)

Model number(unique identification of the product):	SKS 332 W
Type	Freestanding Refrigerator
Brand	Scandomestic
Outside colour	White

The object of the declaration described above is in conformity with the relevant Union harmonisation legislation:

2019/2019, 2009/125/EC, 2019/2016, 2017/1369, 2017/1369, EN62552-1:2020, EN62552-2:2020, EN62552-3:2020, EN60704-1:2010+A11:2012, EN60704-2-14:2013+A11:2015+A1:2019, EN 60335-2-24:2010+A1:2019+A2:2019, EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A14:2019+A2:2019, EN62233:2008, EN 62233:2008, 2014/35/EU, EN 55014-1:2017+A11:2020, EN 55014-2:2015, EN IEC 61000-2-2:2019, EN 61000-3-3:2013+A1:2019, IEC 60335-2-24, IEC 60335-2-24:2010, AMD1:2012, AMD2:2017 with IEC 60335-1:2010, COR1:2010, COR2:2010, AMD1:2013, COR1:2014, AMD2:2016, COR1:2016, IEC 60335-2-24:2010+A1:2012+A2:2017, IEC 60335-1:2010+A1:2013+A2:2016, EN 60335-2-24:2010+A1:2019+A2:2019, EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A14:2019+A22019, BS EN 60335-2-24:2010+A2:2019, BS EN 60335-1:2012+A2:2019, BS EN 62233:2008, 2014/30/EU,

Product information sheet

COMMISSION DELEGATED REGULATION (EU) 2019/2016 with regard to energy labelling of refrigerating appliances

Model identifier:	SKS 332 W
Supplier's name or trademark:	Scandomestic

Type of refrigerating appliance:

Low-noise appliance (Yes/no)	No	Design type: (built-in/freestanding)	Freestanding
Wine storage appliance: (Yes/No)	No	Other refrigerating appliance: (Yes/No)	Yes

General product parameters:

Overall dimensions, height mm	1725	Total volume (dm3 or L)	331
Overall dimensions, width mm	600
Overall dimensions, depth mm	587
EEI	125	Energy efficiency class	F
Airborne Acoustical Noise emission (dB(A) re 1 pW)	40	Airborne acoustical noise emmission class (a)	C
Annual energy consumption	143	Climate class	N/ST
Minimum ambient temperature (°C), for which the refrigerating appliance is suitable	16	Maximum ambient temperature (°C), for which the refrigerating appliance is suitable	38
Winter setting: (Yes/No)	No

Compartment Parameters:

Compartment type	Yes/No	Pantry Compartment Volume	Recommended temperature setting for optimised food storage (°C)	Pantry Freezing Capacity	Defrosting method (automatic/manual)
Pantry
Wine storage	No
Cellar
Fresh food	Yes	331	4		Manual
Chill
0-Star or Ice-Making
1-star
2-star
3-star
4-star
2-star section
Variable temperature compartment

Fast freezing facility (Yes/No)

Fast freezing facility (Yes/No)

No

Light source parameters:

Type of light source	LED
Energy efficiency class (for the light source)	G
Minimum duration of the guarantee offered by the supplier, (month)	6

Information regarding after sales

Access to professional repair, such as websites, addresses, contact information:

Model number: SKS 332 W

Address	Scandomestic A/S	QR-code
Contact number	0045 7242 5571
Homepage	www.scandomestic.dk
Relevant information for ordering spare parts, directly or through other channels provided by the manufacturer, importer or authorised representative;			[e-mail]
The minimum period during which spare parts, necessary for the repair of the appliance, are available; (years)			7
Instruction on how to find the model information in the product database, as defined in Regulation (EU) 2019/2019 by means of a weblink that links to the model information as stored in the product database or a link to the product database and information on how to find the model identifier on the product.)			www.scandomestic.dk

Note: The address or contact phone number of the service site is subject to change without prior notice. Please confirm whether the service station is a directly affiliated one of our company when requiring services.

CE declaration of conformaty

This appliance has been manufactured to the strictest standards and complies with all

applicable legislations, Low Voltage Directive (LVD) and Electromagnetic Compatibility (EMC).

Kära kund

Pure electrical circuit lines without any symbols

Recycling symbol with three arrows forming a triangle (no text or numbers)

Pure electrical circuit lines without any symbols

Warning symbol of a flame inside a triangle (no text or numbers)

SN (Extended Temperate):

Simple line drawing of a knob with bidirectional arrow indicating rotation (no text or symbols)

W H E F D F B C A

Technical line drawing of two door frame structures with door labels and door brackets (no text or symbols)

Technical line drawing of a mechanical assembly with labeled 'unscrew' component (no other text or symbols)

unscrew screw

Screw

Abstract diagram of a document with arrows indicating rotation or movement (no text or symbols)

Line drawing of a refrigerator interior showing door, front panel, and side shelves (no text or symbols)

Line drawing of a refrigerator interior showing door, drawer, and shelf (no text or symbols)

Simple diagram of a container with two upward arrows indicating flow or movement (no text or symbols)

Line drawing of a hand holding a rectangular object over a shelf (no text or symbols)

Icon of a customer service agent wearing a headset, using a laptop with a signal symbol (no text or labels)
