USER MANUAL 40-8747 Cocraft

FOR INTERNAL, EXTERNAL AND DEPTH MEASUREMENTS

DIGITALT SKJUTMÄTT

DIGITALT SKYVELÆRE

DIGITAALINEN TYÖNTÖMITTA

Art.no

40-8747

Ver. 20170111

Original instructions

Bruksanvisning i original

Originalbruksanvisning

Please read the entire instruction manual before using the product and then save it for future reference.

We reserve the right for any errors in text or images and any necessary changes made to technical data.

If you have any questions regarding technical problems please contact our Customer Services.

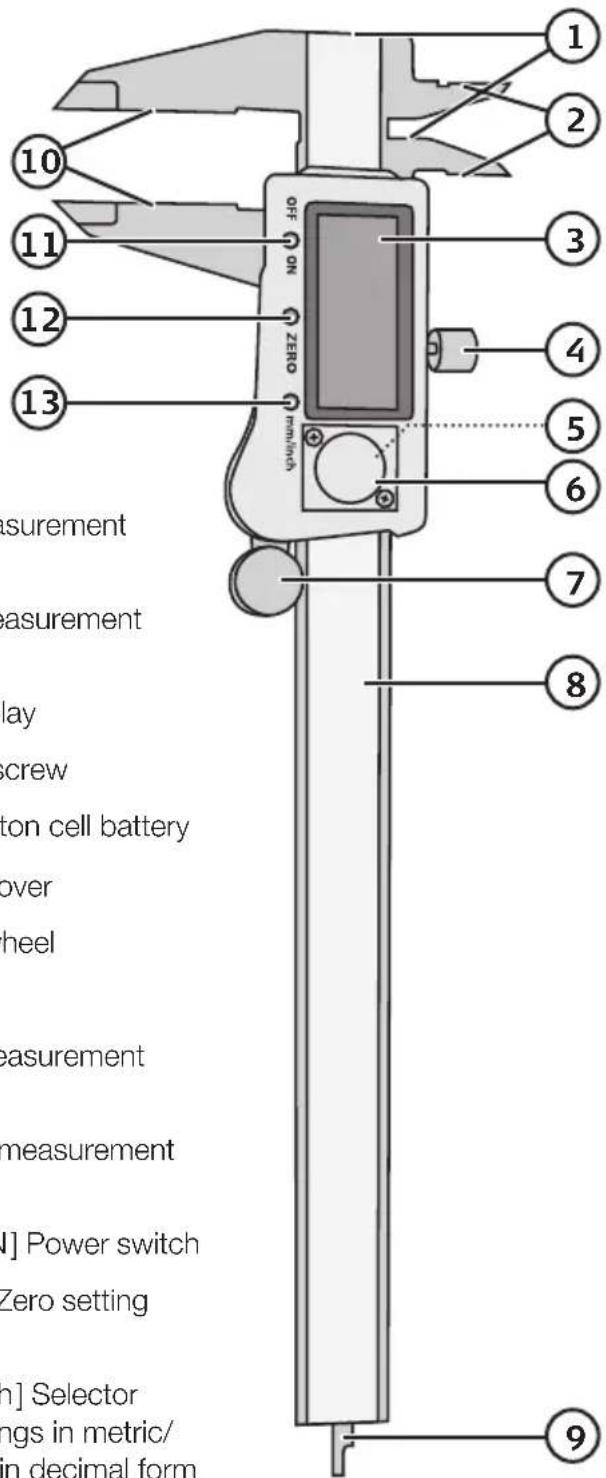

Product description

Use

Preparations

• The slider can only be moved once the locking screw (4) has been undone.
• Clean the measuring scale and all measuring surfaces.
• Make sure that the display and all function buttons are in working order.

Measuring

1. Undo the locking screw (4).
2. Turn the caliper on by pressing [ON/OFF].
3. Press [mm/inch] to select metric or imperial display.
4. Carry out the measurement.
5. Zero the caliper by pressing the [ZERO] button.
6. Press [ON/OFF] to turn the caliper off after a completed measurement. Automatic shut-off after 20–30 minutes.

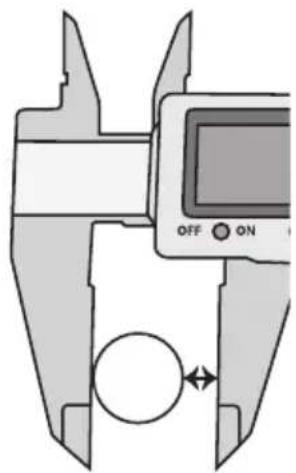

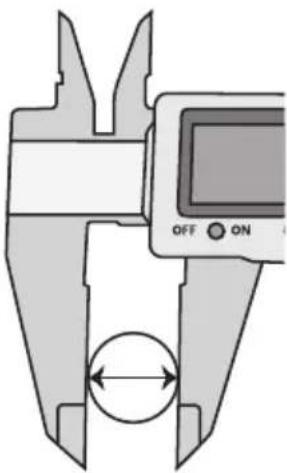

A. Outside measurement

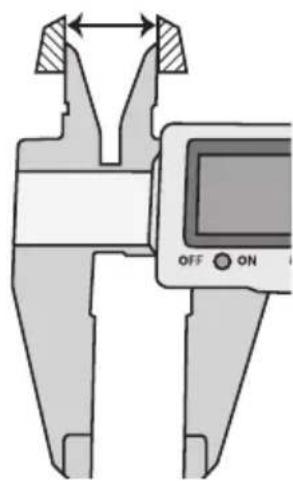

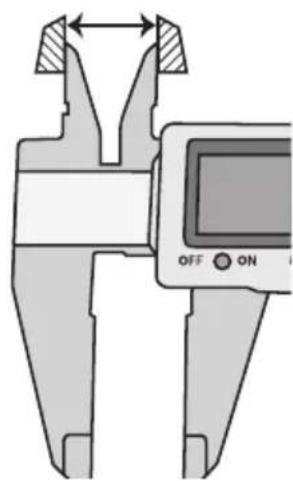

B. Inside measurement

Cross-sectional diagram of a mechanical or electrical component with hatched fill and dimension lines (no text or symbols)

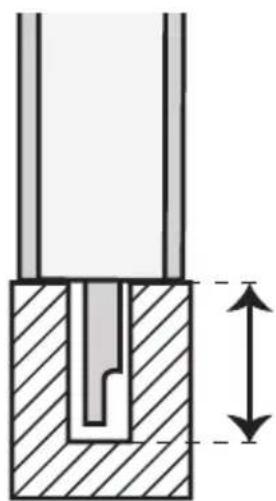

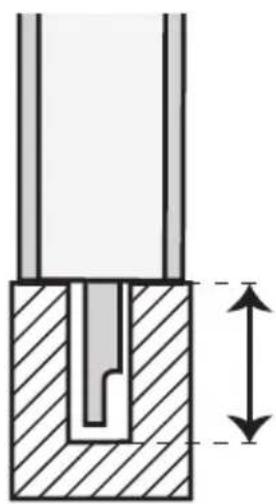

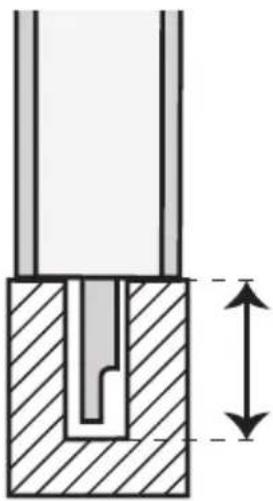

C. Depth/height measurement

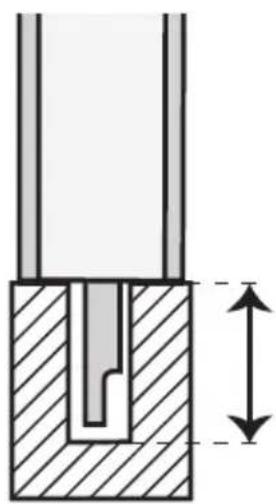

D. Step measurement

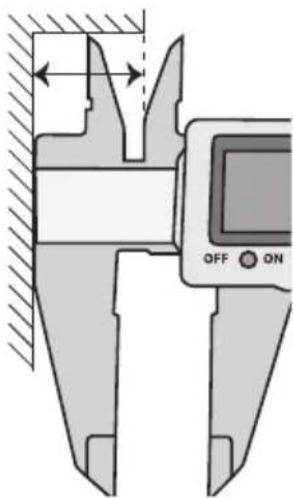

E. Differential measurement. The difference in size of two or more objects can be determined by zeroing the caliper on the correctly sized reference object.

Care and maintenance

• Wipe the entire measuring scale with a soft cloth. Do not use solvents to clean the caliper.
• Keep the caliper dry and clean.
  • Always turn the device off when it is not in use.
• Never measure surfaces that are conducting electrical current.
• Do not engrave the caliper with an electric engraver. This may damage the caliper.
• Changing the battery can cause the digits on the display to flicker. Remove the battery and wait 60 seconds before replacing it.

Changing the battery

When the display becomes weak the battery needs to be changed. Remove the screws on the back of the caliper, open the battery cover and replace the battery. The positive terminal (+) should face upward.

Troubleshooting

Problem Possible cause	Action
Flashing display. Low battery. Replace battery.
Reading does not change when the slider is moved.	Temporary electrical fault. Take the battery out, wait 60 seconds and then put the battery back in.
Accuracy less than ± 0.01 mm.	Dirty sensor. Wipe the entire measuring scale with a soft, dry cloth.
Nothing on the display.	1. Low battery.2. Battery inserted incorrectly. Replace the battery.2. Turn the battery over.

Responsible disposal

This symbol indicates that this product should not be disposed of with general household waste. This applies throughout the entire EU. In order to prevent any harm to the environment or health hazards caused by incorrect waste disposal, the product must be handed in for recycling so that the material can be disposed of in a responsible manner. When recycling your product, take it to your local collection facility or contact the place of purchase. They will ensure that the product is disposed of in an environmentally sound manner.

Specifications

Measuring range 0–150 mm, 0–6"

Resolution 0.01 mm, 0.0005"

Max measuring speed 1.5 m/s, 60"/s

Accuracy 0.03 mm*

Repeatability 0.01 mm

Battery 1.5 V, LR44 button cell

Operating temperature 5–40 °C, 41–104 °F

*Accuracy is decreased markedly if humidity is above 80 % RH (relative humidity).

Digitalt skjutmått

Art.nr 40-8747

A. Utvändig mätning

B. Invändig mätning

Cross-sectional diagram of a mechanical or electrical component with hatched fill and dimension lines (no text or symbols)

D. Stegvis mätning

Diagram of a vernier caliper with an open dial and circular dial indicator (no text or symbols)
