Product Type	Freestanding Refrigerator
Brand	Scandomestic
Model	SKS 331 W
Total Net Capacity	Approximately 280 liters
Refrigerator Capacity	Approximately 200 liters
Freezer Capacity	Approximately 80 liters
Energy Efficiency Class	A+
Annual Energy Consumption	Approximately 220 kWh
Climate Class	N-ST (16°C - 38°C)
Noise Level	Approximately 40 dB(A)
Dimensions (H x W x D)	1850 x 595 x 650 mm
Weight	Approximately 65 kg
Power Supply	220-240 V / 50 Hz
Refrigerant	R600a (isobutane)
Defrost Type	Automatic (no-frost) for freezer, manual for fridge
Temperature Control	Mechanical rotary dial
Interior Light	LED
Adjustable Shelves	Yes, tempered glass shelves
Door Reversible	Yes, user-reversible
Warranty	2 years
Included Accessories	Egg tray, ice cube tray

Frequently Asked Questions - SKS 331 W Scandomestic

How do I adjust the temperature on my Scandomestic SKS 331 W fridge?

Use the mechanical rotary dial inside the fridge compartment. Turn it to a higher number for colder temperatures (e.g., 3-4 for normal use). Adjust gradually after 24 hours.

Can I reverse the door opening direction?

Yes, the door is reversible. Follow the steps in the manual: remove upper hinge cover, screws, and transfer hinges to the opposite side. Ensure the fridge is unplugged and empty before starting.

Why is my fridge not cooling properly?

Check if the temperature dial is set correctly, the door is fully closed, and the condenser coils (back or bottom) are clean. Ensure there is enough ventilation space around the appliance.

How often should I clean the condenser coils?

Clean the condenser coils every 6-12 months using a vacuum cleaner or soft brush. Dust buildup reduces cooling efficiency.

What does the automatic defrost (no-frost) system do?

The freezer compartment defrosts automatically. A heater periodically melts frost, and water evaporates. The fridge compartment may require manual defrosting periodically.

How do I change the interior light bulb?

The SKS 331 W uses an LED light. If it fails, contact customer service for replacement. Do not attempt to replace it yourself unless specified in the manual.

What is the recommended temperature for storing food?

Keep the fridge at 4°C (39°F) and the freezer at -18°C (0°F). Use a thermometer to verify, as dial settings may vary.

How do I level the fridge if it wobbles?

Adjust the front leveling feet by turning them clockwise or counterclockwise. Use a spirit level to ensure the fridge is stable and the door aligns properly.

My fridge is making loud noises. Is that normal?

Some noise is normal (compressor, fan, refrigerant flow). If it's excessively loud, check if the fridge is level, or if items inside are vibrating. Clean the back if needed.

Where can I find replacement parts or service?

Contact an authorized Scandomestic service center. For spare parts like shelves or door bins, check the manual for part numbers or visit the official website.

USER MANUAL SKS 331 W Scandomestic

Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

This appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision. To avoid contamination and depravity of food, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the of the appliance.
• Cleaning regularly surfaces that can come in contact with food and is accessible for drainage systems.
• Clean water tanks if they have not been used for 48 h. or more; Flush the water system connected to a water supply if water has not been drawn for 5 days or more.
• Store raw meat and fish in suitable containers in the refrigerator, so it is not in contact with, or can drip onto other food.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.
• This refrigerating appliance is not intended to be used as a built-in appliance.
• Note: When operating in an environment other than the specified climate type, beyond the rated ambient temperature range), the appliance may not be able to maintain the desirable com-partment temperatures.
  • Lamp type: LED-light. Energy efficiency level: /
  • Light source in this product is replaceable only by a professional

DEUTSCHE

Symbol of a trash bin crossed out by two crossed lines (no text or labels)

Technical line drawing of a mechanical assembly with a base plate and ladder (no text or symbols)

Technical line drawing of a mechanical structure with a base and ladder (no text or symbols)

Isometric line drawing of a server cabinet with ventilation grilles (no text or symbols)

Technical line drawing of a mechanical device with a circular inset showing internal components (no text or symbols)

Unscrew Screw

Line drawing of a vehicle climbing structure with an inset showing a person climbing a rope (no text or symbols)

Two isometric metal bracket components with mounting holes and mounting holes (no text or symbols)

Line drawing of a cabinet with ladder and door, no text or symbols present

Simple line drawing of a document with arrows indicating rotation or movement (no text or symbols)

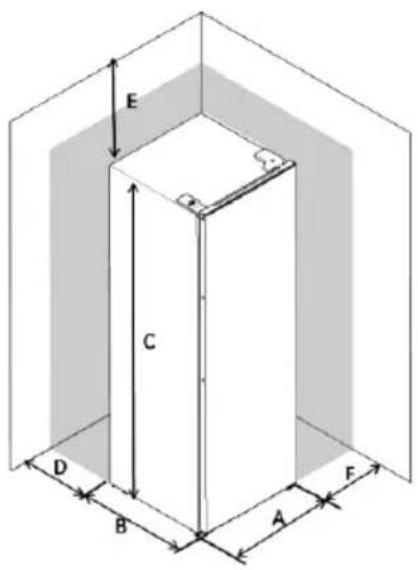

E C D B A F H F E 90° I G

A 600
B 600
C 1700
D min = 50
E min = 50
F min = 50
G 1200

Lengthen Shorten

Hand holding a rectangular object on a shelf, no text or symbols visible

Simple diagram of a container with two upward arrows indicating flow or movement (no text or symbols)

In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and make sure that they remain with the appliance if it is moved or sold, so that everyone using it through its life will be properly informed on appliance use and safety.

For the safety of life and property keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission.

Children and vulnerable people safety

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given super vision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children aged from 3 to 8 years are allowed to load and unload this appliance.
• Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised.
• Keep all packaging well away from children. There is risk of suffocation.
• If you are discarding the appliance pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent playing children to suffer electric

shock or to close themselves into it.

- If this appliance featuring magnetic door seals is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make that spring lack unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child.

General safety

WARNING! Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING! Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING

WARNING! Do not damage the refrigerant circuit.

WARNING! Do not use other electrical appliances (such as ice cream makers) inside of refrigerating appliances, unless they are approved for this purpose by the manufacture.

WARNING! Do not touch the light bulb if it has been on for a long period of time because it could be very hot.

WARNING! When positioning the appliance, ensure the supply cord is not trapped or damaged.

WARNING! Do not locate multiple portable socket-outlets or portable power suppliers at the rear of the appliance.

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• The refrigerant isobutane (R-600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.
• During transportation and installation of the appliance, be certain

that none of the components of the refrigerant circuit become damaged.

• avoid open flames and sources of ignition thoroughly ventilate the room in which the appliance is situated
• It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a short circuit, fire and/or electric shock.
• This appliance is intended to be used in household and similar applications such as
• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.

WARNING! Any electrical components (plug, power cord, compressor and etc.) must be replaced by a certified service agent or qualified service personnel.

WARNING! The light bulb supplied with this appliance is a "special use lamp bulb" usable only with the appliance supplied. This "special use lamp" is not usable for domestic lighting.

• Power cord must not be lengthened.
• Make sure that the power plug is not squashed or damaged by the back of the appliance. A squashed or damaged power plug may overheat and cause a fire.
• Make sure that you can come to the mains plug of the appliance.
• Do not pull the mains cable.
• If the power plug socket is loose, do not insert the power plug.

There is a risk of electric shock or fire.

• You must not operate the appliance without the lamp.
• This appliance is heavy. Care should be taken when moving it.
• Do not remove nor touch items from the freezer compartment if your hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.
• Avoid prolonged exposure of the appliance to direct sunlight.

Daily use

• Do not put hot on the plastic parts in the appliance.
• Do not place food products directly against the rear wall.
• Frozen food must not be re-frozen once it has been thawed out.
• Store pre-packed frozen food in accordance with the frozen food manufactures instructions.
• Appliances manufactures storage recommendations should be strictly adhered to. Refer to relevant instructions.

Do not place carbonated of fizzy drinks in the freezer compartment as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance.

• Ice lollies can cause frost burns if consumed straight from the appliance.
• To avoid contamination of food, please respect the following instructions
• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

- Clean regularly surfaces that can come in contact with food and accessible drainage systems.

- Clean water tanks if they have not been used for 48h; flush the water system connected to a water supply if water has not been

drawn for 5 days.

• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• Two-star frozen-food compartments (if they are presented in the appliance) are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes.
• One-, two- and three -star compartments (if they are presented in the appliance) are not suitable for the freezing of fresh food.
• If the appliance is left empty for long periods, switch off, defrost, clean, dry and leave the door open to prevent mount developing within the appliance.

Care and cleaning

• Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket.
• Do not clean the appliance with metal objects.
• Do not use sharp objects to remove frost from the appliance. Use a plastic scraper.
• Regularly examine the drain in the refrigerator for defrosted water. If necessary, clean the drain.
• If the drain is blocked, water will collect in the bottom of the appliance.

Installation

Important! For electrical connection carefully follow the instructions given in specific paragraphs.

- Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it. In that case retain packing.

• It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back in the compressor.
• Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufficient ventilation follow the instructions relevant to installation.
• Wherever possible the spacers of the product should be against a wall to avoid touching or catching warm parts (compressor, condenser) to prevent possible burn.
• The appliance must not be located close to radiators or cookers.
• Make sure that the mains plug is accessible after the installation of the appliance.

Service

• Any electrical work required to do the servicing of the appliance should be carried out by a qualified electrician or competent person.
• This product must be serviced by an authorized Service Center, and only genuine spare parts must be used.

Energy saving

• Don't put hot food in the appliance;
• Don't pack food close together as this prevents air circulating;
• Make sure food don't touch the back of the compartment(s);
• If electricity goes off, don't open the door(s);
• Don't open the door(s) frequently;
• Don't keep the door(s) open for too long time;
• Don't set the thermostat on exceeding cold temperatures;
• All accessories, such as drawers, shelves balconies, should be kept there for lower energy consumption.

Environment Protection

This appliance does not contain gasses which could damage the ozone layer, in either its refrigerant circuit or insulation materials. The appliance shall not be discarded together with the urban refuse and rubbish. The insulation foam contains flammable gases: the appliance shall be disposed according to the appliance regulations to obtain from your local authorities. Avoid damaging the cooling unit, especially the heat exchanger.

Correct Disposal of this product

Symbol of a trash bin crossed with no visible text or labels

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmentally safe recycling.

Warnings for disposal

Refrigerant and cyclopentane foaming material used for the refrigerator are flammable. Therefore, when the refrigerator is scrapped, it shall be kept away from any fire source and be recovered by a special recovering company with corresponding qualification other than be disposed by combustion, so as to prevent damage to the environment or any other harm.

When the refrigerator is scrapped, disassemble the doors, and remove gasket of door and shelves; put the doors and shelves in a proper place, so as to prevent trapping of any child.

Product overview

A B C D E F

A Thermostat and Light

B Glass shelves

C Crisper

D Leveling feet

E Bottom balcony

F Upper balconies

Reverse door

Tool required: Philips screwdriver, Flat bladed screwdriver, Hexagonal spanner.

Ensure the unit is unplugged and empty.

To take the door off, it is necessary to tilt the unit backwards. You should rest the unit on something solid so that it will not slip during the door reversing process.

All parts removed must be saved to do the reinstallation of the door. Do not lay the unit flat as this may damage the coolant system.

It's better that 2 people handle the unit during assembly.

Technical line drawing of a mechanical assembly with a ladder and bracket (no text or symbols)

1 Unscrew hinge cover

Technical line drawing of a mechanical assembly with a bracket and vertical ladder (no text or symbols)

2 Open the door and unscrew the top hinge. Then take the door from the cabinet and place it on a soft pad to avoid damage.

Isometric line drawing of a cabinet or rack unit with diagonal slats and two small components on the door (no text or symbols)

3 Remove the cover and screws at left side and fit them to right side.

Technical line drawing of a mechanical device with a circular inset showing internal components (no text or symbols)

4 Carefully lie down the rear of cabinet on a soft pad. Remove two leveling feet first. Then unscrew the door hinge and left foot base.

Caution ! If there is a screw at left front corner, remove it before install hinge.

Unscrew Screw

5 Unscrew and remove the bottom hinge pin, turn the bracket over and replace it.

Technical line drawing of a mechanical assembly with an inset showing a close-up of a component (no text or symbols)

6 Install the hinge at left side and foot base at right side. Then screw two leveling feet with their original parts.

Two isometric mechanical bracket components with mounting holes and mounting feet (no text or symbols)

7 Unscrew top hinge pin and mounte it to left hole.

Isometric line drawing of a cabinet with ladder and door (no text or symbols)

8 Stand up the unit and put the door on the bottom hinge. Make sure the bottom hinge core is inserted in the door hole. Then fit upper hinge with the door. Before tightly fix the upper hinge, try to open the door to check whether the cabinet is sealed well. Finally, screw the hinge cover with hinge.

Simple line drawing of a rectangular frame with curved arrows indicating rotation or movement (no text or symbols)

9 Detach the Fridge and the Freezer door gaskets and then attach them after rotating.

Install door handle

Space Requirement

• Keep enough space of door open.
• It is advisable to keep at least 50mm gap at two sides.

E C D B A F

H F F 90° I G

A 600

B 600

C 1700

D min=50

E min=50

F min=50

G 1200

Levelling the unit

To do this adjust the two levelling feet at front of the unit.

Lengthen Shorten

If the unit is not level, the doors and magnetic seal alignments will not be covered properly.

Placement

Install this appliance at a location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance:

For refrigerating appliances with climate class:

• extended temperate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 10°C to 32°C (SN);
• temperate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16°C to 32°C (N);
• subtropical: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16°C to 38°C (ST);
• tropical: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16°C to 43°C (T);

Location

The appliance should be installed well away from sources of heat such as radiators, boilers, direct sunlight etc. Ensure that air can circulate freely around the back of the cabinet. To ensure best performance, if the appliance is positioned below an overhanging wall unit, the minimum distance between the top of the cabinet and the wall unit must be at least 100 mm. Ideally, however, the appliance should not be positioned below overhanging wall units. Accurate leveling is ensured by one or more adjustable feet at the base of the cabinet.

This refrigerating appliance is not intended to be used as a built-in appliance.

Warning! It must be possible to disconnect the appliance from the mains power supply; the plug must therefore be easily accessible after installation.

Electrical connection

Before plugging in, ensure that the voltage and frequency shown on the rating plate correspond to your domestic power supply. The appliance must be earthed. The power supply cable plug is provided with a contact for this purpose. If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a qualified electrician.

The manufacturer declines all responsibility if the above safety precautions are not observed.

This appliance complies with the E.E.C. Directives.

Daily use

Temperature Setting Recommendation
Environment temperature	Freezer compartment	Fridge compartment
Summer	/
		Set on 3~4
Normal	/
		Set on 3~4
Winter	/
		Set on 2~3

Information above give users recommendation of temperature setting.

Impact on Food Storage

• Under recommended setting, the best storage time of fridge is no more than 3 days.
• The best storage time may reduce under other settings.

Position different food in different compartments according to be below table

Refrigerator compartments	Type of food
Door or balconies of fridge compartment	Foods with natural preservatives, such as jams,juices, drinks, condiments.Do not store perishable foods.
Crisper drawer (salad drawer)	Fruits, herbs and vegetables should be placed separately in the crisper bin.Do not store bananas, onions, potatoes, garlic in
Fridge shelf – middle	Dairy products, eggs
Fridge shelf – top	Foods that do not need cooking, such as ready-to-eat foods, deli meats, leftovers.

First use

Cleaning the interior

Before using the appliance for the first time, wash the interior and all internal accessor es with lukewarm water and some neutral soap so as to remove the typical smell of a brand new product, then dry thoroughly.

Important! Do not use detergents or abrasive powders, as these will damage the finish.

• Adjust the adjustable foot to keep the appliance stable.
• For the first usage, power on the appliance for 2\~3 hours before putting in foods.

Temperature Setting

Plug on your appli- ance. The internal temperature is controlled by a thermostat. There

are 6(S)settings. 1 is warmest setting and 5(?)is coldest setting and O is off.

The applian ce ma y not operate at the correct temperature if it is in a particularly hot or if you open the door often.

This refrigerating appliance is not suitable for freezing foodstuffs.

Accessories Movable shelves

Hand holding a shelf with a wooden board, no text or symbols visible

The walls of the refrigerator are equipped with a series of runners so

that the shelves can be positioned as desired.

Positioning the door balconies

To permit storage of food packages of various sizes, the door balconies can be placed at different heights. To make these adjustments proceed as follows: gradually pull the balcony in the direction of the arrows until it comes free, then reposition as required.

Helpful hints and tips

Hints for fresh food refrigeration

To obtain the best performance:

• Do not store warm food or evaporating liquids in the refrigerator
• Do cover or wrap the food, particularly if it has a strong flavor.

Hints for refrigeration

Useful hints:

Make (all types): wrap in polythene bags and place on the glass shelves above the vegetable drawer. For safety, store in this way only one or two days at the most.

Cooked foods, cold dishes, etc...: these should be covered and may be placed on any shelf.

Fruit and vegetables: these should be thoroughly cleaned and placed in the special drawer(s) provided. butter and cheese: these should be placed in special airtight containers or wrapped in aluminum foil or polythene bags to exclude as much air as possible.

Milk bottle: these should have a cap and should be stored in the balconies on the door. Bananas, potatoes, onions and garlic, if not packed, must not be kept in the fridge.

Cleaning

For hygienic reasons the appliance interior, including interior accessories, should be

Simple diagram of a container with two upward arrows inside, no text or symbols present

cleaned regularly.

Caution! The appliance may not be connected to the mains during cleaning. Danger of electrical shock! Before

cleaning turn the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker or fuse. Never clean the appliance with a steam cleaner.

Moisture could accumulate in electrical components, danger of electrical shock! Hot vapors can lead to the damage of plastic parts. The appliance must be dry before it is placed back into service.

Important! Ethereal oils and organic solvents can attack plastic parts, e.g. lemon juice or the juice form orange peel, butyric acid, cleanser that contain acetic acid.

Do not allow such substances to come into

contact the appliance parts.

Do not use any abrasive cleaners

Remove the food from the freezer. Store them in a cool place, well covered.

Switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker of fuse.

Clean the appliance and the interior accessories with a cloth and lukewarm water. After cleaning wipe with fresh water and rub dry.

Accumulation of dust at the condenser increases energy consumption. For this reason carefully clean the condenser at the back of the appliance once a year with a soft brush or a vacuum cleaner. After everything is dry place appliance back into service.

Replace the lamp

The internal light is a LED type. To replace the lamp, please contact qualified technician.

CE declaration of conformity

This appliance has been manufactured to the strictest standards and complies with all applicable legislations, Low

Voltage Directive (LVD) and Electromagnetic Compatibility (EMC).

UKCA declaration of conformity

This appliance has been manufactured to the strictest standards and complies with all applicable legislation.

Troubleshooting

Caution! Before troubleshooting, disconnect the power supply. Only a qualified electrician or competent person must do the troubleshooting that is not in this manual.

Important! There are some sounds during normal use (compressor, refrigerant circulation).

Problem	Possible cause	Solution
Appliance does not work	Temperature regulation knob is set at number "O".	Set the knob at other number to switch on the appliance.
	Mains plug is not plugged in or is loose	Insert mains plug.
	Fuse has blown or is defective	Check fuse, replace if necessary.
	Socket is defective	Mains malfunctions are to be corrected by an electrician.
The food is too warm.	Temperature is not properly adjusted.	Please look in the initial Temperature Setting section.
	Door was open for an extended period.	Open the door only as long as necessary.
	A large quantity of warm food was placed in the appliance within the last 24 hours.	Turn the temperature regulation to a colder setting temporarily.
	The appliance is near a heat source.	Please look in the installation location section.
Appliance cools too much	Temperature is set too cold.	Turn the temperature regulation knob to a warmer setting temporarily.
Unusual noises	Appliance is not level.	Re-adjust the feet.
	The appliance is touching the wall or other objects.	Move the appliance slightly.
	A component, e.g. a pipe, on the rear of the appliance is touching another part of the appliance or the wall.	If necessary, carefully bend the component out of the way.
Water on the floor	Water drain hole is blocked.	See the Cleaning and Care section.
Side panels are hot.	It's normal. Heat exchange parts are in the sides.	Take gloves to touch sides.

If the malfunction shows again, contact the Service Center.

These data are necessary to help you quickly and correctly. Write the necessary data here, refer to the rating plate.

Sicherheitshinweise

Symbol of a trash bin crossed with no visible text or labels

Technical line drawing of a mechanical assembly with a ladder and bracket (no text or symbols)

Technical line drawing of a mechanical structure with a bracket and vertical supports (no text or symbols)

Isometric line drawing of a cabinet with ladder and door (no text or symbols)

Technical line drawing of a mechanical device with a circular inset showing internal components (no text or symbols)

Unscrew Screw

Technical line drawing of a vehicle suspension system with an inset showing a mechanical component (no text or symbols)

Two isometric metal bracket components with mounting holes (no text or symbols)

Isometric line drawing of a cabinet with a handle and ladder (no text or symbols)

Abstract diagram of a rectangular frame with curved arrows indicating rotation or movement (no text or symbols)

Platzbedarf

E C D B A F H F F 90° I G

A 600
B 600
C 1700
D min=50
E min=50
F min=50
G 1200

Lengthen Shorten

Hand holding a shelf with a wooden board, no text or symbols visible

Simple diagram of a container with two upward arrows indicating flow or movement (no text or symbols)

Reinigung

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Technical line drawing of a mechanical assembly with a ladder and bracket (no text or symbols)

Technical line drawing of a mechanical structure with a base and vertical ladder (no text or symbols)

Line drawing of a cabinet with diagonal rails and two windows (no text or symbols)

Technical line drawing of a mechanical device with a circular inset showing internal components (no text or symbols)

Unscrew Screw

Line drawing of a vehicle suspension system with an inset showing a person climbing a rope (no text or symbols)

Two identical mechanical bracket components with mounting holes and a separate bracket (no text or symbols)

Line drawing of a cabinet with ladder and door, no text or symbols present

Abstract diagram of a rectangular frame with curved arrows indicating rotation or movement (no text or symbols)

Utrymmeskrav

F H G I 90° F

A 600

B 600

C 1700

D min=50

E min=50

F min=50

G 1200

Lengthen Shorten

Illustration of a hand placing a rectangular object on a shelf (no text or symbols)

Access to professional repair, such as internet webpages, addresses, contact details. Model no:SKS 331 X/SKS 331 W

Aftersales service station list:

Address	Scandomestic A/S
Contact Number	7242 5571
Website	Scandomestic.dk
QR code	850870
Relevant information for ordering spare parts, directly or through other channels provided by the manufacturer, importer or authorised representative;	Scandomestic A/S
The minimum period during which spare parts, necessary for the repair of the appliance, are available;	8 years
Instruction on how to find the model information in the product database, as defined in Regulation (EU) 2019/2024 by means of a weblink that links to the model information as stored in the product database or a link to the product database and information on how to find the model identifier on the product.)	www.scandomestic.dk

Note: The address or contact phone number of the service site is subject to change without prior notice. Please confirm whether the service station is a directly affiliated one of our company when requiring services.

DE
