Product Type	Built-in Electric Oven with Steam Assist
Brand	Vestfrost
Model	VBO 1445 PN Steam Assist
Installation	Built-in
Energy Source	Electric
Energy Efficiency Class	A+
Oven Capacity	68 L
Dimensions (HxWxD)	595 x 595 x 575 mm
Weight	35 kg
Voltage / Frequency	230 V / 50 Hz
Maximum Power Consumption	3300 W
Cooking Functions	Convection, Grill, Steam Assist, Defrost, Fan Assisted, Bottom Heat
Steam Assist Feature	Helps create crispy crusts and moist interiors
Cleaning Type	Steam Clean and Catalytic Liners (back wall)
Self-Cleaning	No (manual steam clean)
Safety Features	Child Lock, Cool Touch Door, Auto Shut-off
Display Type	LED Touch Control
Door Type	Drop-down with reversible hinge
Number of Glass Panels	3 (Cold door)
Number of Oven Lights	1 (interior)
Accessories Included	1x Baking Tray, 1x Wire Rack, 1x Meat Probe
Spare Parts Availability	Available from Vestfrost customer service
Reparability Index (France)	8.5 / 10

Frequently Asked Questions - VBO 1445 PN Steam Assist VESTFROST

How do I use the steam assist function on my Vestfrost VBO 1445 PN oven?

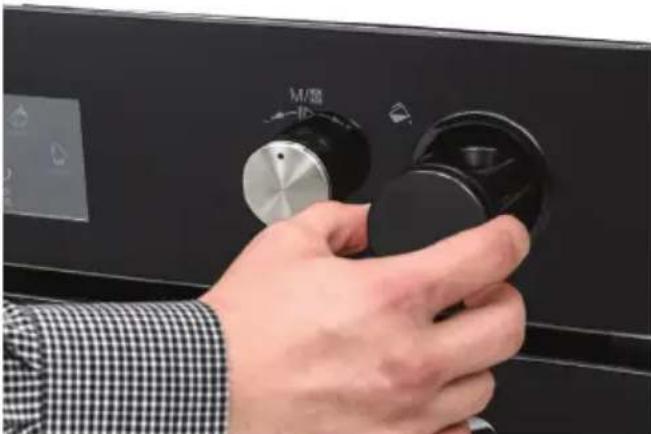

To use steam assist, fill the water reservoir (located inside the oven cavity) with tap water. Select the steam assist cooking mode on the control panel, set the desired temperature, and the oven will inject steam periodically to enhance cooking. Refer to the manual for specific settings.

What is the capacity of the oven?

The oven has a usable capacity of 68 liters, suitable for large dishes and family meals.

How do I clean the oven?

Use the steam clean function: pour water into the cavity, select steam clean, and run for 30 minutes. Wipe loosened residues with a damp cloth. The back wall has catalytic liners that absorb grease during cooking; they self-clean when heated.

Can I use metal trays or aluminum foil in this oven?

Yes, but avoid contact with the oven sides and door. Do not cover the bottom with foil as it can damage the enamel and affect heat distribution.

How do I reset the child lock?

To activate: press the key lock symbol for 3 seconds. Deactivate by pressing and holding the same symbol again. A beep confirms the status.

The oven is not heating properly. What could be wrong?

First, ensure the oven is correctly plugged in and the circuit breaker is on. Check if a cooking function is selected and the temperature is set. If the problem persists, the heating element or thermostat may need replacement. Contact Vestfrost service.

What are the dimensions required for built-in installation?

The cutout dimensions should be approximately 560-580 mm (W) x 585-600 mm (H) x 550-560 mm (D). Refer to the installation manual for exact measurements.

Does this oven have a meat probe?

Yes, a meat probe is included. Insert it into the meat, connect to the oven socket, and set the desired core temperature. The oven will automatically switch off when reached.

How do I replace the oven light?

Disconnect power. Remove the glass cover by turning counterclockwise. Replace with a 25W, 300°C resistant bulb (G9 base). Screw the cover back on.

Where can I find spare parts for the Vestfrost VBO 1445 PN?

Spare parts are available from Vestfrost authorized service centers or online parts retailers. Provide the model number (VBO 1445 PN) when ordering.

USER MANUAL VBO 1445 PN Steam Assist VESTFROST

EN Built-in oven / User Manual

Line drawing of a kitchen oven with front panel and door (no text or symbols)

VBO 1445 PN Steam Assist

Thank you for choosing this product.

This User Manual contains important safety information and instructions on the operation and maintenance of your appliance.

Please take the time to read this User Manual before using your appliance and keep this book for future reference.

Icon Type Meaning
	WARNING Serious injury or death risk
	RISK OF ELECTRIC SHOCK Dangerous voltage risk
	FIRE Warning; Risk of fire / flammable materials
	CAUTION Injury or property damage risk
	IMPORTANT / NOTE Operating the system correctly

CONTENTS

1.SAFETY INSTRUCTIONS ....4
1.1 General Safety Warnings ....4
1.2 Installation Warnings ....6
1.3 During Usage 7
1.4 During Cleaning and Maintenance ....9
2.INSTALLATION AND PREPARATION FOR USE 10
2.1 Instructions for the Installer .... 10
2.2 Installation of the Oven....10
2.3 Electrical Connection and Safety.... 11
3.PRODUCT FEATURES 13
4. USE OF PRODUCT ...... 14
4.1 Cooking Table....16
4.2 Use of the Full Touch Control Timer 16

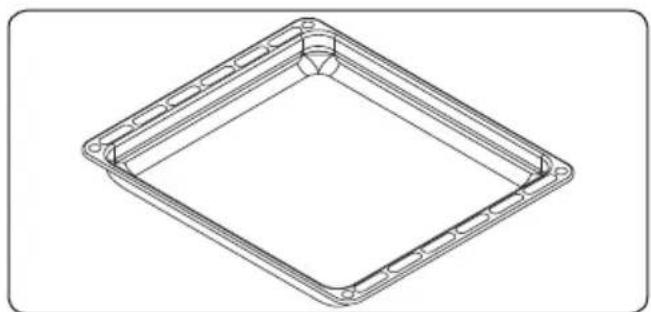

4.3 Accessories ...... 20
5.CLEANING AND MAINTENANCE....21
5.1 Cleaning 21
5.2 Maintenance....23
6. TROUBLESHOOTING&TRANSPORT 24
6.1 Troubleshooting....24
6.2 Transport 24
7. TECHNICAL SPECIFICATIONS....25
7.1 Energy Fiche 26
8. ENERGY SAVING ADVICE 26
8.1 For built-in oven....26

1. SAFETY INSTRUCTIONS

• Read these instructions carefully and completely before using your appliance and keep them in a convenient place for reference when necessary.
• This manual is prepared for more than one model. Your appliance may not have some of the features described in this manual. Pay particular attention to any figures while you are reading the operating manual.

1.1 GENERAL SAFETY WARNINGS

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Keep children less than 8 years of age away unless they are continuously supervised.

WARNING: Danger of fire: Do not store items on the cooking surfaces.

⚠️ WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.

• Do not operate the appliance by means of an external timer or separate remote-control system.

• During use the appliance will get hot. Care should be taken to avoid touching heating elements inside the oven.

• During use handles held for short periods in normal use may get hot.

• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass and other surface. They can scratch the surface which may result in shattering of the glass or damage to the surface.
• Do not use steam cleaners for cleaning the appliance.

WARNING: To avoid the possibility of electric shocks, make sure that the appliance is switched off before replacing the lamp.
⚠️ CAUTION: Accessible parts may be hot when cooking or grilling. Keep young children away from the appliance when it is in use.

- Your appliance is produced in accordance with all applicable local and international standards and regulations.

- Maintenance and repair work must only be carried out by authorised service technicians. Installation and repair work that is carried out by unauthorised technicians may be dangerous. Do not alter or modify the specifications of the appliance in any way. Inappropriate hob guards can cause accidents.

- Before connecting your appliance, make sure that the local distribution conditions (nature of the gas and gas pressure or electricity voltage and frequency) and the specifications of the appliance are compatible. The specifications for this appliance are stated on the label.

⚠️ CAUTION: This appliance is designed only for cooking food and is intended for indoor domestic household use only. It should not be used for any other purpose or in any other application, such as for

non-domestic use or in a commercial environment or room heating.

• Do not use the oven door handles to lift or move the appliance.
• All possible measures have been taken to ensure your safety. Since the glass may break, care should be taken while cleaning to avoid scratching. Avoid hitting or knocking the glass with accessories.
• Make sure that the supply cord is not trapped or damaged during installation. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to prevent a hazard.
• Do not let children climb on the oven door or sit on it while it is open.
• Please keep children and animals away from this appliance.

1.2 INSTALLATION WARNINGS

• Do not operate the appliance before it is fully installed.
• The appliance must be installed by an authorised technician. The manufacturer is not responsible for any damage that might be caused by defective placement and installation by unauthorised people.
• When the appliance is unpacked, make sure that it has not been damaged during transportation. In case of any defect do not use the appliance and contact a qualified service agent immediately. The materials used for packaging (nylon, staplers, styrofoam, etc.) may be harmful to children and they should be collected and removed immediately.
• Protect your appliance against atmospheric effects. Do not expose it to effects such as sun, rain, snow,

excessive humidity etc.

• The material around the appliance (cabinet) must be able to withstand a minimum temperature of 100^ .
• The appliance must not be installed behind a decorative door, in order to avoid overheating.

1.3 DURING USAGE

- When you first use your oven you may notice a slight smell. This is perfectly normal and is caused by the insulation materials on the heater elements. We suggest that before using your oven for the first time you leave it empty, and set at maximum temperature for 45 minutes. Make sure that the environment in which the product is installed is well ventilated.

• Take care when opening the oven door during or after cooking. The hot steam from the oven may cause burns.

- Do not put flammable or combustible materials in or near the appliance when it is operating.

• Always use oven gloves to remove and replace food in the oven.

- Under no circumstances should the oven be lined with aluminium foil as overheating may occur.

- Do not place dishes or baking trays directly onto the base of the oven whilst cooking. The base becomes very hot and damage may be caused to the product.

Do not leave the oven unattended while cooking with solid or liquid oils. They may catch fire under extreme heating conditions. Never pour water on to flames that are caused by oil, instead switch the oven off and cover the pan with its lid or a fire blanket.

- If the product will not be used for a long period of time, turn the main control switch off.

• The trays incline when pulled out. Take care not to spill or drop hot food when removing it from the ovens.
• Do not place anything on the oven door when it is open. This could disrupt the balance of the oven or damage the door.
• Do not hang towels, dishcloths or clothes from the appliance or its handles.

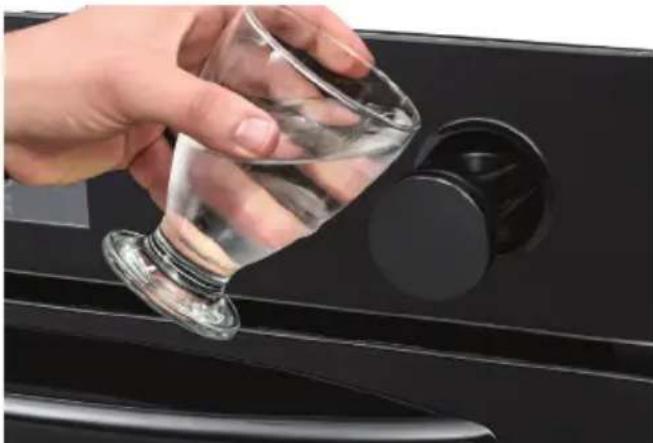

• It is recommended to use soft water to avoid excess amount of limescale residue in steam generating system over time. To check the softness of water please use the test paper given with the product and the table below. Test paper is kept in water for 3 seconds, and taken out after a minute stripes become visible on the paper.

Test Stripes Hardness of the Water
5-4 blue stripes Soft
1 red stripe Slightly Hard
2 red stripes Medium Hard
3 red stripes Hard
4-5 red stripes Very Hard

- If the correct water hardness level is not set, this could affect appliance operation and its useful life.

- Do not use other liquids than still water.

- Do not use hot water.

- Keep the water tank closed when the oven is operating.

- When oven is hot and oven door is opened, hot air steam may come over so stand away and also keep children away while opening oven door.

- To avoid limescale residual in the cavity, clean the cavity after each use.

- After the cooking process, the remaining water in the system should be removed. To do that please select “Yes” when automatically asked on the screen after cooking process. Do not leave anything in the oven during this operation.

1.4 DURING CLEANING AND MAINTENANCE

• Make sure that your appliance is turned off at the mains before carrying out any cleaning or maintenance operations.
• Do not remove the control knobs to clean the control panel.
• To maintain the efficiency and safety of your appliance, we recommend you always use original spare parts and to call our authorised service agents in case of need.

CE Declaration of conformity

CE We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced.

This appliance has been designed to be used only for home cooking. Any other use (such as heating a room) is improper and dangerous.

The operating instructions apply to several models. You may notice differences between these instructions and your model.

2. INSTALLATION AND PREPARATION FOR USE

WARNING : This appliance must be installed by an authorised service person or qualified technician, according to the instructions in this guide and in compliance with the current local regulations.

• Incorrect installation may cause harm and damage, for which the manufacturer accepts no responsibility and the warranty will not be valid.
• Prior to installation, ensure that the local distribution conditions (electricity voltage and frequency) and the adjustments of the appliance are compatible. The adjustment conditions for this appliance are stated on the label.
• The laws, ordinances, directives and standards in force in the country of use are to be followed (safety regulations, proper recycling in accordance with the regulations, etc.).

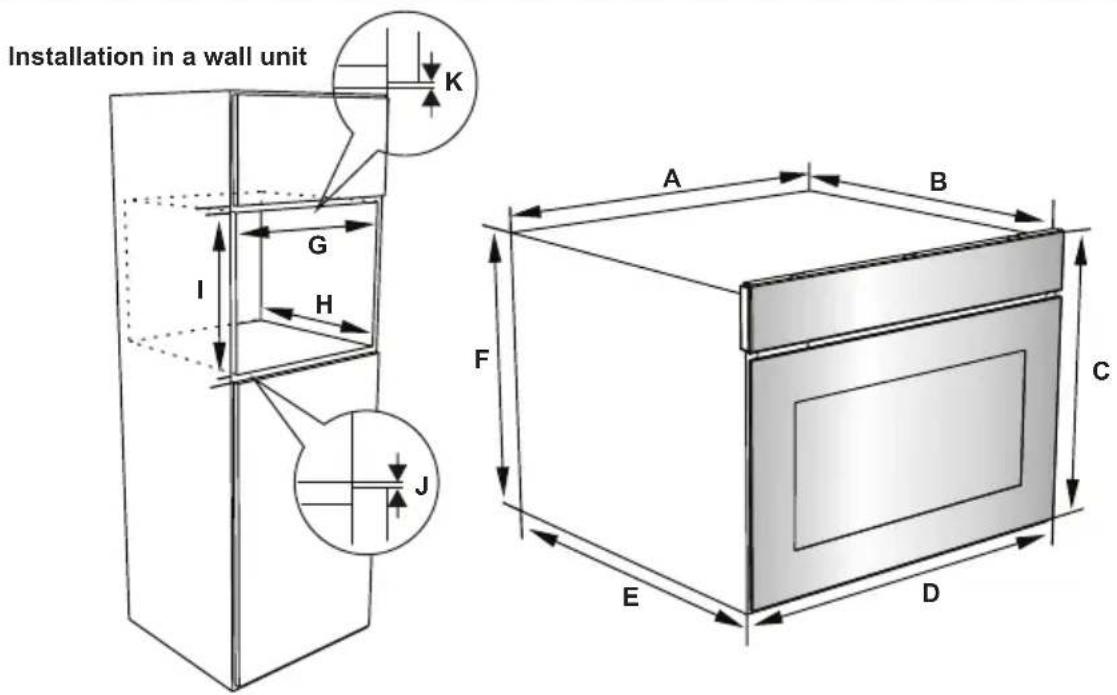

2.2 INSTALLATION OF THE OVEN

The appliances are supplied with installation kits and can be installed in a worktop with the appropriate dimensions. The dimensions for hob and oven installation are given below.

A (mm) 557 F (mm) 445
B (mm) 550 min./max. G (mm) 560/580
C (mm) 455 min. H (mm) 555
D (mm) 595 min. I (mm) 460
E (mm) 575 min. J/K (mm) 5/10

2.1 INSTRUCTIONS FOR THE INSTALLER General instructions

• After removing the packaging material from the appliance and its accessories, ensure that the appliance is not damaged. If you suspect any damage, do not use it and contact an authorised service person or qualified technician immediately.
- Make sure that there are no flammable or combustible materials in the close vicinity, such as curtains, oil, cloth etc. which may catch fire.
- The worktop and furniture surrounding the appliance must be made of materials resistant to temperatures above 100°C.
- The appliance should not be installed directly above a dishwasher, fridge, freezer, washing machine or clothes dryer.

After making the electrical connections, insert the oven into the cabinet by pushing it forward. Open the oven door and insert 2 screws in the holes located on the oven frame. While the product frame touches the wooden surface of the cabinet, tighten the screws.

Pure mechanical diagram showing a rectangular frame with a hanging component and directional arrows, no text or symbols present.

2.3 ELECTRICAL CONNECTION AND SAFETY

WARNING: The electrical connection of this appliance should be carried out by an authorised service person or qualified electrician, according to the instructions in this guide and in compliance with the current local regulations.

WARNING: THE APPLIANCE MUST BE EARTHED.

- Before connecting the appliance to the power supply, the voltage rating of the appliance (stamped on the appliance

identification plate) must be checked for correspondence to the available mains supply voltage, and the mains electric wiring should be capable of handling the appliance's power rating (also indicated on the identification plate).

- During installation, please ensure that isolated cables are used. An incorrect connection could damage your appliance. If the mains cable is damaged and needs to be replaced this should be done by a qualified personnel.

- Do not use adaptors, multiple sockets and/or extension leads.

- The supply cord should be kept away from hot parts of the appliance and must not be bent or compressed. Otherwise the cord may be damaged, causing a short circuit.

- If the appliance is not connected to the mains with a plug, a all-pole disconnector (with at least 3 mm contact spacing) must be used in order to meet the safety regulations.

- The appliance is designed for a power supply of 220-240V \~ and 380-415V 3N\~. If your supply is different, contact the authorised service person or a qualified electrician.

- The power cable (H05VV-F) must be long enough to be connected to the appliance, even if the appliance stands

on the front of its cabinet.

• Ensure all connections are adequately tightened.
  • Fix the supply cable in the cable clamp and then close the cover.

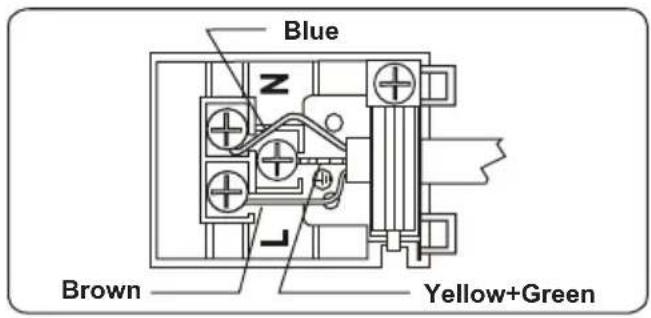

• The terminal box connection is placed on the terminal box.

3. PRODUCT FEATURES

Important: Specifications for the product vary and the appearance of your appliance may differ from that shown in the figures below.

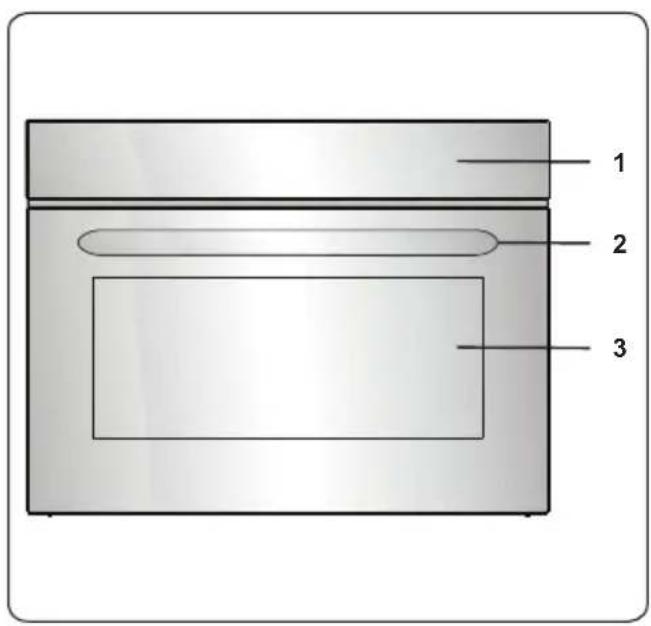

List of Components

1. Control Panel
2. Oven Door Handle
3. Oven Door

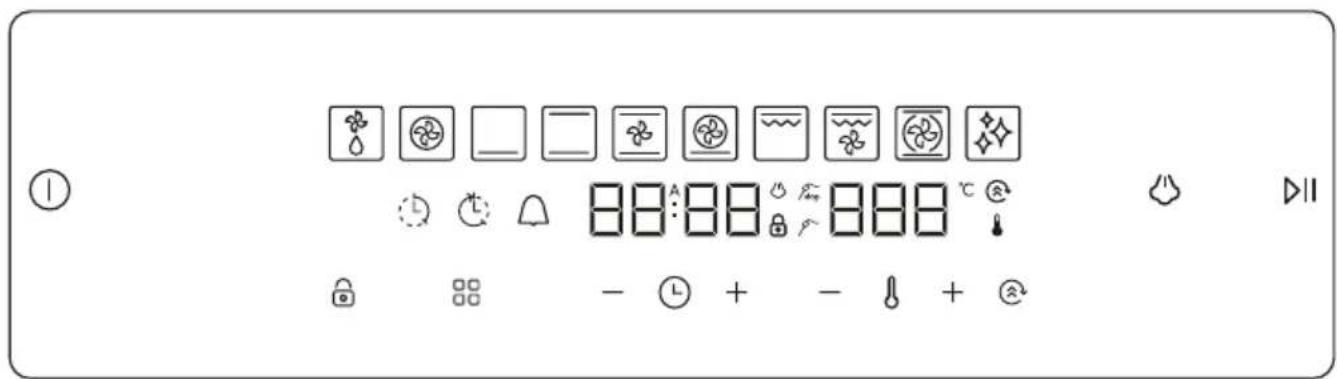

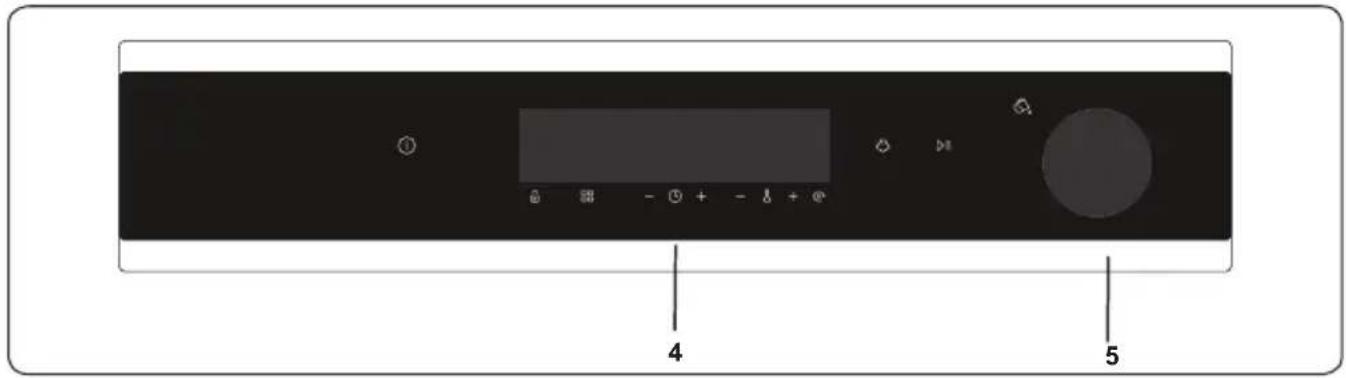

Control Panel

1. Timer

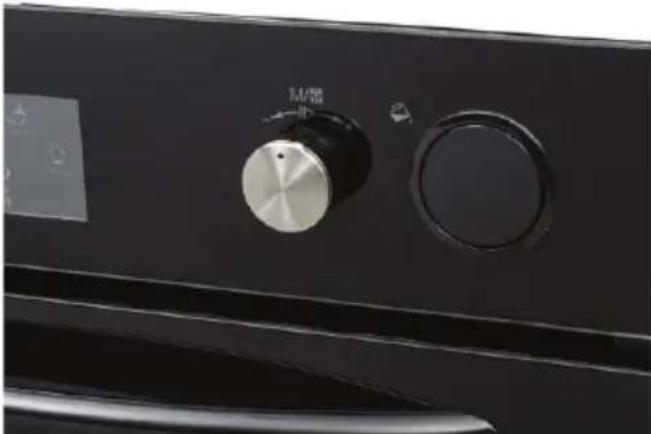

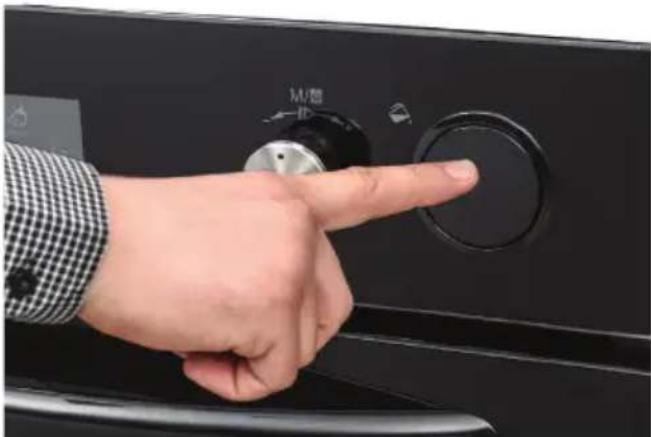

2. Water Tank Cover

4. USE OF PRODUCT

Oven Functions

* The functions of your oven may be different due to the model of your product.

Simple white line drawing of a stylized flower or droplet on a dark background (no text or symbols)

Defrost Function: The oven's warning lights will switch on and the fan will start to operate. To use the defrost function, place your frozen food in the oven

on a shelf in the third slot from the bottom. It is recommended that you place an oven tray under the defrosting food to catch the water accumulated due to melting ice. This function will not cook or bake your food, it will only help to defrost it.

Pure electrical circuit symbol for a three-phase motor (no text or labels)

Turbo Function: The oven's thermostat and warning lights will switch on, and the ring heating element and fan will start operating. The turbo function

evenly disperses the heat in the oven so all food on all racks will cook evenly. It is recommended that you preheat the oven for about 10 minutes.

Solid dark square with a thin white horizontal line at the bottom (no text or symbols)

Lower Heating

Function: The oven's thermostat and warning lights will switch on, and the lower heating element will start operating. The lower heating

function is ideal for heating pizza as the heat rises from the bottom of the oven and warms the food up. This function is appropriate for heating food instead of cooking.

Solid black square with two thin white horizontal lines on a dark gray background (no text or symbols)

Static Cooking

Function: The oven's thermostat and warning lights will switch on, and the lower and upper heating elements will start operating. The

static cooking function emits heat, ensuring even cooking of food. This is ideal for making pastries, cakes, baked pasta, lasagne and pizza. Preheating the oven for 10 minutes is recommended and it is best to use only one shelf at a time in this function.

Abstract geometric symbol resembling a four-blade propeller inside a dark square frame (no text or symbols)

Fan Function: The oven's thermostat and warning lights will switch on, and the upper and lower heating elements and fan will start operating.

This function is good for baking pastry. Cooking is carried out by the lower and upper heating elements within the oven and by the fan, which provides air circulation, giving a slightly grilled effect to the food. It is recommended that you preheat the oven for about 10 minutes.

Abstract geometric icon with a circular symbol containing three blades, set against a dark square background (no text or symbols)

Pizza Function: The oven's thermostat and warning lights will switch on, and the ring, lower heating elements and fan will start operating.

The fan and lower heating function is ideal for baking food, such as pizza, evenly in a short period of time. The fan evenly disperses the heat of the oven, while the lower heating element bakes the food.

Simple 3D-rendered icon with a wavy line above a dark rectangular block (no text or symbols)

Faster Grilling

Function: The oven's thermostat and warning lights will switch on, and the grill and upper heating elements will start

operating. This function is used for faster grilling and for grilling food with a larger surface area, such as meat. Use the upper shelves of the oven. Lightly brush the wire grid with oil to stop food sticking and place food in the centre of the grid. Always place a tray beneath the food to catch any drips of oil or fat. It is recommended that you preheat the oven for about 10 minutes.

Warning: When grilling, the oven door must be closed and the oven

temperature should be adjusted to 190^ C.

Simple icon of a propeller inside a container with wavy lines above (no text or symbols)

Double Grill and Fan

Function: The oven's thermostat and warning lights will switch on, and the grill, upper heating elements and fan will

start operating. This function is used for faster grilling of thicker food and for grilling of food with a larger surface area. Both the upper heating elements and grill will be energised along with the fan to ensure even cooking. Use the upper shelves of the oven. Lightly brush the wire grid with oil to stop food sticking and place food in the centre of the grid. Always place a tray beneath the food to catch any drips of oil or fat. It is recommended that you preheat the oven for about 10 minutes.

Warning: When grilling, the oven door must be closed and the oven temperature should be adjusted to 190^ C.

Abstract geometric symbol with a central three-blade circle inside a square frame (no text or symbols)

3D Function: The oven's thermostat and warning lights will switch on, and the ring heating element, top heating element, bottom heating element and fan will

start operating. The 3D function evenly disperses the heat and fastly in the oven so all food on all racks will cook and evenly. Cooking time will be shorter than others functions. It is recommended that you preheat the oven for about 10 minutes. In addition, this function will make your pastry food baked more fluffy and soft.

Manual Aiding Steam Function:

This function can be used any other cooking together with functions.

It is used for cooking all types of vegetables, smaller chunks of meat, fruit, and side dishes (rice, pasta).

The advantages;

• Crispy and shiny surface on foods
  • Minimum loss of water
• Almost no loss of nutrients
• Low-fat cooking

You can select the desired function and steam density. Steam density table is on the next page.

Filling the Water Tank

Close-up of a kitchen appliance control panel with a dial and handle (no visible text or symbols)

- The water tank volume is 300 ml. This amount allows 3 cycles of steam aiding. For each cycle around 100 ml water is used.

- Push the tank cover to open

Close-up of a hand holding a black rotary knob with a white dial, next to a black appliance panel (no visible text or symbols)

- Pull the water tank out slightly.

The tank must not be taken out

Hand pouring liquid into a glass container on a black appliance (no text or symbols visible)

- Add the minimum 100 ml water into the tank before usage.

The maximum water level is indicated as "MAX" on the tank.

Steam Density Water	Amounts
1 steam injection Add	100 ml water
2 steam injection Add	200 ml water
3 steam injection Add	300 ml water
Auto steam injection Add	100 ml water

4.1 COOKING TABLE

FOR STEAM FUNCTION

Foods Function Rack		Position	Temp. (°C)		Amount of water (ml)	Cooking Time (min) (approx.)	Weight (approximate food weight g)
Bread Top	Bottom Fan 2 180 150	/200 40-50	820
	Turbo 2 185 150	/200 30-40	820
Baked Pasta	Turbo 3 180 100	20-30	500
Pastry Top	Bottom Fan 3 180 150	30-40	500
Potato Top	Bottom Fan 3 200 200	50-60	500
Chicken Turbo 3 220 200 60-70			2000
Steak Top	Bottom Fan 3 180 250	45-60		1000

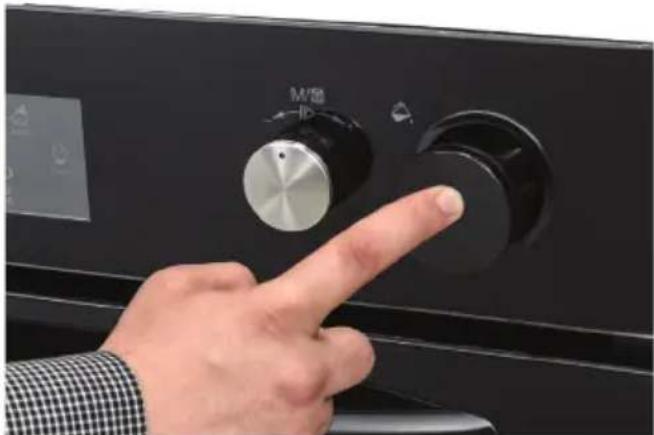

Close-up of a hand pointing at a black kitchen control panel with a dial and LCD screen (no visible text or symbols)

- Push on the tank cover to close.

Vap clean+ function:

Vapclean+ function provides easy cleaning. You will find this function

under ‘Cleaning’ menu. Before running this function please add 300 ml water into the tank. For adding water please follow the instruction given under title ‘Filling Water Tank’.

Cleaning program is the only way to empty the water tank.

COOKING TABLE

Function	Dishes			min.
Static	Puff Pastry 2-3	-4 170-190	35-45
	Cake 2-3-4	170-190 30	-40
	Cookie 2-3-4	170-190 30	-40
	Stew 2 175	-200 40-50
	Chicken 2-3-4	200 45-60
Fan	Puff Pastry 2-3	-4 170-190	25-35
	Cake 2-3-4	150-170 25	-35
	Cookie 2-3-4	150-170 25	-35
	Stew 2 175	-200 40-50
	Chicken 2-3-4	200 45-60
Turbo	Puff Pastry 2-3	-4 170-190	35-45
	Cake 2-3-4	150-170 30	-40
	Cookie 2-3-4	150-170 25	-35
	Stew 2 175	-200 40-50
Grilling	Grilled meatballs	7 200	10-15
	Chicken * 190	50-60
	Chop 5-6 200	15-25
	Beefsteak 5-6	200 15-25

*If available cook with roast chicken skewer.

4.2 USE OF THE FULL TOUCH CONTROL TIMER

Function Description
	On/Off		Faster Grilling Function		Auto Cooking	[GZSZ]	Meat probe stop
	Defrost		Double Grill + Fan Function		Temperature Bar		Meat Probe
	Turbo Function		3D Function	Thermat Cooking Time
	Bottom Function		Cleaning Function		Minus		Cooking end time
	Static Function		Temperature Display		Plus Minute M
	Fan Function		Time Display Key L Boost
	Pizza Function		Mode Play/Pau team		Function
	Function Menu

The control unit will switch off after 5 minutes if no function is selected or changed.

The appliance is operated using touch control sensors. The functions are controlled by touching the sensor fields.

When you are using the controls, make sure that you touch the sensor field correctly. If your touch is too flat or too small the sensors will not operate correctly.

The cooling fan will switch on automatically in order to keep the surfaces of the appliance cool. The fan will continue to run until it automatically switches off, even after the oven has been switched off.

Oven Function Selection

Touch the ON/OFF sensor for 2 seconds to switch the control unit on. The oven will enter "dEF" mode. Defrost function comes as a default on "WAIT" mode. However, unless the PLAY/PAUSE sensor is pressed, the function will not start. During this mode, you will be able to select the desired cooking functions, adjust the temperature, activate the BOOST function, as well as adjust the cooking time, end time, Minute Minder timer and the time of day.

During "dEF" mode, the desired cooking function can be selected by touching the sensor button. Each touch on the sensor will change the oven function, as shown below (some of these cooking functions may not be present in your cooker model):

Defrost → Turbo → Bottom → Bottom and Top → Bottom and Top with Fan → Pizza → Faster Grilling (with/without turnspit) → Double Grill with Fan (with/without turnspit) → 3D → Vap clean The operated heaters related to the selected function will be displayed.

When a cooking function is selected using the sensor, the previously selected temperature value will show on the Temperature display. This can be adjusted using the PLUS and MINUS sensor buttons on the side of the display. The temperature can be adjusted within the range of 50°C to 275°C.

After the desired function has been selected, and the temperature and time are set, touch the PLAY/PAUSE sensor to start the oven function operation.

Adjusting the Time of Day

When the oven has been installed, the time of day must be set according to the following instructions.

Touch the ON/OFF sensor to switch the oven on and enter "dEF" mode. During this mode, touch the MODE( )sensor button for 5 second until the day time is selected. The symbol for the time will illuminate on the left side and you can adjust it using the PLUS and MINUS sensor buttons. To complete the time adjustment, touch the MODE( ) sensor once again or do not touch any button for 3 second.

The time will only have to be set again if the appliance is disconnected from the power

supply for a long period of time.

Adjusting the Cooking Time

The cooking time can be adjusted during "dEF" mode or during "OPERATING" mode.

Adjusting the Minute Minder

Touch the MODE(L) sensor until the Minute Minder symbol illuminates on the Time display and "00:00" appears. Adjust the desired time period for the warning signal using the PLUS and MINUS sensor buttons while the symbol is flashing. When you have completed the adjustment, do not press any buttons for a few seconds, then the Minute Minder timer will be set.

When the timer reaches zero, an audible warning will sound, and the Minute Minder symbol and "00:00" will flash on the Time display. Press any button to stop the audible warning and the symbol will disappear.

Adjusting the Cooking Duration Time

This function helps you to cook for a fixed period of time. Prepare the food for cooking and put it in the oven. Then, select the desired cooking function and the temperature. Touch the MODE(☐) sensor button until you see the Duration Time symbol on the Time display. Set the required cooking period using the PLUS and MINUS sensors while the timer is in this position. When you have completed the adjustment, wait until the current time of day is displayed and until the Duration Time symbol remains illuminated.

When the timer reaches zero, the oven will switch off, an audible warning will sound and the Duration Time symbol will flash on the Time display. Touch any sensor on the control unit to end the sound.

Adjusting the Cooking End Time

This function is used to begin cooking after a certain period of time and for a specific duration of time. Prepare the food for cooking and put it in the oven. Then, select the desired cooking function and the temperature.

Touch the MODE(○)o button until you see the Cooking Duration Time symbol on the Time display. Set the required cooking period using the PLUS and MINUS sensor while the timer is in this position. When you have completed the adjustment, wait until the current time of day is displayed and until the Cooking Duration Time symbol remains illuminated.

Then, touch the MODE( Ⓤ) sensor button until you see the Cooking End Time symbol on the Time display. The time of day and the Cooking Duration Time symbol will flash. Set the required finish time using the PLUS and MINUS sensors while the timer is in this position. When you have completed the adjustment, wait until the current time of day is displayed and until the Cooking End Time symbol remains illuminated.

The oven will calculate the operating time by deducting the cooking period from the set finishing time, at which it will stop operating. The timer will give an audible warning and the Cooking End Time symbol will flash. Touching any button on the timer will end the audible warning.

Digital Timer Sound Adjustment

To change the warning signal sound, while the time display shows the time of day, press and hold the THERMOSTAT() sensor button for 5 seconds until there is an audible signal sound. After that, different signal sound will be heard each time the PLUS and MINUS buttons next to the thermostat button are pressed. There are five different types of signal sounds. If "tn0" is selected, all sounds will be turned off except alarm and error sounds. Select the sound you want and any other do not press a button. After a short time the selected beep will be recorded.

Boost Function

This function is used to shorten the preheating time. You can preheat in Turbo, Fan, Static or Pizza functions. In order to preheat, it is sufficient to press the BOOST (©) sensor after selecting the desired cooking function.

Use this function to heat the oven the desired temperature as quickly as possible. This mode is not appropriate for cooking.

Key Lock Function

The key lock is used to avoid unintentional changes to oven settings.

To activate the key lock, touch the KEY LOCK(☐) sensor button for 2 seconds until you see Key Lock symbol on the display. To deactivate the key lock, touch the KEY LOCK(☐) sensor for 2 seconds until the key lock symbol disappears from the display.

When the key lock is engaged, only the ON/OFF sensor button can be activated. All other buttons will remain locked.

To make steam cooking;

Start your cooking by setting the function, temperature and time according to the food in the steam cooking table. For foods not included in the table, you can set the temperature, cooking function and time yourself.

Place the food on the recommended shelf. Fill the specified amount of water into the water reservoir located in the oven panel with the help of a container.

Tap the steam button "💡" on the control screen.

The display will show "St 1".

Each time you press the "+" button, "St 2", "St 3" and "Auto" will appear on the screen respectively.

"St 1": means 100ml water, "St 2": means 200ml water, "St 3": means 300 ml water, "Auto": means 100 ml water.

When you press the steam button "◇" again after selecting the steam amount, the oven will automatically inject hot water vapor directly onto a certain amount of food.

If the "Auto" is selected, the oven starts the steaming process automatically when it reaches the set temperature.

Select the one that suits your food from the steam cooking functions and adjust the temperature setting.

Your food will be cooked more delicious thanks to the steam support.

If you wish, you can add steam after cooking starts. To do this, follow the steps below;

Touch the steam button "💡" on the control screen for 3 seconds.

"00:00" starts to flash on the clock screen. If you want to add steam in the minute of cooking, adjust the minute setting accordingly with the "+" and "-" buttons.

Tap the steam button again" 🔊" and select the amount of water as described above.

After these operations, the determined amount of hot water vapor will be automatically inject directly onto a food.

4.3 ACCESSORIES

The Deep Tray

The deep tray is best used for cooking stews.

Put the tray into any rack and push it to the end to make sure it is placed correctly.

Technical line drawing of a square frame with bolt holes and a central circular hole (no text or symbols)

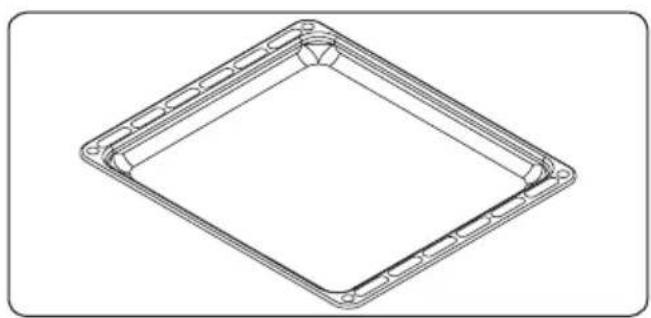

The Shallow Tray

The shallow tray is best used for baking pastries.

Put the tray into any rack and push it to the end to make sure it is correctly placed.

Technical line drawing of a square frame with bolt holes and a central hole (no text or symbols)

The Wire Grid

The wire grid is best used for grilling or for

processing food in oven-friendly containers.

Technical line drawing of a metal grate plate with slats and mounting brackets (no text or symbols)

WARNING

Place the grid to any corresponding rack in the oven cavity correctly and push it to the end.

Technical line drawing of a metal grate with a curved panel and directional arrow (no text or symbols)

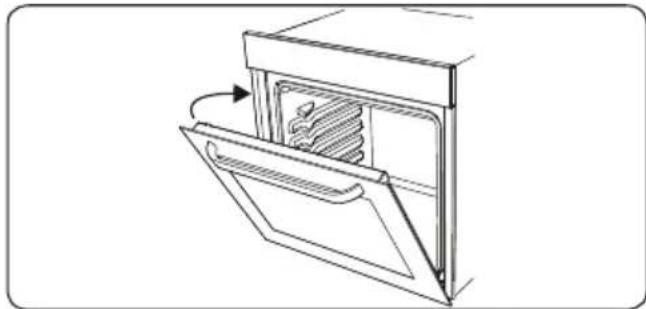

Soft-Close Oven Door

The oven door closes slowly by itself when it is released just before the closed position.

Line drawing of a door with a scroll inside, showing a curved arrow indicating rotation (no text or symbols)

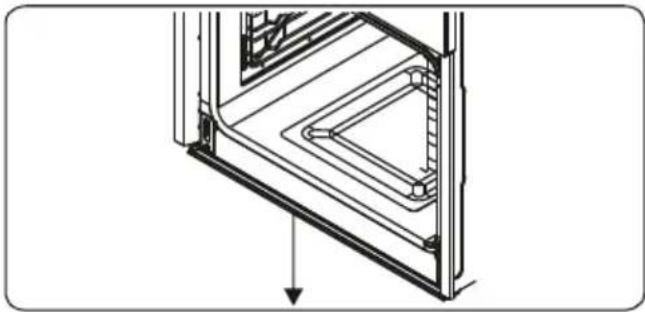

The Water Collector

In some cases of cooking, condensation may appear on the inner glass of the oven door. This is not a product malfunction.

Open the oven door into the grilling position and leave it in this position for 20 seconds.

Water will drip to the collector.

Cool the oven and wipe the inside of the door with a dry towel. This procedure must be applied regularly.

Technical line drawing of a mechanical component with internal channels and mounting brackets (no text or symbols)

5. CLEANING AND MAINTENANCE

5.1 CLEANING

WARNING: Switch off the appliance and allow it to cool before cleaning is to be carried out.

General Instructions

• Check whether the cleaning materials are appropriate and recommended by the manufacturer before use on your appliance.
• Use cream cleaners or liquid cleaners which do not contain particles. Do not use caustic (corrosive) creams, abrasive cleaning powders, rough wire wool or hard tools as they may damage the cooker surfaces.

Do not use cleaners that contain particles as they may scratch the glass, enamelled and/or painted parts our appliance.

- Should any liquids overflow, clean them immediately to avoid parts becoming damaged.

Do not use steam cleaners for cleaning any part of the appliance.

Cleaning the Inside of the Oven

• The inside of enamelled ovens are best cleaned while the oven is warm.
• Wipe the oven with a soft cloth soaked in soapy water after each use. Then, wipe the oven over again with a wet cloth and dry it.
• You may need to use a liquid cleaning material occasionally to completely clean the oven.

Line drawing of a hand cleaning a car window with a circular object on the wall (no text or symbols)

Cleaning the Glass Parts

• Clean the glass parts of your appliance on a regular basis.
• Use a glass cleaner to clean the inside and outside of the glass parts. Then, rinse and dry them thoroughly with a dry cloth.

Cleaning the Stainless Steel Parts (if available)

• Clean the stainless steel parts of your appliance on a regular basis.
• Wipe the stainless steel parts with a soft cloth soaked in only water. Then, dry them thoroughly with a dry cloth.

Do not clean the stainless steel parts while they are still hot from cooking.

Do not leave vinegar, coffee, milk, salt, water, lemon or tomato juice on the stainless steel for a long time.

Cleaning Painted Surfaces (if available)

- Spots of tomato, tomato paste, ketchup, lemon, oil derivatives, milk, sugary foods, sugary drinks and coffee should be cleaned with a cloth dipped in warm water immediately. If these stains are not cleaned and allowed to dry on the surfaces they are on, they should NOT be rubbed with hard objects (pointed objects, steel and plastic scouring wires, surface-damaging dish sponge) or cleaning agents containing high levels of alcohol, stain removers, degreasers, surface abrasive chemicals. Otherwise, corrosion may occur on the powder painted surfaces, and stains may occur. The manufacturer will not be held responsible for any damage caused by the use of inappropriate cleaning products or methods.

Removal of the Inner Glass

You must remove the oven door glass before cleaning, as shown below.

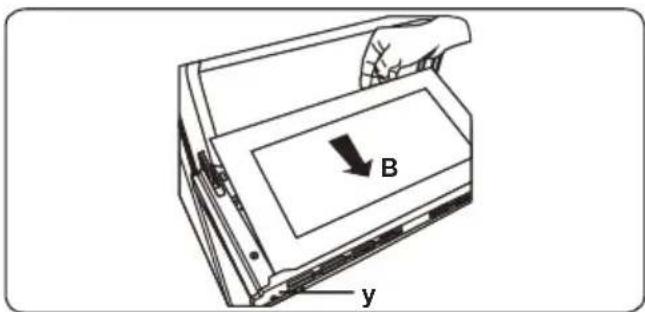

1. Push the glass in the direction of B and release from the location bracket (x). Pull the glass out in the direction of A.

To replace the inner glass:

1. Push the glass towards and under the location bracket (y), in the direction of B.

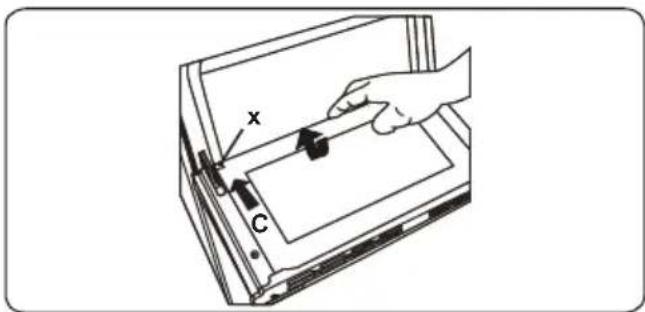

1. Place the glass under the location bracket (x) in the direction of C.

If the oven door is a triple glass oven door, the third glass layer can be removed the same way as the second's layer.

Removal of the Oven Door

Before cleaning the oven door glass, you must remove the oven door, as shown below.

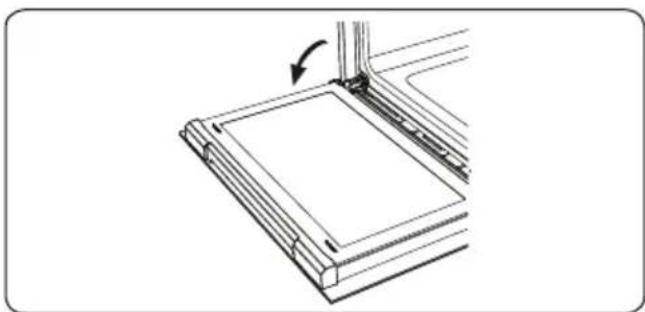

1. Open the oven door.

Technical line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

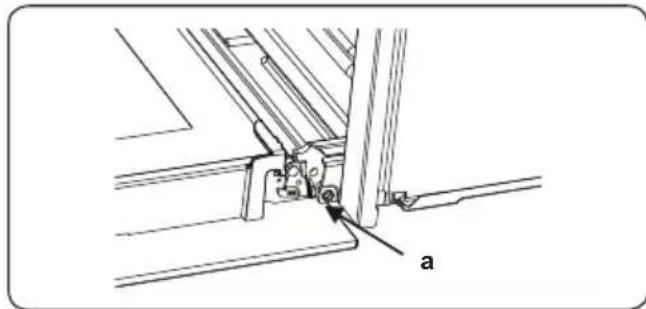

1. Open the locking catch (a) (with the aid of a screwdriver) up to the end position.

Technical line drawing of a mechanical assembly with labeled component 'a' (no text or symbols beyond label)

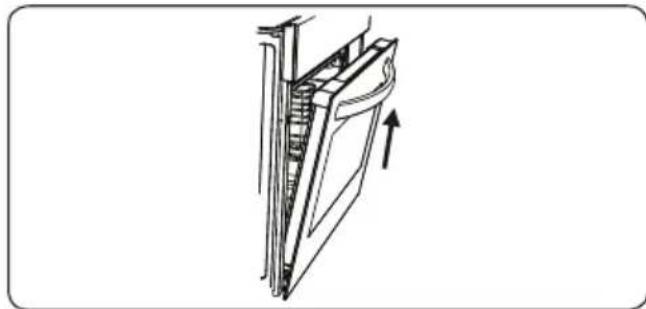

1. Close the door until it is almost in the fully closed position, and remove the door by pulling it towards you.

Technical line drawing of a door frame with an arrow indicating upward motion (no text or symbols)

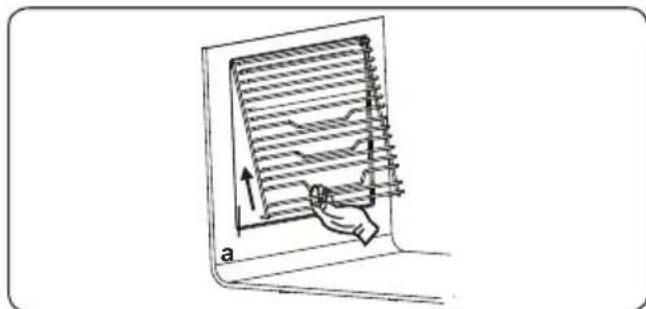

Removal of the Wire Shelf

To remove the wire rack, pull the wire rack as shown in the figure. After releasing it from the clips (a), lift it up.

Illustration of a hand interacting with a grid-like object on a screen, showing directional arrows (no text or symbols)

5.2 MAINTENANCE

WARNING: The maintenance of this appliance should be carried out by an authorised service person or qualified physician only.

Changing the Oven Lamp

WARNING: Switch off the appliance and allow it to cool before cleaning your appliance.

• Remove the glass lens, then remove the bulb.
• Insert the new bulb (resistant to 300 °C) to replace the bulb that you removed

(230 V, 15-25 Watt, Type E14).

• Replace the glass lens, and your oven is ready for use.
  • The product contains a light source of energy efficiency class G.
  • Light source can not be replaced by end user. After sales service is needed.
• The included light source is not intended for use in other applications.

Replaceable light source by a professional

The lamp is designed specifically for use in household cooking appliances. It is not suitable for household roomination.

6. TROUBLESHOOTING&TRANSPORT

6.1 TROUBLESHOOTING

If you still have a problem with your appliance after checking these basic troubleshooting steps, please contact an authorised service person or qualified technician.

Problem Possible Cause Solution
Oven does not switch on. Power is switched off.		Check whether there is power supplied.Also check that other kitchen appliances are working.
No heat or oven does not warm up.	Oven temperature control is incorrectly set.Oven door has been left open.	Check that the oven temperature control knob is set correctly.
Oven light (if available) does not operate.	Lamp has failed.Electrical supply is disconnected or switched off.	Replace lamp according to the instructions.Make sure the electrical supply is switched on at wall socket outlet.
Cooking is uneven within the oven.	Oven shelves are incorrectly positioned.	Check that the recommended temperatures and shelf positions are being used.Do not frequently open the door unless you are cooking things that need to be turned. If you open the door often, the interior temperature will be lower and this may affect the results of your cooking.
The timer buttons cannot be pressed properly.	There is foreign matter caught between the timer buttons.Touch model: there is moisture on the control panel.The key lock function is set.	Remove the foreign matter and try again.Remove the moisture and try again.Check whether the key lock function is set.
The oven fan (if available) is noisy.	Oven shelves are vibrating.	Check that the oven is level.Check that the shelves and any bake ware are not vibrating or in contact with the oven back panel.
The cooling fan continues to operate after the oven is switched off.	Electronically-controlled oven fan automatically runs for a certain amount of time to cool the oven.	The fan switches off automatically when the electronic components have cooled sufficiently.
The oven has switched itself off.	Electronically-controlled ovens switch off automatically if no function is in operation.	The oven will switch itself off automatically to save energy if no other action is taken within a certain time frame after switching it on or after the end of a cooking programme.
If the door is opened during a fan-assisted function, the internal fan will stop.	Electronically-controlled ovens with a door switch will stop cooking if the oven door is opened.	It is a normal operation of the appliance, useful when cooking foods in order to avoid excessive heat escaping. When the door is closed, the oven will restart to normal operation.

6.2 TRANSPORT

If you need to transport the product, use the original product packaging and carry it using its original case. Follow the transport signs on the packaging. Tape all independent parts to the product to prevent damaging the product during transport.

If you do not have the original packaging, prepare a carriage box so that the appliance, especially the external surfaces of the product, is protected against external threats.

7. TECHNICAL SPECIFICATIONS

7.1 ENERGY FICHE

Brand		vestfrost
Model VBO 1445 PN Steam
Type of Oven ELECTRIC
Mass kg 34,7
Energy Efficiency Index - conventional		103,9
Energy Efficiency Index - fan forced		94,7
Energy Class A
Energy consumption (electricity) - conventional kWh/cycle		0,79
Energy consumption (electricity) - fan forced kWh/cycle		0,72
Number of cavities 1
Heat Source ELECTRIC
Volume I 50
This oven complies with EN 60350-1

8. ENERGY SAVING ADVICE

8.1 FOR BUILT-IN OVENS

-Cooking processes

-Take all the accessories that are not needed in the cooking process out of the oven.

-Choose the lowest temperature specified in the recipe and control the food after the shortest specified time period.

-Preheat the oven only when necessary according to the recipe.

-Avoid opening the oven as far as possible during the cooking process.

-Preferably use matte, dark baking molds and dishes made of non-reflective materials (enamelled steel, heat resistant glass, coated aluminum / cast iron). Shiny materials like stainless steel or aluminum reflect heat away from the food. Also, do not place the heat-reflecting stanniol at the bottom of the oven or on the racks.

-Monitor the cooking time to avoid wasting energy when preparing the food. Set a required cooking time, or use a roasting thermometer if available.

-Hot air Plus is a heating form that can be used for preparing many dishes at lower temperatures than with other heating forms.

With over-under heat the heat is immediately distributed throughout the oven volume and thus, many dishes can be evenly prepared on several levels at the same time.-

ECO hot air is an innovative form of heating,

that is especially suitable for small quantities, e.g. deep-frozen pizzas, bread or cookies, but also for meat dishes and roasts. This heating form saves up to 30% of energy if compared to regular heating forms, and thus it guarantees an energy-efficient cooking experience with optimal heat utilization. Avoid opening the oven during the cooking process.

-Use the Grill with ventilation heating form for grill dishes as far as possible. This utilizes lower temperatures than other grill heating forms

-If possible, prepare several dishes at the same time. Place them side by side or on different oven racks.

-Dishes that cannot be prepared simultaneously should be prepared right after each other to utilize the heat in the oven as much as possible.

Pure mechanical diagram showing a suspended component with arrows indicating direction (no text or symbols)

2.3 ELEKTRISK TILSLUTNING OG SIKKERHED

3. PRODUKTETS FUNKTIONER

Abstract white line drawing of a stylized flower or droplet on a dark background (no text or symbols)

Optøningsfunktion:

Abstract geometric symbol with a three-blade fan inside a circle on a dark square background (no text or symbols)

Turbofunktion:

Solid dark square with a thin white horizontal line at the bottom (no text or symbols)

Nederste

opvarmningsfunktion:

Solid black square with two horizontal white lines on top and bottom (no text or symbols)

Statisk

tilberedningsfunktion:

Abstract geometric symbol with a four-blade propeller inside a square frame (no text or symbols)

Ventilatorfunktion:

Simple icon of a three-blade fan inside a square frame, with a horizontal line at the bottom (no text or symbols)

Pizzafunktion:

Simple icon of a storage unit with a wavy top line and a dark base (no text or symbols)

Hurtigere

Simple icon of a propeller inside a container with wavy lines above (no text or symbols)

Abstract geometric symbol with a three-blade propeller inside a square frame (no text or symbols)

Close-up of a kitchen appliance control panel with a rotary knob and indicator dial (no visible text or symbols)

Close-up of a hand holding a black control knob with a white dial, next to a black appliance panel (no visible text or symbols)

Hand pouring liquid into a glass container on a black appliance (no text or symbols visible)

Hand pointing at a black kitchen appliance control panel (no visible text or symbols)

Technical line drawing of a square frame with bolt holes and a central circular hole (no text or symbols)

Bagepladen

Technical line drawing of a square frame with circular cutouts and mounting holes (no text or symbols)

Ovnristen

Technical line drawing of a metal grate plate with slats and mounting brackets (no text or symbols)

ADVARSEL Sæt risten k

Technical line drawing of a metal rack with a curved top panel and an arrow indicating direction (no text or symbols)

Line drawing of a refrigerator interior with a door and drawer, showing a scroll inside (no text or symbols)

5. RENG∅RING OG VEDLIGEHOLDELSE

5.1 RENG∅RING

Line drawing of a hand cleaning a car window with a circular object on the wall (no text or symbols)

Technical line drawing of a mechanical assembly with an arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical assembly with labeled component 'a' (no text or symbols beyond label)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Diagram of a hand pressing down on a grid-like structure with arrows indicating direction (no text or symbols)

5.2 VEDLIGEHOLDELSE

Pure mechanical diagram showing a suspended component with arrows indicating direction (no text or symbols)

2.3 SÄHKÖKYTKENTÄ JA TURVALLISUUS

Abstract white line drawing of a stylized flower or droplet on a dark background (no text or symbols)

Sulatustoiminto:

Pure electrical circuit symbol for a three-phase motor (no text or labels)

Solid dark square with a horizontal white line at the bottom (no text or symbols)

Alempi

kuumennustoiminto:

Solid black rectangle with two horizontal white lines on top and bottom (no text or symbols)

Staattinen

valmistustoiminto:

Abstract geometric symbol with a four-blade propeller inside a dark square frame (no text or symbols)

Tuuletintoiminto:

Pure electrical circuit symbol for a three-blade propeller inside a square frame (no text or labels)

Simple 3D-rendered cube with a wavy top line above it, no text or symbols present.

Nopeampi

Simple icon of a propeller inside a container with wavy lines above (no text or symbols)

Abstract geometric symbol with a three-blade propeller inside a square frame (no text or symbols)

Close-up of a kitchen appliance control panel with a dial and handle (no visible text or symbols)

Close-up of a hand pressing a black circular button on a black appliance (no visible text or symbols)

Close-up of a hand holding a black rotary knob with a white dial, next to a black appliance panel (no visible text or symbols)

Hand pouring liquid into a glass bottle on a black appliance (no text or symbols visible)

Close-up of a hand pressing a black control knob with a dial, no visible text or symbols on the knob itself.

Technical line drawing of a square frame with bolt holes and a central circular hole (no text or symbols)

Matala uunipelti

Technical line drawing of a square frame with bolt holes and a central circular hole (no text or symbols)

Uuniritilä

Technical line drawing of a metal grate or rack structure with slats and mounting brackets (no text or symbols)

VAROITUS

Technical line drawing of a metal rack with a curved top panel and an arrow indicating direction (no text or symbols)

Line drawing of a refrigerator interior with a door and drawer, showing a scroll inside (no text or symbols)

Vedenkerääjä

Technical line drawing of a mechanical component with internal channels and a downward arrow indicating direction (no text or symbols)

5. PUHDISTUS JA HUOLTO

5.1 PUHDISTUS

Line drawing of a hand cleaning a car window with a tire (no text or symbols)

Pure technical line drawing of a mechanical assembly with no text or symbols

Technical line drawing of a mechanical assembly with labeled component 'a' (no text or symbols beyond label)

Technical line drawing of a mechanical component with an upward arrow indicating motion (no text or symbols)

5.2 HUOLTO

for å unngå overoppheting.

1.3 UNDER BRUK

Pure technical diagram of a mechanical assembly with no text, numbers, or symbols

2.3 ELEKTRISK TILKOBLING OG SIKKERHET

Abstract white line drawing on dark background, resembling a stylized flower or droplet (no text or symbols)

Pure electrical circuit symbol for a three-phase motor (no text or labels)

Turbofunksjon:

Solid dark square with a horizontal white line at the bottom (no text or symbols)

Undervarmefunksjon:

Solid black square with two thin white horizontal lines on top and bottom (no text or symbols)

Statisk stekefunksjon:

Abstract geometric symbol with a three-blade propeller inside a dark square frame (no text or symbols)

Pure electrical circuit lines without any symbols

Pizza-funksjon:

Simple line icon of a garment front with a wavy garment pattern on the front (no text or symbols)

Simple line icon of a roof with a propeller and wavy roofline (no text or symbols)

Abstract geometric symbol with a three-blade propeller inside a square frame (no text or symbols)

Close-up of a kitchen oven control panel with a rotary dial and handle (no visible text or symbols)

Close-up of a hand pressing a black circular button on a black appliance (no visible text or symbols)

Close-up of a hand holding a black rotary dial with a white knob, against a dark background (no visible text or symbols)

Hand pouring liquid into a glass container on a black appliance (no text or symbols visible)

Hand pointing at a kitchen control panel with a dial and rotary knob (no visible text or symbols)

Technical line drawing of a square frame with circular cutouts and mounting holes (no text or symbols)

Flatt brett

Technical line drawing of a square frame with bolt holes and internal ribs (no text or symbols)

Risten

Technical line drawing of a metal grate plate with slats and mounting brackets (no text or symbols)

ADVARSEL

Technical line drawing of a metal grate with a curved panel and directional arrow (no text or symbols)

Ovnsdør med «myk» lukking

Line drawing of a refrigerator interior with a door and window, showing a person inside the refrigerator (no text or symbols)

Vannoppsamler

Technical line drawing of a door frame structure with an arrow indicating direction (no text or symbols)

5. RENGJ∅RING OG VEDLIKEHOLD

5.1 RENGJ∅RING

Line drawing of a hand cleaning a car window with a circular object on the wall (no text or symbols)

Rengjøre glassdeler

Technical line drawing of a mechanical assembly with an arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical assembly with labeled component 'a' (no text or symbols beyond label)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Fjerne risten

Pure mechanical diagram showing a suspended component with arrows indicating direction (no text or symbols)

2.3 ELEKTRISK ANSLUTNING OCH SÄKERHET

Abstract white line drawing of a stylized flower or droplet on a dark background (no text or symbols)

Upptiningsfunktion:

Abstract geometric symbol with a circular element resembling a three-blade propeller or fan, set against a dark square background (no text or symbols)

Turbofunktion:

Solid dark gray square with a thin white horizontal line at the bottom (no text or symbols)

Solid black square with two thin white horizontal lines on a dark gray background (no text or symbols)

Abstract geometric symbol with a three-blade propeller inside a dark square (no text or symbols)

Simple icon of a dark rectangle with a white wavy line above it, no text or symbols present.

Simple icon of a propeller inside a container with wavy lines above (no text or symbols)

Abstract geometric symbol with three curved lines inside a square frame (no text or symbols)

Close-up of a kitchen appliance's door and control knob (no visible text or symbols)

Close-up of a hand pressing a black circular button on a black appliance (no visible text or symbols)

Close-up of a hand holding a black industrial kitchen fan dial with control knob (no visible text or symbols)

Hand pouring liquid into a glass bottle on a black stove burner (no text or symbols visible)

Hand pressing a black kitchen control knob with a hand gesture (no visible text or symbols)

Technical line drawing of a square frame with bolt holes and a central circular hole (no text or symbols)

Den grunda formen

Technical line drawing of a square frame with bolt holes and central hole (no text or symbols)

Trådgallret

Technical line drawing of a metal grate plate with slats and mounting brackets (no text or symbols)

WARNING

Technical line drawing of a metal rack with a curved panel and directional arrow (no text or symbols)

Line drawing of a door with a scroll inside, showing a curved arrow indicating rotation (no text or symbols)

Vattenuppsamlaren

Technical line drawing of a mechanical component with internal channels and a downward arrow indicating direction (no text or symbols)

5. RENGÖRING OCH UNDERHÅLL

5.1 RENGÖRING

Line drawing of a hand cleaning a car window with a circular object on the wall (no text or symbols)

Rengöring av glasdelarna

Technical line drawing of a mechanical assembly with a curved arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Illustration of a hand pressing down on a grid-like structure with an arrow indicating direction (no text or symbols)

5.2 UNDERHÅLL

8.1 FÖR İNBYGGNADSUGNAR
