| Product Type | Switch Mode Power Supply for mixing consoles |
| Brand | Allen & Heath |
| Model | MPS-12 |
| Dimensions (with front panel) | 483 mm x 88 mm (19 inch, 2U) |
| Dimensions (chassis only) | 218 mm x 55 mm |
| Height (including feet) | 59 mm |
| Depth | 147 mm |
| Weight | 1.6 kg (3.5 lbs) |
| AC Input Voltage | 100 – 240 V AC (auto-sensing) |
| AC Input Frequency | 50/60 Hz |
| Max Power Consumption | 90 W |
| Mains Fuse | T 1.6A L 250V 20mm (Allen & Heath part AL0466) |
| DC Output Cable Length | 2.9 m (captive) |
| Cooling | Thermally controlled fan |
| Mounting Options | Free-standing or 19" rack mount (2U) with included front panel |
| Compatible Consoles | Allen & Heath consoles with EXTERNAL DC IN socket (specified by manufacturer) |
| Safety Standards | Compliant with EMC directives 89/336/EEC & 92/31/EEC, Low Voltage directives 73/23/EEC & 93/68/EEC |
| Warranty | Limited one year from date of purchase |
| Country of Manufacture | United Kingdom |
| Cleaning Instructions | Keep fan and ventilation slots free of dust using vacuum cleaner and dry lint-free cloth |
Frequently Asked Questions - MPS-12 ALLEN & HEATH
User questions about MPS-12 ALLEN & HEATH
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Blender in PDF format for free! Find your manual MPS-12 - ALLEN & HEATH and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. MPS-12 by ALLEN & HEATH.
USER MANUAL MPS-12 ALLEN & HEATH
Console Power Supply
USER GUIDE
Limited One Year Warranty
This product has been manufactured in the UK by ALLEN & HEATH and is warranted to be free from defects in materials or workmanship for a period of one year from the date of purchase by the original owner.
To ensure a high level of performance and reliability for which this equipment has been designed and manufactured, read this User Guide before operating.
In the event of a failure, notify and return the defective unit to ALLEN & HEATH or its authorised agent as soon as possible for repair under warranty subject to the following conditions:
Conditions Of Warranty
- The equipment has been installed and operated in accordance with the instructions in this User Guide
- The equipment has not been subject to misuse either intended or accidental, neglect, or alteration other than as described in the User Guide or Service Manual, or approved by ALLEN & HEATH.
- Any necessary adjustment, alteration or repair has been carried out by ALLEN & HEATH or its authorised agent.
- The defective unit is to be returned carriage prepaid to ALLEN & HEATH or its authorised agent with proof of purchase.
- Units returned should be packed to avoid transit damage.
In certain territories the terms may vary. Check with your ALLEN & HEATH agent for any additional warranty, which may apply.
This product complies with the European Electromagnetic Compatibility directives 89/336/EEC & 92/31/EEC and the European Low Voltage Directives 73/23/EEC & 93/68/EEC.
Any changes or modifications to the power supply unit not approved by Allen & Heath could void the compliance of the product and therefore the user's authority to operate it.
MPS12 User Guide AP5739 Issue 1.
Copyright © 2004 Allen & Heath. All rights reserved
ALLEN&HEATH
Manufactured in the United Kingdom by Allen & Heath Limited
Kernick Industrial Estate, Penryn, Cornwall, TR10 9LU, UK
http://www.allen-heath.com
Important Safety Instructions
WARNINGS - Read the following before proceeding:
ATTENTION: RISQUE DE CHOC ELECTRIQUE – NE PAS OUVRIR
Read instructions:
Retain these safety and operating instructions for future reference. Adhere to all warnings printed here and on the power supply unit. Follow the operating instructions printed in this User Guide.
Do not remove covers:
Operate the power supply unit with its covers correctly fitted. Refer any service work on the power supply unit to competent technical personnel only.
Power sources:
Connect the power supply unit to a mains power supply only of the type described in this User Guide and marked on the rear panel. Use only the power cord with sealed mains plug appropriate for your local mains supply as provided with the power supply unit. If the provided plug does not fit into your outlet consult your service agent for assistance.
Power cord routing:
Route the power cord so that it is not likely to be walked on, stretched or pinched by items placed upon or against it.
Grounding:
Do not defeat the grounding and polarisation means of the power cord plug. Do not remove or tamper with the ground connection in the power cord.
WARNING: This equipment must be earthed.
Water and moisture:
To reduce the risk of fire or electric shock do not expose the power supply unit to rain or moisture or use it in damp or wet conditions. Do not place containers of liquid on it which might spill into any openings.
Ventilation:
Do not obstruct the ventilation slots or position the power supply unit where the air flow required for ventilation is impeded. If the power supply unit is to be operated in a flightcase, ensure that it is constructed to allow adequate ventilation.
Heat and vibration:
Do not locate the power supply unit in a place subject to excessive heat or direct sunlight as this could be a fire hazard. Locate the power supply unit away from any equipment which produces heat or causes excessive vibration.
Servicing:
Switch off the equipment and unplug the power cord immediately if it is exposed to moisture, spilled liquid, objects fallen into the openings, the power cord or plug become damaged, during lightening storms, or if smoke, odour or noise is noticed. Refer servicing to qualified technical personnel only.
Installation:
Install the power supply unit in accordance with the instructions printed in this User Guide. Do not connect the output of power supply unit to any other equipment other than that specified by Allen & Heath.
Important Mains plug wiring instructions.
The power supply unit is supplied with a moulded mains plug fitted to the AC mains power lead. Follow the instructions below if the mains plug has to be replaced.
The wires in the mains lead are coloured in accordance with the following code:
| TERMINAL | WIRE COLOUR | |||
| European | USA/Canada | |||
| L LIVE | BROWN | BLACK | ||
| N NEUTRAL | BLUE | WHITE | ||
| E EARTH GND GREEN & YELLOW GREEN | ||||
The wire which is coloured Green and Yellow must be connected to the terminal in the plug which is marked with the letter E or with the Earth symbol. This appliance must be earthed.
The wire which is coloured Blue must be connected to the terminal in the plug which is marked with the letter N.
The wire which is coloured Brown must be connected to the terminal in the plug which is marked with the letter L.
Ensure that these colour codes are followed carefully in the event of the plug being changed.
Precautions
Damage:
To prevent damage to the power supply unit cosmetics, avoid placing heavy objects on the unit, scratching the surface with sharp objects, or subjecting the power supply unit to rough handling and vibration.
Environment:
Protect from excessive dirt, dust, heat and vibration when operating and storing. Avoid tobacco ash, smoke, drinks spillage, and exposure to rain and moisture. If the power supply unit becomes wet, switch off and remove power immediately. Allow to dry out thoroughly before using again.
Cleaning:
Avoid the use of chemicals, abrasives or solvents. The power supply unit is best cleaned with a soft brush and dry lint-free cloth.
Transporting:
The power supply unit should be transported in the original packing or secured in a purpose built flightcase to protect it from damage during transit.
DC power cable:
Plan the location of the mixing console and power supply unit so that the DC power cable is not fully extended. Full extension of the cable can stress the mixing console and power supply unit connectors and may result in undesired performance. Ensure that the power cable is located such that it cannot be stood on or tripped over.
This user guide presents a quick reference to the MPS12. We recommend that you read this fully before starting. Included is information on installing, connecting and operating the power supply unit along with panel drawings and technical specification. Whilst we believe the information in this guide to be reliable we do not assume responsibility for inaccuracies. We also reserve the right to make changes in the interest of further product development.
We are able to offer further product support through our worldwide network of approved dealers and service agents. You can also access our Web site (www.allen-heath.com) for information on our company and its pedigree, our full product range and our design philosophy. To help us provide the most efficient service please keep a record of your power supply unit serial number, and date and place of purchase to be quoted in any communication regarding this product. The serial number is located on the rear panel.

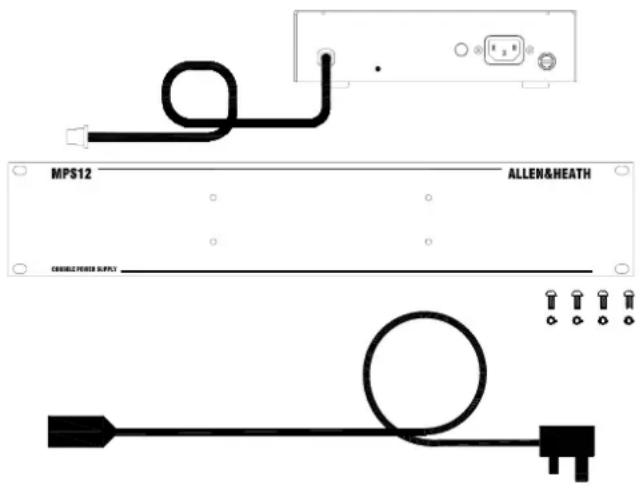

Check the Packing Contents
Retain the product packing should you need to ship the product in future. You should find the following components:
1x MPS12 POWER SUPPLY UNIT with captive DC power lead.
1x 19" FRONT PANEL. Fixes to the MPS12 for 19" rack mounting. This is supplied ready-fitted, but can be easily removed if the unit is to be used free-standing.
4x M4x8 POZI SCREWS, with 4x SHAKEPROOF WASHERS. Fix the 19" front panel to the MPS12 for 19" rack mounting.
1x IEC MAINS LEAD with moulded plug. Check that the plug is suitable for connection to your local mains supply.
DOCUMENTATION including Safety Sheet AP3345, this user guide AP5739 and the Registration Card AP3594.
The MPS12
The slimline MPS12 power supply unit uses switch mode technology to generate the DC voltages required by the console. It will operate from a wide range of AC mains input voltages with no change of setting required. Full protection and thermally controlled fan cooling ensures the power unit will operate consistently.
Free standing
The MPS12 can be operated as a free standing unit for shelf or floor operation. Ensure adequate air flow around the unit. It must not be covered in any way. Always stand the unit on a firm flat surface well away from any soft furnishings or carpet.
Rack mounting
The MPS12 can be mounted in a standard 19 inch rack using the optional front panel (supplied), and will occupy 2U (3.5 inches) of rack space.
An important consideration when rack-mounting the unit is the need for natural convection of airflow around the unit. Good ventilation below the unit, in the floor or back of the rack, will ensure a continuous path for airflow.
Rack equipment known to produce a significant amount of heat should not be mounted directly below the power supply unit. Equipment which also relies on good airflow within the rack (i.e. most power amplifiers and other power supply units) should be given due consideration and some space should be provided between such units and the MPS12. Forced convection, by means of a fan-tray, may be desirable in some situations.
Location
As with any power supply unit, it is preferable to provide a degree of physical isolation of the unit from other equipment, particularly that which carries low level audio signals, to avoid any possible interference pick-up. For this reason the MPS12 power supply unit is provided with a long (2.9m) DC output cable to enable it to be positioned away from the mixing console. For the same reason, when rack-mounting it is preferable to avoid locating the unit next to signal processing equipment.
Grounding
Consideration must be given to the Grounding arrangement of the system, at the centre of which is the console and the MPS12. The console chassis is connected to the mains earth via the power supply unit. The MPS12 has audio 0V and mains earth connected internally. For safety it is important that all equipment grounds are connected to mains ground so that exposed metal parts are prevented from carrying high voltage which can injure or even kill the operator. Do not disconnect the ground connection in the mains lead. It is recommended that the system engineer check the continuity of the safety ground from all points in the system including microphone bodies, cable shields, equipment cases, rack metalwork and so on. If audible hum or buzz is present in the system due to a "ground loop", consult the console user guide for possible solutions.

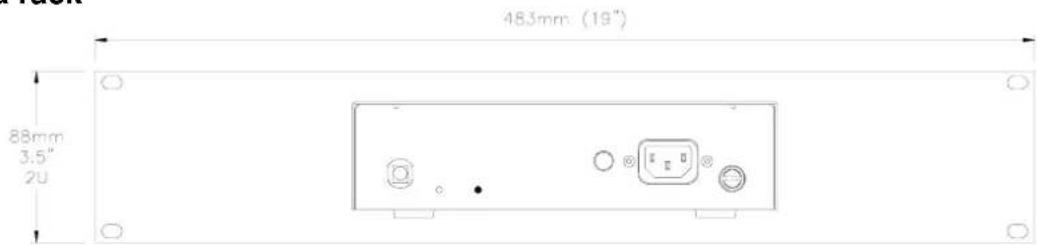

Fitting in a rack
The MPS12 is supplied ready for rack mounting. For free standing use, remove the 19" front panel, which is secured by four M4x8 Pozi screws and shakeproof washers.
Do not obstruct the ventilation slots. Ensure adequate air around the MPS12.
Do not install the unit directly above or below other ment.
Do not remove the cover of the MPS12. There are no user ceable parts inside.
Read the SAFETY INSTRUCTIONS printed in the front of this user guide and on the rear panel. The MPS12 is a high performance switch mode power supply with universal mains input. It will operate from an AC mains supply voltage from 100V to 240V.
The power supply unit is provided with an IEC type mains connector and moulded mains |
Check that this is correct for connection to your wall socket outlet.
Switch the unit on by pressing the rear panel ON switch. The green ON led should light.
To avoid audible thumps and bangs through the speakers, always turn the console on before
switching on the amplifier system, and turn the amplifiers off before switching off the console power supply unit.
Always switch the power supply unit off before connecting or disconnecting the console power cables, removing or installing console modules and any servicing work. In the event of an electrical storm, or large mains voltage fluctuations, immediately switch off the power supply unit and disconnect from the mains supply.
Avoid fully extending the DC cable when plugging in as this may stress the cable and connectors
resulting in failure. Ensure that walkways, aisles and gangways are not obstructed by cables. To ensure correct performance we recommend that you do not extend or modify the DC power cable in any way.

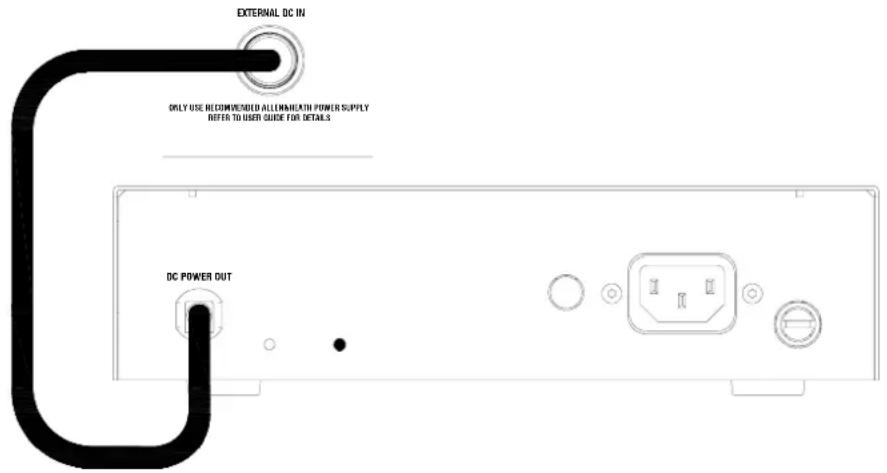

Connecting the MPS12
The MPS12 may be used to power Allen & Heath consoles fitted with a compatible EXTERNAL DC IN socket. Connect the MPS12 DC POWER OUT cable to the EXTERNAL DC IN socket of the mixing console as shown below.
The MPS12 should only be connected to consoles specified to work with the MPS12 by Allen &
Heath. If in any doubt over its suitability for use with a particular console, please contact Allen & Heath technical support.
Using the MPS12 as a Backup Power Supply
The MPS12 is suitable for use as a redundant backup supply, in addition to a console's primary power source. Some smaller Allen & Heath consoles feature an MPS12 compatible EXTERNAL DC IN connector in addition to the built in mains power supply. These consoles have combiner circuitry to enable both supplies to run at the same time. In the event of a problem with one of the supplies, the other will take over seamlessly, without affecting the console's performance.
The MPS12 should only be connected as a backup supply to consoles specified to work with the
MPS12 by Allen & Heath. If in any doubt over its suitability for use with a particular console, please contact Allen & Heath technical support.
The MPS12 does not use any internal filters. Air is drawn through the fan grille on the side of the chassis, blown through a heatsink tunnel and out through ventilation slots in the other side of the chassis. It is not necessary to open the unit for cleaning. Simply keep the fan and ventilation slots free of dust and dirt using a vacuum cleaner and dry, lint free cloth. Do not use liquid cleaners or compressed air to clean the unit.
Always switch the unit off before inspecting or cleaning it.

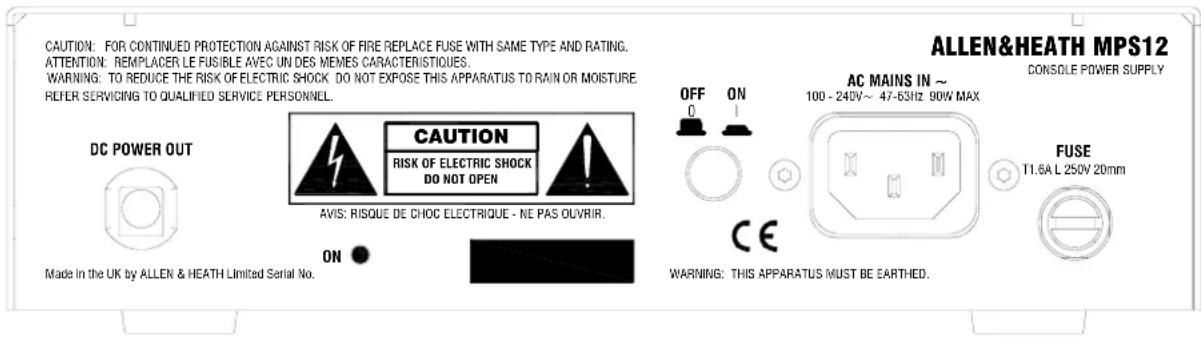

Replacing the mains fuse
The AC mains fuse is located on the rear of the MPS12 unit next to the AC mains connector. In the event of a mains surge or under-rated fuse value, the fuse will rupture. Switch off the power supply and remove the mains lead plug from the "AC MAINS IN\~" socket on the rear of the unit. Check the fuse and replace if necessary. In the event of repeated failure of the mains fuse, consult your Allen & Heath service agent.
In the unlikely event of an internal DC rail fuse failure, consult your Allen & Heath service agent or Allen & Heath technical support.
TO AVOID THE RISK OF FIRE REPLACE FUSE WITH THE CORRECT TYPE ONLY, AS INDICATED THE UNIT.
| AC~ mains input voltage Fuse type | |
| 100V - 240V ± 10% T 1.6A | L 250V 20mm |
Technical specification
Internal universal input switch mode power unit.
MAINS IN socket IEC 3 pin
Power lead Country dependent with moulded mains plug supplied
AC mains 100 to 240V AC @ 50/60Hz auto sensing
Consumption
90W
max
Mains fuse rating 100-240V AC T 1.6A L 250V 20mm (A&H part number: AL0466)
Overall Dimensions:
19" Front Panel: 483mm x 88mm 19 inch 2U
Chassis 218mm x 55mm 8.6 inches
Height including feet: 59mm 2.3 inches
Depth: 147mm 5.8 inches
Weight: 1.6kg 3.5 lbs
Mains Leads:
| Territory Voltage | A&H Part no: | |
| USA | 100-120V | AH0323 |
| Europe | 220-230V | AH0205 |
| UK | 240V | AH0206 |
