Product Type	Hi-Fi System
Brand	Philips
Model	MZ3C
Output Power	2 x 15 W RMS / 250 W PMPO
Digital Output	0.5 V, 75 Ω
Line Output	0.5 V, 1000 Ω
Signal-to-Noise Ratio (Amplifier)	65 dBA (IEC)
FM Tuner	87.5 - 108 MHz, sensitivity 2.8 µV (mono)
AM Tuner	530 - 1700 kHz
CD Player	Audio CD, CD-R, CD-RW; range 20 - 20,000 Hz
Signal-to-Noise Ratio (CD)	75 dBA
Speakers	2-way bass reflex system, 8 Ω
Dimensions (unit)	164 x 158 x 254 mm
Dimensions (speakers)	164 x 158 x 239 mm
Weight (with speakers)	Approx. 7.5 kg
Weight (without speakers)	Approx. 3.0 kg
Standby power consumption	< 7 W
Power supply	Mains (voltage according to country)
Included accessories	2 speakers, remote control with batteries, AM antenna, FM antenna
Main functions	CD player, FM/AM radio, clock, timer, sleep, programming, sound control (DBB, DSC, Incredible Surround)
Inputs/Outputs	AUX IN, LINE OUT, DIGITAL OUT, 3.5 mm headphone jack
Care and cleaning	Soft cloth slightly damp; avoid alcohol, ammonia, benzene
Safety	Do not expose to rain or moisture; do not open the cabinet
Warranty	1 year labor and parts (subject to conditions)

Frequently Asked Questions - MZ3C PHILIPS

How to set the clock on the Philips MZ3C system?

In standby mode, press the CLOCK button. Turn the VOLUME knob to set the hours, then press CLOCK again to set the minutes. Confirm with CLOCK.

How to program the timer (alarm)?

In standby mode, press and hold the PROGRAM button for 2 seconds. Select the source (CD/TUNER) with VOLUME, confirm with PROGRAM, then set the start time. Activate or deactivate the timer with the TIMER button.

What to do if the remote control does not work?

Check that the batteries are inserted correctly and not worn out. Replace them if necessary. Ensure you are within a range of 7 meters and without obstacles between the remote and the device.

Why is the CD not playing?

Check that the CD is inserted with the label facing up. If the message NO DISC or DISC NOT READABLE appears, clean the CD with a soft cloth from the center to the edge. CD-RWs must be finalized.

How to improve FM radio reception?

Unfold and orient the supplied FM antenna wire for best reception. Keep the device away from interference sources such as TVs or computers.

What is the output power of the amplifier?

The output power is 2 x 15 W RMS and 250 W PMPO. The speakers have an impedance of 8 Ω.

Can I connect another device to the system?

Yes, use the AUX IN (RCA) terminals on the back to connect an external player. Select the AUX source using the remote control or the SOURCE button.

How to use the shuffle play mode?

Press the SHUFFLE button on the remote control before or during playback. The CD tracks will be played in random order. To disable, press again until the indication disappears.

What to do if there is no sound?

Check that the volume is not at minimum, that the MUTE function is not activated, and that headphones are not plugged in. Ensure the speakers are properly connected.

How to clean the device?

Use a soft cloth slightly damp. Never use products containing alcohol, ammonia, benzene, or abrasives. For the CD player, use a commercial cleaning CD.

USER MANUAL MZ3C PHILIPS

Return your Warranty Registration card today to ensure you receive all the benefits you're entitled to.

• Once your Philips purchase is registered, you're eligible to receive all the privileges of owning a Philips product.

• So complete and return the Warranty Registration Card enclosed with your purchase at once. And take advantage of these important benefits.

WarrantyVerification

Registering your product within 10 days confirms your right to maximum protection under the terms and conditions of your Philips warranty.

Owner Confirmation

Your completed Warranty Registration Card serves as verification of ownership in the event of product theft or loss.

Model Registration

Returning your Warranty Registration Card right away guarantees you'll receive all the information and special offers which you qualify for as the owner of your model.

Know these

safety symbols

For Customer Use

Enter below the Serial No. which is located on the bottom of the cabinet. Retain this information for future reference.

Model No.

Serial No.

This "bolt of lightning" indicates uninsulated material within your unit may cause an electrical shock. For the safety of everyone in your household, please do not remove product covering.

The "exclamation point" calls attention to features for which you should read the enclosed literature closely to prevent operating and maintenance problems.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD,DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.

CAUTION: To prevent electric shock, match wide blade of plug to wide slot, and fully insert.

①②③④⑤

IMPORTANT SAFETY INSTRUCTIONS

This product was designed and manufactured to meet strict quality and safety standards. There are, however, some installation and operation precautions which you should be particularly aware of.

1. Read these instructions - All the safety and operating instructions should be read before the appliance is operated.
2. Keep these instructions - The safety and operating instructions should be retained for future reference.
3. Heed all warnings - All warnings on the appliance and in the operating instructions should be adhered to.
4. Follow all instructions - All operating and use instructions should be followed.
5. Do not use this apparatus near water - for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement or near a swimming pool, etc.

6. Clean only with a damp cloth. The appliance should be cleaned only as recommended by the manufacturer.

7. Install in accordance with the manufacturers instructions. Do not block any of the ventilation openings. For example, the appliance should not be situated on a bed, sofa, rug, or similar surface or placed in a built-in installation, such as a bookcase or cabinet that may impede the flow of air through the ventilation openings.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has

two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

AC Polarized Plug

1. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

2. Only use attachments/accessories specified by the manufacturer.

3. Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

4. Unplug this apparatus during lightning storms or when unused for long periods of time.

5. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

The set complies with the FCC-Rules, Part 15 and with 21 CFR 1040.10. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.

Controls and connections. 8Clock 11
General information 9 Timer 11
Power supply. CD player 12
Connections 10 Digitaltuner 14
Basic functions 10 Troubleshooting 15
Technical data. 16

Francais 17

This digital apparatus does not exceed the Class B limits for noise emissions from digital apparatus as set out in the Radio Interference Regulations of the Canadian Department of Communications.

Français:

Congratulations on your purchase, and welcome to the "family!"

Dear Philips product owner:

Thank you for your confidence in Philips. You've selected one of the best-built, best-backed products available today. And we'll do everything in our power to keep you happy with your purchase for many years to come.

As a member of the Philips "family," you're entitled to protection by one of the most comprehensive warranties and outstanding service networks in the industry.

What's more, your purchase guarantees you'll receive all the information and special offers for which you qualify, plus easy access to accessories from our convenient home shopping network.

And most importantly you can count on our uncompromising commitment to your total satisfaction.

All of this is our way of saying welcome—and thanks for investing in a Philips product.

Sincerely,

Robert Minkhorst
President and Chief Executive Officer

P.S. Remember, to get the most from your Philips product, you must return your Warranty Registration Card within 10 days. So please mail it to us right now!

LIMITED WARRANTY

AUDIO SYSTEM

One Year Free Labor

One Year Free Service on Parts

This product must be carried in for repair.

WHO IS COVERED?

You must have proof of purchase to receive warranty service. A sales receipt or other document showing that you purchased the product is considered proof of purchase.

WHAT IS COVERED?

Warranty coverage begins the day you buy your product. For one year thereafter, all parts will be repaired or replaced, and labor is free. After one year from the day of purchase, you pay for the replacement or repair of all parts, and for all labor charges.

All parts, including repaired and replaced parts, are covered only for the original warranty period. When the warranty on the product expires, the warranty on all replaced and repaired parts also expires.

WHAT IS EXCUSED?

Your warranty does not cover:

• labor charges for installation or setup of the product, adjustment of customer controls on the product, and installation or repair of antenna systems outside of the product.
• product repair and/or part replacement because of misuse, accident, unauthorized repair or other cause not within the control of Philips Consumer Electronics Company.
• reception problems caused by signal conditions or cable or antenna systems outside the unit.
• a product that requires modification or adaptation to enable it to operate in any country other than the country for which it was designed, manufactured, approved and/or authorized, or repair of products damaged by these modifications.
• incidental or consequential damages resulting from the product. (Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion may not apply to you. This includes, but is not limited to, prerecorded material, whether copyrighted or not copyrighted.)
• a product that is used for commercial or institutional purposes.

WHERE IS SERVICE AVAILABLE?

Warranty service is available in all countries where the product is officially distributed by Philips Consumer Electronics Company. In countries where Philips Consumer Electronics Company does not distribute the product, the local Philips service organization will attempt to provide service (although there may be a delay if the appropriate spare parts and technical manual(s) are not readily available).

MAKE SURE YOU KEEP...

Please keep your sales receipt or other document showing proof of purchase. Attach it to this owner's manual and keep both nearby. Also keep the original box and packing material in case you need to return your product.

BEFORE REQUESTING SERVICE...

Please check your owner's manual before requesting service. Adjustments of the controls discussed there may save you a service call.

TO GET WARRANTY SERVICE IN U.S.A., PUERTO RICO OR U.S. VIRGIN ISLANDS...

Take the product to a Philips factory service center (see enclosed list) or authorized service center for repair. When the product has been repaired, you must pick up the unit at the center. Centers may keep defective parts. (In U.S.A., Puerto Rico and U.S.Virgin Islands, all implied warranties, including implied warranties of merchantability and fitness for a particular purpose, are limited in duration to the duration of this express warranty. But, because some states do not allow limitations on how long an implied warranty may last, this limitation may not apply to you.)

TO GET WARRANTY SERVICE IN CANADA...

Please contact Philips at:

1-800-661-6162 (French Speaking)

1-800-363-7278 (English Speaking)

(In Canada, this warranty is given in lieu of all other warranties. No other warranties are expressed or implied, including any implied warranties of merchantability or fitness for a particular purpose. Philips is not liable under any circumstances for any direct, indirect, special, incidental or consequential damages, howsoever incurred, even if notified of the possibility of such damages.)

REMEMBER...

Please record the model and serial numbers found on the product below. Also, please fill out and mail your warranty registration card promptly. It will be easier for us to notify you if necessary.

MODEL#

SERIAL#

Philips Service Solutions Group, P.O. Box 2976, Longview, Texas 75606, [phone]

This warranty gives you specific legal rights. You may have other rights which vary from state/province to state/province.

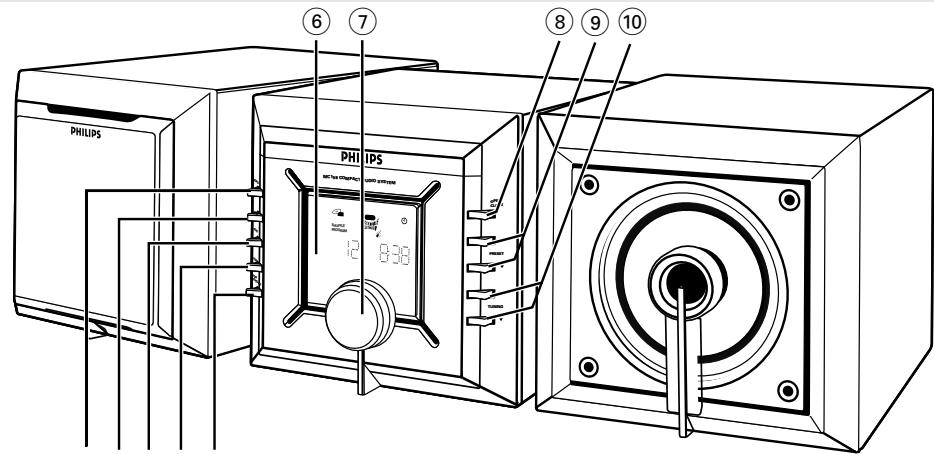

Top and front panels

① STANDBY/ON . switches the set to standby/on
(2) SOURCE. selects the sound source for CD/TUNER /CD RW /AUX; switches on the set

Tuner: selects waveband

③ PROGRAM

CD: programs tracks and reviews the program;

Tuner: programs tuner stations manually or automatically;

Timer: activates, sets and deactivates the timer function

④ CLOCK......sets the clock function

CD: selects shuffle and repeat options, e.g. repeats a track/ CD program/ entire CD; plays tracks in random order

⑤ SOUND CONTROL

DBB. (Dynamic Bass Boost) enhances the bass

DSC (Digital Sound Control) selects sound characteristics: OPTIMAL/CLASSIC/JAZZ/POP

INCRIDIBLE

SURROUND . . . . creates a super-enhanced stereo effect

⑥ Display. . . . . . shows the status of the set
⑦ VOLUME . adjusts the volume level and sound settings; adjusts the hour and minutes for the clock/ timer functions
⑧ OPEN/CLOSE . . . opens/ closes the CD tray
(9) ▶or PRESET ▲ starts and pauses CD playback; selects a preset timer station (up); or PRESET ▼. stops CD playback or erase a CD program; activates/ deactivates demo mode

selects a preset tuner station (down);

10 ▲I, or TUNING ▲,

CD: fast searches back and forward within a track; skips to subsequent/ beginning of a current track or previous track

Tuner: (up, down) tunes to radio stations

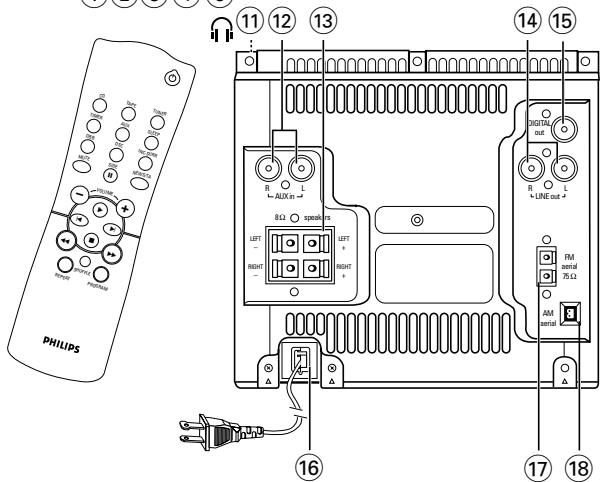

Back panel

11 3.5 mm (16-150 Ω) stereo headphone jack
12 AUX IN RIGHT/LEFT . . . connects to the audio output of an additional appliance
⑬ SPEAKERS 8Ω . . connects to the supplied speakers
14 LINE OUT LEFT/RIGHT . . . connects to the audio input of an additional appliance

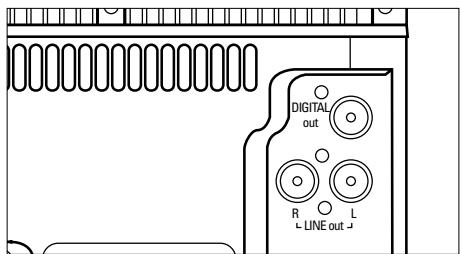

⑤ DIGITAL OUT . . . connects to a CD-(RW) system for digital CD recording, or another system for alternative sound output
16 AC MAINS.... after all other connections have been made, connect the power cord to the wall outlet.
⑰ FM AERIAL 75 Ω . connects to the supplied antenna wire or an antenna wall connection
⑱ AM AERIAL . . . . connects to the supplied AM frame antenna

Remote control

念 switches the set to standby
CD,TUNER,AUX,CDR selects the respective sound source
TIMER activates and deactivates the timer
SLEEP activates and deactivates the sleeper time; selects sleeper time

DBB. (Dynamic Bass Boost) enhances the bass

DSC (Digital Sound Control) selects sound characteristics: OPTIMAL/CLASSIC/JAZZ/POP

INCR.SURR creates a super-enhanced stereo effect

MUTE interrupts and resumes sound reproduction

BAND selects waveband

NEWS/TA not available on this version

VOLUME -, + .adjusts volume level

.starts/ pauses CD playback

A,

CD: skips to the beginning of a current track/ previous/ subsequent track;

Tuner: (down, up) selects a preset radio station

stops CD playback or erases a CD program

A

CD: searches backwards or forwards within a track/CD;

Tuner. (down, up) tunes to radio stations;

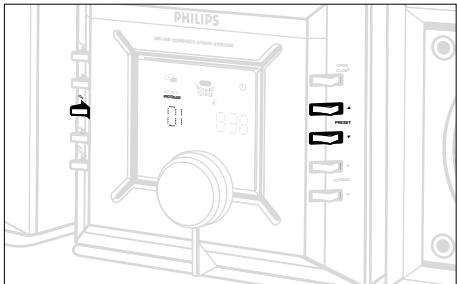

REPEAT repeats a track/ CD program/ entire CD

SHUFFLE . plays CD tracks in random order PROGRAM

CD: programs tracks and reviews the program;

Tuner: programs radio stations or starts Auto programming.

Notes:

• select the desired sound source first (e.g. CD, CD R), then press the required function key (e.g. ).
• the CD function keys on the remote control can be used for a CD R.

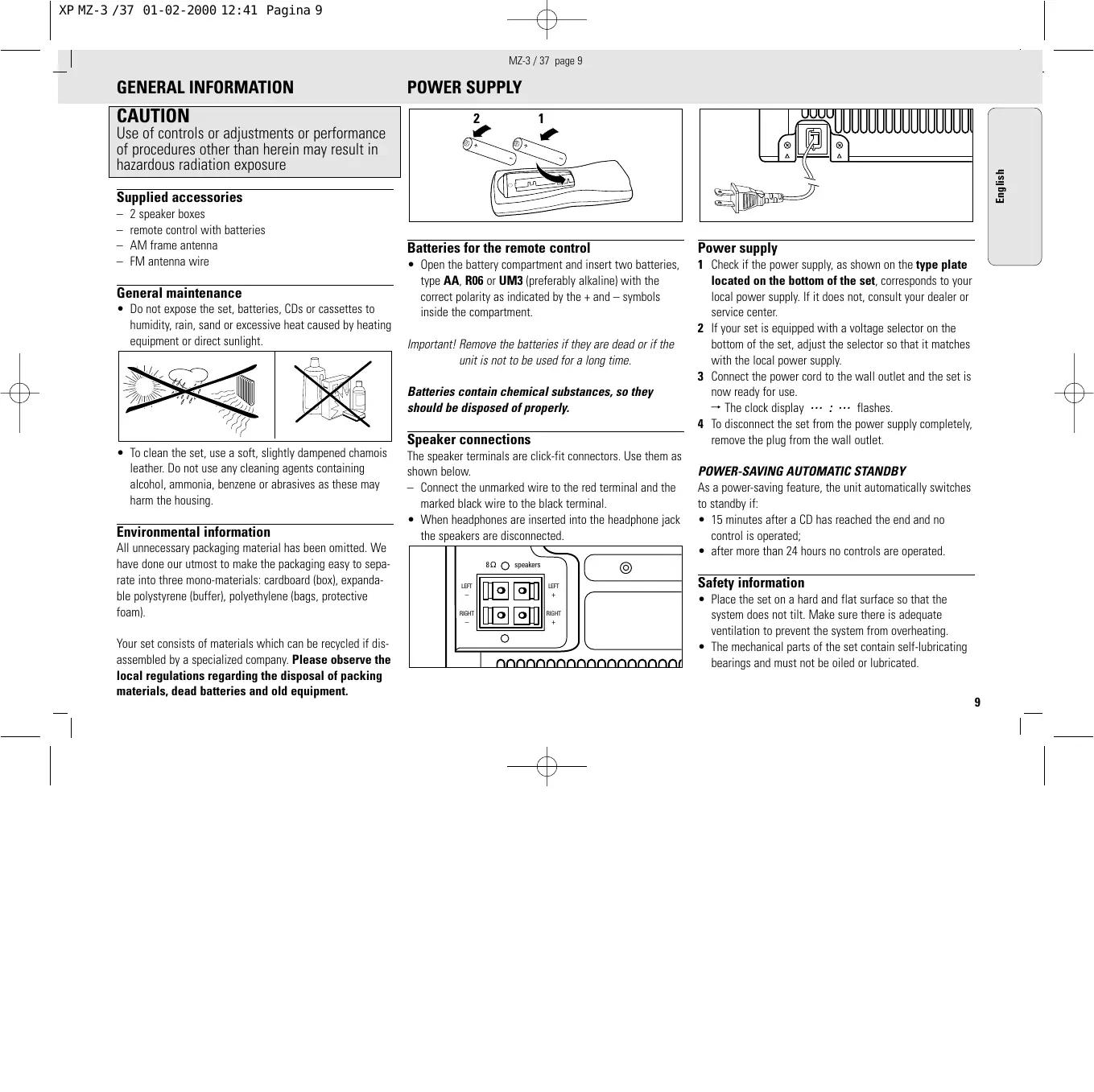

GENERAL INFORMATION

CAUTION

Use of controls or adjustments or performance of procedures other than herein may result in hazardous radiation exposure

Supplied accessories

• 2 speaker boxes
  remote control with batteries
• AM frame antenna
  FM antenna wire

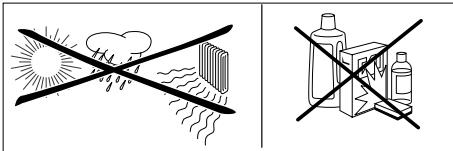

General maintenance

• Do not expose the set, batteries, CDs or cassettes to humidity, rain, sand or excessive heat caused by heating equipment or direct sunlight.

• To clean the set, use a soft, slightly dampened chamois leather. Do not use any cleaning agents containing alcohol, ammonia, benzene or abrasives as these may harm the housing.

Environmental information

All unnecessary packaging material has been omitted. We have done our utmost to make the packaging easy to separate into three mono-materials: cardboard (box), expandable polystyrene (buffer), polyethylene (bags, protective foam).

Your set consists of materials which can be recycled if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packing materials, dead batteries and old equipment.

POWER SUPPLY

Batteries for the remote control

• Open the battery compartment and insert two batteries, type AA, R06 or UM3 (preferably alkaline) with the correct polarity as indicated by the + and - symbols inside the compartment.

Important! Remove the batteries if they are dead or if the unit is not to be used for a long time.

Batteries contain chemical substances, so they should be disposed of properly.

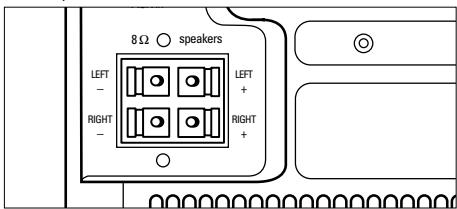

Speaker connections

The speaker terminals are click-fit connectors. Use them as shown below.

• Connect the unmarked wire to the red terminal and the marked black wire to the black terminal.
• When headphones are inserted into the headphone jack the speakers are disconnected.

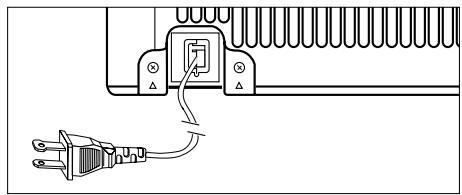

Power supply

1 Check if the power supply, as shown on the type plate located on the bottom of the set, corresponds to your local power supply. If it does not, consult your dealer or service center.
2 If your set is equipped with a voltage selector on the bottom of the set, adjust the selector so that it matches with the local power supply.
3 Connect the power cord to the wall outlet and the set is now ready for use. The clock display : : flashes.
4 To disconnect the set from the power supply completely, remove the plug from the wall outlet.

POWER-SAVING AUTOMATIC STANDBY

As a power-saving feature, the unit automatically switches to standby if:

• 15 minutes after a CD has reached the end and no control is operated;
• after more than 24 hours no controls are operated.

Safety information

• Place the set on a hard and flat surface so that the system does not tilt. Make sure there is adequate ventilation to prevent the system from overheating.
• The mechanical parts of the set contain self-lubricating bearings and must not be oilied or lubricated.

CONNECTIONS

AUX IN

You can connect the audio left and right OUT terminals of another sound system, e.g. CDR, tape to the corresponding left and right AUX IN terminals at the rear of the set.

• Use the MZ-3 sound controls to adjust the sound of the other system.
• For playback of a connected CD-R(W), select the CD-R(W) source.

LINE OUT (not for CDR-W)

You can connect the LINE IN terminal of a DAT or tape recorder to the LINE OUT terminal at the rear of the set.

• Adjust the sound with the controls of the other system.
• When recording with a CD-R(W), select the CD source on the MZ-3.

DIGITAL OUT (CD mode only)

You can connect the DIGITAL IN terminal of a CD-R(W) or an external DAC player to the DIGITAL OUT terminal at the rear of the set.

• When recording with a CD-R(W), select the CD source on the MZ-3.
• For playback of a connected CD-R(W), select the CD-R(W) source.

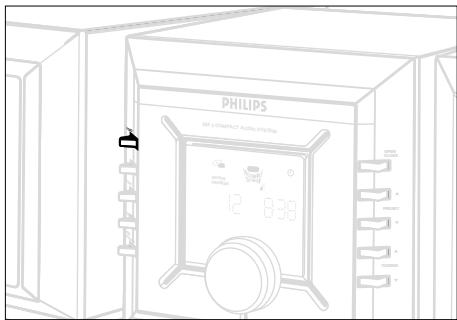

BASIC FUNCTIONS

Switching on

There are 3 ways to switch the set on:

• press STANDBY/ON on the set and the last selected source switches on;
• press SELECT SOURCE on the set and the last selected source switches on;
• press CD, TUNER, CDR or AUX on the remote control.

To switch the set to standby, press STANDBY/ON once on the set (O on the remote control).

• The volume level, interactive sound settings, last selected source and tuner presets will be retained in the set's memory.

Adjusting volume and sound

1 Turn the VOLUME control anti-clockwise to decrease or clockwise to increase volume on the set (or press VOLUME -, + on the remote control).

Display shows the volume level and a number from 0-32.

2 Press DBB, INCR.SURR or DSC on the remote control once or more to select the desired sound effects:

OPTIMAL(no indication)/CLASSIC（）/JAZZ（）/POP（）/OPTIMAL...

Notes:

The effect of INCREDIBLE SURROUND may vary with different types of music.
- You can also select the desired sound effects from the set (See Using the SOUND CONTROL)

3 Press MUTE on the remote control to interrupt sound reproduction instantly.
- Playback will be continued without sound and the display shows NIUTE.

4 To activate sound reproduction you can:

• press MUTE again;
  adjust the volume controls;
• change source.

Using the Sound Control

You can also adjust the sound settings exclusively on the set:

1 Press SOUND CONTROL once or more to select the various options:

• once:

display shows DBB OFF; if DBB is activated, display shows DBB ON and DBB

• twice:

display shows DSC status OPTIMAL.

(display shows JAZZ,POP,or CLASSIC and the respective 已 or 一 _ 一 symbol if selected

• three times:

display shows Incredible Surround (IS) status IS OFF. if IS is activated, display shows IS ON and

2 For each sound setting, turn the VOLUME control in any direction to select ON, OFF or DSC options.

3 Press SOUND CONTROL again to confirm.

• Display shows the next sound setting to the adjusted.

After the IS setting is confirmed, the display shows the volume level OL briefly, before returning to the current playback display.

Demo mode

• In standby, press on the set for more than 5 seconds.

Demo messages scroll continuously across the display.

• Repeat step to deactivate.

→ DEMO OFF scrolls across the display.

CLOCK

Setting the clock

1 In standby, press CLOCK.
The clock digits for the hours and the AM/PM indication flash 0:00.
2 Turn VOLUME to set the hours: clockwise for hours up; anti-clockwise for hours down.
3 Press CLOCK again.
→ The clock digits for the minutes and the AM/PM indication flash 0:00.
4 Turn VOLUME to set the minutes: clockwise for minutes up; anti-clockwise for minutes down.
5 Press CLOCK to confirm the time.

TIMER

Setting TIMER

• The unit can be used as an alarm clock, whereby the set is switched on at a set time. The clock time needs to be set first before the timer can be used.
• During setting, if more than 90 seconds elapses without a button being pressed the unit quits the timer setting mode.

1 Press PROGRAM on the set for 2 seconds or more in standby mode.

Display shows TUNER or CD and flashes
Display shows SET CLOCK TIME if the clock has not been set.

2 Turn VOLUME clockwise.
Display sequence shows CD, TUNER, CD...
3 Press PROGRAM (on the set) to confirm source.
Display shows ON 0:00, the clock digits for the hours and the AM/PM indication flash; 0:00 flash.
4 Turn VOLUME to set the hours: clockwise for hours up; anti-clockwise for hours down.

5 Press TIMER or PROGRAM again.

The clock digits for the minutes flash.

6 Turn VOLUME to set the minutes: clockwise for minutes up; anti-clockwise for minutes down.
7 Press TIMER or PROGRAM to confirm the time.

• The timer is now set and activated.

Activating and deactivating TIMER

Press either:

on the remote control,
TIMER during playback or in standby mode;
on the set,
PROGRAM in standby mode.
Display shows if activated, and disappears if deactivated.

Activating and deactivating SLEEP

The sleep timer enables the unit to switch off by itself after a set period of time. The clock time needs to be set first before the sleep timer can be used.

• During playback to select and activate your desired sleep time, press SLEEP on the remote control once or more.
  Display shows SLEEP and one of the sleep time options in sequence: 60, 45, 30, 15, SLEEP OFF, 60...
• To deactivate, press SLEEP on the remote control once or more until SLEEP OFF is shown, or press to standby on the set or remote control.
  SLEEP disappears from the display.

Playing a CD

This CD player plays Audio Discs including CD-Recordables and CD-Rewritables.

• CD-ROM, CD-I, CDV, VCD, DVD, MP3 or computer CDs, however, are not possible.

1 Select CD source.
2 Press OPEN/CLOSE to open the CD tray.

OPEN is displayed when you open the CD compartment.

3 Insert a CD with the printed side facing up and press down on OPEN/CLOSE to close the CD tray.

READ is displayed as the CD player scans the contents of a CD, and then the total number of tracks and playing time are shown.
NO DISC is displayed if you have inserted no disc.
DISC NOT READABLE scrolls across the display if you insert a CD incorrectly or a non finalised CD-R(W).

4 Press to start playback.
Current track number and elapsed playing time of the track are displayed during CD playback.
5 To interrupt playback press I. Press I again to resume playback.
→ The display freezes and the elapsed playing time flashes when playback is interrupted.
6 To stop CD playback, press

Note: CD play will also stop when:

• the CD tray is opened;
• the CD has reached the end;
• you select another source: TAPE, CD RW or AUX.

Selecting a different track

• Press or on the set, (on the remote control or ) once or repeatedly until the desired track number appears in the display.
• If you have selected a track number shortly after loading a CD or in the PAUSE position, you will need to press to start playback.

Finding a passage within a track

1 Press and hold down on I or (on the remote control or).
The CD is played at high speed and low volume.
2 When you recognize the passage you want, release or
Normal playback continues.

Note: During a CD program or if SHUFFLE/ REPEAT active, searching is only possible within the same track.

Different play modes: SHUFFLE and REPEAT

You can select and change the various play modes before or during playback. The play modes can also be combined with PROGRAM.

SHUFFLE tracks of the entire CD/ program are played in random order

SHUFFLE and

REPEAT ALL . to repeat the entire CD/ program continuously in random order

REPEAT ALL repeats the entire CD/ program continuously

REPEAT repeats the current track continuously

1 To select your play mode before or during playback, press either:
- on the remote control SHUFFLE or REPEAT;
- on the set CLOCK repeatedly until the display shows the desired function.

2 Press to start playback if in the STOP position.
If you have selected SHUFFLE, playback starts automatically.
3 To return to normal playback, press the respective SHUFFLE or REPEAT button until the various SHUFFLE/REPEAT modes are no longer displayed.
- You can also press to cancel your play mode.

Programming track numbers

Program in the STOP position to select and store your CD tracks in the desired sequence. If you like, store any track more than once. Up to 40 tracks can be stored in the memory.

1 Press PROGRAM on the set or remote control to enter the programming mode.
A track number is shown and PROGRAM flashes.
2 Use the I or on the set, (on the remote control or) to select your desired track number.
3 Press PROGRAM to confirm the track to be stored.

→ The number of tracks programmed and total playing time of the program is shown briefly, then the selected track and PROG.

... : ... is shown if total playing time is 100 minutes or more.

4 Repeat steps 2-3 to select and store all desired tracks.

FULL is displayed if you attempt to program more than 40 tracks.

5 To start playback of your CD program, press I.

Reviewing the program

• In STOP mode, press and hold down PROGRAM on the set or remote control, until the display shows all your stored track numbers in sequence.

Erasing a program

You can erase the program by:

• pressing once in the STOP position;
• pressing twice during playback;
• opening the CD tray.
• CLEARED is shown briefly and PROGRAM disappears from the display.

CD player and CD handling

• If the CD player cannot read CDs correctly, use a commonly available cleaning CD to clean the lens before taking the set to repair. Other cleaning methods may destroy the lens.
• The lens of the CD player should never be touched!

• Sudden changes in the surrounding temperature can cause condensation to cloud over on the lens of your CD player. Playing a CD is then not possible. Do not attempt to clean the lens but leave the set in a warm environment until the moisture evaporates.
  Always keep the CD compartment closed to avoid dust on the lens.

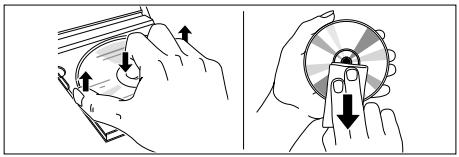

• To take a CD out of its box, press the center spindle while lifting the CD. Always pick up the CD by the edge and return the CD to its box after use to avoid scratching and dust.

• To clean the CD, wipe in a straight line from the center towards the edge using a soft, lint-free cloth. Do not use cleaning agents as they may damage the disc.
• Never write on a CD or attach any stickers to it.

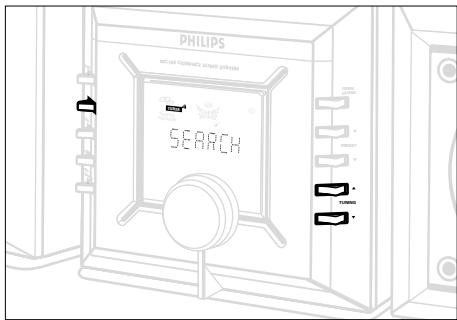

Tuning to radio stations

1 Select TUNER source.

TUNER is displayed briefly.

2 Press BAND (or SOURCE on the set for 2 or more seconds) to select your waveband.
3 To tune to a station, press TUNING or on the remote control or and release when search tuning starts.

→ The radio automatically tunes to a station with sufficient reception. Display indication during automatic tuning: SEARCH.
If a FM station is received in stereo, STEREO is shown.

4 Repeat step 3 if necessary until you find the desired station.
- To tune to a weak station, press or briefly and repeatedly until you have found optimal reception.

Programming radio stations

You can store up to a total of 40 radio stations in the memory.

Automatic programming

Automatic programming will start with a chosen preset number. From this preset number upwards, former programmed radio stations will be overwritten. The unit will only program stations which are not in the memory already.

1 Press PRESET or (or on the remote control) to select the preset number where programming should start.

Note: If no preset number is selected, default is preset 1 and all your presets will be overwritten.

2 Press PROGRAM on the set or remote control for more than 2 seconds to activate programming.

AUTO is displayed and available stations are programmed in order of waveband reception strength: FM followed by AM. The last preset automatically stored will then be played.
Press on the set to interrupt auto programming

Manual programming

1 Tune to your desired station (see Tuning to radio stations).
2 Press PROGRAM on the set or remote control to activate programming.

→PROGRAM flashes in the display.

3 Press PRESET or (or on the remote control) to allocate a number from 1 to 40 to this station.

TROUBLESHOOTING

4 Press PROGRAM again to confirm the setting.
→PROGRAM disappears, the preset number and the frequency of the preset station are shown.
5 Repeat the above four steps to store other stations.
- You can overwrite a preset station by storing another frequency in its place.

Tuning to preset stations

Press PRESET or (or on the remote control) until the desired preset station is displayed.

Changing tuning grid (some versions only)

In North and South America the frequency step between adjacent channels in the AM and FM band are 10 KHz and 100 KHz respectively. In the rest of the world this step is 9 KHz and 50 KHz. Usually the frequency step has been preset in the factory for your area if not:

1 Select TUNER source.

2 Press on the set for at least 5 seconds.

→ The display shows either GRID 9 or GRID 10.

Note: All preset stations will be lost and need to be reprogrammed.

WARNING

Do not open the set as there is a risk of electric shock! Under no circumstances should you try to repair the set yourself, as this will invalidate the warranty.

If a fault occurs, first check the points listed below before taking the set for repair.

If you are unable to remedy a problem by following these hints, consult your dealer or service center.

Problem	Possible cause	Remedy
No sound /power	Volume not adjusted	Adjust the VOLUME
	Headphones connected	Disconnect headphones
	Power cord not securely plugged to wall outlet	Plug in properly
No reaction to controls	Electrostatic discharge	Disconnect the unit from the power supply reconnect after a few seconds
TIMER/SLEEPER does not work	Clock time not set	Set the correct clock time
Severe radio hum or noise	Electrical interference: set too close to TV, VCR or computer	Increase the distance
Poor radio reception	Weak radio signal	FM: Direct the FM antenna wire for optimum reception
NO DISC or DISC NOT READABLE indication	CD badly scratched or dirty	Replace/ clean CD, see Maintenance
	CD-R(W) is blank or the disc is not finalised	Use a finalised CD-R(W)
	Laser lens steamed up	Wait until lens has cleared
The CD skips tracks	CD damaged or dirty	Replace or clean CD
	SHUFFLE or PROGRAM is active	Switch off SHUFFLE / PROGRAM
Remote control does not function properly	Batteries dead	Insert fresh batteries
	Batteries incorrectly inserted	Insert the batteries correctly
	Distance/ angle between the set too large	Reduce the distance/ angle

Amplifier

Output power. 2 x 15 W RMS

Output power. 250 W PMPO

Digital out. 0.5 V, 75 Ω

Line out. 0.5 V, 1000 Ω

Signal-to-noise-ratio 65 dBA (IEC)

Input sensitivity AUX .0.5 V (max. 2 V)

Impedance loudspeakers 8Ω

Impedance headphones 32Ω-1000Ω

Tuner

FM waveband 87.5 - 108 MHz

AM waveband 530-1700 kHz

Sensitivity at 75

mono, 26 dB signal-to-noise ratio 2.8 V

• stereo, 46 dB signal-to-noise ratio 61.4 V

Selectivity 28 dB

Total harmonic distortion ≤ 5%

Frequency response. 63 - 12,500 Hz (± 3 dB)

Signal-to-noise-ratio 50 dBA

CD player

Frequency range. 20 - 20,000 Hz (8 dB)

Signal-to-noise-ratio 75 dBA

Speakers

2-Way Bass reflex system

Dimensions (wxhxd) 164 x 158 x 239

General

Dimensions (whexd) 164 x 158 x 254

Weight (with / without speakers) . . . approx 7.5/3.0 kg

Standby power consumption. < 7W

Subject to modification

Philips Service Solutions Group, P.O. Box 2976, Longview, Texas 75606, E.U., [phone]

DBB (Dynamic Bass Boost)

Accentuation des basses

DSC (Digital Sound Control)

DIGITAL OUT (mode CD uniqueness)

Banda FM 87,5-108 MHz

Banda AM 530-1700 kHz

A Divisionof Philips Electronics North America Corporation

Knoxville, Tennessee 37914-1810, U.S.A.

Meet Philips at the internet http://www.philipsusa.com

Printed in Hong Kong
