Table of contents

GENERAL INFORMATION

Technical information. 4
Disc for recording. 5
Discs for playback 5
Maintenance 5
Accessories 5

OPERATING BUTTONS AND CONNECTIONS

Operating buttons on the front 6
Connections on the back 6

DISPLAY

DISPLAY explanation 7
DISPLAY messages. 7

INSTALLATION

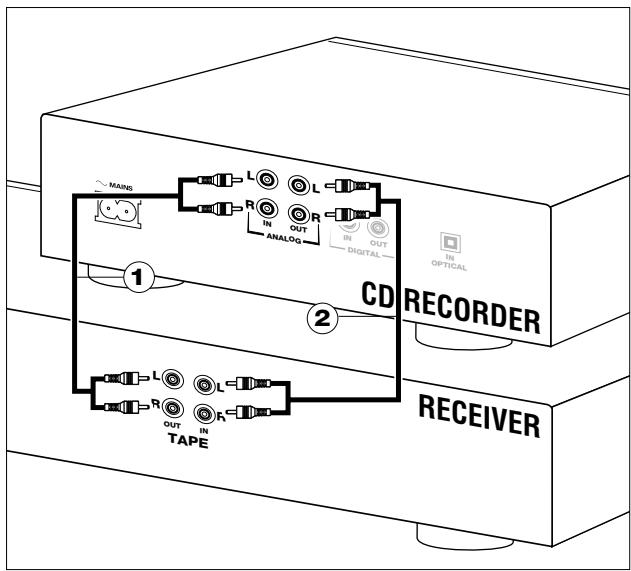

Connections general 8

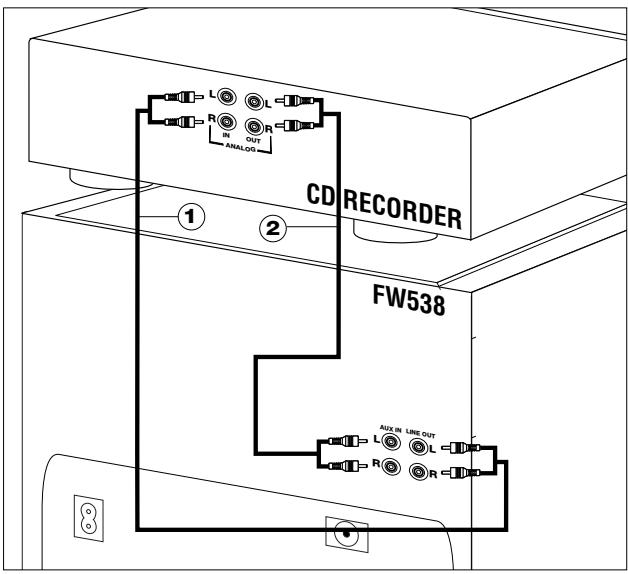

Analogue connections 8
Digital coaxial connections 9
Digital optical connections 9
Power supply 10
Set-up recommendations 10
Inserting batteries in the remote control. 10

REMOTE CONTROL & INSERTING DISCS

Remote control commands 11
Inserting discs 11

RECORDING

Remarks about recording 12
Digital recording - unsynchronized 12
Synchronized digital recording - CD-SYNC 13
Analogue recording 14
Finalizing CD-R & CD-RW discs 15
Unfinalizing CD-RW discs 15

ERASING & PLAYING

Erasing CD-RW discs 16
Playing a CD 16

PLAYING

Selecting a track or searching 16
Shuffle play 17
Repeat CD, track or program 17
Programming 17

FIXING PROBLEMS

Troubleshooting 18
Diagnostic program 18

Welcome!

Thank you for buying this Philips Compact Disc Recorder.

In the 1980s Philips invented a new audio system - the CD. The CD (compact disc) revealed the new dimensions of digital sounds and enhanced the pleasures of audio.

Compact disc technology permits a high contrast in both loud and quiet passages, with perfect channel separation. Philips has continued to develop compact disc technology and the result is the CD recorder.

With your Philips CD-Recordable/ReWritable Recorder, you can record, play and erase your own high-quality audio CDs, subject only to legal restrictions on copying.

Naturally, you will also be able to play all pre-recorded audio CDs, and combined CDs such as CD Extra.

Recordings may only be made for personal use. It is forbidden to copy material protected by copyright, including computer programs, films, television and audio recordings. This appliance may not be used for such applications.

Technical information

Subject to modification without notice.

Digital frequency response 0-22,050Hz
Playback S/N 100dB
Playback dynamic range .95dB
Play back total harmonic distortion.0.0056%, -85dB
Recording S/N (Analogue). 90dB
Recording S/N (Digital). Equal to source
Recording dynamic range .92dB
Recording total harmonic distortion .0.0056%, -85dB

Digital coaxial input (IEC 958) .44.1Khz +/-100ppm
Digital optical input (IEC958) 44.1Khz +/- 100ppm
Analogue input (level potmeter) .500mVrms/50kΩ=0dB
Audio output . 2V RMS ± 2dB
Digital coaxial output .0.5 Vpp/75Ω

Dimensions. 435 x 305 x 88mm
Weight 4kg
Power consumption. 15W
Operating temperature. 5 - 35^
Power Supply. AC 120V

Discs for recording

For recording use, special audio discs must be used (for music only). These Discs bear the logos as shown below. The text 'DIGITAL AUDIO' is present! Copyright fees have been paid on these discs in some countries.

With your recorder you can use two types of discs for recording purposes:

• CD-Audio Recordable (CD-R) discs: Fully recorded and finalized, these discs play on all CD players and recorders.

• CD-Audio ReWritable (CD-RW) discs: Can be recorded, erased and re-recorded hundreds of times. When finalized, they play on CD-RW compatible CD players and recorders. In the course of 1999 most Philips CD players and recorders will be CD-RW com

Discs for playback

Your CD recorder is able to play:

• All prerecorded audio CDs, and combined CDs such as CD Extra.
• All Audio CD-R and Audio CD-RW.

Note: CD-R discs recorded with a computer can only be used when they are correctly treated according the audio standard (IEC958: Consumer part). Single session only!

Maintenance

It is extremely important that the discs used for recording are free of dust and scratches.

To clean a CD, wipe it in a straight line from the center towards the outer edge using a soft, lint-free cloth. Cleaning agents may damage the disc! Write only on the printed side of a CD-R or CD-RW, and only with a soft felt-tipped pen.

Clean the CD recorder with a soft, slightly dampened lint-free cloth. Do not use any cleaning agents as they may have a corrosive effect.

Do not expose the CD recorder, batteries or CDs to humidity, rain, sand or excessive heat (caused by heating equipment or direct sunlight).

If the CD recorder cannot read CDs correctly, use a cleaning CD to clean the lens before taking the CD player to be repaired. Other cleaning methods may destroy the lens. Always keep the tray closed to avoid dust on the lens.

The lenses may cloud over when the CD recorder is suddenly moved from cold to warm surroundings, making it temporarily impossible to play a CD. Leave the CD recorder in a warm environment until the moisture evaporates.

Accessories

• 2 Analogue audio cables (with red and white plugs)
• 1 Digital coaxial cable (with black plugs) - (CDR560 only)
• Power cord
  -2 Batteries-(CDR560 only)
• Remote control - (CDR560 only)
• Guarantee
• Optical cable (CDR538 only)

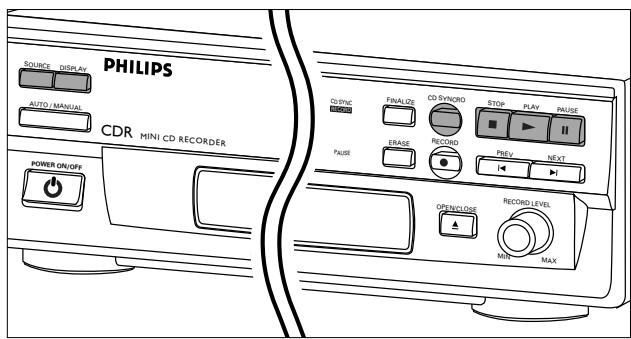

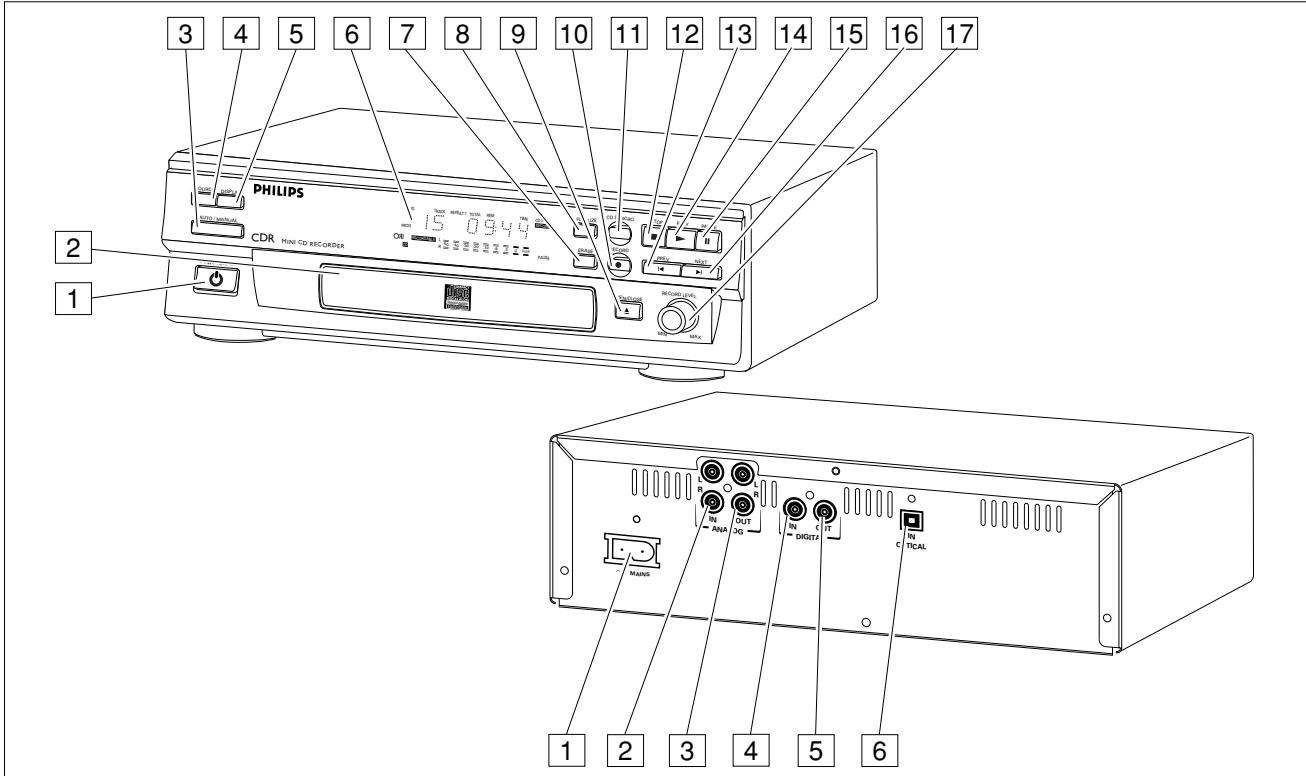

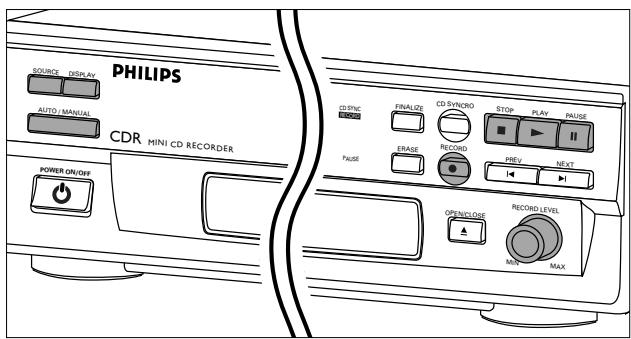

Operating buttons on the front

1 ON/OFF . . . . . . . turn the CD recorder ON and OFF
2 Disc tray
3 AUTO/MANUAL .. select track numbering method
4 SOURCE... .select digital or analogue input
5 DISPLAY .select display information
6 DISPLAY (information screen)
7 ERASE . . . . . . erase recording
8 FINALIZE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9 OPEN/CLOSE....open/close disc tray
10 RECORD . record
11 CD-SYNC .synchronized recording (automatic start when recording)
STOP stops

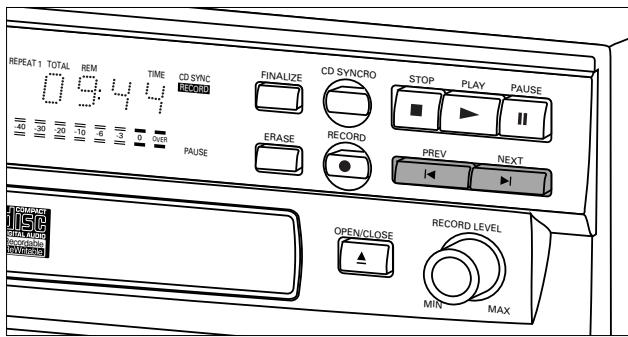

13 previous track/search back
14 PLAY .start to play or record
15 PAUSE II . . . . . . interrupt play
16 next track/search forward/new track
17 REC LEVEL .adjust the recording level (analogue)

Connections on the back

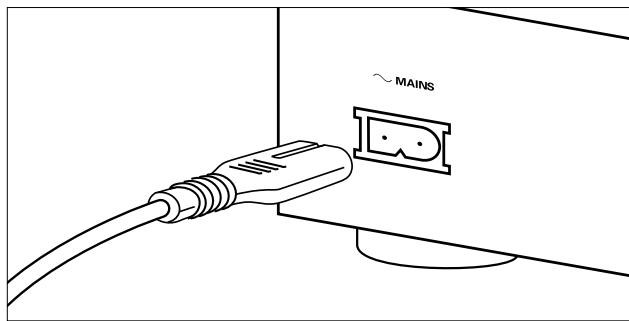

1 Connection to power supply
2 ANALOG IN . . . . connects to the line output of an amplifier (left and right)
3 ANALOG OUT. . . . connects to the line input of an amplifier (left and right)
4 DIGITAL IN . . . . . connects to the digital coaxial output of a CD player
5 DIGITAL OUT . . . connects to the digital coaxial input of e.g. amplifier or recording device
6 OPTICAL IN . . . connects to the digital optical output of a CD player

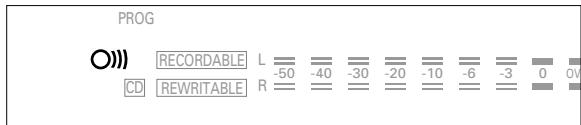

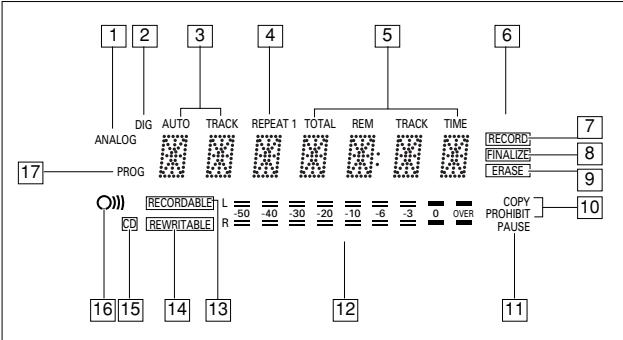

Display explanation

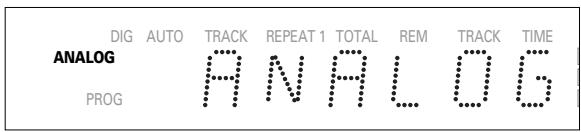

1 ANALOG. .analogue input is selected
2 DIG . lights up when digital input is selected and flashes when digital input is incorrect.

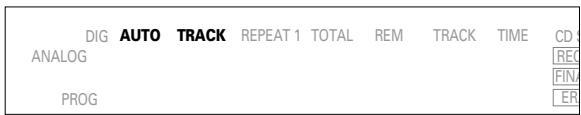

3 AUTO TRACK.... automatically increase track numbers
4 REPEAT (1) . repeat function activated during play
5 Track number and time.
6 CD-SYNC .synchronized recording is active.
7 RECORD . lights up during recording and flashes in record standby
8 FINALIZE . lights up during finalizing and flashes in finalize standby

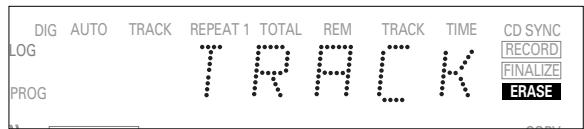

ERASE . lights up during erase recording and flashes in erase standby
10 COPY PROHIBIT . . Lights when trying to record digital protected audio
11 PAUSE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
12 Record/play level bar (analogue)

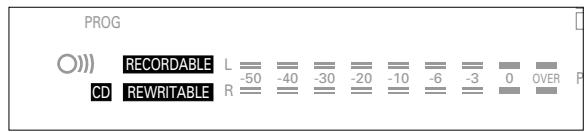

13 RECORDABLE . . . . Unfinalized CD-R disc inserted
14 REWRITABLE.... CD-RW disc inserted
15 CD inserted (a pre-recorded CD or finalized CD-R or CD-RW disc)
16 remote control active
17 PROG .programmed play

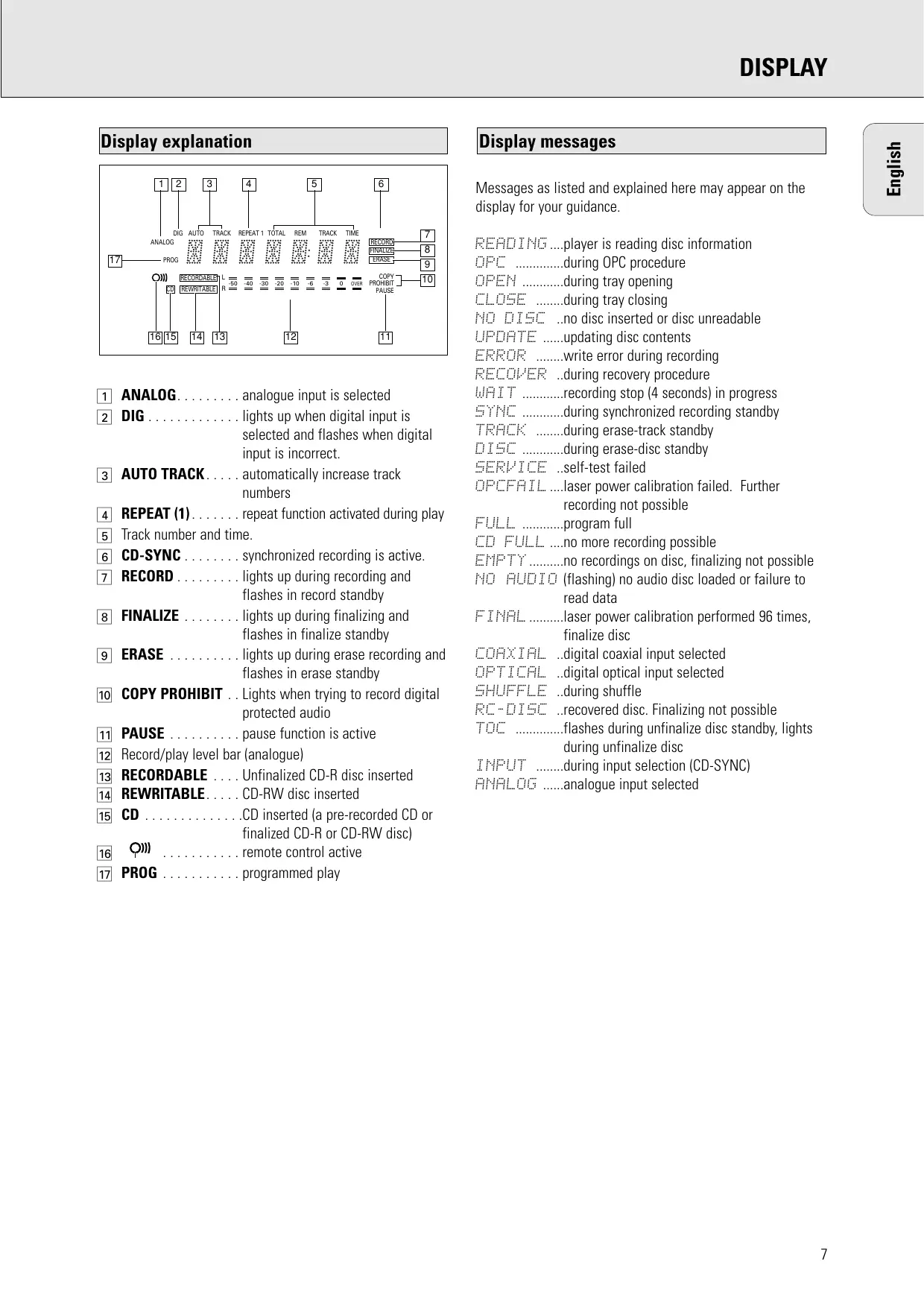

Display messages

Messages as listed and explained here may appear on the display for your guidance.

READING...player is reading disc information

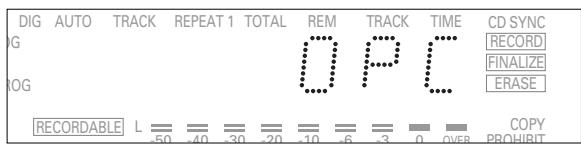

OPC ......during OPC procedure

OPEN ......during tray opening

CLOSE ......during tray closing

NO DISC ..no disc inserted or disc unreadable

UPDATE .......updating disc contents

ERROR .........write error during recording

RECOVER ..during recovery procedure

WIT .recording stop (4 seconds) in progress

SYNC ......during synchronized recording standby

TRACK ......during erase-track standby

DISC ......during erase-disc standby

SERVICE ..self-test failed

OPCFAIL ...laser power calibration failed. Further recording not possible

FULL .........program full

CD FULL ....no more recording possible

EMPTY.......no recordings on disc, finalizing not possible

NO AUDIO (flashing) no audio disc loaded or failure to read data

FINAL . . . . . laser power calibration performed 96 times, finalize disc

COAXIAL .digital coaxial input selected

OPTICAL .digital optical input selected

SHUFFLE ..during shuffle

RC-DISC .recovered disc. Finalizing not possible

TOC .flashes during unfinalize disc standby, lights during unfinalize disc

INFUT ......during input selection (CD-SYNC)

ANALOG ....analogue input selected

Connections general

The CD recorder has the following recording inputs:

• Digital optical input
• Digital coaxial input
• Analogue input

The CD recorder has the following playback outputs:

• Digital coaxial output
• Analogue output

The connections to be made depend upon the possibilities your audio equipment offers. Please refer to the user manuals for your other audio equipment first.

Recordings made from a digital source (CD player) via the digital optical or digital coaxial connection will give the best performance in audio and usability (e.g. auto-track).
(The digital optical connection is less sensitive to external disturbances).

If your equipment does not offer digital connections, the high quality Analogue-Digital-Converter of your CD recorder will ensure high audio performance when recordings are made from the analogue input.

Playback via the digital coaxial output of the CD recorder gives the best audio performance. If your equipment does not offer digital connections the high quality Digital-Analogue-Converter of the CD recorder ensures a high sound quality via the analogue output.

We recommend that both digital and analogue connections be made, so that analogue recordings can be made when digital recording is not possible.

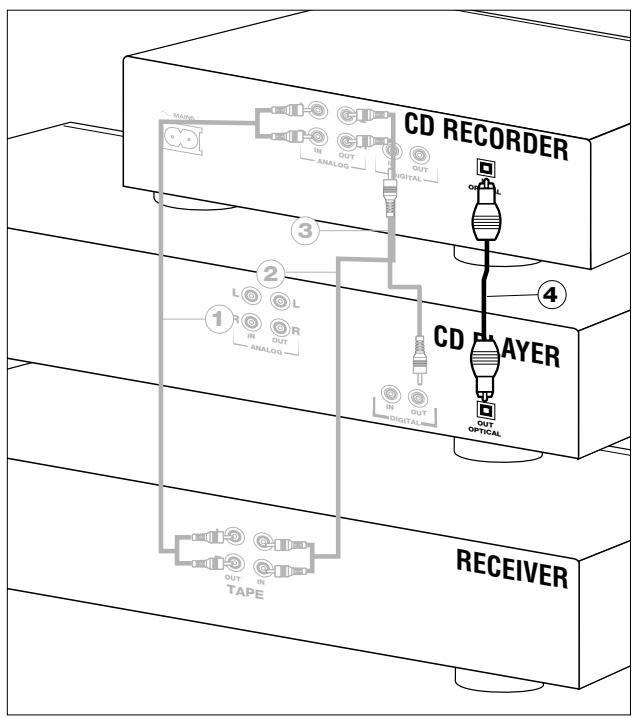

The most common ways of connecting the CD recorder are explained below. If you still have difficulties with the connections, feel free to contact the Philips Consumer Service desk in your country.

Analogue connections

Use the audio cables supplied. Connect the red plugs to the R sockets, and the white plugs to the L sockets.

1 For recording, connect cable ① between the ANALOGUE IN sockets on the CD recorder and the LINE- or TAPE OUT sockets of an amplifier. (FW538)
Note: For recording directly from a CD player the analogue input of the CD recorder should be connected to the analogue output of the CD player.
2 For playback, connect cable ② between the ANALOGUE OUT sockets on the CD recorder and the input sockets of an amplifier e.g. TAPE IN, CD-R or AUX. (FW538)
Note: Never use the PHONO input.

For use with FW538:

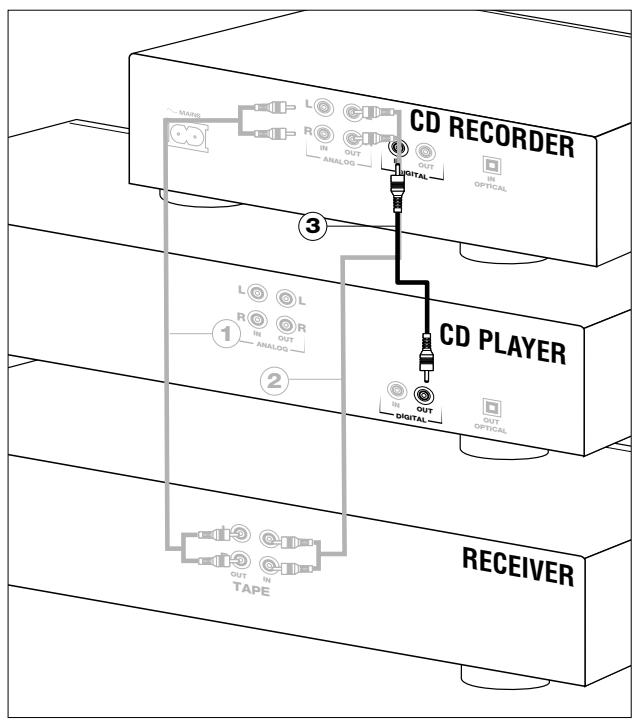

Digital coaxial connections

Use the supplied cable with the black plugs.

1 For recording, connect the cable ③ between the DIGITAL IN socket on the CD recorder and the DIGITAL OUT socket of a CD player.

Note: Your CD recorder is equipped with a digital coaxial output. This output can be used for digital playback.

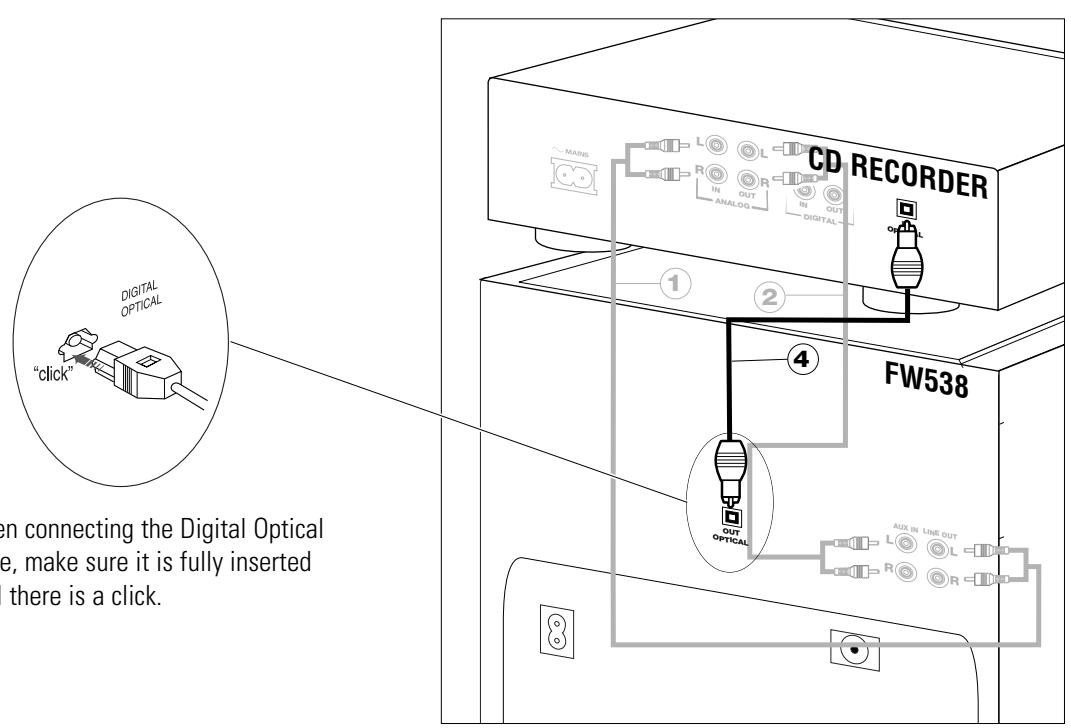

Digital optical connections

1 Remove the dust caps from the digital optical connections. (We recommend that you save the caps).
2 For recording, connect a fiber-optic cable (4) between the digital optical input of the CD recorder and the digital-optical output of a CD player. (FW538)

Note: For playback the digital coaxial output or analogue output should be connected to an amplifier.

For use with FW538:

Power supply

1 Plug the power cord supplied into the MAINS connector on the CD recorder, then into a wall socket.
2 Press ON/OFF to turn the CD recorder on.

Note:

• The CD recorder will automatically adjust to the local mains voltage.
• When the CD recorder is in the "OFF" position, it is still consuming some power. If you wish to disconnect your CD recorder completely from the mains, withdraw the plug from the AC Outlet.

Set-up recommendations

• Place the CD recorder on a solid, vibration free surface.
• Do not place the CD recorder near a source of heat or in direct sunlight.
• Do not use the CD recorder under extremely damp conditions.
• If the CD recorder is placed in a cabinet, make sure that a one-inch space remains free on all sides of the recorder for proper ventilation.

Inserting batteries in the remote control

Note: For CDR538 see Remote Control FW538.

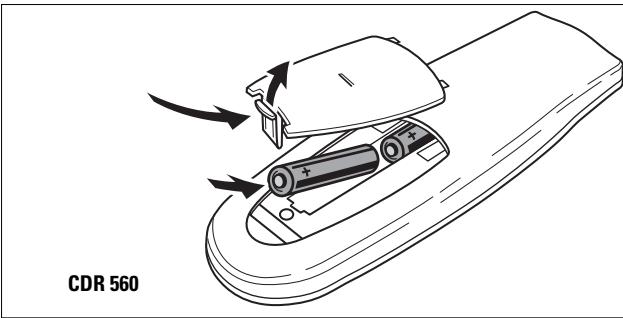

1 Open the battery compartment cover.
2 Insert 2 batteries (AAA, R03 or UM-4; as supplied) as shown.
3 Replace the cover.

Note: We recommend using 2 batteries of the same type and condition.

Batteries contain chemical substances; dispose of them properly.

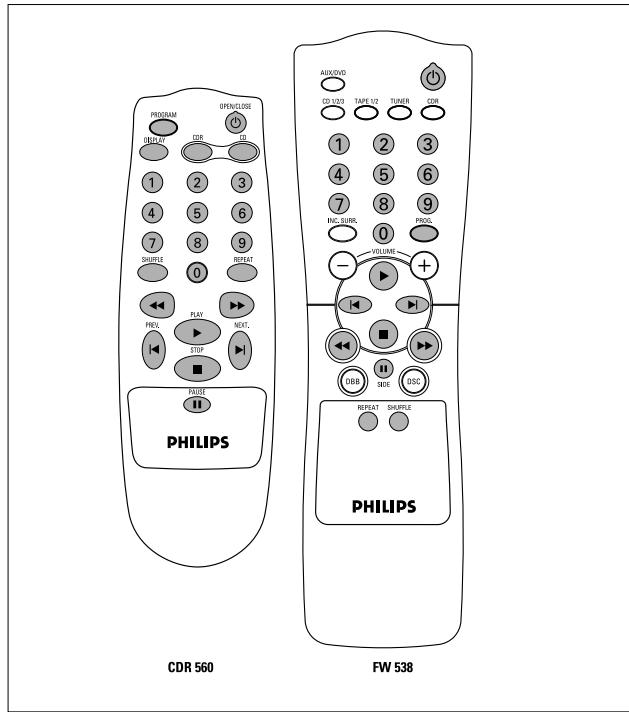

Remote control commands

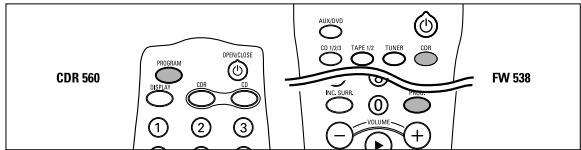

PROGRAM. . . . . . . programs track numbers

DISPLAY selects display information

Number keys 0 - 9 . . . select a track by number

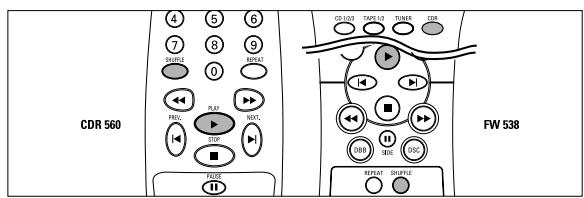

SHUFFLE plays CD(RW) or program in random order

searches backward

PREVIOUS selects the beginning of a previous track

STOP stops CD(RW) and clears a program

PAUSE II interrupts CD(RW) play

NEXT selects the beginning of subsequent

PLAY .starts CD(RW) play

searches forward

REPEAT repeat play

CD CDR 765 only

CD-R. CDR 765 only

OPEN/CLOSE .opens or closes the disc tray

When you press a button on the remote control, the indicator on the display will light up.

Note: Unless otherwise stated, all operating buttons are on the front of the CD recorder. The corresponding buttons on the remote control can also be used.

Inserting discs

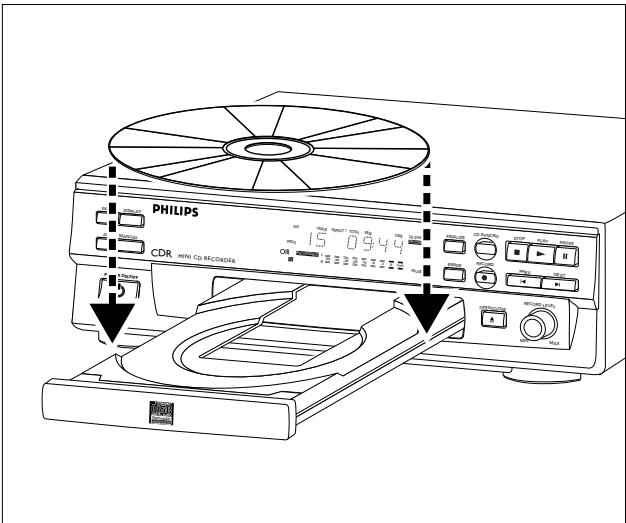

1 Press OPEN/CLOSE (9) to open the disc tray.
2 Insert a CD, CD-R or CD-RW in the appropriate recess in the tray, label side up.

IMPORTANT:

For recording it is important that the blank disc be completely free of dust particles or scratches. (see Disc Maintenance, p.5).

3 Gently push the front of the tray or press OPEN/CLOSE to close the tray (see also Playing a CD).

The display will indicate the type of disc you have inserted.

• If a CD-R is finalized the display will indicate cd.

• If a CD-RW is finalized it is still a CD-ReWritable and the display will indicate CD REWRITABLE.

If you insert a blank or partly-recorded CD-R or CD-RW, the CD recorder will calibrate the disc for optimum recording. During this process the display will first show CPC and then the number of audio tracks previously recorded. Calibration can take up to 25 seconds.

Note: Only Audio CDs will be accepted. If a non-audio disc is inserted, the display will indicate NO AUDIO.

Remarks about recording

You will soon discover how easy it is to make your own CDs. Nevertheless, we recommend that you use a CD-RW disc for your first try. The three ways to make recordings are described below:

• Digital unsynchronized
• Digital synchronized

• Analogue

• The recording procedure is the same for CD-Rs or CD-RWs.

• If the disc is a CD-RW and is already finalized you must uninitialize it first (page 15).
• If the disc already contains recordings, the CD recorder will automatically search for the end of the last track, so that you can start recording from there.
• There must be at least 7 seconds of recording time left on the disc, or you will not be able to activate the record standby mode.
• If the display indicates COPY PROHIBIT, no digital recording can be made of the source material. Recording will not start or will stop after 4 seconds.

• The Serial Copy Management System (SCMS) only allows digital recording under specific conditions:

• It is not possible to make a digital copy from a digital copy.

• Analogue recording is always possible!

• The number of recordings from the original is unlimited.

• A maximum of 99 tracks can be recorded on a disc. The minimum allowable track length is 4 seconds.

• Digital recordings can be made from CDs (or other sources with an output Sample Frequency of 44.1kHz + / - 100ppm ) via the digital input.

Important:

If you want to play the recorded CD-R disc on a regular CD player, it must be finalized first. See finalizing discs (p.15).

Finalized CD-RW discs play only on CD-RW compatible CD players.

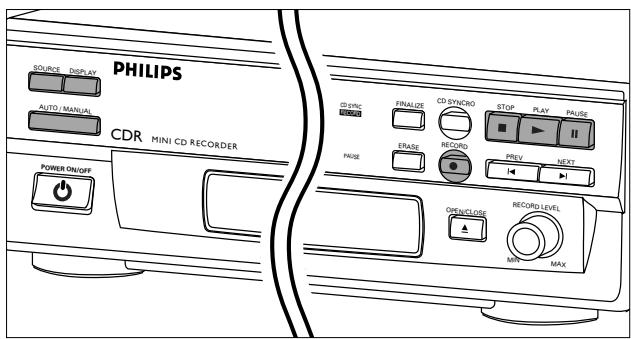

Digital recording - unsynchronized

Preparing for digital recording

1 Make sure the disc is absolutely free of scratches and dust particles.
2 Press Source repeatedly until (depending on the digital connection used):

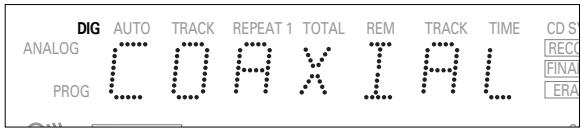

DIG COAXIAL or DIG OPTICAL appears on the display.

3 Press AUTO/MANUAL to switch between auto and manual track numbering.

If AUTO is selected, (preferred) AUTO TRACK will appear on the display.

• AUTO: The track increments are automatically copied from the digital source material.
• MANUAL: Track numbers can be incremented manually by pressing . (minimum track length is 4 seconds).

(This can also be done in AUTO mode).

• Track numbers cannot be changed after recording.

Note: AUTO TRACK works only with Consumer Sources with a digital output signal according to the IEC 958 (consumer part) audio standard.

Start digital recording

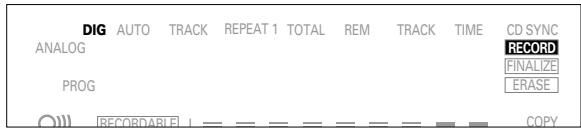

1 With the recorder stopped, press RECORD to enter the Record standby mode.

RECORD will flash.

• If DIG also flashes, the digital connection is incorrect.
  2 To start recording, press PLAY and immediately start the source (from stop mode).
  RECORD lights continuously. The track number and recording time used will be indicated on the display.
• To record a 3-second silence at the start of a track, press PAUSE.
• To check the (remaining) recording time, press DISPLAY. (This can also be done during the recording.)
  3 To stop recording, press STOP on the CD recorder.

RECORD will go out.

• To interrupt recording, press PAUSE.
  RECORD starts to flash. Resume at step 2.

After recording the display will show UPDATE for several seconds.

Note: With AUTO TRACK on, the recorder will stop automatically. Recordings from DAT or DCC will stop after 20 seconds silence. With AUTO TRACK off, the AUTO STOP mode is disabled.

Synchronized digital recording - CD-SYNC

Preparing for synchronized digital recording

The CD-SYNC feature enables you to make a fast and easy digital recording of a CD. Track increments are automatically detected from the digital source material. Track increments cannot be added manually.

1 Make sure the disc is absolutely free of scratches and dust particles.
2 Press Source repeatedly until (depending on the connection used):

DIG COAXIAL or DIG OPTICAL will appear on the display.

Start synchronized digital recording

1 With the CD recorder stopped, press CD-SYNC.

On the display, CD-SYNC & SYNCH appears. After a time, RECORD starts to flash.

• If DIG also flashes, the digital connection is incorrect.
  2 To start recording, press Play on the digital source.

The CD recorder automatically starts to record and RECORD lights continuously. The track number and recording time used will be indicated on the display

• If you start the source during a track, CD-SYNC will not start recording until the beginning of the next track.
• To check the (remaining) recording time, press Display. (This can also be done during recording)

3 To stop recording, press STOP on the CD recorder.

CD-SYNC and RECORD will go out.

• To interrupt recording, press PAUSE.
  RECORD will start to flash. To resume, press PLAY on the CD recorder.

After recording the display will show UPDATE for several seconds.

Note:

• The CD recorder will not start until it recognizes a digital signal. Although the reaction time is less than 200 milliseconds, the very beginning of the music may sometimes not be recorded. If this happens, you can start the recording manually (see digital recording-unsynchronized).
• Recordings from DAT or DCC will only stop after 20 silence.

Analogue recording

Only make analogue recordings if digital recording is not possible.

Preparing for analogue recording

1 Make sure the disc is absolutely free of scratches and dust particles.
2 Press Source repeatedly until:

ANALOG appears on the display.

3 Press AUTO/MANUAL to switch between auto and manual track numbering.

If Auto is selected (preferred), AUTO TRACK appears on the display.
- AUTO: The track number is automatically incremented after a silence on the original of at least 3 seconds.
- MANUAL: Track numbers can be incremented manually by pressing . (minimum track length is 4 seconds). (This can also be done in AUTO mode)
- Track numbers cannot be changed after recording.

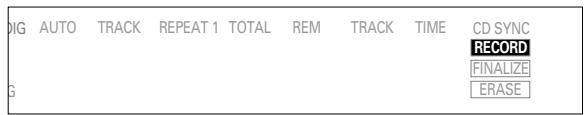

4 With the recorder stopped, press RECORD to enter Record standby mode.

RECORD will flash

5 Play the source first to set the optimal recording level on the CD recorder.
6 Adjust the REC LEVEL until all blue segments on the Record/Play Level bar light up but no red segments light continuously during the loudest passages.
7 Stop the source.

Start analogue recording

1 To start recording, press PLAY on the CD recorder and immediately start the source.
RECORD lights continuously. The track number and recording time used appear on the display.
- To record a 3-second silence at the beginning of a track, press PAUSE.
- To check the (remaining) recording time, press Display. (This can also be done during the recording.)
2 To stop recording, press STOP on the CD recorder.

RECORD will go out.

• To interrupt recording, press PAUSE.
  RECORD will start to flash. Resume at step 1.

After recording the display will show UPDATE for several seconds.

Note: With AUTO TRACK on, the recorder will stop automatically after 20 seconds silence. With AUTO TRACK off, the AUTO STOP mode is disabled.

Finalizing CD-R & CD-RW discs

Finalizing is a simple procedure that is necessary in order to play the discs on a regular (non-recording) CD player.

Note: Finalizing prevents any further recording on a CD-R. A finalized CD-RW must be unfinalized to allow further recording or erasure of tracks.

1 Make sure the disc is absolutely free of scratches and dust particles.
2 With the recorder stopped press FINALIZE and then within 3 seconds press RECORD.

DIG	AUTO	TRACK	REPEAT 1	TOTAL	REM	TRACK	TIME	CD SYNC
ALOG								RECORD
								FINALIZE
PROG								ERASE

The approximate finalization time will appear in the display. RECORD & FINALIZE lights up.

The display counts down through the finalization. On completion, the total number of tracks and the total time recorded will appear on the display.

For CD-R CD RECORDABLE will change to CD on the display. For CD-RW no change will be seen on the display.

Finalizing will last at least 2 minutes.

Note: During finalization, the CD recorder will not accept operating commands.

Unfinalizing CD-RW discs

For CD-RW discs only.

If you want to make more recordings (or to erase tracks) on a finalized disc you must uninitialize it first. The Table of Contents (TOC) on the disc will be removed.

To unfinalize:

1 Press ERASE twice.

On the display, TOC and ERASE will flash.

LOG	DIG	AUTO	TRACK	REPEAT 1	TOTAL	REM	TRACK	TIME	CD SYNC
						T	T	T	RECORD
									FINALIZE
	PROG								ERASE

2 Press RECORD within 3 seconds.

TOC and ERASE light up continuously during erasure.

Note: This will take approximately 1 minute.

Erasing CD-RW discs

For CD-RW discs only.

You can erase:

• track by track from the end.
• the entire disc.

To erase the last track :

1 Make sure the disc is not finalized (Showing OPC on display during start up). Otherwise uninitialize first (p. 15)
2 Press ERASE.

On the display, TRACK and ERASE will flash.

3 Press RECORD within 3 seconds.

TRACK and ERASE light continuously during erasure.

To erase the entire disc:

1 Press ERASE once (for finalized CD-RW) and twice (for unfinalized CD-RW).
On the display, DISC and ERASE will flash.

2 Press RECORD within 3 seconds.

DISC and ERASE light continuously during erasure.

Erasure of a complete disc may take up to 1.5 minutes.

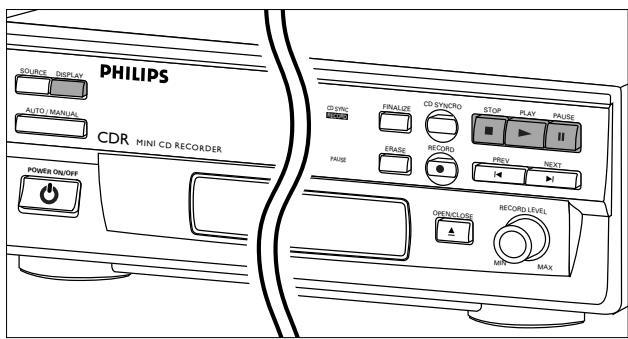

Playing a CD

1 Press PLAY to start CD play.
The track number and track time appear on the display, together with the record/play level indicator.
2 Press Display once, twice, or three times to see:
remaining track time; Total remaining time; Track time with the record/play level bar off.
3 To interrupt play temporarily, press PAUSE.
PAUSE will light up on the display
4 To continue play, press PAUSE again or press PLAY.
5 To stop play, press STOP.
The number of tracks and the total playing time will appear on the display

Selecting a track or searching

Selecting a track during play

1 Briefly press or one or more times.
Play skips to the beginning of the present, previous or following track.

or

• Press the required track number using the numerical keys on the remote control. For 2-digit track numbers, press the keys in rapid succession.
  Play skips to the beginning of the selected track.

Selecting a track when CD play is stopped

1 Briefly press or one or more times.
2 Press PLAY.

Play starts at the selected track.

or

• Press the required track number using the numerical keys on the remote control. For 2-digit track numbers, press the keys in rapid succession.

Searching during CD play

1 Hold down or (or or on the remote control).
→ The player first searches backwards or forwards at 10 times normal speed with sound at low volume, then goes to fast reverse or fast forward with sound muted.
2 Release the button at the desired passage.
Play starts at the desired passage.

Note: During Shuffle, Repeat or Program play, search is restricted to within the track being played at the time.

Shuffle play

1 Press SHUFFLE (or PLAY) on the remote control before or during CD play to start shuffle play.
The tracks on the CD (or program if set) play in random order. SHUFFLE will appear on the display between tracks.
2 Press SHUFFLE again to return to normal CD play.

Note: Shuffle is also cleared when you open the disc tray.

Repeat CD, track or program

1 Press REPEAT on the remote control one or more times during CD play.
When REPEAT 1 appears on the display, the current track plays repeatedly. When REPEAT appears on the display, the disc or program plays repeatedly.
2 To return to normal play, press REPEAT one or more times until:
the REPEAT message disappears from the display.

Note:

• You can use shuffle in combination with repeat CD or program play.
• Repeat is also cleared when you open the disc tray.

Programming

You can program up to 30 tracks to play in any desired sequence. Tracks can be programmed more than once, but each time counts as a track.

1 On the remote control press PROGRAM to start programming.
PROG flashes on the display.
2 Press a track number with the number keys. For 2-digit numbers, press the keys in rapid succession.
On the display, the track number appears briefly, followed by the total programmed tracks and total program time.
3 Repeat step 2 for all tracks to be programmed.
4 Press STOP or PROGRAM to end programming.

PROG lights continuously.

Note:

• To review the program, press in stop mode.
• To add more tracks to the program, repeat steps 1 through 4.
• If you try to store more than 30 tracks, FULL appears on the display

5 Press PLAY to start programmed play.

Clearing a program

1 Press STOP if necessary to stop programmed play.
2 Press STOP again to clear the program.

PROG disappears from the display.

Note: The program is also cleared when you open the disc tray.

Troubleshooting

If you think your CD recorder is defective, it is wise to check this list first and run the diagnostic program. Maybe you have forgotten a simple step.

Warning!

Under no circumstances should you attempt to repair the CD recorder yourself as this will invalidate the guarantee.

SYMPTOM: SOLUTION:

No power

• check to ensure that the ON/OFF button is on
• check to ensure that the power cable is plugged in correctly
• switch the recorder OFF and then immediately back ON

Auto track does not work

• check to ensure that auto track is selected.
• check to ensure that there are 3 seconds silence in between the tracks (analogue recording only)
• check to ensure that the source is a consumer source with the digital output according the IEC audio standard.

No sound

• check the audio connections
• if using an amplifier, try using a different source

Amplifier sound is distorted

• check to ensure that the CD recorder analogue output is not connected to the amplifier Phono input.

Play will not start

• check to ensure that the label of the CD is facing up
  clean the disc
• check to ensure that the disc is not defective by trying another disc

Remote control does not work

• point the remote control directly at the CD recorder
• check the batteries and replace if necessary
• select the right source first

Will not record

clean the disc.
- check to ensure that CD-RW is not finalized
- check to ensure that the disc is recordable and replace if necessary
- the disc is not an AUDIO disc
- wrong input source selected.

Analog recording is distorted

• make sure the recording level is correct

20 second pause between recordings

• see synchronized digital recording (CD-SYNC) p. 8

Player does not react

• switch the ON/OFF button on the front of the player off and back then on

SERVICE on display after switching on

• try switching off and on again

RECOVER on display

• a power failure has occurred during recording; the CD recorder is attempting to repair the disc.
• if RC-DISC then appears on the display, the disc cannot be recorded further, and cannot be finalized. However, it can be played on a CD recorder.
• on a CD-RW disc, the track being recorded is lost, but further recording and finalization can still be done.
• if OPC FAIL appears, no further recording is possible. You can still use the disc as a CD on this recorder.

Diagnostic program

If the malfunction continues, perform the Diagnostic Program:

1 Switch the recorder off using ON/OFF.

2 Simultaneously press PLAY and STOP and switch the recorder back on using ON/OFF.

The display will now indicate BUSY and after a few minutes, the message will change to ERROR or FASSED
- If the ERROR message appears, your recorder is defective and needs to be repaired. Consult your supplier or call the Philips Consumer Line to find the nearest service center. The number of the Consumer Line can be found in the guarantee booklet.
- If the PASSED message appears, you may be misinterpreting the user instructions or using an inappropriate disc, or there may be a mechanical defect or an incorrect connection. Carefully read the user instructions once again; and if necessary contact your supplier.
- If you cannot solve the problem, contact to the nearest service center.

3 Switch off the recorder using ON/OFF to exit from the Diagnostic Program.

Table des matieres

GENÉRALITÉS

Consummation electrique 15W

CD CDR 765subsection

CD-R. CDR 765 tableau

The products and services described herein are not necessarily available in all contries.

The specifications and design of this product are subject of change without notice.

Printed in Belgium.
