Product Type	Freestanding Refrigerator
Brand	Scandomestic
Model	SKF 327 W
Color	White
Total Net Volume	280 L
Refrigerator Net Volume	200 L
Freezer Net Volume	80 L
Energy Efficiency Class	F (EU 2019)
Annual Energy Consumption	220 kWh/year
Noise Level	42 dB(A)
Climate Class	SN-ST
Dimensions (H x W x D)	1850 x 600 x 650 mm
Weight	65 kg
Defrost System	Frost Free (No Frost)
Shelves	4 adjustable glass shelves
Door Storage	3 door balconies
Freezer Drawers	3 drawers
Lighting	LED interior light
Temperature Control	Electronic with display
Fast Freeze Function	Yes
Safety Features	Child lock, high temperature alarm, door open alarm
Cleaning	Wipe with soft cloth and mild detergent; avoid abrasive cleaners
Spare Parts Availability	Replacement parts available through authorized service
Warranty	2 years (depending on region)

Frequently Asked Questions - SKF 327 W Scandomestic

How do I adjust the temperature on my Scandomestic SKF 327 W fridge?

Use the electronic control panel located inside the refrigerator section. Press the temperature button to cycle through settings. The recommended temperature for the fridge is 4°C and for the freezer -18°C.

What does the alarm sound mean on my SKF 327 W?

The alarm indicates either a door left open or high internal temperature. Check that the door is closed properly and that the appliance is not overloaded. Press the alarm silence button to stop the beeping temporarily.

Why is there water pooling at the bottom of the fridge?

This may be due to a blocked defrost drain. Clean the drain hole using a pipe cleaner or a cotton swab. Ensure the drain is not clogged with food debris.

How often should I clean the condenser coils?

Clean the condenser coils at least once a year to maintain efficiency. Use a vacuum cleaner or a soft brush to remove dust. The coils are located at the back of the appliance.

Can I change the door opening direction?

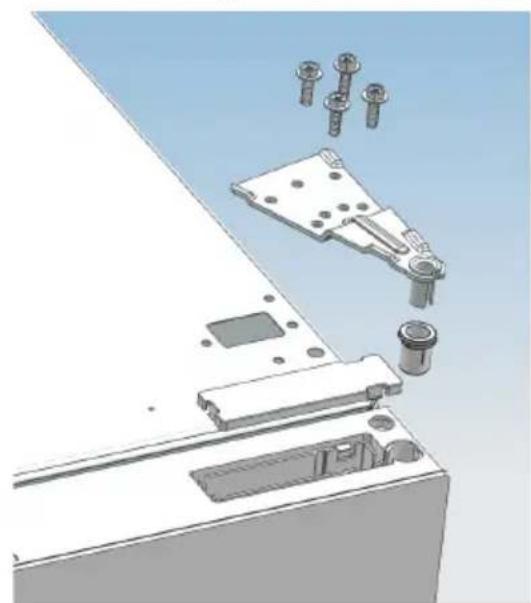

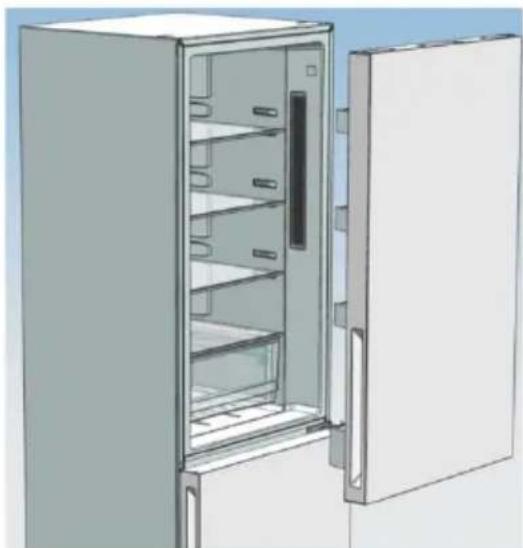

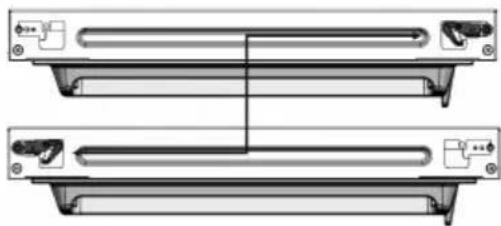

Yes, the door can be reversed. Refer to the user manual for step-by-step instructions. You will need tools such as a screwdriver and spanners. It is recommended to have two people for this task.

What is the 'Fast Freeze' function and when should I use it?

Fast Freeze activates maximum cooling to quickly freeze fresh food. Activate it 24 hours before adding large quantities of unfrozen food. It will automatically turn off after 48 hours or you can deactivate it manually.

Why is my fridge not cooling enough?

Possible causes: temperature setting too warm, door not sealing properly, blocked air vents, or insufficient clearance around the appliance. Ensure the temperature is set correctly and the condenser coils are clean.

How do I replace the interior light bulb?

The SKF 327 W uses an LED light that is not user-replaceable. If the light fails, contact an authorized service technician for replacement.

What should I do if the freezer is full of ice?

If your model has No Frost, ice build-up indicates a problem. Check the door seal and ensure the drain is not clogged. If manual defrost, unplug the appliance and let the ice melt, then clean the interior.

Is it normal for the sides of the fridge to feel warm?

Yes, it is normal. The refrigerant dissipates heat through the sides of the appliance. This is part of normal operation and does not indicate a malfunction.

USER MANUAL SKF 327 W Scandomestic

Pure electrical circuit lines without any symbols

Recycling symbol with three arrows forming a triangle (no text or numbers)

Pure electrical circuit lines without any symbols

Warning symbol of a flame inside a triangle (no text or numbers)

Simple line drawing of a knob with bidirectional arrow indicating rotation (no text or symbols)

3D mechanical assembly diagram showing a bracket with mounting holes and internal components (no text or symbols)

3D technical illustration of a mechanical assembly with exploded view of components (no text or symbols)

Diagram of a mechanical assembly with components and mounting holes (no text or symbols)

Illustration of a refrigerator with open door and shelves (no text or symbols)

Technical illustration of a mechanical bracket with mounting holes and a separate bracket (no text or symbols)

3D rendering of a refrigerator with open door and side panels (no text or symbols)

Exterior view of a modern office building (no signage)

Pure electrical circuit lines without any symbols

Technical diagram of two parallel electronic components with connectors and ports (no text or symbols)

Two views of a mechanical component before and after modification, showing internal features and mounting holes (no text or symbols)

Fjern lejet og de to stops fra det nederste sæt det i den position, som vist på følgen

Mechanical assembly diagram showing a metal frame with a black arrow indicating a specific component (no text or symbols present)

Two identical mechanical components with flanged ends and cylindrical tops, shown in 3D rendering (no text or symbols)

Close-up of a mechanical device with a black arrow pointing to a component, no visible text or symbols

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Silhouette of a customer wearing a headset and using a laptop (no text or symbols)

• Read this user manual before using the product for the first time. It will he maintain it properly and extend its life.
• Save the user manual for later use if this should become necessary and ensure are followed if the product changes hands.

This user manual contains safety instructions, operating instructions, installation instruction troubleshooting tips, etc.

Before calling for service:

• Review the troubleshooting tips section. This will help you solve some of the problems yourself.
• If you cannot solve the problems yourself, call for help from professional techn

When you call:

Must you state the full reference of the device (model, type, serial number). This rating plate attached to the appliance. It can be placed both inside the product must state where and which retailer the product was purchased from, as well as

Unauthorized calling of technical service:

Before service is called, the possible errors are checked, it is possible to rectify demand for rectification is unjustified, it is the customer's responsibility to pay the with calling for service.

Right of complaint for household use:

The complaint deadline covers only brand new products purchased in Denmark. The valid according to the legislation from the date of purchase, when a receipt, bill presented, from which the date of purchase appears. The right to complain only material or workmanship. Functional failure of the products due to installation cond covered by the right of complaint. The right of complaint does not restrict the to the legislation.

The right to complain does not include:

• Normal wear and tear, faults or damages caused directly or indirectly as a remishandling, abuse, careless handling, insufficient maintenance, faulty installation, in connection, voltage variations or electrical disturbances or by repairs carried out Scandomestic A/S authorized technicians.
• Faults or damage resulting from commercial or other use of products intended households.
• Compensation for any consequential damage, including damage to other objects, etc., unless otherwise determined by law.

Transport damage:

Transport damage that is detected at the time of the dealer's delivery to the client matter between the customer and the dealer. In cases where the customer himself responsible for the transport of the product, the supplier assumes no obligations in transport damage. Possibly. Transport damage must be reported immediately and no hours after the item has been delivered. Otherwise, the customer's claim may be

Important!

Please be aware that, as a result of constant development and updating of the manufacturer may make changes without prior notice.

This is an original manual

Safety instructions

Your safety and that of others important.

Please read this user manual carefully before using for your own safety and that of others. To avoid mistakes and accidents, it is important to ensure who uses the product is familiar with its operatic features. Keep the user guide and ensure that it the product if it is moved or sold so that all product throughout its life are properly informed a product's use and safety.

For safety reasons, the safety rules in this user observed, as the manufacturer is not responsible for caused by omission. All safety messages will be for safety word which may be “DANGER”, “WARNING” “CAUTION.”

These words mean:

DANGER

An imminently dangerous situation. Serious injury or may result if instructions are not followed immedia

WARNING

A potentially hazardous situation which, if not avoi result in serious injury or death.

CAUTIOUS

A potentially hazardous situation that could result or minor injuries if the situation is not eliminated

All safety messages tell what the potential hazard reduce the risk of injury and what can happen if instructions are not followed.

Safety of children and vulnerable people

- This product can be used by children aged 8 above. Persons with reduced physical, sensory or capabilities and lack of experience and knowledge the product if they have been given supervision instruction in using the product in a safe way understand the potential hazards.

• Children must be supervised to ensure that the with the product.
• Cleaning and maintenance must not be carried children under the age of 8 and only under s
• Keep all packaging far away from children. The suffocation.
• If you dispose of the product, pull the power socket. Cut the connection cable (as close to t possible) and remove the door to prevent children getting electric shocks or being trapped inside.
• If this product is to replace an older product latch (latch) on the door or lid, be sure to latch unusable before disposing of the old product prevents the product from becoming a potential for a child.

General safety

WARNING! Keep ventilation openings in the product in the built-in structure clear of obstructions.

WARNING! Do not use mechanical devices or other speed up the defrosting process.

WARNING! Always follow the manufacturer's instructi the defrosting process.

WARNING! Do not use pointed or sharp objects to frost and ice from the freezer.

WARNING

WARNING! Do not damage the refrigerant circuit.

WARNING! Do not use other electrical appliances (makers) inside the product unless approved by the manufacturer.

WARNING! Do not touch the bulb if it has been time, as it may be very hot.

WARNING! When placing the product, ensure that cord is not pinched or damaged.

WARNING! Portable multi-sockets can overheat during and cause a fire. Therefore, never place portable behind the product.

WARNING! Do not store explosive substances, e.g. cans with flammable propellant in this product.

WARNING! The product contains the refrigerant isok (R600a). It is a natural gas that neither damages layer nor increases the greenhouse effect. It is fla can ignite if leaked.

• Ensure that none of the components of the circuit are damaged during transport and install product.
• Avoid open flames and sources of ignition. Tho ventilate the room where the product is located
• It is dangerous to modify this product in any damage to the cord may cause a short circuit, electric shock.
• This product is intended to be used in house applications such as:

- staff kitchens in shops, offices and other work environments.

- farms and by customers in hotels, motels and residential environments.

- bed and breakfast.

- catering.

- All electrical components (plug, power cord, com etc.) must only be replaced by an authorized s or qualified service personnel.

- The bulb supplied with products with light is that can only be used with the supplied produce be used for other household lighting.

- The power cord must not be extended.

- Make sure the power plug is not pinched or back of the product. A pinched or damaged pl overheat and cause a fire.

• Make sure you can get to the product's power

- Do not pull on the power cord.

- If the power plug is loose, do not insert the risk of electric shock or fire.

- You must not operate the produkt in a dark

- This product is heavy. Therefore, care must be moving and installing it.

- Do not remove or touch items from the freez hands are damp/wet as this may cause frostbite damage.

- Avoid exposing the product to direct sunlight.

Daily use

• Do not place hot food or hot objects in the
• Do not place food directly against the rear wa
• Frozen foods must not be refrozen once they thawed.
• Store prepackaged frozen food in accordance with instructions on its packaging.
• The product's storage recommendations must be observed. See relevant instructions on the packag
• Do not place carbonated beverages in the free carbonation creates pressure on the container, which cause it to explode and cause damage to the
• Popsicles can cause frostbite if eaten directly from freezer.
• Observe the following instructions to avoid food poor shelf life:
• Opening the door for long periods can cause a increase in the temperature in the product's cor
• Regularly clean all surfaces that may come into food.
• Clean water tanks (if applicable) if they have r for 48 hours. Flush the water system connected supply if no water has been suctioned for 5
• Store raw meat and fish in suitable containers refrigerator so that it does not come into cont drip onto other foods.
• Two-star freezer compartment (if available in the suitable for storing pre-frozen foods, storing or cream and making ice cubes.
• One-, two- and three-star compartments (if present in the

product) are not suitable for freezing fresh food

- If the product is left empty for long periods, product, defrost, clean and leave the door open bacteria and fungus from developing inside the

Care and cleaning

• Before maintenance, the product must be switch the power plug removed from the socket.
• Do not clean the product with metal objects.
• Do not use sharp objects to remove frost from Use a plastic scraper.
• Regularly check the drain in the refrigerator for water. If necessary, clean the drain.
• If the drain is blocked, water will accumulate of the product, which may run the risk of sp floor.

Installation

Important! Follow the instructions in the specific e connection section carefully.

• Unpack the product and check for damage. Do the product if it is damaged. Immediately report damage to the place of purchase. In that case, keep the packaging.
• It is recommended to wait at least 4 hours before connecting the product so that the oil can flow compressor.
• There should be sufficient air circulation around to avoid overheating. To achieve adequate ventilation

follow the instructions relevant to the installation product.

• The product must not be placed close to heat as radiators, stoves or stoves.
• Make sure the power plug is accessible after product.

Service

• All electrical work or service should be carried qualified electrician or competent person.
• This product must be serviced by an authorized center and only original spare parts must be used

Energy saving

• Do not place hot food in the product.
• Do not pack food too close to each other as proper air circulation.
• Ensure that food does not touch the back of compartment.
• If the power goes out, do not open the doo
• Do not open the door(s) too often, as this may be temperature inside the product.
• Do not keep the door(s) open for too long;
• Do not set the thermostat to exceed the recc temperatures.

This manual is machine translated

Correct disposal of this product

Pure electrical circuit lines without any symbols

The symbol on the product or on its packaging indicates that it is not be treated as household waste. Instead, it must be handed appropriate collection point for the recycling of electrical and electronic equipment. By ensuring that this product is disposed of correctly, to prevent potential negative consequences for the environment and health. For more detailed information on recycling this product, your local authority, your household waste center or the store

purchased the product.

Warnings for disposal

Refrigerant and insulating materials are flammable. When the product is scrapped, be kept away from any source of fire. When the refrigerator is to be scrapped and the gasket of the door and shelves are removed. Place the doors and she away from the product to prevent a child from being trapped.

Environmental protection

This product does not contain ozone-depleting gases in its refrigerant circuit or in. The product must not be disposed of together as household waste. The insulating flammable gases: the product must be disposed of according to the product's reg damaging the cooling unit, especially the heat exchanger.

Packaging materials

Recycling symbol with three arrows forming a triangle (no text or numbers)

Materials with this symbol are made from environmentally friendly that can be recycled. By disposing of the packaging correctly in applicable regulations, you help to protect the environment.

WARNING!

The packaging can be dangerous for children!

Plastic parts are marked with the international standard abbreviations:

PE - polyethylene, e.g. the wrapping film

PS - polystyrene, e.g. the upholstery material

POM - polyoxymethylene, e.g. plastic clip

PP - polypropylene, e.g. the salt funnel

ABS - acrylonitrile-butadiene-styrene, e.g. control panel.

Electrical and electronic equipment (EEE) contains materials, components and substance dangerous and harmful to human health and the environment when waste electric equipment (WEEE) is not disposed of properly.

Pure electrical circuit lines without any symbols

Products marked with this symbol are electrical and electronic eq crossed-out dustbin symbolizes that waste from electrical and elect equipment must not be disposed of together with unsorted house, but must be collected separately.

To this end, all municipalities have established collection schemes electrical and electronic equipment can be handed in free of ch recycling stations or other collection points or collected directly from households. F must be obtained from the municipality's technical administration.

WARNING!

Warning symbol of a flame inside a triangle (no text or numbers)

During use, service and disposal of the product, pay attention to the left side, which are usually located on the back of the pre-compressor) and are yellow or orange in color. It is the warning hazard. There are flammable materials in the refrigerant piping and please keep far away from fire sources during use, service and

Transport instructions

The product may only be transported upright. The delivered packaging must be in transport.

If the product was laid down during transport, it must not run for the following system to settle after the product has been returned to the correct position.

Failure to follow the above instructions may result in damaging the product. The be held responsible if these instructions are ignored. The product must be protect moisture and other atmospheric influences.

IMPORTANT: Care must be taken when cleaning / lifting the product to avoid touching the capacitor's metal wires at the back of the product as you may injure your fingers and ha product.

IMPORTANT: This appliance is not intended to be stacked with other appliances. Do not attempt to sit or stand on top of your device as it is not intended for such use. You may product.

IMPORTANT: Make sure that the power cable is not stuck under the product du transporting / moving the product to avoid the power cable being cut, broken o When placing your appliance, be careful not to damage your floor, pipes, wall co move the product by pulling the lid or handle. Do not allow children to play tamper with the settings. Our company declines any responsibility if the instructions

Before use

Before using the product, you must do the following:

• Remove all packaging from the product and dispose of it in accordance with
  • If the side walls and doors are covered with protective film, this must also
• Thoroughly examine the product for any transport damage after unpacking. In the complaints, you must contact the retailer where you purchased the product.
• Clean the inside of the product and accompanying accessories (see section on

Location

Setup

The product must be placed in a dry and well-ventilated room, far away from radiators, ovens and direct sunlight. If this is not possible, we recommend that y board and keep a minimum distance to the heat source of:

• Stoves and ovens, 3 cm.
  • Wood-burning stoves, 30 cm.

The product must stand stable and level. The floor under the product must not this is the case, the floor must be reinforced.

Ventilation

During operation, the cabinet emits heat to the surroundings. The hot air must be otherwise the compressor will have to work more, which will result in increased You must never cover the ventilation openings.

See under section "Installation" for more information on space requirements for the

Room temperature and climate class

The product is intended to stand in a certain climate class. Set it up in a pla temperature corresponds to the product's climate class, which is indicated on the

SN (Extended Temperate):

This refrigerator/freezer is intended for use at an ambient temperature between 10

N (Tempered):

This refrigerator/freezer is intended for use at an ambient temperature between 16

ST (Subtropical):

This refrigerator/freezer is intended for use at an ambient temperature between 16

T (Tropical):

This refrigerator/freezer is intended for use at an ambient temperature between 16

Note! The product is fully functional within the temperature range from the state operation in a temperature range other than the specified climate class, the product maintain the desired temperatures or be fully functional.

Leveling the product

Simple line drawing of a knob with bidirectional arrows indicating rotation (no text or symbols)

The product must stand stable and level. Leveling is important for the product to close and seal the doors properly. If you experience problems with the product not working properly, it may be because it is simply standing unevenly.

Accurate leveling is ensured by adjusting the leveling feet at the bottom of the product. Something can also advantageously be put in underneath to compensate for unevenness.

Connect the product

After installation, you should wait at least 4 hours before switching on the product and putting it into use. This is because during transport it may happen that some of the oil from the compressor flows into the cooling system.

The product should be thoroughly cleaned inside before it is used for the first time (read more under section on Cleaning).

Before connecting, check that the voltage and frequency indicated on the rating plate correspond to your home power supply. The product must be grounded. The power supply cable is equipped with a plug for this purpose. If the household outlet is not earthed, the product must be connected to a separate earth connection in accordance with current regulations and a qualified electrician must be contacted.

The manufacturer disclaims any responsibility if the above safety measures are not observed.

This product complies with the E.E.C. Directives.

Save energy

Here are some good tips on how you can save energy:

• Make sure the food is cold before placing it in the refrigerator or freezer compartment.
- Frozen goods can be advantageously placed in the refrigeration department for thawing. Thereby, the cold from the frozen food is utilized.
- Make sure to place the product in a dry and ventilated room. It must not be left in direct sunlight or near heat sources.
- Frost increases energy consumption and the freezer compartment should therefore be defrosted regularly. A rule of thumb is that when there is 10mm . frost, the freezer should be defrosted.
- Do not open the door of the freezer or refrigerator compartment more than absolutely necessary.

Changing the lamp

The LED lamp is used by the refrigerator for lighting, which features low energy consumption and long service life. In case of any abnormality, please contact the after-sales personnel for visiting service. The lamps can only be replaced by the manufacturer.

Lighting (LED)
	Lamp type: 1 Horizontal LEDEnergy Efficiency Class (Light): N/AThe light source in this product can only be replaced by a professional.

Cleaning the product

Below is a general description of how to clean your product.

Before using the product for the first time, the interior and all interior accessories washed.

For hygienic reasons, the interior of the product, including internal accessories, sho regularly.

Course of action

• Switch off the product/pull out the power plug.
  • Take all frozen-/ refrigerated food out of the product and put them in a cc
• For the freezer compartment, wait until the frost layer has thawed.
• Use a soft cloth and lukewarm water with a little ph-neutral dish soap to c
  • Dry the product thoroughly.
• All door seals and the like must be washed with clean water and then drie
  • After cleaning: connect the product and switch it on.
• Put the frozen- and refrigerated food back into the product.

Important!

• Do not use abrasive cleaners such as sand, chloride or acidic cleaners and sc
• Do not use steel or scouring sponges as these can scratch the surfaces.
• Shelves and drawers must not be washed in the dishwasher as they may be
  Warning! the product must not be connected to the mains during cleaning.

Danger of electric shock! Before cleaning, the product must be switched off or the plug removed from the socket. Never clean the product with a steam cleaner.

Danger of electric shock! Moisture can accumulate in electrical components. Hot vapors can lead to damage to plastic parts. The product must be dry before it is used again.

Drain hole cleaning

To avoid defrosting water overflowing into the product, you must regularly clean refrigerator. Use a cloth and mild detergent to clean the hole.

Smell

If you experience an unpleasant odor from your product, you can do the followi

• Switch off the product/pull out the power plug.
  • Empty the product of food.
• Wipe all packaging with a cloth.
• Food that has a strong odor is wrapped in airtight packaging to prevent odo
• Switch the product back on and place the food back in the cabinet.
• Keep an eye on whether a new smell develops in the cupboard afterwards.

Defrosting of the product

Below is a general description of how to defrost your product.

Refrigerated products

Over time, frost can form on the back wall of the refrigerator. This is complete by the water in the air in the refrigerator.

The refrigerator compartment is designed to automatically defrost. The ice on the and run via the defrost water channels and the drain hole into the evaporation from the compressor will evaporate the water.

Note! Always make sure to keep the defrost water gutters and drain hole clear passage of the thawed water.

Freozen products

Frost will form in the freezer over time. Unless the freezer section has the Nol not defrost automatically. Rhymes are perfectly normal. It is important that the free energy consumption increases the more frost there is. In addition, frost also has the performance of the freezer.

Beware! Sharp objects and knives must not be used to remove frost or ice. This can damage the inside of the products and refrigerant piping.

Course of action:

• Switch off the product/pull out the power plug.
  • Take the food out and put it in a cool place (possibly in a cool bag with
• Remove the shelves, drawers and similar (does not apply to all models).
• Keep the door or lid open and place a bowl or similar so that it can col of the product.
• When there is no more ice in the product, defrosting is complete and the i dried.
• Connect the product and switch on the product.
• Let the product run until it reaches the recommended temperature.
• Put the food back.

In case of prolonged non-use

If the product is not to be used for an extended period of time, you must:

• Switch off the product/pull out the power plug.
  • Take the food out.
• Clean the product (See section on Cleaning).
• Leave the door open to avoid bad odors developing.

Instructions for storage in the refriger

The optimum temperature in the refrigeration department is 4^ C. If the temperature refrigeration department is too hot, the food runs the risk of spoiling too quickly too cold, the food risks freezing or drying out. The refrigeration department is in storage

Due to air circulation in the refrigeration department, there is a slight difference each area of the refrigeration department. Therefore, different types of food should be placed according to best shelf life and to minimize food waste.

We recommend the following:

Door shelves

The refrigerator door is the warmest place. It is therefore best to store food tl cold.

Food such as dressing, ketchup, soda and sauces can be placed here.

Top shelf in the fridge

Beverages and preserves such as jam, sun-dried tomatoes and mustard are placed

The top shelf is the warmest shelf. Therefore, it is best to place preserves such other vinegar products such as beetroot, Asian and cucumber.

Middle shelf in the fridge

The middle shelf is ideal for leftovers and cold cuts. In addition, it is also the place dairy products such as milk, cheese and butter. Milk must be stored at a milk can also be advantageously placed on the bottom shelf.

Bottom shelf in the fridge

The bottom shelf is the coldest place in the refrigerator. It is therefore the best food. Advantageously place meat, fish and poultry, which must be stored at a m

The vegetable drawer

The vegetable drawer is the perfect place to store fruit and vegetables because the humidity is higher here than in the rest of the fridge.

We recommend keeping fruit and vegetables separate. This is because there are s contain substances that can promote the ripening process of the surrounding veget

Outside the fridge

There is some food that does not need to be refrigerated at all or that is n cold. These are, for example, tomatoes, avocados, bananas and garlic/onions.

Tips and advice for storing fresh produce in the cold storage

For good food hygiene and best shelf life, it is recommended to follow these t

- Do not place hot food or hot liquids in the refrigerator. Allow the food to the cupboard.

- Food should be packed in storage boxes or covered with plastic film. This is color and freshness of the food.

- Fruit and vegetables must be thoroughly cleaned and placed in the vegetable humidity helps to extend shelf life.

- Avoid food coming into contact with the back wall of the cabinet, as this c and food risks freezing to the back wall.

Instructions for food storage in the

The optimum temperature in the freezer section is -18^ and is intended for long colder it is, the better the quality and shelf life of the frozen food. If the food freezes more slowly and the food quality decreases.

Information on freezing capacity can be found on the product nameplate.

When starting up for the first time or starting up after a period of non-use, started 6 hours before food is placed in the freezer compartment.

The freezer compartment is intended for the following:

• For storing deep-frozen foods.
  • For freezing fresh food.
• For making ice cubes.

Important! Always make sure the freezer door is completely closed. If the door is not closed properly, the food dries out and the freezer freezes. Moreover, it also increases power cc

How to use the ice cube box:

Place the ice cube box in the uppermost position in the freezer so that it fre

Freezer room and stars

All freezers, freezers and chest freezers have a star rating between 1 and 4. The indicates how efficient the freezer is at freezing.

• 1 star: Freezers with 1 star can maintain a temperature of -6^ and are suitable for short storage (3-4 days).
• 2 stars: Freezers with 2 stars can maintain a temperature of -12^ and are storage (1-2 weeks).
• 3 stars: Freezers with 3 stars can maintain a temperature of -18^ and are suitable for longer storage (>1 month).
• 4 stars: Freezers with 4 stars can freeze food and maintain a temperature of -18^ . Suitable for longer storage (>1 month).

Wrap food correctly

Before food is placed in the freezer compartment, it must be wrapped so that or dry out. Only use packaging that is approved for the freezer.

The following materials are suitable for wrapping: Film foil, aluminum foil, freezer freezer bags.

The following materials are not suitable for wrapping: Wrapping paper, cellophane, used shopping bags.

Follow these steps for proper wrapping:

1. Wrap the food in suitable packaging
2. Press the air out of the packaging
3. Seal the packaging
4. Mark the packaging with contents and date to keep an eye on the storage

Freezing fresh food

The following foods are suitable for freezing: Fish and shellfish, baked goods, pou herbs, fruit and vegetables, cheese, butter, ready meals and leftovers.

Food not suitable for freezing: Salad, eggs, yoghurt, condensed milk, creme fraiche

For best shelf life, we recommend the following tips and advic fresh food:

• The optimum temperature in the freezer is -18^ .
• Only use fresh and unblemished food for freezing.
• The goods must be packed airtight so that they do not lose their flavor or
• Freezing larger quantities of food must be placed in the lower compartment. particularly quickly and the quality of the food is preserved.
• Fish and meat can be advantageously cut into smaller pieces for faster freezir
• Only use packaging that is suitable for going into the freezer.
• Do not let fresh produce come into contact with the frozen to avoid a rise latter.
• Do not overfill the freezer. If the freezer is full, the air will not be able

Storage of frozen foods

To ensure a long shelf life of your frozen foods, you should:

• that the frozen food you buy has been adequately stored by the retailer.
• Ensure that frozen food is transferred directly from the store to the freezer possible time.
• Do not open the freezer too often or leave the door open longer than nec opening lowers the temperature in the freezer and the food deteriorates quick
• When defrosted, food cannot be refrozen.

Shelf life of frozen products

The shelf life of frozen food depends on the type of food.

At a temperature of -18^ , it generally applies to:

• Fruit and vegetables, 10-12 months
• Cheese, 3-4 months
  • Baked goods, 2-8 months
  • Minced meat, 4 months
  • Poultry, 3-9 months
• Pork, 3-6 months
  • Whole pieces of beef, 1 year
• Lamb, 1.5 years
• Lean game, 1.5 years
  • Ready meals, 1-3 months
  • Fatty fish, 1-2 months
• Lean fish, 3-6 months

Thawing deep-frozen goods

Frozen foods must be thawed gently to best preserve quality and reduce the gr. Depending on the type and purpose of use, the following methods can be used

The refrigerator

Bacteria develop more slowly in the refrigerator than at room temperature. Theref hygienic thawing method.

The kitchen table

If the food is wrapped in a freezer bag, you can advantageously put it in a the risk of the development of bacteria, food must not be left on the kitchen

The microwave oven

If you don't have much time, you can use a microwave that has a defrosting used, the food must be prepared immediately to avoid the development of danger.

Important! Frozen products that have been completely or partially thawed must not be refrozen. They should be cooked in advance, after which it can be frozen again.

Functions

The product can be equipped with the following functions. However, there is a whether it is a refrigerator, freezer or combi cabinet.

Super freeze function

The Superfreeze function is useful if you need to freeze a large amount of food product has been switched off for a long time.

The temperature becomes significantly colder and the food is frozen so quickly the nutritional values, appearance and taste are preserved.

Note! When superfreeze is activated, the compressor works constantly and the operating noise can therefore be somewhat louder than normal.

Vacation mode feature

If you are going on holiday or do not intend to use the product for a long to an energy-saving holiday mode.

Important! When holiday mode is switched on, no food may be stored in the compartment.

Door alarm

The product is equipped with a door alarm that goes off if the door to the long time.

Resume feature

In the event of a power failure, the product will resume the previously set sta failure when the power is restored.

Minus 15°C function

The product is approved for storage in a dry environment with an ambient tem is because the product is equipped with a compressor that generates heat and the oil does not harden/clump at cold temperatures.

Although the product can stand down to -15^ , energy consumption will be diffe given. When the product is set at a different temperature than that prescribed the energy consumption is no longer in accordance with what is given on the

The product's climate class has no influence on compressors technically developing of the product's extra features that it can stand down to an ambient temperatu

Furthermore, there is no climate class that covers down to -15^ .

Normal accessories

The product can be equipped with the following accessories

Bottle shelf

The bottle shelf is intended for horizontal storage of bottles to save space. It bottles, cans and juice.

The shelves in the product can be adjusted in height. Hold one end of the sit out.

Shatterproof glass shelves

This product comes with adjustable, shatterproof glass shelves. To adjust, pull out

lift the front part and pull out the shelf.

Vegetable drawer

The vegetable drawer is ideal for storing fruit and vegetables. Pull out the draw vegetables in the drawer.

Vegetable drawer with humidity regulator

The vegetable drawer is ideal for storing fruit and vegetables. To create the optimal vegetable drawer is equipped with a humidity regulator.

The humidity is adjusted by pushing the regulator either to the right or to the

• For large quantities of fruit and vegetables, set the humidity to low.
• For small amounts of fruit and vegetables, set the humidity to high.

Ice cube tray

1 Fill the tray with drinking water and place it in the freezer.
2 To loosen the ice cubes, the ice cube tray can be briefly submerged under Alternatively, the tray can also be turned slightly.

Freezer element

The product can be equipped with a freezing element that can be removed and cooling bag.

In the event of a power failure or fault, the freezing element prevents heating short period.

Installation

Ventilation condition

The position you select for the refrigerator installation should be well-ventilated and Do not locate the refrigerator near a heat source such as cooker, and avoid it guaranteeing the refrigeration effect while saving energy consumption. Do not locate in the damp place, so as to prevent the refrigerator from rusting and leaking the total space of the room in which the refrigerator is installed being divided charge amount of the refrigerator shall not be less than 8 g/ M3.

Note: The amount of refrigerant charged for the refrigerator can be found on th

Heat dissipation space

When working, the refrigerator gives off heat to surroundings. Therefore, at least above the product.

Level ground

Place the refrigerator on the solid and flat ground (floor) to keep it stable, or vibration and noise. When the refrigerator is placed on such flooring materials as polyvinyl chloride, the solid backing plates should be applied underneath the refriger prevent color change due to heat dissipation.

Heat dissipation area

When in operation, the product emits heat to the surroundings. Therefore, it is sufficient ventilation, so that the product can get rid of excess heat.

If the product is built into a cabinet, the product needs ventilation. The more the product in the cabinet, the better it can get rid of the heat.

We recommend that there should be at least 30 mm of free space above and

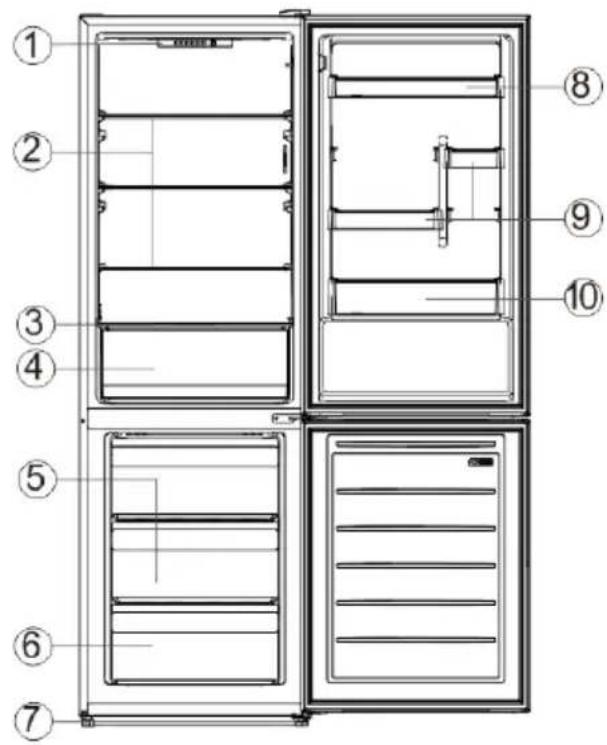

Description of the product

1 Thermostat
2 Refrigerator Glass Shelf
3 Crisper Cover
4 Crisper
5 Frozen Upper Drawer
6 Frozen drawer
7 Adjusting foot
8 Upper bottle frame
9 Middle bottle frame
10 Lower bottle frame

Due to technological innovations, the p descriptions in this manual may not be completely consistent with your product. Detailed information is in accordance v final product.

Controlpanel functions

Temperature setting

Temperature can be adjusted by pressing the 'SET' key, and if no key operation within 3 seconds after temperature setting, the said setting will be validated, with the temperature immer as per the setting; and the mode indicator light will go off after 3 seconds.

The temperature modes cycle as following: 3"52→1→FAST COOL>5"

5-4: When the user needs a colder temperature.

3: When in normal use.

2-1: When the user does not need a colder temperature.

Note: If the indicator light '5' or '3' or '1' gets flickering, it indicates that the refrigerator has broken down. Please contact the after-sales personnel for on-site service as soon as poss

Reversing the door swing

If necessary, the door can be changed from right to left hinged.

Warning! Before you work on the appliance, always pull the mains plug out of in order to avoid damages to persons and property execute the change of the persons.

We recommend leaving the change of the door stop to experts.

Before you start with the modifications, here is some general info:

Always pay attention to the number of shims on the bearing pins and screws.

Position the doors always so that they close tightly

3D mechanical assembly diagram showing a bracket with mounting holes and a clamping mechanism (no text or symbols)

Unscrew the cover of the door hinges and

3D technical illustration of a mechanical assembly with exploded view and mounting features (no text or symbols)

Unplug the cable. Unscrew the 4 screws th upper hinge and remove it. Take off the l ground cable of the hinge. Insert the cable in the opening on the top of the applianc door jack and the cover of the small end

Put the door jack and the cable connect opening on the door and then attach the

Illustration of a computer monitor with ports and buttons, no visible text or symbols

Loosen the screws as shown in the figure to remove the gap cover on the top side appliance. Remove the small end cap cover and take out the door socket and the cat (if such is present).

Put the door socket in the round opening

Close-up of a metallic bracket or panel with no visible text or symbols

and attach the small end cap cover

Illustration of a refrigerator with open door and shelves (no text or symbols)

Raise the refrigerator door about 50 mm, i remove it from the appliance.

Technical illustration of a mechanical bracket with mounting holes and a handle (no text or symbols)

Loosen the 3 screws that hold the middle then remove it.

Illustration of a refrigerator with open door and side panels (no text or symbols)

Raise the freezer door about 50 mm, so remove it from the fridge.

Exterior view of a modern office building (no signage)

Remove the adjustable front stands below the hinge. Then, loosen the 4 screws that ho hinge and remove it from the fridge.

The removal of the doors is now finished.

Pure electrical circuit lines without any symbols

Install the removed parts on the opposite s appliance. Pull the door socket, as shown in following figure, and install it in the respect on the other side.

Technical diagram of two parallel electronic components with connectors and ports (no text or symbols)

Remove the screws from the stopper, as sh following figure, and install it on the oppos the door

Two identical mechanical component views showing a transformation from front to side, with no visible text or symbols.

Remove the shaft and the two stoppers from hinge and ins tall it in the position, as follows following figure.

Mechanical assembly diagram showing a metal frame with a highlighted component and mounting brackets (no text or symbols)

Install the refrigerator and freezer doors on opposite side.

Remove the adjustable stand in the front, a below. Then, install the lower hinge on the fridge and tighten the screws.

Two identical mechanical components with flanged ends and cylindrical tops, shown in 3D rendering (no text or symbols)

Install the shorter adjustable stand in the f side where the lower hinge is. By turning can adjust the height on this s de of the it is levelled out.

Close-up of a mechanical device with a black arrow pointing to a component, no visible text or symbols

Attach the freezer door 180° and then install opposite side of the appliance. Attach the 1 with the 3 corresponding screws.

Attach the refrigerator door and install the on the opposite side of the appliance. Atta hinge with the 4 corresponding screws. A s loop of the ground cable with one of the Afterwards, connect the cable link. Attach th hinge cover with a screw

Install the gap cover on the opposite side appliance and tighten the screw

Pure mechanical assembly diagram without any text, numbers, or symbols

Finally, check for the right alignment of the that they close properly on all sides. If ne the stands in the front for a fully horizon of the appliance.

If you have tilted the appliance by more 1 please wait 4 hours before you connect the to the mains supply

Normal running sounds

All products have different "operating sounds," which can sometimes seem annoying completely normal functional sounds.

These are normal sounds:

Light humming

This sound originates from the engine and can occasionally become louder when started.

Gargling/rippling sound or slight hum

Originates from the coolant circulating through the pipes.

Clicks

Small clicks can always be heard when electronic cards start or stop the compre

Light background noise

If the product has a fan (depending on the model), the air circulating inside the slight background noise.

Avoid noise

If you find that the sounds are louder than usual, this can be due to several most of them yourself without a visit from a service technician.

The product is not stable

If the product is tilted, it can affect the circulation of refrigerant. Adjust on the something underneath.

The door does not close tightly

If the door of the product does not close tightly, the compressor has to work temperature down. Make sure to close the door properly or get a service techn sealing strip.

The product is too close to a wall

The compressor emits small vibrations. If the product is too close to the wall, increase. Fix it by moving the product further away from the wall.

Trouble shooting

If you have problems with your product, you may be able to remedy it yourself

Warning! Before troubleshooting, disconnect the power supply. Only a qualified service technician may carry out troubleshooting that is not covered in this manual.

The product does not work

The power plug is not plugged in or is loose. The fuse has blown or is defe Unplug and plug it back in.

Check the fuse and replace if necessary. if defective. Mains faults must be recti. Please refer to the section on temperature setting.

Strange smell

Is there rotten food in the cupboard? Do you need to clean the product? Is stored?.

Throw away rotten food. Clean the product. Wrap food with strong flavor.

The product does not cool enough

Do you place hot food in the product? Do you often open the door? Is the near a heat source? Is there good ventilation?

Is the temperature setting too high? Allow the food to cool before placing it i and closing the door. Place the product away from heat sources.

Ensure good ventilation around the cabinet. Set the temperature according to the temperature.

The door does not close properly

The shelves do not fit properly. Items are in the way/too many items in the leveled. Place the shelves properly. Reposition the items. Adjust on the leveling f

Water on the floor

The drain hole is blocked. Clean drain hole.

Small drops of water or frost form on the back wall of the product

This is completely normal, because it is a particularly cold and humid place in water droplets and frost condense during the product's normal operation.

Certain foods do not freeze completely

It is normal for foods that contain a lot of sugar, fat or alcohol not to free partially soft (ice cream, fruit juice, etc.)

The frozen meat has white stripes

Check whether the temperature is set correctly and not at a temperature that is the meat has not been stored in the freezer for too long.

It is difficult to open the door

It is normal for the door to be a little difficult to open, especially if it has negative pressure is created to ensure that the door is completely closed. Wait opening it again.

Any repair of the product must be carried out:

Either by your dealer, or by a qualified professional who is recognized for this

Note: If the above descriptions cannot be used for troubleshooting, do not disassemble and repair it yourself. Repairs carried out by inexperienced persons may cause damage or serious contact the local store where your purchase was made. This product must be s

authorized engineer and only original spare parts should be used.

When the appliance is not in use for long periods, disconnect the power supply clean the appliance and leave the door open to prevent unpleasant smells.

Information when contacting service

Silhouette of a customer wearing a headset and using a laptop (no text or symbols)

You are welcome to contact our after-sale service department if questions about our products that you cannot resolve yourself or needs repair.

Often problems can be remedied by using the section on "Troub Solutions." Contact our service department if this is not the case sure to find the best solution and try to avoid unnecessary ser

Due to safety reasons, only trained specialist personnel may carry out repairs on to complain about the product expires if repairs or changes are made by person not given authorization or if non-original spare parts are used.

We offer the purchase of original spare parts in accordance with the relevant re environmentally friendly design. See the appendix for the minimum period during v are available to repair the product.

Information about the complaint period and conditions can be found on our website department or your dealer.

Contact information can be found on our website www.scandomestic.dk or in the

We recommend that you have the product's model number and serial number re: after-sales service department.

Both parts can be found on the product's type plate, which is inside the product. On some products it may be necessary to remove the vegetable drawer

Write down the information before contacting service.

Technical data

Keep the energy label together with the user manual and other documents for I Further technical information about climate class, refrigerant and volume can be fo plate.

More information about your product can be found at www.scandomestic.dk or by code below. By scanning the QR code with your smartphone, you will get to a product register for energy labels. Here you will find more technical data about

Energy calculations and tests.

The product is energy tested as free standing.

It may occur or can be expected that the energy consumption will be higher if a cabinet element and thus has lower ventilation.

Information regarding after sales

Access to professional repair, such as websites, addresses, contact information:

Model number: SKF327WE

Address	Scandomestic A/S	QR-code
Contact number	0045 7242 5571
Homepage	www.scandomestic.dk
Relevant information for ordering spare parts, directly or through other channels provided by the manufacturer, importer or authorised representative;			[e-mail]
The minimum period during which spare parts, necessary for the repair of the appliance, are available; (years)			7
Instruction on how to find the model information in the product database, as defined in Regulation (EU) 2019/2019 by means of a weblink that links to the model information as stored in the product database or a link to the product database and information on how to find the model identifier on the product.)			www.scandomestic.dk
Minimum duration of the guarantee offered by the supplier (months)			12

Note: The address or contact phone number of the service site is subject to change without prior notice. Please confirm whether the service station is a directly affiliated one of our company when requiring services.

CE declaration of conformaty

This appliance has been manufactured to the strictest standards and complies with all

applicable legislations, Low Voltage Directive (LVD) and Electromagnetic Compatibility (EMC).

Kära kund

Pure electrical circuit lines without any symbols

Recycling symbol with three arrows forming a triangle (no text or numbers)

Simple line drawing of a trash bin with crossed handle and circular base, no text or symbols present

Warning symbol of a flame inside a triangle (no text or numbers)

SN (Extended Temperate):

Simple diagram of a knob with bidirectional arrow indicating rotation (no text or symbols)

3D mechanical assembly diagram showing a bracket with mounting holes and internal components (no text or symbols)

3D technical illustration of a mechanical assembly with exploded view of components (no text or symbols)

Diagram of a mechanical assembly with components and mounting holes (no text or symbols)

Illustration of a refrigerator with open doors and shelves (no text or symbols)

Technical illustration of a mechanical bracket assembly with mounting holes and a tool (no text or symbols)

3D rendering of a refrigerator with open door and side panels (no text or symbols)

Exterior view of a modern office building (no signage)

Pure electrical circuit lines without any symbols

Technical diagram of two parallel electronic device modules with connectors and ports (no text or symbols)

Two views of a mechanical component before and after modification, showing circular holes and mounting holes (no text or symbols)

3D mechanical assembly diagram showing a bracket with mounting holes and a highlighted component (no text or symbols)

Two identical mechanical components with flanged ends and cylindrical tops, shown in 3D rendering (no text or symbols)

Close-up of a mechanical device with a black arrow pointing to a component, no visible text or symbols

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Silhouette of a person wearing a headset and using a laptop with a signal icon (no text or symbols)
