Brand	PHILIPS
Model	AZ1140
Product type	Portable CD player with radio and cassette deck
Power	6 R14/UM2/C batteries (alkaline recommended) or AC mains via power cord
Audio sources	CD, CD-R/RW, Tuner FM/MW/LW, Cassette
CD functions	Play, pause, search, track skip, program (20 tracks), Shuffle and Repeat modes
Radio functions	Automatic and manual tuning, 30 presets, 3 direct favorite keys
Cassette functions	Play, record (CD and radio), fast forward/rewind, pause
Amplification	Adjustable volume, Dynamic Bass Boost (DBB)
Connectivity	3.5 mm stereo headphone jack, telescopic FM antenna
Display	LCD screen showing mode, frequency, playing time, etc.
Indicators	Low battery indicator (BATT LOW), FM stereo
Maintenance	Clean cassette heads and pinch rollers with a cotton swab dipped in alcohol every 50 hours; clean CD lens with a cleaning disc
Safety	Do not open the device; use on a flat, ventilated surface; avoid moisture and excessive heat
Batteries	Use only batteries of the same type; remove if not used for an extended period
Consumption	Not specified
Dimensions	Not specified
Weight	Not specified
Repairability	Entrust to a professional; any opening voids the warranty

Frequently Asked Questions - AZ1140 PHILIPS

How to open the CD player lid?

Lift the lid using the OPEN•CLOSE button on the front panel.

What to do if the display shows 'no' or 'Err'?

This means no CD is inserted or the CD is unreadable. Insert a CD correctly, clean the disc, or wait for the lens to clear if condensation occurs.

How to tune a radio station?

Select the TUNER source, choose the band with BAND (FM, MW, LW), then briefly press SEARCH or hold it for automatic search.

Can I record from CD to cassette?

Yes, select the CD source, insert a blank Normal (I) cassette, then press RECORD. CD playback starts automatically and the recording is synchronized.

How to improve FM reception?

Extend and orient the telescopic antenna at the back. Reduce its length if the signal is too strong (near a transmitter).

What to do if sound is low or absent?

Check the VOLUME setting, disconnect headphones if connected, and ensure the power cord is properly plugged in or the batteries are sufficiently charged.

How to program a CD track?

In stop mode, use SEARCH to select the track number, then press PROGRAM. Repeat for up to 20 tracks, then press PLAY•PAUSE to start.

What type of batteries to use and how to replace them?

Use six R14, UM-2, or C batteries (alkaline preferred). Open the compartment at the back, insert the batteries respecting polarity (+/-), then close. The BATT LOW indicator lights up when batteries are low.

How to activate demonstration mode (Demo)?

Press and hold the CD STOP button for 5 seconds. The display scrolls 'PH..IL..IPS'. To exit, press STOP again for 5 seconds or press any function key.

Radio recording does not work. What to check?

Make sure the cassette is Normal (I) type and the protection tabs are not broken. If necessary, cover the tabs with adhesive tape. Use the BEAT CUT switch to eliminate whistling on MW/LW.

USER MANUAL AZ1140 PHILIPS

Important notes for users in the U.K.

Mains plug

This apparatus is fitted with an approved moulded 13 Amp plug. To change a fuse in this type of plug proceed as follows:

• Remove fuse cover and fuse.
  Fix new fuse which should be a BS1362 5 Amp, A.S.T.A. or BSI approved type.
• Refit the fuse cover.

If the fitted plug is not suitable for your socket outlets, it should be cut off and an appropriate plug fitted in its place.

If the mains plug contains a fuse, this should have a value of 5 Amp. If a plug without a fuse is used, the fuse at the distribution board should not be greater than 5 Amp.

Note: The severed plug must be disposed to avoid a possible shock hazard should it be inserted into a 13 Amp socket elsewhere.

How to connect a plug

The wires in the mains lead are coloured with the following code: blue = neutral (N), brown = live (L). As these colours may not correspond with the colour markings identifying the terminals in your plug, proceed as follows:

• Connect the blue wire to the terminal marked N or coloured black.
• Connect the brown wire to the terminal marked L or coloured red.
• Do not connect either wire to the earth terminal in the plug, marked E (or 12 ) or coloured green (or green and yellow).

Before replacing the plug cover, make certain that the cord grip is clamped over the sheath of the lead - not simply over the two wires. Copyright in the U.K.: Recording and playback of material may require consent. See Copyright Act 1956 and The Performer's Protection Acts 1958 to 1972.

Norge

Advarel: For a redusere faren for brann eller elektrisk stot; skal apparatet icke utsettes for regn ell er fuktighe.

Philips Consumer Electronics

Philips, Glaslaan 2

5616 JB Eindhoven, The Netherlands

English 4

Francais 14

Espanol 24

Deutsch 34

Nederlands 44

Italiano 54

Polski 64

Portugues 74

Dansk 84

Svenska 94

Suomi 104

'ELAnvika 114

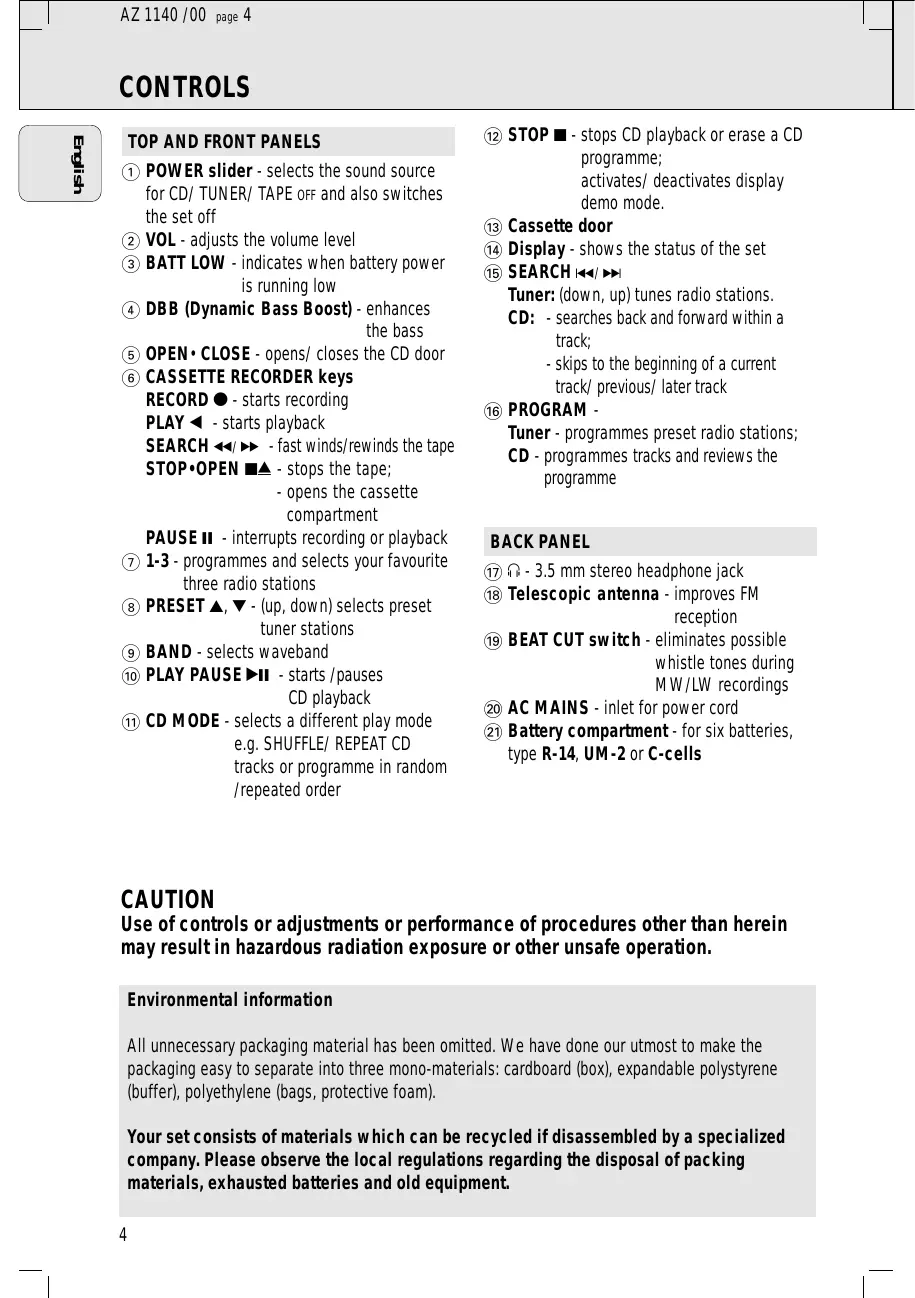

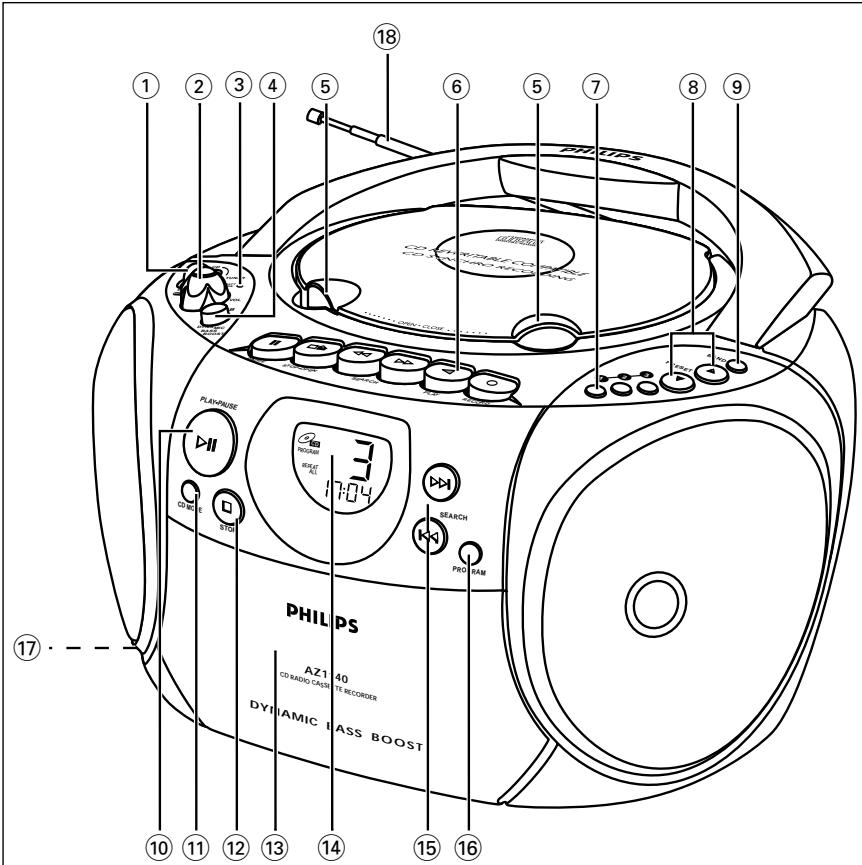

TOP AND FRONT PANELS

① POWER slider - selects the sound source for CD/TUNER/TAPE off and also switches the set off
② VOL - adjusts the volume level
③ BATT LOW - indicates when battery power is running low
DBB (Dynamic Bass Boost) - enhances the bass
⑤ OPEN•CLOSE - opens/ closes the CD door
⑥ CASSETTE REORDER keys RECORD ● - starts recording

PLAY -starts playback

SEARCH - fast winds/rewinds the tape

STOP-OPEN -stops the tape;

• opens the cassette compartment

PAUSE II - interrupts recording or playback

(7) 1-3 - programmes and selects your favourite three radio stations
(8) PRESET ▲,▼ - (up, down) selects preset tuner stations
(9) BAND - selects waveband
10 PLAY PAUSE -starts/pauses CD playback
CD MODE - selects a different play mode e.g. SHUFFLE/ REPEAT CD tracks or programme in random /repeated order

12 STOP - stops CD playback or erase a CD programme; activates/ deactivates display demo mode.
Cassette door
14 Display - shows the status of the set
15 SEARCH

Tuner: (down, up) tunes radio stations.

CD: - searches back and forward within a track;

• skips to the beginning of a current track/ previous/ later track

16 PROGRAM

Tuner programmes preset radio stations;

CD - programmes tracks and reviews the programme

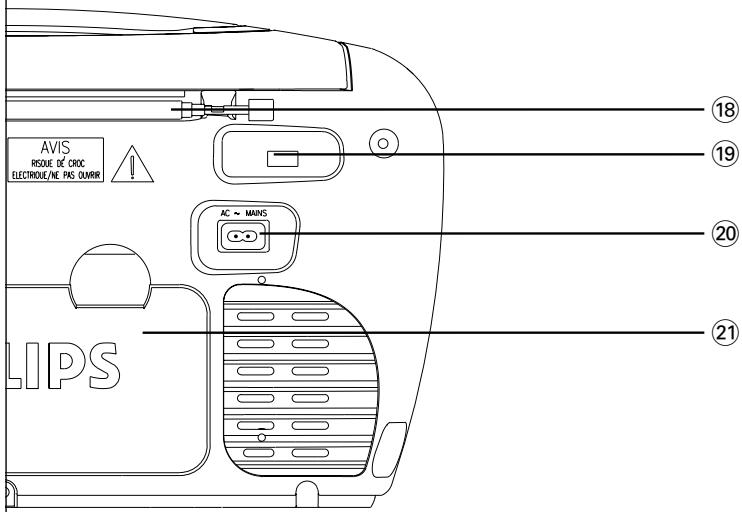

BACK PANEL

17 3.5 mm stereo headphone jack
18 Telescopic antenna - improves FM reception
BEAT CUT switch - eliminates possible whistle tones during MW/LW recordings
20 AC MAINS - inlet for power cord
② Battery compartment - for six batteries, type R-14, UM-2 or C-cells

CAUTION

Use of controls or adjustments or performance of procedures other than herein may result in hazardous radiation exposure or other unsafe operation.

Environmental information

All unnecessary packaging material has been omitted. We have done our utmost to make the packaging easy to separate into three mono-materials: cardboard (box), expandable polystyrene (buffer), polyethylene (bags, protective foam).

Your set consists of materials which can be recycled if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packing materials, exhausted batteries and old equipment.

Whenever convenient, use the mains supply if you want to conserve battery life. Make sure you remove the plug from the set and wall socket before inserting batteries.

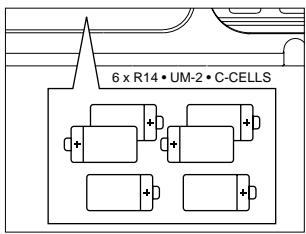

BATTERIES (OPTIONAL)

1. Open the battery compartment and insert six batteries, type R-14, UM-2 or C-cells, (preferably alkaline) with the correct polarity as indicated by the "+" and "-" symbols inside the compartment.

2. Replace the compartment door, making sure the batteries are firmly and correctly in place. The set is now ready to operate.

3. If BATT LOW lights up, battery power is running low.

4. The BATT LOW indicator eventually goes out if the batteries are too weak.

Incorrect use of batteries can cause electrolyte leakage and will corrode the compartment or cause the batteries to burst.

Therefore:

• Do not mix battery types: e.g. alkaline with carbon zinc. Only use batteries of the same type for the set.
• When inserting new batteries, do not try to mix old batteries with the new ones.
• Remove the batteries if the set is not to be used for a long time.
• Batteries contain chemical substances, so they should be disposed of properly.

For users in the U.K.: please follow the instructions on page 2.

Using AC MAINS

1. Check if the mains voltage as shown on the type plate on the base of the set, corresponds to your local mains supply. If it does not, consult your dealer or service centre.
2. If your set is equipped with a voltage selector, adjust the selector so that it matches with the local mains supply.
3. Connect the mains lead to the wall socket and the set is now ready for use.
4. To disconnect the set from the mains supply completely, remove the plug from the wall socket.

Switching on and off

• Adjust the POWER slider to the desired sound source: CD, TUNER or TAPE/OFF.
• The set is switched off when the POWER slider is in the TAPE/off position and the keys on the tape deck are released.

→ The volume and tuner presets will be retained in the set's memory.

Adjusting volume and sound

1. Turn the VOL control to increase or decrease VOLUME.
2. Adjust the DBB control to select dynamic bass boost on or off.

PHILIPS demo mode

1. On the set, press the CD STOP button for 5 seconds.
   PH..IL ..IPS scrolls across the display continuously.

2. To return to the current display you can either:

3. press any function button on the front panel. This interrupts the demo mode for 30 seconds;

4. press the CD STOP button for 5 seconds. PH..IL ..IPS scrolls once before the demo mode is cancelled.

GENERAL INFORMATION

General maintenance

• Do not expose the set, batteries, CDs or cassettes to humidity, rain, sand or excessive heat caused by heating equipment or direct sunlight.
• To clean the set, use a soft, slightly dampened chamois leather. Do not use any cleaning agents containing alcohol, ammonia, benzene or abrasives as these may harm the housing.

Safety information

• Place the set on a hard and flat surface so that the system does not tilt. Make sure there is adequate ventilation to prevent the system from overheating.
• The mechanical parts of the set contain self-lubricating bearings and must not be oiled or lubricated.

TUNING TO RADIO STATIONS

1. Select TUNER source.
   = is displayed briefly and then the radio station frequency is shown.
2. Press BAND once or more to select your waveband.
3. Press SEARCH or and release when the frequency in the display starts running.
   → The tuner automatically tunes to a station of sufficient reception. Display shows S_r h during automatic tuning.
   If a FM station is received in stereo, STEREO is shown.
4. Repeat step 3 if necessary until you find the desired station.
5. To tune to a weak station, press SEARCH or briefly and repeatedly until you have found optimal reception.
6. Adjust the power slider to TAPE/OFF position to switch off the set.

To improve radio reception

• For FM, pull out the telescopic aerial. Incline and turn the aerial. Reduce its length if the signal is too strong (very close to a transmitter).
• For MW/LW, the set is provided with a built-in aerial so the telescopic aerial is not needed. Direct the aerial by turning the whole set.

Favourite station selection

For your favourite 3 tuner stations, you can use the easy one-touch programming and selection 1, 2 or 3 buttons.

1. Tune to your desired station (see Tuning to radio stations).
2. To store your station, press 1, 2 or 3 for 2 seconds or more.
   Display: shows PROGRAM briefly, your favorite preset station number and the tuner frequency.

Programming radio stations

You can store up to a total of 30 radio stations in the memory.

1. Tune to your desired station (see Tuning to radio stations).
2. Press PROGRAM to activate programming.
3. Display: PROGRAM flashes.
4. Press PRESET or once or more to allocate a number from 1 to 30 to this station.
5. Press PROGRAM again to confirm the setting.
6. Display: PROGRAM disappears, the preset number and the frequency of the preset station are shown.
7. Repeat the above four steps to store other stations.
8. You can overwrite a preset station by storing another frequency in its place.

Tuning to preset stations

Press 1, 2, 3 or PRESET or until the desired preset station is displayed.

Playing a CD

1. Select CD source.
   is displayed briefly.
2. Lift the CD door open.
   Display: when you open the CD door.
3. Insert a CD or CD-R(W) with the printed side facing up and close the CD door.
   Display: d / 5c flashes as the CD player scans the contents of a CD. The total number of tracks and playing time are then shown. Display: is shown if the CD-R(W) is blank or not finalised.
4. Press PLAY·PAUSE to start playback.
   Display: Current track number and elapsed playing time of the track during CD playback.
5. To pause playback press PLAY·PAUSE▶II Press PLAY·PAUSE▶II again to resume play.
   → The display freezes and the elapsed playing time flashes when playback is paused.
6. To stop CD playback, press STOP

Note: CD play will also stop when:

• the CD door is opened;
• the CD has reached the end (unless you have selected REPEAT or REPEAT ALL);
• you select another source: TAPE / TUNER.

Selecting a different track

• Press SEARCH or once or repeatedly until the desired track number appears in the display.
• If you have selected a track number shortly after loading a CD or in the PAUSE position, you will need to press PLAY·PAUSE▶II to start playback.

Finding a passage within a track

1. Press and hold down on SEARCH or
   The CD is played at high speed and low volume.
2. When you recognize the passage you want, release SEARCH or
3. Normal playback continues.

Note: During a CD programme or if SHUFFLE/ REPEAT active, searching is only possible within a track.

Different play modes: SHUFFLE and REPEAT

You can select and change the various play modes before or during playback. The play modes can also be combined with PROGRAM.

SHUFFLE - tracks of the entire CD/ programme are played in random order

SHUFFLE and REPEAT ALL - to repeat the entire CD/ programme continuously in random order

REPEAT ALL - to repeat the entire CD/ programme

REPEAT - to play the current track continuously

1. To select your play mode, press the CD MODE key before or during playback until the display shows the desired function.
2. Press PLAY·PAUSE▶II to start playback if in the STOP position.
3. To return to normal playback, press the CD MODE key until the various SHUFFLE / REPEAT modes are no longer displayed.
4. You can also press STOP to cancel your play mode.

Programming track numbers

Programme in the STOP position to select and store your CD tracks in the desired sequence. If you like, store any track more than once. Up to 20 tracks can be stored in the memory.

1. Use the SEARCH or on the set, to select your desired track number.
2. Press PROGRAM.
   Display: PROGRAM and the selected track number. P G appears briefly.
   If you attempt to programme without first selecting a track number, _SEL^A is shown.
3. Repeat steps 1-2 to select and store all desired tracks.
   FULL is displayed if you attempt to programme more than 20 tracks.
4. To start playback of your CD programme, press PLAY·PAUSE II.

Reviewing the programme

In the STOP position, press and hold down PROGRAM for a while until the display shows all your stored track numbers in sequence.

Erasing a programme

You can erase the programme by:

• pressing STOP once in the STOP position or twice during playback. The display shows 'NO' briefly.
• pressing the CD door open;
• switching to TUNER/TAPE source.

CD player and CD handling

• If the CD player cannot read CDs correctly, use a commonly available cleaning CD to clean the lens before taking the set to repair. Other cleaning methods may destroy the lens.
• The lens of the CD player should never be touched!
• Sudden changes in the surrounding temperature can cause condensation to cloud over on the lens of your CD player. Playing a CD is then not possible. Do not attempt to clean the lens but leave the set in a warm environment until the moisture evaporates.
• Always keep the CD compartment closed to avoid dust on the lens.
• To take a CD out of its box, press the centre spindle while lifting the CD. Always pick up the CD by the edge and return the CD to its box after use to avoid scratching and dust.
• To clean the CD, wipe in a straight line from the centre towards the edge using a soft, lint-free cloth. Do not use cleaning agents as they may damage the disc.
• Never write on a CD or attach any stickers to it.

PLAYING A CASSETTE

1. Select TAPE source.
   →The display shows throughout tape operation.
2. Press STOP-OPEN to open the cassette door.
3. Insert a recorded cassette and close the cassette door.
4. Press PLAY to start playback.
5. To interrupt playback, press PAUSE II. To resume, press the key again.
6. By pressing SEARCH or on the set, fast winding of the tape is possible in both directions.
7. To stop the tape, press STOP·OPEN ▲
8. The keys are automatically released at the end of the tape and the -RPE indication goes out, except if PAUSE II has been activated.

GENERAL INFORMATION ON RECORDING

• Recording is permissible insofar as copyright or other rights of third parties are not infringed.
• This deck is not suitable for recording on CHROME (IEC II) or METAL (IEC IV) type cassettes. For recording, use NORMAL type cassettes (IEC I) on which the tabs have not been broken.
• The best recording level is set automatically. Altering the VOL and DBB controls will not affect the recording in progress.
• At the very beginning and end of the tape, no recording will take place during the 7 seconds, when the leader tape passes the recorder heads.
• To protect a tape from accidental erasure, have the tape in front of you and break out the left tab. Recording on this side is no longer possible. To record over this side again, cover the tabs with a piece of adhesive tape.

SYNCHRO START CD RECORDING

1. Select CD source.
2. Insert a CD and if desired, programme track numbers.
3. Press STOP·OPEN ▲ to open the cassette door.
4. Insert a suitable cassette into the cassette deck and close the cassette door.

5. Press RECORD to start recording.

6. Playing of the CD programme starts automatically from the beginning of the programme. It is not necessary to start the CD player separately.

To select and record a particular passage within a track

• Press and hold down on SEARCH or .
• When you recognize the passage you want, release SEARCH or.
• To pause CD playback press PLAY/PAUSE II.
• Recording will begin from this exact point in the track when you press RECORD .
• For brief interruptions during recording press PAUSE II. To resume recording, press PAUSE II again.
• To stop recording, press STOP·OPEN ▲

Recording from the radio

1. Tune to the desired radio station (See TUNING TO RADIO STATIONS).
2. Press STOP·OPEN ▲ to open the cassette door.
3. Insert a suitable cassette into the cassette deck and close the cassette door.

4. Press RECORD to start recording.

5. If you are recording from MW/LW stations, adjust the BEAT CUT switch to eliminate possible whistle tones during recording.

6. For brief interruptions, press PAUSE II. To resume recording, press PAUSE II again.
7. To stop recording, press STOP·OPEN ▲

MAINTENANCE

Tape deck maintenance

To ensure quality recording and playback of the tape deck, clean parts A, B and C shown in the diagram below, after approx. 50 hours of operation, or on average once a month. Use a cotton bud slightly moistened with alcohol or a special head cleaning fluid to clean the deck.

1. Open the cassette door by pressing STOP·OPEN ▲
2. Press PLAY and clean the rubber pressure rollers
3. Press PAUSE II and clean the magnetic heads (A) and also the capstan (B).
4. After cleaning, press STOP·OPEN ▲

Note: Cleaning of the heads can also be done by playing a cleaning cassette through once.

If a fault occurs, first check the points listed below before taking the set for repair.

If you are unable to remedy a problem by following these hints, consult your dealer or service centre.

WARNING:

Do not open the set as there is a risk of electric shock. Under no circumstances should you try to repair the set yourself, as this would invalidate the guarantee.

PROBLEM

-POSSIBLE CAUSE
- REMEDY

No sound/power

VOLUME not adjusted
- Adjust the VOLUME
- Headphones connected
- Disconnect headphones
- Mains lead not securely connected
- Connect the mains lead properly

Severe radio hum or noise

• Electrical interference: set too close to TV, VCR or computer
• Increase the distance

Poor radio reception

• Weak radio signal
• FM: Direct the FM telescopic aerial for optimum reception
• MW/LW: Turn the set for optimum reception

no or d indication

• No CD inserted
• Insert a CD
• CD badly scratched or dirty
• Replace/ clean CD, see CD player and CD handling
• Laser lens steamed up,
• Wait until lens has cleared

d indication

• CD-R(W) is blank or the disc is not finalised

• Use a finalised CD-R(W)

• CD badly scratched or dirty

• Replace/ clean CD, see CD player and CD handling

The CD skips tracks

• CD is damaged or dirty
• Replace or clean the CD
• SHUFFLE or a programme is active
• Switch off SHUFFLE/PROGRAM

Poor cassette sound quality

• Dust and dirt on the heads, etc.
  Clean deck parts etc., see Maintenance
• Use of incompatible cassette types (METAL or CHROME)
• Only use NORMAL (IEC I) for recording

Recording does not work

• Cassette tab(s) may be broken
• Apply a piece of adhesive tape over the missing tab space

PANNEAUX SUPERIEUR ET AVANT

• CAUSE POSSIBLE
• REMEDE

• CAUSA POSIBLE
  SOLUCION
