Product type	Analog clock radio with digital display
Brand / Model	PHILIPS AJ3380
Power supply	Mains 230 V~, 50 Hz; backup battery 9 V (type 6F22, not included)
Dimensions (approx.)	170 x 120 x 70 mm
Weight (approx.)	0.5 kg
Radio reception bands	FM, MW, LW
Number of alarms	2 independent alarms (ALARM 1 and ALARM 2)
Alarm modes	Buzzer (BUZ) or radio (RAD)
Snooze function	Yes, 7 minutes (SLUMBER OFF/REPEAT ALARM button)
Sleep timer function	Yes, adjustable from 59 to 00 minutes
Display brightness adjustment	BRIGHTNESS selector: HI (max) or LO (min)
Bass boost	DBB (Dynamic Bass Boost)
Time display	24-hour format
FM antenna	Corkscrew antenna
MW/LW antenna	Built-in ferrite antenna
Maintenance and cleaning	Soft lint-free cloth slightly damp; do not use abrasive products or solvents
Safety	Unplug during extended absence; do not open or repair by yourself
Replacement battery	9 V battery type 6F22 (to retain settings)
General information	Complies with European radio interference standards; rating plate under the device

Frequently Asked Questions - AJ3380 PHILIPS

How to set the time on the Philips AJ3380?

Set the CLOCK selector to TIME SET. Hold down the ▼ and ▲ buttons to adjust hours and minutes. Release when the desired time is reached, then set the selector back to RUN.

How to set alarms 1 and 2?

Set the CLOCK selector to ALARM 1 or ALARM 2. Use ▼ and ▲ to set the time. Then, set the ALARM 1 or ALARM 2 selector to BUZ (buzzer) or RAD (radio). Set the CLOCK selector back to RUN.

How to stop the alarm without permanently deactivating it?

Press ALARM RESET while the alarm is sounding: it stops for 24 hours but remains programmed for the next day.

How to use the snooze function?

Press SLUMBER OFF/REPEAT ALARM during an alarm: it repeats every 7 minutes. You can repeat this up to 59 minutes.

How to use the sleep timer function?

Set the RADIO selector to OFF. Press and hold SLUMBER: the display counts down from 59 to 00 minutes. Release when the desired duration is displayed. The radio will turn off automatically.

What to do in case of a power outage?

If a 9 V battery (type 6F22) is installed, time and alarm settings are preserved. Without a battery, everything will need to be reprogrammed after power returns.

How to improve FM reception?

Deploy and orient the corkscrew antenna on the back of the device. Keep the clock radio away from other electrical devices.

How to improve MW/LW reception?

Place the device on a non-metallic surface (wood, plastic) and turn it to orient the built-in ferrite antenna.

Why doesn't the alarm sound?

Check that the corresponding ALARM selector is not set to OFF and that the volume is sufficient if radio mode is selected.

How to clean the clock radio?

Use a soft lint-free cloth slightly damp. Never use abrasive products, alcohol, petrol, or white spirit.

USER MANUAL AJ3380 PHILIPS

Instructions for use

Mode d'emploi

This apparatus is fitted with an approved moulded 13 Amp plug. To change a fuse in this type of plug proceed as follows:

• Remove fuse cover and fuse.
• Fix new fuse which should be a BS1362 5 Amp, A.S.T.A. or BSI approved type.

- Refit the fuse cover.

If the fitted plug is not suitable for your socket outlets, it should be cut off and an appropriate plug fitted in its place. If the mains plug contains a fuse, this should have a value of 5 Amp. If a plug without a fuse is used, the fuse at the distribution board should not be greater than 5 Amp.

Note: The severed plug must be disposed to avoid a possible shock hazard should it be inserted into a 13 Amp socket elsewhere.

How to connect a plug

The wires in the mains lead are coloured with the following code: blue = neutral (N), brown = live (L). As these colours may not correspond with the colour markings identifying the terminals in your plug, proceed as follows:

• Connect the blue wire to the terminal marked N or coloured black.
• Connect the brown wire to the terminal marked L or coloured red.
• Do not connect either wire to the earth terminal in the plug, marked E (or 12 ) or coloured green (or green and yellow).

Before replacing the plug cover, make certain that the cord grip is clamped over the sheath of the lead - not simply over the two wires. Copyright in the U.K.: Recording and playback of material may require consent. See Copyright Act 1956 and The Performer's Protection Acts 1958 to 1972.

Italia

Diagram of a device with a central circular component and numbered pins (14, 15, 16) pointing to its top surface (no text or symbols on the diagram itself)

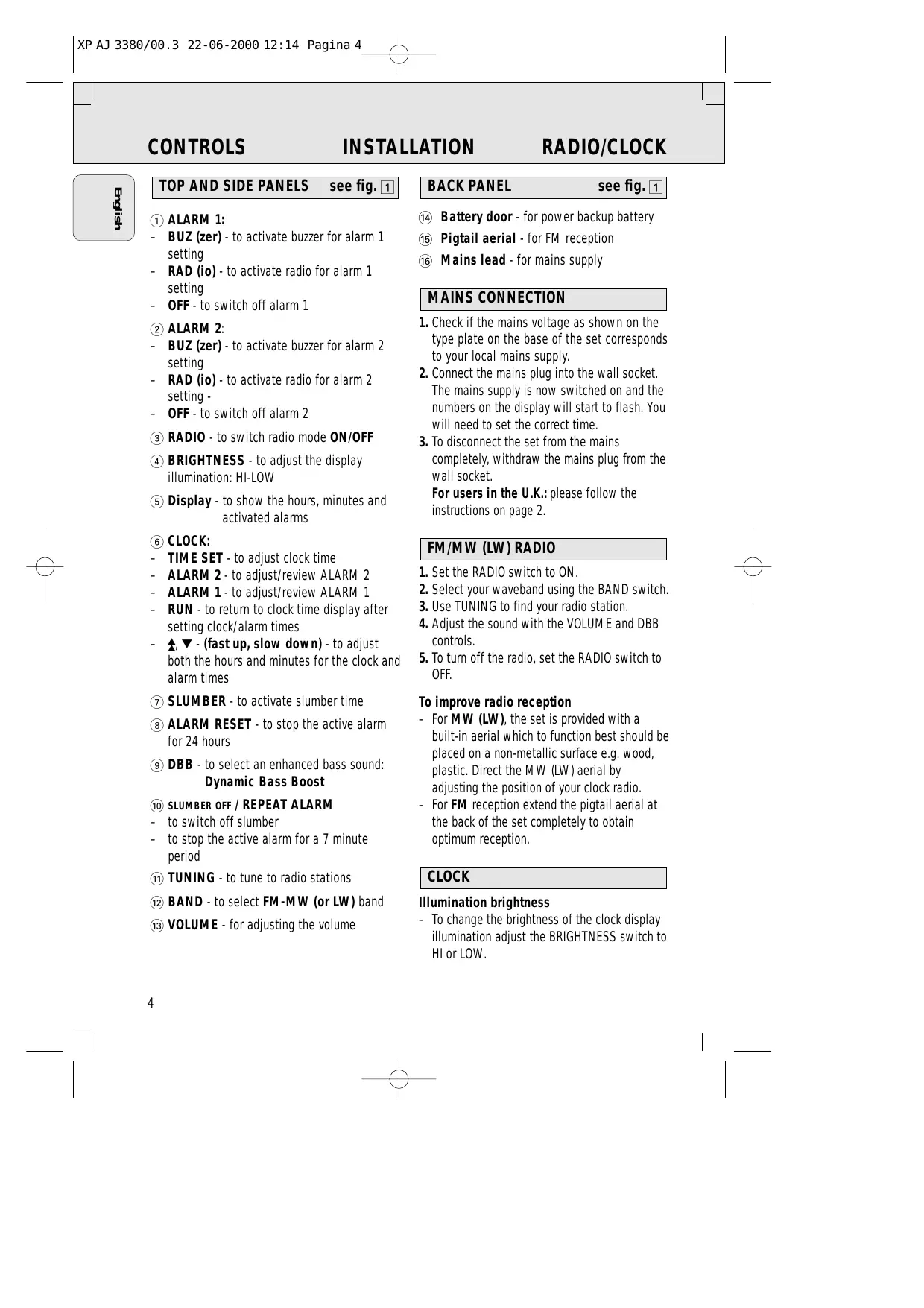

TOP AND SIDE PANELS see fig. 1

① ALARM 1:

• BUZ (zer) - to activate buzzer for alarm 1 setting
• RAD (io) - to activate radio for alarm 1 setting
• OFF - to switch off alarm 1

② ALARM 2:

• BUZ (zer) - to activate buzzer for alarm 2 setting
• RAD (io) - to activate radio for alarm 2 setting -
• OFF - to switch off alarm 2

③ RADIO - to switch radio mode ON/OFF

④ BRIGHTNESS - to adjust the display illumination: HI-LOW

⑤ Display - to show the hours, minutes and activated alarms

⑥ CLOCK:

– TIME SET - to adjust clock time
- ALARM 2 - to adjust/review ALARM 2
- ALARM 1 - to adjust/review ALARM 1
- RUN - to return to clock time display after setting clock/alarm times
- ▲, ▼ - (fast up, slow down) - to adjust both the hours and minutes for the clock and alarm times

⑦ SLUMBER - to activate slumber time
⑧ ALARM RESET - to stop the active alarm for 24 hours
⑨ DBB - to select an enhanced bass sound: Dynamic Bass Boost
⑩ SLUMBER OFF / REPEAT ALARM

- to switch off slumber

– to stop the active alarm for a 7 minute period

⑪ TUNING - to tune to radio stations
⑫ BAND - to select FM-MW (or LW) band
⑬ VOLUME - for adjusting the volume

BACK PANEL

see fig. 1

⑭ Battery door - for power backup battery
⑮ Pigtail aerial - for FM reception
⑯ Mains lead - for mains supply

MAINS CONNECTION

1. Check if the mains voltage as shown on the type plate on the base of the set corresponds to your local mains supply.
2. Connect the mains plug into the wall socket. The mains supply is now switched on and the numbers on the display will start to flash. You will need to set the correct time.
3. To disconnect the set from the mains completely, withdraw the mains plug from the wall socket.
   For users in the U.K.: please follow the instructions on page 2.

FM/MW (LW) RADIO

1. Set the RADIO switch to ON.
2. Select your waveband using the BAND switch.
3. Use TUNING to find your radio station.
4. Adjust the sound with the VOLUME and DBB controls.
5. To turn off the radio, set the RADIO switch to OFF.

To improve radio reception

• For MW (LW), the set is provided with a built-in aerial which to function best should be placed on a non-metallic surface e.g. wood, plastic. Direct the MW (LW) aerial by adjusting the position of your clock radio.
• For FM reception extend the pigtail aerial at the back of the set completely to obtain optimum reception.

CLOCK

Illumination brightness

- To change the brightness of the clock display illumination adjust the BRIGHTNESS switch to HI or LOW.

Clock display

The time is displayed using the 24-hour clock system.

Adjusting the time

1. Adjust the clock control to the TIME SET position.
2. Press and hold down the ▼,▲ buttons to set and adjust both the hours and the minutes.
3. With your finger held down on , the time will increase rapidly and continuously from minutes to hours. Release when you reach the approximate time setting.
4. Pressing ▼ will allow you to adjust the time slowly back minute by minute.
5. Release the ▲ or ▼ buttons when you have reached the correct setting.
6. To safeguard the clock time from being accidentally adjusted, turn the clock control to the RUN position.

SETTING THE ALARM

General

If you wish to use the alarm, then you should first set the alarm time. Two different alarm times are possible. This can be useful when, for example, you need to be awakened at a different time during the week and at the weekend. There is also the choice of two modes for waking you up: by buzzer or radio. The display also indicates whether you have switched on the alarm (s), and these indicators will light up respectively next to ALARM 1 and ALARM 2 on the display.

ALARM ON

1. Adjust the clock control to the ALARM 1 or ALARM 2 position.
2. Press and hold down the ▼,▲ buttons to set and adjust both the hours and minutes.
3. With your finger held down on , the time will increase rapidly and continuously from minutes to hours. Release when you reach the approximate time setting.

4. Pressing ▼ will allow you to adjust the time slowly back minute by minute.

5. Release the ▲ or ▼ buttons when you have reached the correct setting.

6. Adjust the clock control to the RUN position to return to clock time display.
7. To review your set alarm time, adjust the clock control to the respective ALARM 1 or ALARM 2 position.
8. To select the alarm mode you wish to be awoken by, set the respective ALARM 1or ALARM 2 switch to RAD or BUZ.
9. If you have selected the radio mode, make sure you have adjusted the volume loud enough to wake you.
10. The 2 buzzers are at a set volume and cannot be adjusted. BUZ on ALARM 1 is a low tone buzzer while BUZ on ALARM 2 is high tone.

ALARM OFF

You can switch off the alarm in three ways: Unless you choose to cancel the alarm completely, the ALARM RESET option will be automatically selected after 59 minutes from the time your alarm first goes off.

Alarm reset

If you want the alarm mode to be stopped immediately, but also wish to repeat the alarm call at the same time for the following day:

- Press ALARM RESET during the alarm call.

Repeat alarm

This will repeat your alarm call at 7 minutes intervals.

• Press SLUMBER OFF/REPEAT ALARM.
• Press SLUMBER OFF/REPEAT ALARM again during the next call if you wish to repeat the alarm call.
• If, however, you do not press SLUMBER OFF/REPEAT ALARM again, the alarm will sound for 59 minutes before turning itself off. Your alarm time setting will then automatically enter the ALARM RESET mode to sound at the same time next day.

Switching off the alarm completely

• Before or during the set alarm goes off, push the ALARM (1 or 2) switch to the OFF position.
• The alarm indicator will disappear from the display.

SLUMBER

The clock radio has a built-in timer device called the SLUMBER, which enables the radio to be automatically switched off after a set period of time; this allows you to lie back, listen and fall asleep. The maximum slumber time is 59 minutes.

SLUMBER ON

1. Set the RADIO switch to the OFF position.
2. Set your slumber time by pressing on the SLUMBER button. Keep your finger on the button and the display will begin to count down from 59 to 00 minutes.
3. Release the button as soon as the required slumber time is reached.

SLUMBER OFF

You can switch off the radio before the slumber time has elapsed:

- To cancel the SLUMBER function, press SLUMBER OFF/REPEAT ALARM.

Notes:

• The slumber function does not affect the alarm setting (s).
• If during SLUMBER you have turned down the volume and you have an alarm set in radio mode, make sure you have adjusted the volume loud enough to wake you up the next day.

MAINTENANCE

• If you do not intend to use the clock radio for a long time, disconnect the set by removing the plug from the wall socket. The battery should also be removed to prevent chemical leakage which will damage your set.
• To clean your set from fingerprints, dust and dirt, use a clean and soft damp cloth or chamois leather. Do not use cleaning products which contain benzene, thinner etc. as these may harm the housing.

• When a power failure occurs, the complete clock radio will be switched off.
• As soon as the power supply returns, the numbers on the display will start to flash. This indicates that you must set the correct time on the clock.
• To retain the clock time and the set alarm time (s) in the event of a power failure or disconnection, insert a 9 volt battery, type 6F22 (not supplied) into the battery compartment: this will act as a power back up. However, the time will not be illuminated on the clock display. Operation of the alarm (s) and radio are also excluded.
  For clarity, the battery back up is used to retain the set clock and alarm time (s) only. As soon as the power supply returns, the display will indicate the correct time.
• Before inserting the battery, connect the power plug to the wall outlet.
• Insert a battery into the battery compartment.
• Replace the battery once a year. It is not possible to say precisely how long the battery will last. The service life depends on how often and for how long the power supply fails. This varies according to country and region.

TROUBLESHOOTING

• If a fault occurs, first check the points listed below before taking the set for repair.
• If you are unable to remedy a problem by following the hints below, consult your dealer or service centre.

WARNING: under no circumstances should you try to repair the set yourself, as this will invalidate the guarantee.

PROBLEM

• Possible cause
• REMEDY

NO SOUND

• Volume not adjusted.
• Adjust the volume.

MW (OR LW) BROADCAST CANNOT BE RECEIVED PROPERLY

• Weak radio signal.
• Rotate the set for better reception and make sure the set is placed on a non-metallic surface.

CONTINUOUS CRACKLING AND HISS NOISE DURING MW (OR LW) RECEPTION

• Interference from other electrical equipment e.g. TV's, computers, fluorescent lamps.
• Move the clock radio away from electrical equipment.

INTERMITTENT CRACKLING SOUND DURING FM RECEPTION

• Weak signal.
• Adjust the pigtail aerial.

THE ALARM DOES NOT FUNCTION

• The alarm is not set
• Set the alarm time and the alarm switch to BUZ OR RAD.

– Volume too low for radio.

- Increase the volume.

THE SLUMBER DOES NOT FUNCTION

• RADIO still in ON position.
• Switch RADIO to OFF position.

ENVIRONMENTAL INFORMATION

All unnecessary packaging material has been omitted. We have tried to make the packaging easy to separate into three mono-materials: cardboard (box), expandable polystyrene (buffer), polyethylene (bags).

Your set consists of materials which can be recycled if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packing materials, exhausted batteries and old equipment.
