Product Type	Electric Shaver
Brand	Philips
Model	Series 3000 PT763 (PT763/14)
Power Supply	100-240V adapter (model 8505); transforms to safe low voltage <24V
Charging Time	Approx. 8 hours for full charge
Cordless Shaving Time	Up to 45 minutes
Quick Charge	3 minutes provides enough energy for a 5-minute shave
Shaving System	Rotary with three shaving heads (cutters and guards)
Washable	Yes, under tap (do not immerse in water)
Protection Cap	Included
Cleaning Brush	Included
Pouch	Included
Replacement Heads	Philips SH50/51; replace every 2 years for optimal performance
Replacement Reminder	Yes, orange light illuminates when heads need replacement
Battery Low Indication	Charging light flashes orange when battery is almost empty (≤5 minutes remaining)
Charging Indication	Green flashing during charging; green continuous when fully charged
Safety Features	Adapter must be kept dry; do not use in bath or shower; do not use damaged appliance
Accessories Included	Protection cap, cleaning brush, pouch, adapter
Compatible Accessories	Philips Cleaning spray (HQ110) for thorough cleaning
Guarantee	International guarantee; shaving heads excluded due to wear

Frequently Asked Questions - Series 3000 PT763 PHILIPS

How long does it take to fully charge the Philips Series 3000 PT763 shaver?

It takes approximately 8 hours to fully charge the shaver. The charging light flashes green during charging and stays green continuously when fully charged.

Can I use the shaver while it's charging?

Yes, the shaver can be used directly from the mains by plugging it in. However, it is recommended to use it cordlessly for convenience.

How do I clean the shaver?

Rinse the shaving unit under a hot tap for 30 seconds after each shave. Alternatively, use the cleaning brush to clean the cutters and guards individually. The shaver is washable under the tap but should not be immersed.

How often should I replace the shaving heads?

Replace the shaving heads every two years for optimal performance, or immediately if damaged. Use only original Philips SH50/51 shaving heads.

What does the orange light on the shaver mean?

A continuous orange light indicates the shaving heads need replacement. Also, a flashing orange light when shaving means the battery is low (less than 5 minutes remaining).

How do I reset the replacement reminder after changing heads?

After installing new shaving heads, press and hold the on/off button for 5 seconds. The orange light will turn off, indicating the reminder has been reset.

Is the shaver waterproof?

The shaver is not waterproof and should not be immersed. However, it is washable under running water from the tap. Do not use in the bath or shower.

What should I do if the shaver doesn't start?

Check if the battery is empty (recharge or use mains). If the shaver is too hot, let it cool down. If the problem persists, visit www.philips.com/support or contact Consumer Care.

How should I store the shaver?

Let the shaver dry completely, then attach the protection cap and store it in the included pouch to prevent damage.

What accessories are available for this shaver?

Accessories include replacement shaving heads SH50/51, Philips Cleaning spray (HQ110), and the adapter. Visit www.shop.philips.com/service to order.

USER MANUAL Series 3000 PT763 PHILIPS

Black and silver Philips electric shaver with three circular dials (no visible text or symbols)

フィリップ ス電 動シェーバー

品番 PT763/14

取扱説明書

保証書付

保証書は、この取扱説明書の最終

ページについておりますので販売店

で記入を受けてください。

Line drawing of a multi-pin electric shaver with three leads and a power button (no text or symbols)

本体

Line drawing of a mechanical device with a curved handle and two circular ports (no text or symbols)

保護キャップ

クリー ニングブ ラシ

Line drawing of a small electric plug connected to a cable with a terminal connector (no text or symbols)

充電アダ(8505)

Guidance in English 17\~31

●保 証

保証とアフターサービス 32

仕様 33

無料修理規定 …34……

保証書 ...... 最終ページ

必ずお守り ください

安全上のご注意

Line drawing of a three-ring mechanical component with a crown and mounting bracket (no text or symbols)

ユニットフレーム

内刃

外刃

Symmetrical mechanical component diagram with four circular ends and directional arrows (no text or symbols)

保持板

Line drawing of a suit jacket with 'PHILIPS' label and zipper (no additional text or symbols)

Abstract diagram with concentric shapes and radial lines, no text or symbols present

Diagram showing a device with an arrow pointing to a component, no text or symbols present

Line drawing of a hand holding a three-pin electric shaver with a black arrow pointing to it (no text or symbols)

ON

Illustration of a person using a handheld device to interact with another person (no text or symbols present)

Line drawing of a person applying eye examination to their ear (no text or symbols)

Illustration of a hand holding a medical device with an arrow indicating motion (no text or symbols present)

Illustration of a person performing a medical or therapeutic procedure on a curved object, with no visible text or symbols.

Line drawing of a person receiving a neck massage or pressure technique, with no text or symbols present.

Illustration of a human head with arrows pointing to internal organs (no text or symbols)

Illustration of two different foot positions with a tool inserted, showing different movement patterns (no text or symbols present)

Diagram of a mechanical component with an arrow indicating rotation or movement (no text or symbols present)

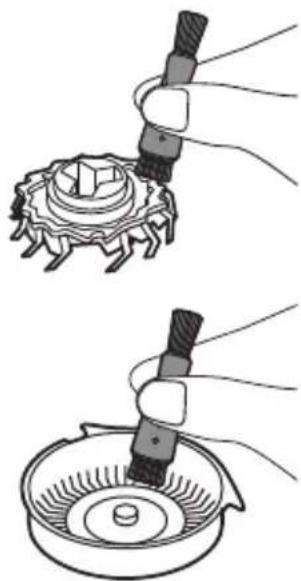

分解掃除の仕方

Technical line drawings of two mechanical components: a gear-like component and a circular base with internal teeth (no text or symbols)

Two-step diagram showing hand tool application on a gear and base component (no text or symbols)

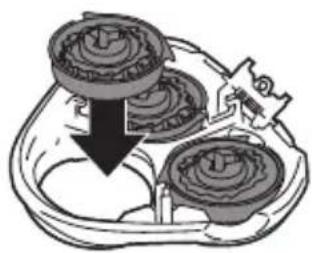

刃の取り付け方

Two technical line drawings of mechanical components, one with a flanged top and the other with a circular base (no text or symbols)

Diagram showing three bowl-shaped objects with a downward arrow, possibly indicating a process or transformation (no text or symbols present)

12

刃の交換

Anatomical illustration of a biological structure with an arrow indicating a specific region, no text or symbols present.

Diagram showing a mechanical assembly with arrows indicating direction (no text or symbols present)

Illustration of a medical or surgical procedure showing tool positioning and movement (no text or symbols)

Diagram showing two mechanical components with directional arrows, no text or symbols present

Diagram showing a hand holding a device with a separate close-up of its internal components (no text or symbols present)

Diagram of a manual tool cutting through a diagonal line, showing blade and grip components (no text or symbols)

18

ENGLISH

Introduction

Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.

com/welcome.

Please read this user manual, as it contains information about the wonderful features of this shaver as well as some tips to make shaving easier and more enjoyable.

General description (Fig. 1)

1 Protection cap
2 Shaving unit
3 Shaving unit release button
4 Shaver on/off button
5 Shaving head symbol
6 Charging light
7 Pouch
8 Adapter
9 Cleaning brush

Important safety information

Read this important information carefully before you use the appliance and its accessories and save it for future reference. The accessories supplied may vary for different products.

Danger

- Keep the adapter dry.

Warning

• The adapter contains a transformer. Do not cut off the adapter to replace it with another plug, as this causes a hazardous situation.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory

ENGLISH

No smoking sign with faucet symbol (no text)

or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.
• Always unplug the shaver before you clean it under the tap.
• Always check the appliance before you use it. Do not use the appliance if it is damaged, as this may cause injury. Always replace a damaged part with one of the original type.

Caution

• Never immerse the cleaning system or the charging stand in water and do not rinse it under the tap.
• Never immerse the shaver in water. Do not use the shaver in the bath or in the shower.
• Never use water hotter than 80^ C to rinse the shaver.
• Only use this appliance for its intended purpose as shown in the user manual.
• For hygienic reasons, the appliance should only be used by one person.
• Do not use the adapter in or near wall sockets that contain or have contained an electric air freshener to prevent irreparable damage to the adapter.
• Never use compressed air, scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the appliance.
• If your shaver comes with a cleaning system, always use the original Philips cleaning fluid (cartridge or bottle, depending on the type of cleaning system).

ENGLISH

Simple black-and-white icon of a faucet with raindrops, no text or symbols present.

- Always place the cleaning system on a stable, level and horizontal surface to prevent leakage.

- If your cleaning system uses a cleaning cartridge, always make sure that the cartridge compartment is closed before you use the cleaning system to clean or charge the shaver.

- When the cleaning system is ready for use, do not move it to prevent leakage of cleaning fluid.

- Water may drip from the socket at the bottom of the shaver when you rinse it. This is normal and not dangerous because all electronics are enclosed in a sealed power unit inside the shaver.

Electromagnetic fields (EMF)

- This Philips appliance complies with all applicable standards and regulations regarding exposure to electromagnetic fields.

General

- This shaver can be safely cleaned under the tap.

- The appliance is suitable for mains voltages ranging from 100 to 240 volts.

- The adapter transforms 100-240 volts to a safe low voltage of less than 24 volts.

Charging

It takes approx. 8 hours to fully charge the shaver.

When you charge the shaver for the first time or after a long period of disuse, let it charge until the charging light lights up continuously.

A fully charged shaver provides up to 45 minutes of shaving time.

The shaving time may be less than 45 minutes as a result of your shaving behaviour, your cleaning habits or your beard type.

ENGLISH

Charging with the adapter

1 Put the small plug in the shaver.
2 Put the adapter in the wall socket.

- The charging light shows the charging status of the shaver (see section 'Charging indication').

Charge indications

Diagram of a stylized human head with a star-shaped mouth and power button, no text or symbols present

Battery low

• When the battery is almost empty (when there are only 5 or fewer shaving minutes left), the charging light starts to flash orange.
• When you switch off the shaver, the charging light continues to flash orange for a few seconds.

Quick charging

- When you start charging the empty battery, the charging light alternately flashes orange and green. After approx. 3 minutes, the charging light starts flashing green only. The shaver now contains enough energy for a 5-minute shave.

Diagram of a stylized human head with a star-shaped mouth and power button, no text or symbols present

Charging

- When the shaver is charging, the charging light flashes green.

Diagram of a curved surface with concentric lines and a central circular feature, no text or symbols present

Battery fully charged

- When the battery is fully charged, the charging light lights up green continuously.

Note: After approx. 30 minutes, the charging light goes out to save energy.

Using the shaver

Note: You can also use the shaver directly from the mains.

ENGLISH

Shaving tips and tricks

• This shaver can be used without cord or directly from the mains.
• Make circular movements during use.
• Your skin may need 2 or 3 weeks to get accustomed to the Philips shaving system.

Switching the shaver on and off

1 To switch on the appliance, press the on/off button once.
2 To switch off the appliance, press the on/off button once.

Shaving

Illustration of a person using a handheld device to interact with another person (no text or symbols present)

1 Switch on the shaver.
2 Move the shaving heads in circular movements over your skin.
3 After shaving, switch off the shaver.
4 Clean the shaver (see chapter ‘Cleaning and maintenance’).

Cleaning and maintenance

Remove the detachable cord from the handheld part before cleaning the shaving unit under the tap.

Never use compressed air, scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the appliance.

• Clean the shaver after every shave for optimal shaving performance.
• Regular cleaning guarantees better shaving performance.

ENGLISH

- For the best cleaning results, we advise you to use the Philips Cleaning spray (HQ110). - Be careful with hot water. Always check if the water is not too hot, to prevent your hands from getting burnt.

Note: Water may leak from the socket at the bottom of the shaver when you rinse it. This is normal and not dangerous because all electronics are enclosed in a sealed power unit inside the shaver.

Cleaning the shaving unit under the tap

Illustration of a person's head with arrows indicating movement or force (no text or symbols)

Diagram of a medical procedure showing fluid flow from a bottle into a patient's ear (no text or labels)

Illustration of a pipette dispensing liquid into a container (no text or symbols visible)

1 Switch off the shaver and disconnect it from the mains.
2 Press the release button to open the shaving unit.
3 Rinse the shaving unit and hair chamber under a hot tap for 30 seconds.

Be careful with hot water. Always check if the water is not too hot, to prevent your hands from getting burnt.

- Rinse the hair chamber and the inside of the shaving unit.

- Rinse the outside of the shaving unit.

4 Close the shaving unit and shake off excess water.

Be careful not to hit the shaving unit against anything while shaking off excess water.

Never dry the shaving unit and the hair chamber with a towel or tissue, as this may damage the shaving heads and the coupling spindles.

ENGLISH

Illustration of a human head with arrows indicating movement or force (no text or symbols)

Illustration of a hand holding a biological specimen with an arrow pointing to a component (no text or symbols present)

Illustration of a hand holding a tray with three circular objects and upward arrows indicating motion (no text or symbols)

5 Open the shaving unit again and leave it open to let the shaver dry completely.

Cleaning the shaving unit with the cleaning brush

1 Switch off the shaver and disconnect it from the mains.
2 Press the release button to open the shaving unit.
3 Pull the shaving unit off the shaver.
4 Turn the lock anticlockwise (1) and remove the retaining frame (2).
5 Remove and clean one shaving head at a time. Each shaving head consists of a cutter and a guard.

Note: Do not clean more than one cutter and guard at a time, since they are all matching sets. If you accidentally mix up the cutters and guards, it may take several weeks before optimal shaving performance is restored.

- Remove the cutter from the shaving guard and clean it with the brush.

ENGLISH

Illustration of two mechanical components: a gear and a bowl, with no visible text or symbols.

- Clean the inside and outside of the shaving guard with the brush.

Simple line drawing of a mechanical device and a hand holding a tool, both without any text or symbols.

6 Put the shaving heads back into the shaving unit.

Make sure that the projections of the shaving heads fit exactly into the recesses.

Illustration of a hand holding a small object with an arrow indicating motion or transformation (no text or symbols)

7 Put the retaining frame back into the shaving unit and turn the lock clockwise.

8 Insert the lug of the shaving unit into the slot in the top of the shaver (1). Then close the shaving unit (2).

Note: If the shaving unit does not close smoothly, check if you have inserted the shaving heads properly and if the retaining frame is locked.

Storage

Note: We advise you to let the appliance dry before you put the protection cap on it or store the shaver in the pouch.

ENGLISH

Illustration of a hairbrush with three blades and a top blade (no text or symbols)

- Put the protection cap on the shaver to prevent damage.

- Store the shaver in the pouch supplied.

Replacement

For maximum shaving performance, we advise you to replace the shaving heads every two years. Replace damaged shaving heads right away. Only replace the shaving heads with original SH50/51 Philips Shaving Heads.

Replacement reminder

The shaving head symbol will light up to indicate that the shaving heads need to be replaced. Replace damaged shaving heads right away.

Illustration of a person's head with an arrow pointing to the upper part of the head (no text or symbols present)

1 The shaving head symbol lights up orange continuously.

2 Switch off the shaver and disconnect it from the mains.

3 Press the release button to open the shaving unit.

4 Pull the shaving unit off the shaver.

5 Turn the lock anticlockwise (A) and remove the retaining frame (B).

ENGLISH

Illustration of a hand holding a small object over a plate, with a checkmark and a diagonal line (no text or symbols)

6 Remove the shaving heads and place new ones in the shaving unit.

Note: Make sure that the projections of the shaving heads fit exactly into the recesses.

7 Put the retaining frame back into the shaving unit (A) and turn the lock clockwise (B).

Illustration of two hands performing a manual task with a tool, showing internal organs and movement (no text or symbols)

8 Insert the lug of the new shaving unit into the slot in the top of the shaver. Then close the shaving unit.

Note: If the shaving unit does not close smoothly, check if you have inserted the shaving heads properly and if the retaining frame is locked.

9 Press and hold the on/off button for 5 seconds to reset the replacement reminder on the shaver. The orange light goes out.

Ordering accessories

To buy accessories or spare parts, visit www.shop.philips.com/service or go to your Philips dealer. You can also contact the Philips Consumer Care Centre in your country (see the worldwide guarantee leaflet for contact details).

ENGLISH

Shaving heads

- We advise you to replace your shaving heads every two years. Always replace them with SH50/51 Philips Shaving Heads.

Cleaning

- Use Cleaning spray (HQ110) to clean the shaving heads thoroughly.

Recycling

Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment.

Removing the rechargeable shaver battery

Diagram of a surgical procedure with surgical tools and a surgical instrument (no text or labels)

Only remove the rechargeable battery when you discard the shaver. Make sure the rechargeable battery is completely empty when you remove it.

1 Disconnect the shaver from the mains and let the shaver run until it stops.
2 Undo the screws in the back of the shaver and in the hair chamber.
3 Take of the top part and remove the back panel.

Diagram showing two hand positions: one holding a tool, the other holding a device (no text or symbols present)

4 Bend the 6 snap hooks aside and take out the power unit.

Diagram showing a mechanical component with directional arrows and a separate close-up of a tool or device (no text or symbols present)

Be careful, the hooks are sharp.

ENGLISH

Diagram showing two mechanical components with directional arrows, no text or symbols present

Diagram of a hairpin tool cutting a rectangular object with a diagonal line, showing no text or symbols.

5 Remove the transparent cover of the power unit and take out the battery holder.
6 Cut the wires and remove the battery.

Be careful, the battery strips are sharp.

Do not connect the shaver to the mains again after you have removed the rechargeable battery.

Guarantee and support

If you need information or support, please visit www.philips.com/support or read the separate worldwide guarantee leaflet.

Guarantee restrictions

The shaving heads (cutters and guards) are not covered by the terms of the international guarantee because they are subject to wear.

Troubleshooting

This chapter summarises the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, visit www.philips.com/support for a list of frequently asked questions or contact the Consumer Care Centre in your country.

ENGLISH

Problem Possible cause Solution
The shaver does not shave as well as it used to.	The shaving heads are damaged or worn.	Replace the shaving heads (see chapter ‘Replacement’).
	Long hairs obstruct the shaving heads.	Clean the shaving heads one by one (see chapter ‘Cleaning and maintenance’).
	You have not inserted the shaving heads properly.	Make sure that the projections of the shaving heads fit exactly into the recesses (see chapter ‘Cleaning and maintenance’).
The shaver does not work when I press the on/off button.	The rechargeable battery is empty.	Recharge the battery (see chapter ‘Charging’) or connect the shaver to the mains.
	The temperature of the shaver is too high. In this case, the shaver does not work.	As soon as the temperature of the shaver has dropped sufficiently, you can switch on the shaver again.

©2015 Philips Electronics Japan, Ltd.
