GZ-507 - Food Dehydrator Guzzanti - Free user manual and instructions

Product Type	Food Dehydrator
Brand	Guzzanti
Model	GZ-507
Number of Trays	5
Tray Material	Plastic
Housing Material	Plastic
Power Consumption	500 W
Voltage	220-240 V ~ 50/60 Hz
Temperature Range	35 °C - 70 °C
Timer	0 - 24 hours
Dimensions (W x D x H)	34 x 34 x 28 cm
Weight	3.5 kg
Drying Capacity	Up to 1.5 kg of food
Noise Level	< 35 dB
Overheat Protection	Yes
Cool-Touch Exterior	Yes
Dishwasher-Safe Trays	Yes (top rack only)
BPA-Free	Yes
Adjustable Temperature	Yes
Automatic Shut-Off	Yes
Indicator Light	Yes
Power Cord Length	1.2 m
Accessories Included	5 mesh screens, 2 solid sheets

Frequently Asked Questions - GZ-507 Guzzanti

How do I clean the Guzzanti GZ-507 dehydrator?

Unplug the device and let it cool. The trays and mesh screens are dishwasher safe (top rack). Wipe the base with a damp cloth. Do not immerse the base in water.

Can I dry meat jerky in this dehydrator?

Yes, the GZ-507 is suitable for jerky. Ensure the internal temperature reaches at least 71 °C to eliminate bacteria. Use the solid sheets to prevent drips.

What is the maximum number of trays I can use?

The dehydrator comes with 5 trays. You can stack all trays simultaneously for maximum capacity, but drying time may increase.

Is the timer accurate? How do I set it?

The timer is electronic and ranges from 0 to 24 hours. Turn the dial to set the desired time. The dehydrator will shut off automatically when time expires.

Why is my dehydrator not turning on?

Check that the power cord is plugged in securely and the timer is set to a non-zero position. Also ensure the temperature dial is not at 0. If still not working, contact support.

Can I dehydrate herbs and flowers?

Yes, use the mesh screens for small items. Set the temperature low (around 35-40 °C) to preserve flavor and color.

How do I store the dehydrator when not in use?

Allow it to cool completely, clean trays, and store in a dry place. You can stack trays with mesh screens inside to save space.

What should I do if the appliance overheats?

The unit has overheat protection and will shut off automatically. Unplug it, let it cool for 30 minutes, and ensure the air vents are not blocked before restarting.

Can I leave the dehydrator running overnight?

Yes, the timer allows for unsupervised operation. However, it is recommended to place it on a heat-resistant surface and avoid using near flammable materials.

Where can I find replacement parts for the GZ-507?

Replacement trays, mesh screens, and solid sheets are available from Guzzanti or authorized dealers. Refer to the manual for part numbers.

USER MANUAL GZ-507 Guzzanti

Exterior view of a modern kitchen appliance with a transparent lid and control panel (no visible text or symbols)

CZ SK PL H SI DE EN

Návod k obsluze Návod na obsluhu Instrukcja obsługi Használati útmutató Navodila za uporabo Gebrauchsanleitung Instruction manual

PODĚKOVÁNÍ

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or restriction (no text present)

POZOR: pred prvo uporabo aparat sestavite in vklopite za 30 minut brez hrane. Nato aparat očistite z vlažno krpo, pladnje pa pomijte v topli vodi.

NAVODILA ZA UPORABO

Symbol of a trash bin crossed with no text or numbers, representing environmental protection (no text present)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Thank you for purchasing FD709A product. We hope you will be satisfied with our product throughout its service life. Please study the entire Operating Manual carefully before you start using the product. Keep the manual in a safe place for future reference. Make sure that all other people using the appliance are familiar with the contents of the instruction manual.

Technical parameters
Voltage 230 - 240 V ~ 50 Hz
Power input 245 W
Noise level 46 dB (A) re 1pw

IMPORTANT SAFETY PRECAUTIONS:

• Do not use this appliance in a manner different from the instructions in this manual.
• Remove all packaging and marketing materials from the appliance before you use it for the first time.
  • Make sure the connecting voltage corresponds to values on the appliance type label.
• Do not leave the appliance unattended during operation.
• Only place the appliance on a stable and heat-resistant surface away from other heat sources. This surface shall have a sufficient load capacity to hold the appliance and its contents. Leave at least 15 cm of free space around the appliance.
• Do not leave the appliance close to flammable materials; do not place anything on top of the appliance.
• Do not insert any items made of paper or plastic inside the appliance.
• Do not cover the appliance openings; there is a danger of overheating.
• Do not store anything inside the appliance.
• Keep the appliance clean. Do not allow any foreign objects to enter the appliance through the grille. They might damage or short-circuit the appliance, or set it on fire.
• Never pull the power cord when disconnecting the machine from the socket; grasp and pull the plug, not the cord.
• Do not allow children or legally incapacitated people to handle the appliance; use it out of reach of such people.
• Any physically challenged people, people with reduced sensory perception or insufficient mental capacity, or people who have not been familiarised with its operation may only use the appliance under the supervision of a responsible person who is familiar with these instructions.
  • Always be extremely careful when using the appliance while children are nearby.
• Do not allow the appliance to be used as a toy.
  • Make sure the power cord does not hang over the edge of the working area, where children might reach it.
• Do not use the appliance on wet surfaces as there is a risk of electric shock.
• Do not use any other accessories except those recommended by the manufacturer.
• Never use the appliance with a damaged power cord or plug. Contact an authorised service centre immediately to have any such defect repaired.
• Never pull the supply power cord or use it to carry the machine.
• Keep the appliance away from any sources of heat, such as radiators, ovens, etc. Do not expose the appliance to direct sunlight or moisture.
• Do not touch the appliance with damp or wet hands.
  • Turn off the appliance and disconnect the plug from the mains outlet in the event of any failure.
  • The appliance is intended for household use only; it is not designed for commercial application.
• Do not immerse the power cable, the plug, or the appliance itself in water or any other liquid.

• Check the appliance and its power cord regularly for damage. Never turn the appliance on if it is damaged.

• Turn the appliance off prior to cleaning and after using it.

• If you see smoke, switch the appliance off and disconnect the cable from the mains socket. Leave the cover on to prevent the possible spread of fire.
• Do not attempt to repair the unit by yourself. Contact an authorised service centre.
  • The maximum recommended operation time must not exceed 40 hours.
  • We recommend always using the dehydrator with the 5 supplied trays, even if some remain vacant.
• This appliance may be used by children 8 years of age and older and by persons with physical or mental impairments or by inexperienced persons if they are properly supervised or have been informed about how to use of the product in a safe manner and understand the potential dangers. Children must not play with the appliance. This appliance may be cleaned by children 8 years of age and older if they are properly supervised. Keep this appliance and the power cord out of reach of children younger than 8 years of age.

Failure to follow the manufacturer's instructions may lead to refusal of warranty repair.

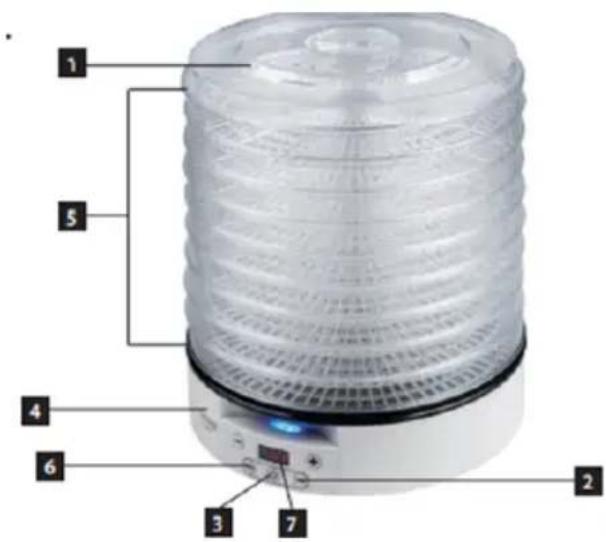

PRODUCT DESCRIPTION

1. Lid
2. Temperature set-up controller
3. ON/OFF switch
4. Appliance body
5. Drying screens
6. Timer buttons
7. Display

WARNING: Before you operate a new unit, leave it assembled and turned on without fruit for about 30 minutes. Clean the unit afterwards using a wet cloth for sanitary reasons, and wash the drying screens in warm water.

OPERATING INSTRUCTIONS

The unit is designed to dry food (fruit, vegetables, herbs, flowers, mushrooms, meat, etc.).

Water is evaporated during the drying process. The unit works on the principle of direct flow of hot air, which means the food is not overheated, and is dried evenly.

If you put cut pieces of fruit in a weak solution of lemon juice, it will keep its bright colour, and not go brown.

You may put hard vegetables (carrot, celery) in hot water for 1-2 minutes before drying, and then drain them. They will retain their taste, and the drying will take less time.

1. Wash and dry fruits or vegetables first. Cut away any poor quality pieces (half-rotten, bruised, etc.). To speed up the process, you can stone the fruit, cut out the core or peel the skin. You can dip the fruit in honey, herbs or juice to adjust the flavour to your liking.
2. Cut the food into slices, and arrange the slices on drying screens in an even manner. Do not overlap the slices; there should be a tiny space between them. To allow sufficient airflow, leave at least 10% of the drying screen surface free.
3. You can improve the airflow and shorten the process by removing empty screens. However, always leave at least 5 screens in the appliance. Always use the lid.
4. Connect the dryer into mains.
5. Press (3) button to turn ON the appliance, the display will show 50 °C and 10 hours alternately. 6. Press buttons (6) and + / – to set the required drying time. After setting the time, it will save and turn ON after 10 seconds of inactivity.
6. Press buttons (2) and + / - to set the desired drying temperature.

We recommend:

Flowers: approx. 35–40°C

Herbs: approx. 40°C

Bakery products: 40–50°C

Vegetables: 50–55°C;

Fruit: 55–60° C Meat,

Fish: 65–70°C

Do not be afraid of experimenting. The time and intensity of drying varies depending on the water content, thickness of slices, their quantity and your preference. You will soon find out for yourself what mode suits you the best.

1. After a period of the set time, the appliance will switch OFF

2. We recommend turning the unit off about halfway through the drying period, and checking the food. Rearrange the drying screens so that the lower ones move up and vice versa. Continue drying. The food will dehydrate more evenly.

3. When the food dryer will finish with drying let the hot air inside until natural cooling, then it is possible to remove the food.

CAUTION! The food must be sufficiently dry to prevent spoiling. Correctly dried vegetables will be dry and brittle. Correctly dried fruit will be leathery and pliable. Correctly dried mushrooms will be leathery or even brittle.

PACKAGING AND STORAGE OF DRIED FOOD

The dried food must be cool prior to storage (otherwise it may steam up and spoil). Wait for about one week before packing for long-term storage.

We recommend packing the dried pieces in smaller quantities, so that you can use up the whole pack after opening.

Ideally, store the dried food in sealable glasses, or cloth or paper bags.

CONSUMPTION OF DRIED FOOD

1. The food can be consumed or processed dry.
2. The food can be soaked before consumption or processing as follows: Pour cold water into a pot, submerge the dried pieces and let them swell in a fridge for 1-8 hours de-pending on the food type. The volume of food will increase up to double. To retain the nutritional value of the dried food, you can use the water for cooking and preparation.

RECOMMENDED CAPACITIES AND TIME OF DRYING FOR SOME FRUITS AND PLANTS

Fruit or Plant Drying capacity with 5 screens Drying time with 5 screens
Apples 2 kg 16 hours
Pears 2 kg 17 hours
Apricots, peaches and plums 1,8 kg	11 - 12 hours
Mushrooms 1 kg 6 - 7 hours
Vegetables 1 kg 4 - 5 hours
Herbs and tea leaves 220 g 1 - 2 hours
Flowers 200 g 1 - 2 hours

CLEANING AND MAINTENANCE

CAUTION! Always disconnect the power supply cable from the mains outlet before cleaning the appliance. Prior to handling, make sure the appliance is cool! The surface of the unit may only be cleaned using a moist cloth. Do not use any detergents or hard objects as they may damage the unit surface! Wash the drying screens in warm water with a bit of detergent. If the screens are very dirty, leave them in the water and then use a soft brush.

Never clean the base with the fan under running water, do not rinse it, and do not submerge it in water!

TROUBLESHOOTING

Problem Cause Solution
The motor is not running.	The plug is inserted into the socket incorrectly or insufficiently.	Check the plug connection.
	The socket is not supplied with electricity.	Check to make sure voltage is present, e.g. by using another appliance.
	The supply cable is damaged.	Refer the unit to an authorised service centre for testing and repair.
The motor is blowing but the unit is not warming up.	The heat fuse against overheating has reacted.	Disconnect the power supply cable from the socket. Let the unit cool. If the body does not start warming up even after cooling, refer to an authorised service centre.

ACCESSORIES

The following accessories can be bought with the unit:

Drying screen, order code 42390781, price according to the pricelist in force.

SERVICING

Any extensive maintenance or repair requiring access to the internal parts of the product shall be performed by an authorized service center.

ENVIRONMENTAL PROTECTION

• Packaging materials and obsolete appliances should be recycled.
- The transport box may be disposed of as sorted waste.
• Polyethylene bags shall be handed over for recycling.

Appliance recycling at the end of its service life:

A symbol on the product or its packaging indicates that this product should not go into household waste. It must be taken to the collection point of an electric and electronic equipment recycling facility. By making sure this product is disposed of properly, you will help prevent the negative effects on the environment and human health that would otherwise result from inappropriate disposal of this product. You can learn more about recycling this product from your local authorities, a household waste disposal service or in the shop where you bought this product. This product meets all the basic EU regulation requirements that relate to it.

Changes to the text, design and technical specifications may occur without prior notice and we reserve the right to make these changes.

DISPOSAL OF USED ELECTRICAL AND ELECTRONIC EQUIPMENT

Symbol of a trash bin crossed with no text or numbers, representing environmental protection (no text present)

This symbol on products or original documents means that used electric or electronic products must not be added to ordinary municipal waste. For proper disposal, renewal and recycling hand over these appliances to determined collection points. Alternatively, in some European Union states or other European countries you may return your appliances to the local retailer when buying an equivalent new appliance. Correct disposal of this product helps save valuable natural resources and prevents potential negative effects on the environment and human health, which could result from improper waste disposal. Ask your local authorities or collection facility for more details. In accordance with national regulations penalties may be imposed for the incorrect disposal of this type of waste.

For business entities in European Union states

If you want to dispose of electric or electronic appliances, ask your retailer or supplier for the necessary information.

Disposal in other countries outside the European Union.

This symbol is valid in the European Union. If you wish to dispose of this product, request the necessary information about the correct disposal method from the local council or from your retailer.
