Product Type	2-Slice Toaster
Brand	Logik
Model	L02PTB13E
Dimensions (W x D x H)	28 x 18 x 20 cm
Weight	1.2 kg
Power Supply	220-240V ~ 50/60Hz
Power Consumption	900 W
Browning Control	7 levels
Functions	Cancel, Defrost, Reheat
Self-Centering Racks	Yes
Cancel Button	Yes
Defrost Function	Yes
Reheat Function	Yes
Removable Crumb Tray	Yes
Cord Storage	Underneath base
Auto Shut-Off	Yes (pop-up mechanism)
Material	Stainless steel and plastic
Cleaning Instructions	Unplug and wipe exterior; empty crumb tray regularly; do not immerse in water
Spare Parts Availability	Contact Logik support for replacement parts
Safety Features	Auto shut-off, cool-touch exterior
Warranty	1 year

Frequently Asked Questions - L02PTB13E Logik

How do I clean my Logik L02PTB13E toaster?

Always unplug the toaster and let it cool. Wipe the exterior with a damp cloth. Empty the removable crumb tray regularly. Do not immerse in water.

What does the defrost function do?

The defrost function allows you to toast frozen bread by extending the toasting time to thaw and brown evenly.

Can I toast bagels in this toaster?

Yes, you can toast bagels. Place the cut side facing the center heating elements for even toasting.

How do I adjust the browning level?

Use the browning control dial to select from 7 levels. Lower settings for light toast, higher for darker toast.

What should I do if the toaster stops working?

Check the power cord and outlet. Ensure the auto shut-off has not been triggered. If it still doesn't work, contact Logik support.

Is the toaster safe to leave unattended?

No. Never leave the toaster unattended while in use. It has an auto shut-off but always monitor.

How do I use the reheat function?

Press the reheat button to warm already toasted bread without further browning. It will activate for a short cycle.

What is the maximum thickness of bread I can use?

The slots accommodate standard bread slices up to 2.5 cm thick. Larger slices may not fit properly.

Can I replace the power cord myself?

No, the power cord should only be replaced by a qualified technician to avoid electrical hazards.

Where can I find the user manual?

The user manual is available for free download at notice-facile.com or from the Logik website.

USER MANUAL L02PTB13E Logik

Hriankovač Na Dva Krajce

SK

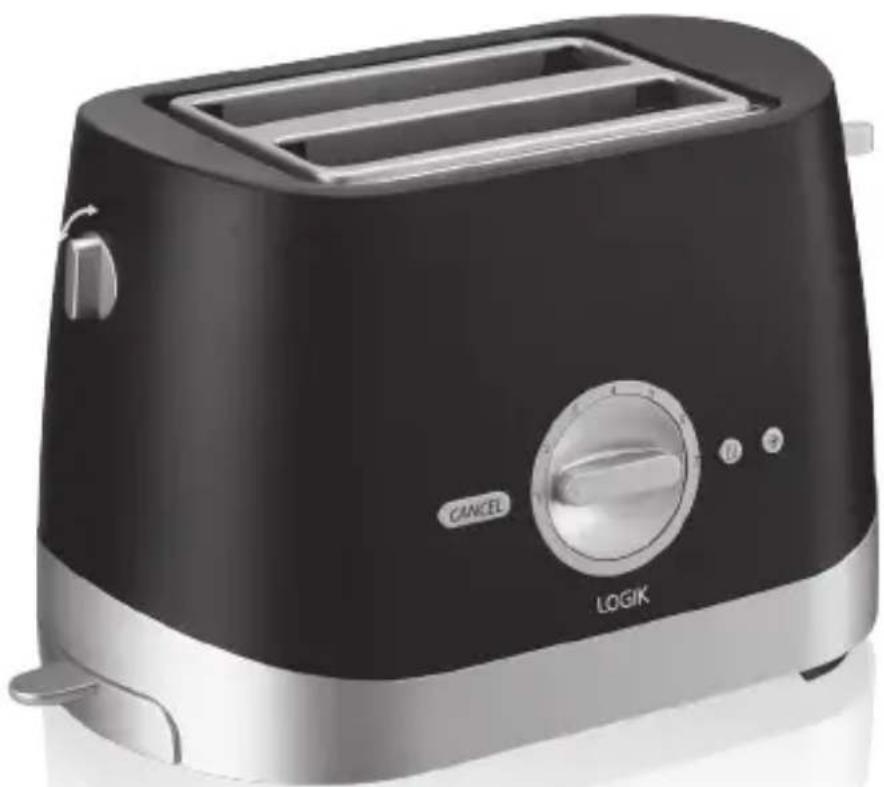

Black and silver CANCEL LOGIK stander with handle and control knob (no visible text or symbols beyond branding)

Contents

GB

Safety Warnings....5

Unpacking....69

Product Overview....69

First Time Use....70

Keeping the Mains Cable Tidy....70

Toasting Bread 70

Using the Warming Rack....72

Other Functions....73

Reheat....73

Defrost....73

Cancel 73

Removing Crumbs from the Toaster 73

How to Clear a Piece of Blocked Bread....74

Cleaning and Maintenance....74

Specifications....74

For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below.

• Read all the instructions carefully before using the appliance and keep them for future reference.
• Retain the manual. If you pass the appliance onto a third party, make sure to include this manual.
• Check that the voltage marked on the rating label matches your mains voltage.

Damage

• Please inspect the appliance for damage after unpacking.
• Do not continue to operate the appliance if you are in any doubt about it working normally, or if it

is damaged in any way - switch off, withdraw the mains plug and consult your dealer.

Location of Appliance

• The appliance must be placed on a flat stable surface and should not be subjected to vibrations.
• Do not place the appliance on sloped or unstable surfaces as the appliance may fall off or tip over.
• The mains socket must be located near the appliance and should be easily accessible.
  • This appliance is designed for indoor, domestic use only.

Temperature

- Avoid extreme degrees of temperature, either hot or cold. Place the appliance well away from heat sources such as radiators or gas/electric fires.

• Avoid exposure to direct sunlight and other sources of heat.
• Do not touch hot surfaces. Temperature of accessible surfaces may be very high when the appliance is operating.

Naked Flames

- Never place any type of candle or naked flame on the top of or near the appliance.

Moisture

• To reduce the risk of fire, electric shock or product damage, do not expose this appliance to rain, moisture, dripping or splashing. No objects filled with liquids, such as vases, should be placed on the appliance.

- If you spill any liquid into the appliance, it can cause serious damage. Switch it off at the mains

immediately and withdraw the mains plug.

Ventilation

• To prevent the risk of electric shock or fire hazard due to overheating, ensure that curtains and other materials do not obstruct the ventilation vents.
- Do not install or place this appliance in a bookcase, built-in cabinet or in another confined space. Ensure the appliance is well ventilated.

Safety

• The appliance is not intended to be operated by means of an external timer or separate remote-control system.
  • Always disconnect the appliance from the mains supply before moving the appliance.

- In the interests of safety and to avoid unnecessary energy consumption, never leave the appliance unattended for long periods of time, e.g. overnight, while on holiday or while out of the house. Disconnect the mains plug from the mains socket.

- Bread may burn. Your appliance must not be used near or below curtains or other combustible materials. It must be watched when in use.

- Only place toast bread in your appliance. Do not attempt to toast any pastry or bread product which is filled with a fruit or sugary filling (pop tarts etc). The stuffings may leak from the appliance and cause damage to your appliance with the possible risk of a fire occurring.

• Oversize food, metal foil packages or utensils must not be inserted in the appliance as they may cause fire or electric shock.
• Don’t attempt to dislodge food while the appliance is operating.
  • Take the bread out carefully after toasting to avoid injuries.
• Do not use the appliance for uses other than its intended use.

Mains Cable

• Make sure the appliance is not resting on top of the mains cable, as the weight of the appliance may damage the mains cable and create a safety hazard.
• Do not let the mains cable overhang the edge of the work surface or allow it to touch hot surfaces or sources of heat or flame.

- If the mains cable is damaged it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.

Supervision

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

• Keep the appliance and its cord out of reach of children less than 8 years.
• Never let anyone especially children push anything into the holes, slots or any other openings in the case - this could result in a fatal electric shock.

Service

- To reduce the risk of electric shock, do not remove screws. The appliance does not contain any user-serviceable parts. Please leave all maintenance work to qualified personnel.

- Do not open any fixed covers as this may expose dangerous voltages.

Maintenance

- Ensure to unplug the appliance from the mains socket before cleaning.

• Allow the appliance to cool completely before cleaning or storing.
• Do not use any type of abrasive pad or abrasive cleaning solutions as these may damage the appliance's surface.
• Do not use liquids to clean the appliance.

Thank you for purchasing your new Logik Two Slice Toaster.

We recommend that you spend some time reading this instruction manual in order to fully understand all the operational features it offers.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

Unpacking

Remove all packaging from the unit. Retain the packaging. If you dispose of it please do so according to local regulations.

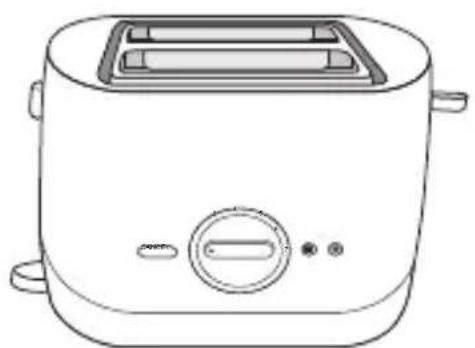

The following items are included:

Line drawing of a standard 3D toaster with no text or symbols

The Main Unit Instruction Manual

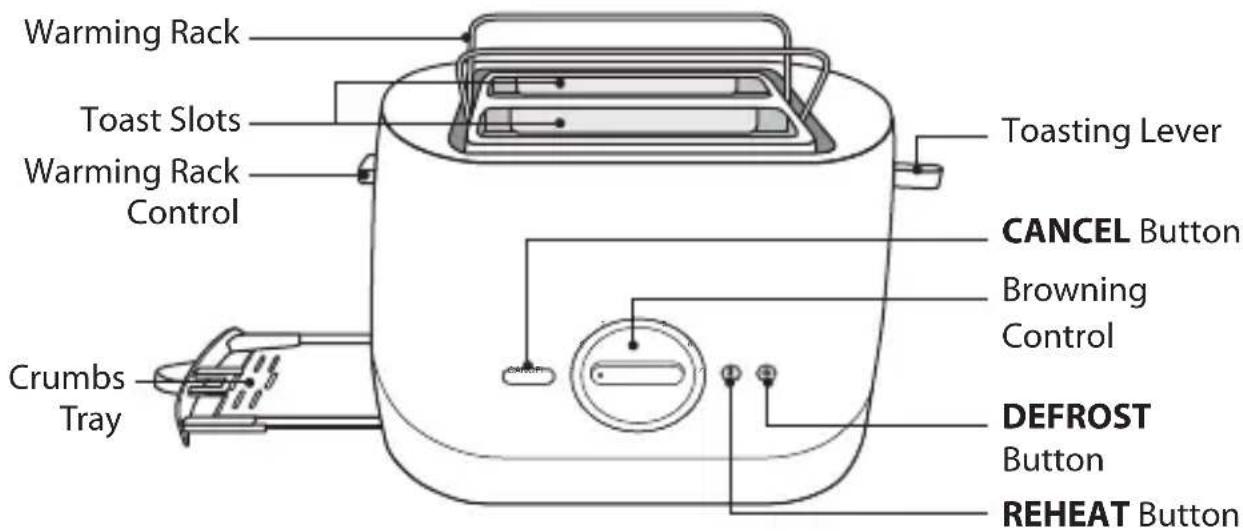

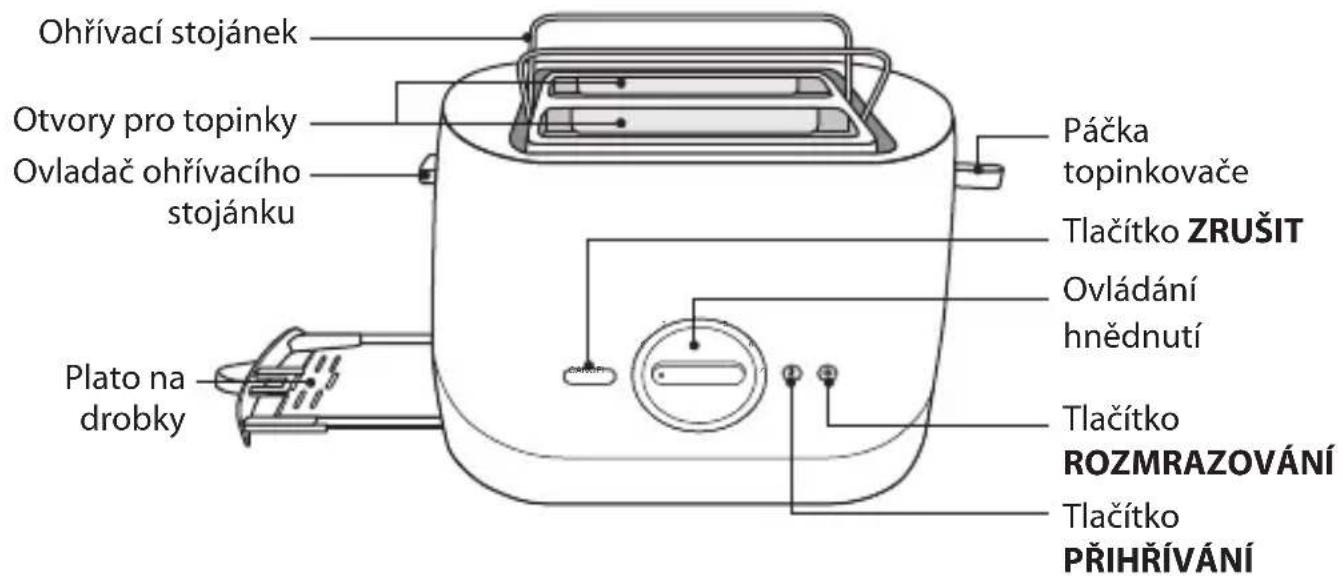

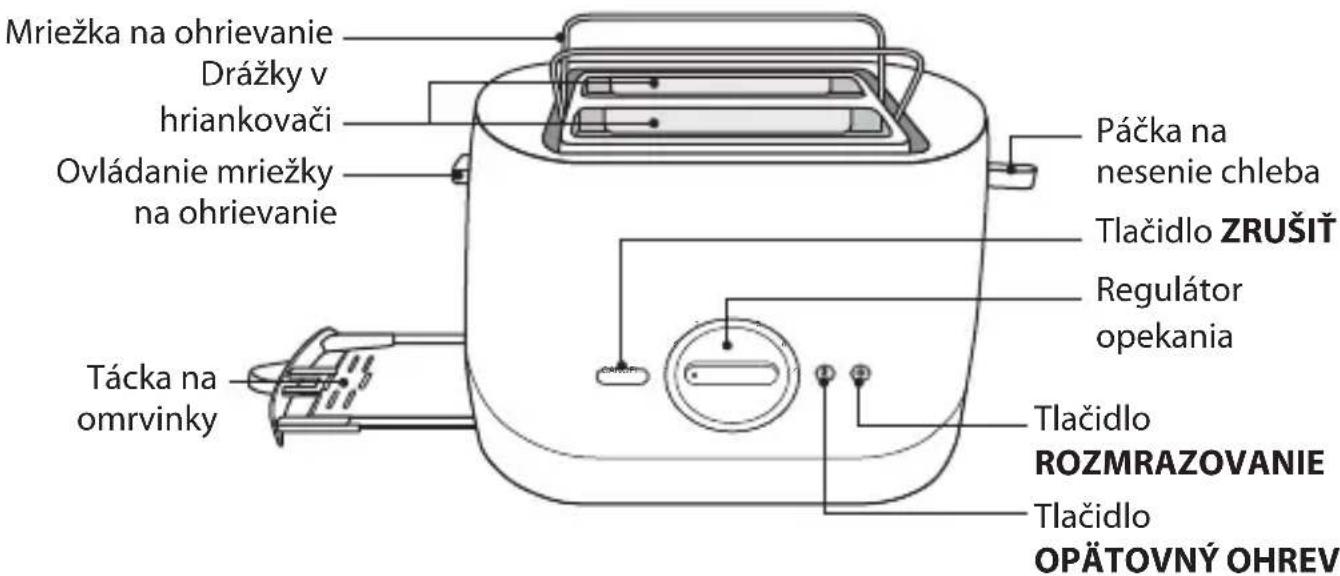

Product Overview

First Time Use

Please note there may be manufacturing residue or oil remaining in the toaster or heating element. Odour may be emitted the first time you use it. This is normal and will not occur after using your toaster several times. The first time you use your toaster we suggest that you operate it without bread.

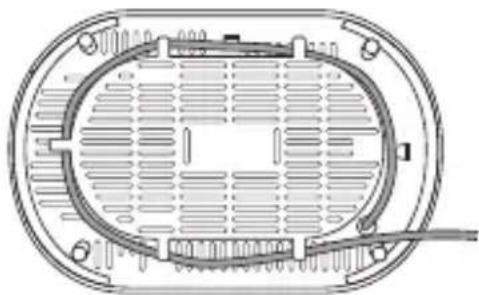

Keeping the Mains Cable Tidy

Extend the mains cable to the required length. Locate the mains cable in the slot in the stand. For safety purposes it is recommended that the length of the exposed mains cable is kept as short as possible.

Cross-sectional diagram of a circular mechanical or electrical component with internal grid structure (no text or symbols)

Toasting Bread

To prevent jamming do not use your toaster with torn slices of bread. Make sure the size and thickness of the bread slices fit easily into the toast slots. Always watch your toaster when in use. Never leave your toaster unattended.

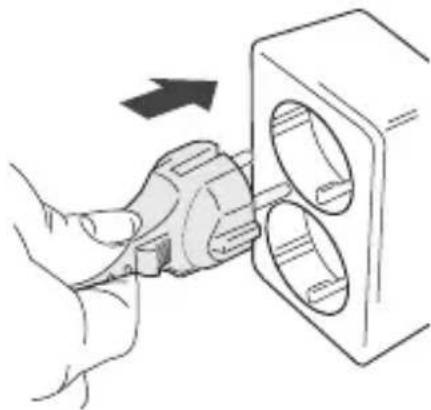

1. Plug the mains plug into the mains socket.

Illustration of a hand inserting a plug into a socket (no text or symbols)

1. Remove all protective wrapping prior to putting the bread into the toaster. Put 1 or 2 slices of bread into the bread slots.

Line drawing of a toaster with a handle and front panel (no text or symbols)

Line drawing of a toaster with a triangular-shaped lid and handle (no text or symbols)

• If toasting two slices, they should be similar in size, thickness and freshness.
• For optimum browning, always place the bread as close as possible to the centre of the slots.
  • Make sure the crumb tray is completely inserted before use.

• Avoid toasting food with extremely runny ingredients such as butter.
  • The bread slot is only suitable for toasting regular bread slices.
  • Do not toast irregular sized bread.

• Select the level of browning by turning the Browning Control. There are 7 settings:

• Select a lower position (i.e. 1 or 2) for light browning, especially for toasting only one slice or for dry (old) bread. Note that the toasting colour for one slice will be darker than that for two slices at the same level.
• Note that the higher browning level, the higher chance of burning the toast.

• If you have initially toasted some bread, the toaster elements will be hot, so when you put some more bread into the toaster it may brown faster than the first slices that were toasted, even if the Browning Control is set to the same level.

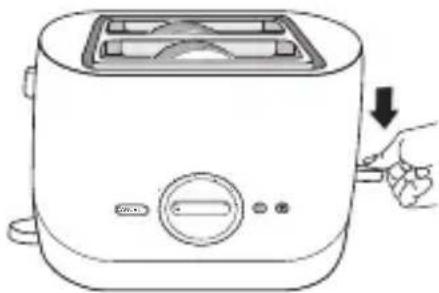

• Lower the toasting lever until it is positioned in place. The toaster will begin at once.

Line drawing of a toaster with a hand pressing down on the side (no text or symbols)

• Only when the toaster is connected to the mains power, can the toasting lever be locked in the downward position.

• During the toasting process, you can observe the toasting colour. Press the STOP button to cancel the operation at any time if you are satisfied with the colour.

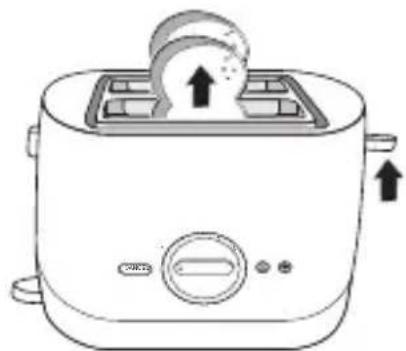

• Once the bread has been toasted to the preset browning level, the toasting lever will automatically pop up which means your toast is ready.

Line drawing of a toaster with a side panel and control knob (no text or symbols)

Using the Warming Rack

Use the warming rack to heat up rolls, buns or croissants. Turning the Warming Rack Control towards the back of the toaster to raise the warming rack. Place the rolls, buns or croissants in the centre of the rack. Select the level of browning by turning the Browning Control. Lower the toasting lever until it is positioned in place. The toaster will begin at once.

Line drawing of a standard kitchen toaster with handle and control panel (no text or symbols)

• Do not warm more than 2 rolls, buns or croissants at a time.
- Never put sliced bread into the bread slot(s) while heating rolls, buns or croissants on the warming rack.

Other Functions

Reheat

Insert the cold slices of toast and lower the toasting lever until it remains in a downward position. Press the REHEAT button. In this mode, setting the browning control will have no effect as the toasting time is fixed. When the time runs out, the toasting lever will automatically pop up and finish the reheating process.

Defrost

Insert the frozen bread. Set the browning control to your desired colour. Lower the toasting lever until it remains in position, then press the DEFROST button. In this mode, the frozen bread will be toasted to your desired colour.

Cancel

If the toaster starts to smoke, press the CANCEL button to stop toasting immediately.

Simple line drawing of three steam rising inside a circle (no text or symbols)

Simple black snowflake icon inside a circle (no text or symbols)

Lift the handle further if the bread slices have not popped up above the body of the toaster.

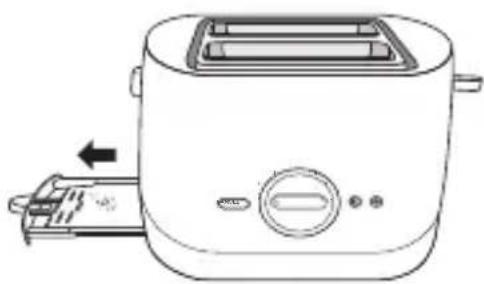

Removing Crumbs from the Toaster

1. First unplug the mains plug from the mains socket.
2. Slide the crumb tray out of toaster by holding the crumb tray handle.
3. Empty the crumbs into the bin and clean the crumb tray.

Line drawing of a standard toaster with a side panel and control knob (no text or symbols)

• Ensure the toaster is cool enough to handle. The metal part may be hot.
• Let the crumb tray dry thoroughly before reinserting it back into the toaster.
• Ensure the crumb tray is completely inserted before using your toaster again.

How to Clear a Piece of Blocked Bread

1. Unplug the mains plug from the mains socket.
2. Allow the toaster to fully cool down.
3. Push and hold the toasting lever down then release.
4. Gently dislodge the blockage with a non-metallic object, for example the handle of a wooden spoon.

Ensure you don't make contact with the heating elements, as you may damage them.

1. Lift the toasting lever to remove the blockage.

Cleaning and Maintenance

Unplug the mains plug from the mains socket and allow the toaster to cool down before cleaning.

Do not use harsh cleaners or solvents as they may damage the casing.

The body of the toaster should be cleaned using a cloth dampened with warm water. Make sure you do not allow water to seep into the controls or heating elements.

When not in use, the mains cable may be wound under the bottom of the toaster.

Specifications

Model L02PTB13E
Mains Supply 220-240V~50Hz
Power Consumption 730-870W

Features and specifications are subject to change without prior notice.

Takk for at du kjøpte ny Logik brødrister for to skiver.

Line drawing of a standard kitchen toaster with control buttons and a flat-screen lid (no text or symbols)

Cross-sectional diagram of a circular mechanical or electrical component with internal grid structure (no text or symbols)

Riste brød

Illustration of a hand inserting a plug into a socket (no text or symbols)

1. Fjern all beskyttende emballasje før du setter brødskiver i brødristeren. Sett 1 eller 2 brødskiver inn i brødskivesporene.

Line drawing of a toaster with a single bite, showing no text or symbols on the device itself.

Line drawing of a toaster with a single sheet of food being placed on top (no text or symbols)

Line drawing of a toaster with a hand pressing down on the side (no text or symbols)

• Brødskivespaken kan bare låses i nedre stilling när brødristeren er koblet til en stikkontakt med strøm.

• Du kan følge med på bruningsfargen mens ristingen pågår. Trykk på AVBRYT-knappen for å avbryte prosessen när som helst hvis du er fornøyd med fargen.

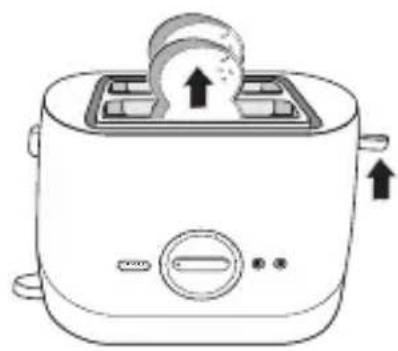

• Så snart brødet er blitt ristet til det forhåndsinnstilte bruningsnivået, spretter brødskivespaken automatisk opp.

Line drawing of a toaster with a circular top and side handles, showing heat transfer arrows (no text or symbols)

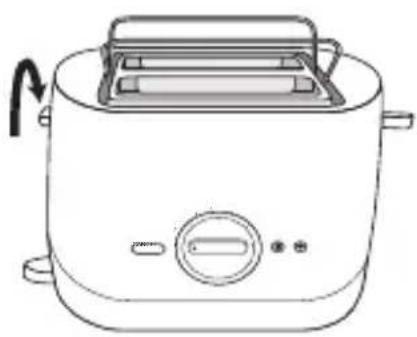

Bruke varmeristen

Bruk varmeristen til å varme boller, rundstykker eller croissanter. Drei varmeristkontrollen mot baksiden av brødristeren for å heve varmeristen. Legg bollene, rundstykkene eller croissantene midt på risten. Velg bruningsnivået ved å dreie bruningskontrollen. Senk brødskivespaken vertikalt ned til den sitter på plass. Brødristeren starter øyeblikkelig.

Line drawing of a standard rice cooker with a side panel and control buttons (no text or symbols)

• Ikke varm mer enn to boller, rundstykker eller croissanter av gangen.
• Ikke sett brødskiver ned i brødsporene når du varmer boller, rundstykker eller croissanter på varmeristen.

Andre funksjoner

NO

Oppvarming

Simple line drawing of three steam rising inside a circle (no text or symbols)

Simple snowflake icon inside a circle (no text or symbols)

Avbryt

Line drawing of a toaster with a side panel and control knob (no text or symbols)

Line drawing of a standard toaster with a circular control knob and side buttons (no text or symbols)

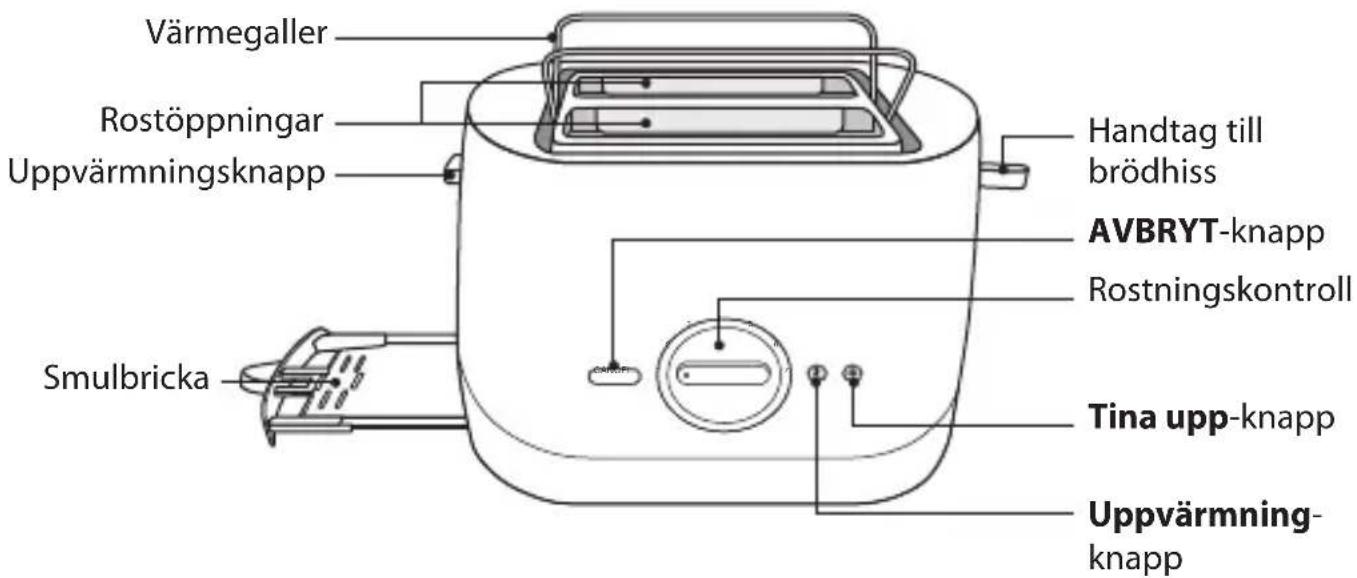

Produktöversikt

Cross-sectional diagram of a circular mechanical or electrical component with internal grid structure (no text or symbols)

Rosta bröd

Illustration of a hand inserting a plug into a device (no text or symbols visible)

Line drawing of a toaster with a handle and side panel (no text or symbols)

Line drawing of a toaster with a single bite, showing the blade and handle (no text or symbols)

SE

Line drawing of a toaster with a hand pressing down on the side (no text or symbols)

SE

Line drawing of a toaster with a side panel and top handle (no text or symbols)

Line drawing of a standard kitchen toaster with control panel and side buttons (no text or symbols)

Simple line drawing of two steam rising above a horizontal line inside a circle (no text or symbols)

SE

Simple black snowflake icon inside a circle (no text or symbols)

CANCEL

Line drawing of a standard toaster with a side panel and control knob (no text or symbols)

Line drawing of a standard kitchen toaster with a side panel and control buttons (no text or symbols)

Laite Käyttöopas

Cross-sectional diagram of a circular mechanical or electrical component with internal grid structure (no text or symbols)

Leivän paahtaminen

Illustration of a hand inserting a plug into a socket (no text or symbols)

Line drawing of a toaster with a single bite, showing no text or symbols on the device itself

Line drawing of a toaster with a handle and lid, no text or symbols present

FI

Line drawing of a toaster with a hand pressing down on the side (no text or symbols)

FI

Line drawing of a toaster with a handle and side panel, showing front and back views (no text or symbols)

Line drawing of a standard rice cooker with a side panel and control buttons (no text or symbols)

Simple line drawing of two steam rising inside a circle (no text or symbols)

FI

Simple snowflake icon inside a circle (no text or symbols)

CANCEL

Line drawing of a toaster with a side panel and control knob (no text or symbols)

Line drawing of a standard kitchen toaster with a side panel and control buttons (no text or symbols)

Cross-sectional diagram of a circular mechanical or electrical component with internal grid structure (no text or symbols)

Ristning af brød

Illustration of a hand inserting a plug into a socket (no text or symbols)

Line drawing of a toaster with a handle and side panel (no text or symbols)

Line drawing of a toaster with a single bite taken from the top (no text or symbols)

DK

Line drawing of a toaster with a hand pressing down on the side (no text or symbols)

DK

Line drawing of a toaster oven with two arrows indicating upward motion (no text or symbols)

Line drawing of a standard rice cooker with handle and control panel (no text or symbols)

Simple line drawing of two steam rising inside a circle (no text or symbols)

DK

Optøning

Line drawing of a standard toaster with a side panel and handle, showing no text or symbols.

Line drawing of a standard kitchen toaster with a rectangular top and control knob (no text or symbols)

Přehled výrobku

Cross-sectional diagram of a circular mechanical or electrical component with internal grid structure (no text or symbols)

Opékání chleba

Illustration of a hand inserting a plug into a socket (no text or symbols)

Line drawing of a toaster with a handle and side panel (no text or symbols)

Line drawing of a toaster with a single bite, showing the blade and handle (no text or symbols)

Line drawing of a toaster with a hand pointing to the side panel (no text or symbols)

Line drawing of a toaster oven with a side panel and top handle (no text or symbols)

Line drawing of a standard rice cooker with a flat lid and side-mounted buttons (no text or symbols)

Simple line drawing of two steam rising inside a circle (no text or symbols)

Simple black snowflake icon inside a circle (no text or symbols)

CZ

Line drawing of a standard 3D toaster with a side panel and control knob (no text or symbols)

Line drawing of a standard kitchen toaster with control panel and buttons (no text or symbols)

Hlavné zariadenie Návod s pokynmi

SK

Prehl'ad výrobku

Prvé použitie

Cross-sectional diagram of a circular mechanical or electrical component with internal grid structure (no text or symbols)

Opekanie chleba

Illustration of a hand inserting a plug into a device (no text or symbols visible)

Line drawing of a toaster with a handle and side panel (no text or symbols)

Line drawing of a toaster with a side menu and a triangular top (no text or symbols)

Line drawing of a toaster with a hand pressing down on the side (no text or symbols)

Line drawing of a toaster with handle and control panel (no text or symbols)

Line drawing of a standard rice cooker with a rotary handle and control panel (no text or symbols)

Simple line drawing of three steam rising inside a circle (no text or symbols)

Simple black snowflake icon inside a circle (no text or symbols)

SK

CANCEL

Ked'sa plátky chleba nevysunú nad teleso hriankovača, rukovät nadvihnite d'alej.

Odstraňovanie omrviniek z hriankovača

Line drawing of a standard toaster with a side panel and control knob (no text or symbols)

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU. For more information, please contact the local authority or your retailer where you purchased the product.

NO

Maylands Avenue, Hemel Hempstead, Herts., HP2 7TG, UK

(IB-L02PTB13E-130730V2)
