L02SMS18E - Toaster Logik - Free user manual and instructions

Product Type	Toaster
Brand	Logik
Model	L02SMS18E
Number of Slots	2
Power Consumption	850 W
Dimensions (W x D x H)	28.5 x 18.0 x 20.5 cm
Weight	1.2 kg
Color	Stainless Steel / Black
Main Functions	Browning control, cancel, defrost, reheat
Browning Settings	6 levels
Self-Centering Racks	Yes
Cancel Function	Yes
Defrost Function	Yes
Reheat Function	Yes
Auto Shut-Off	Yes
Cool-Touch Exterior	Yes
Removable Crumb Tray	Yes
Cord Length	0.8 m
Cleaning Instructions	Unplug, wipe with damp cloth, empty crumb tray regularly
Safety Features	Automatic shut-off, non-slip feet, overheat protection
Spare Parts Availability	Crumb tray, heating elements available through service center
Repairability Index	6.4 / 10
Manual Length	52 pages

Frequently Asked Questions - L02SMS18E Logik

How do I clean the Logik L02SMS18E toaster?

Unplug the toaster and let it cool. Wipe the exterior with a damp cloth. Remove and empty the crumb tray regularly. Do not immerse in water.

Can I toast bagels in this toaster?

Yes, the toaster has a reheat function that can be used for bagels. For best results, use the browning control to your preference.

What is the power consumption of the L02SMS18E?

The toaster consumes 850 watts of power.

Does the toaster have a defrost function?

Yes, it has a defrost function for toasting frozen bread. Select the defrost setting and adjust browning as needed.

How do I adjust the browning level?

Turn the browning control dial to your desired level, from 1 (light) to 6 (dark). The toaster automatically adjusts toasting time.

Is the Logik L02SMS18E easy to repair?

The toaster has a repairability index of 6.4/10. Spare parts like the crumb tray and heating elements are available through authorized service centers.

What safety features does this toaster have?

It includes automatic shut-off, overheat protection, and non-slip feet for stability.

How many slices of bread can I toast at once?

The toaster has two slots, so you can toast two slices at a time.

Why does my toast keep getting stuck?

Ensure the bread slices are not too thick. If stuck, unplug the toaster, let it cool, and gently remove the bread. Avoid using metal utensils.

How do I use the reheat function?

Place the toast in the slots, lower the lever, and press the reheat button. The toaster will warm the toast without further browning.

USER MANUAL L02SMS18E Logik

Stainless Steel Sandwich Toaster

GB

Instruksjonsmanual

NO

Toastjern I Rustfritt Stål

SE

Instruktionsbok

Smörgåsgrill I Rostfritt Stål

Käyttöopas

Exterior view of a modern stainless steel grater with black and silver casing (no visible text or symbols)

Contents

GB

Safety Warnings 5

Unpacking....15

Product Overview 16

First Time Use ....16

Sandwich Making....18

Recipes for Sandwich Fillings....20

Cleaning and Maintenance....21

Specifications....21

Innhold

NO

Do not touch the surface of the appliance during operation.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Keep the appliance and its mains cable out of the reach of children less than 8 years old.
• Your appliance should be used in such a way that it is protected from moisture e.g., condensation, splashed water etc. Do not place or store your appliance where it can fall or be pulled into water or any other liquid. Do not reach for the appliance if it has fallen in any water or any other liquid. Unplug immediately. Stand your appliance on a stable, level surface during use. Do not allow your appliance to sit on top of the mains cable.
• Make sure that children cannot touch the appliance when hot or pull the mains cable.

- It is dangerous to insert fingers or objects other than bread into the appliance.

- Bread may burn. Your appliance must not be used near or below curtains or other combustible materials. It must be watched when in use. Do not leave your appliance unattended. Your appliance should be placed away from heat sources such as radiators, gas/electric fires and direct sunlight.

- Keep the mains cable away from any heated surfaces.

- Use the appliance only for its intended use, as described in this manual.

- Do not use outdoors.

- Never use your appliance if it is damaged in any way. Do not remove any fixed covers.

- Never use this appliance if it is not working properly, or if it has been dropped or damaged.

- If the mains cable is damaged it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.

- Make sure the unit is earthed properly during use. Do not use the iron with any extension sockets. If in doubt, contact a qualified electrician.

FORSIKTIG: Varm overflate

Thank you for purchasing your new Logik Sandwich Toaster.

We recommend that you spend some time reading this instruction manual in order to fully understand all the operational features it offers.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

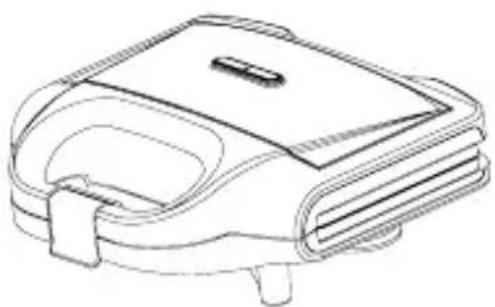

Unpacking

Remove all items from the packaging. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

Line drawing of a closed book with a bookmark and spines (no text or symbols)

The Main Unit Instruction Manual

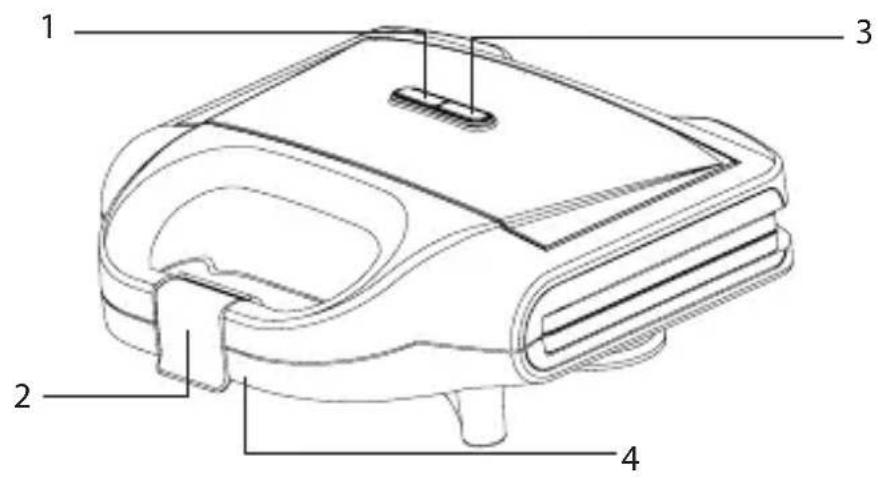

Product Overview

1. Power Indicator

2. Handle Lock

3. Temperature Indicator

4. Handle

First Time Use

Do not connect to the mains socket yet.

1. Open up your sandwich toaster by releasing the handle locking clip and lifting up the top half of the sandwich toaster.

Line drawing of a closed book with a small tree on the cover (no text or symbols)

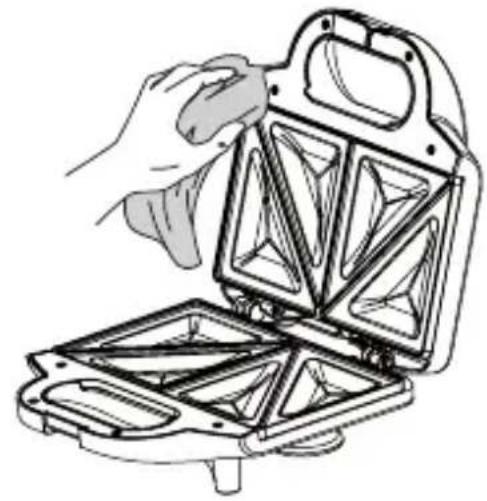

1. Clean the surface of the cooking plates with a damp cloth and wipe dry.

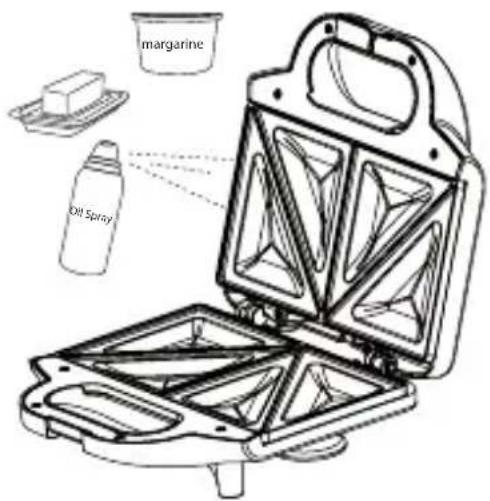

2. Smear a layer of butter, margarine or cooking fat over the plates.

Line drawing of a hand using a waffle to cut the griddle into a tray (no text or symbols)

1. Gently squeeze the handles together and close the handle lock.

Line drawing of a device with a handle and arrow indicating direction (no text or symbols)

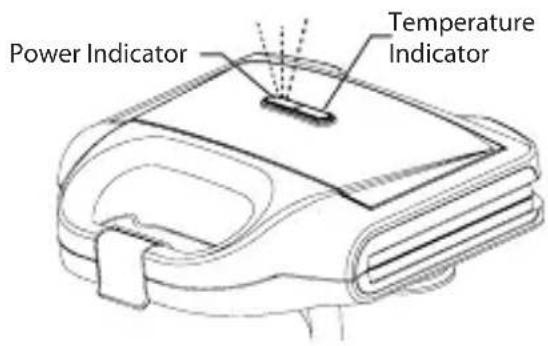

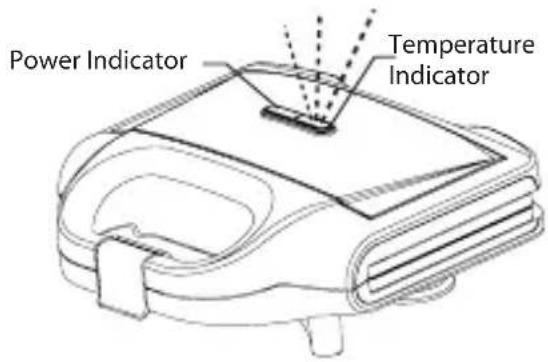

1. Connect the plug to the mains socket. The power indicator will light up.

1. When the temperature indicator lights up, unplug the mains plug from the mains socket.

Sandwich Making

Make sure the bread covers the cooking plates.

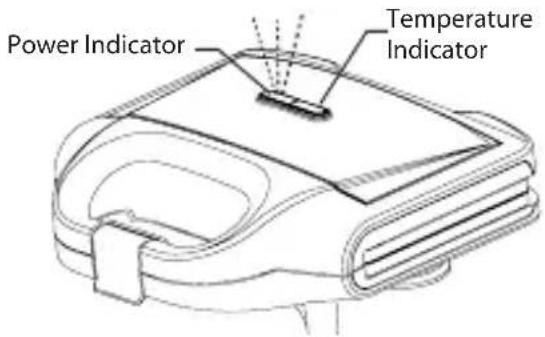

1. Connect the plug to the mains socket. The power indicator will illuminate and remain lit until the sandwich toaster reaches the correct cooking temperature.

1. When the temperature indicator lights up, open your sandwich toaster by releasing the handle lock and lifting up the top half of the sandwich toaster.

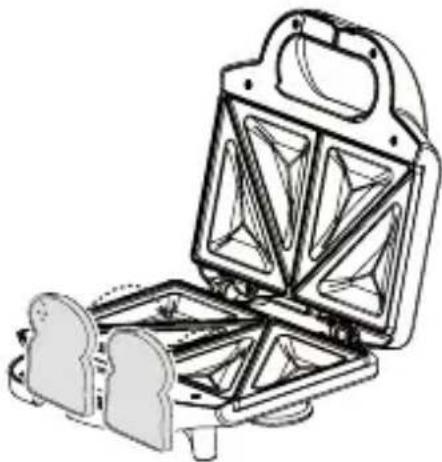

1. Place your bread on the lower half of the cooking plates with the buttered side facing down.

Line drawing of a waffle grill with open pan and side grates (no text or symbols)

1. Add fillings to the surface of the bread and then place another slice of bread on top, with the buttered side facing up.

2. Gently squeeze the handles together and lock the handles.

3. The temperature indicator will turn on and off whilst the built-in thermostat maintains the cooking temperature.

Line drawing of a device with a black arrow pointing to a component (no text or symbols)

1. Your toasted sandwich should be ready in approximately 3-4 minutes. When the temperature indicator lights up, open the sandwich toaster with caution as it will be hot.

2. If you have finished, remember to unplug the mains plug from the mains socket.

Never use a metal object to remove your toasted sandwich as it may damage the cooking plates.

Cooking Hints:

Prepare the next sandwich while one is cooking.

When the temperature indicator switches off, it is the best time to cook the next sandwich. Always close the cooking plates to preserve the heat for the next sandwich.

Recipes for Sandwich Fillings

Never use raw meat as a sandwich filling. Do not reheat sandwiches that have a meat filling.

Here are some recipe examples:

• Tuna mayonnaise and sweet corn
• Cheese spread, ham and apple slices
- Pizza toppings, ham and grated cheddar cheese
• Brie with crushed walnuts and apple slices
• Avocado, crab and celery
• Cheddar cheese and onion

Cleaning and Maintenance

Do not use harsh cleaners, solvents or scouring pads as they may damage the casing.

1. Fully unplug the plug from the mains socket. Wait until the sandwich toaster has cooled down before cleaning.

2. Clean the surface of the cooking plates with a damp cloth and wipe dry. Make sure you do not allow water to seep into the controls or heating elements.

Line drawing of a hand using a waffle to open the griddle (no text or symbols)

1. After cleaning or when not in use, wrap the mains cable at the bottom of the sandwich toaster for storage.

Technical line drawing of a mechanical assembly with no visible text or symbols

Specifications

Model L02SMS18E
Mains Supply 220-240V ~ 50Hz
Power Consumption 700W

Features and specifications are subject to change without prior notice.

NO

Line drawing of a closed book with a bookmark and spines (no text or symbols)

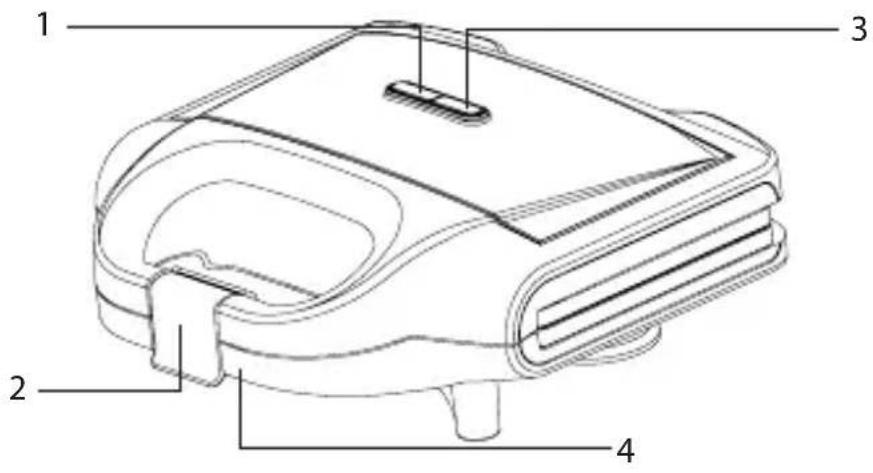

Produktoversikt

NO

1. Strømindikator

2. Händtakslås

3. Temperaturindikator

4. Håndtak

Førstegangsbruk

Line drawing of a closed book with a small tree on the cover (no text or symbols)

NO

Line drawing of a hand using a waffle to open the griddle (no text or symbols)

Line drawing of a device with a black arrow pointing to a component (no text or symbols)

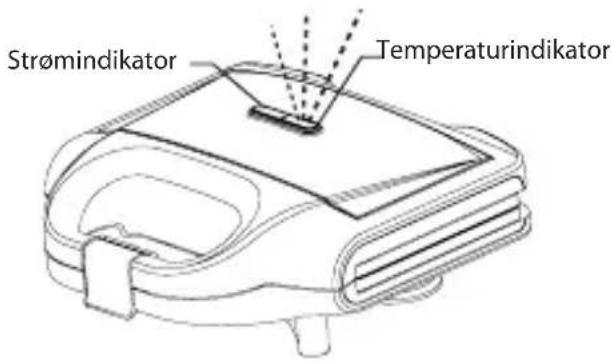

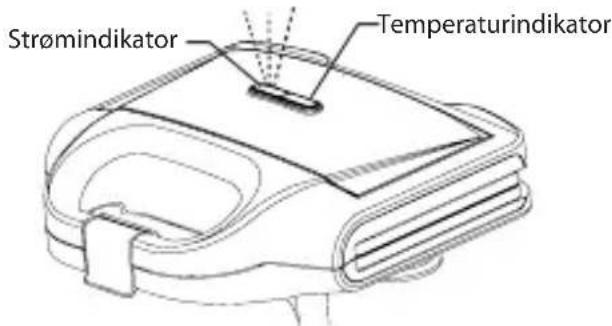

1. Trekk støpselet ut av stikkontakten när temperaturindikatoren tennes.

Lage sandwich

Pass på at brødskivene dekker stekeplatene.

Line drawing of a waffle grater with open lid and side panels (no text or symbols)

Line drawing of a device with a black arrow pointing to a component (no text or symbols)

Line drawing of a hand using a waffle to open the griddle (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Spesifikasjoner

Modell L02SMS18E
Nettstrøm 220-240V ~ 50Hz
Strømforbruk 700W

Line drawing of a closed book with a bookmark and two spines (no text or symbols)

Produktöversikt

SE

Line drawing of a closed book with a small tree on the side (no text or symbols)

Line drawing of a hand using a waffle to open the griddle (no text or symbols)

SE

Line drawing of a device with a black arrow pointing to a component (no text or symbols)

Line drawing of a waffle grater with open pan and side cutters (no text or symbols)

SE

Line drawing of a device with a black arrow pointing to a component (no text or symbols)

Line drawing of a hand using a waffle to open the griddle (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Specifikationer

Line drawing of a closed book with a bookmark and two legs (no text or symbols)

Laite Käyttöopas

Line drawing of a closed book with a small tree icon on the cover (no text or symbols)

Line drawing of a hand using a waffle to open the griddle (no text or symbols)

FI

Line drawing of a device with a black arrow pointing to a component (no text or symbols)

Line drawing of a waffle grater with open lid and side panels (no text or symbols)

FI

Line drawing of a device with a black arrow pointing to a component (no text or symbols)

Line drawing of a hand using a waffle to open the griddle (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Tekniset tiedot

Malli L02SMS18E
Jännite 220-240V ~ 50Hz
Virrankulutus 700W

Line drawing of a closed book with a bookmark and two spines (no text or symbols)

Line drawing of a closed book with a small tree on the cover (no text or symbols)

Line drawing of a hand using a waffle to cut the griddle into a tray (no text or symbols)

DK

Line drawing of a device with a black arrow pointing to a component (no text or symbols)

Line drawing of a griddle with open pan and two side cutters (no text or symbols)

DK

Line drawing of a device with a black arrow pointing to a component (no text or symbols)

Line drawing of a hand using a waffle to open the griddle (no text or symbols)

DK

Technical line drawing of a mechanical assembly with no visible text or symbols

Specifikationer

Model L02SMS18E
Strømforsyning 220-240V ~ 50Hz
Strømforbrug 700W

The symbol on the product or its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment.

For more information about where you can drop off your waste for recycling, please contact your local authority, or where you purchased your product.

NO

www.lefdal.com/support

SE www.elgiganten.se/support
