Product Type	Freestanding Washing Machine
Capacity	7 kg
Spin Speed	1000 rpm
Dimensions (H x W x D)	85 cm x 60 cm x 60 cm
Weight	70 kg
Power Supply	220-240 V, 50 Hz
Power Consumption	2000 W
Energy Class	A+++
Water Consumption per Cycle	45 L
Programs	Cotton, Synthetics, Delicates, Wool, Quick 15 min, Eco 40-60
Additional Functions	Delay Start, Child Lock, Speed Perfect, Temperature Control
Display Type	LED Digital
Drum Material	Stainless Steel
Noise Level (Wash/Spin)	54 dB / 76 dB
Maintenance	Clean detergent drawer and filter regularly; run drum clean cycle monthly
Safety Features	Overflow protection, unbalanced load detection, door lock
Spare Parts Availability	Genuine parts available at service centers; drum belt, pump, door seal
Reparability Index	8.5/10
Installation Type	Freestanding, cold water fill only
Brand	Elektro Helios
Model	TF1003

Frequently Asked Questions - TF1003 ELEKTRO HELIOS

How do I start a washing cycle on the Elektro Helios TF1003?

Load the laundry, add detergent, select a program using the dial, press the Start/Pause button. The machine will begin after a short delay.

What should I do if the machine does not drain?

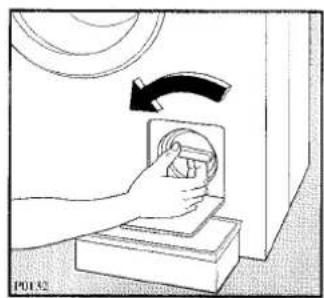

Check the drain hose for kinks, clean the pump filter (located at the bottom front), and ensure the drain pipe is not blocked.

How can I clean the detergent drawer?

Pull out the drawer completely, rinse under running water, use a brush to remove residue. Reinsert after drying.

What is the maximum load capacity?

The maximum load capacity is 7 kg for cotton programs. For other fabrics, reduce the load to avoid overloading.

How do I activate the child lock?

Press and hold the 'Child Lock' button for 3 seconds until the indicator light turns on. Repeat to deactivate.

Why is the machine vibrating excessively?

Ensure the machine is level, remove transport bolts, and check that the laundry is balanced. Overloading or uneven distribution can cause vibration.

How often should I run a drum clean cycle?

Run the drum clean cycle once every month to remove detergent buildup and maintain hygiene.

Can I use liquid detergent?

Yes, but add it to the designated compartment or use a dosing ball placed directly in the drum. Avoid overfilling.

What does the error code 'E10' mean?

Error E10 indicates a water supply problem. Check that the water tap is open and the inlet hose is not kinked or blocked.

How do I reset the machine?

Unplug the machine, wait 2 minutes, then plug back in. If the issue persists, contact customer support.

USER MANUAL TF1003 ELEKTRO HELIOS

B R U K S A N V I S N I N G

TF 1003

INNEHÅLLSFÖRTECKNING 3

Elektro EH Helios

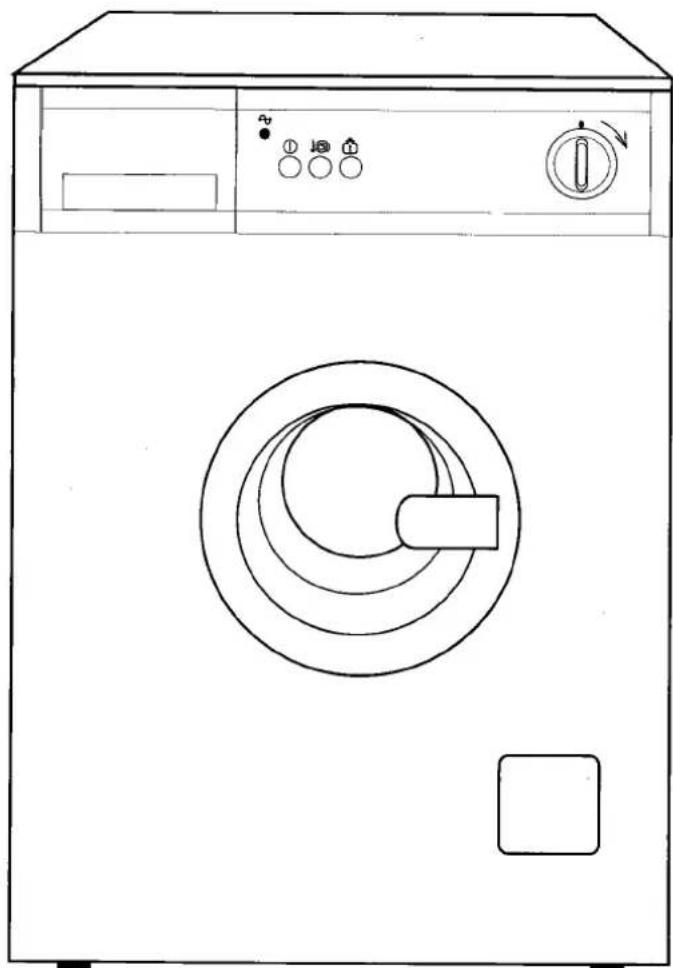

Line drawing of a front-loading washing machine with control panel and rotary knob (no text or symbols)

Illustration of a hand placing a component into a drawer with a plastic sheet inside (no text or symbols)

Illustration of a hand inserting a card into a drawer (no text or symbols visible)

Simple line drawings of four abstract symbols: a dashed circle, a solid spiral, a box with letter 'E', and two empty circles (no text or labels)

Illustration of a hand turning a circular component with an arrow indicating rotation (no text or symbols)

Simple line drawing of a finger pressing down with a circular button labeled '1' (no text or symbols beyond the number)

Illustration of hands inserting a card into a drawer with an arrow indicating direction (no text or symbols)

Illustration of hands using a tool to cut or remove a component, no text or symbols visible

Hand holding a small rectangular object with an arrow pointing to it, next to a textured surface (no text or symbols visible)

Illustration of a hand pressing down on a device with an arrow indicating rotation (no text or symbols)

Illustration of a hand using a tool to clean or wash material from a machine (no text or symbols visible)

Illustration of a hand washing a faucet with water splashing (no text or symbols)

Konsumentköp EHL

Hand using a screwdriver to adjust or install a component on a metal bracket (no text or symbols visible)

Technical diagram of an electronic device showing a connector with a black arrow indicating direction, mounted on a base plate (no text or symbols present)

Illustration of a hand using a wrench to adjust a mechanical component (no text or symbols visible)

Placering

Illustration of hands performing a mechanical press or gear shift operation (no text or symbols)

Diagram of a pipe fitting with a curved arrow indicating rotation (no text or symbols)

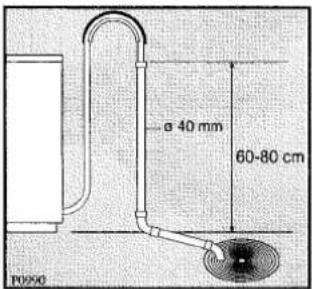

Avloppsanslutning

Diagram of a pipe connection with a valve, showing pipe routing and a valve (no text or symbols)
