Basis 9 - Tablet Overmax - Free user manual and instructions

Product Type	Tablet
Brand	Overmax
Model	Basis 9
Screen Size	9 inches (diagonal)
Dimensions	Approximately 240 x 160 x 10 mm
Weight	Approximately 450 g
Power Supply	Built-in rechargeable lithium-ion battery, 5V DC via USB charger
Battery Capacity	4000 mAh (typical)
Operating System	Android (version varies by batch)
Processor	Quad-core 1.3 GHz
RAM	1 GB
Storage	16 GB internal, expandable via microSD card
Camera	Rear 2 MP, Front VGA
Connectivity	Wi-Fi 802.11 b/g/n, Bluetooth 4.0, Micro-USB 2.0, 3.5 mm headphone jack
Display Resolution	1024 x 600 pixels
Touchscreen	Capacitive multi-touch
Maintenance & Cleaning	Wipe with a soft dry cloth; avoid liquids and abrasive cleaners
Safety	Keep away from heat sources and water; do not disassemble; use only supplied charger
Spare Parts & Repairability	Contact Overmax support for authorized service; limited user-replaceable parts
General Information	Intended for personal use; complies with EU directives

Frequently Asked Questions - Basis 9 Overmax

How do I turn on the Overmax Basis 9 tablet?

Press and hold the power button located on the side of the tablet for 3 seconds until the screen lights up.

How can I extend the battery life of my tablet?

Reduce screen brightness, turn off Wi-Fi and Bluetooth when not in use, close unused apps, and disable background data.

What should I do if the tablet freezes or stops responding?

Press and hold the power button for 10 seconds to force a restart. If problem persists, perform a factory reset from the settings menu.

How do I insert a microSD card into the Basis 9?

Locate the microSD card slot on the side of the tablet. Insert the card with the gold contacts facing down until it clicks into place.

Can I connect the tablet to a TV or monitor?

The Basis 9 does not have an HDMI port, but you can use a MHL adapter if supported, or cast your screen via wireless display technologies like Miracast (if available).

How do I charge the tablet?

Connect the included USB cable to the Micro-USB port and a compatible charger (5V, 2A recommended). The battery icon shows charging status.

What is the best way to clean the screen?

Use a soft, lint-free cloth slightly dampened with water or a screen cleaner. Do not spray liquid directly on the screen.

How to take a screenshot on the Overmax Basis 9?

Press and hold the power button and volume down button simultaneously for 2 seconds. The screenshot will be saved in the Gallery.

Why is the tablet running slowly?

Clear cache from settings, uninstall unused apps, move media to microSD card, and consider a factory reset if performance does not improve.

Where can I download the user manual for the Basis 9?

Visit notice-facile.com and search for 'Overmax Basis 9' to download the manual in PDF format for free.

USER MANUAL Basis 9 Overmax

Your electronic world

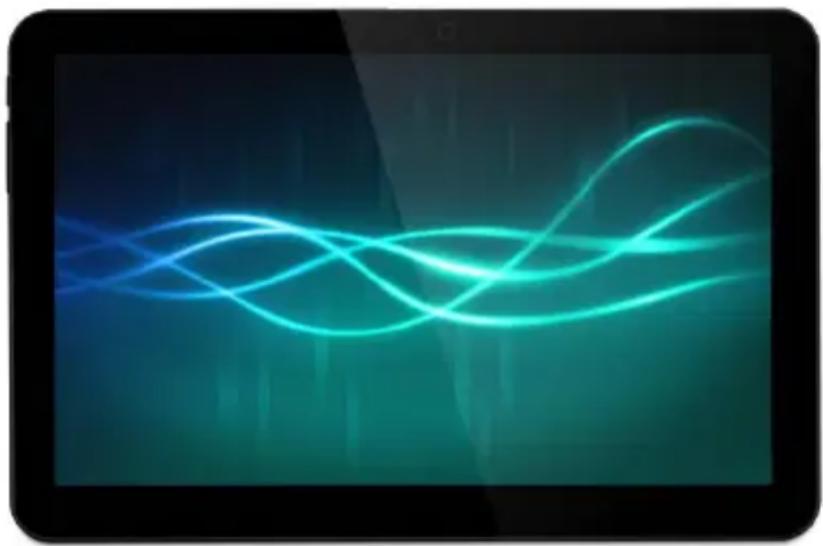

Abstract digital artwork with glowing blue and cyan wave patterns on a dark background (no text or symbols)

Thank you for buying this MID. Please read and retain all the operating instructions before operating the unit.

I. Note

1. Avoid the unit being dropped. Avoid the display been shake seriously, or the display will be damaged or unusual.
2. Do not use metal object to touch the device to prevent it from short circuit.
3. Please backup your data in case your important data is lost, especially before you upgrade the firmware.
4. Do not disassemble. Do not wipe the surface of the unit by alcohol, thinner or benzene.
5. Do not disconnect the unit while it is formatting or uploading/downloading, or the procedures may lead to errors.
6. Avoid water or foreign objects enter the unit.
7. Do not use the unit in places that are extremely hot, cold, dusty, or humid.
8. Specifications are subject to change and improvement without notice.

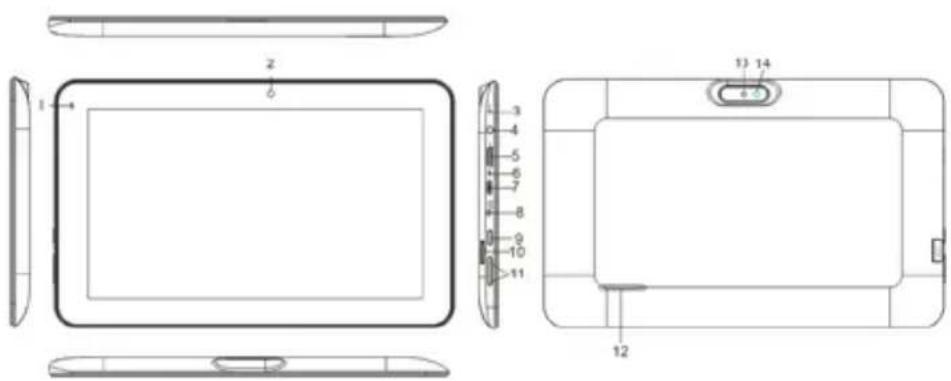

II. Introduction of cover

1. DC LED
2. Front Camera
3. Reset
4. Earphone Jack
5. HDMI interface
6. MIC

7. Micro USB interface

8. DC charger interface

9. Power on/off
10. TF card interface
11. Volume +,Volume -
12. Loudspeaker
13. Back Camera
14. Shining Light

III. Operation Instruction

1. Basic Operation

1.1. Power on/Power off

Power on

Press and hold the power switch for 5 seconds; the unit displays the start-up logo and enters the working mode.

Power off

Press and hold the power switch for 5 seconds to turn the unit off.

Sleep

While the device is at working status, press the power switch, it enters the sleeping mode, and the screen will be off then. Press the power switch again, it shift to the normal mode. You may use this function when you don't' use the device temporary to save power.

1.2. Charging

When the device prompts low battery, please charge it by provided charger.

Note: To improve the longevity of the battery, you may charge for another 15 minutes after it prompts the battery is full.

1.3. Main menu

Click the icon in the main interface, the main menu is appeared. It including the system setting, music playback, video playback, web browser and other applications you installed in the main menu.

2. Settings

Click “Settings” in the main interface to enter the setting interface. Click the corresponding setting items to operate.

2.1. Date and Time Setting

Click "Date & time" in the setting interface to set the date and time. You may set the date, time zone, time, time format and date format etc. in the menu.

2.2. Brightness

Select "Display" in the setting interface. Click "Brightness" to enter, and slide the bar to adjust the brightness.

2.3. Screen Timeout

Adjust the delay before the screen automatically turns off.

Select "Display" in the setting interface. Click "Sleep" to enter, and click the time you want.

Note: The setting of screen timeout is unavailable while playing video.

3. Wi-Fi connection

Click "Settings" in the main interface.Click Wi-Fi to turn on the WIFI, it lists the open network it searched. Click the name of the network; it pops up the setting window. You may connect it to WIFI according to the prompts. You need to input the user name and password if networks are encrypted.

4. Install, Uninstall and Run applications

4.1 Install

There are many ways to install applications under Android, such as via USB, by third party program. We introduce installation by Apps Installer here.

Click the "APKInstaller" in the main interface to enter the "install and manage" interface.

Select the APK file you want and enter the application installation interface. Click "Install" to install the application automatically. After installation, it prompts "Open" and "Finish". Click "Open" to open the application. Click "Finish" to exit.

4.2 Uninstall

You may use the corresponding third party software management tool or the installed application management software of the device to install applications.

Select “Setting/Applications/Manage applications” to select the installed applications and check the attribute of it or uninstall it.

5. Connect to internet

5.1. After connecting with WIFI, open the browser and input the web address, you can browse the web then.

5.2. Click the ★ icon to enter the bookmark to view the browse history. Click the web page you want to open it.

6. Audio and video playback

6.1. Audio playback

Click the "MUSIC" in the main menu to enter the audio playback interface. It lists the audio files in the device, and you may click the file name to play it. in the audio playing interface, click the icons to play/pause/ increase volume/ decrease volume/ FF/ REW....

6.2. Video Playback

Click the “Gallery” in the main menu to enter the video playback interface. It lists the video files in the device, and you may click the file name to play it. in the video playing interface, touch the screen to pop-up the operation icons and click the icons to play/pause/ increase volume/ decrease volume/ skip to next file/skip to previous file....

7. Picture viewing

Click "Gallery" in the main menu to enter the picture folder list. Select and click the folder you want to enter, it displays the . click the thumbnail of the picture to view it.

Touch the screen to pop-up the operation icons while viewing the picture, you may zoom in/zoom out/ skip to next picture/skip to previous picture/ rotate/ delete the picture...

8. Camera

Click "Camera" in the main interface.

8.1 Camera

If the cursor is at

position, the device is at Camera mode.

to take picture.

to set the scene mode, Picture size, Picture quality, and colour effect.

to set white balance.

8.2 DV

If the cursor is at

position, the device is at DV mode.

Click

to take picture.

Click

to set the colour effect or restore to default settings.

9. Connect with external device

9.1. Connect with PC

Connect the device with the PC via the USB cable. The PC appears two new disk symbols after connected successfully. One is the TF card, and the other is the built-in flash.

9.2. Use of OTG

It supports the movable device with FAT32 format, such as U disk and MP3. Connect the movable device to the MID.

9.3. Applications

For convenient usage, we installed some third party software in the MID. For detailed operation methods, please check the corresponding instruction. Some of the software may be able to be used in some area because of network service.

IV. Troubleshooting

3. What if the device is abnormal during operation?

Answer: 1) Reboot the device to see if it works OK.
2) Charge the device by the charger to activate the battery. Make sure it has power before you operate it.
3) It is suggested to upgrade the OS of the device by professional.

4. Why the standby time is so short sometimes?

Answer: the use time of the battery is all depend on the temperature and use instance. If the temperature is too high or too low, the use time of the battery might be effected. It is suggest using the device in normal temperature. The using time is also affected by increased volume and frequently operation.

NÁVOD K OBSLUZE

Česky

Úvod

1. DC LED
2. Camera frontala
3. Reset
4. Casca Jack
5. Interfata HDMI
6. MIC

7. Interfata Micro USB

8. Interfata incarcatorDC

9. Oprire/pornire
10. Interfata card TF
11. Volum +,Volum -
12. Difuzor
13. Camera spate
14. Lumina

III. Instructiuni de operare

1. Operatii de baza

1.1. Pornire/oprire

Pornire

Declaration of Conformity

We, the undersigned:

Declare the following apparatus:

Products name:	Tablet 9”
Brand and Model name:	OV-Basis9

Hereby we confirm above product compliance with the European directive of CE :

EMC :	2004/108/EC
LVD :	2006/95/EC
R&TTE :	1999/5/EC
ROHS :	2011/65/EU
WE :	1275/2008

Below standards were tested and passed :

EMC :	ETSI EN 301 489-1 V1.8.1 (2008-04)ETSI EN 301 489-17 V2.1.1 (2009-05)
LVD :	EN 60950-1:2006 + A11:2009 +A1:2010 + A12:2011
R&TTE :	EN 300328 V1.7.1:2006EN 62311:2008

Release date: 21.09.2012

May be sold in: BE CZ DK DE EE IE EL ES FR HR IT LV LT HU MT NL AT PL PT RO SI SK FI SE UK

The original document is located in the headquarter Overmax Poland sp. z o.o sp. k. ul. Dziadoszańskiej 10 61-248 Poznan Poland

OVERMAX Your electronic world

OV-Basis9
